A PRODUCT OF THE GENFLEX SYSTEM
MADE IN THE USA
LINK ELECTRONICS, INC.
MASTER ANALOG GENERATOR
MODEL SPG-812/SA
For Future Generations
Link’s SPG-812/SA is an analog master sync
generator, including: SPG-812 chassis & power
supply, analog genlock 812-OP/C, analog black
burst 812-OP/A, analog pattern generator 812-
OP/G, and AES + analog tone 812-OP/E.
Modules available:
Analog Black Burst Master Timebase Generator 812-OP/A
Digital Black Master Timebase Generator 812-OP/B
Black Master Timebase Gen., with Gen-Lock 812-OP/C
SDI Black Master Timebase Gen., with Gen-Lock 812-OP/D
AES and Analog Tone, 812-OP/E
Digital Test Signal Generator -16 Signals 812-OP/F
Analog Test Signal Generator -16 Signals 812-OP/G
Sync, SC & Blanking Generator 812-OP/H
Optional 0.5 Master Oscillator, 812-OP/I
Source ID, XDS Monitor and CC Decoder, 812 -OP/J
HD, VD & SC Generator 812-OP/K
Sync, SC and Burst Flag Generator 812-OP/L
Digital Tone Generator 812-OP/M
The following patterns are available in the test
generator module, SDI or analog.
100% Color Bars
75% Color Bars
SMPTE Color Bars (NTSC) or
EBU Color Bars + White Flag (PAL)
Modulated Stairstep (5-Step)
Un-Modulated Stairstep (5-Step)
Modulated Ramp
Un-Modulated Ramp
Pulse & Bar
Field-Rate Square Wave
SDI Check Field
50% Multiburst
100% Sweep
Red Field
Shallow Ramp
Gray Field
Blackburst
LINKELECTRONICS, INC. 2137 Rust Avenue Cape Girardeau, MO 63703-7668
Phone [phone] FAX [phone]

SPG-812/SA ANALOG MASTER GENERATOR
SPECIFICATIONS
Link's SPG-812 is designed to provide accurate
analoganddigitaltimingreferencesignals.Alook-
a-like chassis is designed for the Automatic
Change-over unit. It's modular construction offers
unmatched flexibility to the user, and provides an
easy means of upgrading from analog to digital.

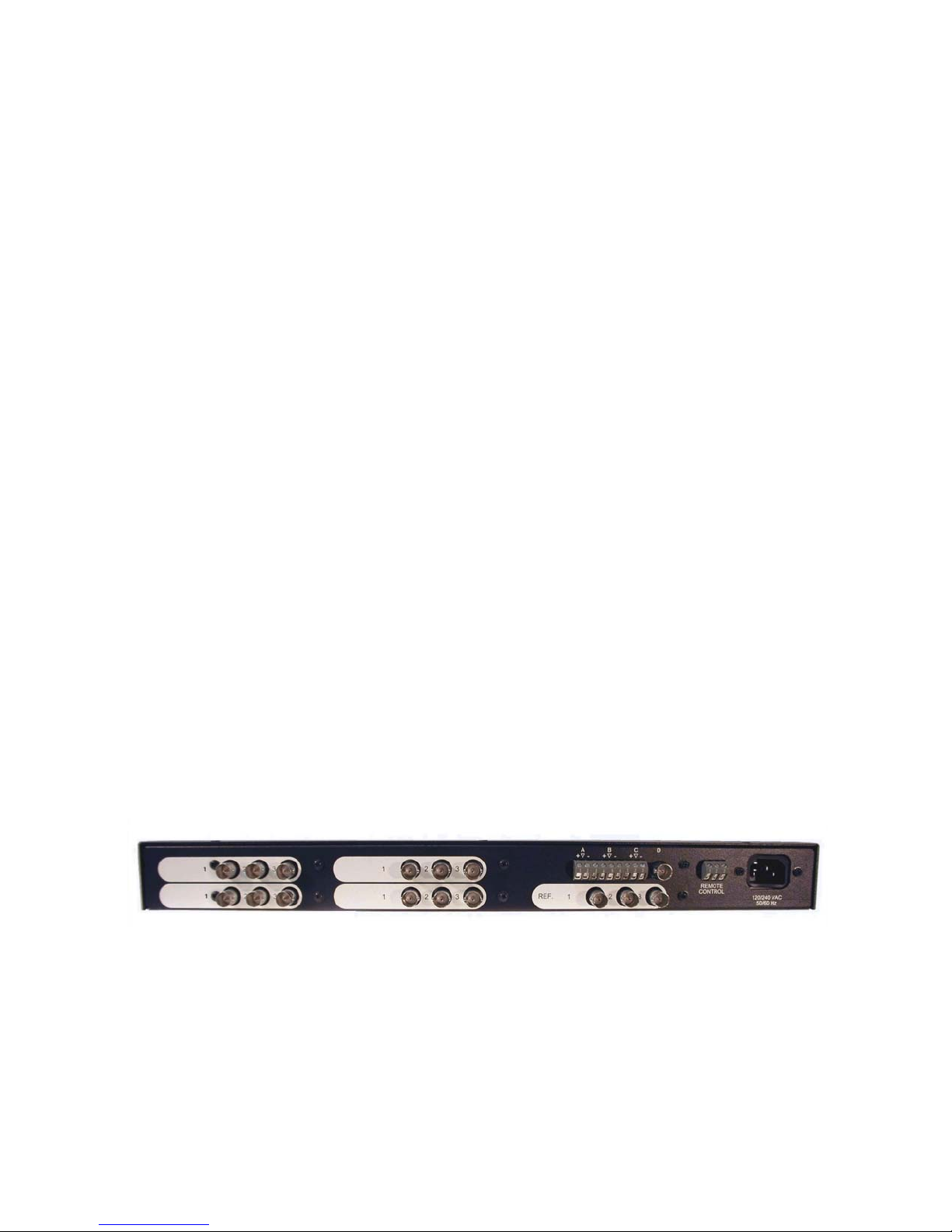

The SPG-812 consists of a 1RU chassis and
power supply with six module cells to
accommodate various module functions. One
module cell is dedicated as a dual analog/digital
audio reference tone generator. A digital only tone
generator is also available. The second cell is
designated as the master gen-lock module or
master timebase unit. The selection of gen-lock
can be either analog or digital through a dedicated
module. The optional gen-lock module provides
the timebase signals for all chassis modules. Any
of the output modules may be installed in the
remaining four cells. The four cells can be used in
any of the four remaining cell for analog
blackburst, component digital black, analog
composite test pattern, component digital test
pattern,source ID, ratingscode monitororcaption
decoder.The812-OP/JsourceIDmodulewillhold
up to 32 pages of data and is RS-232 controlled.
Eachoutputmoduleisavailablefor525/60(NTSC)
or 625/50 (PAL) operation. There are three
outputs per module and each module has its own
independent infinite timing adjustments. A dual
audio tone generator is available to provide Silent,
0dB, -10dB and -20dB levels.
The SPG-812's flexibility is unmatched in the
industry. Eachmoduleisaccessible fromthefront
oftheunitandmaybeeasily installedor removed.
Alltimingadjustmentsarelocatedonthefrontcard
edge. It is possible to begin with an all-analog unit
and gradually upgrade to an all-digital unit simply
bycombiningtheappropriatemodules. Ifgen-lock
capability is not required, an output module may
be installed in the "gen-lock" slot to serve as the
unit'smaster timebase. Thedigitaland analog test
generatorsmay be pluggedinto theSPG-812 asa
stand-alonetestsignalgeneratorwithoutanyother
optional module as they equipped with it own
timebase.
The PCO-818 automatic pulse change-over
modules operate as independent or synchronized
operation. Two PCO-818 change-over chassis
may be interlinked to cause all modules to switch
should a failure occur in the master generator.
ENVIRONMENTAL:
Temperature: ...................................................... 0°to50°CAmbient
Power:............................................... 15watts,basedonplug-inmodules
MECHANICAL:
Height:.................................................................. 1.75Inches
Width: ....................................................................19Inches
Depth: .....................................................................8Inches
Weight: ...................................................................5Pounds
LINK ELECTRONICS, INC.
2137 Rust Avenue
Cape Girardeau, MO 63703
Phone: [phone]
FAX: [phone]
PROFESSIONAL SERIES--
stand-alone system products--by LINK
