Go Power GP-ISW-400 User manual

GP-ISW-200/400
Pure Sine Wave Inverter
Quick Start Guide
Find tech tips, manuals and support at gpelectric.com
Warnings
Specications
Do not open or disassemble the Inverter. Attempting to do so may cause risk of electrical shock or fire.
We guarantee this product against defects in materials and workmanship for a period of 24 months
from the date of purchase. In case you need to repair or replace any defective power inverters, please
contact your local Go Power! distributor.
This warranty will be considered void if the unit has been misused, altered, or accidentally damaged.
Go Power! is not liable for anything that occurs as a result of the user’s fault.
Please read the Owner’s Manual BEFORE connecting to the supply.
You can view and download the manual at
https://gpelectric.info/ISW200400Manual
3
7
6
5
8
2
2
1
1
4
ON / OFF / Remote Main Switch
LED Indicator 4
3AC Output
Function Switch
6
5DC Input Terminal
Green Terminal 8
7Remote Port (RJ-11)
Chassis Ground
PURE SINE WAVE INVERTER
GP-ISW200 GP-ISW400
Continuous Output Power 200 W (VA) 400 W (VA)
Maximum Surge Rating 250 W (VA) 800 W (VA)
Output Waveform Pure Sine Wave
Output Voltage Range ± 3% 100 - 120 VAC (Dip Switch Selectable)
Input Voltage 12 V: 10 - 16 VDC
24 V: 20 - 32 VDC
12 V: 89%
24 V: 91%
12 V:88%
24 V: 89%
No Load Current Draw / Powersave 12 V: <0.5A
24 V: <0.4A
12 V: <1A @ 12VDC
24 V: <0.5 @ 24VDC
Input Protection Reverse Polarity (Fuse) / Under Voltage / Over Voltage
Output Protection Short Circuit / Overload / Over Temperature
Low Battery Alarm ± 0.3 V
(± 0.5 V for 24 V inverters)
12 V: 10 V
24 V: 21 V
Low Battery Shutdown ± 0.3 V
(± 0.5 V for 24 V inverters)
12 V: 10 V
24 V: 20 V
Operating Temperature Range -4˚ F - 140˚ F (-20˚ C - 60˚ C)
Storage Temperature Range -22˚ F - 158˚ F (-30˚ C - 70˚ C)
Cooling Temperature and Load Controller Cooling Fan
AC Output Connections Dual GFCI Outlet
Dimensions (W x H x L) 5.91 x 2.68 x 7.36 inch
(150 x 68 x 187 mm)
5.91 x 2.68 x 7.36 inch
(150 x 68 x 187 mm)
Weight 3.5 lbs (1.6 kg) 3.5 lbs (1.6 kg)
Warranty 2 Years
Inverter Install Kits GP-DC-KIT1
Remotes (Optional) GP-ISW-R / GP-SWR-A
Regulations and Safety
Note: Both 12V and 24V inverter specifications are listed below.
Installation and Wiring - Overview
The GP-ISW should be located as close to the batteries as possible but
not within the same compartment. The length and size of the DC Cables
will affect performance. Long DC wires tend to lose efficiency and reduce
the overall performance of the Inverter/Charger.
For optimum Inverter performance the GP-ISW must be installed so the
front and rear air vents are not blocked or obstructed in any way. Do not
install the GP-ISW in an area with limited air flow. Allow as much space
around the Inverter as possible, leaving at least 4 inches of airspace
clearance around all ventilation areas.
• Flathead Screwdriver (for wire terminals)
• Philips Screwdriver (for mounting screws)
Tools and Materials Needed
Mounting Orientations
See user manual for complete instructions at gpelectric.com
LOAD
Battery
GP-SWR-A
Remote Control
PURE SINE WAVE INVERTER
2
PURE SINE WAVE INVERTER
LED Indicators
LED Status DC 12V DC 24V
Red
Orange
< 11.0V
11.0 ~ 11.5V 22.0 ~ 23.0V
Green 11.5 ~ 15.0V 23.0 ~ 30.0V
< 22.0V
Orange 15.0 ~ 15.5V 30.0 ~ 31.0V
Red < 15.5V > 31.0V
Input Voltage Level
LED Status Status Recovery Point
Green
Red
Normal
Over Current Protection/
Over Load Protection (AC
output short-circuit and over
load)
Under Temperature Protection/
(Heat sink temp. under -20°C)
Under Voltage Protection/
(Input DC voltage under
spec)
Over Temperature Protection
(Heat sink temp. over 80°C)
Red Blink 12.5V @ DC12V System
25V @ DC24V System
14.5V @ DC12V System
> 0°C
(Heat sink temperature)
< 60°C
(Heat sink temperature)
29V @ DC24V System
Red Fast Blink Over Voltage Protection
(Input DC voltage over spec)
Orange
Orange Fast Blink
Orange Slow Blink
Device startup process
abnormal -
Input Voltage Level
HORIZONTAL WALL MOUNT, BASE DOWN
HORIZONTAL MOUNT,
BASE DOWN
HORIZONTAL MOUNT,
BASE UP
VERTICAL MOUNT, DO NOT MOUNT
THE GP-ISW IN THIS CONFIGURATION

This manual suits for next models

1

Other Go Power Inverter manuals

Go Power GPSW-3000 User manual

Go Power

Go Power GPSW-3000 User manual

Go Power Weekender SW User manual

Go Power

Go Power Weekender SW User manual

Go Power JS120 User manual

Go Power

Go Power JS120 User manual

Go Power GP-ISW-700 User manual

Go Power

Go Power GP-ISW-700 User manual

Go Power GP-ISW-700 User manual

Go Power

Go Power GP-ISW-700 User manual

Go Power GPSW-3000 User manual

Go Power

Go Power GPSW-3000 User manual

Go Power GP-12-300 User manual

Go Power

Go Power GP-12-300 User manual

Go Power GP-1750HD GP User manual

Go Power

Go Power GP-1750HD GP User manual

Go Power GP-FLEX-55 User manual

Go Power

Go Power GP-FLEX-55 User manual

Go Power GP-PWM-30-SQ User manual

Go Power

Go Power GP-PWM-30-SQ User manual

Go Power GP-PSK-80 User manual

Go Power

Go Power GP-PSK-80 User manual

Go Power GP-225HD User manual

Go Power

Go Power GP-225HD User manual

Go Power GPSW-300 User manual

Go Power

Go Power GPSW-300 User manual

Go Power GPSW-600 User manual

Go Power

Go Power GPSW-600 User manual

Go Power GP-DC-KIT2 User manual

Go Power

Go Power GP-DC-KIT2 User manual

Go Power GP-ISW-200 User manual

Go Power

Go Power GP-ISW-200 User manual

Go Power GP-1000 User manual

Go Power

Go Power GP-1000 User manual

Go Power GP-3000HD User manual

Go Power

Go Power GP-3000HD User manual

Go Power SOLAR EXTREME User manual

Go Power

Go Power SOLAR EXTREME User manual

Go Power GP-175 User manual

Go Power

Go Power GP-175 User manual

Go Power GP-DURALITE-100 User manual

Go Power

Go Power GP-DURALITE-100 User manual

Go Power GPSW-150 User manual

Go Power

Go Power GPSW-150 User manual

Go Power PureSine 150 User manual

Go Power

Go Power PureSine 150 User manual

Go Power GP-PWM-30 User manual

Go Power

Go Power GP-PWM-30 User manual

Popular Inverter manuals by other brands

Rosewill RCI-201MS user manual

Rosewill

Rosewill RCI-201MS user manual

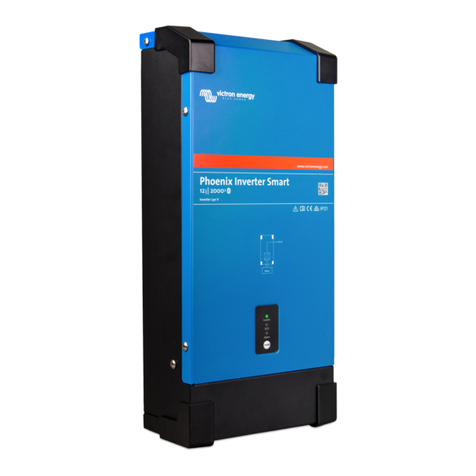

Victron energy Phoenix Inverter Smart Series manual

Victron energy

Victron energy Phoenix Inverter Smart Series manual

FASAR ELETTRONICA FE1018 quick start guide

FASAR ELETTRONICA

FASAR ELETTRONICA FE1018 quick start guide

Kaco blueplanet hybrid 10.0 TL3 manual

Kaco

Kaco blueplanet hybrid 10.0 TL3 manual

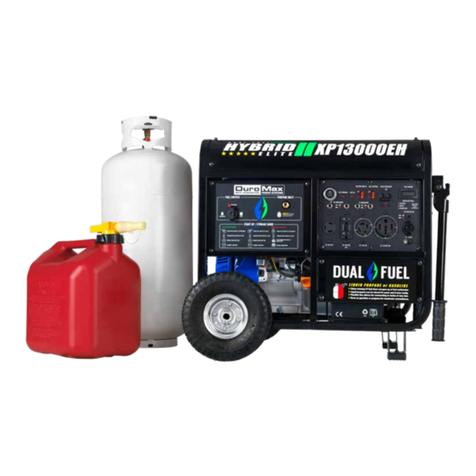

DUROMAX DUAL FUEL XP13000EH quick start guide

DUROMAX

DUROMAX DUAL FUEL XP13000EH quick start guide

ALLTO SOLAR AS-SL-S01 user manual

ALLTO SOLAR

ALLTO SOLAR AS-SL-S01 user manual

Mitsubishi Electric FR-A700 Series INSTALLATION GUIDELINE

Mitsubishi Electric

Mitsubishi Electric FR-A700 Series INSTALLATION GUIDELINE

Fuji Electric MICREX-SX series user manual

Fuji Electric

Fuji Electric MICREX-SX series user manual

Siemens SINAMICS G130 operating instructions

Siemens

Siemens SINAMICS G130 operating instructions

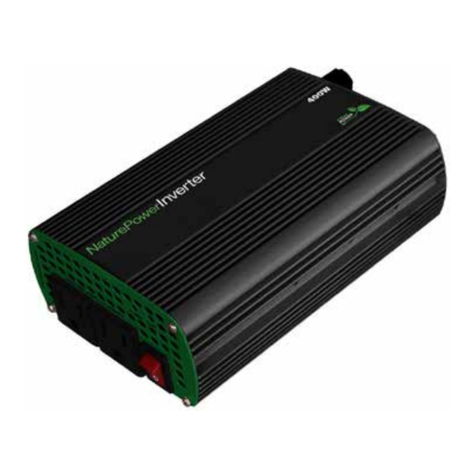

Nature Power Pure Sinewave user manual
