Avantco A35408 User manual

Generator
2021 1
Operator's Manual for Attachment
Generator
Product number:
A35408
English
A445762 2021 1 EN 2020-
www.avanttecno.com

Generator 2021 1

Generator 2021 1
CONTENTS
1. FOREWORD ........................................................................................................................................ 4
Warning symbols used in this manual ...................................................................................................................................5
2. DESIGNED PURPOSE OF USE.......................................................................................................... 6
3. SAFETY INSTRUCTIONS FOR USING THE SNOW BLOWER ................................................... 7
3.1 Personal protective equipment...............................................................................................................................8
3.2 Safe shutdown procedure ........................................................................................................................................9

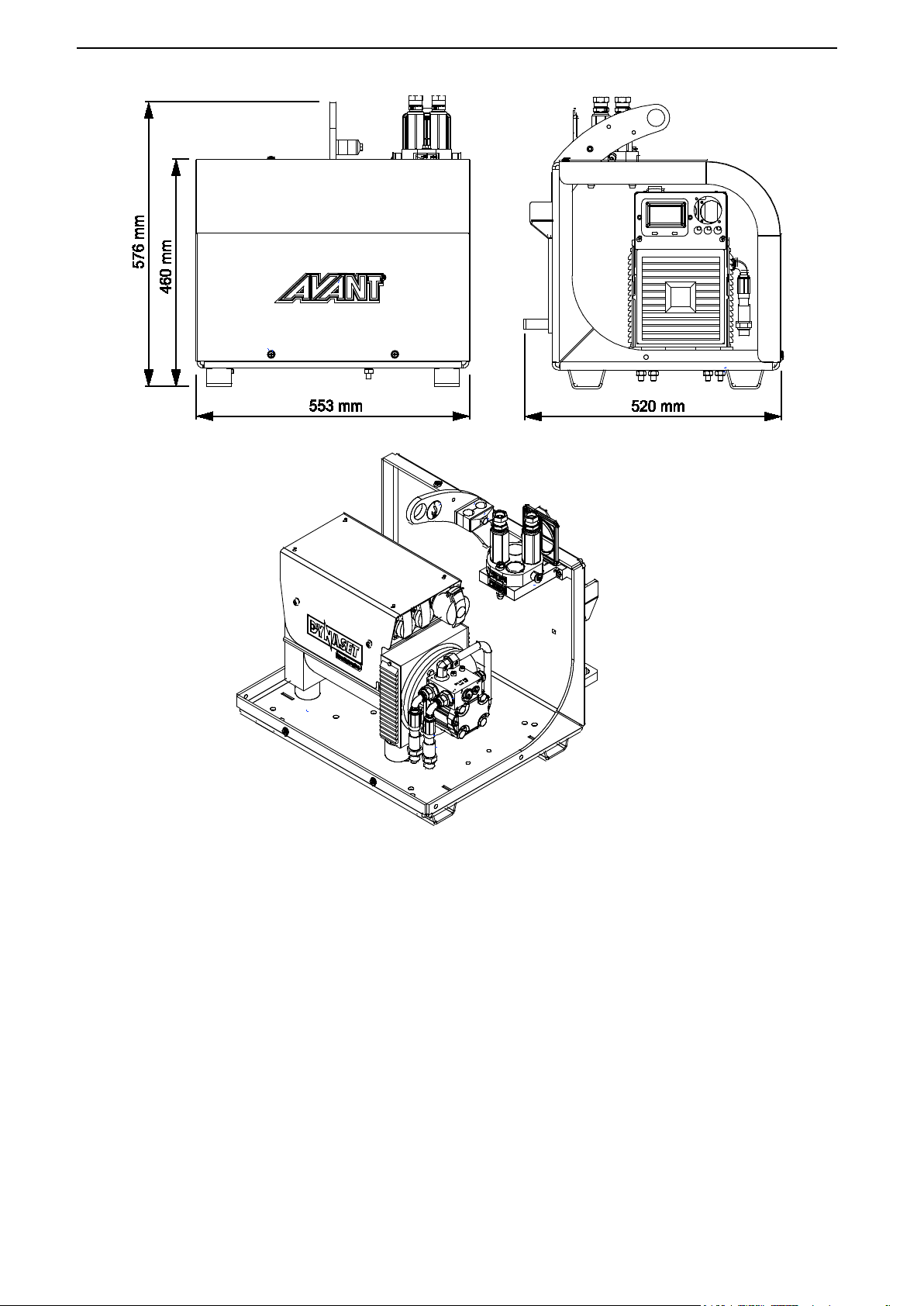

4. TECHNICAL SPECIFICATIONS ....................................................................................................... 10
4.1 Safety labels and main components of the attachment ....................................................................................11
5. ASSEMBLING THE ATTACHMENT................................................................................................. 13
5.1 Connecting and disconnecting hydraulic hoses ..................................................................................................14
6. OPERATING THE ATTACHMENT .................................................................................................. 16
6.1 Checks before use .....................................................................................................................................................17
6.2 Operator qualification...............................................................................................................................................17
6.3 Using the Generator .................................................................................................................................................18
6.4 Transport position .....................................................................................................................................................19
6.5 Uncoupling and storage ............................................................................................................................................19
6.6 End of life disposal......................................................................................................................................................19
7. MAINTENANCE AND SERVICE ....................................................................................................... 20
7.1 Inspection of hydraulic components .....................................................................................................................20
7.2 Cleaning the attachment...........................................................................................................................................21
7.3 Inspection of metal structures................................................................................................................................21
7.4 Generator maintenance............................................................................................................................................21
8. WARRANTY TERMS .......................................................................................................................... 22

4 (24)
1. Foreword
Avant Tecno Oy would like to thank you for your purchase of this attachment for your Avant loader. It has
been designed and manufactured based on years of experience on product development and manufacturing.
By familiarizing yourself with this manual and following the instructions, you ascertain your safety and ensure
the reliable operation and long service life of the equipment. Read the instructions carefully before starting to
use the equipment or performing maintenance.
The purpose of this manual is to help you to:
operate the equipment in a safe and efficient manner
observe and prevent any hazardous situations
keep the equipment intact and ensure a long service life
With these instructions, even an inexperienced user can use the attachment and loader safely. The manual
includes important instructions for experienced AVANT operators as well. Ensure that all persons using the
loader have received proper guidance and familiarised themselves with the manual of the loader, each
attachment that are used, and all safety instructions before using the equipment. Using the equipment for
other purposes or use in any other way than described in this manual is prohibited. Keep this manual at hand
throughout the service life of the equipment. If you sell or transfer the equipment, be sure to hand over this
manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant
dealer or from the manufacturer.
In addition to the safety instructions included in this manual, you must observe all occupational safety
regulations, local laws, and other regulations concerning the use of the equipment. Particularly the regulations
concerning the use of the equipment on public road areas must be observed. Contact your Avant dealer for
more information about local requirements before you operate the loader on road areas.
Contact your local AVANT dealer for any questions, service, spare parts or about any problems that may
occur with the operation of your machine.
This manual contains the original instructions in English. Due to continuous product development some of the
details shown in this manual may differ from your equipment. Pictures may also depict optional equipment or
features that are not currently available. We reserve the right to change the contents of the manual without
notification. Copyright © 2021 Avant Tecno Oy. All rights reserved.

5 (24)
.
Warning symbols used in this manual
The following warning symbols are used throughout this manual. They indicate factors that must be taken into
account to reduce the risk of personal injury or damage to property:
WARNING SAFETY ALERT SYMBOL
This symbol means: “Warning, be alert! Your safety is involved!”
Carefully read the message that follows, it warns of an immediate hazard
that could cause serious personal injury.
The safety alert symbol by itself and with related safety statement
indicates important safety messages throughout this Manual. It is used to
draw attention to instructions involving your personal safety or the safety
of others. When you see this symbol, be alert, your safety is involved,
carefully read the message that follows, and inform other operators.
DANGER
This signal word indicates a hazardous situation which, if not avoided, will cause
death or serious injury.
WARNING
This signal word indicates a potentially hazardous situation which, if not avoided,
could cause serious injury or death.
CAUTION
This signal word is used when minor injury could result if the instructions are not
followed properly.
This signal word indicates information about the correct operation and maintenance
of the equipment.
Failure to observe the instructions accompanying the symbol can lead to equipment
breakdown or other property damage.

6 (24)
2. Designed purpose of use
The AVANT Generator is an attachment that is suitable for use with AVANT compact loaders that are shown
in Table 1. The Generator is used by means of the auxiliary hydraulics oil flow of the loader, making it possible
to create an electric current supply with Avant loader.
The Generator is equipped with one 400V outlet and two 230V outlets. Attachment can be used as a power
source for power tools and electrical equipment in places where mains current is not available. The Generator
also guarantees electric power supply during power outages, for example.
The Generator is not designed for any other use than what is specified in this manual and must not be used
for any other purposes than what is intended for.
The attachment has been designed to require as little maintenance as possible. The operator can perform
regular maintenance tasks. All repair work can’t be performed by the operator, and demanding repair and
maintenance operations are to be left for professional technicians. All maintenance work must be done using
proper safety equipment. Spare parts must be identical with original specifications, which can be ensured by
using only original spare parts. A separate spare parts catalogue may be available, consult your Avant dealer.
Familiarise yourself with the manual's instructions regarding service and maintenance. Please contact your
AVANT dealer if you have additional questions about the operation or maintenance of the equipment, or if you
require spare parts or maintenance services.
Table 1 - Generator - Compatibility with Avant loaders
Model
220
225
225LPG
313S
320S
420
520
R20
320S+
423
523
525LPG
528
530
R28
630
R35
635
640
735
745
750
755i
760i
850
860i
e5
e6
A35408 - - (•) ••••-
It is recommended to use the attachment only with loaders marked with •in Table 1. When using with models
marked with (•), full performance may not be achieved. Additional counterweights may also be required. For
compatibility with a model not shown in table, contact your Avant dealer.

7 (24)
3. Safety instructions for using the snow blower
Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly
powerful and improper or careless use or maintenance may cause serious personal injury or property
damage. Due to this, all operators must carefully familiarise themselves about correct use and the operator's
manuals of both the loader and the attachment before starting operation. Do not use the attachment if you
have not completely familiarised yourself with its operation and the related hazards.
DANGER
Misuse, careless use, or using an attachment that is in poor condition may
cause risk of serious injuries. Familiarise yourself with the controls of t
he loader,
correct coupling procedure, and the correct way to operate the attachment at a safe
area. Study especially how to stop the equipment in a safe manner. Read all safety
precautions carefully.
Read all safety instructions carefully before handling the attachment
WARNING
When attaching an attachment to the loader, ensure that the locking pins of the
loader's quick attach plate are in the lower position and that they have locked
the attachment to the loader. Never lift or move an unlocked attachment.

This attachment is designed to be used by one operator at a time. Do not let others
near the danger area of the equipment when it is in use.

Always transport the attachment as low as possible to keep the centre of gravity low,
and keep the telescopic boom retracted during driving.
Risk of crushing under the attachment or the loader boom - Lower the
attachment firmly on the ground before leaving the driver’s seat.
Make sure that
the attachment is properly supported during any maintenance or inspecti
ons. Do not
leave the driver’s seat when the loader boom is lifted. Going under a raised
attachment or loader boom is dangerous, as the boom may lower due to loss of
stability, mechanical fault, or if another person operates the controls of the loader.
Risk of electric shock - Uncontrolled discharge of residual electric charge can
cause serious injuries.
Wait at least 30 minutes until the charge of the electric parts
has been completely discharged before removing any covers.
Burn hazard - Keep clear of hot surfaces. Running generator will get hot quickly
and touching hot surfaces of the unit can cause burns. Keep clear of hot surfaces.
Wear personal protective equipment, if necessary.
Pay attention to the surroundings and any other persons and machines moving in the
vicinity. Pay attention to the contours of the terrain and other hazards, such as
branches and trees that can reach to the driver's area, loose rocks, and slippery
surfaces.
Ensure that ventilation is sufficient when operating indoors. Do not operate the loader
in closed spaces regardless of the engine or fuel type. Exhaust gases may
concentrate to hazardous levels.
Never use the attachment to lift or to transport persons or as any kind of work
platform even temporarily.
Make sure to use only an attachment that is in good condition. Check the attachment
thoroughly in regular intervals. Do not modify the attachment in a manner that would
affect its safety. It is prohibited to drill holes on the attachment, and welding or other
means of fixing hooks or other objects on the attachment is strictly prohibited.

8 (24)
WARNING
Shut down the loader and place the attachment to a safe position as shown in Safe
stopping procedure before any cleaning, maintenance, or adjustments.
Use the attachment only for its intended purpose. Other use may create unnecessary
safety risks, and the equipment may get damaged.
Make sure that the loader is equipped with necessary safety components, and that
they are in working condition. Seat belt must be used. If there
are specific hazards
related to the operating area, use appropriate safety equipment.
Also read the safety instructions and correct use of the loader from the operator's
manual of the loader.
. ..

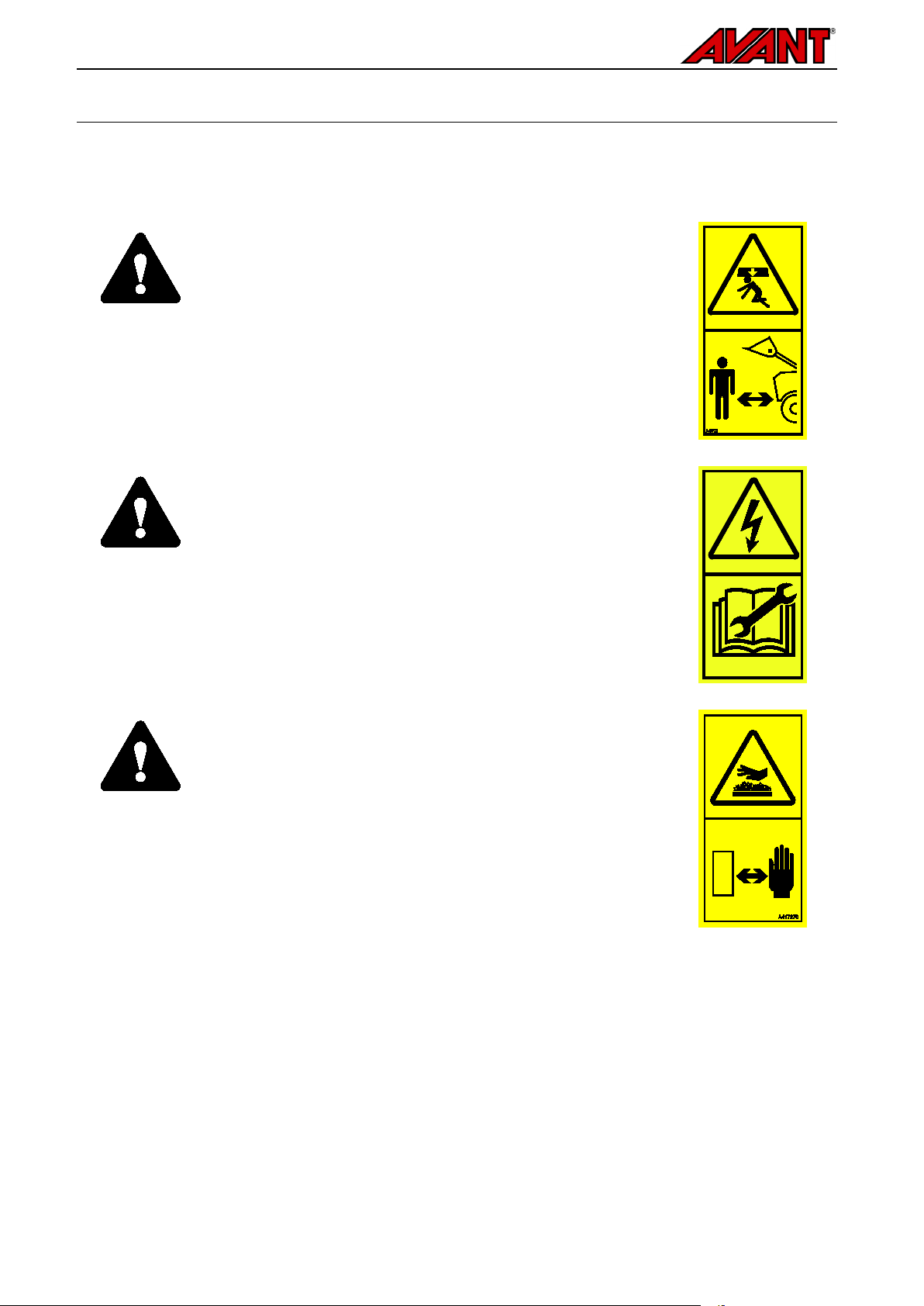

DANGER
Risk of crushing - Going under the loade
r boom or an attachment can cause
serious injury or death.
Never go under the loader boom and prevent others from
getting near lifted boom or attachment. Going under a raised attachment or loader boom
is dangerous, as the boom may lower due to loss of stab
ility, mechanical fault or when
other person operates the controls of the loader. Lower the attachment firmly on the
ground to a safe position before leaving the driver’s seat.
Keep in mind that the loader boom can be lowered or tilted even if the engine h
as been
shut down (crushing hazard). The loader is not intended to be left to keep a load elevated
for longer periods. Always lower the attachment to a safe position before leaving the
driver's seat.
. ..
3.1 Personal protective equipment
Remember to wear proper personal protective equipment:

The noise level at the driver's seat may exceed 85 dB(A) depending on loader
model and operating cycle. Extended exposure to loud noise can cause
hearing impairment. Wear hearing protection while working with the loader.
Wear protective gloves.
Wear safety boots whenever working with the loader.
Wear safety glasses e.g. when handling hydraulic components.
. ..

9 (24)

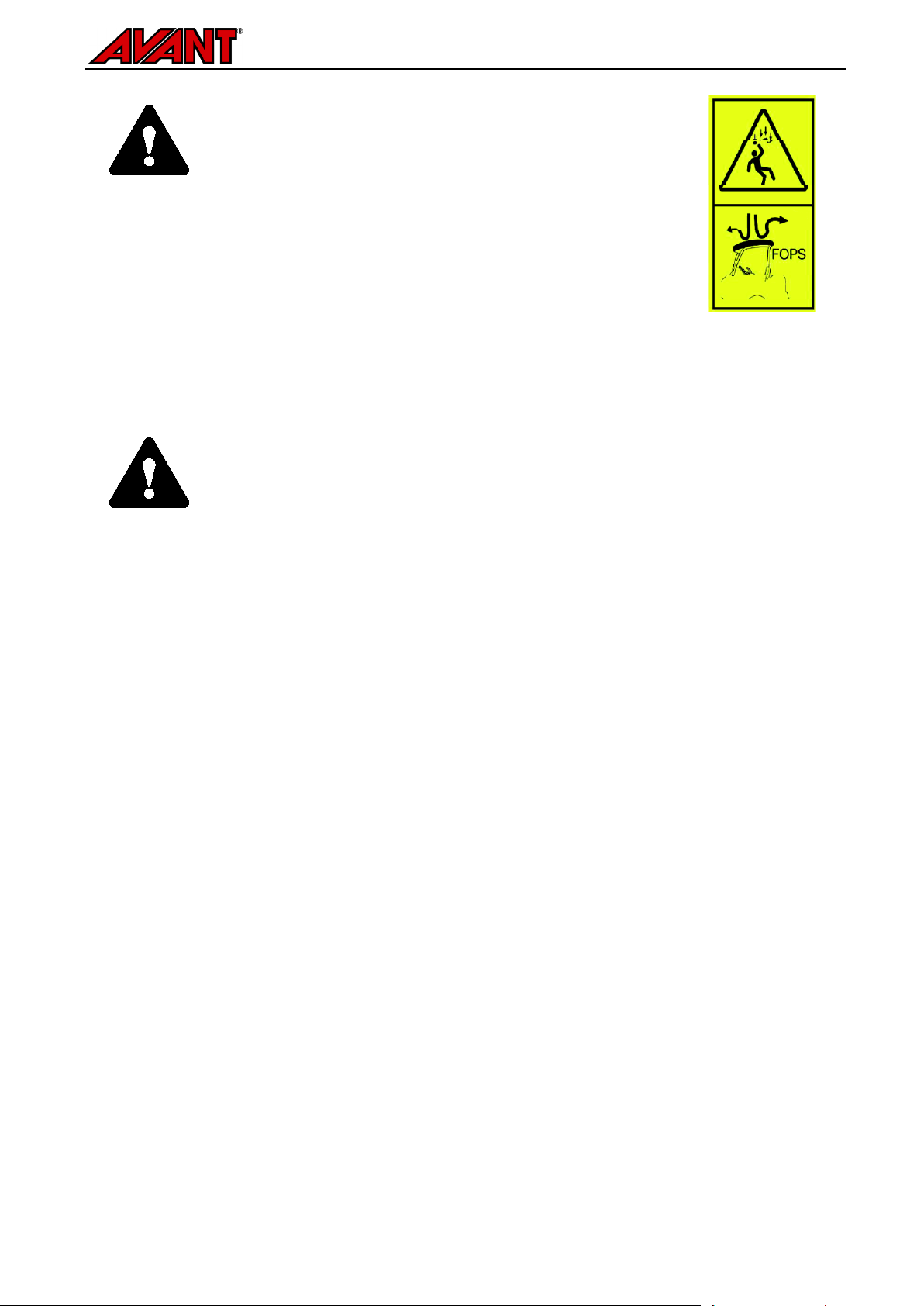

WARNING
Risk of serious injuries -
Wear necessary safety
equipment. Find out about other necessary safety equipment
at specific operating areas. For example, when working at
construction sites, safety helmet is required. In dusty
conditions wear breathing mask.
. ..
3.2 Safe shutdown procedure
Safe stopping of the attachment, before going near the attachment:
WARNING
Always stop the attachment following safe stopping procedure before leaving
the driver's seat.
Safe stopping procedure prevents all unintentional movements of
the attachment. Note that the loader boom can move down even if th
e engine of the
loader is turned off. Safe stopping procedure:
Lower the boom and the attachment on the ground.
Shut down the loader engine and lock the parking brake.

Release residual pressure from the hydraulic system; move all hydraulic control
levers to their extreme positions a couple of times.
Prevent starting of the machine, remove ignition key.

10 (24)
4. Technical specifications
Table 2 - Generator - Specifications
Product number A35408
Width: 553 mm
Length: 520 mm
Height: 576 mm
Weight: 84 kg
Generator type: Dynaset HG6.5E-E400ST23-25-VF
Maximum output power: 6,5 kVA
Output voltage: 400 VAC (3 phase) / 230 VAC (1 phase)
Nominal current: 9,4 A (3 phase) / 14,2 A (1 phase)
Frequency: 50 Hz
Sockets: 3 phase (1 pc) IEC-60309 / EN 60309 /
1 phase (2 pcs) CEE 7/4 Schuko
Maximum ambient temperature: Up to +40°C
Minimum needed hydraulic oil flow: 27 l/min
Maximum hydraulic oil flow: 40 l/min
Maximum hydraulic pressure: 25 MPa (250 Bar)
Pressure when unloaded: 4 MPa (40 Bar)
Compatible AVANT loader models: See table 1 on page
