RIDGID SeeSnake LT1000 User manual

RIDGE TOOL COMPANY
P. 1
P. 19
P. 37
P. 57
P. 77
P. 97
P. 117
P. 137
P. 155
P. 173
P. 191
P. 209
P. 229
P. 247
P. 267
P. 285
P. 303
P. 323
P. 341
P. 359
P. 377
P. 399
EN
FR
ES
DE
NL
IT
PT
SV
DA
NO
FI
PL
CZ
SK
RO
HU
EL
HR
SL
SR
RU
TR
Tools For The ProfessionalTM
SeeSnake®
LT1000


SeeSnake® LT1000
SeeSnake® LT1000
SeeSnake® LT1000
Record Serial Number below and retain product serial number which is located on nameplate.
Serial
No.
WARNING!
Read this Operator’s Manual
carefully before using this
tool. Failure to understand
and follow the contents of
this manual may result in
electrical shock, fire and/or
serious personal injury.

SeeSnake® LT1000
2
Table of Contents
Recording Form for Machine Serial Number ......................................................................................................................................................1
Safety Symbols......................................................................................................................................................................................................................3
General Safety Rules..........................................................................................................................................................................................................3
Work Area Safety...............................................................................................................................................................................................................3
Electrical Safety..................................................................................................................................................................................................................3
Personal Safety ..................................................................................................................................................................................................................3
Equipment Use and Care..............................................................................................................................................................................................4
Battery Tool Use And Care............................................................................................................................................................................................4
Service ...................................................................................................................................................................................................................................4
Specific Safety Information...........................................................................................................................................................................................5
LT1000 Safety......................................................................................................................................................................................................................5
Description, Specifications And Standard Equipment.................................................................................................................................5
Description..........................................................................................................................................................................................................................5
Specifications .....................................................................................................................................................................................................................6
Laptop System Requirements....................................................................................................................................................................................6
Standard Equipment.......................................................................................................................................................................................................6
Optional Equipment .......................................................................................................................................................................................................6
LT1000 Components..........................................................................................................................................................................................................6
Icons.............................................................................................................................................................................................................................................7
Assembly ..................................................................................................................................................................................................................................7
Mounting the LT1000 .....................................................................................................................................................................................................7
Mounting the LT1000 to the SeeSnake Mini Reel..............................................................................................................................................7
Mounting the LT1000 to the SeeSnake Standard Reel....................................................................................................................................8
Installing the Stabilizers.............................................................................................................................................................................................. 10
LT1000 Mini ..................................................................................................................................................................................................................... 11
Preparing the Laptop................................................................................................................................................................................................... 11
Pre-Operation Inspection............................................................................................................................................................................................ 11
Work Area and Equipment Set Up.......................................................................................................................................................................... 12
LT1000 Placement......................................................................................................................................................................................................... 12
Mounting the Laptop.................................................................................................................................................................................................. 12
Connecting the LT1000............................................................................................................................................................................................... 13
Powering the SeeSnake LT1000.............................................................................................................................................................................. 13
LT1000 Controls................................................................................................................................................................................................................. 14
Keypad Controls............................................................................................................................................................................................................. 14
About HQ Software...................................................................................................................................................................................................... 15
Operating Instructions.................................................................................................................................................................................................. 15
Starting Up ....................................................................................................................................................................................................................... 15
Inspecting the Line....................................................................................................................................................................................................... 15
Brightness Adjustment .......................................................................................................................................................................................... 15
Image Rotation........................................................................................................................................................................................................... 15
CountPlus Control ..................................................................................................................................................................................................... 15
LocatingThe Camera Using The Sonde .............................................................................................................................................................. 15
Line Tracing The SeeSnake Pushrod .................................................................................................................................................................... 16
Maintenance Instructions............................................................................................................................................................................................ 17
Cleaning............................................................................................................................................................................................................................. 17
Accessories ........................................................................................................................................................................................................................... 17
Transport And Storage.................................................................................................................................................................................................. 17
Service And Repair........................................................................................................................................................................................................... 17
Disposal.................................................................................................................................................................................................................................. 17
Battery Disposal................................................................................................................................................................................................................ 17
Troubleshooting................................................................................................................................................................................................................ 18
Lifetime Warranty........................................................................................................................................................................................... Back Cover
*Original Instructions - English

SeeSnake® LT1000
3
Safety Symbols
In this operator’s manual and on the product, safety symbols and signal words are used to communicate important
safety information. This section is provided to improve understanding of these signal words and symbols.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
DANGER
WARNING
CAUTION
NOTICE
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE indicates information that relates to the protection of property.
This symbol means read the operator’s manual carefully before using the equipment. The operator’s manual contains
important information on the safe and proper operation of the equipment.
This symbol means always wear safety glasses with side shields or goggles when handling or using this equipment to
reduce the risk of eye injury.
This symbol indicates the risk of electrical shock.
General Safety Rules
WARNING
Read all safety warnings and instructions. Failure to
follow the warnings and instructions may result in
electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE!
Work Area Safety
• Keepworkareacleanandwelllit.Cluttered or dark
areas invite accidents.
• Do not operate equipment in explosive atmo-
spheres, such as in the presence of flammable liq-
uids, gases or dust. Equipment can create sparks
which may ignite the dust or fumes.
• Keep children and by-standers away while op-
eratingequipment.Distractions can cause you to
lose control.
Electrical Safety
US Model
• Double-insulatedtoolsareequippedwithapo-
larized plug (one blade wider than the other).
Thisplugwilltinapolarizedoutletonlyone
way.Iftheplugdoesnottfullyinthesocket,
reversetheplug.Ifitstilldoesnott,contacta
qualiedelectriciantoinstallapolarizedoutlet.
Donotchangethepluginanyway.
EU Model
• Double-insulatedtoolsareequippedwithanon-
polarised2pinplug. Double insulation eliminates
the need for the three-wire grounded power cord
and grounded supply system.
• Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and re-
frigerators. There is an increased risk of electrical
shock if your body is earthed or grounded.
• Donotexposeequipmenttorainorwetcondi-
tions.Water entering equipment will increase the
risk of electrical shock.
• Donotabusethecord. Neverusethecordfor
carrying,pullingorunpluggingtheequipment.
Keepcordawayfrom heat,oil, sharpedgesor
moving parts. Damaged or entangled cords in-
crease the risk of electric shock.
• Ifoperatingequipmentinadamplocationisun-
avoidable, use a ground fault circuit interrupter
(GFCI)protectedsupply. Use of a GFCI reduces the
risk of electric shock.
• Keep all electrical connections dry and o the
ground.Donottouchequipmentorplugswith
wethands.This reduces the risk of electrical shock.
Personal Safety
• Stay alert, watch what you are doing and use
commonsensewhenoperatingequipment.Do
notuseequipmentwhileyouaretiredorunder
theinuenceofdrugs,alcoholormedication.A

SeeSnake® LT1000
4
moment of inattention while operating equipment
may result in serious personal injury.
• Usepersonalprotectiveequipment.Alwayswear
eyeprotection.Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will re-
duce personal injuries.
• Donotoverreach.Keepproperfootingandbal-
anceatalltimes.This enables better control of the
equipment in unexpected situations.
• Dressproperly.Donotwearlooseclothingorjew-
elry. Keep your hair, clothing, and gloves away
frommovingparts.Loose clothes, jewelry, or long
hair can be caught in moving parts.
Equipment Use and Care
• Donotforceequipment.Usethecorrectequip-
mentforyourapplication.The correct equipment
will do the job better and safer on the job for which
it is designed.
• Donotuseequipmentiftheswitchdoesnotturn
itONandOFF. Any equipment that cannot be con-
trolled with the switch is dangerous and must be
repaired.
• Disconnecttheplugfromthepowersourceand/
or the battery pack from the equipment before
makinganyadjustments,changingaccessories,
orstoring. Such preventive safety measures reduce
the risk of injury.
• Storeidleequipmentoutofthereachofchildren
and do not allow persons unfamiliar with the
equipment or these instructions to operate the
equipment. Equipment can be dangerous in the
hands of untrained users.
• Maintain equipment. Check for misalignment or
binding of moving parts, missing parts, breakage
of parts and any other condition that may affect
the equipment’s operation. If damaged, have the
equipment repaired before use. Many accidents are
caused by poorly maintained equipment.
• Use the equipment and accessories in accor-
dance with these instructions, taking into ac-
counttheworkingconditionsandtheworktobe
performed. Use of the equipment for operations
different from those intended could result in a haz-
ardous situation.
• Useonlyaccessoriesthatarerecommendedby
themanufacturerforyourequipment. Accesso-
ries that may be suitable for one piece of equipment
may become hazardous when used with other
equipment.
• Keep handles dry and clean; free from oil and
grease.Allows for better control of the equipment.
Battery Tool Use And Care
• Rechargeonlywiththechargerspeciedbythe
manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire when
used with another battery pack.
• Useequipmentonlywithspecicallydesignated
batterypacks.Use of any other battery packs may
create a risk of injury and fire.
• Donotprobe battery with conductive objects.
When battery pack is not in use, keep it away
fromothermetalobjects,likepaperclips,coins,
keys,nails,screwsorothersmallmetalobjects
that can make a connection from one terminal
toanother. Shorting the battery terminals together
may cause burns or a fire.
• Underabusiveconditions,liquidmaybeeject-
ed from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
• Useandstorebatteriesandchargersindry,ap-
propriate temperature areas. Extreme tempera-
tures and moisture can damage batteries and result
in leakage, electrical shock, fire or burns. See charger
manual for more information.
• Donotcoverchargerwhileinuse.Properventi-
lationisrequiredforcorrectoperation. Covering
charger in use could result in fire.
• Properly dispose of batteries. Exposure to high
temperatures can cause the batteries to explode,
so do not dispose of in a fire. Some countries have
regulations concerning battery disposal. Please fol-
low all applicable regulations.
Service
• Have your equipment serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the equip-
ment is maintained.
•Remove thebatteries and referservicing toqualified
service personnel under any of the following condi-
tions:
•If liquid has been spilled or objects have fallen
into product;
• If product does not operate normally by follow-
ing the operating instructions;

SeeSnake® LT1000
5
•If the product has been dropped or damaged in
any way; or,
•When the product exhibits a distinct change in
performance.
Specific Safety Information
WARNING
This section contains important safety information
that is specific to this equipment.
Read these precautions carefully before using the
LT1000 to reduce the risk of electrical shock or other
serious personal injury.
SAVE THESE INSTRUCTIONS!
Keep this manual with the machine for use by the op-
erator.
The EC declaration of conformity (890-011-320.10) will
accompany this manual as a separate booklet when re-
quired.
If you have any question concerning this RIDGID® prod-
uct:
– Contact SeeSnake HQ SupportDepartment at
HQSupport@seesnake.comforquestions relatingto
HQ.
– Contactyourlocal RIDGID® distributor.
– Visit www.RIDGID.com or www.RIDGID.eu to find your
local RIDGID contact point.
– ContactRIDGIDTechnical Services Department at
Canada call (800) 519-3456.
LT1000 Safety
• An improperly grounded electrical outlet can
cause electrical shock and or severely damage
equipment. Always check work area for a prop-
erly grounded electrical outlet. Presence of a three
prong or GFCI outlet does not insure that the outlet
is properly grounded. If in doubt, have the outlet in-
spected by a licensed electrician.
• Useonlyabatteryortheincludedisolatedpower
supplytopowertheLT1000.Usebatteriesoran
isolatedpowersupplywithanylaptopusedwith
theLT1000.This minimizes the risk of electrical haz-
ards from moisture or faulty electrical outlets.
• Do not operate this equipment if operator or
machineisstandinginwater.Operating machine
while in water increases the risk of electrical shock.
• TheLT1000isnotwaterproof.Itisdust-resistant
and splash-resistant. Do not expose the equip-
ment to water or rain. This increases the risk of elec-
trical shock.
• Donotusewhereadangerofhighvoltagecon-
tactispresent.The equipment is not designed to
provide high voltage protection and isolation.
• Read and understand this operator’s manual,
thereeloperators’manualandtheinstructions
foranyotherequipmentinuseandallwarnings
beforeoperatingtheLT1000. Failure to follow all
instruction may result in property damage and/or
serious personal injury.
• Alwaysuseappropriatepersonalprotectiveequip-
ment while handling and using equipment in
drains. Drains may contain chemicals, bacteria and
othersubstancesthatmay be toxic, infectious, cause
burns or other issues. Appropriate personal protec-
tive equipment always includes safety glasses, and
may include equipment such as drain cleaning
gloves or mitts, latex or rubber gloves, face shields,
goggles, protective clothing, respirators and steel-
toed footwear.
• If using drain cleaning equipment at the same
time as using drain inspection equipment, only
wearRIDGIDDrainCleaningGloves.Never grasp
the rotating drain cleaning cable with anything else,
including other gloves or a rag. They can become
wrapped around the cable, causing hand injuries.
Onlywear latexorrubberglovesunderRIDGIDDrain
Cleaner Gloves. Do not use damaged drain cleaning
gloves.
• Practice good hygiene. Use hot, soapy water to
wash hands and other exposed body parts exposed
to drain contents after handling or using drain in-
spection equipment. Do not eat or smoke while
operating or handling drain inspection equipment.
This will help prevent contamination with toxic or
infectious material.
Description, Specifications And
Standard Equipment
Description
The SeeSnake® LT1000 is a convenient interface and
platform which allows any standard laptop to serve
as a SeeSnake Inspection monitor, and can be used to
automatically capture photos, motion clips and sound
recordings from a SeeSnake Pipe Inspection System. It
provides a convenient interface to SeeSnake HQ report
generating and video managing software to make cre-
ating and managing customer reports quick and easy.
The LT1000 also provides a robust laptop platform to
which the laptop can be rapidly secured and connect-
ed, and easily removed when needed. Two platform
wings may be used to increase the work platform area.

SeeSnake® LT1000
6
The individual platform wings may be separately fold-
ed in, to provide platform support across the center
of the SeeSnake, or they may be folded out to extend
platform support at either end of the LT1000.
Laptop System Requirements
• Windows® 7, Windows Vista® (SP2), Windows XP
(SP3) (Windows 7 is recommended)
• Intel®Pentium®orAMDAthlon™1.8GHz/1,8GHz
(2.4GHz / 2,4GHz or higher recommended) or Intel
Core™2Duo2.4GHz/2,4GHz
• GBsystemmemory(2GBrecommended)
• DirectX® 9 or 10 compatible graphics card with
128 MB (256 MB or higher recommended)
• DirectX®9orhighercompatiblesoundcard
• 30GBofdiskspace
• CD-ROMdriveorInternetconnectiontoinstallsoft-
ware
• 1USB2.0port
• Optional:-DVDburnerforcreatingDVDreportsIn-
ternet connection for emailing reports, uploading
reports to Ridgid Connect, etc.
Recommended minimum screen resolution: 1024x
768
Standard Equipment
• LT1000
• 100-220VACto15VDCPowerConverterandSup-
ply
• Operator’sManual
• InstructionalDVD
• Stabilizers(4)
• USBCable
Optional Equipment
Other auxiliary equipment used with the SeeSnake
LT1000 may include:
• Rechargeablebattery
• ARIDGID®locator/receiver(suchastheSR-20,the
SR-60, the Scout® or the NaviTrack® II)
• ARIDGID®transmitter(suchastheST-510,the
ST-305, ST-33Q, the NaviTrack® Brick or the
NaviTrack® 10-watt transmitter)
• TheCountPlus Cable Counter cable-measurement
system, normally built in to SeeSnake Pipe Inspec-
tion Systems
The LT1000 is protected under U.S. and international
patents.
LT1000 Components
Specifications
LT1000
Weight........................................... 6.4 lbs. / 2,9 kg w/o Battery
7.35 lbs. / 3,3 kg with Battery
(without Laptop)
Dimensions:
Length, platform wings
closed.......................................... 20.6”/ 52,3 cm
Length, platform wings
open............................................ 21.7”/ 55,1 cm
Width,Standard..................... 12.8”/ 32,5 cm
Width, Shipping..................... 11.9”/ 30,2 cm
Height......................................... 6.5”/ 16,5 cm
Power Source............................ 100 - 240V AC / 50 - 60Hz, AC or
18V DC Rechargeable Battery
Battery Type............................... 18V Li-Ion, 2.2 Ah / 2,2 Ah
Power Rating 14 - 16V DC 40W
Operating Environment:
Temperature............................ -4°F to 167°F / -20°C to 75°C
Humidity.................................... 5% to 95% RH
Altitude....................................... 13,120 feet / 4.000 meters
LT1000 Mini
Weight........................................... 6.1 lbs. / 2,78 kg w/o Battery
7.4 lbs. / 3,4 kg with Battery
(without Laptop)
Dimensions:
Length........................................ 13.6”/ 34,5 cm
Width.......................................... 11.9”/ 30,2 cm
Height......................................... 6.5”/ 16,5 cm
Folding PlatformWing
Laptop Platform
Side Plate Keypad
Capstan
Retaining Cord
USB Cord
Transmitter
Clip-on
Terminal
Figure 1 – PlatformWings Folded In

SeeSnake® LT1000
7
Icons
Assembly
Mounting the LT1000
The LT1000 mounts to any Standard or Mini SeeSnake
reel quickly and easily. Assembly requires a Phillips
head screwdriver and a 7/16” / 11 mm box wrench. The
mounting sequence for the SeeSnake Mini is different
than the sequence for the SeeSnake Standard.
NotethatfortheStandardSeeSnakereel,thecurvedpor-
tions of the mounting brackets are oriented to the out-
side of the LT1000 while for the Mini’s narrower frame,
the curved portions of the brackets point inward.
Mounting the LT1000 to the SeeSnake
Mini Reel
1. Remove the two mounting brackets from the sides
of the LT1000.
2. Before mounting the LT1000 on the frame, lead the
SeeSnake System Cable up to the SeeSnake System
Connector. The SeeSnake System Cable has a guide
ridge molded into the top of the cable connector.
With the guide ridge aligned with the guide pin at
the top of the receptacle, insert the System Cable
into the System Connector firmly and turn the lock-
ing sleeve clockwise to tighten it in position.
NOTICE
When connecting/disconnecting the SeeSnake
system cable, turn only the locking sleeve. To prevent dam-
age, do not bend or twist the connector or cable.
3. The Mini SeeSnake has the curved portions of the
mounting brackets face inward. Position the LT1000
with the opening in the side plate seated over the
“foot” on the SeeSnake Reel frame and hold it in
its approximate position while starting the attach-
ing machine screws on one side of the LT1000. The
SeeSnake may be laid on its back for easier installa-
tion of the front side panel.
Do not sit on the LT1000.
Do not stand on the LT1000.
Microphone
MuteKey
Brightness
Key
Menu
Key
Arrow
Keys
TagKey
Key
Autolog
Key
Video
Key
Job
Management
Key Playback
Key
Select
Key Sonde
Key Zero
Key
Power
Key
Image Flip
Key
Figure3–LT1000Keypad
Guide
Locking
Sleeve

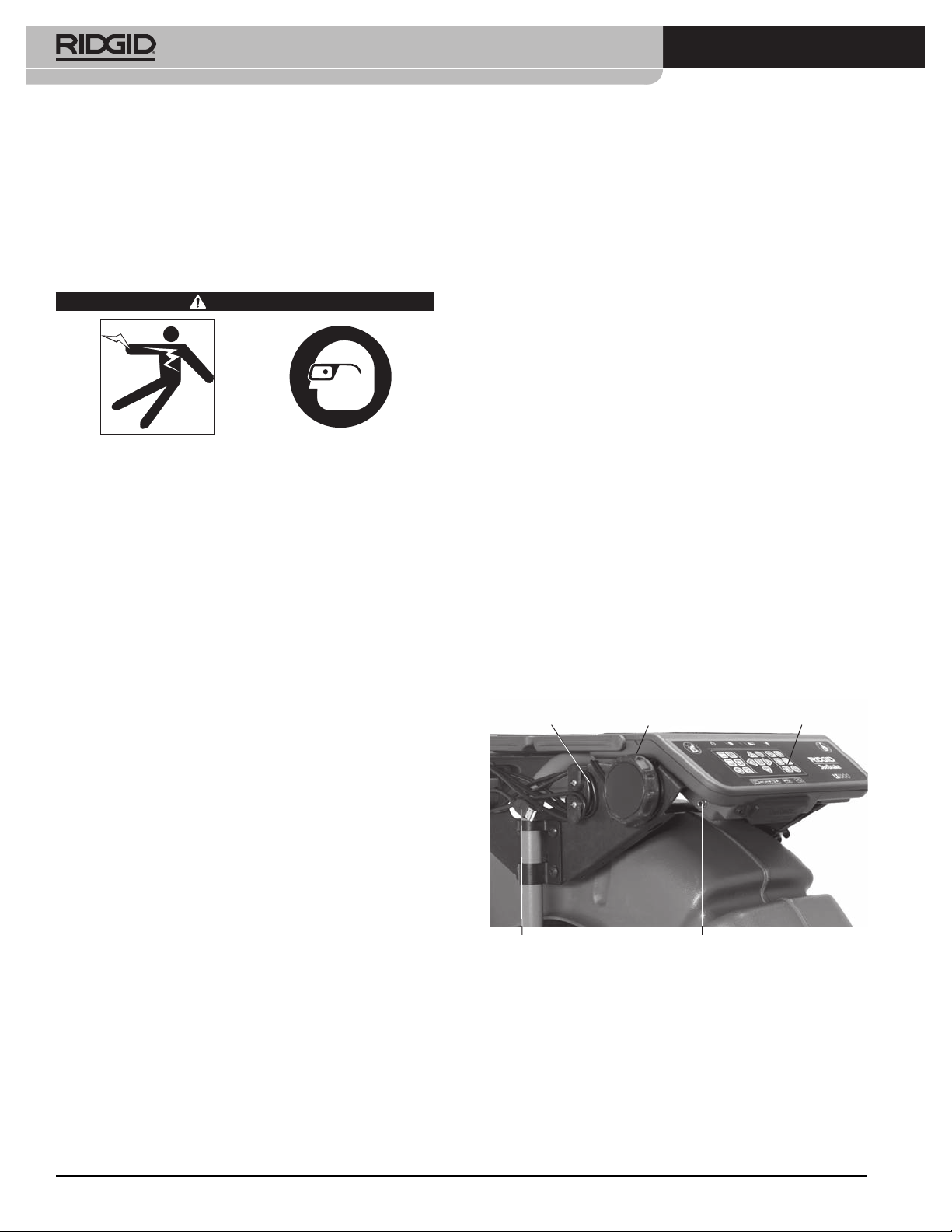

Figure 4 – Connecting System Cable Before Mounting
Laptop Platform
Platform
Wings
Platform
Wings
Side Plate
SeeSnake
System
Cable
18V Battery
Mounting
Brackets
Figure 2 – LT1000 Components
PlatformWingsExtended

SeeSnake® LT1000
8
4. With one side loosely bolted into position, align the
opposite side and start the four machine screws on
the opposite side. The screw-heads should be on
the outer face of the LT1000 and the nuts on the
inner face.
5. Align the LT1000 so it is straight and level and hand-
tighten down the four machine screws on each
side.With the folding wings closed there should be
about a 1” / 2,5 cm gap between the reel and the
wings. Tighten all four machine screws down on
each side with a Phillips head driver.
6. Rotate the capstan handle clockwise to loosen the
laptop retaining cord and unhook the retaining
cord from the cord hooks on the opposite side.
7. Fold the two platform wings in to the center posi-
tion.
Mounting the LT1000 to the SeeSnake
Standard Reel

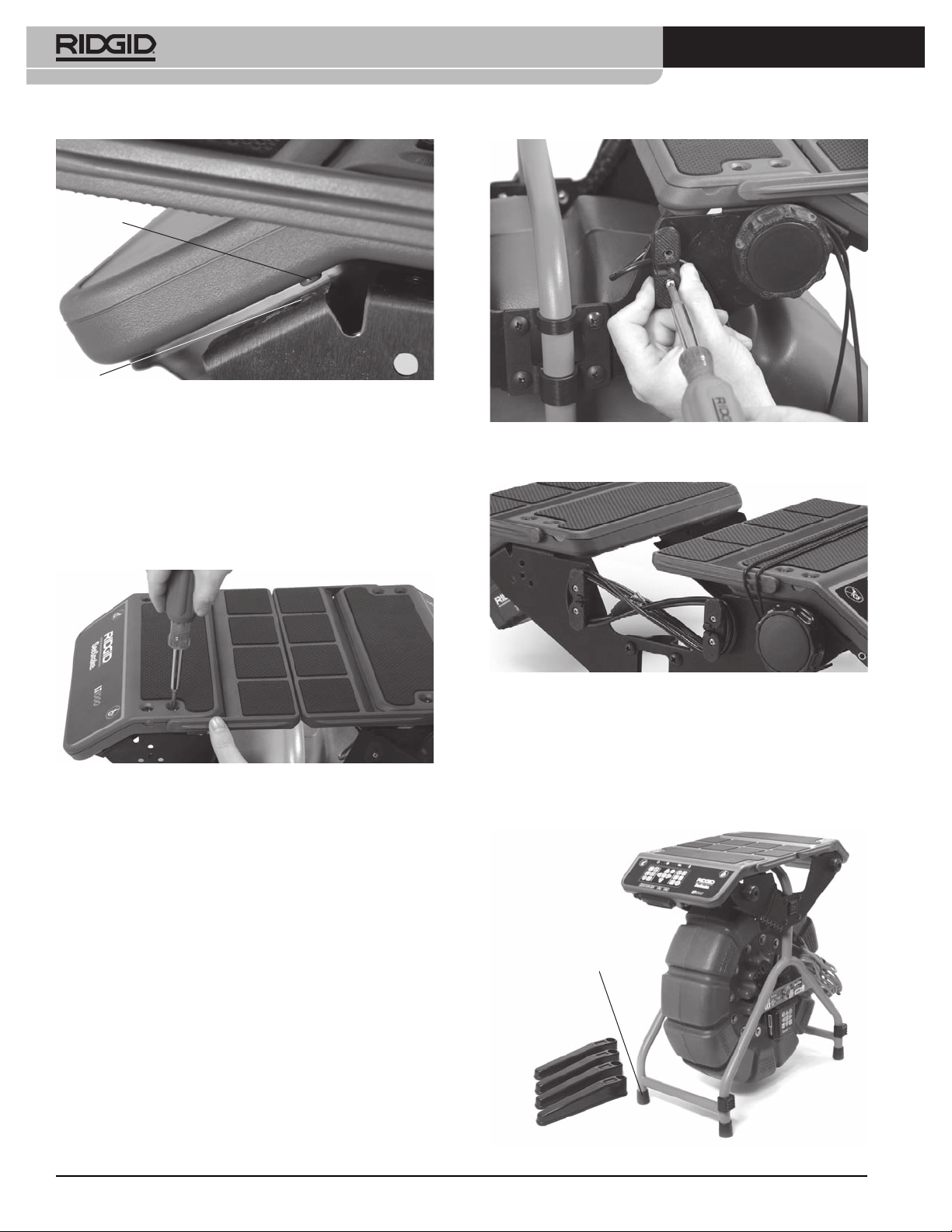

Mounting the LT1000 on a Standard SeeSnake reel re-
quires removing the two laptop platform surfaces and
the right-hand USB cord wrap from the LT1000 frame.
1. With a Phillips screwdriver, remove two screws from
the USB cable wrap on the right side (the one which
holdsdowntheUSBcablewhereitenterstheLT1000).
Unwind the USB cable from the cord wraps.
2. Remove the four screws from each platform half.
3. Lift off the two platform halves and set them to one
side close to the SeeSnake frame. Save all screws
carefully.
4. The two side plates will then be free from the plat-
form halves and may be individually installed.
5. Move the front side plate under the upper handle
of the SeeSnake Standard. Be careful not to scrape
against the frame.
6. Place the mounting bracket over the outer bumper
on the side of the SeeSnake and align the side plate
to match the holes in the mounting bracket.
Figure5–FirstMachineScrew
Figure6–TighteningScrews
Figure8–RemovingthePlatformScrews(SeeSnake
Standard)
Wings
USB Cord
Wrap
Right
Platform
Left
Platform
Laptop
Retaining
Cord
Figure7–LoweringthePlatformWings
Left
Platform Side
Plates
Right
Platform
Figure 9 – Parts of the LT1000
USB Cord

SeeSnake® LT1000
9
7. Insert the four screws through the mounting brack-
et and side plate into their individual nuts and hand
tighten.
8. Repeat the process with the other side plate and
mounting bracket. The two side plates should be
level.
9. Route the SeeSnake System Cable from the See-
Snake between the side plates and connect it to
the SeeSnake Connector on the bottom of the
right-hand platform. The SeeSnake System Cable
has a guide ridge molded into the top of the cable
connector. With the guide ridge aligned with the
guide pin of the receptacle, insert the System Ca-
ble into the System Connector firmly and turn the
locking sleeve clockwise to tighten it in position.
NOTICE
When connecting/disconnecting the SeeSnake
system cable, turn only the locking sleeve. To prevent dam-
age, do not bend or twist the connector or cable.
10. Mount the right hand (keyboard) platform by align-
ing it with the mounting holes in the flanges of the
side plates and screw it hand tight with four screws.
Adjust the platform so it is level.
Figure 10 – Aligning the Bracket to the Side Plate
Figure 11 – Near Side-Plate Mounted
USB Connector
Locking Sleeve
Guide Ridge
Figure 12 – Attaching the SeeSnake System Cable
Figure13–MountingRight-HandPlatform

SeeSnake® LT1000
10
A small alignment pin at each end of each platform
should fit into a matching hole to seat the platform side
fully.
11. Locate the left hand laptop platform, which is the
one without the keyboard. Align it to the four holes
(in the flanges of the side plates) and insert the four
screws and hand-tighten them.
12. Adjust the platforms and side plates so the plat-
forms are aligned and level. Fully tighten down the
screws on the brackets and the mounting screws
for the laptop platforms.
13. Replace the right-hand cord-wrap and fasten it into
place with two screws. Note that the USB cable is
captured under the cord-wrap post as it exits the
LT1000.
Installing the Stabilizers
Stabilizers are supplied with the LT1000 which provide
greater reel stability when they are rotated out. Each
stabilizer has a spring-loaded plate inside it which
holds the stabilizer in place when installed.
Pin
Hole
Figure14–AlignmentPinandHole
Figure15–MountingtheLeft-HandPlatform
Figure 16 – Mounting the Cord-Wrap (Note USB Cable
captured under Cord-Wrap)
Figure17–Cord-wrapandUSBCable
Rubber Foot
Figure18–StabilizerswithMiniReel

SeeSnake® LT1000
11
To install the stabilizers:
1. Remove the rubber foot from a leg of the frame.
2. Slide the stabilizer onto the leg of the frame, with
the solid face toward the top of the frame.
3. Replace the rubber foot and seat it firmly.
4. Repeat for all four legs. On the larger Standard unit,
install stabilizers only on the legs without wheels.
LT1000 Mini
The LT1000 Mini is a sturdy portable frame supporting
an LT1000 unit. It is light-weight, easy-to-carry and can
be used with any SeeSnake reel simply by connecting
the SeeSnake System Cable. It is an economical alterna-
tive if you need to shift your LT1000 between SeeSnake
reels frequently. The LT1000 Mini is shipped with the
LT1000 unit already installed on the portable frame.
Preparing the Laptop
To operate correctly with the LT1000, the laptop to be
used must have SeeSnake HQ software installed on it.
HQ software enables you to create, manage and store
images, audio and video from the LT1000.The software
is on the CD that ships with the LT1000. To load the
software from the CD:
You must install SeeSnake HQ and its drivers before con-
necting the LT1000 to your computer.
1. Insert the CD into the computer’s CD drive.
2. The laptop should auto-detect the CD and begin
the installation process. It may ask for an admin
password before installing the HQ software.
3. When the software installation is complete, eject
the CD and store it in a safe place.
NOTE! Software update checks will occur automatically
whenthelaptopisconnectedtotheInternet.Ifan
updateisdetectedyouwillbeaskedifyouwantto
install it, and the update will occur automatically
if you indicate you want it installed.The latest ver-
sion can be checked for manually by placing the
laptop on-line and pointing an Internet browser
to http://www.hq.ridgid.com/product-hq.php.
4. Alternatively the software may be installed by brows-
ing to the updates website given above and follow-
ing the instructions found there.
5. For detailed instructions on using HQ software to
manage your video clips, still photos, reports, cus-
tomer information and formats, direct a web-con-
nected browser to http://www.hq.ridgid.com/. You
will find on-line user instructions for every aspect of
HQ’s capabilities there.
Pre-Operation Inspection
WARNING
Before each use, inspect your SeeSnake LT1000 and
correct any problems to reduce the risk of serious
injury from electrical shock or other causes and pre-
vent machine damage.
1. Confirm that the power is OFF, any external power
and cords are disconnected and the battery is re-
moved. Inspect the cords, cables and connectors for
damage or modification.
2. Clean any dirt, oil or other contamination from the
SeeSnake LT1000 to aid in inspection and to pre-
vent the unit from slipping from your grip while
transporting or using.
3. Inspect the LT1000 for any broken, worn, missing,
misaligned or binding parts, or any other condi-
tion which might prevent safe, normal operation.
Ensure the LT1000 mounting brackets are securely
tightened.
Figure 19 – Stabilizers installed
Figure 20 – LT1000 Mini

SeeSnake® LT1000
12
4. Inspect any other equipment being used per its in-
structions to make sure it is in good usable condi-
tion.
5. If any problems are found, do not use the unit until
the problems are corrected.
Work Area and Equipment Set Up
WARNING
Set up the LT1000 and work area according to these
procedures to reduce the risk of injury from electri-
cal shock, fire and other causes, and to prevent dam-
age to the LT1000.
1. Check work area for:
•Adequate lighting.
•Flammable liquids, vapors or dust that may ig-
nite. If present, do not work in area until sources
have been identified and corrected. The LT1000
is not explosion proof. Electrical connections can
cause sparks.
•Clear, level, stable dry place for operator. Do not
use the machine while standing in water.
•Clear path to electrical outlet, that does not con-
tain any potential sources of damage for the
power cord, when using external power.
2. Inspect the work to be done if possible, determine
the drain access point(s), size(s) and length(s), pres-
ence of drain cleaning chemicals or other chemi-
cals, etc. If chemicals are present, it is important to
understand the specific safety measures required
to work around those chemicals. Contact the
chemical manufacturer for required information.
3. Determinethecorrectequipmentfor the application.
The SeeSnake LT1000 is made to view inspections
done with an inspection camera. Inspection equip-
ment for other applications can be found by consult-
ing the RIDGID Catalog, online at www.RIDGID.com
or www.RIDGID.eu.
4. Make sure all equipment has been properly in-
spected.
5. Evaluate the work area and determine if any barri-
ers are needed to keep bystanders away. Bystand-
ers can distract the operator during use. If working
near traffic, erect cones or other barriers to alert
drivers.
6. If needed, remove fixture (water closet, sink, etc.) to
allow access.
LT1000 Placement
Position the SeeSnake Reel at the work site before
mounting the laptop onto the LT1000. To access the
carryinghandlefortheSeeSnakeReel,foldtheplatform
wings back on both sides of the LT1000. The retaining
cord may be routed under the platform and hooked to
the cord hooks for transport.
Place the reel and LT1000 to allow easy access and
viewing while manipulating the camera and pushrod
for an inspection. Make sure that the location is not wet
and will not let the LT1000 and other equipment get
wet during use. The LT1000 is not waterproof and ex-
posure to wet conditions can cause electrical shock or
equipment damage.
Mounting the Laptop
1. Loosen the retaining cord by turning the capstan
clockwise.
2. Place the laptop squarely on the laptop platform
with the keyboard toward the LT1000 keypad.
3. Route the elastic retaining cord over the laptop
and hook it over the cord hooks, routing the cord
so as not to interfere with the laptop’s operation.
4. Rotate the capstan handle counter-clockwise to
tighten the retaining cord firmly.
5. Lead the LT1000 USB cord to the laptop’s USB port
and plug it into the port.Wrap any excess cord onto
the USB cord wraps. (See Figure 7.)
Note that in constrained locations or on slanted sur-
faces or roofs, you may prefer to lay the SeeSnake on its
side, unwrap the USB cord connecting the laptop and
place the laptop in another secure location.
Keypad
Capstan
Handle
Retaining
Cord
USB Cord Transmitter Clip-OnTerminal
Figure21–Keypad,CapstanandUSBCord

SeeSnake® LT1000
13
Connecting the LT1000
Connection Icons
The USB ports may be used to connect an external key-
board if desired.
The front AV out jack will work even when HQ is not
being used.
ExternalMonitorOptions
1. The LT1000 may be used with an external SeeSnake
monitor by connecting an RCA cable from the Vid-
eo IN port on the monitor. Connect the other end
of the cable to the LT1000 video OUT port on the
back of the LT1000, marked with .
2. The A/V out port will pass through live video
fromtheSeeSnakecameraconnectedtotheLT1000
and live audio from the microphone out to a DVDR
or monitor. (If connected to a monitor which has
speakers it may cause a feedback squeal; this can
be prevented by turning the DVDR or monitor vol-
ume to minimum.)
The USB connection from the LT1000 only functions
when connected to a device running SeeSnake HQ.
Powering the SeeSnake LT1000
The SeeSnake LT1000 can either be powered with a RIDGID
Li-Ion rechargeable battery or plugged into an outlet using
a supplied AC/DC power converter. Battery power is the
preferred powering method to reduce the risk of electrical
shock. Additionally,thepowerconverterisnotrated
foroutdooruseandshouldonlybeusedindoors.
WARNING
Use only a battery or an isolated power
supply to power the LT1000 and any laptop used with
it to reduce the risk of Electrical shock.
BatteryPower
With dry hands, insert a charged 18V battery into the
battery holder under the right side of the keypad. A
spare battery may also be stored in the spare battery
holder under the opposite end of the LT1000 on the
opposite side. (The storage slot has no electrical con-
nections and is for convenient storage only.)
Figure 22 – Alternate Configuration For Constrained
Spaces
Figure23–LT1000MiniwithLaptop
USBUSBVideo Out
A/VOut
External
PowerJack
Figure 24 – LT1000 Connections
ExternalPowerJack
A/VOutJack(ExternalDVDR,ect.)
VideoOutJack(ExternalMonitor)
USBPort(ThumbDrivers,ect.)

SeeSnake® LT1000
14
Make sure that the battery locks onto the dock. See the
Battery Charger operator’s manual for more informa-
tion.
BatteriessuppliedfortheLT1000areratedat2.2/2,2 amp-
hours. When fully charged, depending on use (recording
time, etc.) the LT1000 will run for approximately 2.5 / 2,5
to 3 hours. Battery Status LEDs above keypad indicate
battery charge level. (See Battery Status LED chart.)
NOTICE
TurntheLT1000powerOFFbeforechang-
ingorremovingthebattery. Removingthe batterywith
the power ON may cause loss of camera recordings.
Battery Status LEDs Chart
OutletPower
For plug in operation, a double-insulated AC/DC power
supply is supplied to reduce wall outlet voltage to the
correct voltage for the LT1000.
NOTICE
The external power supply is intended for
indoor use only.
To power the system up with the power cord, locate
the power supply. The power supply cord has two sec-
tions, one of which plugs into a standard 110 - 120V
two-bladed outlet (US model) or standard 230V 2 pin
outlet (EU model) at one end and plugs into a power
supply at the other end. The second section runs from
the power supply to the back of the LT1000 and plugs
into the jack marked at the far left side front pan-
el of the unit (Figure 24).
With dry hands, connect the two sections together and
insert the jack plug into the jack on the LT1000. Route
the cord along a clear path and with dry hands plug the
power supply into a matching outlet. If using an exten-
sion cord ensure it is of adequate wire gauge. For cords
of 25 feet / 7,5 m, a minimum gauge of 18 AWG / 0,8 mm2
is required. For cords greater than 25 feet / 7,5 m, a mini-
mum gauge of 16 AWG / 1,5 mm2is required.
NOTICE
If external power is unreliable and produces
transient voltage spikes, the LT1000 video may freeze. In
this case simply power cycle the LT1000 off and then on.
Job data will not be lost, but current distance count may be
reset.
WARNING
If the laptop is plugged into AC and the
laptop AC adapter is not isolated, then a hot ground could
damage a laptop via the USB grounding connection.
Use only a battery or an isolated power supply to pow-
er the LT1000 and any laptop used with it.
LT1000 Controls
Keypad Controls
* Some of the keypad controls will have no effect unless the HQ Soft-
ware is running.
Battery
Status Battery
Figure 25 – LT1000 Connections
BATTERY
STATUS EXTERNAL
POWER NOT
CONNECTED
EXTERNAL
POWER
CONNECTED
FULL Solid green LEDs OFF
MED Solid green and red LEDs OFF
LOW Solid red, 4 beeps LEDs OFF
DEAD Solid red for 5 sec,
5 sec long beep and
shutdown
LEDs OFF
Arrow Keys: Used to move among menu choices and
adjust variables (such as contrast) up and down. Used to
rotate screen image.
Select Key: Used to choose options in the Units menu
(Auto, Meters and Feet).
MenuKey: Used to bring up a menu of display options
such as Color, Brightness, Contrast, Units.
BrightnessKey: Used to directly control the camera LED’s
brightness up or down.
Microphone Mute Key: Used to mute the microphone
while recording or activate it to record comments during
an inspection.
SondeKey: Used to activate the built-in Sonde for tracing
the location of the camera head.
*ImageFlip Key:Used to flip the image on the display
vertically
ZeroKey:Used to establish a temporary zero-point for the
distance counter for units equipped with the CountPlus.
PowerKey:Used to power the LT1000 display ON or OFF.
*PhotoKey:Captures a still photo of the camera image as
shown.
*VideoKey: Starts or stops the capture of a video clip.
*AutologKey: Starts Autologging capture of a series of
still photos stored with the current job.
*PhotoTagKey:Creates a new still photo and allows you
to apply custom comments or stored tags to it.
*JobManagementKey: Accesses a menu of job and re-
port management options.
*PlaybackKey: Plays back current recording, if any.

SeeSnake® LT1000
15
About HQ Software
HQ software enables you to create, manage and store
images, audio and video from the LT1000. You can use
HQ to quickly and automatically create reports which
can be emailed to a customer, or created in HTML form
andhandedtothecustomer on athumbdrive,or burned
to DVD. HQ software also makes it easy to organize and
store job records for future reference if needed.
HQ software is described in detail in the HQ built-in
help files found at http://www.hq.ridgid.com/ .
Operating Instructions
WARNING
Always wear eye protection to protect your eyes
against dirt and other foreign objects.
When inspecting drains that might contain hazard-
ous chemicals or bacteria, wear appropriate protec-
tive equipment, such as latex gloves, goggles, face
shields or respirators, to prevent burns and infec-
tions.
Do not operate this equipment if operator or ma-
chine is standing in water. Operating machine while
in water increases the risk of electrical shock. Rub-
ber soled, non-slip shoes can help prevent slipping
and electric shock, especially on wet surfaces.
Follow operating instructions to reduce the risk of
injury from electrical shock and other causes.
Starting Up
1. Check that the unit is properly set up.
2. Ensure the laptop is in place and properly con-
nected and that the laptop has the HQ Software
installed on it. Turn the laptop ON.
3. Place the camera head into the reel’s guide hoop
and turn the LT1000’s power ON .
4. When the LT1000 starts up, the laptop will detect
the SeeSnake device and will start HQ running. If
it does not, double-click the HQ icon on your
desktop to launch it.
5. By default it will start a new Job which will come up
showing the image from the camera head.
6. For detailed instructions on the HQ software see the
built-in help files found at http://www.hq.ridgid.com/.
Inspecting the Line
1. Power up the LT1000 if it is OFF.
2. Put the camera head in the line. Zero the counter if
desired.
3. Proceed with pipe inspection as described in your
SeeSnake manual.
BrightnessAdjustment
You may find you need to increase or decrease the
camera LED brightness while inspecting the inside of
a line, depending on conditions. To do so simply press
the Brightness Key and raise or lower the brightness
level using the Arrow Keys . Press the Menu Key
when done.
Image Rotation
While doing an inspection the camera may become
rotated in the line and present an inverted image. The
Flip Key will rotate the image on the screen (flip it
vertically) for easier viewing. The HQ software will also
allow you to straighten the camera image by degrees.
CountPlus Control
If you are using a SeeSnake reel equipped with the Count-
Plus distance counter, the measured distance will ap-
pear on the display connected to the LT1000. If you
want to set an interim zero-point to measure distance
from some location (such as a junction or pipe-head)
pressing the Zero Key will start a temporary distance
count, with the number displayed in square brackets
[0.0]. For details on using the Zero Key see the CountPlus
manual.
CountPlus parameters such as date and time are set us-
ing the CountPlus menu key and going to the Count-
Plus Tools menu. CountPlus text overlays are managed
with the CountPlus keypad as described in the Count-
Plus Operator’s Manual.
LocatingThe Camera Using The Sonde
Many SeeSnake pipe inspection systems have a built-in
Sonde which transmits a locatable 512Hz signal. When
the Sonde is turned ON, a locator such as the RIDGID
SR-20,SR-60,Scout™orNaviTrack®IIsetto512Hzwill
be able to detect it, allowing you to detect the camera’s
location underground.

SeeSnake® LT1000
16
ToturntheSeeSnakeSondeONwhileusing theLT1000,
press the Sonde Key . A Sonde icon will appear on
the display while the Sonde is ON.The display may also
show some lines of interference from the Sonde’s trans-
mission. These will vanish when the Sonde is turned
OFF by again pressing the Sonde Key .
The most workable approach to tracking the Sonde is
to run the pushrod into the pipe about five or ten feet /
1,5 to 3 meters and use the locator to find the Sonde’s
position. If desired, you can then extend the pushrod
a similar distance further down-pipe and locate the
Sonde again starting from the previous located posi-
tion. To locate the Sonde, turn the locator ON and set
it to Sonde mode. Scan in the direction of the Sonde’s
probable location until the locator detects the Sonde.
Once you have detected the Sonde, use the locator in-
dications to zero in on its location precisely. For detailed
instructions on Sonde locating, consult the Operator’s
Manual for the locator model you are using.
Line Tracing The SeeSnake Pushrod
The LT1000 also enables you to trace the line of the
pushrod underground, using a standard RIDGID loca-
torsuchastheNaviTrack®II,theScout™,theSR-20or
the SR-60. To line-trace the SeeSnake pushrod, simply
connect a line transmitter with one connector well-
grounded to the grounding stake and the other con-
nector clipped to the Transmitter Clip-on Terminal. The
Transmitter Clip-on Terminal is a metal lug located just
under the left end of the keyboard area as shown in Fig-
ure 27.
Set the line transmitter and the locator to the same fre-
quency, such as 33kHz and use the locator to trace the
line (Figure 28). The camera’s built-in 512Hz Sonde may
be on at the same time, and if your locator is equipped
with SimulTrace™ dual-frequency capability, you can
follow the pushrod all the way to the camera’s location
and then detect the Sonde in the camera as you ap-
proach it above ground.
Ifyou don’thavetheSimulTrace™ feature,usealine
transmitter and a locator to line-trace the pushrod.
When the signal fades, switch the locator to Sonde
mode at the frequency of the in-line Sonde, usually
512Hz. Pick the signal up from where the line-trace
frequency started to weaken and zero in on the in-line
Sonde. Because locating frequencies from transmitters
can cause distortion of the image on the monitor, it is
best to turn Sonde and line transmitters OFF while in-
specting the interior of a line and turn them ON only
when ready to do a locate.
Figure 26 – Locating the Sonde
Figure 28 – Line Tracing the Pushrod
Figure 27 – LT1000 Transmitter Clip-on Terminal

SeeSnake® LT1000
17
Maintenance Instructions
Cleaning
WARNING
Make sure all cords and cables are disconnected and
the battery removed prior to cleaning the LT1000 to
reduce the risk of electrical shock.
Do not use liquid or abrasive cleaners on the LT1000.
Clean with damp cloth. Do not allow liquid to enter
LT1000.
Accessories
WARNING
The following accessories have been designed to
function with the LT1000. Other accessories suitable
for use with other equipment may become hazard-
ous when used with the LT1000.To reduce the risk of
serious injury, only use accessories specifically de-
signed and recommended for use with the LT1000,
such as those listed in the following chart.
Transport And Storage
Remove batteries before shipping. Do not expose
to heavy shocks or impacts during transport. If storing
for an extended period, remove batteries. Store within
temperature range of 14°F to 158°F / -10°C to 70°C.
Store electrical devices in a dry place to reduce the risk
of electrical shock.
Protect against excessive heat. The unit should be situ-
ated away from heat sources such as radiators, heat
registers, stoves or other products (including amplifi-
ers) that produce heat.
Service And Repair
WARNING
Improper service or repair can make the LT1000 un-
safe to operate.
Service and repair of the SeeSnake LT1000 and LT1000
Mini must be performed by a RIDGID Independent
Authorized Service Center.
For information on your nearest RIDGID Independent
Service Center or any service or repair questions:
• ContactyourlocalRIDGIDdistributor.
• Visitwww.RIDGID.comorwww.RIDGID.eutond
your local RIDGID contact point.
• ContactRIDGIDTechnicalServicesDepartmentat
rtctechservices@emerson.com, or in the U.S. and
Canada call (800) 519-3456.
E-mail SeeSnake HQ Support Department at
HQSuppor[email protected]
Disposal
Parts of the unit contain valuable materials and can be
recycled. There are companies that specialize in recy-
cling that may be found locally. Dispose of the com-
ponents in compliance with all applicable regulations.
Contact your local waste management authority for
more information.
ForECCountries: Do not dispose of electri-
cal equipment with household waste!
According to the European Guideline 2002/
96/EC for Waste Electrical and Electronic
Equipment and its implementation into na-
tional legislation, electrical equipment that
is no longer usable must be collected separately and
disposed of in an environmentally correct manner.
Battery Disposal
For USA and Canada:The RBRC™
(Rechargeable Battery Recycling
Corporation) Seal on the battery
packs means that RIDGID has al-
ready paid the cost of recycling the
lithium-ion battery packs once they
have reached the end of their use-
ful life.
RBRC™,RIDGID®,andotherbatterysuppliershavedevel-
oped programs in the USA and Canada to collect and re-
cycle rechargeable batteries. Normal and rechargeable
batteries contain materials that should not be directly
disposed of in nature, and contain valuable materials
that can be recycled. Help to protect the environment
and conserve natural resources by returning your used
batteries to your local retailer or an authorized RIDGID
service center for recycling. Your local recycling center
can also provide you with additional drop off locations.
RBRC™isaregisteredtrademarkoftheRechargeable
Battery Recycling Corporation.
ForECcountries: Defective or used battery packs/bat-
teries must be recycled according to the guideline
2006/66/EC.
Catalog # Description
US EU
32743 28218 18V Li-Ion rechargeable battery
27958 32073 Battery charger

SeeSnake® LT1000
18
PROBLEM PROBABLE FAULT LOCATION SOLUTION
Camera video image not
seen. No power to SeeSnake. Check power is correctly plugged in or bat-
tery is charged.
Check Power Key on LT1000 by pressing.
Connections faulty. Check connection to LT1000 unit from
SeeSnake.
Batteries Low. Check seating and pin condition in the Se-
eSnake System connection. Clean if need-
ed.
Recharge batteries or connect external pow-
er supply.
Flashing Battery Warning
appears. LT1000 18V batteries low. Recharge LT1000 batteries. Switch to AC pow-
er (110 - 240V AC).
LT1000videofreezes. Low-quality AC power or voltage spike. Power cycle the LT1000 OFF and then ON.
Novideo. If your computer doesn’t recognize the
USB connection. Restart your computer, power cycle LT1000
or close HQ and restart it to see if this cor-
rects the problem.
Do not start your computer with the LT1000
turned ON. The LT1000 should be turned OFF, though
it’s ok to have the USB cable plugged in.
NOTE: The USB connector (See Figure 12)
on the LT1000 was designed to be a water-
resistant seal, so it is a tight fit. Your LT1000
was tested and shipped with this cable
firmly connected. If you need to disconnect
and reconnect this cable (for example, if you
break your USB cable), make sure you push
the connector in all the way. If you don’t,
the HQ software might not recognize the
LT1000. If so, make sure you have pushed
the connector in all the way. You may have
to restart HQ to recognize the connection.
