Link electronics AES Tone Generator 812-OP/M User manual

MADE IN THE USA
A PRODUCT OF THE GENFLEX SYSTEM
LINK ELECTRONICS, INC.

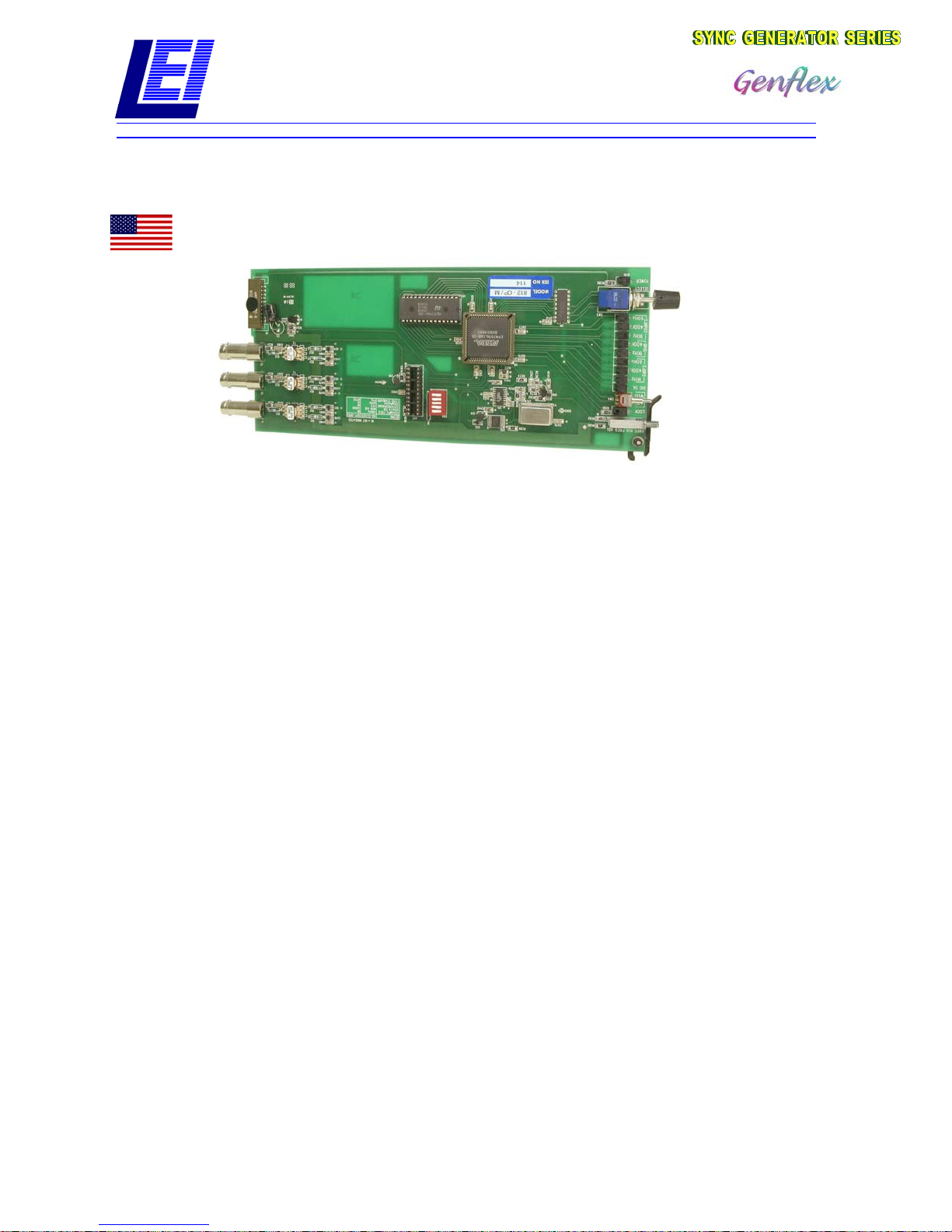

AES TONE GENERATOR
812-OP/M
For Future Generations
The GenFlex 812-OP/M is a high performance 24
bit digital audio generator. The 812-OP/M is a
single module for use with the SPG-812 GenFlex
frame. The function of thismodule is to produce a
single AES/EBU digital audio signal for use as a
digital tonesource or as a digital audio timing
reference.
The generator has a set of features designed to
makeitfitintoawidevarietyofapplications.These
features include genlocking of the audio to digital
oranalog videowithin theGenflexframe. Also,the
user may select to have this module free run with
itshighstabilityoscillator.Internally,thecreationof
the audio tone is done with a 24 bit audio "wave
table" stored in ROM. The output from the ROM is
formatted and output as digital audio. The user
may select the amplitude and frequency of the
audio tone from a fixed set of 8 combinations.
Within this set of eight there are three frequencies
(1KHz, 400Hz, 60Hz) and three levels (OdBFS, -
10dBFS, -20dBFS)* The module has the ability to
produce "digital silence" or one of the eight
combinational tones on the output.
Therearethreedigitaloutputsconformingwiththe
AES3-ID interconnection
standard. This generator runs at the professional
sampleratefrequency of48kHz.LEDsareused to
indicate tone frequency and level, digital silence,
lockstatus,andpowerindication.Further,theuser
has control of some of the user status bits through
dip switches on the module.
The GenFlex audio generator is built with quality
throughout the unit. With its ability to produce 24
bit digital audio, it can produce the highest
resolutionaudio availablein theAES3 format.The
812-OP/M is an addition to Link's GenFlex family
of analog/digital generator products. It is designed
toreside in LINK'SSPG-812 framein any ofthe five
auxiliary slots with a possible total of five modules
plus one 812-OP/E audio module.
* 60Hz tone has 2 levels (OdBFS and -20dBFS).
The other tones have three levels.
* 60Hz tone has 2 levels (0dBFS and -20dBFS).
The other tones have three levels.
LINKELECTRONICS, INC. 2137 Rust Avenue Cape Girardeau, MO 63703-7668
Phone [phone] FAX [phone]

812-OP/M DIGITAL TONE GENERATION
SPECIFICATIONS
Type ............................................................... digital,wavetable
Resolution .................................................................... 24bits
SampleRate.................................................................... 48kHz
DIGITAL OUTPUT
Interconnection
Number .......................................................................Three
Standard ................................................................... AES3-ID
Connector ..................................................................... BNC
Impedance ................................................................. 75ohms
Level .................................................................... 1Vpp±0.2V
Jitter .................................................................... <0.08UIpp
Tone Data
Type .....................................................................SineWave
Frequencies ........................................................1kHz,400Hz, 60Hz
Nominal Levels
Audible.................................................... 0dBFS,-10dBFS**, -20dBFS
DigitalSilence ........................................................... -144dBFS***
LevelAccuracy ................................................................. ±0dB
TotalHarmonicDistortion ....................................................<0.00007%
TotalHarmonicDistortion+Noise ..............................................<0.0002%
ENVIRONMENTAL
Operational Temperature Range ...........................................0to60°Cambient
Humidity ..................................................... 10%to90%non-condensing
Power ...........................................................................>3W
Supply Voltage .......................................... +5VDC,provided by SPG-812 frame
MECHANICAL
Dimensions
Length ................................................................... 10.0inches
Width.................................................................... 4.27inches
Height .............................................................0.50inchmaximum
Weight...................................................................... 6.0
oz.
LINK ELECTRONICS, INC.
2137 Rust Avenue
Cape Girardeau, MO 63703
Phone: [phone]
FAX: [phone]
PROFESSIONAL SERIES--
modular system products--by LINK
