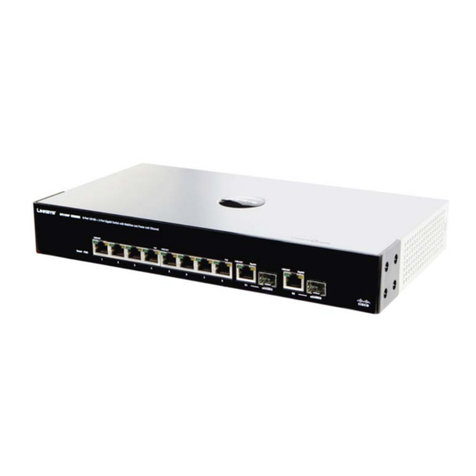

Model: SFE1000P
8-Port 10/100 Ethernet
Switch with PoE
Linksys One-Ready, Secure, Reliable,
Managed Ethernet Switching with PoE
The SFE1000P is an 8-port fully-managed 10/100 Ethernet switch with 2 Gigabit
copper or optical interfaces for connecting to a core switch. It is Linksys One-
Ready, allowing it to be used in both Linksys One and non-Linksys One networks. Its
intelligence, small size and fan-less design make it ideal for a small office, conference
room, or training room.
For wireless or Voice Over IP (VoIP) deployments, the SFE1000P supports the IEEE
802.3af standard for Power over Ethernet (PoE). With automatic load sensing, the power
control circuitry automatically detects PoE on end devices before providing power. (PoE
is limited to the fixed 10/100 Base-T/TX ports.) The unit can provide maximum output
power of up to 15.4W per PoE port on 4 ports, or up to 7.5W per PoE port on 8 ports
simultaneously. The unit provides independent overload and short-circuit protection for
each port. LED indicators indicate the power status for each PoE port.
With the enhanced quality of service (QoS) and traffic-management features provided by
the SFE1000P, voice and video data can be prioritized, ensuring clear and reliable voice
communications. An intuitive, secure management interface enables you to easily set up the
QoS parameters, along with the other advanced security and performance features, resulting
in an optimized, more secure network.
Linksys One integrates data networking and low-cost VoIP service with applications and
other business services into one simple solution for small businesses. Because the SFE1000P
is Linksys One-Ready, it can be seamlessly integrated into a Linksys One data or data/voice
network. Linksys One technology is automatic and self-configuring. Once connected, a Linksys
One Service Router will discover the SFE1000P, automatically configure it, and make it available
to other users on the network.
Provides IEEE 802.3af PoE
to IP phones, cameras, or
access points
Dual gigabit uplinks
provide increased
bandwidth and
redundancy
Provides maximum security
and traffic control with
policing, shaping, access
control lists, and QoS
Linksys One-Ready—
simple, automated
installation with
Linksys One services
routers present
SFE1000P

PRODUCT DATA
BUSINESS SERIES
Features
8 - 10/100 switched RJ-45•
ports deliver up to 200 Mbps
of throughput per port
2 - 10/100/1000 switched RJ-•
45/Mini-GBIC combo ports
PoE on the 10/100 ports•
supply up to the IEEE 802.3af
maximum—15.4W per port
for up to 4 ports, or 7.5W per
port on 8 ports
5.6 Gbps non-blocking,•
store-and-forward switching
mechanism
Simplified QoS management•
enabled by queuing
techniques using 802.1p,
Diffserv or ToS traffic
prioritization specifications
WebView management•
allows switch configuration
and monitoring using a
standard web browser
Secure remote management•
of the switch via SSH and
SSL secure channel network
protocols
802.1q-based VLANs enable•
segmentation of networks
for improved performance
and security
Private VLAN edge simplifies•
network isolation for guest
connections or autonomous
networks
Automatic configuration•
of VLANs across multiple
switches through GVRP/
GARP
Automatic MDI/MDIX•
detection support
8-Port 10/100 Ethernet Switch with PoE
Specifications
Model SFE1000P
Ports 8 RJ-45 connectors for 10BASE-T and 100BASE-TX
2 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T with 2 SFP slots
Console port
Auto MDI/MDI-X
Auto-negotiate/Manual setting
Buttons None
Cabling Type UTP CAT 5 or better for 10BASE-T/100BASE-TX
UTP CAT 5e or better for 1000BASE-T
LEDs 10/100 Link/Act, PoE, 2 Giga Link/Act, Speed, System
Power over Ethernet
802.3af Complaint Supplies up to IEEE standard maximum of 15.4W on 4 10/100 ports or
up to 7.5W on 8 10/100 ports
Performance
Switching Capacity 5.6 Gb non-blocking
Forwarding Rate 4.17 Mpps wire-speed performance
Layer 2
MAC Table Size 8K
Number of VLANs 256 active VLANs (4096 range)
VLAN Port-based and 802.1q tag-based VLANs; Management VLAN
HOL Blocking Head-of-line blocking prevention
Management
Web User Interface Built-in web user interface for easy browser-based configuration
(HTTP/HTTPS)
SNMP SNMP version 1, 2c, and 3 with support for traps
SNMP MIBs RFC1213 MIB-2, RFC2863 Interface MIB, RFC2665 Ether-like MIB, RFC1493
Bridge MIB, RFC2674 Extended Bridge MIB (P-bridge, Q-bridge), RFC2819
RMON MIB (groups 1,2,3,9 only), RFC2737 Entity MIB, RFC 2618 RADIUS
Client MIB, RFC 1215 Traps, and Private PoE MIB
Remote Monitoring (RMON) Embedded RMON software agent supports four RMON groups (history,
statistics, alarms, and events) for enhanced traffic management,
monitoring, and analysis)
Firmware Upgrade Web browser upgrade (HTTP) and TFTP
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a
network analyzer or RMON probe.
Other Management Traceroute
Secure Socket Layer (SSL)
Secure Shell (SSH)
RADIUS
SSL security for web user interface
DHCP client
BootP
SNTP
Xmodem upgrade
Cable diagnostics
PING
Telnet client (SSH secure support)
Security
IEEE 802.1x 802.1x - RADIUS authentication, MD5 encryption
Access Control Lists (ACLs) Drop or rate limit based on source and destination MAC or IP address,
protocol, TOS/DSCP, port, VLAN, and Ethertype
Availability
Link Aggregation Using IEEE 802.3ad LACP, up to 8 ports in up to 8 groups
Storm Control Broadcast, multicast and unknown unicast
Spanning Tree IEEE 802.1D Spanning Tree, IEEE 802.1w Rapid Spanning Tree, and
IEEE 802.1s Multiple Spanning Tree
