Linksys RT41P2-AT - Broadband Router With 2 Phone Ports At&t Service... User manual

A Division of Cisco Systems, Inc.
®
Model No.
WIRED with 2 Phone Ports
Broadband Router
RT41P2-AT
User Guide

Broadband Router with 2 Phone Ports
Copyright and Trademarks
Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco
Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All
rights reserved. Other brands and product names are trademarks or registered trademarks of their respective
holders.
How to Use this Guide
Your guide to the Broadband Router with 2 Phone Ports has been designed to make understanding networking
with the Router easier than ever. Look for the following items when reading this User Guide:
In addition to these symbols, there are definitions for technical terms that are presented like this:
Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like
this:
Figure numbers and descriptions can also be found in the “List of Figures” section.
This exclamation point means there is a caution or
warning and is something that could damage your
property or the Router.
word: definition.
This checkmark means there is a note of interest and
is something you should pay special attention to while
using the Router.
This question mark provides you with a reminder about
something you might need to do while using the Router.
Figure 0-1: Sample Figure Description
RT41P2-AT-UG-40901A JL
WARNING: This product contains chemicals, including lead, known
to the State of California to cause cancer, and birth defects or other
reproductive harm. Wash hands after handling.

Broadband Router with 2 Phone Ports
Table of Contents
Chapter 1: Introduction 1
Welcome 1
What’s in this Guide? 2
Chapter 2: Networking Basics 4
An Introduction to Local Area Networks 4
The Use of IP Addresses 4
Chapter 3: Getting to Know the Router 6
The Back Panel 6
The Front Panel 7
Chapter 4: Connecting the Router 8
Overview 8
Connecting the Router to Your Broadband Modem 8
Connecting One Router to Another 9
Chapter 5: Configuring the Router 11
Overview 11
How to Access the Web-based Utility 13
The Setup Tab - Basic Setup 13
The Setup Tab - DDNS 18
The Setup Tab - MAC Address Clone 19
The Security Tab - Firewall 20
The Security Tab - VPN 21
The Access Restrictions Tab - Internet Access 22
The Applications & Gaming Tab - Port Range Forward 24
The Applications & Gaming Tab - Port Trigger 25
The Applications & Gaming Tab - UPnP Forward 26
The Applications & Gaming Tab - DMZ 28
The Administration Tab - Management 29
The Administration Tab - Log 31
The Administration Tab - Diagnostics 32
The Administration Tab - Factory Defaults 33
The Administration Tab - Backup and Restore 34
The Administration Tab - Reboot 34

Broadband Router with 2 Phone Ports
The Status Tab - Router 35
The Status Tab - Local Network 36
The Status Tab - Voice 37
Chapter 6: Signing up for AT&T CallVantagesm Service 38
Overview 38
Instructions 38
Appendix A: Troubleshooting 39
Common Problems and Solutions 39
Frequently Asked Questions 49
Appendix B: Finding the MAC Address and IP Address for Your
Ethernet Adapter 53
Windows 98 or Me Instructions 53
Windows 2000 or XP Instructions 53
For the Router’s Web-based Utility 54
Appendix C: Windows Help 55
Appendix D: Glossary 56
Appendix E: Specifications 61
Appendix F: Warranty Information 63
Appendix G: Regulatory Information 64
Appendix H: Contact Information 65
AT&T 65
Linksys 65

Broadband Router with 2 Phone Ports
List of Figures
Figure 3-1: Back Panel 6
Figure 3-2: Front Panel 7

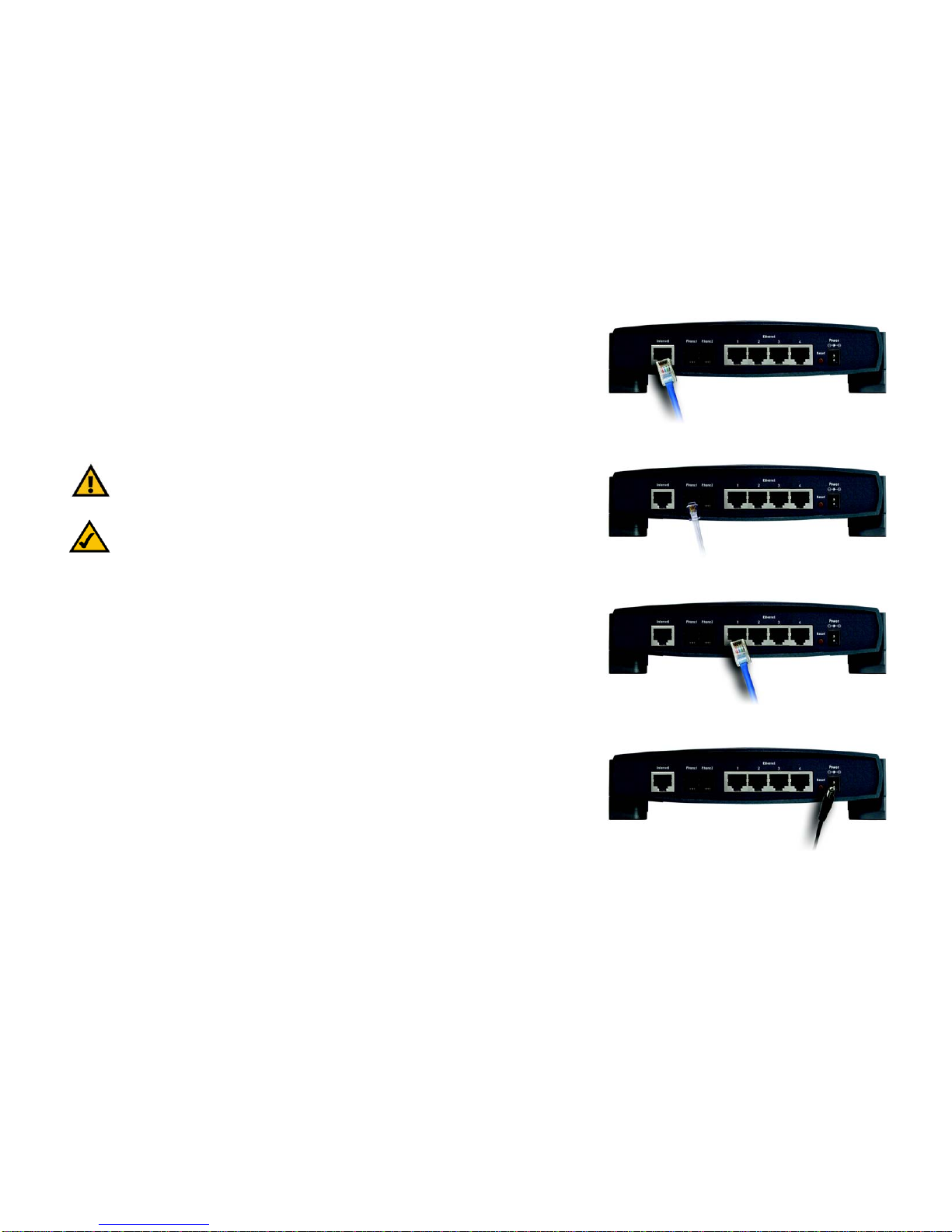

Figure 4-1: Connect the Broadband Modem 8
Figure 4-2: Connect a Telephone 8
Figure 4-3: Connect a PC 8
Figure 4-4: Connect the Power 8

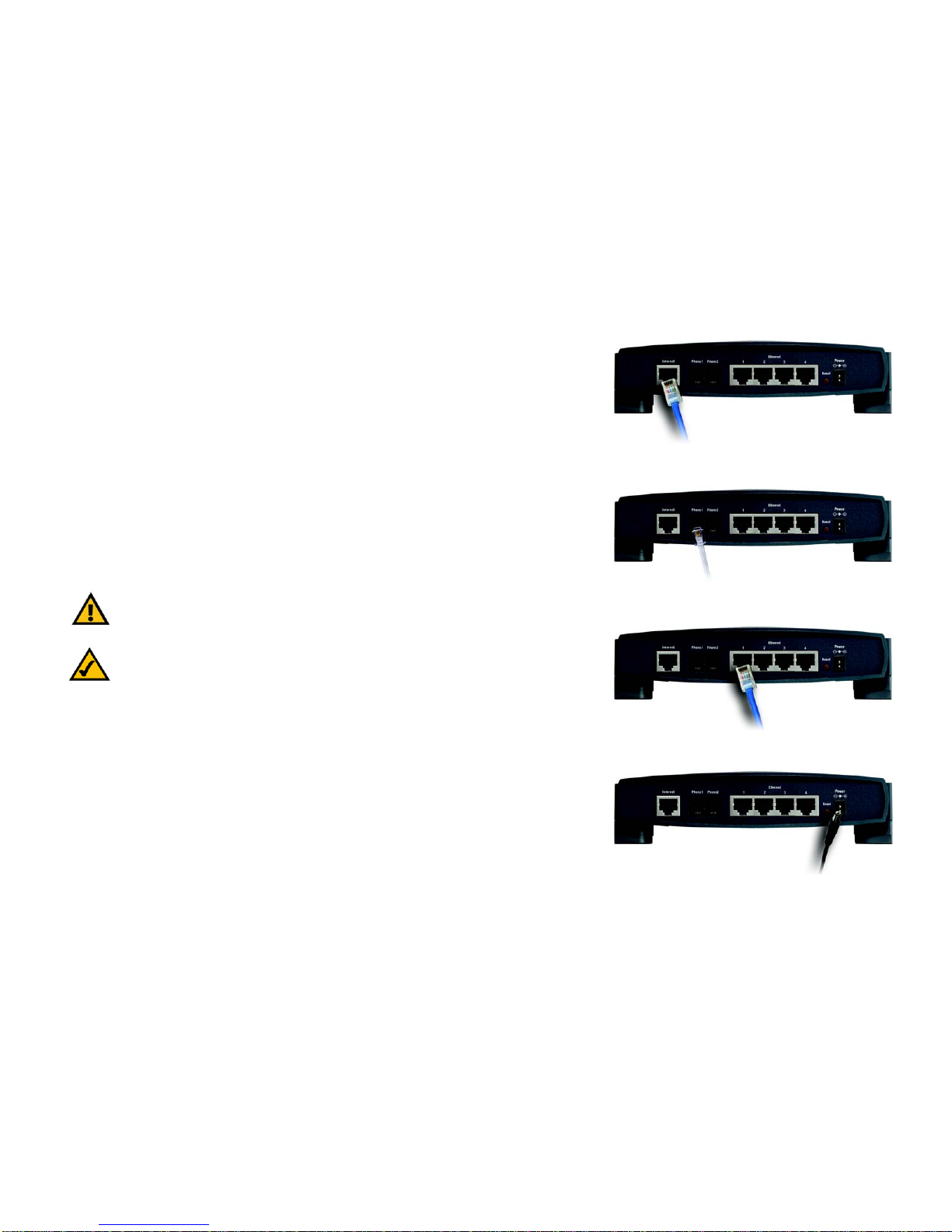

Figure 4-5: Router Connected to Another Router 9
Figure 4-6: Connect the Broadband Modem 10
Figure 4-7: Connect a Telephone 10
Figure 4-8: Connect the Other Router 10
Figure 4-9: Connect the Power 10
Figure 5-1: Router’s IP Address 13
Figure 5-2: Router Login 13
Figure 5-3: Setup Tab - Basic Setup - Automatic Configuration (DHCP) 13

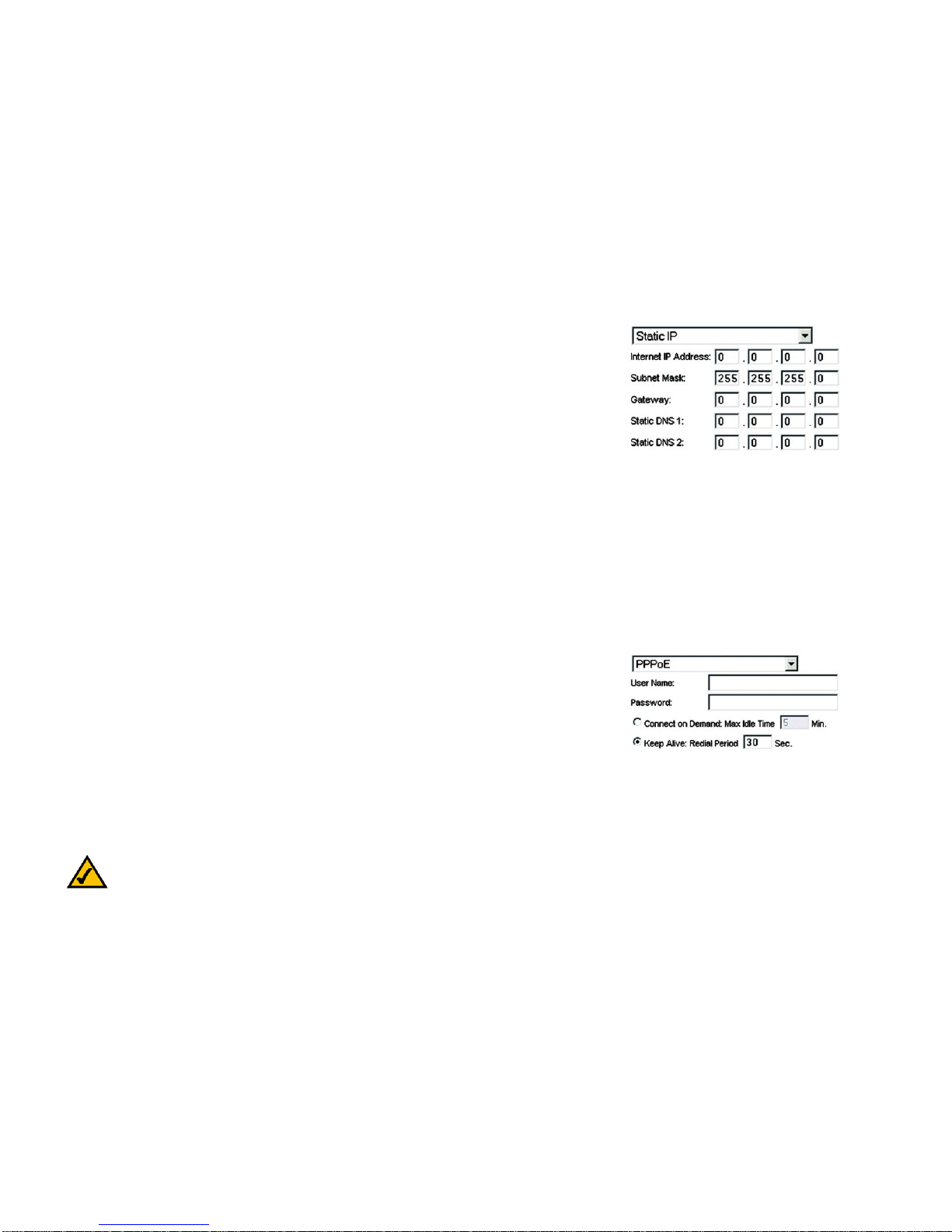

Figure 5-4: Static IP 14
Figure 5-5: PPPoE 14
Figure 5-6: PPTP 15
Figure 5-7: Setup Tab - DDNS (DynDNS.org) 18
Figure 5-8: Setup Tab - DDNS (TZO.com) 18
Figure 5-9: Setup Tab - MAC Address Clone 19
Figure 5-10: Security Tab - Firewall 20
Figure 5-11: Security Tab - VPN Passthrough 21
Figure 5-12: Access Restrictions Tab - Internet Access 22
Figure 5-13: List of PCs 23
Figure 5-14: Applications & Gaming Tab - Port Range Forward 24
Figure 5-15: Applications & Gaming Tab - Port Trigger 25
Figure 5-16: Applications & Gaming Tab - UPnP Forward 26
Figure 5-17: Applications & Gaming Tab - DMZ 28

Broadband Router with 2 Phone Ports
Figure 5-18: Administration Tab - Management 29
Figure 5-19: Administration Tab - Log 31
Figure 5-20: Administration Tab - Diagnostics 32
Figure 5-21: Ping Test 32
Figure 5-22: Traceroute Test 32
Figure 5-23: Administration Tab - Factory Defaults 33
Figure 5-24: Administration Tab - Backup and Restore 34
Figure 5-25: Administration Tab - Reboot 34
Figure 5-26: Status Tab - Router 35
Figure 5-27: Status Tab - Local Network 36
Figure 5-28: DHCP Clients Table 36
Figure 5-29: Status Tab - Voice 37
Figure 6-1: Website for AT&T CallVantage Service 38
Figure B-1: IP Configuration Screen 53
Figure B-2: MAC Address/Adapter Address 53
Figure B-3: MAC Address/Physical Address 54
Figure B-4: Access Restrictions - MAC and IP Addresses 54
Figure B-5: MAC Address Clone 54

1
Chapter 1: Introduction
Welcome
Broadband Router with 2 Phone Ports
Chapter 1: Introduction
Welcome
Thank you for choosing the Broadband Router with 2 Phone Ports. This Router will allow your computers to share
a high-speed Internet connection as well as resources, including files and printers. And after you have set up
your Internet phone service, you will be able to make phone or fax calls using your Internet connection.
How does the Router do all of this? By connecting your computers and peripherals, including phones or fax
machines, to the Router and connecting the Router to your cable or DSL modem, then the Router can direct and
control communications for your network.
But what does all of this mean?
Networks are useful tools for sharing Internet access and computer resources. Multiple computers can share
Internet access, so you don’t need more than one high-speed Internet connection. With Internet phone service,
your Internet access can now be shared by your phones or fax machines as well. You will be able to make phone
calls using the account you set up with AT&T, even while you’re surfing the Internet. Plus, you can access one
printer from different computers and access data located on another computer’s hard drive. Networks are even
used for playing multiplayer video games. So, networks not only are useful in homes and offices, but also can be
fun.
PCs on a wired network create a LAN, or Local Area Network. They are connected with Ethernet cables, which is
why the network is called “wired”.
To create your network, install and set up the Router. To guide you through the process, Linksys strongly
recommends that you runthe Setup Wizard onthe Setup CD-ROM.If you prefer tomanually set upthe Router, use
the instructions in the Quick Installation or this User Guide to help you. These instructions should be all you need
to get the most out of the Router.
ethernet: an IEEE standard network protocol
that specifies how data is placed on and
retrieved from a common transmission
medium.
lan (local area network): the computers and
networkingproducts thatmakeup thenetwork
in your home or office.
NOTE: If you want to sign up for Internet phone service or activate your account, visit
http://www.att.com/linksys after you have installed and configured the Router. Refer to
“Chapter 6: Signing up for AT&T CallVantagesm Service” for more information.

2
Chapter 1: Introduction
What’s in this Guide?
Broadband Router with 2 Phone Ports
What’s in this Guide?
This user guide covers the basic steps for setting up a network with a router. After going through “Chapter 3:
Getting to Know the Router,” most users will only need to use the following chapters:
• Chapter 4: Connecting the Router
This chapter instructs you on how to connect the Router to your cable or DSL modem and PCs. After you
create your network, then you will connect the telephones (or fax machines) to AT&T CallVantagesm Service
via the Router.
• Chapter 5: Configuring the Router
This chapter explains how to configure the Router using your web browser and the Router’s Web-based
Utility. You will configure the Router using the settings provided by your ISP.
• Chapter 6: Signing up for AT&T CallVantagesm Service
When you are ready to sign up for or activate your AT&T CallVantage Service account, refer to the instructions
in this chapter.
When you’re finished with the basic steps, then you are ready to connect to the Internet.
You also have other chapter available for reference:
• Chapter 1: Introduction
This chapter describes the Router’s applications and this User Guide.
• Chapter 2: Networking Basics
This chapter briefly explains how a network functions.
• Appendix A: Troubleshooting
This appendix describes some possible problems and solutions, as well as frequently asked questions,
regarding installation and use of the Router.
• Appendix B: Finding the MAC Address and IP Address for Your Ethernet Adapter
This appendix instructs you on how to find the MAC address or Ethernet address of your PC’s Ethernet
network adapter.
• Appendix C: Windows Help
This appendix describes how you can use Windows Help for instructions about networking, such asinstalling
the TCP/IP protocol.

3
Chapter 1: Introduction
What’s in this Guide?
Broadband Router with 2 Phone Ports
• Appendix D: Glossary
This appendix gives a brief glossary of terms frequently used in networking.
• Appendix E: Specifications
This appendix provides the technical specifications for the Router.
• Appendix F: Warranty Information
This appendix supplies the warranty information for the Router.
• Appendix G: Regulatory Information
This appendix supplies the regulatory information regarding the Router.
• Appendix H: Contact Information
This appendix provides contact information for a variety of Linksys resources, including Technical Support.

4
Chapter 2: Networking Basics
An Introduction to Local Area Networks
Broadband Router with 2 Phone Ports
Chapter 2: Networking Basics
An Introduction to Local Area Networks
Simply put, a router is a network device that connects two networks together.
TheRouterconnects your localarea network(LAN), or thegroupof PCs inyour homeor office,tothe Internet. The
Router processes and regulates the data that travels between these two networks.
The Router’s Network Address Translation (NAT) technology protects your network of PCs so users on the Internet
cannot “see” your PCs. This is how your LAN remains private. The Router protects your network by inspecting the
first packet coming in through the Internet port before delivery to the final destination on one of the Ethernet
ports. The Router inspects Internet port services like the web server, ftp server, or other Internet applications,
and, if allowed, it will forward the packet to the appropriate PC on the LAN side.
The Use of IP Addresses
IP stands for Internet Protocol. Every device in an IP-based network, including PCs, print servers, and routers,
requires an IP address to identify its location, or address, on the network. This applies to both the Internet and
LAN connections.
There are two ways of assigning IP addresses to your network devices.
A static IP address is a fixed IP address that you assign manually to a PC or other device on the network. Since a
static IP address remains valid until you disable it, static IP addressing ensures that the device assigned it will
always have that same IP address until you change it. Static IP addresses are commonly used with network
devices such as server PCs or print servers.
If you use the Router to share your cable or DSL Internet connection, contact your ISP to find out if they have
assigned a static IP address to your account. If so, you will need that static IP address when configuring the
Router. You can get the information from your ISP.
A dynamic IP address is automatically assigned to a device on the network. These IP addresses are called
dynamic because they are only temporarily assigned to the PC or other device. After a certain time period, they
expire and may change. If a PC logs onto the network (or the Internet) and its dynamic IP address has expired, the
DHCP server will assign it a new dynamic IP address.
dynamic ip address: a temporary IP
address assigned by a DHCP server.
static ip address: a fixed address
assigned to a computer or device that
is connected to a network.
nat (network address translation): NAT
technologytranslatesIPaddresses ofa
local area network to a different IP
address for the Internet.
dhcp (dynamic host configuration
protocol): a protocol that lets one
device on a local network, known as a
DHCP server, assign temporary IP
addresses to the other network
devices, typically computers.

5
Chapter 2: Networking Basics
The Use of IP Addresses
Broadband Router with 2 Phone Ports
A DHCP server can either be a designated PC on the network or another network device, such as the Router. By
default, the Router’s Internet Connection Type is Obtain an IP automatically (DHCP).
The PC or network device obtaining an IP address is called the DHCP client. DHCP frees you from having to assign
IP addresses manually every time a new user is added to your network.
For DSL users, many ISPs may require you to log on with a user name and password to gain access to the
Internet. This is a dedicated, high-speed connection type called Point to Point Protocol over Ethernet (PPPoE).
PPPoE is similar to a dial-up connection, but PPPoE does not dial a phone number when establishing a
connection. It also will provide the Router with a dynamic IP address to establish a connection to the Internet.
By default, a DHCP server (on the LAN side) is enabled on the Router. If you already have a DHCP server running
on your network, you MUST disable one of the two DHCP servers. If you run more than one DHCP server on your
network, you will experience network errors, such as conflicting IP addresses. To disable DHCP on the Router,
see the Basic Setup section in “Chapter 5: Configuring the Router.”

6
Chapter 3: Getting to Know the Router
The Back Panel
Broadband Router with 2 Phone Ports
Chapter 3: Getting to Know the Router
The Back Panel
The Router’s ports and the Reset button are located on the back panel of the Router.
Internet This Internet port connects to your cable or DSL modem.
Phone1 Foryour primary Internet phone line, thePhone1 port allowsyou to connectthe Router toyour
telephone (or fax machine) using an RJ-11 telephone cable (not included).
Phone2 If you have a second Internet phone line, the Phone2 port allows you to connect the Router to
your second telephone (or fax machine) using an RJ-11 telephone cable (not included).
Ethernet 1-4 These four Ethernet ports connect to network devices, such as PCs, print servers, or
additional switches.
Reset Button There are two ways to reset the Router to its factory default settings. Either press the Reset
button for approximately five seconds, or restore the defaults from the Administration tab -
Factory Defaults of the Router's Web-based Utility.
Power The Power port is where you will connect the power adapter.
Figure 3-1: Back Panel
IMPORTANT: If you reset the Router, all of
your settings, including Internet connection,
Internet phone service, and security settings,
will be deleted and replaced with the factory
defaults. Donot resetthe Routerif you wantto
retain these settings.
(If you have an active Internet phone service
account and reset the Router, then the Router
will automatically download its Internet phone
service settings once it is connected to the
Internet again.)

7
Chapter 3: Getting to Know the Router
The Front Panel
Broadband Router with 2 Phone Ports
The Front Panel
The Router’s LEDs, which inform you about network activities, are located on the front panel.
Power Green. The Power LED lights up when the Router is powered on. If the LED is flashing, the
Router is booting up or running a system self-test.
Ethernet 1-4 Green. The Ethernet LED serves two purposes. If the LED is solidly lit, the Router is connected
to a device through the corresponding port (Ethernet 1, 2, 3, or 4). If the LED is flashing, the
Router is sending or receiving data over that port.
Phone 1-2 Green. The Phone LED is solidly lit when a telephone or fax machine has a registered
connection to AT&T through the corresponding port (Phone 1 or Phone 2). (The connection is
registered if your Internet phone service account is active.) This LED is not lit when there is no
registered connection. It flashes when the phone is being used or an incoming call has been
detected.
Internet Green. The Internet LED lights up when the Router is connected to your cable or DSL modem.
If the LED is flashing, the Router is sending or receiving data over the Internet port.
Proceed to “Chapter 4: Connecting the Router.”

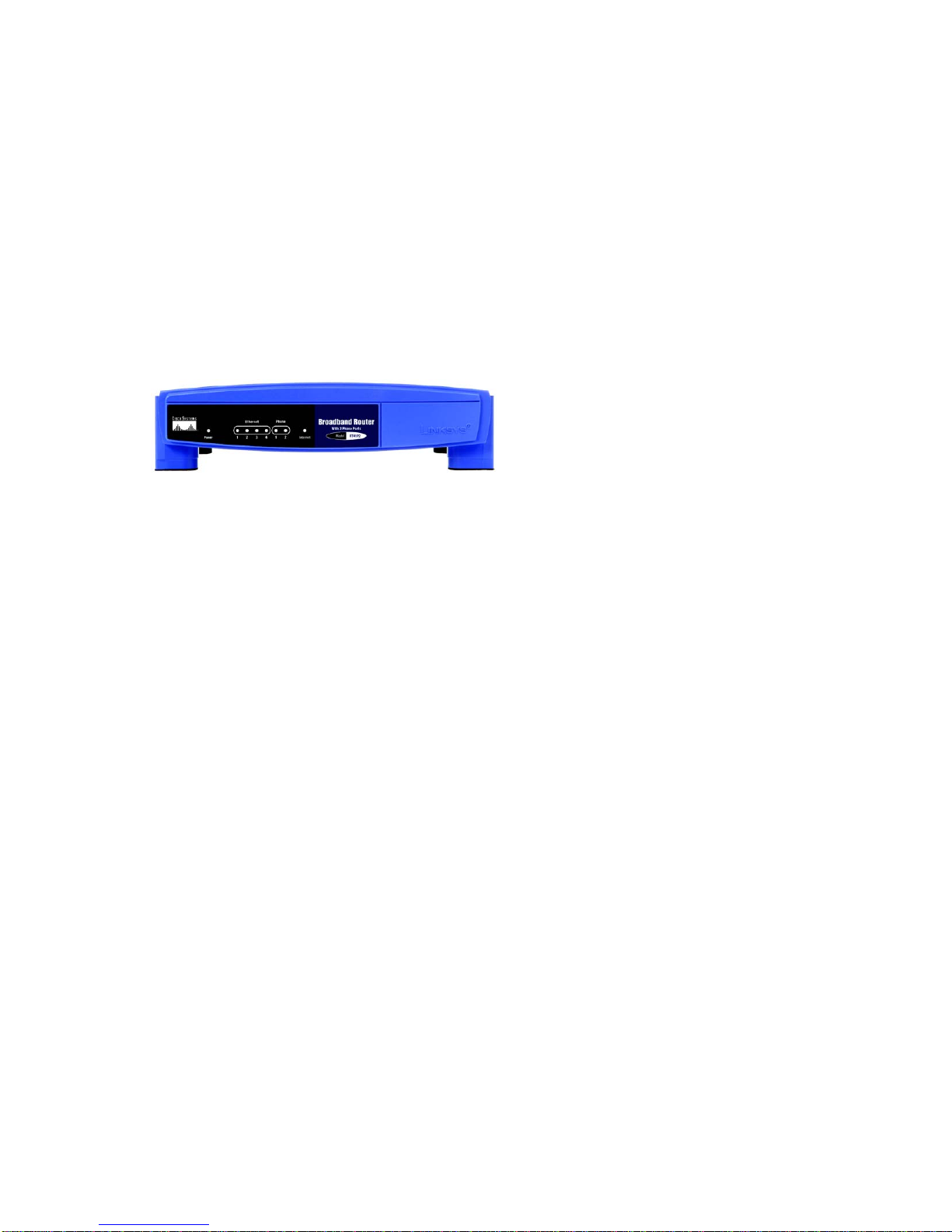

Figure 3-2: Front Panel

8
Chapter 4: Connecting the Router
Overview
Broadband Router with 2 Phone Ports
Chapter 4: Connecting the Router
Overview
This chapter includes two sets of instructions. If the Broadband Router with 2 Phone Ports will be the only router
inyour network, followthe instructionsin “Connecting theRouter to YourBroadband Modem.”If youalready have
a router in your network and want to add the Broadband Router with 2 Phone Ports, follow the instructions in
“Connecting One Router to Another.”
Connecting the Router to Your Broadband Modem
1. Make sure that all of your hardware is powered off, including the Router, PCs, and broadband modem.
2. Connect your broadband modem’s Ethernet cable to the Router’s Internet port.
3. Plug a standard telephone into the Router’s Phone1 port.
4. Connect one end of an Ethernet network cable to one of the numbered ports on the back of the Router.
Connect the other end to an Ethernet port on a network device, e.g., a PC, print server, or switch.
Repeat this step to connect more PCs or other network devices to the Router.
5. Power on the broadband modem.
6. Connect the included power adapter to the Router’s Power port, and then plug the power adapter into an
electrical outlet. The Power LED on the front panel will light up as soon as the Router powers on.
7. Power on your PC(s).
Proceed to “Chapter 5: Configuring the Router.”
Figure 4-1: Connect the Broadband Modem
Figure 4-2: Connect a Telephone
Figure 4-3: Connect a PC
NOTE: Make sure your telephone is set to its tone setting (not pulse).
IMPORTANT: Do not connect the Phone port to a telephone wall jack. Make sure you only connect
a telephone or fax machine to the Phone port. Otherwise, the Router or the telephone wiring in your
home or office may be damaged.
Figure 4-4: Connect the Power

9
Chapter 4: Connecting the Router
Connecting One Router to Another
Broadband Router with 2 Phone Ports
Connecting One Router to Another
If you already have a router (for example, a wireless router) and want to add the Broadband Router with 2 Phone
Ports, then you should use the Broadband Router with 2 Phone Ports as your primary router so the Internet phone
calls will be routed properly. For example, the following connection diagram shows the Broadband Router with
2 Phone Ports connected to a wireless router, phone, and desktop PCs.
Figure 4-5: Router Connected to Another Router
Phone
Broadband Router
with 2 Phone Ports
Broadband Modem
Internet
PCs
Wireless Router

10
Chapter 4: Connecting the Router
Connecting One Router to Another
Broadband Router with 2 Phone Ports
To connect the Broadband Router with 2 Phone Ports to another router, follow these instructions:
1. Make sure that all of your hardware is powered off, including both routers, PCs, and broadband modem.
2. Disconnect your existing router from the broadband modem, PCs, and other network devices.
3. Connect your broadband modem’s Ethernet cable to the Internet port on the back of the Broadband Router
with 2 Phone Ports.
4. Plug a standard telephone into the Router’s Phone1 port.
5. Connect one end of an Ethernet network cable to one of the numbered ports on the back of the Router.
Connect the other end to the Internet port on the back of the other router.
Repeat this step to connect PCs or other network devices to the Router.
6. Power on the cable or DSL modem.
7. Connect the included power adapter to the Router’sPower port, and then plug the power adapter into an
electrical outlet. The Power LED on the front panel will light up as soon as the Router powers on.
8. Power on the other router.
9. Power on your PC(s).
Proceed to “Chapter 5: Configuring the Router.”
Figure 4-9: Connect the Power
Figure 4-8: Connect the Other Router
NOTE: Make sure your telephone is set to its tone setting (not pulse).
IMPORTANT: Do not connect the Phone port to a telephone wall jack. Make sure you only connect
a telephone or fax machine to the Phone port. Otherwise, the Router or the telephone wiring in your
home or office may be damaged.
Figure 4-6: Connect the Broadband Modem
Figure 4-7: Connect a Telephone

11
Chapter 5: Configuring the Router
Overview
Broadband Router with 2 Phone Ports
Chapter 5: Configuring the Router
Overview
Linksys recommends using the Setup CD-ROM for first-time installation of the Router. If you do not wish to run
the Setup Wizard on the Setup CD-ROM, then you can use the Web-based Utility to configure the Router. For
advanced users, you may configure the Router’s advanced settings through the Web-based Utility.
This chapter will describe each web page on the Utility and each page’s key functions. The Utility can be
accessed via your web browser through use of a computer connected to the Router. For a basic network setup,
most users only have to use the following screens of the Utility:
• Basic Setup. On the Basic Setup screen, enter the Internet connection settings provided by your ISP. If you do
not have this information, you can call your ISP to request the settings. Once you have the setup information
for your specific type of Internet connection, then you can configure the Router.
• Management. Click the Administration tab and then the Management tab. The Router’s default password is
admin. To secure the Router, change the Password from its default.
There are six main tabs: Setup, Security, Access Restrictions, Applications & Gaming, Administration, and Status.
Additional tabs will be available after you click one of the main tabs.
Setup
• Basic Setup. Enter the Internet connection and network settings on this screen.
• DDNS. Enable the Router’s Dynamic Domain Name System (DDNS) feature on this screen.
• MAC Address Clone. If you need to clone a MAC address onto the Router, use this screen.
NOTE: If you want to sign up for Internet phone service or activate your account, visit
http://www.att.com/linksys after you have installed and configured the Router. Refer to
“Chapter 6: Signing up for AT&T CallVantagesm Service” for more information.

12
Chapter 5: Configuring the Router
Overview
Broadband Router with 2 Phone Ports
Security
• Firewall. On this screen, you can configure a variety of filters to enhance the security of your network.
• VPN. To enable or disable IPSec, PPTP, and/or L2TP Passthrough, use this screen.
Access Restrictions
• Internet Access. This screen allows you to permit or block specific kinds of Internet usage and traffic.
Applications & Gaming
• Port Range Forward. Set up public services or other specialized Internet applications on your network.
• Port Trigger. To set up triggered ranges and forwarded ranges for Internet applications, click this tab.
• UPnP Forward. Use this screen to alter UPnP forwarding settings.
• DMZ. Click this tab to allow one local user to be exposed to the Internet for use of special-purpose services.
Administration
• Management. On this screen, alter the Router’s password and access privileges, as well as the SNMP and
UPnP settings.
• Log. If you want to view or save activity logs, click this tab.
• Diagnostics. Use this screen to check the connections of your network components.
• Factory Defaults. If you want to restore the Router’s factory defaults, then use this screen.
• Backup and Restore. You can back up and restore the Router’s configuration if necessary.
Status
• Router. This screen provides status information about the Router.
• Local Network. This provides status information about the local network.
• Voice. This screen provides status information about the Internet phone lines.

13
Chapter 5: Configuring the Router
How to Access the Web-based Utility
Broadband Router with 2 Phone Ports
How to Access the Web-based Utility
To access the Web-based Utility ofthe Router, launch Internet Explorer or Netscape Navigator, and enter the
Router’s default IP address, 192.168.15.1, in the Address field. Press the Enter key.
A screen will appear asking you for your User Name and Password. Leave the User Name field blank, and enter
admin in the Password field. Then click the OK button.
Make the necessary changes through the Utility. When you have finished making changes to a screen, click the
Save Settings button to save the changes, or click the Cancel Changes button to undo your changes. For help
information on a tab, click Help.
The Setup Tab - Basic Setup
The Basic Setup screen is the first screen you see when you access the Web-based Utility.
Internet Setup
The Internet Setup section configures the Router for your Internet connection type. This information can be
obtained from your ISP.
Internet Connection Type
The Router supports four connection types: Automatic Configuration (DHCP), Static IP, PPPoE, and PPTP. Each
Basic Setup screen and available features will differ depending on what kind of connection type you select.
Automatic Configuration (DHCP)
By default, the Router’s Internet Connection Type is set to Automatic Configuration (DHCP), and it should be
used only if your ISP supports DHCP or you are connecting through a dynamic IP address.
Figure 5-2: Router Login
Figure 5-1: Router’s IP Address
Figure 5-3: Setup Tab - Basic Setup -
Automatic Configuration (DHCP)

14
Chapter 5: Configuring the Router
The Setup Tab - Basic Setup
Broadband Router with 2 Phone Ports
Static IP
If you are required to use a permanent IP address, then select Static IP.
Internet IP Address. This is the IP address that the Router has, when seen from the Internet. Your ISP will
provide you with the IP Address you need to specify here.
Subnet Mask. This is the Router’s Subnet Mask, as seen by external users on the Internet (including your
ISP). Your ISP will provide you with the Subnet Mask.
Default Gateway. Your ISP will provide you with the Default Gateway Address.
Static DNS 1-2. Your ISP will provide you with at least one DNS (Domain Name System) Server IP Address.
PPPoE
Some DSL-based ISPs use PPPoE (Point-to-Point Protocol over Ethernet) to establish Internet connections for
end-users. If you use a DSL line, check with your ISP to see if they use PPPoE. If they do, you will have to
enable it.
User Name and Password. Enter the User Name and Password provided by your ISP.
Connect on Demand and Max Idle Time. You can configure the Router to cut the Internet connection after it
has been inactive for a specific period of time (Max Idle Time). If your Internet connection has been
terminated due to inactivity, Connect on Demand enables the Router to automatically re-establish your
connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand,
click the radio button. If you want your Internet connection to remain on at all times, enter 0in the Max Idle
Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet access
disconnects.
Keep Alive and Redial Period. This option keeps your Internet access connected indefinitely, even when it
sits idle. If you select this option, the Router will periodically check your Internet connection. If the connection
is down, then the Router will automatically re-establish the connection. To use this option, click the radio
button next to Keep Alive. The default Redial Period is 30 seconds.
When you are finished, click the Save Settings button. Then click the Status tab, and click the Connect
button to start the connection.
Figure 5-4: Static IP
Figure 5-5: PPPoE
static ip address: a fixed address
assigned to a computer or device
connected to a network.
pppoe: atype ofbroadband connectionthat
provides authentication (username and
password) in addition to data transport
subnet mask: an address code that
determines the size of the network
default gateway: a device that forwards
Internet traffic from your local area network
NOTE: For DSL users, if you need to enable PPPoE support, remember to remove any PPPoE
applications that are installed on your PCs.
