Linksys WRT54G - Wireless-G Broadband Router... User manual

A Division of Cisco Systems, Inc.
®
Model No.
Model No.
Wireless Quick Installation Guide Wireless
1
Quick Installation Guide
Model No. WRT54G (UK/EU)
Broadband Router
Wireless-G
Package Contents
• One Wireless-G Broadband Router
• One Power Adapter
• One Ethernet Network Cable
• One Setup CD-ROM with User Guide and
Norton Internet Security
• One Quick Installation
GHz
2802.11g
4
,

2
1
ABefore you begin, make sure
that you have the setup infor-
mation for your specific type of
Internet connection. The instal-
lation technician from your ISP
should have left this informa-
tion with you after installing
your broadband connection. If
not, you can call your ISP to
request the settings.
BMake sure that all of your net-
work’s hardware is powered off,
including the Router, PCs, and
cable or DSL modem.

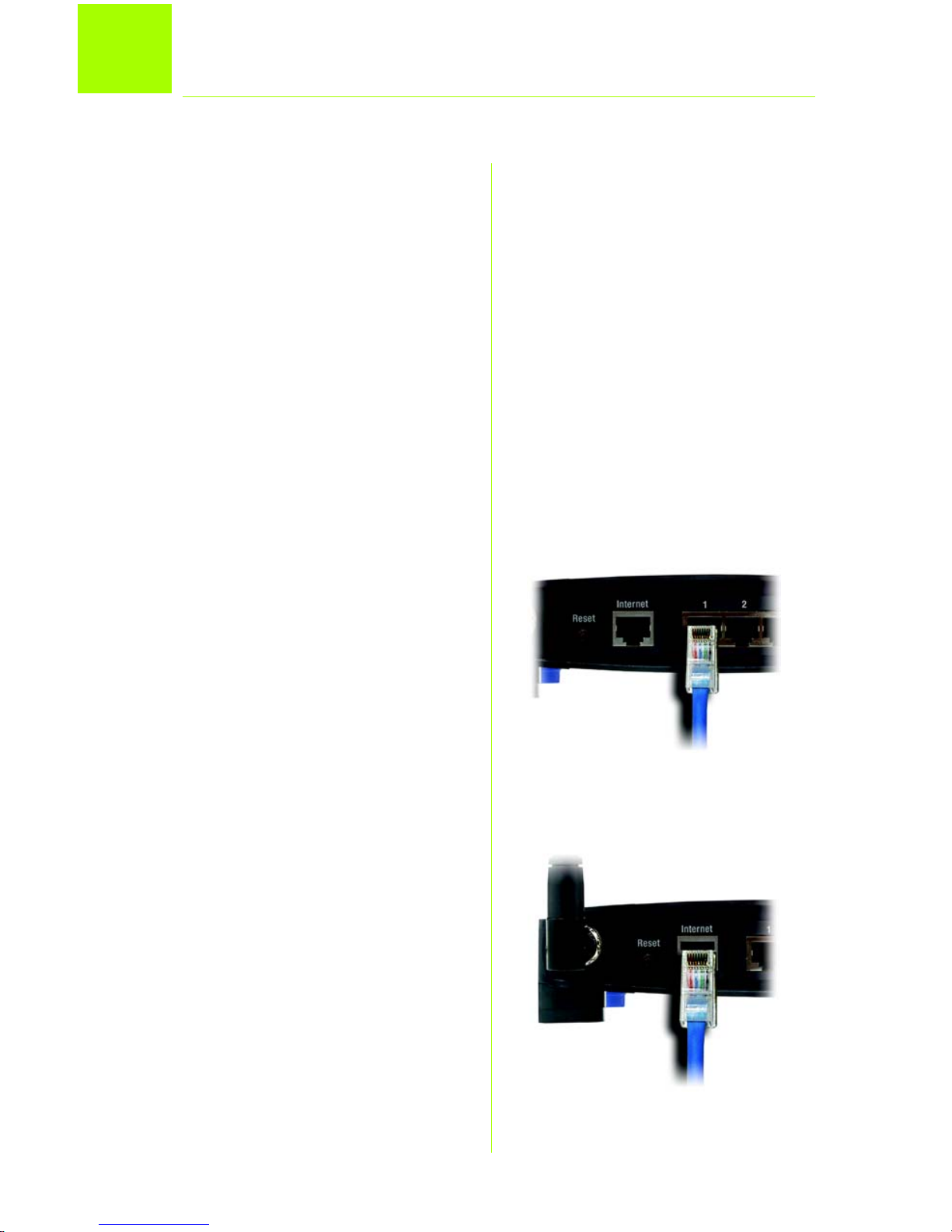

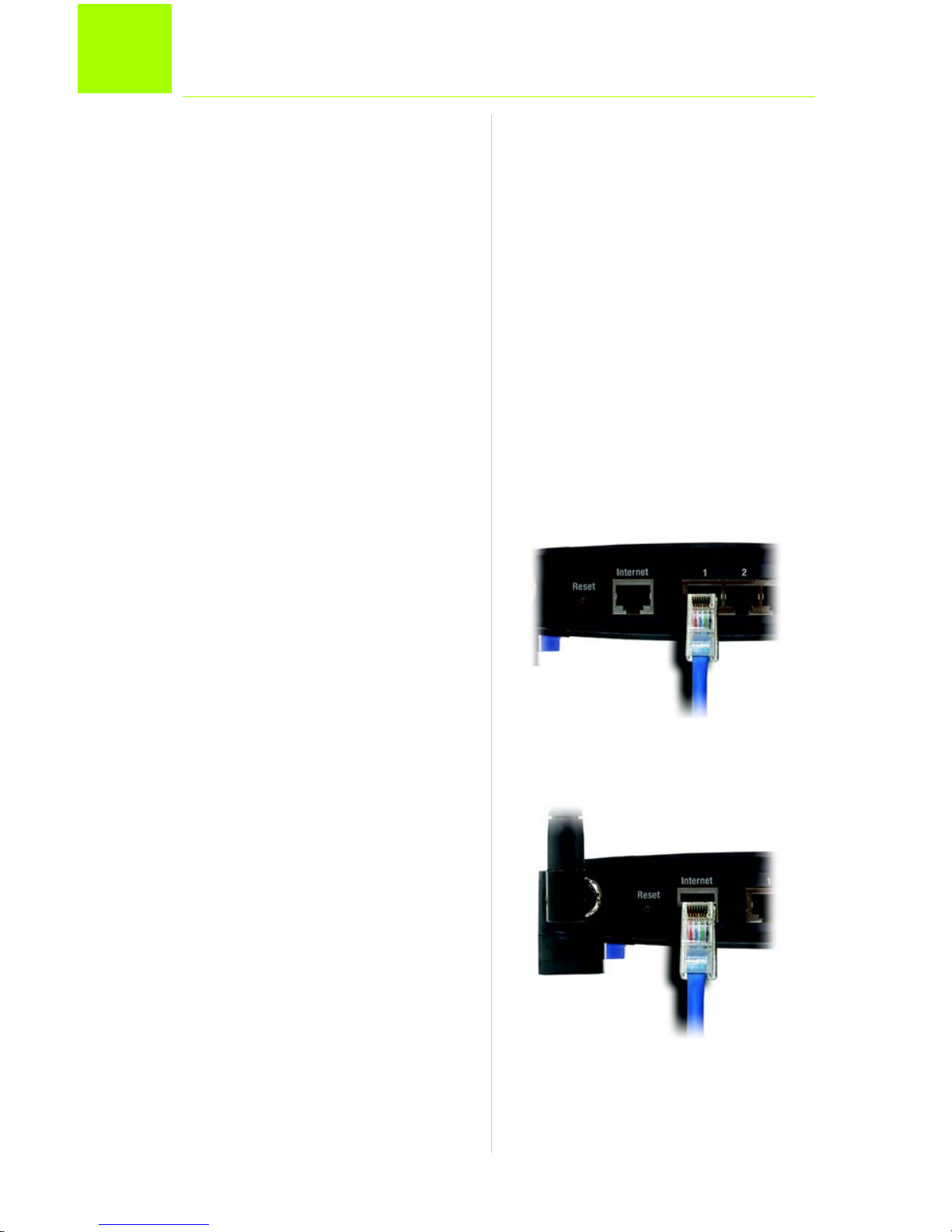

CConnect one end of an Ether-
net network cable to one of
the ports (labeled 1-4) on the
back of the Router, and the
other end to an Ethernet port
on a PC.
DRepeat this step to connect
additional PCs or other network
devices to the Router.
EConnect a different Ethernet
network cable from your cable
or DSL modem to the Internet
port on the Router’s back
panel. This is the only port that
will work for your modem con-
nection.
E
C
Connect the Broadband Router

3
FPower on the following devices
in this order: cable or DSL
modem, Router, and PCs.

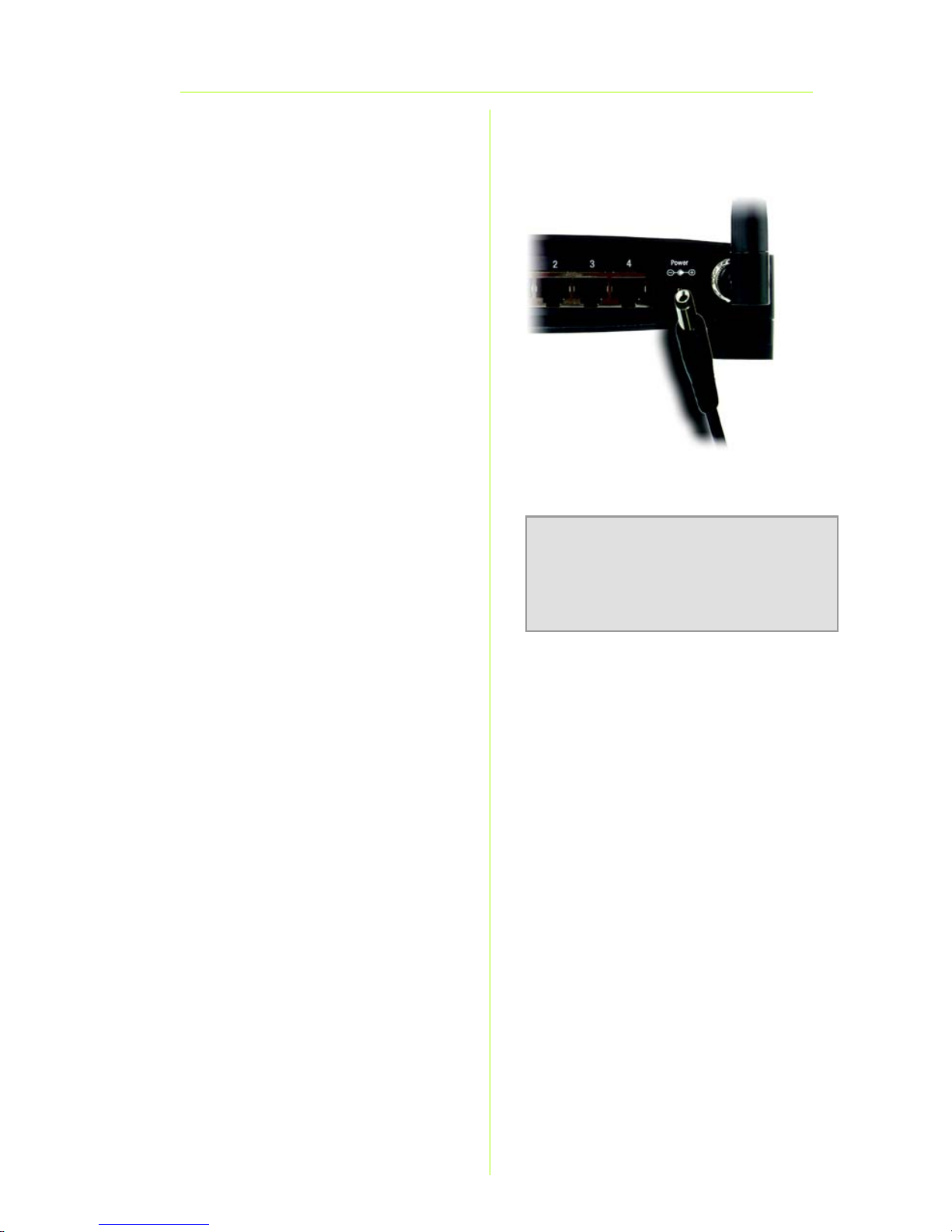

GConnect the AC Power
Adapter to the Power port and
the other end into an electrical
outlet.
HMake sure the Power and Inter-
net LEDs on the front panel
light up green.
IThe Power LED will flash green
for a few seconds when the
Router goes through its self-
diagnostic test. This LED will stay
solid when the self-test is com-
plete. If it does not stop flash-
ing, refer to “Appendix A:
Troubleshooting” of the User
Guide on the Setup CD-ROM.
Proceed to Step 2.
IMPORTANT: Make sure to use
the power adapter that is sup-
plied with the Router. Use of a
different power adapter could
damage the Router.
G

4
2
C
B
D
NOTE: Before setting up the
Router, make sure your PCs are
configured to obtain an IP (or
TCP/IP) address automatically
from the Router.
Configure the PCs
For Windows 98, Millennium, and XP
using the default interface, refer to
the User Guide on the Setup CD-ROM
or your Windows documentation.
The following instructions apply only
to Windows 2000 or XP using the
Classic interface (in which the icons
and menus look like previous Win-
dows versions).

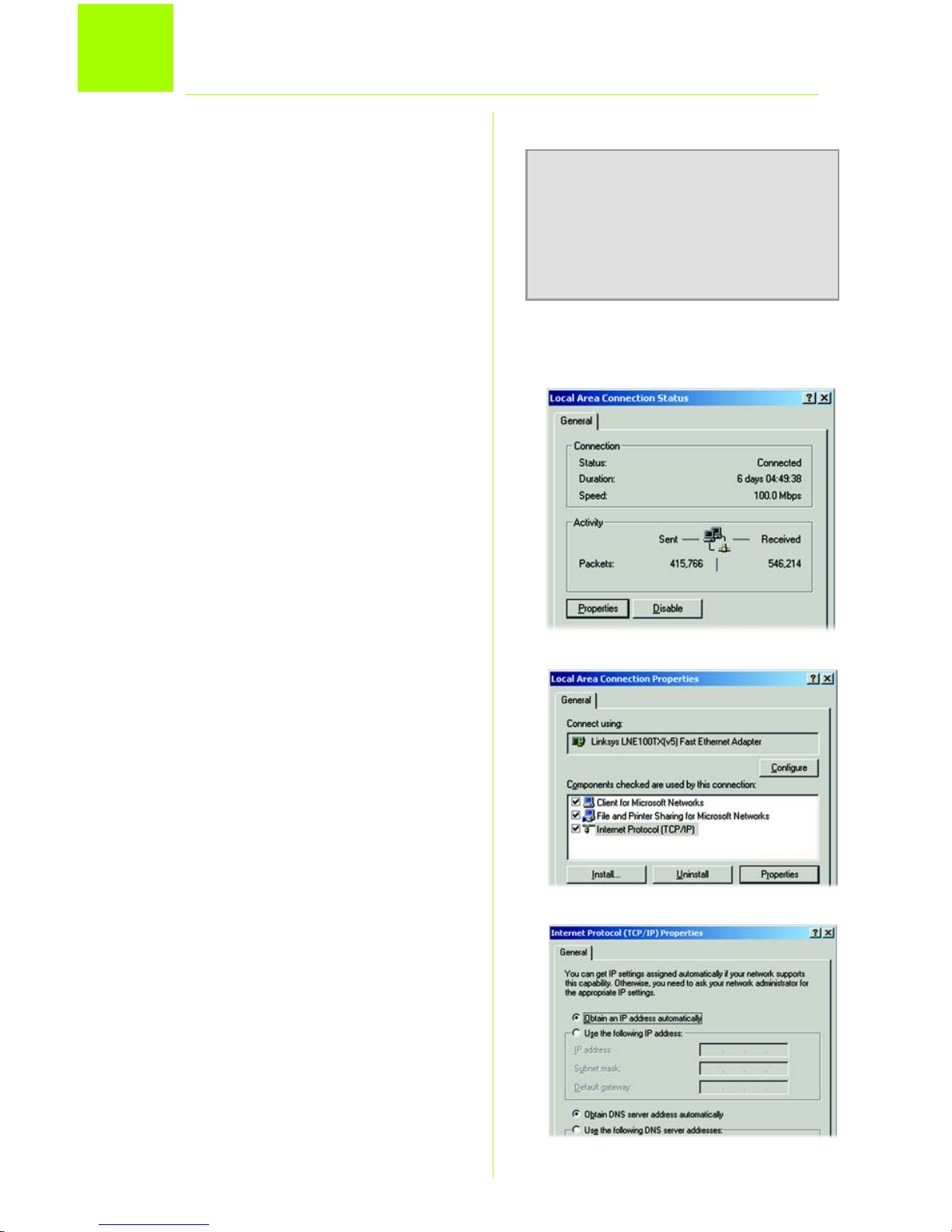

AClick the Start button. Select
Settings and click the Control
Panel icon. Double-click the
Network and Dial-up
Connections icon.
BSelect the Local Area Connec-
tion icon for the applicable
Ethernet adapter (usually it is
the first Local Area Connection
listed). Double-click the Local
Area Connection. Click the
Properties button.
CMake sure the box next to Inter-
net Protocol (TCP/IP) is checked.
Highlight Internet Protocol
(TCP/IP), and click the Proper-
ties button.
DSelect Obtain an IP address
automatically. Once the new
window appears, click the OK
button. Click the OK button
again to complete the PC con-
figuration, then restart your
computer.
Proceed to Step 3.

5
These instructions will show you how
to configure the Router. You only
need to configure the Router once
using any computer you have set
up.

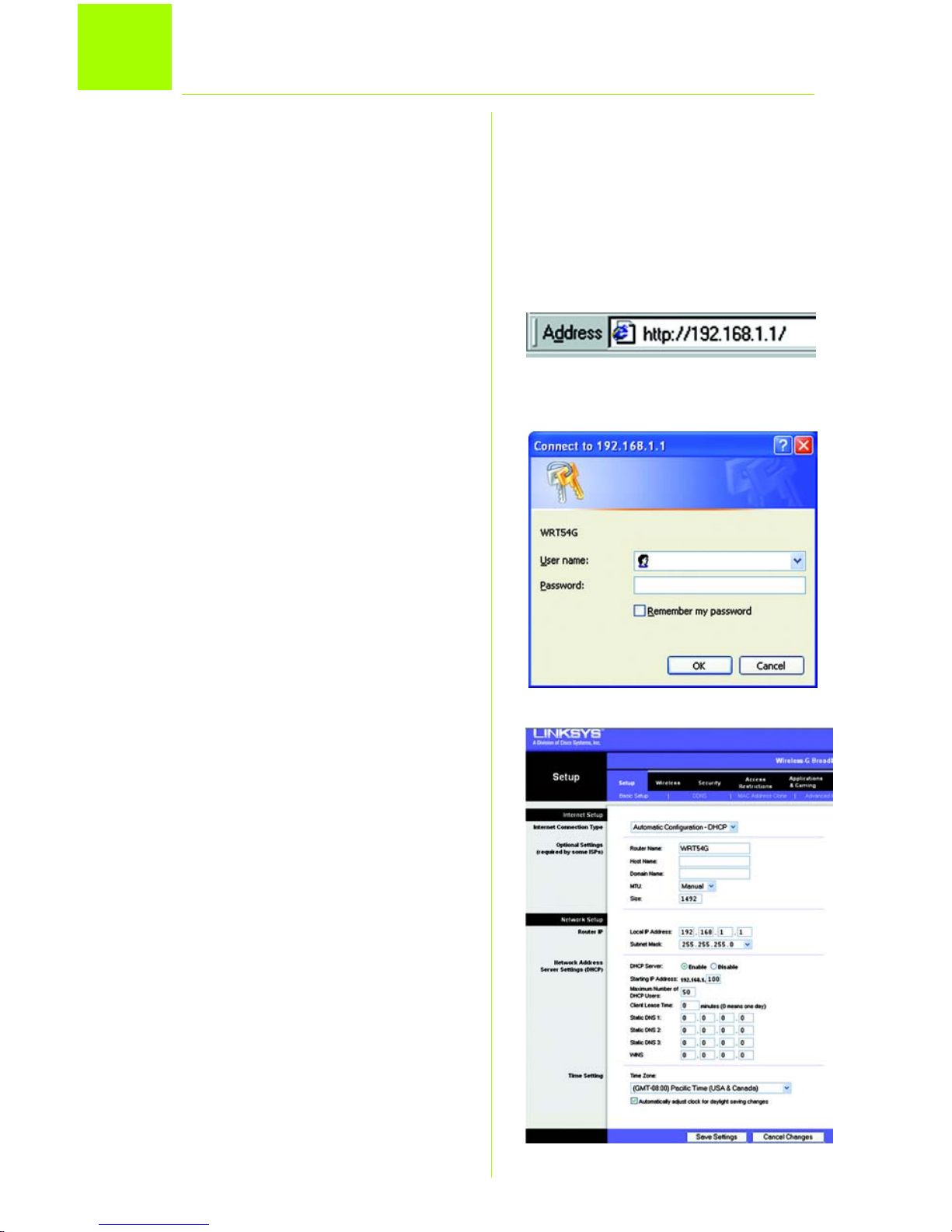

AOpen your web browser. Enter
http://192.168.1.1 in its Address
field. Press the Enter key.
BA password request screen will
appear. Leave the User Name
field empty, and enter the
default password, admin, in
lowercase letters in the Pass-
word field. (For added security,
you should later set a new
password, using the Adminis-
tration tab’s Management
screen of the web-based util-
ity). Then click the OK button.
CThe web-based utility will
appear with the Setup tab
selected. If requested by your
ISP (usually cable ISPs), com-
plete the Host Name and
Domain Name fields. Other-
wise, leave them blank.
DFor the Configuration Type set-
ting, four connections types
are offered through the drop-
down menu. Each Setup
screen and available features
will differ depending on which
connection type you select.
3
C
A
B
Configure the Broadband Router

6

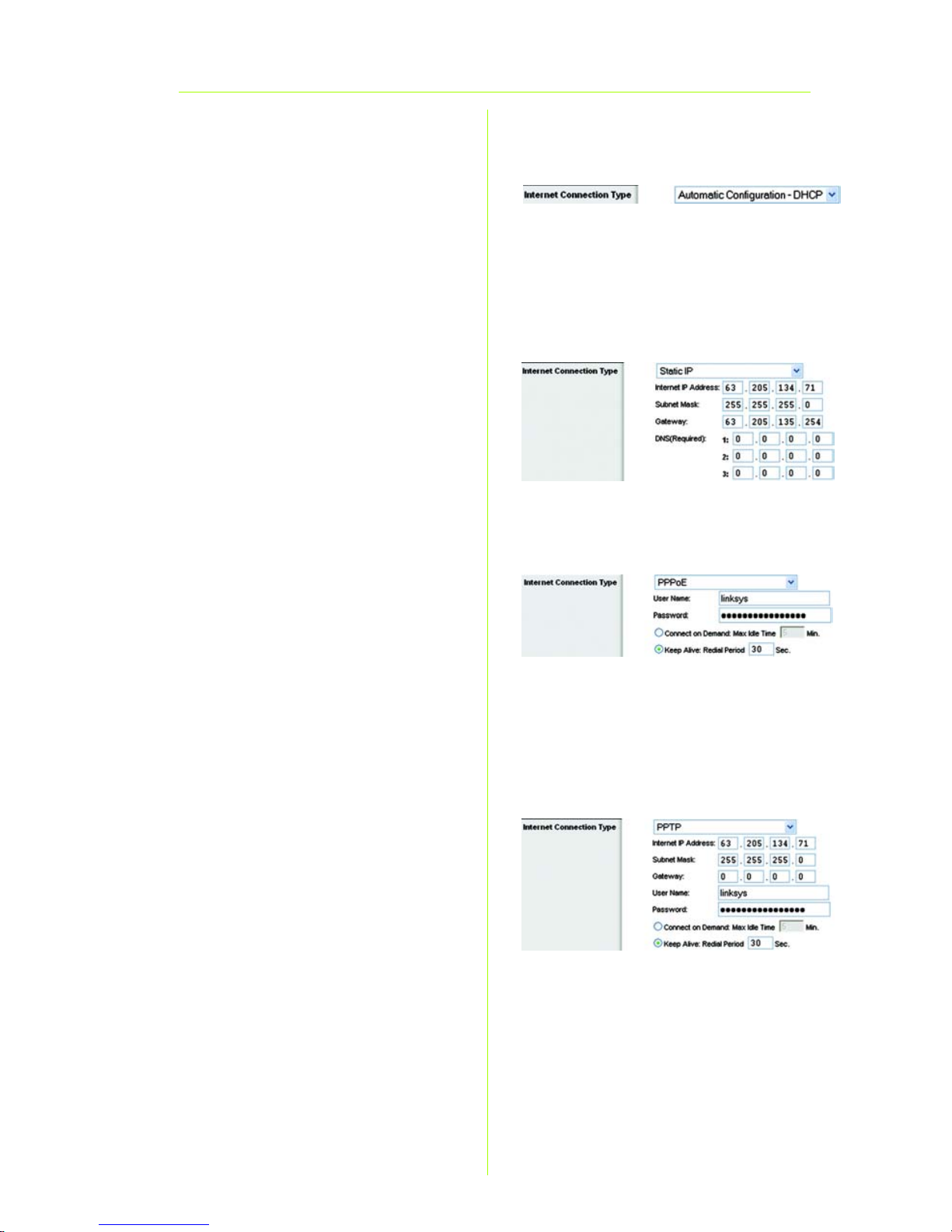

Internet Configuration Type
Automatic Configuration - DHCP:
If you are connecting through
DHCP or a dynamic IP address
from your ISP, keep this default set-
ting. (D1)
Static IP: If your ISP assigns you a
static IP address, select Static IP
from the drop-down menu. Com-
plete the Internet IP Address, Sub-
net Mask, Gateway, and DNS
fields. You need to enter at least
one DNS address. (D2)
PPPoE: If you are connecting
through PPPoE, select PPPoE from
the menu. Complete the User
Name and Password fields. (D3)
Select Keep Alive if you always
want to be connected to your ISP,
or select Connect on Demand if
you are charged for the time that
you are connected to your ISP.
PPTP: If you are connecting
through PPTP, select PPTP from the
menu. Complete the Internet IP
Address, Subnet Mask, and Gate-
way fields. Then complete the User
Name and Password fields. (D4)
Select Keep Alive if you always
want to be connected to your ISP,
or select Connect on Demand if
you are charged for the time that
you are connected to your ISP.
D1
D2
D3
D4

7
G
EWhen you are finished entering
your Internet connection set-
tings, click the Save Settings
button to save your changes.
FTo configure the Router for your
wireless network, select the
Wireless Tab’s Basic Wireless
Settings screen.

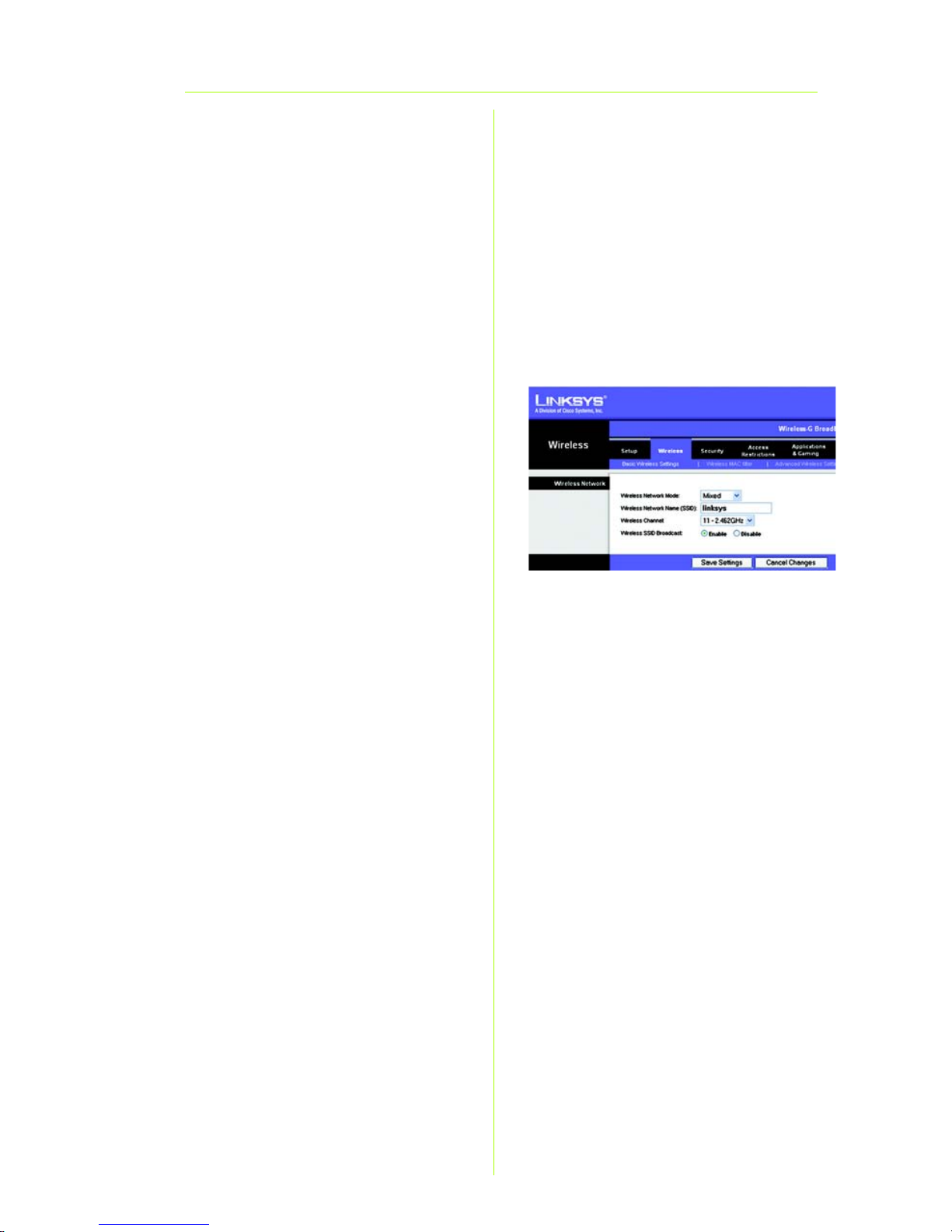

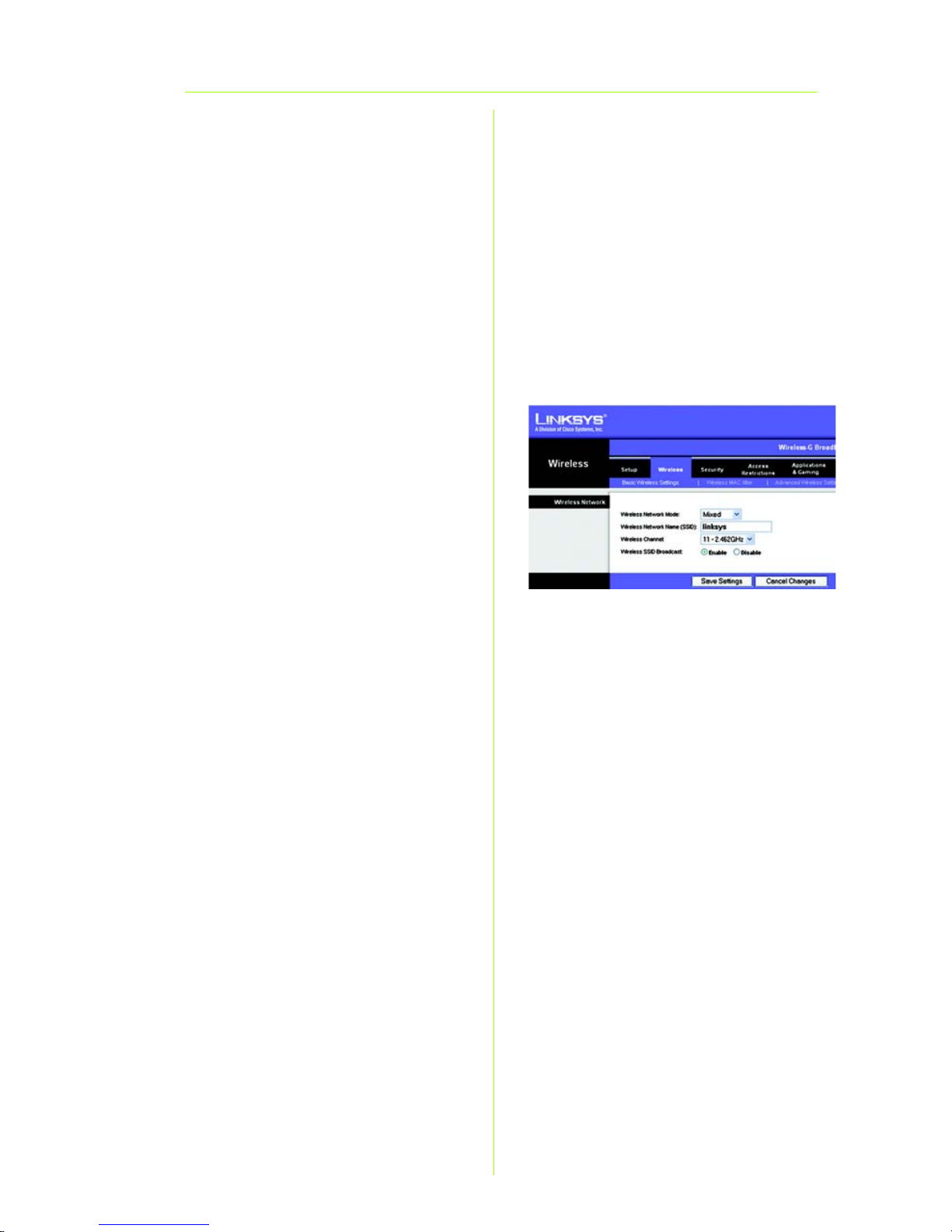

GSelect the Wireless Network
Mode:
Mixed: If you have Wireless-G and
802.11b devices in your network,
then keep the default setting,
Mixed.
G-Only: If you have only Wireless-G
devices, select G-Only.
B-Only: If you have only Wireless-B
devices, select B-Only.
Disable: If you want to disable
wireless networking, select
Disable.
HWireless Network Name (SSID).
The SSID is the network name
shared among all points in a
wireless network. The SSID must
be identical for all points in the
wireless network. It is case-sen-
sitive and must not exceed 32
characters (use any of the
characters on the keyboard).
Make sure this setting is the
same for all points in your wire-
less network. For added secu-

8
rity, you should change the
default SSID (linksys) to a
unique name.
IWireless Channel. Select the
appropriate channel from the
list provided to correspond with
your network settings. All
devices in your wireless network
must be broadcast on the
same channel in order to func-
tion correctly.
JWireless SSID Broadcast. When
wireless clients survey the local
area for wireless networks to
associate with, they will detect
the SSID broadcast by the
Router. To broadcast the
Router's SSID, keep the default
setting, Enable. If you do not
want to broadcast the Router's
SSID, then select Disable.
KChange these settings as
described here and click the
Save Settings button to apply
your changes.
LRestart your computer.
MTest the setup by opening your
web browser from any com-
puter and entering
http://www.linksys.com/
registration.
Congratulations! The installation of
Wireless-G Broadband Router is
complete.
WRT54G-UK-EU_V2-QIG-40212NCJL
For additional information or troubleshooting
help, refer to the User Guide on the CD-ROM
or the Technical Support Insert. You can also
e-mail for further support.
Website
http://www.linksys.com/international
Linksys is a registered trademark or trademark of
Cisco Systems, Inc. and/or its affiliates in the U.S.
and certain other countries. Copyright © 2004
Cisco Systems, Inc. All rights reserved.
NOTE: For more advanced set-
tings and security options, refer
to the User Guide on the Setup
CD-ROM.
M

A Division of Cisco Systems, Inc.
®
Modelnr.
Modelnr.
Trådløs Installationsvejledning Trådløs
1
Installationsvejledning
Modelnr.
WRT54G (DK)
Bredbånds-router
Trådløs-G
Pakkens indhold
• En Trådløs-G-bredbånds-router
• En strømforsyning
• Et Ethernet-kabel
• Eninstallations-cd-rommedbrugervejledning
(kun på engelsk) og Norton Internet Security
• En installationsvejledning
GHz
2802.11g
4
,

2
1
AFør du begynder, skal du have
konfigurationsoplysningerne til din
internetforbindelsestype. Du har
sandsynligvis fået oplysningerne
af den tekniker fra din
internetudbyder, der har installeret
din bredbåndsforbindelse. Hvis
det ikke er tilfældet, kan du
henvende dig til din
internetudbyder for at få
indstillingerne.
BSørg for, at al netværkshardware
er slukket, herunder routeren, pc'er
og kabel- eller DSL-modem.
CTilslut den ene ende af et
Ethernet-kabel til en af portene
(mærket 1-4) bag på routeren og
den anden ende til en Ethernet-
port på en pc.
DGentag dette trin for at tilslutte
yderligere pc'er eller andre
netværksenheder til routeren.
ETilslut et andet Ethernet-kabel fra
kabel- eller DSL-modemmet til
internetporten på routerens
bagpanel. Dette er den eneste
port, der kan bruges til din
modemforbindelse.
Tilslutning af bredbånds-routeren
E
C
