Linsar LS65UHDSM21 User manual

User Manual
65”
ULTRA HD
SMART TV
LS65UHDSM21

2
Welcome
Welcome to Linsar!
This user manual tells you all you need to know about setting up your newTV.
Please take special note of any important safety and usage information presented with the symbol.
All products brought to you by Linsar are manufactured to the highest standards of performance and safety
and, as part of our philosophy of customer service and satisfaction, are backed by a comprehensive
1Year Warranty.

3
Contents
Welcome 2
Unpack and Prepare 4
What's in the box 4
ImportantTips 5
Attaching the stand 6
Wall-mounting theTV 7
Connect to power 8
Connect your antenna 8
Controls and Connections 9
Get to know yourTV 9
Buttons on theTV 9
Ports on theTV 10
Remote Control 12
Setup 12
Using the Remote Control 13

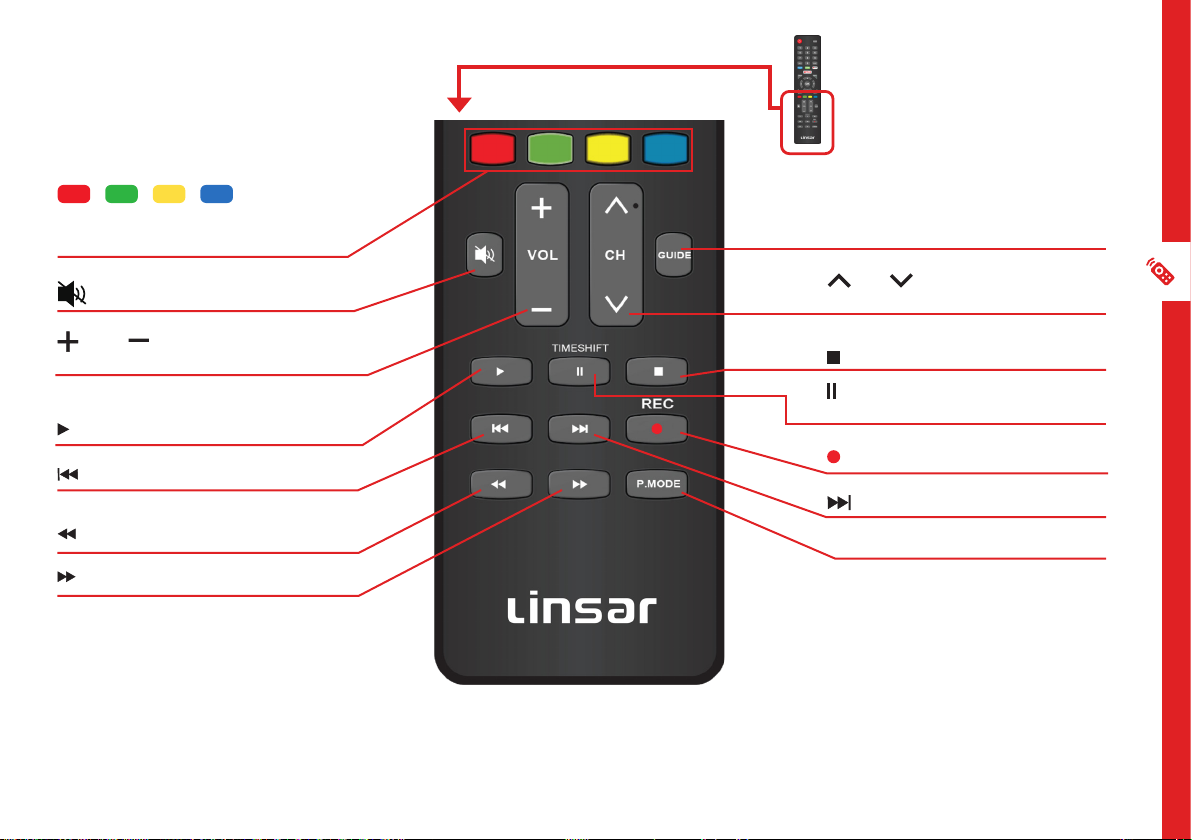

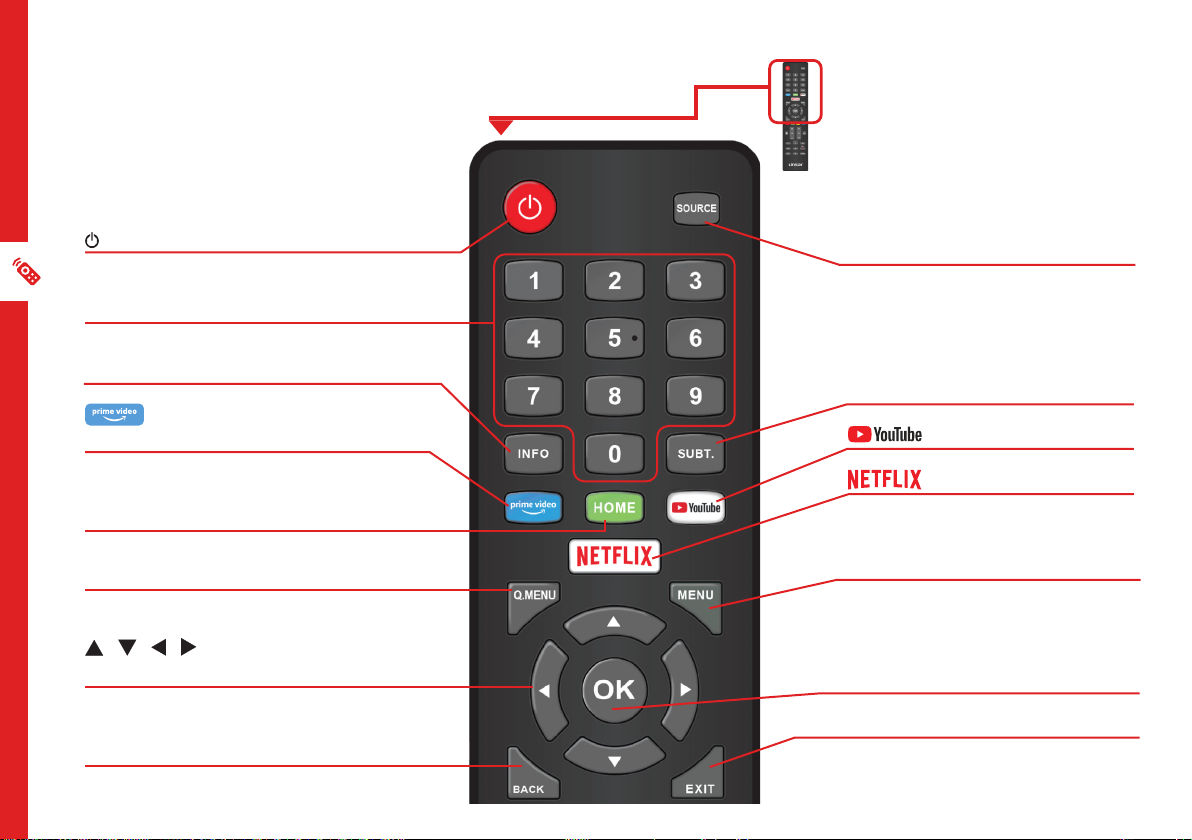

Standard Remote 14
On-Screen Set Up 16
TV Setting Menus 17
TV 19
Picture 20
Sound 22
Network 24
System 26
Time 28
Lock 29
PVR
(Personal Video Recording) 30
About 31
QMenu 32
High Dynamic Range (HDR) 33
Smart TV 34
SmartTV Applications 34
Screencast 35
App Portals 35
Web Browser 36
TV Guide 37
Recording 38
Recording LiveTV 39
Scheduled recording 39
Playback 39
Pause LiveTV (Time-shift) 40
USB Mode 41
Set up 41
Troubleshooting 43
Specications 46
Compliance and
Responsible Disposal 47

4 | UNPACK AND PREPARE
Unpack and Prepare
See the flap of the box
for how to handle theTV
without damaging it!
What's in the box
In the box you will find:
A. 65" Ultra HD SmartTV
B. Remote Control
C. AAA Batteries
D. TV Stands
E. Screws forTV Stands
F. Warning Sheet
G. TVToppling Safety Message
H. Quick Start Guide
I. Warranty Certificate
J. General Safety Warnings
K. User Manual
You will need:
• Phillips-head screwdriver (for stand installation)
• Someone to help you lift and install yourTV
• Antenna cable (to watch liveTV)
• Broadband internet connection (to use smart apps)
Before installing your newTV, check you have everything needed.

UNPACK AND PREPARE | 5
Important Tips
• Place theTV on a level surface.
• Place theTV away from any source that may generate heat or vibrations.
• Make sure there is enough space around vents for airflow.

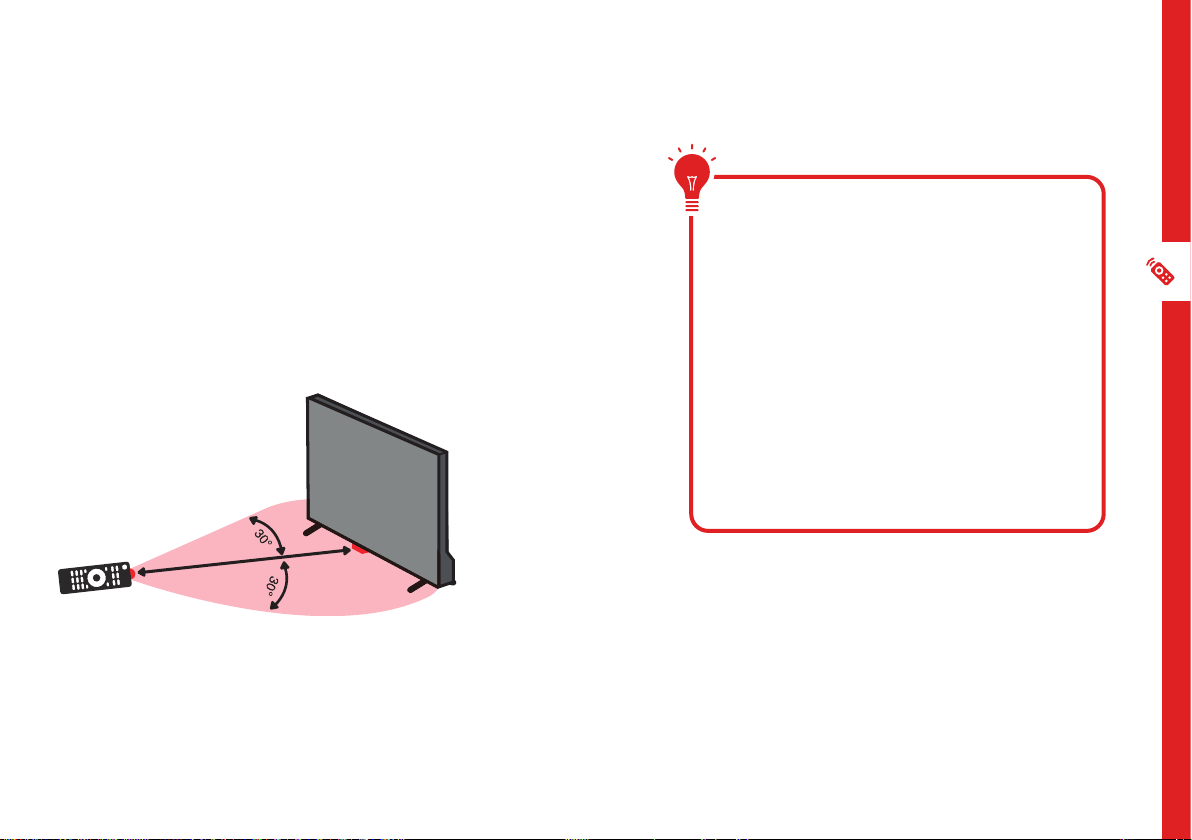

• The remote control works up to 5 metres away from theTV.
• Unplug theTV before cleaning it.
• Clean using a dry cloth only - do not use water or chemicals.
• Use only the power supply provided.
• It is highly recommended to use safety straps for securing theTV in place.
• Keep liquid, children and pets away from theTV at all times.

6 | UNPACK AND PREPARE
Attaching the stand
• ThisTV is heavy! We recommend asking
someone to help you lift it.
• Unplug theTV from the power outlet before
installing or removing the stand.
• DO NOT place theTV standing upright without
its stand attached; it could damage the remote
sensor at the bottom of theTV.
• Only touch the frame, not the screen.
• It is highly recommended to use safety straps
for securing theTV.
CAUTION!
Do not apply
excessive force as
you might damage
the screw holes.
Unless you are wall-mounting theTV, you will need to
attach its stand/legs.
1. Lay theTV face-down on a soft, flat surface (like
the sofa, or a towel on a table) larger than theTV
itself.
2. Match the stands to the installation points on the
underside of theTV.
3. Attach the stands to theTV at the installation
points using the screws provided. (Grab a
screwdriver for this bit).
1
2
3
3

UNPACK AND PREPARE | 7
400mm
Back of theTV
200mm
Wall-mounting the TV
TheTV comes with holes on the back panel for use
with wall-mounting brackets (bracket not included).
Use four standard M8*10mm screws (or longer,
depending on the mounting bracket) to wall-mount
thisTV (screws are not included).
• Unplug theTV from the power outlet
before wall-mounting.
• Contact a professional for assistance with
wall-mounting theTV.
Required
• VESA Mounting
Bracket
• 4 x M8*10mm
screws (or
longer as
required)
The screws in the package are for securing the TV
stand only. If you are wall-mounting theTV, consult a
qualified installer for advice on bracket support and
wall support.

8 | UNPACK AND PREPARE
Free-to-airTVinHD(HighDenition)
High Definition (HD) channels
provide the best viewing quality
and are available with a digital
antenna connection.
TV channels in Ultra HD resolution are
not currently available in Australia.
Therefore when you watch HD
broadcast signals on an Ultra HDTV,
the picture can appear 'soft' and lacks
the detail you see when watching the
same content on an HDTV.
Connect to power
Make sure theTV is switched off at the power outlet
until you have finished connecting your cables.
Connect your antenna
Antenna cable not included.
ABC HD
SBS ONE HD
7HD
9HD
10 HD
PRIME7 HD
WIN HD
Example
HD Channels
Don't forget to plug in theTV to
the power outlet. Leave the power
switched off until installation is
finished.

CONTROLS AND CONNECTIONS | 9
Controls and Connections
1. (ON/Standby): Switch theTV to On or Standby.
2. VOL - / VOL + : Decrease/increase the volume level.
3. CH - / CH + : Select the previous or next channel.
Buttons on the TV
Get to know your TV
Front view
On/Standby indicator and
Remote sensor
1 2 3 4 5 6
4. Menu: Enter the settings menu.
5. SOURCE: Select the input source.
6. IR remote receiver.

10 | CONTROLS AND CONNECTIONS
Ports on the TV
1
HDMI IN
Use a high-speed
HDMI cable for
best picture and
sound quality.
SOUND
COMPUTER
All-digital connection between theTV and any HDMI device.
Supports Ultra HD. Requires a HDMI cable (not included).
2ANTENNA IN
FREE-TO-AIR
TV
Connect your antenna for liveTV. (Antenna cable not included.)
3USB
STORAGE
Plug in a USB stick/drive to PVR record and pause liveTV. Play
media files stored on your USB storage device (supported file
codecs and extensions may vary). Update theTV software via
USB.
4
Headphone
Jack
SOUND
Connect to your headphones, amplifier or audio device, using an
AUX cable (not included).
HDMI IN 1
(ARC)
