Linsar LS20SB-SCA User manual

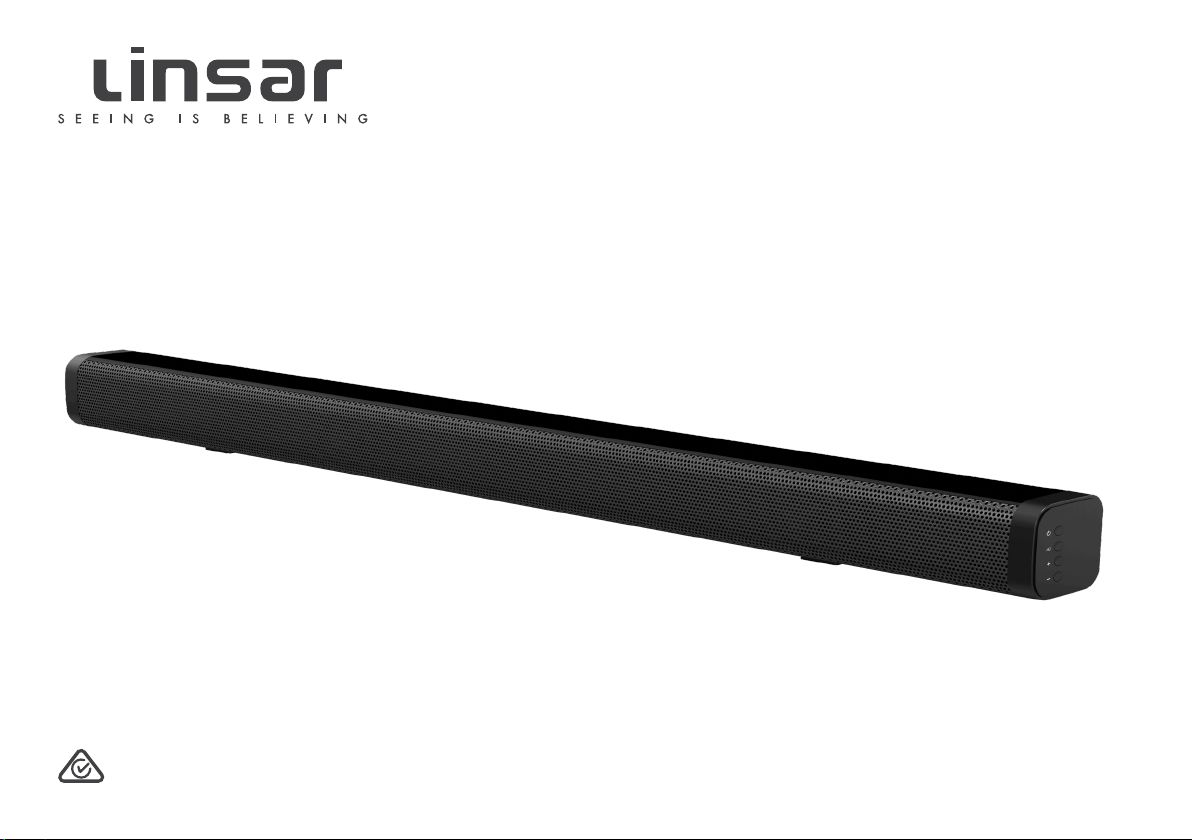

2.0 CHANNEL SOUNDBAR
User Manual
MODEL: LS20SB-SCA

2
Welcome
Welcome to Linsar!
This user manual tells you all you need to know about setting up your new product.
Please take special note of any important safety and usage information presented with the symbol.
All products brought to you by Linsar are manufactured to the highest standards of performance and safety
and, as part of our philosophy of customer service and satisfaction, are backed by a comprehensive
1Year Warranty.

3
Contents
Welcome 2
Unpack and Prepare 4
What's in the Box 4
Wall Mount Installation Kit 5
Installation 6
Wall Mounting Instructions 8
Connect to Power 9
Controls and Connections 10
Get to Know your Soundbar 10
Buttons on the Soundbar 10
Rear Ports on the Soundbar 11
Remote Control 13
Setup 13
Using the Remote Control 14
Remote Overview 15
Operation 16
General Operation 16
Input Modes 17
Function Display 17
Using the HDMI (ARC) Input 18
Using the Optical or Coaxial Input 18
Using the AUX Input 19
Using the USB Input 19
Mute/Unmute Sound 19
Bluetooth® 20
Pairing Bluetooth®Devices 20
Bluetooth®Playback 21
Troubleshooting 22
Specications 24
Compliance and
Responsible Disposal 25

4 | UNPACK AND PREPARE
Unpack and Prepare

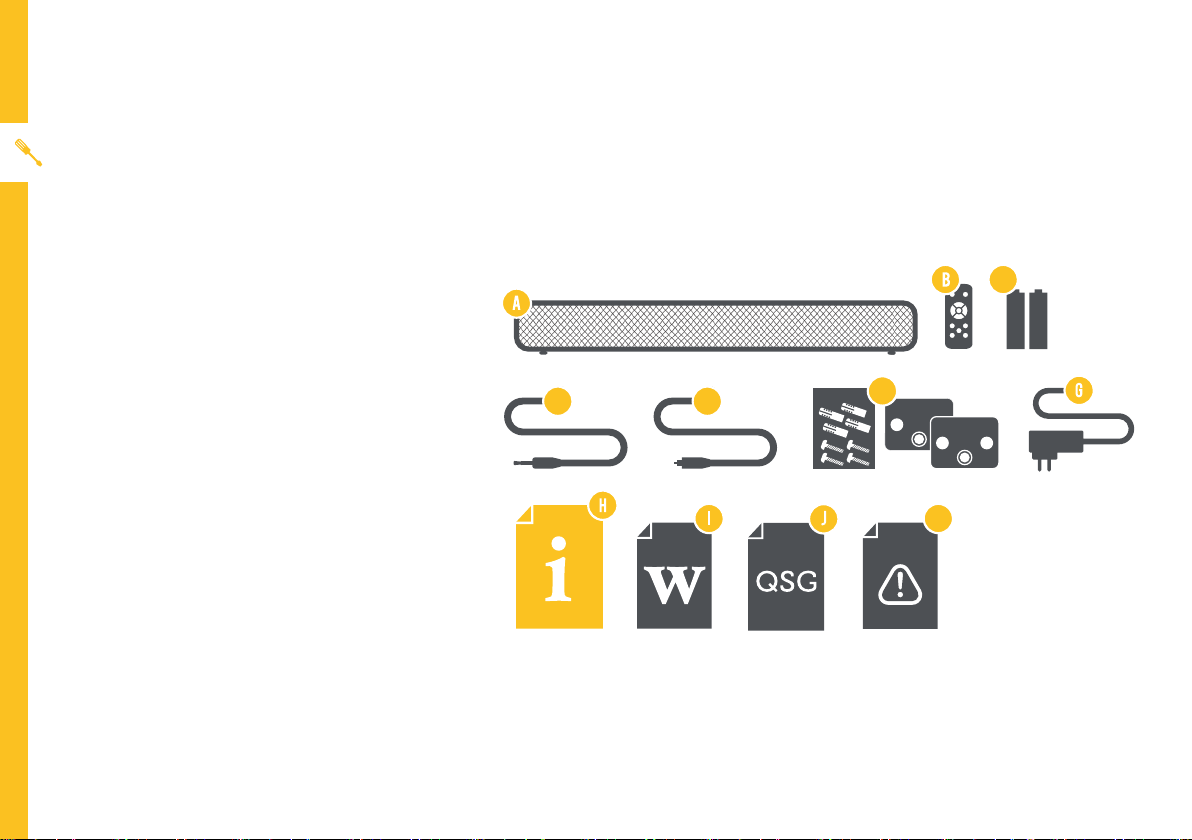

Before setting up your new Soundbar, check you have
everything:
A. 2.0 Channel Soundbar
B. Remote Control
C. AAA Batteries (2)
D. 3.5mm Audio Cable
E. Optical Cable
F. Wall Mount Installation Kit
G. Power Adaptor
H. User Manual
I. Warranty Certificate
J. Quick Start Guide
K. General Safety Warnings
What's in the Box
You will need:
• Phillips-head screwdriver and a drill (for wall mount installation)
• HDMI Cable, if you want to set up and use HDMI CEC. (Otherwise you can use the included optical cable if
you don't use HDMI.)
C
D E
K
F

UNPACK AND PREPARE | 5

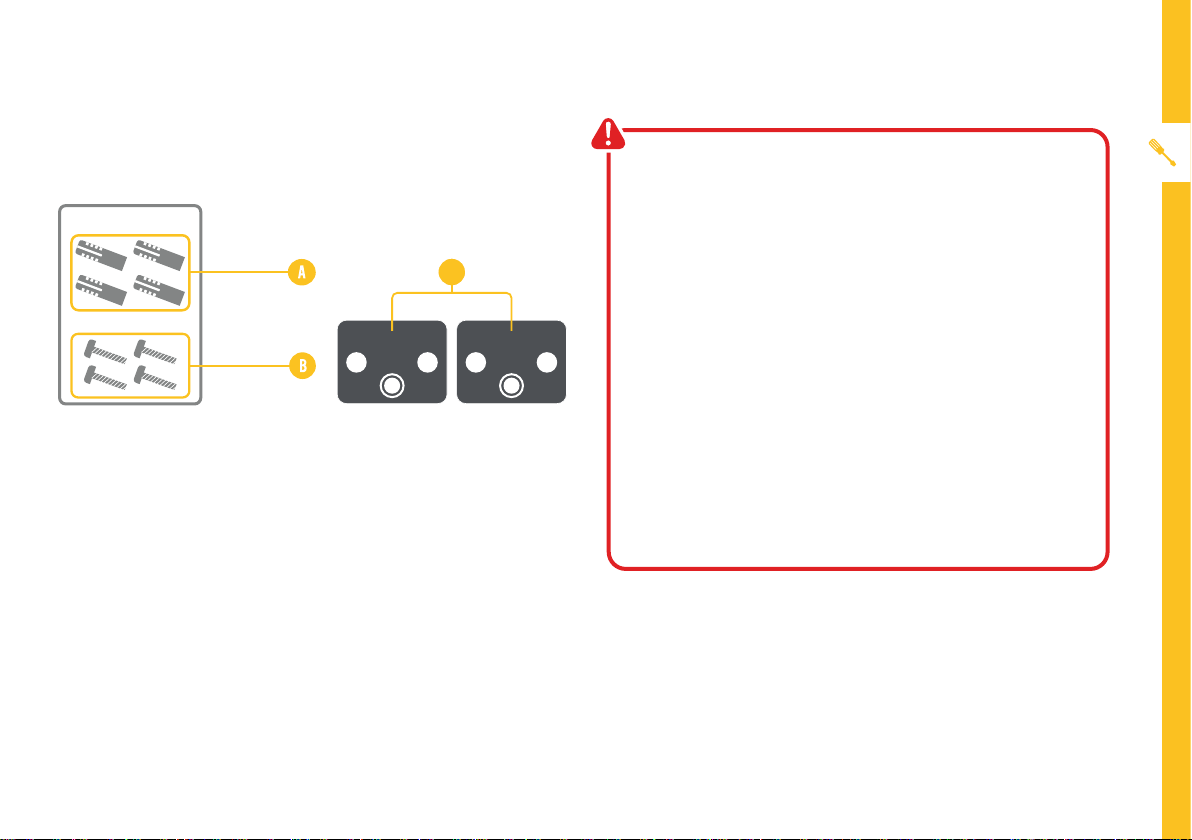

The illustration below shows the contents of the wall
mount installation kit.These are the parts you will
need if wall mounting your soundbar.
A. Long Screws (2)
B. Plastic Anchor (2)
C. C. Wall Mount Adaptors
Wall Mount Installation Kit
• Place the Soundbar on a level surface.
• Place the Soundbar away from any source
that may generate heat or vibrations.
• Make sure there is enough space around the
Soundbar for airflow.
• The remote control works up to 6 metres
away from the Soundbar.
• Unplug the Soundbar before cleaning it.
• Clean using a dry cloth only - do not use
water or chemicals.
• Use only the power supply provided.
• Keep liquid, children and pets away from the
Soundbar at all times.
C

6 | UNPACK AND PREPARE
Installation
This soundbar can sit free-standing on a surface, or it can be mounted to a wall.

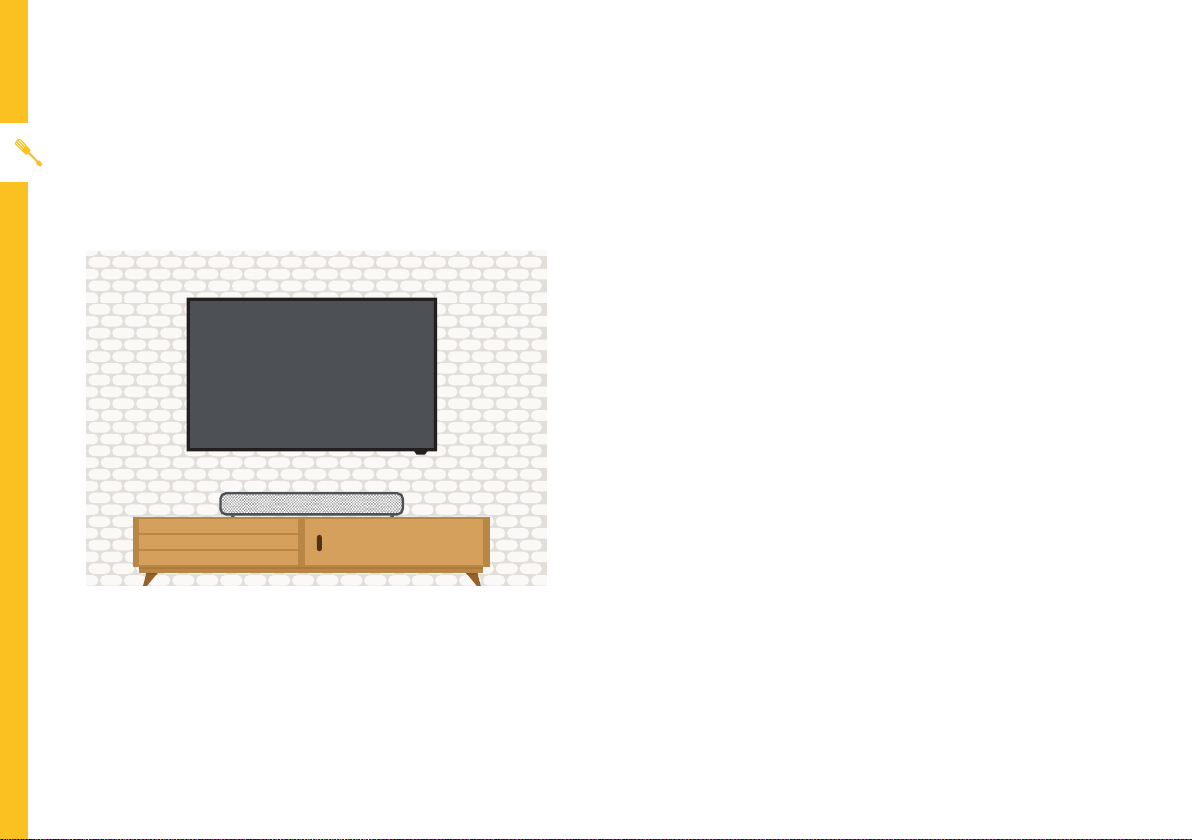

Free-standing
Place on a secure, flat surface. Make sure the
soundbar is standing on its rubber pads (on the left
and right sides on the bottom of the soundbar) and
no other area of the bottom of soundbar is touching
the surface.

UNPACK AND PREPARE | 7

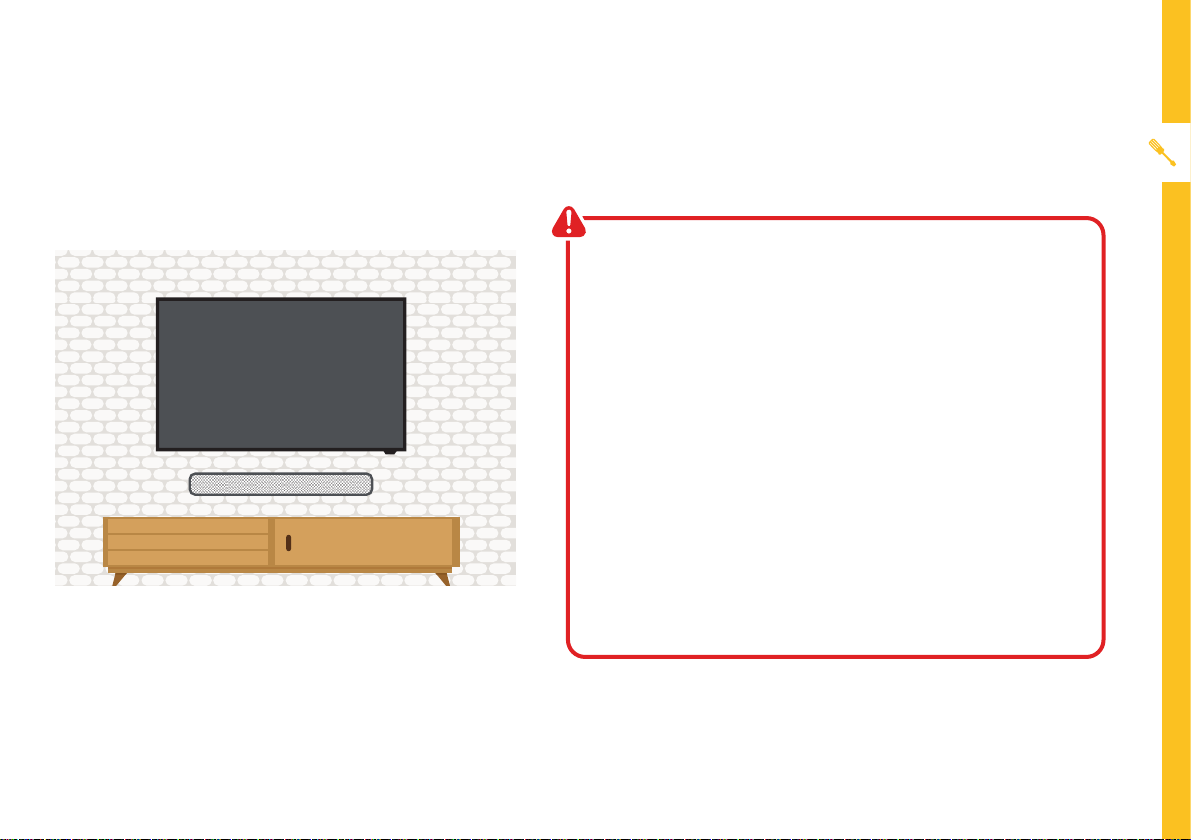

Wall mounted
Wall mounting instructions are on the following pages.
• Wall-mounted installation must be carried out
by qualified personnel only. Incorrect assembly
can result in severe personal injury and property
damage! If you intend to install this product
yourself, you must check for installations such
as electrical wiring and plumbing, which may be
hidden inside or behind the wall.
• It is the installer’s responsibility to verify and
confirm that the wall will safely support the total
load of the soundbar and wall brackets.
• Additional tools (not included) are required for
the installation.
• Do not overtighten screws.
• Use an electronic stud finder to check the wall
type before drilling and mounting.

8 | UNPACK AND PREPARE

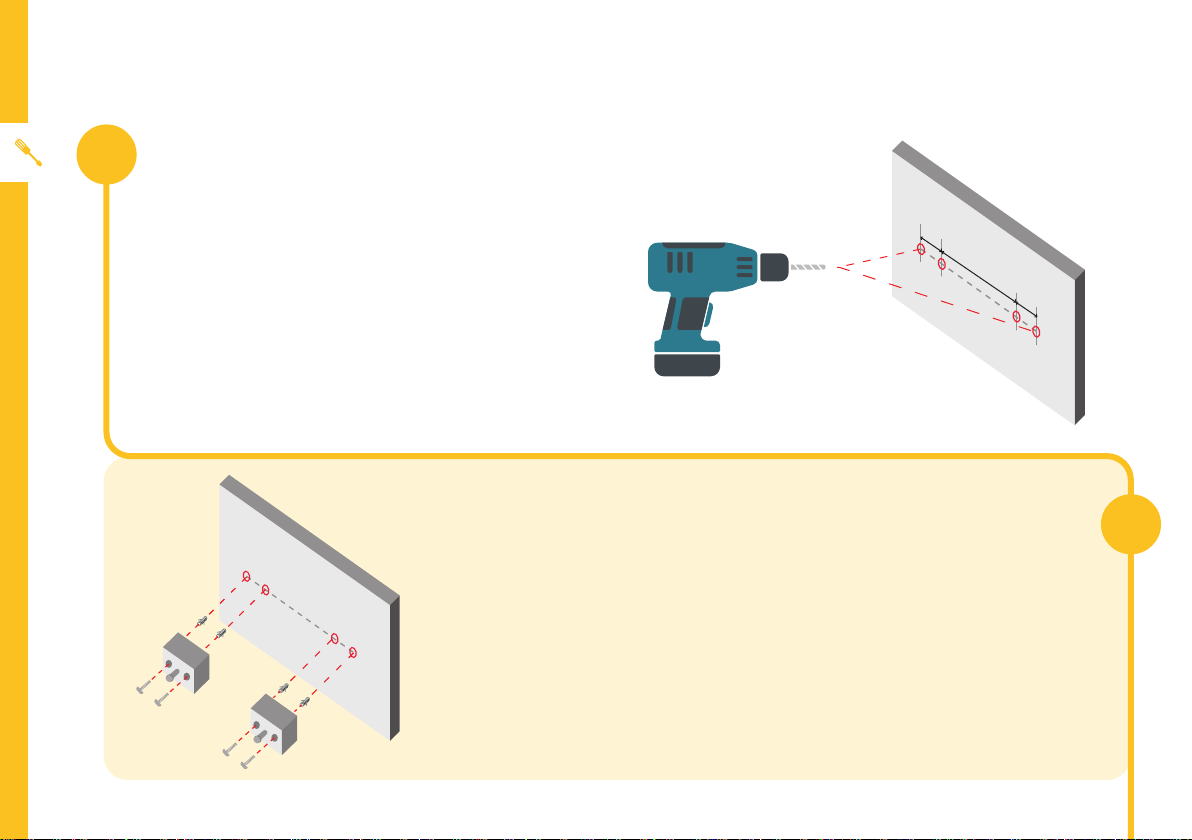

Wall Mounting Instructions
Use a pencil to make 4 drill hole marks on the
wall for the adaptors. Make sure the marks are
level before drilling. Use a 6mm bit and power
drill (not supplied) to drill holes on the marks.
Use the supplied screws and plastic anchors
to fix the wall mount adaptors onto the drilled
hole marks. Once fixed to the wall, hang the
soundbar onto the wall mount adaptors.
1
2
24mm 24mm
425mm

UNPACK AND PREPARE | 9

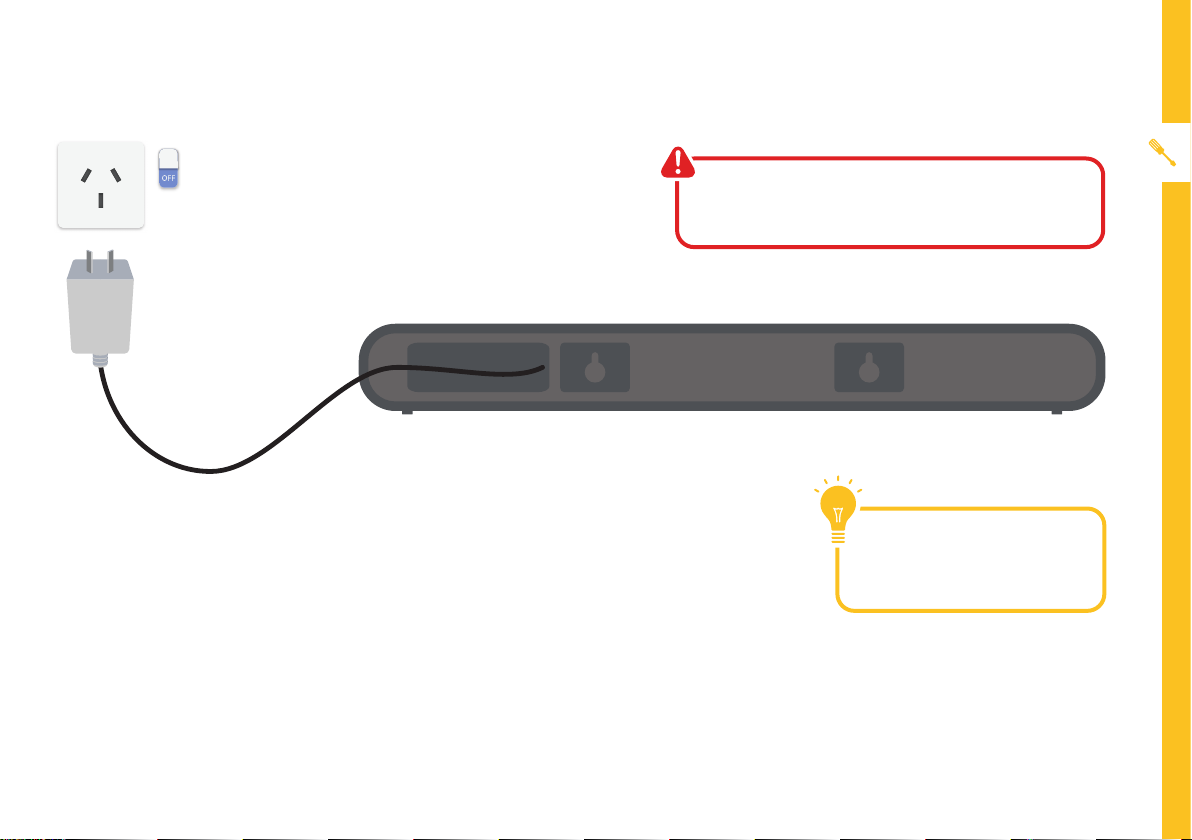

Connect to Power
Make sure the soundbar is switched off at the
power outlet until you have finished connecting
your cables.
Don't forget to plug in the
soundbar to the power outlet.
Leave the power switched off
until installation is finished.

10 | CONTROLS AND CONNECTIONS
+
Controls and Connections

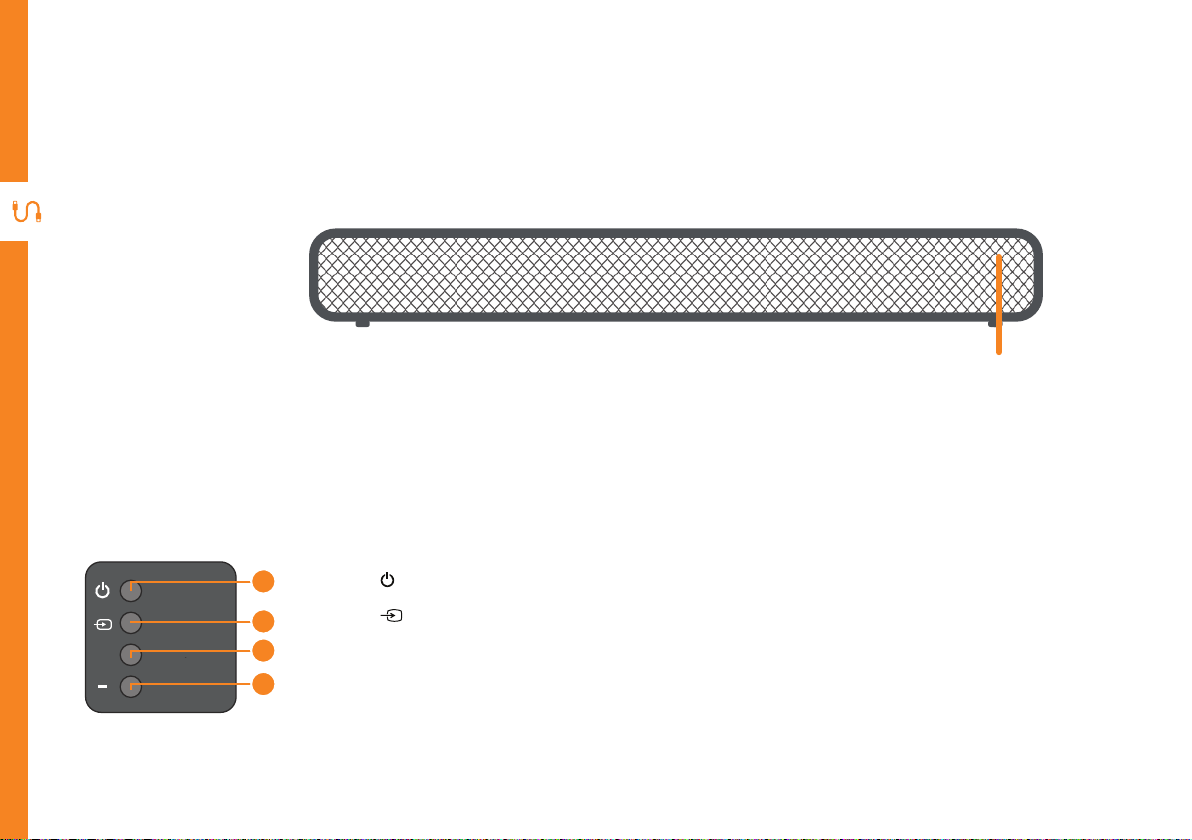

Get to Know your Soundbar
Front
LED display
Buttons on the Soundbar
1. button : Press to turn the soundbar on/off.
2. button : Press to switch between input sources.
3. + : Increase volume level.
4. - : Decrease volume level.
Right side
1
2
3
4

CONTROLS AND CONNECTIONS | 11
1 2 3 4 5 6
1USB STORAGE Plug in a USB stick to play media files stored on your USB
storage device.
2AUX SOUND Connect to your headphones, amplifier or audio device, using
an AUX cable.
3COAXIAL SOUND Use a coaxial cable (not included) to connect theTV to the
soundbar.
4OPTICAL SOUND
Connect an OPTICAL cable (not included) to the OPTICAL OUT
socket of your device (e.g. TV, DVD player) and the OPTICAL
AUDIO socket on the soundbar.
Rear Ports on the
Soundbar
COAXIAL DC IN
OPTICAL HDMI ARC
AUX

12 | CONTROLS AND CONNECTIONS
5HDMI ARC SOUND
The ARC (Audio Return Channel) function allows you to send
audio input from an ARC-compliantTV to an ARC-compliant
audio device (e.g. soundbar) without the need for an
additional audio cable connection.
6DC IN POWER Please only use the supplied power adaptor
HDMI (ARC)
To use the ARC function, make sure the soundbar's
HDMI (ARC) socket is connected via HDMI cable (not
included) to the HDMI (ARC) socket of your ARC
compliantTV.Then just use yourTV remote control to
adjust the volume output (VOL +/– and MUTE) of the
connected audio device. In theTV settings menu, turn
on the ARC and CEC function (when CEC is turned on,
the sound bar will turn on/off automatically when the
TV is turned on/off).
When you use ARC, Optical or Coaxial connection to your
TV or DVD, the audio output in theTV or DVD settings
menu must be set to PCM mode (instead of Auto mode,
RAW mode or etc.).

REMOTE CONTROL | 13
Setup

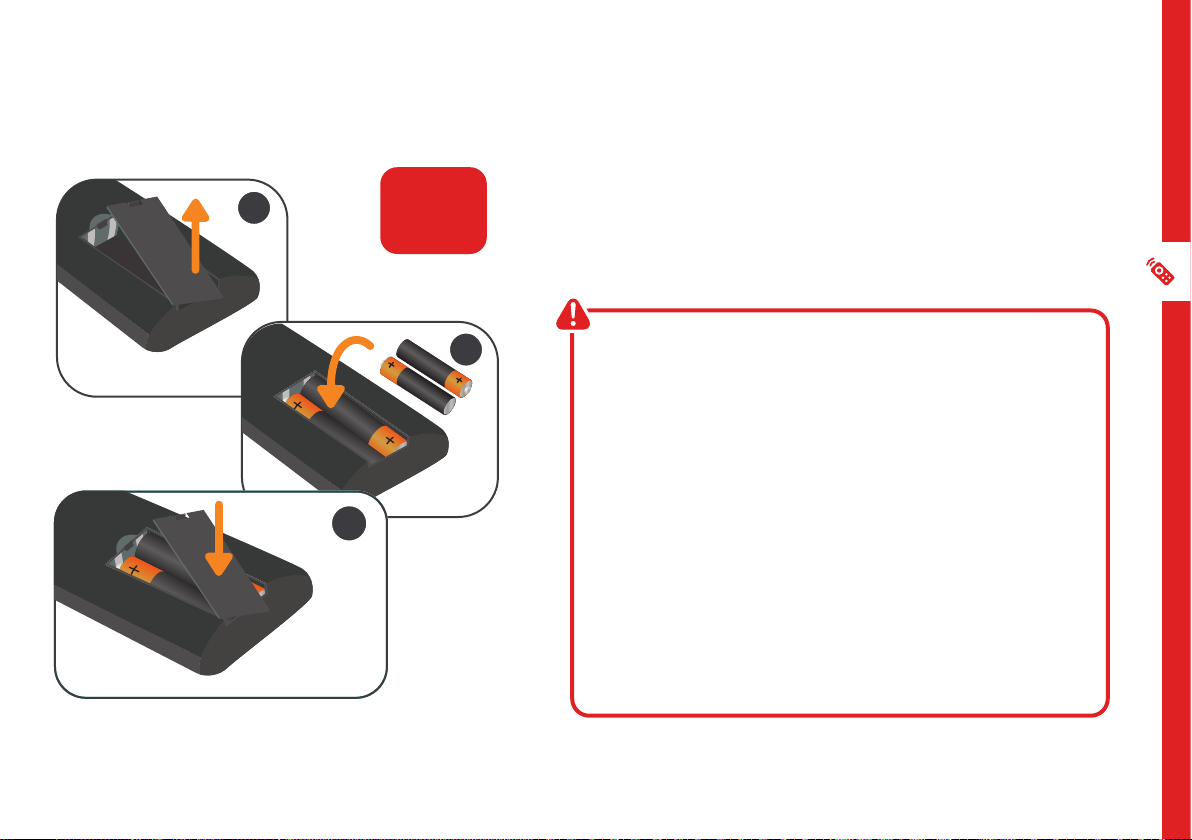

Insert two AAA size batteries according to the polarity
markings (+ / -) inside the compartment. Make sure
the batteries are correctly aligned and properly
pushed into place.
Precautions When Using Batteries
• Do not use old and new batteries together.
• Do not use different types of batteries (e.g.
Manganese and Alkaline batteries) together.
• Remove the batteries from the remote if you do
not intend to use it for a long time.
• When discarding used batteries, follow any
guidelines for recycling and disposal of batteries
that apply in your local area.
• Keep batteries away from children and pets.
• Never throw batteries into a fire or expose them
to extreme heat.
Remote Control
AAA size
batteries
included
1
2
3

14 | REMOTE CONTROL
Using the Remote Control
To use the remote, point it towards the remote sensor
at the front of the soundbar.The remote will not
operate if its path is blocked.
The remote has a range of up to about 6 metres from
the soundbar at an angle of up to 30 degrees to either
side of the sensor, as illustrated below.
Remote Use
• Do not drop, step on or otherwise
impact the remote control.This
may damage the parts or lead to
malfunction.
• Do not place objects between the
remote control and the remote
sensor.
• Do not use this remote control
while simultaneously operating a
remote control for other devices.
Remote control sensor

REMOTE CONTROL | 15
MODE
EQ
BASS- BASS+
TREBLE
-+

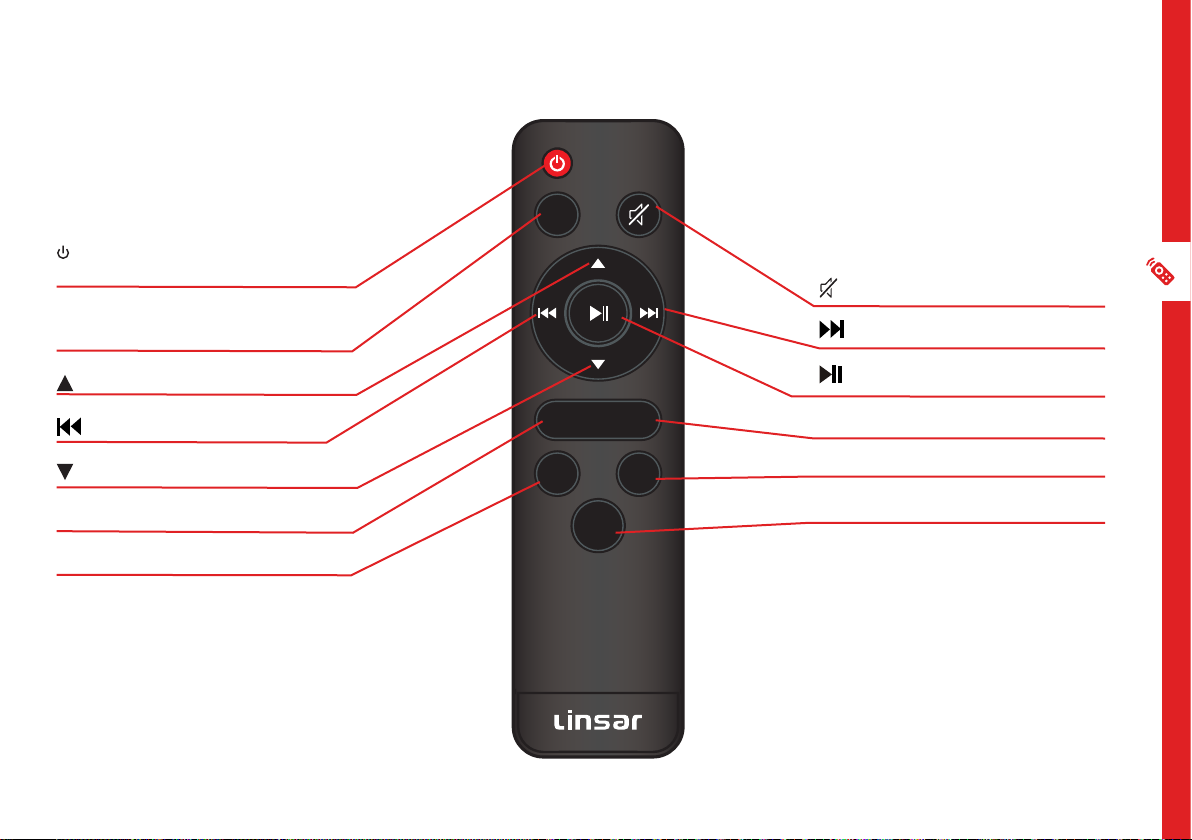

Remote Overview
(POWER): Switch the soundbar
on or standby
MODE: Switch between the input
sources
: Increase the volume level
: Skip to the previous track
: Decrease the volume level
TREBLE - : Decrease the treble
BASS -: Decrease the bass
: Mute the sound
: Skip to the next track
: Start or pause playback
TREBLE + : Increase the treble
BASS + : Increase the bass
EQ : Change the equaliser preset

16 | OPERATION
Function Action
Turn the soundbar ON Press the button on the right side of the soundbar, or press the button on the
remote control to switch the soundbar on.
Turn the soundbar OFF Press and hold the button on the right side of the soundbar, or press the
button on the remote control to turn the soundbar off.
Change the input
source/mode
When the soundbar is on, press the button repeatedly or press the MODE
button on the remote repeatedly to change the input source.
Increase/Decrease the
volume
Press the + / - buttons on the soundbar or / on the remote control to adjust the
volume level.
Operation
General Operation

OPERATION | 17

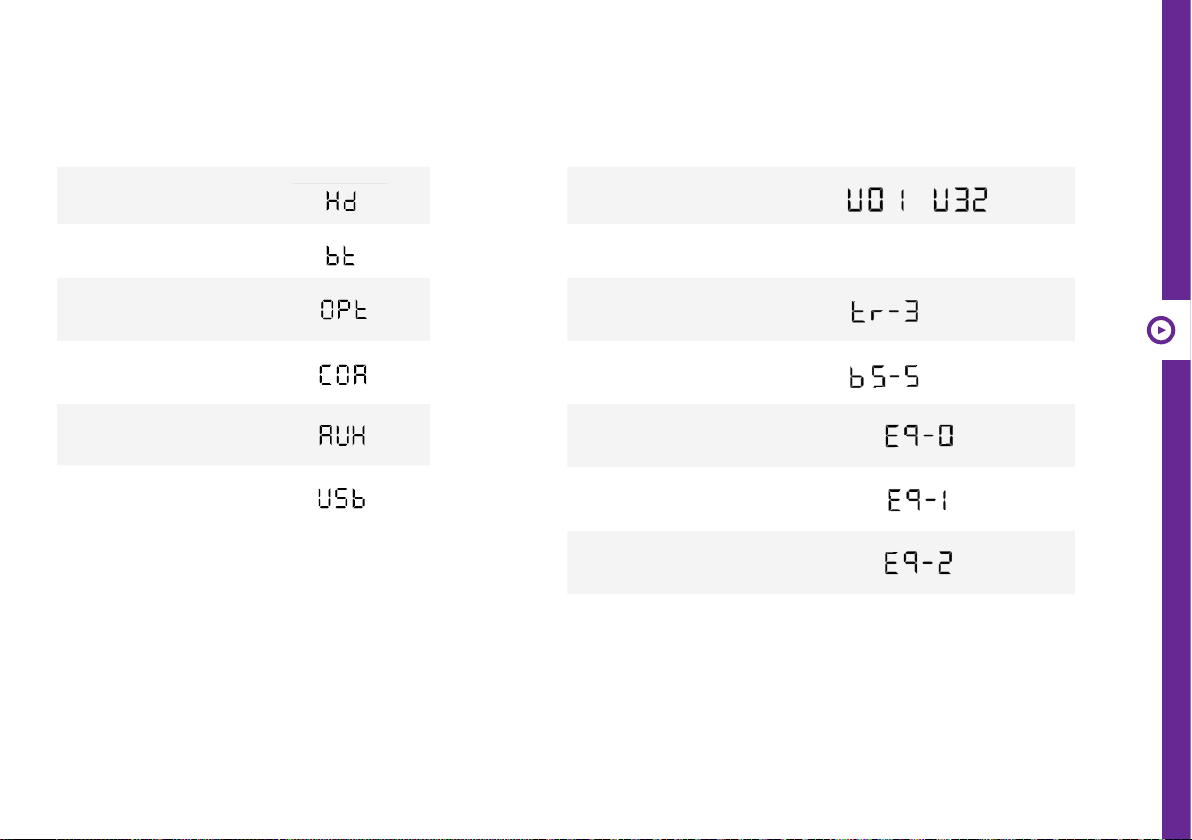

Input Display
HDMI ARC
Bluetooth®
Optical
Coaxial
AUX
USB
Function Display
Volume to
Mute "- - - -" will flash on LED display
Treble (-5 to 5)
Bass (-5 to 5)
EQ News
EQ Music
EQ Movie
Input Modes Function Display
Note:The LED display will turn off
around 5 minutes without operation.

18 | OPERATION
Using the HDMI (ARC) Input
• You will need an audio source with a HDMI (ARC) audio output and a HDMI (ARC) audio cable (not included).
• Connect the HDMI (ARC) audio cable to the HDMI (ARC) on the audio source and the HDMI ARC input on the
soundbar.
• Use the button on the soundbar or remote control to switch on the unit.
• Press the MODE button repeatedly on the remote control to switch to HDMI ARC mode or select the button
repeatedly on the soundbar.
• Using the controls on your connected device, make sure the audio settings are set to ARC or HDMI audio.
Audio from the connected audio source will now be played through the soundbar.
Using the Optical or Coaxial Input
• Use an optical or coaxial cable (both included) to connect the optical/coaxial output on the audio source and
the optical/coaxial input on the soundbar.
• Use the button on the soundbar or remote control to switch on the unit.
• Press the MODE button repeatedly on the remote control to switch to optical/coaxial mode or select the
button repeatedly on the soundbar.
• Using the controls on your connected device, make sure the audio settings are set to PCM or optical audio.
Audio from the connected audio source will now be played through the soundbar.

OPERATION | 19
Using the AUX Input
• Use the supplied 3.5mm audio cable to connect the AUX output on the audio source and the AUX input on
the soundbar.
• Use the button on the soundbar or remote control to switch on the unit.
• Press the MODE button repeatedly on the remote control to switch to AUX mode or select the button
repeatedly on the soundbar.
• Audio played through the connected device now be heard through the speakers.
Using the USB Input
• Insert a USB into the USB port to play music through the soundbar.
• Music will automatically start playing.
• Use the remote control to play/pause and/or skip to the next/previous track.
• The USB drive must be in FAT32 format and a maximum capacity of 32GB.
Mute/Unmute Sound
• Press the button on the remote control to mute sound. "- - - -" will flash on the display.
• Press the button again or the to unmute the sound.

20 | BLUETOOTH
Bluetooth®
You can listen to tracks from a media device if
connected to the soundbar via Bluetooth® Wireless
Technology.
The first time you use your Bluetooth®device with
the soundbar, you will need to pair them with one
another.
Activate Bluetooth®on your compatible device, and
set it to search for compatible devices.
Select the speaker name: 'LS20SB-SCA' from the list
of found devices.
Note: Only one playback device can be connected to
the speaker. If the soundbar is already connected to
another playback device, the device will not appear
in the Bluetooth®selection list.To disconnect the
existing paired device, press and hold the button
on the remote for 3 seconds.
If your device asks for a passkey (depending on the
device manufacturers, model, and software version),
then enter digits “0000” and press OK.
Pairing Bluetooth®Devices
The operational range between this soundbar and
a Bluetooth®device is approximately 10 metres
(without any object between the Bluetooth®
enabled device and the soundbar). Any obstacle
between the devices can reduce the operational
range.
Before you connect a Bluetooth®enabled device
to this soundbar, ensure you know the device’s
capabilities. Compatibility with all Bluetooth®
devices is not guaranteed.
If the signal strength is weak, your Bluetooth®
receiver may disconnect, but it will re-enter
pairing mode automatically.
If a mobile phone on which you are playing music
receives a call, the music will be interrupted.
The phone call audio however is not played via
the speaker. Once you end the call, the devices
are connected to each other again and playback
resumes
Your device will also be disconnected when your
device is moved beyond the operational range. If
you want to reconnect your device, place it within
the operational range.
If the connection is lost, follow the instructions
(left) to pair your device to the player again.
