LITAGRO Gold Series User manual

© All Rights Reserved
LITAGRO HORTICULTURAL LIGHTING
600W/1000W HPS DE FIXTURE
(Gold Series)
User Manual
Please scan the QR code to get
more information and support.

1
Introduction
Thank you for choosing LITAGRO series lighting product for plant growing, efficient and
reliable are the characteristics of this series of products.
The high-quality module materials ensure the service life of the product, and the simple
operation gives customers a good experience.
Product Introduction
LITAGRO series product for plant growing, it was developed and produced for plants
light,It is driven by a high-frequency electronic ballast 600W/1000W HPS.
LITAGRO series product for plant growing it can be dimmed by the knob on the ballast
or Mobile app.
1Before installing this product, make sure the power is turned off.
2Ensure that the power cord is connected correctly.
3Do not open the outer covering of the ballast, do not change the wiring, repair,
or configure the device to avoid personal injury caused by electric shock.
4LITAGRO series product for plant growing is developed for greenhouse or
indoor planting. Do not use it outdoors or in a humid environment. It's
working environment: temperature -25°C-45°C, humidity <70%（no
condensate）.
5Do not use the device near flammable, explosive, or reactive substances. The
temperature of the product and reflectors may exceed 85°C under working
conditions.
6After turning off the light, wait for more than 15 minutes before turning on the
light again. The light doesn't start when the lamp is hot.
7Before touching the lamp or reflector, be sure to allow at least 30 minutes to
cool down.
8Be sure to connect to the mains according to the voltage range indicated by
the Ballast.
9Since the temperature of the lamp is very high when it is working, children
and pets must be kept away. And don't get too close to the irradiated plants
to avoid burns to the leaves.
10 Do not use it when the lamp or power cord is damaged. The power cord can
only be replaced with the original certified power cord. Only the specified
lamp can be replaced, and the damage of the Ballast caused by other lamps
is no longer warranted.
11 Damage to fixture and electronic circuits caused by incorrect installation and
use is not covered by the warranty.
12 Fire risk: The product must be installed by personnel familiar with the product
structure, operation, and related hazards in accordance with the applicable
installation specifications.

2
Datasheet
Model
LT600H
LT1000H
Match Lamps
600W HPS（Double-ended）
1000W HPS（Double-ended）
Input Voltage
120-240 VAC；277-400 VAC
Input Current
5.3A@120V
2.7A@240V
2.4A@277V
1.9A@347V
1.7A@400V
8.9A@120V
4.5A@240V
3.8A@277V
3.0A@347V
2.7A@400V
Input Frequency
50/60 Hz
Power Factor
>0.95
Total Harmonic Distortion(THD)
<10%
Output Power
600W
1000W
Dimming
250/400/600/630W
600/750/825/1000/1150W
Protection
Open circuit /Short circuit; Over temperature; End of lamp life
Operating Temperature
-25°C~45°C/-13~113℉
Dimensions
637×266×112mm/25.1×10.5×4.4inch
Weight
4.5Kg/9.9lb
Compliance
UL1598,CSA C22.2 No.250.0,UL1029, CSA C22.2 NO.74,
IEC/EN60598-1,IEC/EN60598-2-1,IEC/EN61347-1 , EN61347-2-12,FCC PART18,
ICES-005, EN55015, EN61547,EN61000-3-2, EN61000-3-3

3
Installation
First install
Carefully open the package and take out the product.
Check whether the ballast and reflector are installed accurately.Install the lamp
correctly.
Make sure the lamp holder is in the closed position.
Make sure the dimming button is at the right position.
Connect the power cord to the INPUT interface on the side of the ballast.
Connect the communication wire to the COM PORT interface on the side of the
ballast.


(120/240V Type)
(277V/400V Type)

4
Installation
Hanging Lignt
Hang the light on a rack as shown in the picture.
First, screw the hanging ring into the fixture bracket.
Then fasten the hanging rope kit to the fixture and pull the adjustment rope to
adjust the horizontal angle and height of the fixture.
Install and replace the lamp
Do not hold the lamp with hands, always take the lamp with gloves and install it.
It is very important to install the sodium lamp correctly, otherwise, the lamp cannot
be lit.

5
Installation
Slide the lamp holder outwards to open, carefully put the lamp into the lamp holder,
the filaments on both sides should be put into the metal shrapnel of the lamp holder.
Slide the lamp holder inward to close the lamp holder, making sure that both lamp
holders are closed.
Recommendation: Replace the lamp after 10,000 hours of lighting.
Install and replace the reflector
Due to the environment and pollution, the aluminum reflector will be polluted after
long-term use, and results the reflection efficiency reducing.
Recommendation: Replace the reflector after 10,000 hours of lighting.
First remove the lamp from the fixture.
Then unscrew the 4 screws fixing the reflector.
Remove the reflector.
Install the new reflector into the bracket and tighten it with screws.

6

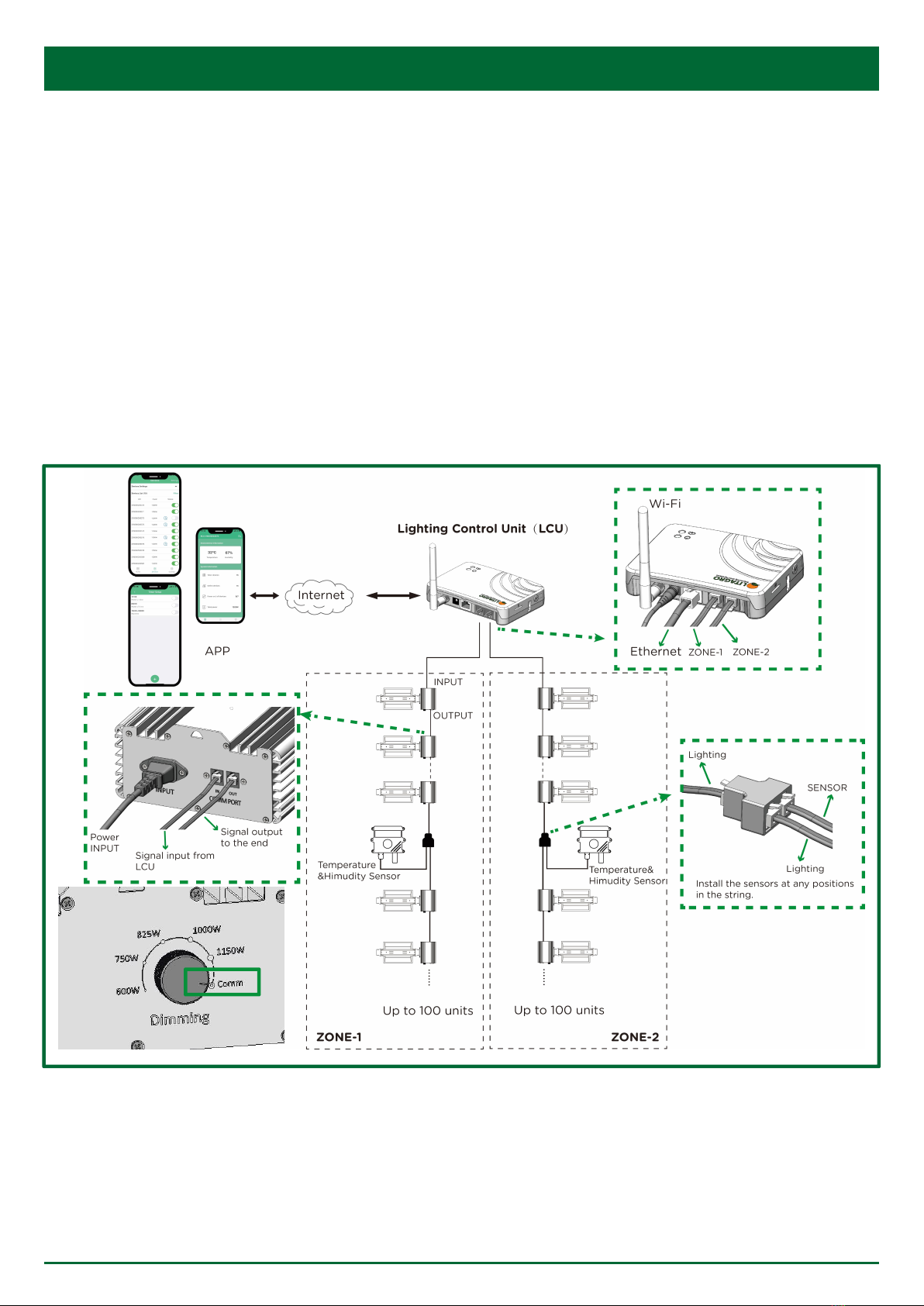

Intelligent control system(AIgro)
AIgro system provides monitoring and control functions include one-button power
on/off, remote dimming and lighting schedule, event alarm, diagnosis, and
environmental sensor functions, giving agricultural planting true intelligence.
When Algro is enabled,please adjust the upper knob of the ballast to Comm.
Connect the communication data lines on Algro to the ballast and server
respectively.
Connect LCU to ballasts with communication wires and connect LCU to internet
through Ethernet port or Wi-Fi.
Storage and Recycling
This product should be stored in a dry warehouse.
This product must not be discarded as unsorted municipal waste, it needs to be
collected separately.
This type of lamp is chemically hazardous (containing mercury) and must be sent to
the designated department.

7
Naming Rules for LITAGRO Horticultural Lighting Product
Naming Rules for LITAGRO Horticultural Lighting Product
Product
series title
power
1000W
H:HPS
Delimiter
L:AC120-240V
The whole
set of
fixture
1:110°
Reflector
DE:
Double-ended
SE:
Single-ended
Delimiter
NA: North
America
600W
C: Metal
Halide
Lamp
M:AC277-400V
2:135°
Reflector
EU:
Europe
315W
L:LED Light
Source
H:AC480V
3:150°
Reflector
CN:
China
L T
1000
H
-
L
F
1
DE
-
NA

8
Ordering Information
Demand product model
Number of products required set
Filling in the product model directly according to the above table can provide you with
accurate service, or you can fill in the relevant requirements in the following table
Input voltage(AC 50/60 Hz) 120-240V 277-400V
HPS Lighting fixture(600W) set set
HPS Lighting fixture(1000W) set set
HPS Ballast(600W) PCS PCS
HPS Ballast(1000W) PCS PCS
Communication controller(LCU) PCS
Use Region：China North America Europe Other
Accessories and
consumables
Specification
Check
Quantity
Remarks
High Pressure
Sodium (HPS)
600W
set
1000W
set
Reflector
Reflection
Angle:110°
Pcs
Reflection
Angle:135°
Pcs
Reflection
Angle:150°
Pcs
Equipment
Hanger
1/8”
Rope Ratchet
Pair
Remarks

9
Quality Assurance
LITAGRO product for plant growing only use high-quality parts.
Under normal operating conditions, the lighting fixture guaranteed for three years
from the date of purchase.
In order to guarantee the after-sales service, please return the product to your
dealer in the original packaging and present the original proof of purchase.
Parts damaged by abnormal use will not be covered by the warranty.
When LITAGRO product for plant growing parts are defective，The product can be
replaced or replaced with new parts. If the whole set of product needs to be
replaced after a period of use, this limited warranty period is valid for the remaining
time within three years from the date of purchase.
The high-pressure sodium lamp is guaranteed for one year from the date of
purchase. Damage caused by abnormal use is not covered by the warranty.

10
