Lite Blox LB Series User manual
INSTRUCTION
MANUAL
ENGLISH
V1.1
54
1. Safety guidelines
1.1. General
1. Advices
1.3. Disposal
1.4. Safety symbols
1.5. Product labelling
. Introduction
.1. Product description
. . Intended use
.3. Glossary of terminology
.4. Used symbols
3. Product specifications
3.1. Technical specifications
3.1.1. Electrical specifications
3.1. . Mechanical specifications
3.1.3. Charge and discharge specifications
3.1.4. Temperature specifications
3.1.5. Compliance specifications
3.1.6. General product specifications
3. . Environmental conditions
3.3. Required tools
3.4. Scope of delivery
3.5. Connections
3.6. Optional components
3.7. Protection thresholds
4. Installation
4.1. General information
4. . Unpacking
4.3. First use
4.3.1. Placement
4.3. . Connecting wires
4.3.3. Connecting charger
4.4. Disconnecting
5. Battery use
5.1. General information
5. . Charging
5. .1. Charging rates
5.3. Intelligent BMS
5.3.1. I.K.O.S
5.3. . A.V.A.T.
5.3.3. Self protection
5.4. Sitting time
5.4.1. Without load
5.4. . In vehicle
5.5. Vehicle integration process

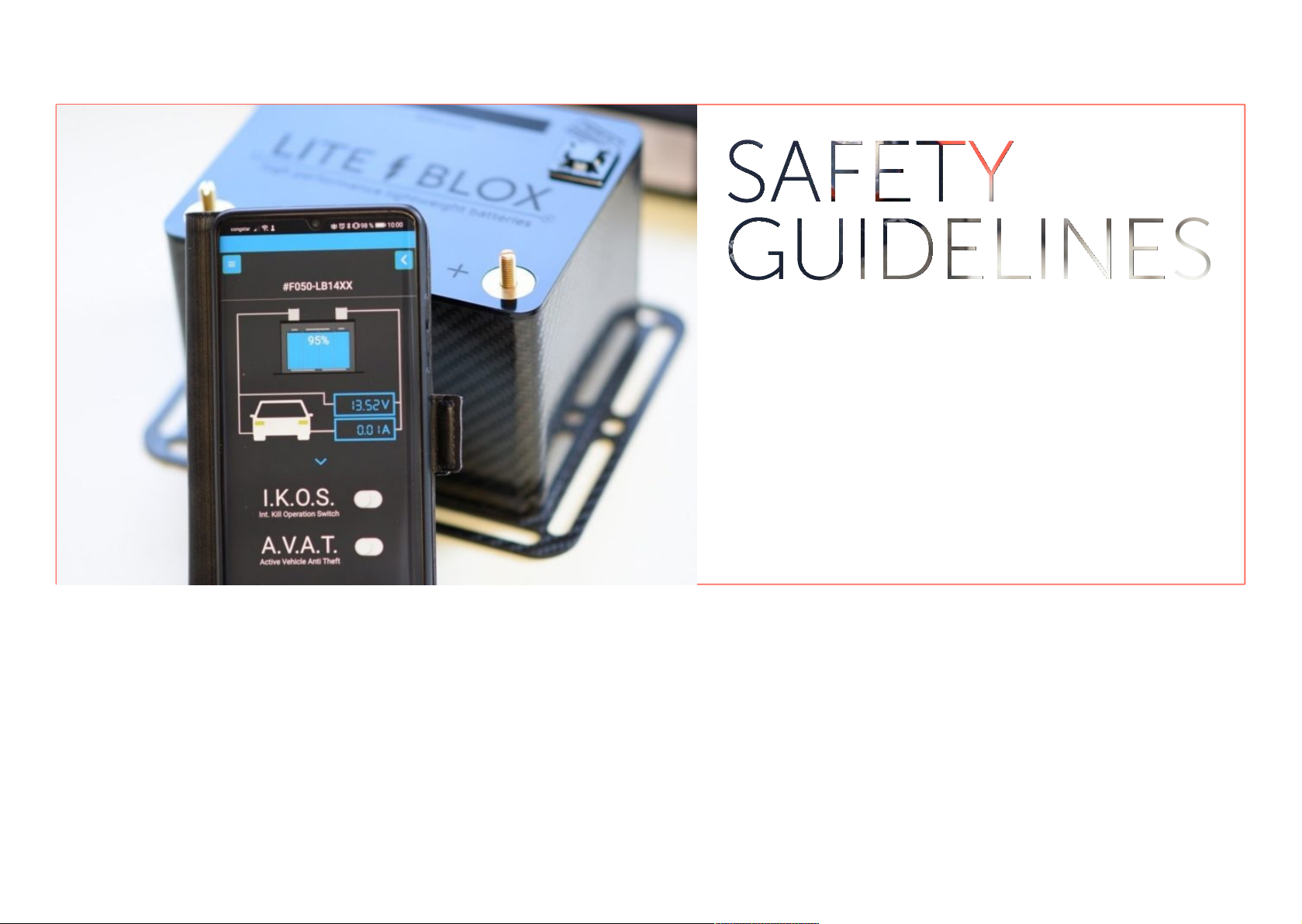

5.6. LITE BLOX remote APP
5.6.1. Status display
5.6. . Cut o switches
5.6.3. Reactivation
76
5.6.4. Charts
5.6.5. Telemetry data
6. Inspection and cleaning.
6.1. General information
6. . Inspection
6.3. Cleaning
7. Storage
8. Transportation
9. Disposal & recycling
10. Troubleshooting
11. Warranty and liability
SAFETY
GUIDELINE
1110
1|SAFETY GUIDELINES
1.1
GENERAL
ATTENTION! Please read the following instructions carefully.
This manual is an extension to the printed DIN A6 flyer for „startup &
maintenance“ that comes with your LITE BLOX battery. It is part of the
product and contains important notes for correct handling &
maintenance. Therefore please make sure to store this document at a
safe place in order to have it at hand at all times in cases of uncertainties
and when the product is passed on.
1.
ADVICES
Please pay close attention to the following advices in order to ensure an immaculate operation at any time for
maximum product life:
• Refer to this manual for appropriate installation, maintenace & charging.
• Do not remove the LITE BLOX battery from its original packaging until required for use.
• Always keep your LITE BLOX clean and dry.
• Only use as starter battery on common automotive alternators
• Pay attention to the plus (+) & minus (–) marks on the LITE BLOX battery as well as on the
peripherals to ensure correct use at any time.
• Do not short circuit your LITE BLOX & treat as described in this manual.
• Only use appropriate chargers, validated for use with Lithium Iron Phosphate batteries (LiFePO4).
• Do not mix batteries of dierent manu facture, capacity, size or type in one application.
• Never leave your LITE BLOX plugged to a battery charger without attendance.
• Never charge your LITE BLOX at an environment temperature below - 0°C.
• Disconnect from the vehicles peripherals when not in use for longer sitting periods.
• Recharge on extended storage periods (>150days when fully charged)
• Do not dismantle, crush, puncture, open or shred your LITE BLOX.
• Do not expose your LITE BLOX to heat or fire. Avoid exposure to direct sunlight.
• In the event of a chemical reaction of the battery cells, avoid contact with skin or eyes.
1110
1.3
DISPOSAL
Dispose the LITE BLOX battery in accordance with local, state and federal
laws and regulations. Batteries may be returned to the manufacturer.
Do not mix with other industrial waste.
1.4
SAFETY SYMBOLS
The following markings can be found on the product:
Battery can
be recycled
Do not dispose in
household waste
1|SAFETY GUIDELINES
1.5
PRODUCT LABELING
Please note that Li-ion batteries have to be treated differently from
conventional lead-acid batteries. Therefore, make sure to pay close
attention to the specifications & thresholds on the label attached to your
LITE BLOX LBXXXX (LB14XX / LB 0XX / LB 8XX) battery model - do not
remove and get in touch if missing!
INTRO-
DUCTION
1716
.
INTENDED USE
Our LBXXXX(MS) series Li-ion battery is only to be used as a power source
for starting combustion engines, whit a 1 V board net, backed by common
automotive alternators.
Therefore, it is not advised to use the battery in vehicles or systems where
the battery voltage, current or temperature exceeds the specified working
range (see 1.5).
The LBXXXX(MS) series battery has an integrated BMS, monitoring whether
the LITE BLOX is being misused or used outside of the intended working
space and may disconnect from the vehicles peripherals in order to protect
the Li-ion cells from permanent harm or damage (see 3.7).
|INTRODUCTION
.1
PRODUCT DESCRIPTION
Our LBXXXX(MS) high performance battery series has been developed extensively over the past 6
years for maximum performance, reliability and safety. Thanks to premium LITHIUMWERKS (R)
lithium iron phosphate battery cells in combination with our industry leading intelligent Battery
Management System (BMS), all LITE BLOX batteries are extremely reliable and oer an outstanding
cyle life according to our company maxim: quality before quantity
18
.3
GLOSSARY OF TERMINOLOGY
IBS --> Intelligent Batterymanagement System
SOC --> State Of Charge
CCCV --> Constant Current-Constant Voltage
ECU --> Engine Control Unit
OEM --> Original Equipment Manufacturer
LFP --> Lithium Iron Phosphate (LiFePO4)
BMS --> Battery Management System
.4
SYMBOLS
Following icons will be used throughout the manual:
! W A R N I N G ! ! C A U T I O N !
|INTRODUCTION

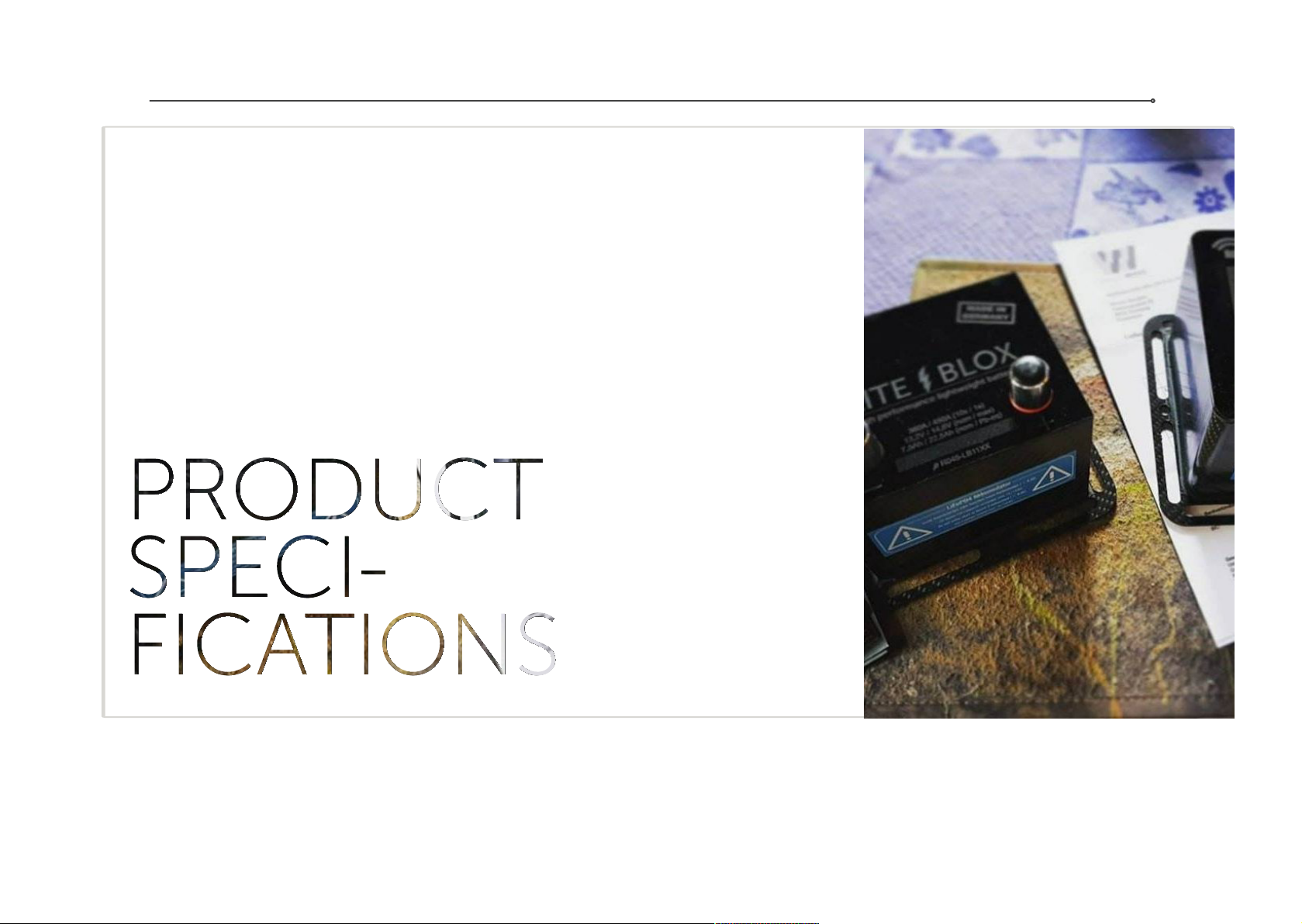

1
PRODUCT
SPECI-
FICATIONS
3
3.1.1
ELECTRICAL
LB14XX(MS) LB 0XX(MS) LB 8XX(MS)
NOMINAL CAPACITY 1 ,5Ah7,5Ah 17,5Ah
ENERGY 99Wh 165Wh 31Wh
NOMINAL VOLTAGE 13, V
SELF-DISCHARGE <3% per Month
EQPB (EQUALS LEAD-
ACID BATTERY)
0 to 35Ah 35 to 50Ah 50 to 65Ah
3.1.
MECHANICAL
LB14XX(MS) LB 0XX(MS) LB 8XX(MS)
DIMENSIONS (L x W x H) 35 x 156 x 103mm
WEIGHT 14XXg 0XXg 8XXg
PROTECTION
CELL TYPE
CELL SETUP
CHEMISTRY
3.1
TECHNICAL SPECIFICATIONS
3|PRODUCT SPECIFICATIONS
LITHIUMWERKS ANR 6650M1B (GEN3)
LiFePO4
183 x 156 x 103mm
IP65
4s3p 4s5p 4s7p
54
3.1.4
TEMPERATURE
LB14XX(MS) LB 0XX(MS) LB 8XX(MS)
CHARGE TEMPERATURE -10°C to 55°C
DISCHARGE TEMP. - °C to 55 °C / -4°F to 131°F
STORAGE TEMP. SHORT - 0°C to 45°C / -4°F to 113°F TERM (<1 MONTH)
STORAGE TEMP. LONG -10°C to 5°C / 14°F to 77°F TERM (>1 MONTH)
RELATIVE HUMIDITY 10 – 90%
3.1.3
CHARGING
LB14XX(MS) LB 0XX(MS) LB 8XX(MS)
CHARGE METHOD
MAX CHARGE VOLTAGE
MAX.CONTINUES
CHARGE CURRENT
30A 50A 70A
MAX CHARGE CURRENT
(10S)
60A 100A 140A
END OF DISCHARGE VOLTAGE 1 ,4V (BMS standard)
DISCHARGE CURRENT
(CONTINOUS)
150A 50A 350A
DISCHARGE CURRENT
(PEAK 1s)
450A 750A 1050A
3.1.5
COMPLIANCE
LB14XX(MS) LB 0XX(MS) LB 8XX(MS)
COMPLIANT AFTER CE, FCC, UN38.3, UN ECE R10
SHIPPING CLASSIFICATIONS
[see MSDS for further info]
3|PRODUCTS PECIFICATIONS
UN3480
14,6V
CCCV
76
3.3
REQUIRED TOOLS
6 mm Hexagon Allen key
3.4
SCOPE OF DELIVERY
1x LITE BLOX battery LBXXXX(MS)
1x Terminal Pole + (large diameter)
1x Terminal Pole - (small diameter)
x M6 bolt (for pole terminals)
x M6 bolt & washer (for ring cable lugs)
1x Sicker NoFatBatteries (Promo)
1x Air Refresher (Promo)
1x Sticker DMSB
1x Manual Flyer for Installation & Maintenance
3.5
CONNECTIONS
X1/X : Battery Terminal for M6 bolt.
3.
ENVIRONMENTAL CONDITIONS
Use the Li-ion battery in a dry, clean, dust free, well venti-
lated space. Do not expose the Li-ion battery to fire, water,
solvents or excessive heat.
*The cycle life given above is an indication at 3°C. Battery lifespan depends strongly on temperature
and the applied charging and discharging currents.
3.1.6
GENERAL
LB14XX(MS) LB 0XX(MS) LB 8XX(MS)
BATTERY DESIGNATION
CYCLE LIFE* >1000 (10C discharge, 100%DoD
!WARNING!
The Li-ion battery may only be used in conditions, specified in this manual.
Exposing the battery to conditions outside the specified boundaries may
result in serious harm to the product and/or the user.
3|PRODUCT SPECIFICATIONS
98
3.6
OPTIONAL COMPONENTS
LIFEPO4 CHARGER LB 300l #06
LIFEPO4 CHARGER LB 100l #01
BRACKET OEM battery adapter bracket #0
BRACKET PORSCHE
BRACKET Nissan GT-R
#016 / 019 / 039
POLE TERMINALS Pole terminals pair (brass/aluminium) #009 / 003
BATTERY CABLE Battery cable extension (black/red) #014
PROTECTIVE CAPS Protective pole caps battery #010
THRESHOLD HARD
THRESHOLD HARD
MODEL
OVERVOLTAGE
[cell / pack] 4,0V / 16,0V
UNDERVOLTAGE
[cell / pack] ,5V / 10,0V
CURRENT
[peak discharge @ RT]
700A 900A 1100A
60A 100A 140A
TEMPERATURE
[ambient battery cells] 90°C / 194°F
3.7
PROTECTION THRESHOLDS
The protection limits are implemented to protect the Li-ion battery from
unintentional events that will damage the Li-ion battery. It is not advised to
depend on these limits and the system itself should make sure that your LITE
BLOX battery will always be within the specified working range.
3|PRODUCT SPECIFICATIONS
THRESHOLD SOFT
THRESHOLD SOFT
3,9V / 15,6V
3,1V / 1 ,4V
85°C / 185°F
CURRENT
[pulse charge @ RT]
battery adapter bracket
battery adapter bracket #037 LB14XX(MS) LB 0XX(MS) LB 8XX(MS)
INSTAL
LATION
4.1
GENERAL INFORMATION
! W A R N I N G ! Never install or use a damaged Li-Ion battery
! W A R N I N G ! Never short circuit the Li-Ion battery.
333
4.
UNBOXING
Carefully check your LITE BLOX battery for damages right after unpacking.
In case of damage or pre-use, contact your reseller / LITEWERKS.
Never install or use a battery which appears to be damaged!
To prevent malfunction before first use, every LITE BLOX is beeing shipped
deactivated from factory (0V between the poles)!
4.3
FIRST USE
1 Mount to the location of the OEM starter battery, using the integrated
bottom bracket plate, along with our vehicle specific adapters (see. 3.6)
Ensure both terminal are fastened properly (M6 = min. 10Nm)
3 Attach the vehicles pole clamps (first plus / second minus pole)
4 Make sure to cover the plus pole in order to avoid short circuits
5 Alle cables must be protected against vibrations, chafing & moisture
6 Before first cranking, activate your LITE BLOX by unlocking the I.K.O.S.
function using the remote smartphone APP (see 5.6)
4.3.1
PLACEMENT
Before it is used, the battery must be positioned in such a way that it will not move around in its
compartment during use and that none of the connecting cables are beeing stretched or harmed.
4.3.
CONNECTING WIRES
Use appropriate wire for the connection wires to prevent overheating and unnecessary losses.
4.3.3
CONNECTING CHARGER
disconnect minus cable (mass) before attaching the charger clamps to the battery terminals to
prevent malfunction (use appropriate charger LB100 / LB300 only and see charger manual).
First attach both pole clamps to the battery poles, then plug in charger to 110/ 00V!
!WARNING!
Do not connect the (-) terminal first
as this may lead to short circuits.
!WARNING!
Avoid short circuit when using a wrench
!WARNING!
Connect to 1 V systems only.
Never install multiple Li-Ion batteries.
!WARNING!
Do not reverse connect the power cables
(polarity).
4|INSTALLATION

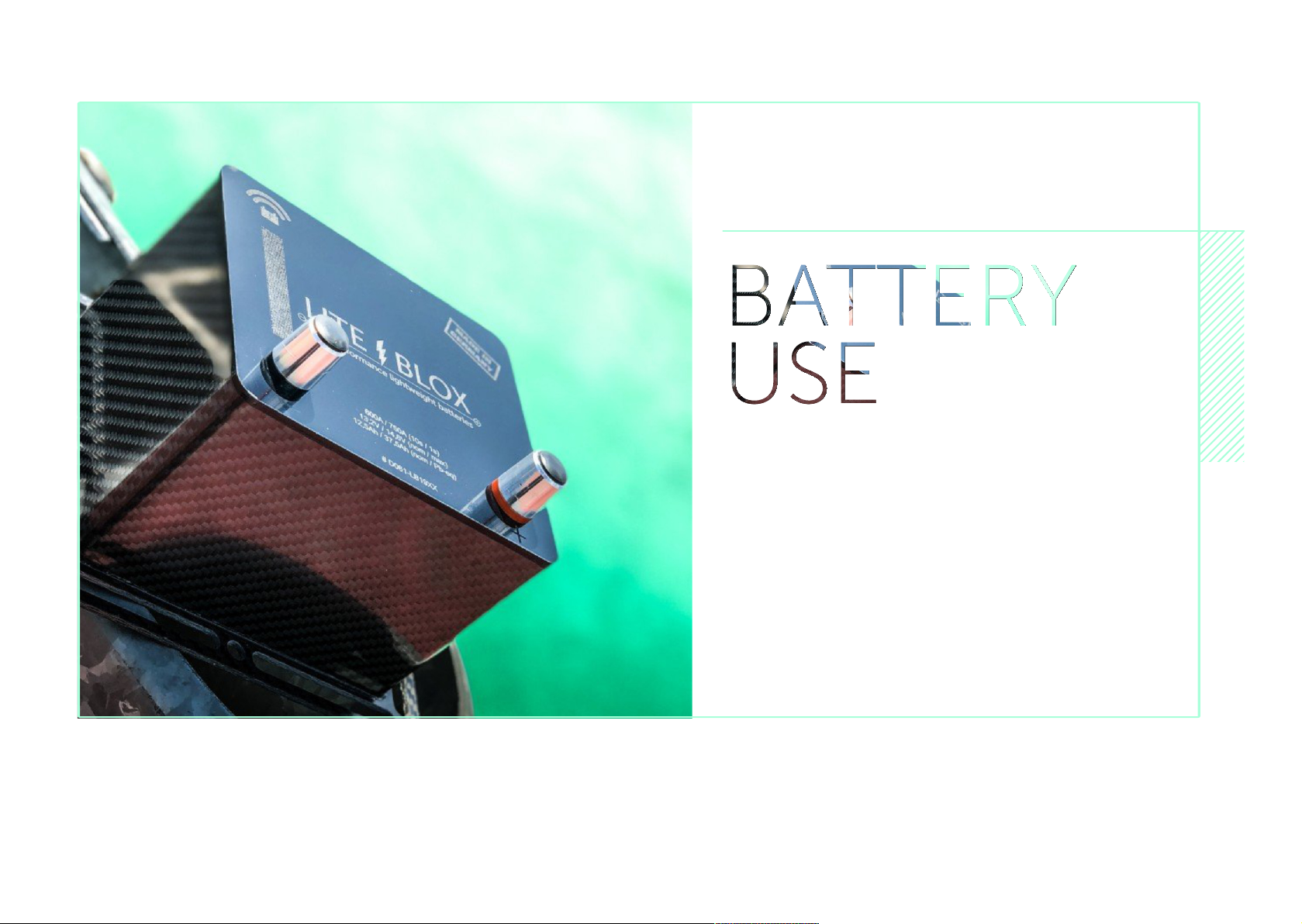

BATTERY
USE
3938

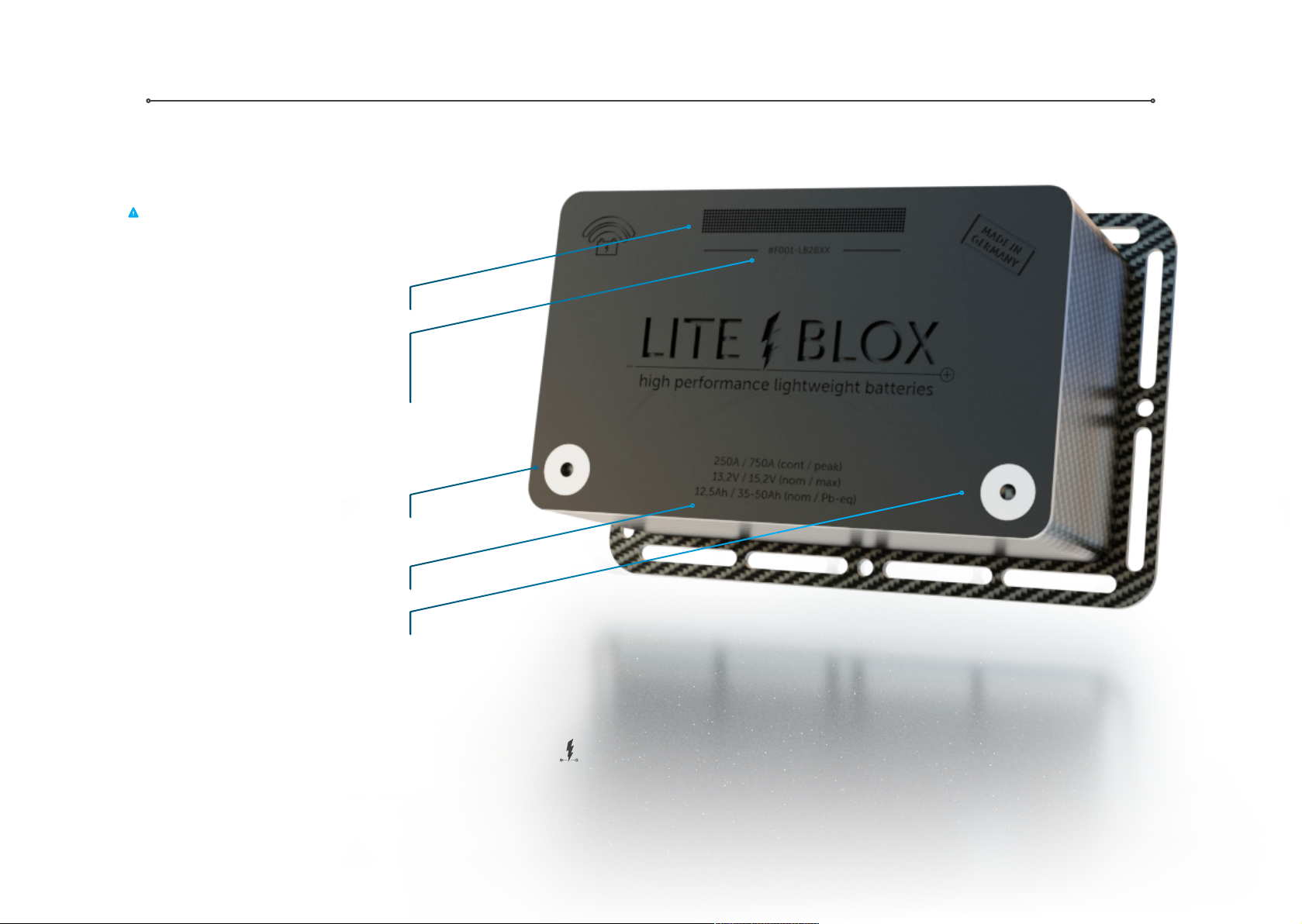

5.1
GENERAL INFORMATION
Venting holes for gas and pressure exchange
Battery-ID containing
the serial-No. (#-spec-digit-digit-digit) + the battery
type (LB-digit-digit-X-X)
Minus pole terminal
(electrical mass/body)
Electric specifications of the LITE BLOX
Plus pole terminal
!WARNING!
Follow the safety guidelines of chapter 1.
5|BATTERY USE
4140
5.
CHARGING
1. Read the manual that comes along with your appropriate LITE BLOX charger
(LB100 / LB300)
. Make sure to recharge your LITE BLOX if the state of charge drops below 0%
(see Smartphone App), in case of an undervoltage shutdown and in case of
extended sitting periods with activated consumers (GPS, Alarm, Keyless-Go...)
3. Connect the charger to your LITE BLOX as described in 4.3.3
4. Never leave unattended during recharging process (recharging of the respective
LBXXXX model will take max. 1h/1,5h from 0% of charging when using our
LB300/LB100 charger)
*in field use / **maintenance charging
CHARGE CURRENT
LB14XX(MS) LB 0XX(MS) LB 8XX(MS)
PULSE (10s)* 60 A 100 A 140 A
MAX CONTINUES* 30 A 50 A 70 A
RECOMMENDED** 7 A
5 . . 1
CHARGING RATE
Find the charge rates for the respective LITE BLOX model below and make
sure to respect the indicated charge current.
!WARNING!
Never discharge or
overcharge a Li-Ion
battery, as this may
permanently damage
the battery cells
!CAUTION!
Disconnect the
ch ar ge r from the
Li-Ion battery if it
is not used for
along time.
!CAUTION!
To c ha rge a L i-I on bat t e r y ,
u s e a L I T E W E R K S charger or
charger which is s u i t a b l e f o r
c h a r g i n g LiFePO4 batteries.
5|BATTERY USE
434
5.3
INTELLIGENT BMS
In the following chapters the expression
‘deactivated’ will be used to describe the
switched o state of the LITE BLOX mean-
ing, that the internal connection of the bat-
tery terminals and the cell pack is inter-
rupted such that no current can be drawn
from it. Moreover the process when
switching from ‘deactivated’ to ‘activated’ is
referred to as ‘reactivation’.
5.3.1
I.K.O.S.
(Intelligent Kill Operation Switch)
oers the ability to deactivate the LITE
BLOX via the integrated power switch unit.
The control element for the manual cut o
is placed at the bottom of the main page of
the LITE BLOX remote APP. Please note,
that it may take a few seconds until the
switching process on is performed by the
BMS. The successful operation will then be
confirmed by a short beeping noise.
5.3.
A . V . A . T.
(Active Vehicle Anti Theft)
an integrated eective guard function, that
protects from car theft by automatically
deactivating the LITE BLOX in case of an
unauthorized starting attempt. With this
function being active, one can turn on
electric loads like headlights, radio or
interior lighting up to 00A. As soon as the
current drawn from the LITE BLOX exceeds
this threshold (e.g.
when starting the motor), the LITE BLOX
immediately deactivates itself before the
starter receives enough energy to start the
motor. In order to be able to draw a current
from the LITE BLOX after this event, it has to
be reactivated via the LITE BLOX Remote
app by pressing the ‘Reset Error’ button
(chapter 5.6.5).
5.3.3
SELF PROTECTION
the I.K.O.S. is also autonomously protecting
your LITE BLOX when leaving the intended
operating range (chapter 3) or being
misused (wrong charger, alternator
malfunction...). This self protection is
working on three levels:
1Warning (yellow): When the LITE
BLOX is in danger of leaving the in-
tended operating range, the first level is
active, indicated by the yellow coloured
values of the corresponding
parameters. If for example the LITE
BLOX suers from over-temperature,
the temperature value on the main
page of the LITE BLOX Remote app will
be displayed in yellow. There is no au-
tomatic deactivation on this level.
5|BATTERY USE
This manual suits for next models
3
Table of contents
