Lite UNO ECLIPSE User manual

Page 1
Model Voltage Wattage Luminous flux W/Ø (mm) H (mm)
UNO ECLIPSE 220-240V~ 18W 1800lm 350 70
UNO ECLIPSE 220-240V~ 29W 2900lm 350 70
UNO ECLIPSE 220-240V~ 38W 3800lm 350 70
Suitable for following versions: Warm White:2700K-3200K Neutral White:3800K-4200K Cool White:6000K-
6600K
1.Safety Instructions
• Installation, fixing and connection should be carried out by a qualified electrician.
• Switch off the power supply before installation, fixing and operation, or otherwise
you might suffer potential electric shock.
• Don’t hang or fasten anything onto the product, especially no decorations.
• The product should be exposed to free air circulation and not be covered.
• During the installation of the product keep children away and product should be out of their reach.
2.Terms of use
This product serves illumination purposes only and is to be used only under the
conditions mentioned below:
• Within specified voltage.
• Before using the product it has to be fixed and fastened properly.Fixing and
fastening is only allowed under dry and ventilated conditions. Hot, humid or
environment-polluted conditions are inadvisable.
• The product cannot be exposed to a strong electromagnetic field, it will not
function properly or even fail to function.
• After a long period of storage, do check the product before installation to avoid
potential dampness or check on damage in its appearance and other possible
dangers. Dimming function: please refer to the specification of each product.
• Using LEDESHI original LED driver to ensure optimal functioning.
3.Installation Instructions
• To fix the product only use the installation material/parts included with it. Otherwise
the product will not be mounted safely and might thus lead to mortal danger or cause fire.
• Before installation, check for loose parts in the housing. If there are any, do not
install the product to operate. Otherwise the product will not work properly or might
even cause an electric shock.
4.Maintenance
• Before cleaning the product, switch off the power supply and let it cool down.
Any negligence to this may be dangerous: risk of an electric shock and burning.
Use a slightly wet, soft lint-free cloth to clean.
5.Failure
• In case of a failure or malfunction: switch off the power supply immediately
before taking any further action and do not touch the product. Otherwise you might
run the risk of an electric shock.
• In case of a failure, call for a professional electrician to check and repair the
product before using it again.
The following points indicate failure of the product.
• No light output or product is not working properly.
• The armature and/or parts of it are damaged.
• Smoke/steam appears and/or a noise is to be heard.
• A burning smell.
• The product is overheated.
Installation,Usage and Maintenance Guide
Always follow this instruction to ensure correct and safe
installation and functioning of the luminaire and keep it
for future reference.
Always isolate the power before commencing installation.
If in doubt, consult a qualified electrician. Ensure that you
always install the luminaire to the relevant regulations.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable
reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased. They can
take this product for environmental safe recycling.

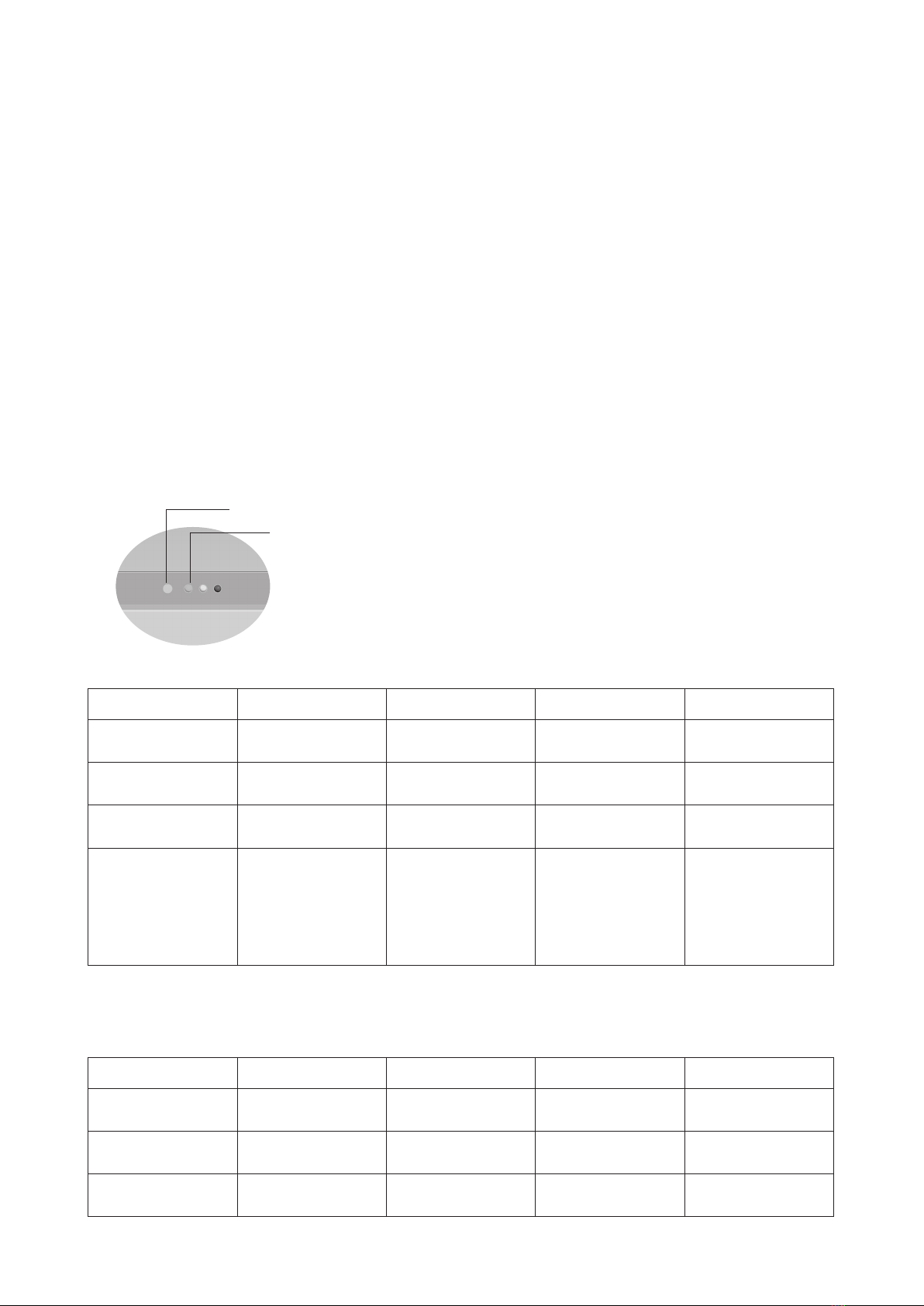

IP54
Suitable for following version; Warm White:2700K-3200K Neutral White:3800K-4200K Cool White:6000K-
6600K
Model Voltage H (mm)W/Φ (mm)Wattage Luminous Flux
220-240V~29W 350
2900LM(Warm White)
2900LM(Neutral White)
70
220-240V~18W 350
1800LM(Warm White)
1800LM(Neutral White)
70
UNO ECLIPSE
220-240V~38W 350
3800LM(Warm White)
3800LM(Neutral White)
70
H
Φ
UNO ECLIPSE
UNO ECLIPSE

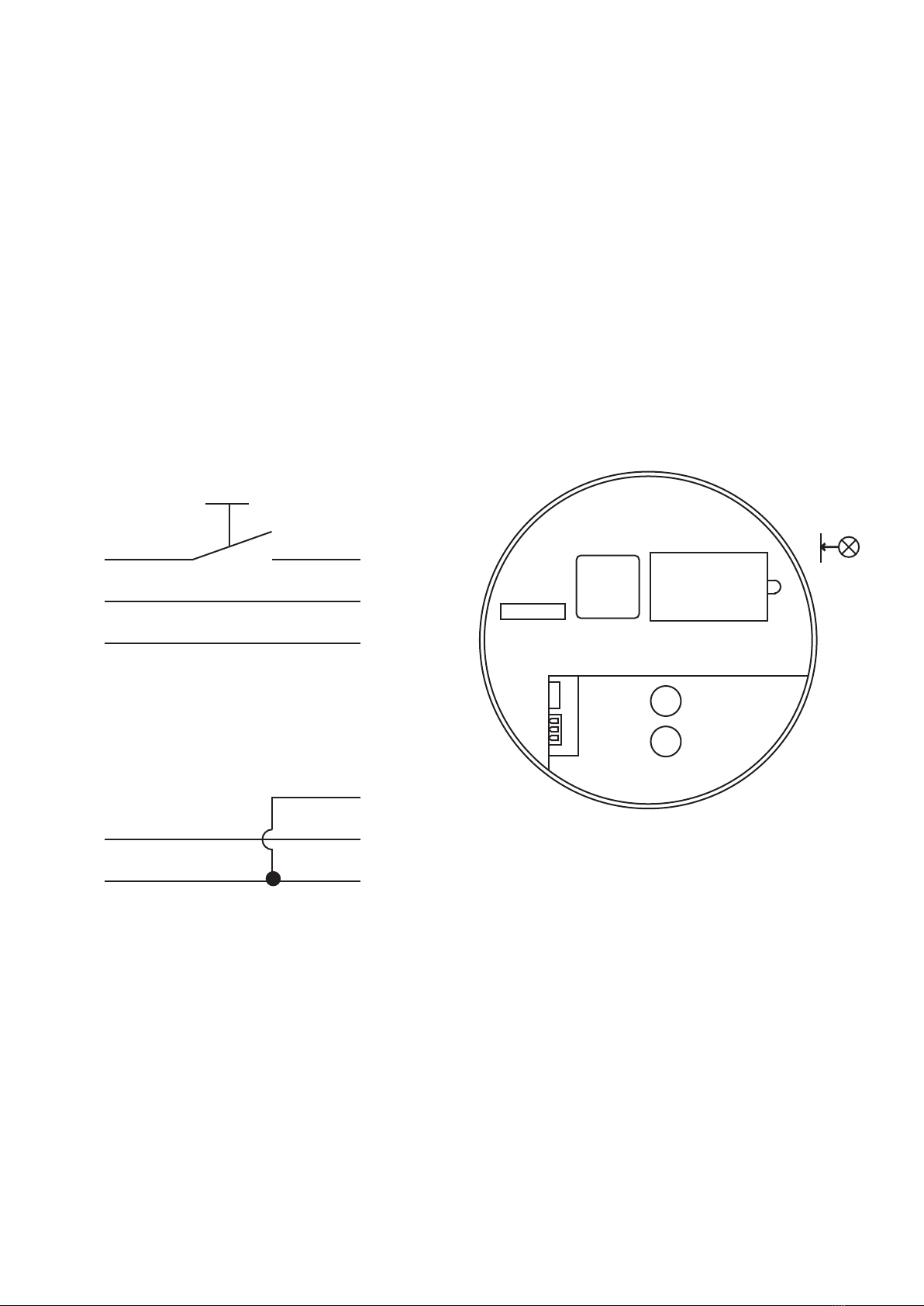

UNO ECLIPSE INSTALLATION GUIDE
H
Ø
1.Safety Instructions
• Installation, fixing and connection should be carried out by a qualified electrician.
• Switch off the power supply before installation, fixing and operation, or otherwise
you might suffer potential electric shock.
• Don’t hang or fasten anything onto the product, especially no decorations.
• The product should be exposed to free air circulation and not be covered.
• During the installation of the product keep children away and product should be out of their reach.
2.Terms of use
This product serves illumination purposes only and is to be used only under the
conditions mentioned below:
• Within specified voltage.
• Before using the product it has to be fixed and fastened properly.Fixing and
fastening is only allowed under dry and ventilated conditions. Hot, humid or
environment-polluted conditions are inadvisable.
• The product cannot be exposed to a strong electromagnetic field, it will not
function properly or even fail to function.
• After a long period of storage, do check the product before installation to avoid
potential dampness or check on damage in its appearance and other possible
dangers. Dimming function: please refer to the specification of each product.
• Using LEDESHI original LED driver to ensure optimal functioning.
3.Installation Instructions
• To fix the product only use the installation material/parts included with it. Otherwise
the product will not be mounted safely and might thus lead to mortal danger or cause fire.
• Before installation, check for loose parts in the housing. If there are any, do not
install the product to operate. Otherwise the product will not work properly or might
even cause an electric shock.
4.Maintenance
• Before cleaning the product, switch off the power supply and let it cool down.
Any negligence to this may be dangerous: risk of an electric shock and burning.
Use a slightly wet, soft lint-free cloth to clean.
5.Failure
• In case of a failure or malfunction: switch off the power supply immediately
before taking any further action and do not touch the product. Otherwise you might
run the risk of an electric shock.
• In case of a failure, call for a professional electrician to check and repair the
product before using it again.
The following points indicate failure of the product.
• No light output or product is not working properly.
• The armature and/or parts of it are damaged.
• Smoke/steam appears and/or a noise is to be heard.
• A burning smell.
• The product is overheated.
Installation,Usage and Maintenance Guide
Always follow this instruction to ensure correct and safe
installation and functioning of the luminaire and keep it
for future reference.
Always isolate the power before commencing installation.
If in doubt, consult a qualified electrician. Ensure that you
always install the luminaire to the relevant regulations.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable
reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased. They can
take this product for environmental safe recycling.
IP54
Suitable for following version; Warm White:2700K-3200K Neutral White:3800K-4200K Cool White:6000K-
6600K
Model Voltage H (mm)W/Φ (mm)Wattage Luminous Flux
220-240V~29W 350
2900LM(Warm White)
2900LM(Neutral White)
70
220-240V~18W 350
1800LM(Warm White)
1800LM(Neutral White)
70
UNO ECLIPSE
220-240V~38W 350
3800LM(Warm White)
3800LM(Neutral White)
70
H
Φ
UNO ECLIPSE
UNO ECLIPSE
1.Safety Instructions
• Installation, fixing and connection should be carried out by a qualified electrician.
• Switch off the power supply before installation, fixing and operation, or otherwise
you might suffer potential electric shock.
• Don’t hang or fasten anything onto the product, especially no decorations.
• The product should be exposed to free air circulation and not be covered.
• During the installation of the product keep children away and product should be out of their reach.
2.Terms of use
This product serves illumination purposes only and is to be used only under the
conditions mentioned below:
• Within specified voltage.
• Before using the product it has to be fixed and fastened properly.Fixing and
fastening is only allowed under dry and ventilated conditions. Hot, humid or
environment-polluted conditions are inadvisable.
• The product cannot be exposed to a strong electromagnetic field, it will not
function properly or even fail to function.
• After a long period of storage, do check the product before installation to avoid
potential dampness or check on damage in its appearance and other possible
dangers. Dimming function: please refer to the specification of each product.
• Using LEDESHI original LED driver to ensure optimal functioning.
3.Installation Instructions
• To fix the product only use the installation material/parts included with it. Otherwise
the product will not be mounted safely and might thus lead to mortal danger or cause fire.
• Before installation, check for loose parts in the housing. If there are any, do not
install the product to operate. Otherwise the product will not work properly or might
even cause an electric shock.
4.Maintenance
• Before cleaning the product, switch off the power supply and let it cool down.
Any negligence to this may be dangerous: risk of an electric shock and burning.
Use a slightly wet, soft lint-free cloth to clean.
5.Failure
• In case of a failure or malfunction: switch off the power supply immediately
before taking any further action and do not touch the product. Otherwise you might
run the risk of an electric shock.
• In case of a failure, call for a professional electrician to check and repair the
product before using it again.
The following points indicate failure of the product.
• No light output or product is not working properly.
• The armature and/or parts of it are damaged.
• Smoke/steam appears and/or a noise is to be heard.
• A burning smell.
• The product is overheated.
Installation,Usage and Maintenance Guide
Always follow this instruction to ensure correct and safe
installation and functioning of the luminaire and keep it
for future reference.
Always isolate the power before commencing installation.
If in doubt, consult a qualified electrician. Ensure that you
always install the luminaire to the relevant regulations.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable
reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased. They can
take this product for environmental safe recycling.
IP54
Suitable for following version; Warm White:2700K-3200K Neutral White:3800K-4200K Cool White:6000K-
6600K
Model Voltage H (mm)W/Φ (mm)Wattage Luminous Flux
220-240V~29W 350
2900LM(Warm White)
2900LM(Neutral White)
70
220-240V~18W 350
1800LM(Warm White)
1800LM(Neutral White)
70
UNO ECLIPSE
220-240V~38W 350
3800LM(Warm White)
3800LM(Neutral White)
70
H
Φ
UNO ECLIPSE
UNO ECLIPSE
1.Safety Instructions
• Installation, fixing and connection should be carried out by a qualified electrician.
• Switch off the power supply before installation, fixing and operation, or otherwise
you might suffer potential electric shock.
• Don’t hang or fasten anything onto the product, especially no decorations.
• The product should be exposed to free air circulation and not be covered.
• During the installation of the product keep children away and product should be out of their reach.
2.Terms of use
This product serves illumination purposes only and is to be used only under the
conditions mentioned below:
• Within specified voltage.
• Before using the product it has to be fixed and fastened properly.Fixing and
fastening is only allowed under dry and ventilated conditions. Hot, humid or
environment-polluted conditions are inadvisable.
• The product cannot be exposed to a strong electromagnetic field, it will not
function properly or even fail to function.
• After a long period of storage, do check the product before installation to avoid
potential dampness or check on damage in its appearance and other possible
dangers. Dimming function: please refer to the specification of each product.
• Using LEDESHI original LED driver to ensure optimal functioning.
3.Installation Instructions
• To fix the product only use the installation material/parts included with it. Otherwise
the product will not be mounted safely and might thus lead to mortal danger or cause fire.
• Before installation, check for loose parts in the housing. If there are any, do not
install the product to operate. Otherwise the product will not work properly or might
even cause an electric shock.
4.Maintenance
• Before cleaning the product, switch off the power supply and let it cool down.
Any negligence to this may be dangerous: risk of an electric shock and burning.
Use a slightly wet, soft lint-free cloth to clean.
5.Failure
• In case of a failure or malfunction: switch off the power supply immediately
before taking any further action and do not touch the product. Otherwise you might
run the risk of an electric shock.
• In case of a failure, call for a professional electrician to check and repair the
product before using it again.
The following points indicate failure of the product.
• No light output or product is not working properly.
• The armature and/or parts of it are damaged.
• Smoke/steam appears and/or a noise is to be heard.
• A burning smell.
• The product is overheated.
Installation,Usage and Maintenance Guide
Always follow this instruction to ensure correct and safe
installation and functioning of the luminaire and keep it
for future reference.
Always isolate the power before commencing installation.
If in doubt, consult a qualified electrician. Ensure that you
always install the luminaire to the relevant regulations.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable
reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased. They can
take this product for environmental safe recycling.
IP54
Suitable for following version; Warm White:2700K-3200K Neutral White:3800K-4200K Cool White:6000K-
6600K
Model Voltage H (mm)W/Φ (mm)Wattage Luminous Flux
220-240V ~ 29W 350
2900LM(Warm White)
2900LM(Neutral White)
70
220-240V
~ 18W 350
1800LM(Warm White)
1800LM(Neutral White)
70
UNO ECLIPSE
220-240V ~ 38W 350
3800LM(Warm White)
3800LM(Neutral White)
70
H
Φ
UNO ECLIPSE
UNO ECLIPSE
• Always follow this instruction to ensure correct and safe installation and functioning of the luminaire and keep it for
future reference.
Always isolate the power before commencing installation.
• If in doubt, consult a qualified electrician. Ensure that you always install the luminaire to the relevant regulations.

Page 2
1.Safety Instructions
• Installation, fixing and connection should be carried out
by a qualified electrician.
• Switch off the power supply before installation, fixing and
operation, or otherwise you might suffer potential electric
shock.
• Don’t hang or fasten anything onto the product, especial-
ly no decorations.
• The product should be exposed to free air circulation and
not be covered.
• During the installation of the product keep children away
and product should be out of their reach.
2.Terms of use
This product serves illumination purposes only and is to be
used only under the conditions mentioned below:
• Within specified voltage.
• Before using the product it has to be fixed and fastened
properly.Fixing andfastening is only allowed under dry and
ventilated conditions. Hot, humid or environment-polluted
conditions are inadvisable.
• The product cannot be exposed to a strong electro-
magnetic field, it will not function properly or even fail to
function.
• After a long period of storage, do check the product
before installation to avoid potential dampness or check
on damage in its appearance and other possible dangers.
Dimming function: please refer to the specification of each
product.
• Using LEDESHI original LED driver to ensure optimal func-
tioning.
3.Installation Instructions
• To fix the product only use the installation material/parts
included with it. Otherwise the product will not be moun-
ted safely and might thus lead to mortal danger or cause
fire.
• Before installation, check for loose parts in the housing.
If there are any, do not install the product to operate.
Otherwise the product will not work properly or might even
cause an electric shock.
4. Maintenance
• Before cleaning the product, switch off the power supply
and let it cool down. Any negligence to this may be dan-
gerous: risk of an electric shock and burning. Use a slightly
wet, soft lint-free cloth to clean.
5. Failure
• In case of a failure or malfunction: switch off the power
supply immediately before taking any further action and do
not touch the product. Otherwise you might run the risk of
an electric shock.
• In case of a failure, call for a professional electrician to
check and repair the product before using it again.
The following points indicate failure of the product.
• No light output or product is not working properly.
• The armature and/or parts of it are damaged.
• Smoke/steam appears and/or a noise is to be heard.
• A burning smell.
• The product is overheated.
1.Safety Instructions
• Installation, fixing and connection should be carried out by a qualified electrician.
• Switch off the power supply before installation, fixing and operation, or otherwise
you might suffer potential electric shock.
• Don’t hang or fasten anything onto the product, especially no decorations.
• The product should be exposed to free air circulation and not be covered.
• During the installation of the product keep children away and product should be out of their reach.
2.Terms of use
This product serves illumination purposes only and is to be used only under the
conditions mentioned below:
• Within specified voltage.
• Before using the product it has to be fixed and fastened properly.Fixing and
fastening is only allowed under dry and ventilated conditions. Hot, humid or
environment-polluted conditions are inadvisable.
• The product cannot be exposed to a strong electromagnetic field, it will not
function properly or even fail to function.
• After a long period of storage, do check the product before installation to avoid
potential dampness or check on damage in its appearance and other possible
dangers. Dimming function: please refer to the specification of each product.
• Using LEDESHI original LED driver to ensure optimal functioning.
3.Installation Instructions
• To fix the product only use the installation material/parts included with it. Otherwise
the product will not be mounted safely and might thus lead to mortal danger or cause fire.
• Before installation, check for loose parts in the housing. If there are any, do not
install the product to operate. Otherwise the product will not work properly or might
even cause an electric shock.
4.Maintenance
• Before cleaning the product, switch off the power supply and let it cool down.
Any negligence to this may be dangerous: risk of an electric shock and burning.
Use a slightly wet, soft lint-free cloth to clean.
5.Failure
• In case of a failure or malfunction: switch off the power supply immediately
before taking any further action and do not touch the product. Otherwise you might
run the risk of an electric shock.
• In case of a failure, call for a professional electrician to check and repair the
product before using it again.
The following points indicate failure of the product.
• No light output or product is not working properly.
• The armature and/or parts of it are damaged.
• Smoke/steam appears and/or a noise is to be heard.
• A burning smell.
• The product is overheated.
Installation,Usage and Maintenance Guide
Always follow this instruction to ensure correct and safe
installation and functioning of the luminaire and keep it
for future reference.
Always isolate the power before commencing installation.
If in doubt, consult a qualified electrician. Ensure that you
always install the luminaire to the relevant regulations.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable
reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased. They can
take this product for environmental safe recycling.
IP54
Suitable for following version; Warm White:2700K-3200K Neutral White:3800K-4200K Cool White:6000K-
6600K
Model Voltage H (mm)W/Φ (mm)Wattage Luminous Flux
220-240V~29W 350
2900LM(Warm White)
2900LM(Neutral White)
70
220-240V~18W 350
1800LM(Warm White)
1800LM(Neutral White)
70
UNO ECLIPSE
220-240V~38W 350
3800LM(Warm White)
3800LM(Neutral White)
70
H
Φ
UNO ECLIPSE
UNO ECLIPSE
Correct disposal of this product
This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the sustai-
nable reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased. They can
take this product for environmental safe recycling.

Page 3
1.Start by connecting the emergency battery (only required for model with emergency).
2.Set DIP-switch according to diagram on page 5 (Motion detecting lighting with emergency function).
3.Install swtich according to diagram below.
4.Check LED-indicators on page 4 (Emergency Lighting).
Switch + emergency
ELECTRICAL INSTALLATION
S N L D+ D-
12
3
4
230V
230V
S
S
N
N
L
L
230V
230V
Emergency
Emergency + motion sensor

Page 4
UNO ECLIPSE has a manual or automatic inspection funtion (monthly or yearly).
The emergency function activates and deactivates
automatically:
• Entering emergency mode: MAINS < 155 +/- 10V
• Returning back to mains mode: MAINS > 180V
Automatic monthly and yearly inspection:
• Counting of time:
Start of counting: 48 hours after installation
Month: 30 +/- days after start counting
Year: 12 times of Month
• Monthly inspection: performing a 120s emergency status and then back to normal.
• Yearly inspection: performning a full discharging till the battery i fully discharged and back normal.
Motion detecting lighting with Emergency function
This luminaire is integrated with both of
●Motion Detecting with Corridor function
Motion Detection
he default setting:
Light sensibility: 10 Lux
Detecting sensitivity: 4.5-5.5M
Lighting timer: 1 minutes (100%)
Timer on dimmed light: 60 minutes (30%)
You may configure your luminaries according
to your needs before or after the installation of
the luminaries.
How to configure with different combination
Refer to figure 1
a. Open the lid
b. Set the switch according to table 1
c. Close the lid
Emergency lighting
It has the manual or automatic inspecting function (Monthly and Yearly).
1. The emergency function is activated and deactivated automatically:
● Entering Emergency Mode: MAINS < 155 +/- 10V
● Returning back to Mains Mode: MAINS > 180V
2. Automatic monthly and yearly inspection:
● Counting of time:
Start of counting: 48hours after installation
Month: 30+/-2 days after start of counting
Year: 12 times of Month
● Monthly inspection: Performing a 120s emergency status and then
back normal
● Yearly inspection: Performing a full discharging till the battery is fully
discharged and back normal
Inspection Button:
Indicators:Connection:
★If the discharging time is less than 30 minutes, the yellow indicator will be on and the luminaire will be back
to Mains automatically.
Press<3s Press3-5s Press5-7s Press>7s
Condition Mains in normal
status
Mains in normal
status
Mains is in normal
status In emergency status
Switching back to
Mains supply
Function Simulation of power
failure Month inspection
Year inspection
Results entering emergency
status
The GREEN indicator
flashing at 1Hz.
The GREEN indicator
flashing at 3Hz
Back to Mains supply
Stay in Mains supply
After release Back to normal status
Entering month
inspection status:
Performing a 120s
emergency status
and then back to
normal status
Entering year
inspection status:
Performing a full
discharging.
★
lamp switch
Inspection Button
Green Yellow Red
Detecting distance Lighting timer Light sensibility Timer on dimmed light
Dimmed
light
S1 S2 S3 S4 S5 S6 S7 S8 S9
1.0-2.0
meters
OFF OFF 10S OFF OFF 24H OFF
OFF
24H OFF OFF 10% OFF
2.5-3.5meters OFF ON 1M OFF ON 10LUX OFF
ON 15S OFF ON 30% ON
4.5-5.5
meters
ON ON 3M ON OFF 30LUX ON OFF
30M ON OFF
ONDIP
Press < 3s Press 3-5s Press 5-7s Press >7s
Condition Mains in normal
status
Mains in normal
status
Mains in normal
status
Mains in normal
status
Function Simulation of power
failure
Monthly inspection Year inspection Switching back to
mains supply
Results Entering emergency
status
The green indicator
fashing at 1Hz
The green indicator
fashing at 3Hz
Back to mains
supply
After release Back to normal
status
Entering month
inspection status:
Performing a 120s
emergency status
and then back to
normal status
Entering year
inspection status:
performing a full
discharging*
Stay in mains supply
Indicator Function Light on Flashing Light off
Red Charging indication Charging Fully charged
Green Status indication of
mains and inspection
Mains status: OK 1Hz: Month inspection
3Hz: Year inspection
Yellow Failure status Discharging time is
short
1Hz: Fault in charging
circuit
*If the discharging time is less than 30 minutes, the yellow indicator will be on and the luminaire will be back to
mains automatically
EMERGENCY LIGHTING

Page 5
Motion detecting lighting with emergency function
UNO ECLIPSE is integrated with both motion detecting and corridor function
Default setting:
Light sensibility: 10lux
Detecting sensibility: 4.5-5.5M
Lighting timer: 1 minutes (100%)
Timer on dimmed light: 60 minutes (30%)
You may configure your luminares according to your needs before or after the installation of the
luminaires.
How to configure with different combinations:
1. Open lid
2. Set the switch according to table above
3. Close the lid
Detecting distance Lighting timer Light sensibility Timer on dimmed
light
Dimmed light
S1 S2 S3 S4 S5 S6 S7 S8 S9
1.0-2.0
meters
OFF OFF 10S OFF OFF 24h OFF OFF 24h OFF OFF 10% OFF
2.5-3.5
meters
OFF ON 1M OFF ON 10lux OFF ON 15s OFF ON 30% ON
4.5-5.5
meters
OFF ON 3M ON OFF 30lux ON OFF 30M ON OFF
Motion detection
Motion detecting with corridor function
This luminaire is integrated with
● Motion Detecting with Corridor function
Detecting distance Lighting timer Light sensibility Timer on dimmed light Dimmed
light
S1 S2 S3 S4 S5 S6 S7 S8 S9
1.0-2.0
meters OFF OFF 10S OFF OFF 24H OFF OFF 24H OFF OFF 10% OFF
2.5-3.5meters OFF ON 1M OFF ON 10LUX OFF ON 15S OFF ON 30% ON
4.5-5.5
meters ON ON 3M ON
ON ON ON ON ON ON
OFF 30LUX
50LUX
ON OFF 30M ON OFF
How to configure with different combination
Refer to figure 1
a. Open the lid
b. Set the switch according to table 1
c. Close the lid
Motion Detection
The default setting:
Light sensibility: 10 Lux
Detecting sensitivity: 4.5-5.5M
Lighting timer: 1 minutes (100%)
Timer on dimmed light: 60 minutes (30%)
You may configure your luminaries according
to your needs before or after the installation of
the luminaries.
ONDIP
5M 60M
Motion detecting with corridor function
This luminaire is integrated with
● Motion Detecting with Corridor function
Detecting distance Lighting timer Light sensibility Timer on dimmed light Dimmed
light
S1 S2 S3 S4 S5 S6 S7 S8 S9
1.0-2.0
meters OFF OFF 10S OFF OFF 24H OFF OFF 24H OFF OFF 10% OFF
2.5-3.5meters OFF ON 1M OFF ON 10LUX OFF ON 15S OFF ON 30% ON
4.5-5.5
meters ON ON 3M ON
ON ON ON ON ON ON
OFF 30LUX
50LUX
ON OFF 30M ON OFF
How to configure with different combination
Refer to figure 1
a. Open the lid
b. Set the switch according to table 1
c. Close the lid
Motion Detection
The default setting:
Light sensibility: 10 Lux
Detecting sensitivity: 4.5-5.5M
Lighting timer: 1 minutes (100%)
Timer on dimmed light: 60 minutes (30%)
You may configure your luminaries according
to your needs before or after the installation of
the luminaries.
ONDIP
5M 60M
Motion detecting with corridor function
This luminaire is integrated with
● Motion Detecting with Corridor function
Detecting distance Lighting timer Light sensibility Timer on dimmed light Dimmed
light
S1 S2 S3 S4 S5 S6 S7 S8 S9
1.0-2.0
meters OFF OFF 10S OFF OFF 24H OFF OFF 24H OFF OFF 10% OFF
2.5-3.5meters OFF ON 1M OFF ON 10LUX OFF ON 15S OFF ON 30% ON
4.5-5.5
meters ON ON 3M ON
ON ON ON ON ON ON
OFF 30LUX
50LUX
ON OFF 30M ON OFF
How to configure with different combination
Refer to figure 1
a. Open the lid
b. Set the switch according to table 1
c. Close the lid
Motion Detection
The default setting:
Light sensibility: 10 Lux
Detecting sensitivity: 4.5-5.5M
Lighting timer: 1 minutes (100%)
Timer on dimmed light: 60 minutes (30%)
You may configure your luminaries according
to your needs before or after the installation of
the luminaries.
ONDIP
5M 60M
Motion detecting with corridor function
This luminaire is integrated with
● Motion Detecting with Corridor function
Detecting distance Lighting timer Light sensibility Timer on dimmed light Dimmed
light
S1 S2 S3 S4 S5 S6 S7 S8 S9
1.0-2.0
meters OFF OFF 10S OFF OFF 24H OFF OFF 24H OFF OFF 10% OFF
2.5-3.5meters OFF ON 1M OFF ON 10LUX OFF ON 15S OFF ON 30% ON
4.5-5.5
meters ON ON 3M ON
ON ON ON ON ON ON
OFF 30LUX
50LUX
ON OFF 30M ON OFF
How to configure with different combination
Refer to figure 1
a. Open the lid
b. Set the switch according to table 1
c. Close the lid
Motion Detection
The default setting:
Light sensibility: 10 Lux
Detecting sensitivity: 4.5-5.5M
Lighting timer: 1 minutes (100%)
Timer on dimmed light: 60 minutes (30%)
You may configure your luminaries according
to your needs before or after the installation of
the luminaries.
ONDIP
5M 60M
Motion detecting with corridor function
This luminaire is integrated with
● Motion Detecting with Corridor function
Detecting distance Lighting timer Light sensibility Timer on dimmed light Dimmed
light
S1 S2 S3 S4 S5 S6 S7 S8 S9
1.0-2.0
meters OFF OFF 10S OFF OFF 24H OFF OFF 24H OFF OFF 10% OFF
2.5-3.5meters OFF ON 1M OFF ON 10LUX OFF ON 15S OFF ON 30% ON
4.5-5.5
meters ON ON 3M ON
ON ON ON ON ON ON
OFF 30LUX
50LUX
ON OFF 30M ON OFF
How to configure with different combination
Refer to figure 1
a. Open the lid
b. Set the switch according to table 1
c. Close the lid
Motion Detection
The default setting:
Light sensibility: 10 Lux
Detecting sensitivity: 4.5-5.5M
Lighting timer: 1 minutes (100%)
Timer on dimmed light: 60 minutes (30%)
You may configure your luminaries according
to your needs before or after the installation of
the luminaries.
ONDIP
