LiteOn VPOC VP-3103-111U User guide

VP-3103-111U-ST-01 Page 1 of 8 October 2015

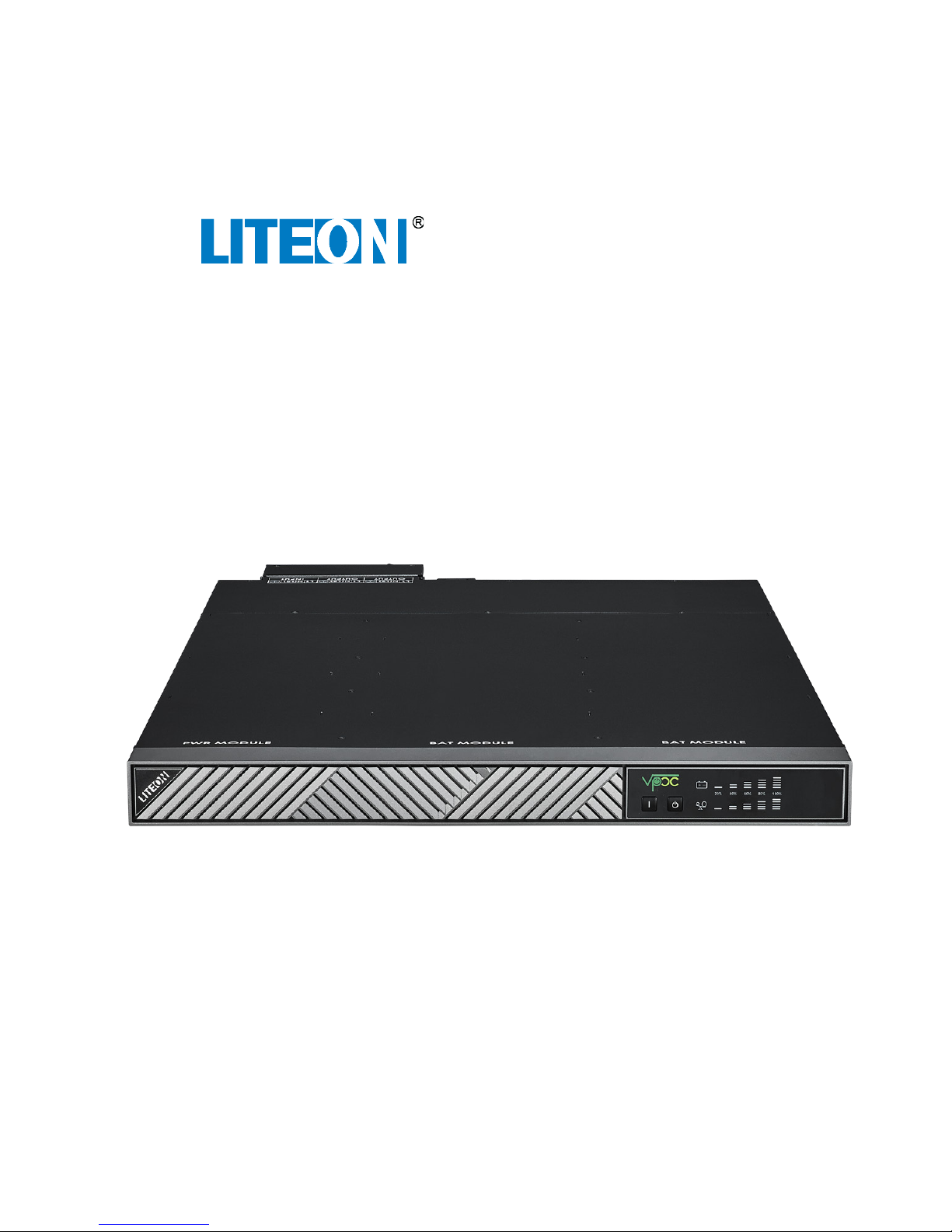

10kW VPOC™ Power System
STARTUP GUIDE

STARTUP GUIDE
VP-3103-111U
10kW VPOC™ Power System
VP-3103-111U-ST-01 Page 2 of 8 October 2015
©2015 Copyright Lite-On Technology Corporation ALL RIGHTS RESERVED. Lite-On is a trademark of Lite-On Technology Corporation, registered in
the United States and other countries. This document may contain inaccuracies and typographical errors. Lite-On cannot be held responsible for
any errors or omissions contained in this document. All content is provided “As Is” and “As Available”. Lite-On reserves the right to correct errors
or omissions in this document. Other brand names mentioned herein are for identification purposes only and may be the trademarks of their
respective holder(s). Specifications and data are subject to change without notice.
Contents
Introduction...................................................................................................................................................... 3
General Safety .................................................................................................................................................. 3
Required Tools for Startup ............................................................................................................................... 3
Startup Checklist............................................................................................................................................... 4
Initial Power Activation .................................................................................................................................... 5
PDU AC Voltage Test......................................................................................................................................... 5
PDU DC Voltage Test......................................................................................................................................... 5
Related Documentation.................................................................................................................................... 7

STARTUP GUIDE
VP-3103-111U
10kW VPOC™ Power System
VP-3103-111U-ST-01 Page 3 of 8 October 2015
Introduction
Virtual Power On Call (VPOC™) is a highly-efficient backup power solution that uses a fraction of the space
of a conventional Uninterruptable Power System (UPS). The 10kW VPOC™ module, along with two Lithium
Ion (Li-ion) battery modules, slides into the 1U VPOC™ Shelf. VPOC™ automatically manages transitions
between normal (AC) operation and battery mode (DC) to keep IT equipment safe during power
interruptions. An external VRLA battery solution may be substituted for Li-ion batteries for even longer
backup times. For more information about the 10kW VPOC™ Power Shelf, refer to the Lite-On 10kW VPOC
Power Shelf Datasheet.
The 10kW Power Module efficiently supplies both main output AC power and standby DC power from
either AC or DC sources. For more information about the 10kW VPOC™ Power Module, refer to the Lite-On
10kW VPOC™ Power Module Datasheet.
This startup guide provides instructions to startup the 10kW VPOC™ Power System for the first time. It
assumes that the VPOC™ Supply System has been properly installed and is ready for initial power up and
testing. For instructions on installation and user information, refer to the Lite-On VPOC™ System User
Guide.
General Safety
This startup guide uses the safety conventions described below. Ensure that you follow the safety
instructions in this guide and observe its directives to protect you from injury and to protect your
equipment from damage.
WARNING
Indicates highly-dangerous consequences such as fire, serious injury, or death when
failing to comply with the instructions.
Caution
Indicates dangerous consequences such as moderate injury or equipment damage when
failing to comply with the instructions.
Required Tools for Startup
Caution
There are NO USER SERVICEABLE PARTS inside the VPOC™ Power Shelf, VPOC™ Power
Module, nor any of the batteries used with the VPOC™ Power System. All repairs and
service must be performed by AUTHORIZED SERVICE PERSONNEL only. Warranty coverage
will be void if unauthorized repair or service has been attempted. Lite-On PSS shall not be
liable for reimbursements, claims, damages, or injuries that may result from the
unauthorized repair of this product.
The following tools are required for initial startup of the VPOC™ Power System.
•Digital Multimeter (DMM) for verifying AC and DC power

STARTUP GUIDE
VP-3103-111U
10kW VPOC™ Power System
VP-3103-111U-ST-01 Page 4 of 8 October 2015
Startup Checklist
Before activating input power to the VPOC™ Power System, verify that all conditions in the Initial Startup
Checklist table below have been met. At this point, the following components should be properly installed:
•VPOC™ Power shelf into its rack
•All power switches and breakers on the VPOC™ Power shelf, Power Distribution Module (PDM),
and VRLA battery shelf are in the OFF position
•The maintenance bypass switch on the VPOC™ Power shelf is in its default, locked position (OFF),
with the safety bracket installed so it cannot be accidentally turned on
•VPOC™ Power shelf input wiring and output wiring to VPOC™ PDUs
•VPOC™ Power Module installed into the VPOC™ shelf
•Either VPOC™ Li-ion or VRLA batteries are installed
WARNING
To reduce the risk of fire, the unit connects only to a circuit provided with branch circuit
overcurrent protection in accordance with the National Electric Code, ANSI/NFPA 70. The
upstream circuit breaker must be easily accessible. The unit must be disconnected from
AC power source by opening this circuit breaker.
WARNING
Do not connect power to the VPOC™ Power System until all conditions in the Initial
Startup Checklist table below have been successfully verified by qualified personnel who
are knowledgeable with this equipment and have proper electrical and mechanical
expertise. Failure to meet all these conditions could result in damage to the equipment or
harm or death to personnel.
Initial Startup Checklist
Yes?
No?
Is the rack properly installed, leveling feet down, and physically stable?
Are all rack screws and bolts tightened properly?
Is the rack properly grounded electrically?
Is the VPOC™ Power shelf properly installed in the rack so it cannot be pulled
out?
Are all electrical cables the correct size?
Do all cable installations meet local electrical standards?
Are all power and control cables secured, routed, and properly terminated?
Are all electrical bolts and screws properly installed and tightened?
Does the power source meet electrical current and voltage requirements?
Is the VPOC™ Power shelf properly connected to branch circuit overcurrent
protection in accordance with the National Electric Code, ANSI/NFPA 70?
Is the installation area dry and away from liquids?
Is the air temperature within normal operating range?
Is the area clean and free of debris and packing materials?
Are all people wearing proper protective equipment as defined by local
standards?
Do all people in the area know the location of emergency power-off switches,
fire extinguishers, and first aid equipment?

STARTUP GUIDE
VP-3103-111U
10kW VPOC™ Power System
VP-3103-111U-ST-01 Page 5 of 8 October 2015
Initial Power Activation
To activate power to the VPOC™ Power System the first time:
1. Turn on the circuit breaker that supplies power to the VPOC™ Power System. All lights on the
VPOC™ front panel illuminate for a few seconds and the VPOC™ Power Module fans come on at
full speed.
2. Wait for the VPOC™ Power System to fully start up (approximately 10 to 15 seconds). After the
system has completed start up, verify that the following green lights on the front panel are
illuminated:
•AC Output Indicator (see 1 below)
•AC Input Indicator (see 2 below)
•Battery Level Indicators (see 3 below)
•Load Level Indicators (see 4 below) if load is present
PDU AC Voltage Test
After the VPOC™ Power System has started successfully; verify PDU AC voltage using a DMM.
To test PDU AC voltage:
1. Verify that the PDU power light is illuminated.
2. Using a DMM, measure the line-to-line AC voltage of one of the PDU outlets.
3. Verify that AC voltage is the same as the line voltage feeding the VPOC™ Power System (208VAC–
240VAC). Note: If no voltage is present, but the PDU power light illuminates, check the PDU fuses.
PDU DC Voltage Test
After a successful PDU AC voltage test, verify that the VPOC™ Power System can supply DC voltage to the
PDU when AC power is lost.
To test PDU DC voltage:
1. If using VRLA batteries, turn on the breaker of each VRLA battery connected to the VPOC™ Power
Shelf.
2. If using internal Li-ion battery modules, they should already be installed into the VPOC™ Power
Shelf as described in the Lite-On VPOC™ Power System User Guide.

STARTUP GUIDE
VP-3103-111U
10kW VPOC™ Power System
VP-3103-111U-ST-01 Page 6 of 8 October 2015
3. By observing the VPOC™ Power Shelf front panel, verify that its batteries are charged to 20% or
more (20% light is solid). If they are not at that level, wait until they reach a charge of 20% or more
before proceeding.
4. Turn off the main breaker for the VPOC™ Power System to disconnect it from AC power. The
VPOC™ Power System switches to DC mode, the amber battery light illuminates, and the AC Input
Indicator turns off.
5. Using a DMM, measure the line-to-line DC voltage of one of the PDU outlets that is connected to
the VPOC™ Power System.
6. Verify that the PDU DC voltage is approximately 200–290 VDC (this is the battery voltage). Note: If
no voltage is present, but the PDU power light illuminates, check the PDU fuses.
7. Turn on the main circuit breaker that supplies power to the VPOC™ Power System. The amber
battery light turns off and the AC Input Indicator illuminates.
This completes the initial startup test for the VPOC™ Power System; the system is ready to use if all tests
have successfully completed.

STARTUP GUIDE
VP-3103-111U
10kW VPOC™ Power System
VP-3103-111U-ST-01 Page 7 of 8 October 2015
Related Documentation
For information about the VPOC™ Shelf, refer to the Lite-On VPOC™ Shelf Datasheet.
For information about the VPOC™ Power Module, refer to the Lite-On VPOC™ Module Datasheet.
For information about the VPOC™ PDU, refer to the Lite-On VPOC™ PDU Datasheet.
For information about the VPOC™ Li-ion battery, refer to the Lite-On VPOC™ Li-ion Battery Datasheet.
For information about the VPOC™ VRLA battery, refer to the Lite-On VPOC™ VRLA Battery Datasheet.
For instructions on installing and using the 10kW VPOC™ Power System, refer to the Lite-On VPOC™ Power
System User Guide.
For more information related to the Lite-On Power Systems, visit the Lite-On Power Systems Solutions web
site at: http://www.liteon-pss.com.
