Little Wonder OPTIMAX LB901-00-01 User manual

OPTIMAX
LITTLE WONDER
TECHNICAL MANUAL
MAN 4164247 Rev. A 5-2009
Owners Manual and Safety Instructions for
MAXIMUM OUTPUT BLOWER
Manuel d’utilisation et consignes de sécurité pour la
SOUFFLANTE À debit MAXIMAL
Manual del propietario e instrucciones de seguridad para el
SOPLADOR DE POTENCIA MAXIMA
LB901-00-01

CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of
its constituents are known to the State
of California to cause cancer, birth
defects and other reproductive harm.
Californie Proposition 65
Avertissement
Les échappements des moteurs diesel
et certains de leurs composés sont
reconnus par l’Etat de Californie pour
être cancérigènes, provoquer des
défauts congénitaux et d’autres dangers
en matière de reproduction.
ADVERTENCIA
AVERTISSEMENT
WARNING
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
California Advertencia
de la Proposicion 65
El estado de California hace saber que
los gases de escape de los motores
diesel y algunos de sus componentes
producen cáncer, defectos de
nacimiento y otros daños en el
proceso de reproducción humana.
L’
é mission du moteur de ce mat é riel
contient des produits chimiques que
l’Etat de Californie consid
è re ê tre
canc
é rig è nes, provoquer des d é fauts
cong
é nitaux et d’autres dangers en
mati
è re de reproduction.
El estado de California hace saber
que los gases de escape de este
producto contienen productos
quÍmicos que producen cáncer,
defectos de nacimiento y otros daños
en el proceso de reproducción
humana.
CALIFORNIA
Proposition 65 Warning
Battery posts, terminals, wiring
insulation, and related accessories
contain lead and lead compounds,
chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.
WASH HANDS AFTER HANDLING.

3
OPTIMAX
BLOWER
IMPORTANT MESSAGE
On behalf of everyone at Little Wonder, we would like to thank you for your purchase of a Little Wonder Gasoline
Powered Optimax Blower. This professional blower was designed to the highest standards to ensure you many
hours of uninterrupted service.
This manual provides the information necessary for safe and efcient operation and service. For your safety, it
is critically important that you read and understand this entire manual before operating your blower.
LITTLE WONDER
SCHILLER GROUNDS CARE, INC.
1028 STREET ROAD, P.O. BOX 38
SOUTHAMPTON, PA 18966
5-2009
TABLE OF CONTENTS FIGURES PAGE
SAFETY.........................................................................................................................................................4-7
ASSEMBLY ......................................................................................................................................................8
OPERATION.....................................................................................................................................................9
TORQUE SPECIFICATIONS ......................................................................................................................... 11
INTAKE GUARD ASSY ....................................... FIGURE 1 .........................................................................12
ENGINE ASSY .................................................... FIGURE 2 ......................................................................... 13
HOUSING ASSY ................................................. FIGURE 3 ......................................................................... 14
MANY USES:
The extreme versatility offered by Little Wonder’s line of blowers makes them ideally suited for a wide variety
of jobs; blowing leaves, grass clippings, thatch, blowing tennis courts dry, cleaning large driveways, stadiums,
parking lots and other hard surfaces, precleaning roofs before repair and countless other jobs.
This Operator’s Manual should be regarded as part of the machine. Suppliers of
both new and second-hand machines must make sure that this manual is provided
with the machine.

4
OPTIMAX
BLOWER
SAFETY
NOTICE !!!
Unauthorized modications may present extreme
safety hazards to operators and bystanders and
could also result in product damage.
Schiller-Pfeiffer, Inc. strongly warns against, rejects
and disclaims any modications, add-on accessories
or product alterations that are not designed,
developed, tested and approved by Schiller-Pfeiffer,
Inc. Engineering Department. Any Schiller-Pfeiffer,
Inc. product that is altered, modied or changed in
any manner not specically authorized after original
manufacture-including the addition of “after-market”
accessories or component parts not specically
approved by Schiller-Pfeiffer, Inc.-will result in the
Schiller-Pfeiffer, Inc. Warranty being voided.
Any and all liability for personal injury and/or
property damage caused by any unauthorized
modications, add-on accessories or products not
approved by Schiller-Pfeiffer, Inc. will be considered
the responsibility of the individual(s) or company
designing and/or making such changes. Schiller-
Pfeiffer, Inc. will vigorously pursue full indemnication
and costs from any party responsible for such
unauthorized post-manufacture modications and/or
accessories should personal injury and/or property
damage result.
This symbol means:
ATTENTION!
BECOME ALERT!
Your safety and the safety of others is involved.
Signal word denitions:
The signal words below are used to identify levels
of hazard seriousness. These words appear in
this manual and on the safety labels attached to
Schiller-Pfeiffer, Inc. machines. For your safety and
the safety of others, read and follow the information
given with these signal words and/or the symbol
shown above.
DANGER indicates an imminently hazardous
situation which, if not avoided, WILL result in death
or serious injury.
WARNING indicates a potentially hazardous
situation which, if not avoided, COULD result in
death or serious injury.
CAUTION indicates a potentially hazardous situation
which,ifnotavoided,MAY resultinminorormoderate
injury. It may also be used to alert against unsafe
practices or property damage.
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, MAY result in property damage.

5
OPTIMAX
BLOWER
SAFETY

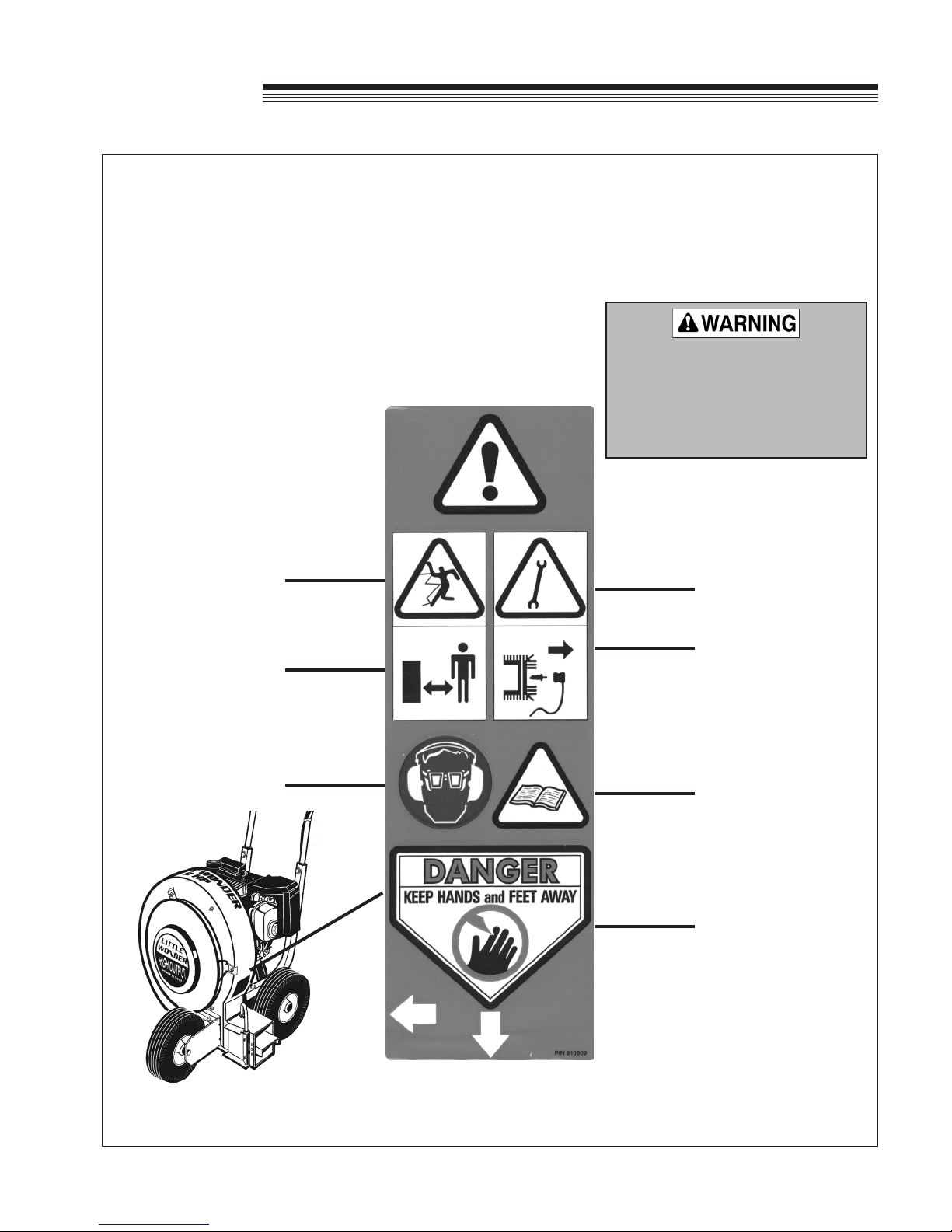

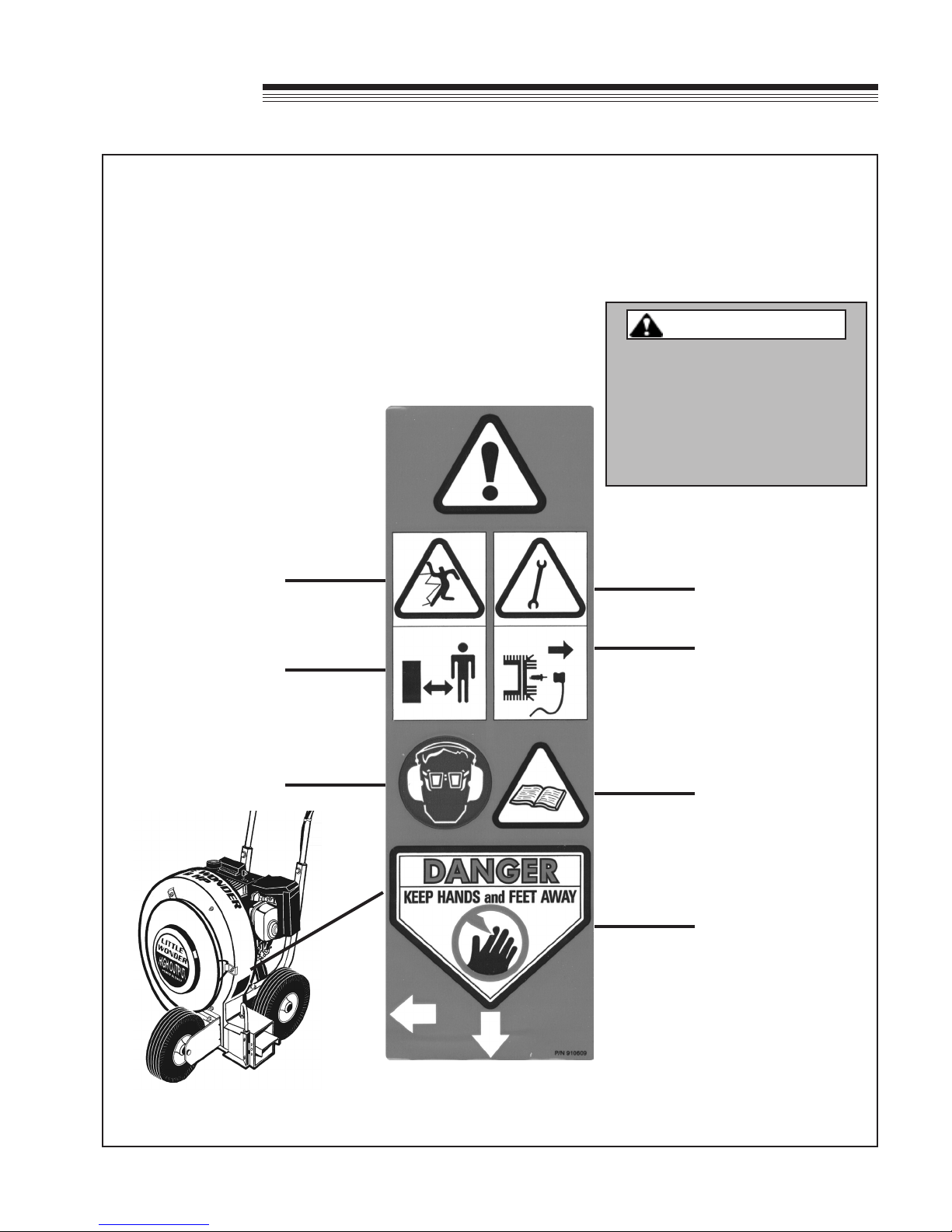

SAFETY DECALS
An important part of the safety system incorporated in this blower are the warnings and informational decals
found on various parts of the blower. These decals must be replaced if they become illegible due to abra-
sion, etc. It is your responsibility to replace the decals when they become hard to read. The location of these
decals and their part numbers for ordering are shown below.
LOCATION OF LABEL ON BLOWER
Always wear eye and ear
protection.
Keep bystanders away.
Caution:
Thrown objects. <
<
<
<
Before performing
any service or
maintenance,
disconnect spark
plug wire. Make sure
throttle is in STOP
position.
<
<
Read and understand
the owners manual.
Pay particular attention
to all sections regard-
ing safety. Store your
owners manual in a
safe place.
Keep hands and
feet away from air
discharge areas.
Rotating fan will cause
serious injury.
<
PN 910609
Warning Label
IMPROPER USE OR CARE OF THIS BLOWER, OR
FAILURE TO WEAR PROPER PROTECTION CAN
RESULT IN SERIOUS INJURY.
READ AND UNDERSTAND THE RULES FOR SAFE
OPERATION AND ALL INSTRUCTIONS IN THIS
MANUAL.
WEAR HEARING AND EYE PROTECTION.
<

6
OPTIMAX
BLOWER
SAFETY
GENERAL SAFETY RULES
Read and understand the owner’s
manual. Pay particular attention
to all sections regarding safety.
Store your owners manual in a safe
place.
KEEP CHILDREN, PETS, AND BYSTANDERS
AWAY - DO NOT PERMIT CHILDREN TO
CONTACT BLOWER. KEEP CHILDREN A SAFE
DISTANCE FROM WORK AREA. NEVER ALLOW
A PERSON MENTALLY ILL, UNDER INFLUENCE
OF ALCOHOLIC DRINKS OR DRUGS OR TOO
YOUNG IN AGE, TO OPERATE THE BLOWER
DON’T OVERREACH OR STAND ON UNSTABLE
SUPPORT - Keep good footing and balance at all
times.
MULTIPLE OPERATORS - Keep a safe distance
between two or more operators when working
together simultaneously.
FAN COASTS AFTER TURN OFF
IF BLOWER IS USED IMPROPERLY OR SAFETY
PRECAUTIONS ARE NOT FOLLOWED,
THE USER RISKS SERIOUS INJURY TO
THEMSELVES AND OTHERS
READ AND UNDERSTAND THE FOLLOWING
BEFORE ATTEMPTING TO OPERATE THIS
BLOWER
Warnings - “Don’ts”
DANGER ROTATING FAN - KEEP HANDS AWAY.
DON’T ATTEMPT TO REMOVE MATERIALS
FROM INTAKE OR DISCHARGE WHEN
BLOWER IS RUNNING
DANGER - DO NOT INSTALL OR REMOVE
ATTACHMENTS WHILE BLOWER IS
RUNNING. TURN OFF ENGINE TO MAKE
CHANGEOVER. BE SURE THROTTLE IS IN
THE STOP POSITION, AND THE BLOWER
HAS COME TO A COMPLETE STOP. REMOVE
THE SPARK PLUG WIRE BEFORE REMOVING
MATERIAL
DO NOT POINT THE BLOWER OUTLET in the
direction of people, cars, glass, or other similar items
which could be injured or damaged by blown debris.
DO NOT ATTEMPT TO REPAIR BLOWER - Have
repairs made by a qualied Little Wonder dealer
or repairman. See that only Little Wonder and
recommended engine manufacturers replacement
parts are used.
Warnings - “Do’s”
DRESS PROPERLY — Do not wear loose clothing or
jewelry. They can be caught in moving parts. Use of
sturdy gloves, non-skid footwear and safety glasses
are recommended. Always wear ear protectors
where possible. Use face lter to avoid breathing
dust.
STAY ALERT — Watch what you are doing and
use common sense. Do not operate blower when
fatigued.
KEEP HANDS AWAY FROM AIR INTAKE AND AIR
OUTLET CHUTE — Keep both hands on handles
when power is on.
MAINTAIN AND EXAMINE BLOWER WITH CARE
— Follow maintenance instructions given in manual.
Do not use the blower if the mufer is defective or
missing.

7
OPTIMAX
BLOWER
SAFETY
STORE BLOWER INDOORS — When not in use,
store blower indoors in a sheltered, dry area where
it’s not accessible to children. The blower, as well as
fuel, should not be stored in a house. Keep throttle in
the stop position.
BE SURE BLOWER IS FULLY ASSEMBLED
— Never operate blower without all guards and
deectors in place. Ensure that all nuts, bolts,
screws are installed and properly tightened.
KEEP THE THROTTLE IN THE “STOP” POSITION
WHEN NOT IN USE.
Always keep a safe distance between two or more
operators when working together simultaneously.
WARNING! IN ORDER TO AVOID ENGINE
DAMAGE DUE TO OVER-HEATING OR
OVERREVVING, KEEP ENGINE RECOIL
STARTER ASSEMBLY, THE BLOWER INTAKE
AND OUTLET AREAS CLEAR AND FREE OF
LEAVES OR OTHER DEBRIS
Engine/ Fuel Warnings - “Don’ts”
HANDLE FUEL WITH CARE, IT IS HIGHLY
FLAMMABLE. FUELING A HOT ENGINE OR
NEAR AN IGNITION SOURCE CAN CAUSE
FIRE AND RESULT IN SERIOUS PERSONAL
INJURY AND/OR PROPERTY DAMAGE
Do not smoke while handling fuel.
Do not refuel a hot or running engine.
Do not ll tank indoors.
CAUTION — Do not start or run engine indoors as
poisonous carbon monoxide is emitted.
Do not operate in unventilated area.
Do not use the blower when electric system causes
spark outside the cylinder. Check spark plug from
time to time. When checking, keep plug a safe
distance from cylinder to avoid burning of evaporated
fuel from cylinder.
Engine/ Fuel Warnings - “Do’s”
HANDLE GASOLINE WITH CARE. IT IS HIGHLY
FLAMMABLE. Refuel before starting work.
Always use fresh gasoline. Stale gasoline can
cause leakage.
Always pull starter cord slowly until resistance is felt.
Then pull cord rapidly to avoid kick-back and prevent
arm or hand injury.
Replace gasoline cap securely. If fuel is spilled
move blower and fuel container from area and do not
create a source of ignition.
Avoid spilling fuel or oil. Always wipe unit dry before
using. Move at least 10 feet away from the fueling
point before starting engine.
Always store gasoline in an approved container. Fill
tank outdoors with extreme care.

8
OPTIMAX
BLOWER
ASSEMBLY
Blower Assembly Instructions
NOTE : Refer to parts lists, and illustrations on
Pages 14-17.
1. Install lower handles 15 on top of deck 17 & 18.
Secure with (4) cap screws 5/16-18 X 1-3/4 19,
(4) 5/16 at washers 16, and (4) 5/16-18 nylon
nuts 1, nger tight. (See Figure 2)
2. Install upper handle 6with (4) 5/16-18 X 1-3/4
cap screws 19, (8) 5/16 washers 16, and (4)
5/16-18 nylon nuts 1, nger tight. Tighten lower
handle nuts and bolts. Tighten upper handle nuts
and bolts until the lower handle tubing pinches
the upper handle. It will be normal for the lower
handle tubing to crush slightly. (See Figure 2)
3. Attach brace 23 with (2) 5/16-18x2 cap screws 9,
(4) 5/16 washers 16, and (2) 5/16-18 nylon nuts
1. (See Figure 2)
4. Attach throttle cable 5to upper handle 6 with
(1) 1/4-20 X 1-3/4” cap screw 8and (1) 1/4-20
locknut 10 through hole on upper handle 6on the
left handside. Connect throttle clip 4 to upper
handle (See Figure 2)
NOTE: Over tightening the screw on the left hand
mounted controls could cause damage to the
control.)
5. Tilt blower back on handle and install front wheel
bracket 17 over the three studs on lower front of
blower housing 2. Secure with (3) 5/16-18 ange
nuts 1. (See Figure 3)
6. Insert pneumatic wheel sleeve 19 in front
pneumatic wheel 18. Install pneumatic wheel
spacers 20 over the axle sleeve on both sides
of wheel and install in front wheel bracket 17.
Insert 3/8-16 X 5-1/2 axle bolt 16 through wheel
bracket and axle sleeve. Secure with 3/8-16 axle
nut 15. (See Figure 3)
ALL LITTLE WONDER BLOWER ENGINES
ARE SHIPPED WITHOUT OIL. WHEN FILLING
WITH OIL, USE SAE 30. REFER TO ENGINE
MANUFACTURES INSTRUCTION MANUAL FOR
PROPER ENGINE OPERATION INSTRUCTIONS.

9
OPTIMAX
BLOWER
OPERATION
OPERATING INSTRUCTIONS
Refer to the engine manual for engine operation.
Little Wonder recommends using SAE 30 Oil.
The use of multi-viscosity oil will result in high oil
consumption and possible engine damage.
Leaves, thatch or other debris can be directed into
windrows or piles, by simply maneuvering the unit
and directing the ow of air accordingly.
Air ow can be directed to the side or front by the
two-position deector. The front discharge position
is used to remove debris from along walls, fences,
etc. The side discharge position is used to form
windrows or piles. The horizontal deector directs air
downward to “chisel” under wet, heavy leaves and
litter. Air velocity is regulated by the throttle control.
Moving the deector to the upper hole allows for a
greater volume of air to be directed downward.
Moving the deector to the lower hole allows for
a greater volume of air to be directed upward. To
reduce windrowing or to blow over an obstacle, point
deector upward.
Slight changes in deector position will have a big
effect on air ow. Experiment until you nd the best
position for your needs.
For best performance, be sure engine recoil starter
assembly, the blower intake and outlet areas are
always kept clear and free of leaves or other debris.
MAINTENANCE INSTRUCTIONS
Keep all nuts, bolts, and screws tight.
Never store the blower with fuel in its fuel tank inside
a building or in a conned space where fumes may
reach an open ame or sparks.
Always refer to the instruction manual for important
details if the product is to be stored for an extended
period.
Engine - 4 cycle. (Refer to engine manufacturer’s
operating instructions for fuel recommendations and
additional information.)
Tires - Tubeless. Inate to air pressure of 30 P.S.I.
Labels should be inspected before each use.
Replace damaged labels immediately.

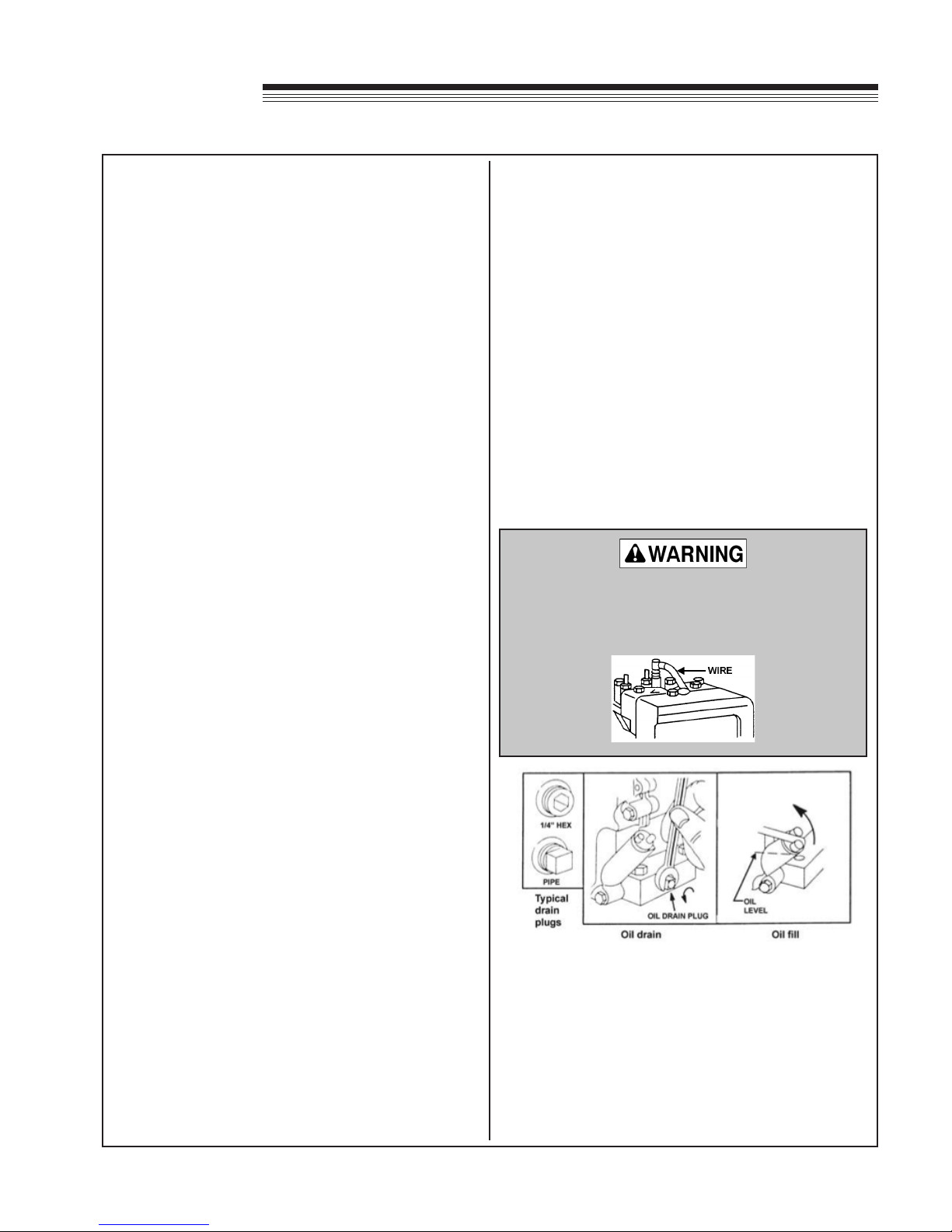

Check oil level regularly
Be sure correct oil level is maintained. Check oil
level after every 5 hours of operation, or daily, before
starting engine. Use SAE 30 oil. Change oil after
rst 5 hours of operation. Remove drain plug and
drain oil while engine is warm. Replace drain plug.
Remove oil ll plug and rell with new oil. Start and
run engine at idle for 30 seconds. Stop engine. Wait
30 seconds and re-check oil level. If required, add oil
to overowing at oil ll plug.
TO PREVENT ACCIDENTAL STARTING, REMOVE
SPARK PLUG WIRE WHEN SERVICING ENGINE
OR EQUIPMENT.

10
OPTIMAX
BLOWER
TORQUE SPECIFICATIONS
Location Description P/N Min. Torque
Ft-lbs (In-lbs)
Max. Torque
Ft-lbs (In-lbs)
Housing to engine face BLT-W LF 5/16-24 x 3/4 910503 22 (264) 28 (336)
Deck to housing NUT 5/16-18 64141-6 16 (192) 22 (276)
Engine to deck BLT 5/16-18 X 1-1/2 64262-009 19 (228) 25 (300)
Lower handle to deck BLT 5/16-18 X 1-3/4 64123-61 19 (228) 25 (300)
Upper handle to lower
handle BLT 5/16-18 X 1-3/4 64123-61 19 (228) 25 (300)
Brace to Lower Handle BLT 5/16-18 X 2 64123-56 19 (228) 25 (300)
Thrrotle to handle BLT 1/4-20 X 1-3/4 90-0414 4 (48) 6 (72)
Interior deector to hook BLT-W LF 10-32 X 5/8 64139-26 (52) (71)
Fan to Crankshaft BLT 7/16-20 X 2.0 GR8 64123-183 50 90
Front panel to housing
(short stud) NUT 5/16-18 64141-6 16 (192) 22 (276)
Intake guard clamp
(long stud) NUT-NYLOC 5/16-18 64229-02 8 (100)
Wheel bracket to
housing NUT-FL 5/16-18 64141-6 16 (192) 22 (276)
Front wheel axle bolt BLT 3/8-16 X 5-1/2 GR5 64123-252 34 45

ITEM PART NO. DESCRIPTION QTY ITEM PART NO. DESCRIPTION QTY
11
OPTIMAX
BLOWER
1-1 910648 LABEL-INTAKE GUARD 1
1-2 64229-02 LOCKNUT-NYL 5/16-18 3
1-3 911130 CLAMP-INTAKE GUARD 3
1-4 921101.7 ASSY-INTAKE GUARD 1
1-5 64141-6 NUT 5/16-18 3
1-6 921121.10 FRONT PANEL 1
1-7 64123-183 BLT-HEX 7/16-20X2.0 GR8 1
1-8 910220 FAN-9HP 1
(INCLUDES 7, 9, & 10)
1-9 64164-13 KEY, 1/4X1/4X2 1
1-10 910528 WASHER,HUB 9HP 1

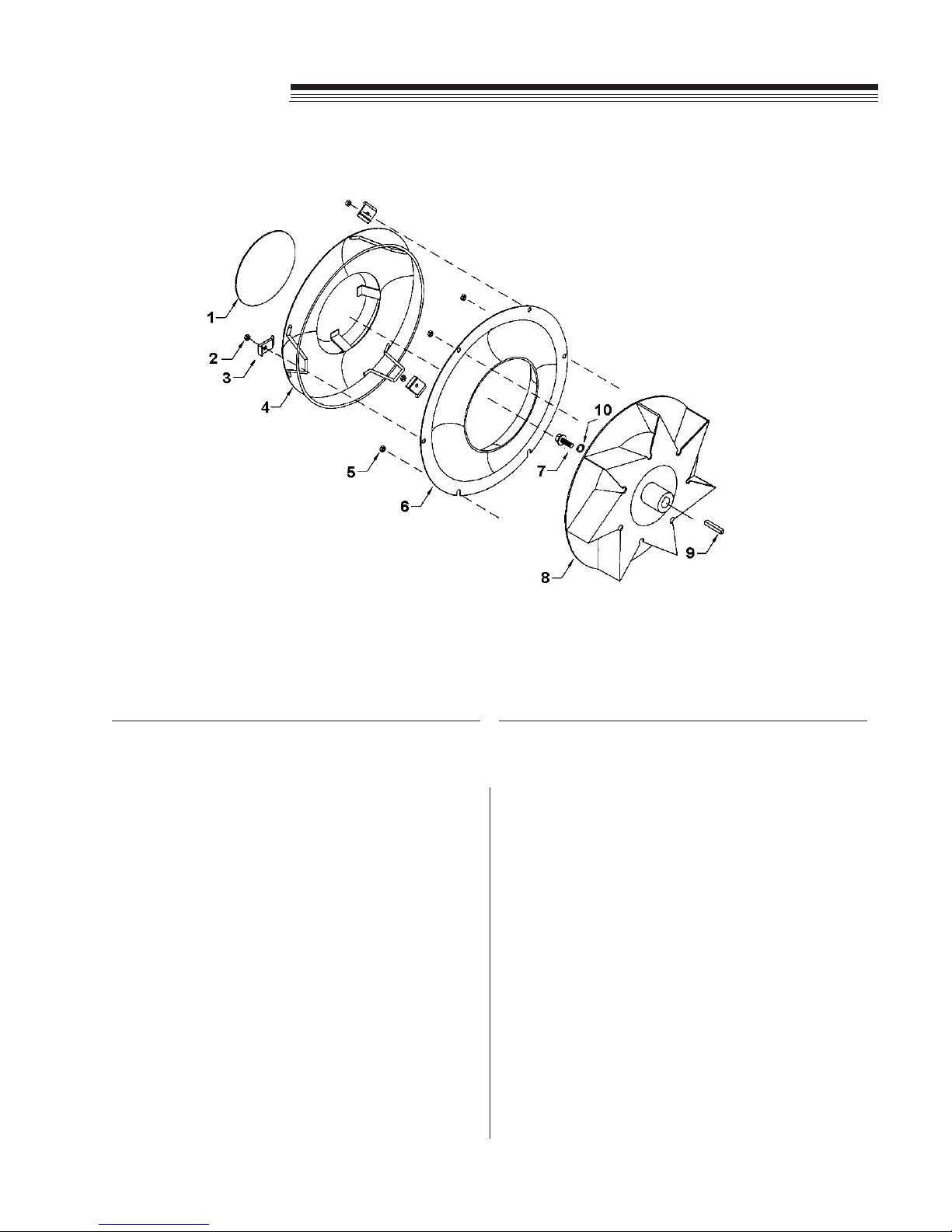

FIGURE 1
INTAKE GUARD ASSY

12
OPTIMAX
BLOWER

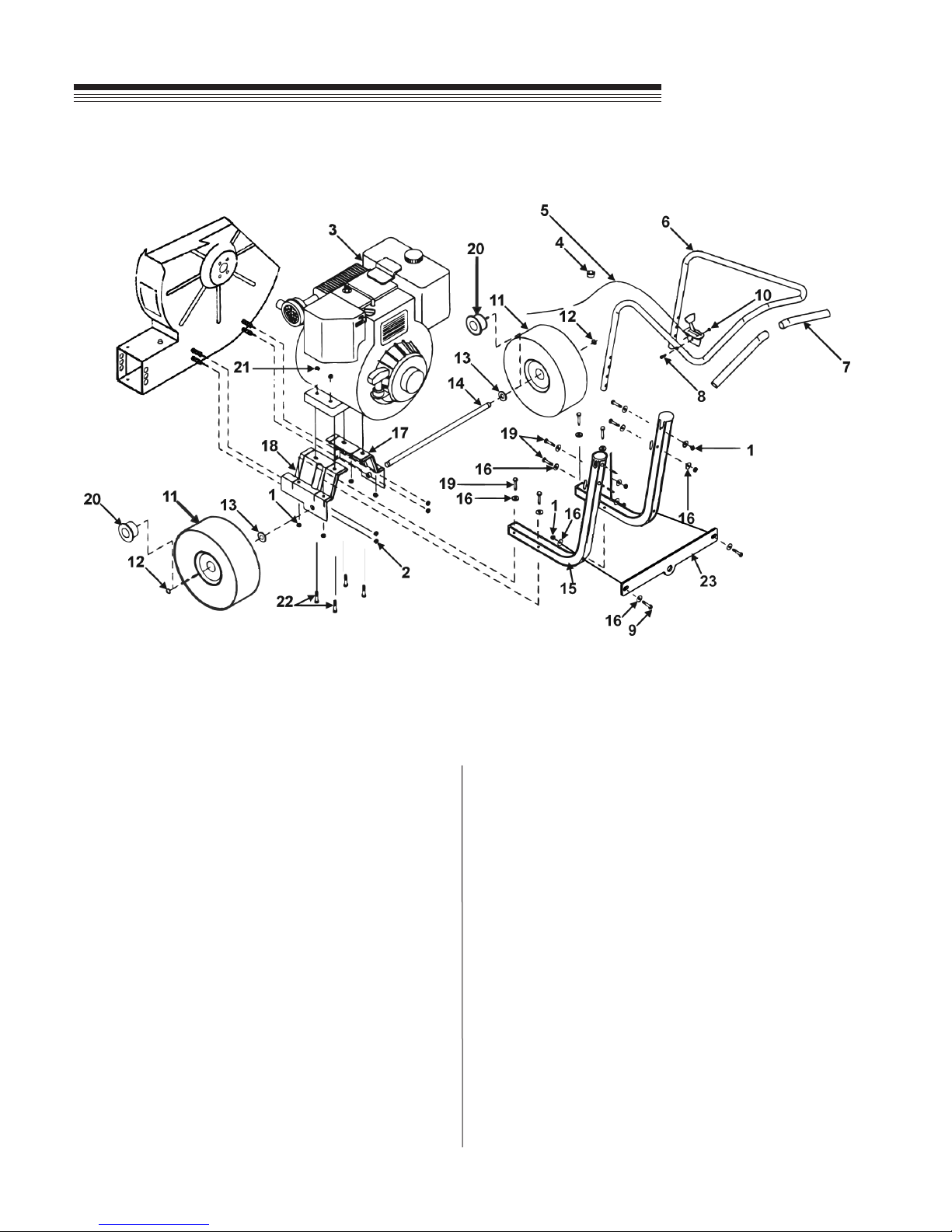

FIGURE 2
ENGINE ASSY
ITEM PART NO. DESCRIPTION QTY ITEM PART NO. DESCRIPTION QTY
2-1 64229-02 LOCKNUT-NYL 5/16-18 10
2-2 64141-6 NUT 5/16-18 4
2-3 4163473 ENGINE-9HP SUBARU 1
2-4 946 CLIP-THROTTLE 1
2-5 4164159-02 CABLE-THROTTLE 1
2-6 900300 HANDLE-UPPER 1
(INCLUDES 2 900303)
2-7 900303 GRIP 2
2-8 90-0414 BLT-1/4-20 X 1-3/4 1
2-9 64123-56 BLT-HEX 5/16-18X2 2
2-10 64151-8 LOCKNUT-1/4-20 2-WAY 1
2-11 4164204 WHEEL 2
2-12 64144-36 SNAP RING.625 2
2-13 4164192-01 SPACER-PDR MTL 35X1.0X.25 2
2-14 4164178 AXLE 1
2-15 916-2.10 HANDLE-LOWER 2
2-16 64163-55 WASHER-5/16 FLAT 16
2-17 920031.7 DECK-9HP RT 1
2-18 920029.7 DECK-9HP LFT 1
2-19 64123-61 BLT-HEX 5/16-18X1-3/4 8
2-20 4164204-01 BEARING-WHL 4
2-21 64268-02 NUT-FL NYLON LOCK 5/16-18 4
2-22 64262-009 BLT-FLGHD 5/16-18X1-1/2 4
2-23 4164185.10 BRACE-BLOWER, ENG 1

ITEM PART NO. DESCRIPTION QTY ITEM PART NO. DESCRIPTION QTY
13
OPTIMAX
BLOWER FIGURE 3
HOUSING ASSEMBLY
3-1 64141-6 NUT 5/16-18 3
3-2 4164207 HOUSING-9HP 1
3-3 910647 LABEL-LW HOUSING 9HP 1
3-4 910609 LABEL-WARNING 1
3-5 910503 BLT-WLF 5/16-24 X 3/4 4
3-6 64151-31 LOCKNUT-10-32 7
3-7 910130 SPRING-DEFLECTOR 1
3-8 8-18 RING-RETAINING 3
3-9 910131 KNOB 1
3-10 64002-04 LOCKWASHER-5/16 1
3-11 910121.10 DEFLECTOR-9HP SIDE 1
3-12 64139-26 BLT-WLF 10-32 X 5/8 2
3-13 910123.10 DEFLECTOR-9HP INT 1
3-14 910132 HANDLE-DEFLECTOR 1
3-15 64151-18 LOCKNUT-3/8-16 2-WAY 1
3-16 64123-252 BLT-HEX 3/8-16 X 5-1/2 1
3-17 910403.10 BRKT-FRT WHL 1
3-18 4164205 WHEEL-PNEUMATIC 1
3-19 900404 SLEEVE-WHEEL 1
3-20 900405 SPACER-FRT WHL BRKT 2
3-21 4164204-01 BRG-PNEUMATIC WHL 2
3-22 64152-68 SCREW 10-32X5-1/2 HH 5

WARNING DANGER
THE ENGINE EXHAUST FROM THIS PRODUCT
CONTAINS CHEMICALS KNOWN TO THE STATE OF
CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS
OR OTHER REPRODUCTIVE HARM.
Specifications, descriptions, and illustrative material in this literature are as accurate as known
at the time of publication, but are subject to change without notice.
5 YEAR LIMITED SERVICE & WARRANTY POLICY
FOR GASOLINE POWERED
MAXIMUM OUTPUT BLOWERS
All Little Wonder Gasoline Powered Maximum Output blowers are guaranteed against
defects in material and workmanship for a period of FIVE YEARS from date of purchase,
when used for RESIDENTIAL SERVICE, or COMMERCIAL SERVICE. Any Little
Wonder Gasoline powered Maximum Output Blower or part found to be defective within
the warranty period is to be returned to any registered Little Wonder dealer.
Engines for all gasoline powered products are warranted separately by the engine
manufacture. Therefore, there are no warranties made, expressed or implied, for engines
for gasoline powered products by Little Wonder.
Transportation charges for parts and units submitted for replacement under this warranty
must be borne by the purchaser.
THIS WARRANTY shall not be effective if the product has been subject to misuse,
negligence or accident, or if the product has been repaired or altered outside of our
Southampton factory or authorized repair facility in any respect which affects its condition
or operation.
Little Wonder shall not be liable for any special indirect or consequential damages
arising from defective equipment. Any implied warranty, including merchantability of
fitness for a particular purpose, shall not extend beyond the written warranty period.
THIS WARRANTY shall only be effective if the enclosed Warranty/Registration card is
properly filled out and returned to Little Wonder, Schiller Grounds Care, Inc. at time of
purchase.
LITTLE WONDER®
SCHILLER GROUNDS CARE, INC.
1028 STREET ROAD, P.O. BOX 38
SOUTHAMPTON, PA 18966
PHONE [phone] • FAX [phone]
www.littlewonder.com

TECHNICAL MANUAL
MAN 4164247 Rev. A 5-2009

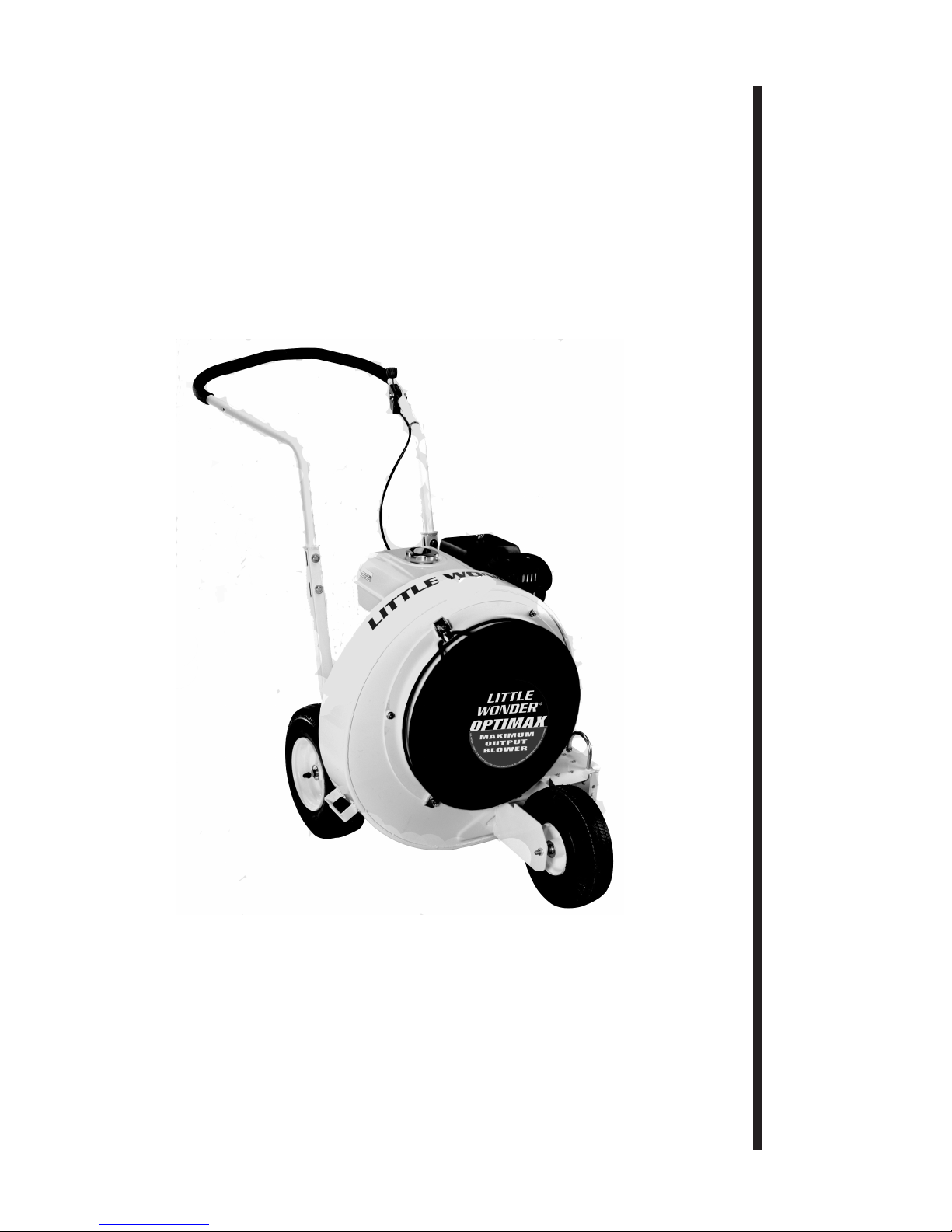

LITTLE WONDER
Owners Manual and Safety Instructions for
MAXIMUM OUTPUT BLOWER
Manuel d’utilisation et consignes de sécurité pour la
SOUFFLANTE À DÉBIT MAXIMAL
Manual del propietario e instructivo de seguridad para el
SOPLADOR DE POTENCIA MÁXIMA
OPTIMAX
LB901-00-01

CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of
its constituents are known to the State
of California to cause cancer, birth
defects and other reproductive harm.
Californie Proposition 65
Avertissement
Les échappements des moteurs diesel
et certains de leurs composés sont
reconnus par l’Etat de Californie pour
être cancérigènes, provoquer des
défauts congénitaux et d’autres dangers
en matière de reproduction.
ADVERTENCIA
AVERTISSEMENT
WARNING
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
California Advertencia
de la Proposicion 65
El estado de California hace saber que
los gases de escape de los motores
diesel y algunos de sus componentes
producen cáncer, defectos de
nacimiento y otros daños en el
proceso de reproducción humana.
L’
é mission du moteur de ce mat é riel
contient des produits chimiques que
l’Etat de Californie consid
è re ê tre
canc
é rig è nes, provoquer des d é fauts
cong
é nitaux et d’autres dangers en
mati
è re de reproduction.
El estado de California hace saber
que los gases de escape de este
producto contienen productos
quÍmicos que producen cáncer,
defectos de nacimiento y otros daños
en el proceso de reproducción
humana.
CALIFORNIA
Proposition 65 Warning
Battery posts, terminals, wiring
insulation, and related accessories
contain lead and lead compounds,
chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.
WASH HANDS AFTER HANDLING.

17
OPTIMAX
BLOWER
MENSAJE IMPORTANTE
En nombre de todos los empleados de Little Wonder, queremos darle las gracias por haber adquirido la sopladora
Optimax con motor de gasolina. Este soplador de uso profesional fue diseñado teniendo en cuenta las normas más
estrictas de la industria, con el n de garantizar un funcionamiento ininterrumpido, durante muchas horas.
Este manual le proporcionará la información necesaria para la operación y el servicio eciente y seguro de
este equipo. Para su propia seguridad, es sumamente importante que lea y entienda todo el contenido de este
manual, antes de operar su soplador.
LITTLE WONDER
SHILLER GROUNDS CARE, INC.
1028 STREET ROAD, P.O. BOX 38
SOUTHAMPTON, PA 18966
5-2009
ÍNDICE FIGURAS PÁGINA
SEGURIDAD .............................................................................................................................................18-21
MONTAJE.......................................................................................................................................................22
OPERACIÓN..................................................................................................................................................23
ESPECIFICACIONES DE LOS PARES DE APRIETE ................................................................................... 24
CONJUNTO DE PROTECTOR DE ADMISIÓN .. FIGURA 1 .........................................................................25
CONJUNTO DE MOTOR .................................... FIGURA 2 .........................................................................26
CONJUNTO DE CAJA......................................... FIGURA 3 .........................................................................27
USOS MÚLTIPLES:
La gran versatilidad que ofrece la gama de sopladores de Little Wonder los hace idealmente adecuados
para una amplia variedad de usos como barrido de hojas, recortes de césped, desechos de desbrozado,
secado de canchas de tenis, limpieza de las entradas de las vías de acceso de gran tamaño, estadios,
estacionamientos y otras supercies duras, la limpieza preliminar de tejados antes de ser reparados y un
sinnúmero de diversas tareas.
Este manual del operador debe considerarse parte de la máquina. Los proveedores
de máquinas nuevas y de segunda mano deben asegurarse de que este manual
esté incluido con la máquina.

18
OPTIMAX
BLOWER
SEGURIDAD
¡AVISO!
Las modicaciones no autorizadas pueden presentar
peligrosdeseguridad extremos paralosoperadores
y personas de los alrededores y también pueden
dañar el producto.
Schiller-Pfeiffer, Inc. disuade enfáticamente,
rechaza y se exime de cualquier responsabilidad
de modificaciones, accesorios adicionales o
alteraciones del producto que no hayan sido
diseñados, desarrollados, probados y aprobados
por el departamento de ingeniería de Schiller-
Pfeiffer, Inc. Cualquier producto de Schiller-Pfeiffer,
Inc. que sea alterado, modicado o cambiado de
cualquier manera que no haya sido autorizada
especícamente después de su fabricación original–
incluida la adición de accesorios o componentes del
“mercado posventa” que no haya sido aprobada
especícamente por Schiller-Pfeiffer, Inc.–anulará
la garantía de Schiller-Pfeiffer, Inc.
Cualquiera y todas las responsabilidades por
lesiones personales y daños materiales causados
por modicaciones no autorizadas, accesorios o
productos adicionales no aprobados por Schiller-
Pfeiffer, Inc. se considerarán que son responsabilidad
de los individuos o de la compañía que diseñe
o efectúe dichos cambios. Schiller-Pfeiffer, Inc.
demandará vigorosamente la indemnización máxima
yloscostosde cualquierparteresponsablededichas
modicaciones y accesorios no autorizados, después
de la fabricación, en caso de que se produzcan
lesiones personales y daños materiales.
Este símbolo signica:
¡ATENCIÓN!
¡ESTÉ ALERTA!
Su seguridad y la de otros está en juego.
Deniciones de las palabras de la
señales:
Las palabras de las señales indicadas a continuación
se usan para identicar niveles de gravedad de
peligros. Estas palabras aparecen en este manual
y en las etiquetas de seguridad sujetas a máquinas
de Schiller-Pfeiffer. Para su seguridad y la de otras
personas, lea y siga la información dada con estas
palabras de señales y símbolos indicados arriba.
PELIGRO indica una situación de peligro inminente
que, de no evitarse, RESULTARÁ en lesiones
graves o mortales.
ADVERTENCIAindica una situación potencialmente
peligrosa que, de no evitarse, RESULTARÁ en
lesiones graves o mortales.
PRECAUCIÓN indica una situación potencialmente
peligrosa que, de no evitarse, PODRÍA resultar en
lesiones menores o moderadas. También podría
usarse para alertar contra prácticas inseguras o
daños materiales.
PRECAUCIÓN usada sin el símbolo de alerta de
seguridad indica una situación potencialmente
peligrosa que, de no evitarse, PODRÍA resultar en
daños materiales.
PELIGRO
ADVERTENCIA
PRECAUCIÓN
PRECAUCIÓN

19
OPTIMAX
BLOWER
SEGURIDAD
CALCOMANÍAS DE SEGURIDAD
Un elemento importante del sistema de seguridad incorporado en este soplador son las calcomanías de
advertencia e información localizadas en varias partes de la unidad. Estas etiquetas deberán ser sustitui-
das por unas nuevas, si son ilegibles como resultado del efecto de los abrasivos, etc. Queda bajo su propia
responsabilidad sustituir estas etiquetas cuando se diculte su lectura. A continuación se indica la ubicación
de estas calcomanías y los números de componente correspondientes para solicitarlas.
UBICACIÓN DE LA ETIQUETA EN EL SOPLADOR
Use siempre protectores
para los ojos y oídos.
No deje que se acerquen
las personas.
Precaución:
Lanzamiento de objetos.<
<
<
<
Antes de hacer
cualquier reparación
o labor de
mantenimiento,
desconecte el cable de
la bujía.
Cerciórese que el
acelerador esté en
la posición STOP
(parada).
<
<
Lea y entienda el
contenido del manual
del propietario.
Preste atención
particularmente a
todas las secciones
relacionadas con la
seguridad. Conserve
su manual del
propietario en un lugar
seguro.
Mantenga alejadas las
manos y los pies de
las zonas de descarga
del aire. El ventilador
giratorio causará
lesiones graves.
<
NP 910609
Etiqueta de advertencia
EL USO O MANTENIMIENTO INDEBIDOS DE ESTE
SOPLADOR, ASÍ COMO OMITIR EL USO DE LOS
EQUIPOS DE PROTECCIÓN APROPIADOS, PODRÍA
OCASIONAR LESIONES GRAVES.
LEA Y ENTIENDA TODAS LAS REGLAS PARA SU
OPERACIÓN SEGURA, ASÍ COMO TODAS LAS
INSTRUCCIONES IMPRESAS EN ESTE MANUAL.
USE SIEMPRE DISPOSITIVOS DE PROTECCIÓN
PARA LOS OJOS Y LOS OÍDOS.
<
ADVERTENCIA

20
OPTIMAX
BLOWER
SEGURIDAD
REGLAS GENERALES DE SEGURIDAD
Lea y entienda siempre el
contenido del manual del
propietario. Preste atención
particularmente a todas las
secciones relacionadas con la
seguridad. Conserve su manual
del propietario en un lugar seguro.
NO DEJE QUE SE ACERQUEN NIÑOS,
MASCOTAS NI ESPECTADORES - NO DEJE QUE
LOS NIÑOS SE PONGAN EN CONTACTO CON EL
SOPLADOR. MANTENGA A LOS NIÑOS A UNA
DISTANCIA SEGURA DE LA ZONA DE TRABAJO.
NO DEJE NUNCA QUE OPERE EL SOPLADOR
UNA PERSONA QUE ESTÉ MENTALMENTE
INCAPACITADA, BAJO LOS EFECTOS DE LAS
BEBIDAS ALCOHÓLICAS O LAS DROGAS, O
QUE SEA DEMASIADO JOVEN.
NO INTRODUZCA EL BRAZO NI SE PONGA DE
PIE SOBRE UN SOPORTE INESTABLE - Mantenga
una buena postura y equilibrio en todo momento.
OPERADORES MÚLTIPLES - Mantenga una
distancia segura entre dos o más operadores,
cuando ambos estén trabajando simultáneamente.
EL SOPLADOR SEGUIRÁ GIRANDO POR
INERCIA, DESPUÉS DE HABERSE APAGADO.
SI EL SOPLADOR ES UTILIZADO
INDEBIDAMENTE O NO SE SIGUEN LAS
PRECAUCIONES DE SEGURIDAD, EL
USUARIO U OTRAS PERSONAS PODRÍAN
SUFRIR LESIONES GRAVES.
LEA Y ENTIENDA LO SIGUIENTE, ANTES DE
INTENTAR OPERAR ESTE SOPLADOR.
Advertencias – “No hacer”
PELIGRO VENTILADOR GIRANDO - NO
ACERQUE LAS MANOS. NO INTENTE
EXTRAER LOS MATERIALES ATASCADOS
EN LA ADMISIÓN O EN LA DESCARGA
DEL SOPLADOR MIENTRAS ESTÉ EN
FUNCIONAMIENTO.
PELIGRO - NO INSTALE NI QUITE LOS
ACCESORIOS MIENTRAS EL SOPLADOR
ESTÉ EN FUNCIONAMIENTO. APAGUE EL
MOTOR ANTES DE EFECTUAR CUALQUIER
MODIFICACIÓN. CERCIÓRESE DE QUE EL
ACELERADOR ESTÉ EN SU POSICIÓN DE
PARADA (STOP) Y EL SOPLADOR SE HAYA
DETENIDO COMPLETAMENTE. ANTES
DE QUITAR EL MATERIAL ATASCADO,
DESCONECTE EL CABLE DE LA BUJÍA.
NO DIRIJA LA DESCARGA DEL SOPLADOR
hacia personas, automóviles, vidrios u otros
artículos similares causando lesiones o daños
como consecuencia de los residuos lanzados por el
soplador.
NO INTENTE REPARAR EL SOPLADOR –
Encargue las reparaciones a un distribuidor o
personal de reparación capacitado de Little Wonder.
Cerciórese de que se usen solamente componentes
de repuesto Little Wonder y los recomendados por el
fabricante del motor.
Advertencias – “Hacer siempre”
VÍSTASE DE FORMA APROPIADA – No use ropa
holgada ni artículos de joyería. Estos artículos
podrían ser atrapados por los componentes en
movimiento. Se recomienda el uso de guantes
reforzados, calzado antirresbaladizo y gafas de
seguridad. Use siempre protectores de los oídos,
cuando sea posible. Use una mascarilla de ltración
para no respirar el polvo.
MANTÉNGASE ALERTA – Preste atención a lo que
esté haciendo y use su sentido común. No opere el
soplador si está fatigado.
NO ACERQUE LAS MANOS AL CONDUCTO DE
ADMISIÓN Y DESCARGA DE AIRE – Mantenga
ambas manos en las asas mientras esté en
funcionamiento.
ADVERTENCIA
ADVERTENCIA
ADVERTENCIA
ADVERTENCIA
ADVERTENCIA
