LITTLE WONDER®
OWNER’S MANUAL and SAFETY INSTRUCTIONS
for Singl -Edg d (Mod ls 1910, 2410, 3010, 1912, 2412, 3012)
and Doubl -Edg d (Mod ls 1920, 2420, 3020, 1922, 2422, 3022)
El ctric H dg Trimm rs
GB
WARNING DANGER
BLADES ARE EXTREMELY SHARP.
TO AVOID INJURY WHEN UNPACKING
THE HEDGE TRIMMER,
DO NOT GRASP THE BLADES.
!
!

TABLE OF CONTENTS
Page
I. IMPORTANT INFORMATION
A. Introduction .......................................................................................................2
II. GENERAL SAFETY RULES ............................................................................................3
A. Safety labels .......................................................................................................4
B. Safety symbols identification ...........................................................................4
C. Special safety rules ............................................................................................5
D. Warnings — dont’s .............................................................................................5
E. Warnings — do’s.................................................................................................5
III. UNPACKING AND ASSEMBLY INSTRUCTIONS ..............................................................6
IV. OPERATION
A. Instructions for proper operation .................................................................6-7
V. MAINTENANCE
A. Lubrication.........................................................................................................7
B. Service maintenance guide................................................................................7
VI. SERVICE
A. Trouble-shooting ...............................................................................................8
B. Blade adjustment................................................................................................8
VII. PARTS DESCRITIONS ..........................................................................................9-13
VIII. SPECIFICATIONS ..................................................................................BACK COVER
LIMITED SERVICE &WARRANTY POLICY........................................................BACK COVER
I. IMPORTANT INFORMATION
A. INTRODUCTION
On behalf of everyone at Little Wonder, we
would like to thank you for your purchase of a
Little Wonder Electric Powered Hedge
Trimmer. This professional trimming machine
was designed to the highest standards to ensure
you many hours of uninterrupted service.
This manual provides the information
necessary for safe and efficient operation and
service. For your safety, it is critically
important that you read and understand this
entire manual before operating your hedge
trimmer.
2

3
Warning When using electric tools, basic safety
precautions, including the following, should always be
followed to reduce the risk of fire, electric shock and
personal injury.
Read all these instructions before operating this
product and save these instructions.
For safe operations
11)) KKeeeepp wwoorrkk aarreeaa cclleeaann..
Cluttered areas and benches invite injuries.
22)) CCoonnssiiddeerr wwoorrkk aarreeaa eennvviirroonnmmeenntt..
Do not expose power tools to rain. Do not use
power tools in damp or wet locations. Keep work
area well lit. Do not use power tools where there
is risk of fire or explosion.
33)) GGuuaarrdd aaggaaiinnsstt eelleeccttrriicc sshhoocckk..
Avoid body contact with earthed or grounded
surfaces e.g. pipes, radiators, stoves, ovens,
refrigerators.
44)) KKeeeepp cchhiillddrreenn aawwaayy..
Do not let visitors touch the tool or extension
cord. All visitors should be kept away from area.
55)) SSttoorree iiddllee ttoooollss..
When not in use, tools should be stored in a dry,
high or locked up place, out of reach of children.
66)) DDoo nnoott ffoorrccee tthhee ttooooll..
It will do the job better and safer at the rate for
which it was intended.
77)) UUssee tthhee rriigghhtt ttooooll..
Do not force small tools or attachments to do the
job of a heavy duty tool. Do not use tools for
purposes not intended; for example, do not use
circular saws to cut tree limbs or logs.
88)) DDrreessss pprrooppeerrllyy..
Do not wear loose clothing or jewellery that can
be caught in moving parts. Rubber gloves and non-
skid footwear are recommended when working
outdoors. Wear protective hair covering to contain
long hair.
99)) UUssee ssaaffeettyy ggllaasssseess..
Use face or dust mask if the cutting operation is
dusty.
1100)) DDoo nnoott aabbuussee tthhee ccoorrdd..
Never carry the tool by the cord or yank it to
disconnect if from the socket. Keep the cord away
from heat, oil and sharp edges.
1111)) SSeeccuurree wwoorrkk..
Use a vice to clamp the frame bar while adjusting
blades. It is safer than using your hand and it frees
both hands to operate the tools.
1
12 2) ) D Do o n no ot t o ov ve er rr re ea ac ch h. .
Keep proper footing and balance at all times.
1133)) MMaaiinnttaaiinn ttooooll wwiitthh ccaarree..
Keep cutting tools sharp and clean for better and
safer performance. Follow instructions for
lubrication and changing accessories. Inspect tool
cord periodically and if damaged have it repaired
by an authorized service facility. Inspect extension
cords periodically and replace, if damaged. Keep
handles dry, clean and free from oil and grease.
1144)) DDiissccoonnnneecctt ttoooollss..
When not in use, before servicing and when
changing accessories such as blades, bits and
cutters.
1155)) RReemmoovvee aaddjjuussttiinngg kkeeyyss aanndd wwrreenncchheess..
Form the habit of checking to see that keys and
adjusting wrenches are removed from the tool
before turning it on.
1166)) AAvvooiidd uunniinntteennttiioonnaall ssttaarrttiinngg..
Do not carry a plugged in tool with a finger on the
switch. Ensure switch is off when plugging in.
1177)) UUssee oouuttddoooorr eexxtteennssiioonn lleeaaddss..
When tool is used outdoors, use only extension
cords intended for outdoor use.
1188)) SSttaayy aalleerrtt..
Watch what you are doing . Use common sense.
Do not operate tool when you are tired.
1199)) CChheecckk ddaammaaggeedd ppaarrttss..
Before further use of the tool, a guard or other part
that is damaged should be carefully checked to
determine that it will operated properly and
perform its intended function. Check for
alignment of moving parts, free running of moving
parts, breakage of parts, mounting and any other
conditions that may affect its operation. A guard
or other part that is damaged should be properly
repaired or replaced by an authorized service
center unless otherwise indicated in this
instruction manual. Have defective switches
replaced by an authorized service facility. Do not
use the tool if the switch does not turn it on and
off.
2200)) WWaarrnniinngg..
The use of any accessory or attachment, other
than those recommended in this instruction
manual, may present a risk of personal injury.
2211)) HHaavvee yyoouurr ttooooll rreeppaaiirreedd bbyy aa qquuaalliiffiieedd ppeerrssoonn..
This electric tool conforms to relevant safety
requirements. Repairs should only be carried out
by qualified persons using original spare parts,
otherwise this may result in considerable danger
to the user.
II. GENERAL SAFETY RULES

WWAARRNNIINNGG DDAANNGGEERR
IIFF TTRRIIMMMMEERR IISS UUSSEEDD IIMMPPRROOPPEERRLLYY OORR SSAAFFEETTYY PPRREECCAAUUTTIIOONNSS AARREE NNOOTT FFOOLLLLOOWWEEDD,,
TTHHEE UUSSEERR RRIISSKKSS SSEERRIIOOUUSS IINNJJUURRYY TTOO TTHHEEMMSSEELLVVEESS AANNDD OOTTHHEERRSS..
RREEAADD AANNDD UUNNDDEERRSSTTAANNDD TTHHEE RRUULLEESS FFOORR SSAAFFEE OOPPEERRAATTIIOONN AANNDD AALLLL
IINNSSTTRRUUCCTTIIOONNSS IINN TTHHIISS MMAANNUUAALL..
A. SAFETY LABELS AND MOLDED SYMBOLS
Important parts of the safety system incorporated in
both single-edged and double-edged trimmers are the
warning and informational labels and molded-in
symbols found on various parts of the trimmer. These
labels must be replaced in time due to abrasion, etc. It
is your responsibility to replace the labels when they
become hard to read. The locations of these labels and
their part numbers for ordering are shown below. See
page 13 for their part numbers when ordering
replacements.
4
B. SAFETY SYMBOLS IDENTIFICATION
Single-Edged rimmer Double-Edged rimmer
Guard
Rear handle
On/Off switches
Loop handle
Guard
On/Off switch On/Off
switch
Safety symbols
(Molded into Part No. 310400 Main Housing Set)
Rear handle
WHAT THE SYMBOLS MEAN
1. Read the instructions.
2. Do not expose to rain.
3. Remove plug from main (electric
power source) immediately if cable is
damaged or cut.
4. Double insulated.
123 4
WARNING DANGER
TO REDUCE THE POTENTIAL FOR
ACCIDENTS, COMPLY WITH THE
SAFETY INSTRUCTIONS IN THIS
MANUAL. FAILURE TO COMPLY MAY
RESULT IN SERIOUS PERSONAL
INJURY AND OR EQUIPMENT AND
PROPERTY DAMAGE.
WARNING DANGER
THIS SYMBOL POINTS OUT
IMPORTANT SAFETY INSTRUCTIONS.
WHEN YOU SEE THIS SYMBOL,
HEED IT’S WARNING!!
STAY ALERT!!
!!
!
!!
!
!
!!
Side handle
Serial number label

C. SPECIAL SAFETY RULES
1. Read and understand the owner’s manual. Pay
particular attention to all sections regarding safety.
2. Always keep a firm grip on both handles while the
blades are moving and/or the motor is running. On
Single-edged Edged units, the right hand grasps the
front side handle and the left hand grasps the rear
handle. On Double-Edged units, one hand grasps
the front ‘loop’ handle, while the other hand grasps
the rear handle.
BE AWARE!! The blades coast after triggers are
released or motor is switched off. Make sure blades
have come to a complete stop before letting go of a
handle.
3. Maintain a firm footing and good balance; do not
overreach while trimming. Before you start to trim,
check the work area for obstacles that might cause
you to lose your footing, balance or control of the
machine.
4. Keep area clear of children, pets, and bystanders.
D. WARNINGS — DON’TS
Don’t use trimmer with one hand, keep both hands on
handles with fingers and thumbs encircling the handles,
while blades are moving, and motor is running.
Don’t overreach or stand on unstable support. Do not
stand on the top of a ladder while trimming. Use proper
equipment for reaching higher heights. Keep a good
footing at all times.
Don’t ever grasp cutting blades for any reason.
Don’t attempt to clear cut material while blades are
moving, and the motor is running. Never try to remove
jammed material before switching the motor off and
making sure the blades have stopped completely.
Don’t over-ride safety features.
Don’t allow children or incapable people to operate this
trimmer.
Don’t operate this hedge trimmer while under the
influence of alcohol or drugs.
Don’t attempt to repair this hedge trimmer. Have
repairs made by a qualified dealer or repairman. See
that only original Little Wonder parts are used.
5
E. WARNINGS — DO’S
Always read and follow all instructions.
Always stay alert. Watch what you are doing and use
common sense. Do not operate unit when fatigued.
Always dress properly. Do not wear loose clothing or
jewellery, they might get caught in moving parts. Use
sturdy proper fitting, non-slip gloves. Gloves reduce the
transmission of vibration to your hands. Prolonged
exposure to vibration can cause numbness and other
ailments. Wear non-skid foot wear to ensure secure and
proper footing.
Always wear ear and eye protection. Eye protection
mut meet applicable CE requirements. To avoid hearing
damage we recommend hearing protection be worn
whenever using the equipment.
Always keep both hands on both handles when
trimmer is running. Severe injuries can result if you
try to use the hedge trimmer with only one hand or
with an insecure grip.
Always keep children, pets, and incapable persons
away.
Always use trimmer properly. Cut only types and size
of growth described in the Trimming section of this
manual. Overloading or abusing your hedge trimmer
can cause premature failure and can result in injury.
Use common sense.
Always keep a safe distance between two or more
operators when working together simultaneously.
Always inspect your unit before each use and ensure
that all handles, guards, safety devices and fasteners are
secure, operating, and in place.
Always maintain and examine your trimmer with care.
Follow maintenance instructions given in manual.
Always store trimmer in a sheltered area (a dry place)
not accessible to children. The hedge trimmer should
not be stored in a house.
!
!
!

A. INSTRUCTIONS FOR PROPER OPERATION
WARNING DANGER
BLADES COAST AFTER RELEASING THE
SWITCHES
KEEP A FIRM GRIP WITH ONE HAND
ON EACH HANDLE WHILE BLADES ARE
MOVING AND/OR MOTOR IS
RUNNING.
DO NOT STAND ON THE TOP OF A
LADDER WHILE TRIMMING.
MAKE SURE YOUR LADDER OR OTHER
SUPPORT IS STABLE AND ON FIRM
GROUND.
KEEP A SURE FOOTING.
DO NOT OVERREACH.
IF YOUR TRIMMER BECOMES JAMMED,
TURN OFF THE HEDGE TRIMMER.
MAKE SURE BLADES HAVE STOPPED
COMPLETELY, THEN REMOVE
THE OBSTRUCTION.
III. UNPACKING AND ASSEMBLY INSTRUCTIONS
WARNING DANGER
BLADES ARE EXTREMELY SHARP. TO
AVOID INJURY WHEN UNPACKING THE
HEDGE TRIMMER, DO NOT GRASP THE
BLADES.
Your Little Wonder hedge trimmer has been
assembled for you at the factory. Before operating be
sure all fasteners are secure, and all guards and safety
devices are in place and operating properly.
WARNING DANGER
IF YOU HAVE ANY QUESTIONS,
CONTACT YOUR LOCAL DEALER
IV. OPERATION
WARNING DANGER
THE OPERATOR OF THIS HEDGE TRIMMER IS RESPONSIBLE FOR
ACCIDENTS OR HAZARDS OCCURRING TO HIMSELF, OTHER
PEOPLE OR THEIR PROPERTY.
6
Misuse of this Hedge Trimmer will void the warranty.
ie cutting hedges or shrubs over 1.27 cm in diameter
or foreign objects such as wires, rocks, or fences.
Before trimming check work area for foreign objects
such as wires, cords, glass, fences, or rocks. Be sure to
remove any foreign objects from the work area. Failure
to properly maintain this hedge trimmer will void the
warranty.
!!
!
!
!
!
!
!Securing the
extension cord.
Bend the extension
cord about 15 cm
from the plug end.
Push that bend
through the oblong
opening in the back
of the handle. Then
loop the bend under
the cord retaining
clips as shown. This
will prevent the
extension cord from
detaching from the
hedge trimmer plug.

V. MAINTENANCE
1. Read care and safety instructions carefully before
attempting to use this trimmer. Only after you are
familiar with your hedge trimmer and all of its
controls and the functions should you start the
trimmer.
2. Before plugging into an electric circuit, be sure that
the voltage supply is as specified on hedge trimmer.
Models 1910, 1920, 2410, 2420, 3010, 3020 are
rated at 464 watts at 115 volts.
Models 1912, 1922, 2412, 2422, 3012, 3022 are rated
at 390 watts at 230 volts.
3. Be sure the switches are in the “off” (not depressed)
position before connecting unit to the applicable
current. (120V AC or 220V/240V AC.) Do not
carry a plugged -in trimmer with a finger on the
switch.
4. The electricity for this hedge trimmer should be
supplied through a Residual current Device (RCD)
with a tripping current of not more than 30 mA.
These protective devices are also known as
residual current circuit breakers (RCCBs) or Earth
leakage circuit breakers (ELCBs).
5. Keep extension cord behind trimmer. Never drape
extension cord over hedge being trimmed. On
120V units, use 16 gauge wire extension cord up to
30 meters. Over 30 meters, use 14 or heavier gauge
wire or extension cord. Cords are available from
your local Little Wonder dealer. The use of light
gauge lamp cords or sizes lighter than those
specified above will result in loss of power,
possible motor failure, overheating of cord and the
possi-bility of fire.
6. Warning! These trimmers have been designed so
they can only be operated when using both hands.
Do not attempt to override this important safety
feature in any way.
7. Hold trimmer firmly. For Single-Edged Model, keep
right hand on side handle and left hand on rear
handle. For Double-Edged Model, you can place
either hand on either handle. Squeeze both switches.
Tilt trimmer so cutting tooth is angled slightly
towards the hedge or shrub and proceed to cut.
Use overlapping sweeping motions away
from your body to achieve a safe and even
cut. The unit is designed to cut any type
of hedge or shrub; however, thickness of
cut should not exceed 1.27 cm inch in
diameter.
1/2"
Remove the plug from the socket before carrying out any adjustment, servicing, or maintainence.
B. SERVICE MAINTENANCE GUIDE
Area
Gear housing
Blades
Fasteners
Labels
Handles
Guards / safety devices
Maintenance
Check grease
Inspect / clean / lubricate
Inspect / tighten / replace
Inspect / replace
Inspect / replace
Inspect / replace
Frequency
Monthly
After each use
Before each use
Before each use
Before each use
Before each use
IMPORTANT- Time intervals shown are maximum. Actual use and your experience will determine the
frequency of required maintenance. 7
1. A few drops of light (No.10) oil should be placed on
the back edge of each blade at each adjusting
screw after approximately every four hours of
normal operation.
2. To obtain trouble-free trimming, it is necessary to
keep the blades lubricated and clean. The gum
that collects and builds up on the blades can be
removed with 50-50 mixture of kerosene and
No.10 oil. Since a petroleum product can shorten
the life of some plastics, it is necessary to remove
excess oil-kerosene mixture from the plastic parts.
Blades must be clean before they can be adjusted.
Caution! Kerosene and oil are flammable.
3. A few drops of light (No. 10) or 3-in-1 oil should be
put in the hole indicated on the bottom cover
plate. This is necessary only at the beginning of a
day’s operation.
4. Gear housing and motor bearings have been
permanently lubricated with a special grease
which should last for the life of the trimmer. When
blades are replaced, or any other time that the
bottom cover plate is removed, the grease must be
hecked for proper amount (approximately 3/4 full
in the area of the gears), and a new gasket and new
screws must be used to insure proper seating of
cover plate. Use only Lubrico M3-3K9K grease
(P/N 16-78A) in the gear housing. Lubrico M24M
(P/N 16-78B) is to be used on the motor bearings.
Lubrico is available through your local Little
Wonder dealer.
5. Before each use, inspect to be sure handles, safety
devices and fasteners are secure and in place, and
cord is not frayed. If the supply cord is damaged, it
must be replaced by the manufacturer, its service
agent or similarly qualified person in order to
avoid a hazard.
A. LUBRICATION AND MAINTENANCE

WARNING DANGER
KEEP HANDS AWAY FROM THE BLADES WHILE SERVICING THE HEDGE TRIMMER.
BE SURE TRIMMER IS SECURED, UNPLUGGED, AND BLADES ARE GUARDED
WHILE MAKING ADJUSTMENTS
DOUBLE-EDGED
The care and adjustment of the blades is very important
to the efficient operation of the trimmer and especially
to the long life of the motor.
Mak sur th trimm r is NOT plugg d in.
1. Turn trimmer upside down. Place trimmer in vice,
clamping on the sides of frame bar. B car ful!
Blad s ar sharp!
2. Using a 11 mm wrench (spanner) , loosen all blade
locknuts and unscrew the large head screws by two
turns.
3. Starting with the screw nearest the gear housing,
tighten the screw until the blade guard of the
Single-Edged trimmer or the protective comb of the
Double-Edged trimmer can just be moved with
finger pressure. (A .004 mm(1 1/2 thou) feeler gauge
just slips under the blade guard or comb when
properly adjusted.) Tighten the locknuts while
holding the screw stationary in its correct adjusted
position. Re-check to make sure the blade guard or
comb can still be moved.
4. Repeat Step 3 on each screw in turn until all are
correctly adjusted.
NOTE: CORRECT BLADE ADJUSTMENT CAN
ONLY BE ACHIEVED ON CLEAN, OILED BLADES.
B. BLADE ADJUSTMENT
SINGLE-EDGED
8
A. TROUBLE-SHOOTING
Problem
1. Blades don’t cut cleanly.
2. Blades don’t move when
turned on.
3. Excessive electrical arcing
from vents in top of
trimmer.
Remedy
Have blades sharpened and
adjusted.
Re-adjust blades following
service instructions.
Replace brushes - follow
service instructions.
Cause
Blades are dull or not adjusted
properly.
Blades are adjusted too tight.
Worn brushes.
VI. SERVICE
!!

Single-Edged assembly
9
KKeeyy NNoo..PPaarrtt NNoo..DDeessccrriippttiioonnQQttyy..
1 310100 1
2 16-54B 7
2 16-54B 6
2 16-54B 5
3 310106 1
4 NA 1
5 310310 1
5 310305 1
5 310300 1
6 30-2 1
6 24-2 1
6 19-2 1
7 30-1 1
7 24-1 1
7 19-1 1
8 310215 1
9 16-93 5
9 16-93 4
9 16-93 3
10 16-54A 4
10 16-54A 3
10 16-54A 2
11 3036-B 3
12 310505 1

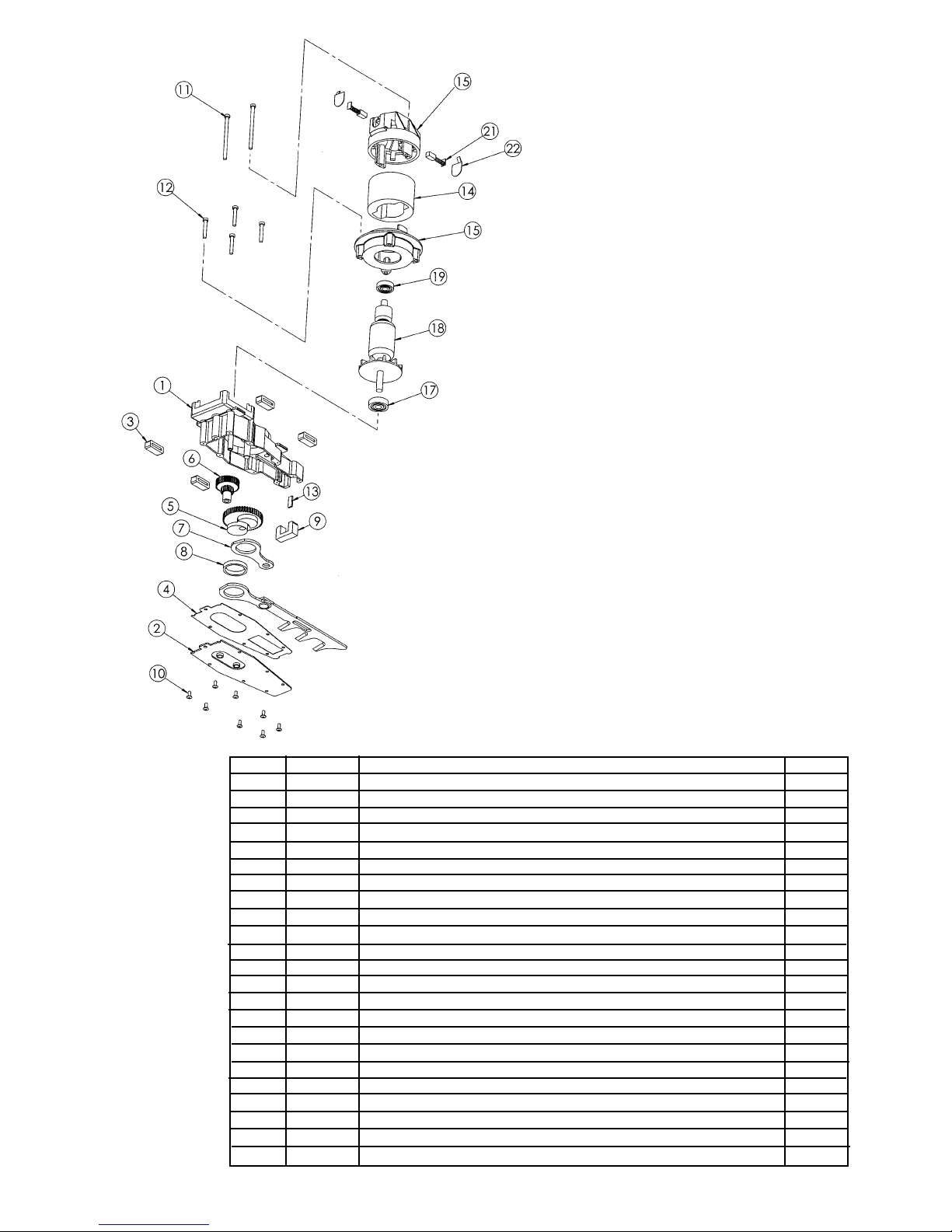

Gear housing assembly (including pressed in pins)
Nut lock 1/4-28 whiz flange (for models 3010, 3012) 30” SE
Nut lock 1/4-28 whiz flange (for models 2410, 2412) 24” SE
Nut lock 1/4-28 whiz flange (for models 1910, 1912) 19” SE
Frame bar support

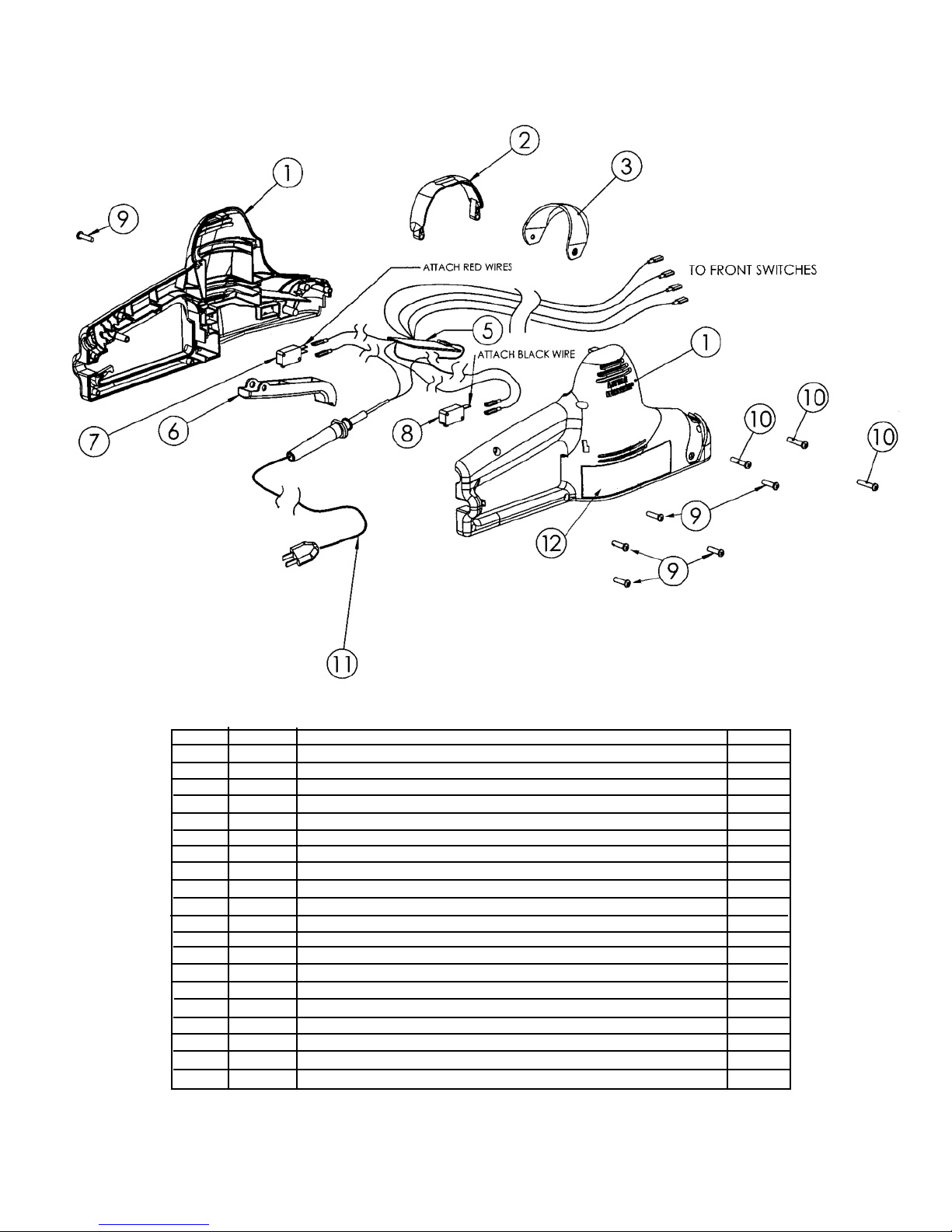

Side handle sssembly (See individual part numbers)
Frame bar assembly (for models 3010, 3012) 30” SE
Frame bar assembly (for models 2410, 2412) 24” SE
Frame bar assembly (for models 1910, 1912) 19” SE
Inside blade (for models 3010, 3012) 30” SE
Inside blade (for models 2410, 2412) 24” SE
Inside blade (for models 1910, 1912) 19” SE
Outside blade (for models 3010, 3012) 30” SE
Outside blade (for models 2410, 2412) 24” SE
Outside blade (for models 1910, 1912) 19” SE
Conduit
Blade guard (for models 3010, 3012) 30” SE
Blade guard (for models 2410, 2412) 24” SE
Blade guard (for models 1910, 1912) 19” SE
Large head phillips screw (for models 3010, 3012) 30” SE
Large head phillips screw (for models 2410, 2412) 24” SE
Large head phillips screw (for models 1910, 1912) 19” SE
1/4-28 Flange locknut
Screw, 1/4-28 x 1” large head

Double-Edged assembly
10
KKeeyy NNoo..PPaarrtt NNoo..DDeessccrriippttiioonnQQttyy..
1 310100 1
2 16-54B 7
2 16-54B 6
2 16-54B 5
3 300300 1
4 NA 1
5 310325 1
5 310320 1
5 310315 1
6 30-2D 1
6 24-2D 1
6 19-2D 1
7 30-1D 1
7 24-1D 1
7 19-1D 1
8 30-42 1
8 24-42 1
8 19-42 1
9 16-54A 4
9 16-54A 3
9 16-54A 2
10 310500 2
11 310505 1
Gear housing assembly (including pressed in pins)
Nut Lock 1/4-28 whiz flange (for models 3010, 3012) 30” DE
Nut Lock 1/4-28 whiz flange (for models 2410, 2412) 24” DE
Nut Lock 1/4-28 whiz flange (for models 1910, 1912) 19” DE
Frame bar support

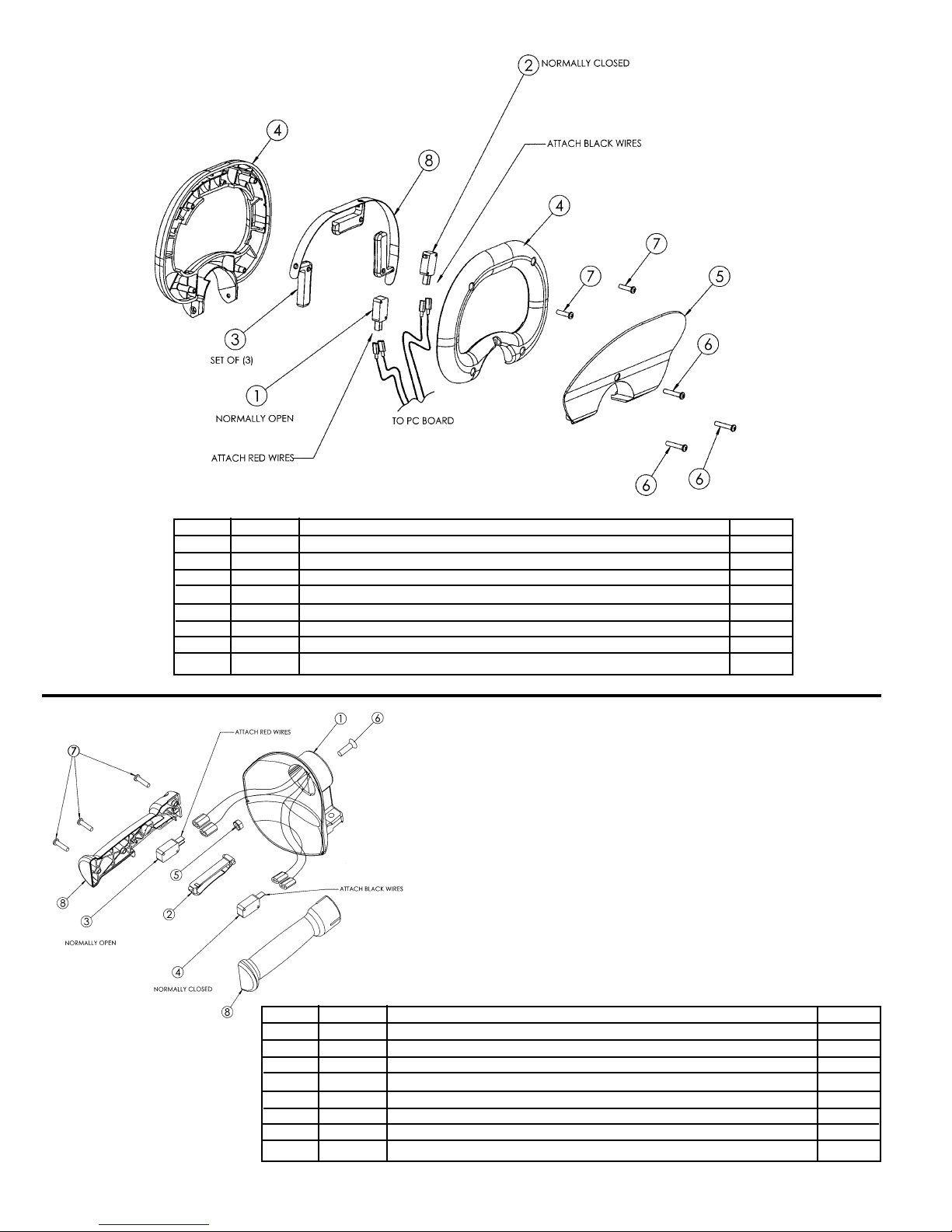

Loop handle assembly (See individual part numbers)
Frame bar assembly (for models 3010, 3012) 30” DE
Frame bar assembly (for models 2410, 2412) 24” DE
Frame bar assembly (for models 1910, 1912) 19” DE
Inside blade (for models 3010, 3012) 30” DE
Inside blade (for models 2410, 2412) 24” DE
Inside blade (for models 1910, 1912) 19” DE
Outside blade (for models 3010, 3012) 30” DE
Outside blade (for models 2410, 2412) 24” DE
Outside blade (for models 1910, 1912) 19” DE
30” Comb (for models 3010, 3012) 30” DE
24” Comb (for models 2410, 2412) 24” DE
19” Comb (for models 1910, 1912) 19” DE
Large head phillips screw (for models 3010, 3012) 30” DE
Large head phillips screw (for models 2410, 2412) 24” DE
Large head phillips screw (for models 1910, 1912) 19” DE
Screw, Plas-Tite No. 8 x 3/4”
Screw, 1/4-28 x 1” large head

Gear/motor assembly
11
KKeeyy NNoo..PPaarrtt NNoo..DDeessccrriippttiioonnQQttyy..
1 310100 1
2 16-57A 1
3 310407 4
4 D16-71 1
5 310111 1
6 310112 1
7 16-64 1
8 16-65 1
9 16-67 1
10 16-81-1 8
11 310503 2
12 3042 4
13 D16-56F 1
14 310903 1
14 310900 1
15 310108 1
17 16-69D 1
18 310901 1
18 310902 1
19 16-69E 1
20 3025 2
21 310105 2
22 3026 2
Gear housing assembly
Gear housing cover plate
Grommet rubber
Gasket cover plate
Gear eccentric - (See Note)
Gear cluster - (See Note)
Connecting rod
Spacer connecting rod
Felt
Screw 6-32 x 5/16
Motor bolt 8-32 x 2 1/2
Machine screw
Wear plate
Stator 120V (for models 3020, 3010, 2420, 2410, 1920, 1910)
Stator 230V (for models 3022, 3012, 2422, 2412, 1922, 1912)
Motor housing base and cap set with brush holder
Bearing lower
Armature 120V (for models 3020, 3010, 2420, 2410, 1920, 1910)
Armature 230V (for models 3022, 3012, 2422, 2412, 1922, 1912)
Bearing upper
Brush holder [not shown]
Brush
Brush retaining plate
Note: New high speed gears. Part number 310111 must be used with part number 310112, and
likewise part number 310112 can only be used with part number 310111.

Double-Edged front loop handle assembly
Single-Edged front handle assembly
12
KKeeyy NNoo..PPaarrtt NNoo..DDeessccrriippttiioonnQQttyy..
1 3033 1
2 310405 1
3 310216 1
4 310203 1
5 310207 1
6 310504 3
7 310500 2
8 310307 1
Switch normally open
Switch normally closed
Loop handle trigger set
Loop handle set
Shield
Screw Plasti-Tite No. 8 x 1”
Screw Plasti-Tite No. 8 x 3/4”
Loop handle trigger strap
KKeeyy NNoo..PPaarrtt NNoo..DDeessccrriippttiioonnQQttyy..
1 310206 1
2 310210 1
3 3033 1
4 310405 1
5 310502 1
6 310501 1
7 310500 3
8 310200 1
Side handle shield
Trigger side handle
Switch normally open
Switch normally closed
Nut nylock 1/4-28
Socket flat head 1/4-28 x 3/4 ss
Screw Plasti-Tite No. 8 x 3/4”
Side handle set

Main housing assembly
13
KKEEYY NNOO..PPAARRTT NNOO..DDEESSCCRRIIPPTTIIOONNQQTTYY..
1 310400 1
2 310403 1
3 310404 1
5 310438 1
5 310436 1
5 310439 1
5 310437 1
6 310209 1
7 3033 1
8 310405 1
9 310500 6
10 310504 3
11 310410 1
11 310412 1
11 310414 1
11 310416 1
11 310421 1
12 310600 1
13 310217 1
14 420139 1
Main housing set
Housing brush cap cover plate
Housing loop handle cover plate *
PC Board assembly (for models 3012, 2412, 1912)
PC Board assembly (for models 3010, 2410, 1910)
PC Board assembly (for models 3022, 2422, 1922)
PC Board assembly (for models 3020, 2420, 1920)
Trigger rear housing
Switch normally open
Switch normally closed
Screw, Plasti-tite No. 8 x 3/4”
Screw, Plasti-tite No. 8 x 1”
120V Cord assembly
230V Cord assembly
Cord assembly - (UK)
Cord assembly - (Switzerland)
Cord assembly - (Australia)
Warning label
Grommet, Conduit **
Conversion Cord (UK) - Not Shown
* Not needed for double-edge models.
** Not needed for single-edge models

LIMITED SERVICE & WARRANTY POLICY
FOR ELECTRIC HEDGE TRIMMERS
All Little Wonder Electric Hedge Trimmers are guaranteed against defects in material and
workmanship for a period of 2 YEARS from date of purchase, when used for RESIDENTIAL SERVICE, or
1 Year when used for COMMERCIAL SERVICE. Any Little Wonder Electric Hedge Trimmer or part
found to be defective within the warranty period is to be returned to any registered Little Wonder Dealer.
Transportation charges for parts and units submitted for replacement under this warranty must be
borne by the purchaser.
THIS WARRANTY shall not be effective if the product has been subject to misuse, negligence or
accident, used in cutting hedges or shrubs greater than 1/2" in diameter, used to cut foreign objects
such as wire, rocks, or fences, or if the product has been repaired or altered outside of our Southampton
factory or any registered Little Wonder dealer, in any respect which affects its condition or operation.
LITTLE WONDER shall not be liable for any special indirect or consequential damages arising from
defective equipment. Any implied warranty, including merchantability of fitness for a particular
purpose, shall not extend beyond the written warranty period.
THIS WARRANTY shall only be effective if the enclosed Warranty/Registration card is properly filled
out and returned to Little Wonder, Div. of Schiller-Pfeiffer, Inc. at time of purchase.
LITTLE WONDER®
DIVISION OF SCHILLER-PFEIFFER, INCORPORATED
1028 STREET ROAD, P.O. BOX 38
SOUTHAMPTON, PA 18966
PHONE [phone] • FAX [phone]
Specifications. descriptions, and illustrative material in this literature are as accurate as known at the time of publication, but are subject to change without notice.
©2003, LITTLE WONDER,Division Schiller-Pfeiffer, Inc.
P/N 310701
3-03
VIII. SPECIFICATIONS
Model Cutting Length Weight
cm (in.) kg (lb)
1912 48 (19) 3.49 (7.7)
1922 48 (19) 3.89 (8.6)
2412 61 (24) 3.62 (8.0)
2422 61 (24) 4.04 (8.9)
3012 76 (30) 3.85 (8.5)
3022 76 (30) 4.59 (10.1)
All listed hedge trimmers are rated for
230 volts AC at 50 hertz.
The A-weighted emission sound pressure level
at the operator position has been measured at
LPA = 80 dB(A). These measurements were
made in accordance with EN ISO 11201 1996
under no-load conditions.
The Hand-Arm weighted r.m.s. vibration
measured at the handles in accordance with
EN 50144-1 part 13.3 at rated conditions, no
load was 1.0 m/s2.
Manufactured by:
