LIVEXPERT LiveTally Box User manual
USER’S MANUAL
REMOTE
CONVERTER
AIR
REMOTE
CONVERTER
AIR
BOX
LIVETALLY BOX - USER’S MANUAL - PAGE
2
Introduction...............................................................................................2
Presentation..........................................................................................2
In the box..............................................................................................2
Installation ................................................................................................3
Installing the software...........................................................................3
Setting the ID switch .............................................................................5
Meaning of the LEDs .............................................................................5
Warranty....................................................................................................6
Technical data...........................................................................................7
Mechanical data....................................................................................7
Electrical data .......................................................................................8
Pin connectors ......................................................................................9
REMOTE
CONVERTER
AIR
REMOTE
CONVERTER
AIR
BOX
CONTENTS
LIVETALLY BOX - USER’S MANUAL - PAGE
3
INTRODUCTION
PRESENTATION:
The LiveTally Box allows Tally information to be fed from any Live Tricaster HD production system in GPI dry
contacts. The LiveTally Box is connected to the Tricaster via USB. It can manage up to 16 sources and feed the
corresponding tally lights via the 2 Sub-D25 PREVIEW and PROGRAM connectors provided for this purpose.
IN THE BOX:
1x LiveTally Box
1x USB cable for connecting the Tricaster
1x USB flash drive with the driver for TriCaster
If any of these items are missing, please contact your retailer.
INSTALLATION
INSTALLING THE SOFTWARE
Connect the LiveTally Box to any of the Tricaster’s USB ports using the USB cable provided.
Download the LiveTally Box software driver from the following link:
https://www.3dstorm.com/en/support2/download
Copy the software to the hard disk of your Tricaster.
Start the installation by double-clicking on the file name.
Follow the instructions.
REMOTE
CONVERTER
AIR
REMOTE
CONVERTER
AIR
BOX
LIVETALLY BOX - USER’S MANUAL - PAGE
4
Click Next Click Next
Click Install to start the installation Click Finish to finish the installation
LIVETALLY BOX - USER’S MANUAL - PAGE
5
After installation, the software will start automatically each time the Tricaster is switched on. There will be no
settings to adjust or parameters to change. The LiveTally Box will connect automatically.
SETTING THE LIVETALLY BOX ID
When used with Video Mix Engine, two LiveTally Boxes can be combined to provide Tally information from up
to 32 sources.
LiveTally Box number 1 will be connected to any USB port on the Video Mix Engine and its ID will be set to
position 0.
LiveTally Box number 1 will manage Tally information from sources 1 to 16.
LiveTally Box number 2 will be connected to any USB port on the Video Mix Engine and its ID will be set to
position 1.
LiveTally Box number 2 will manage Tally information from sources 17 to 32.

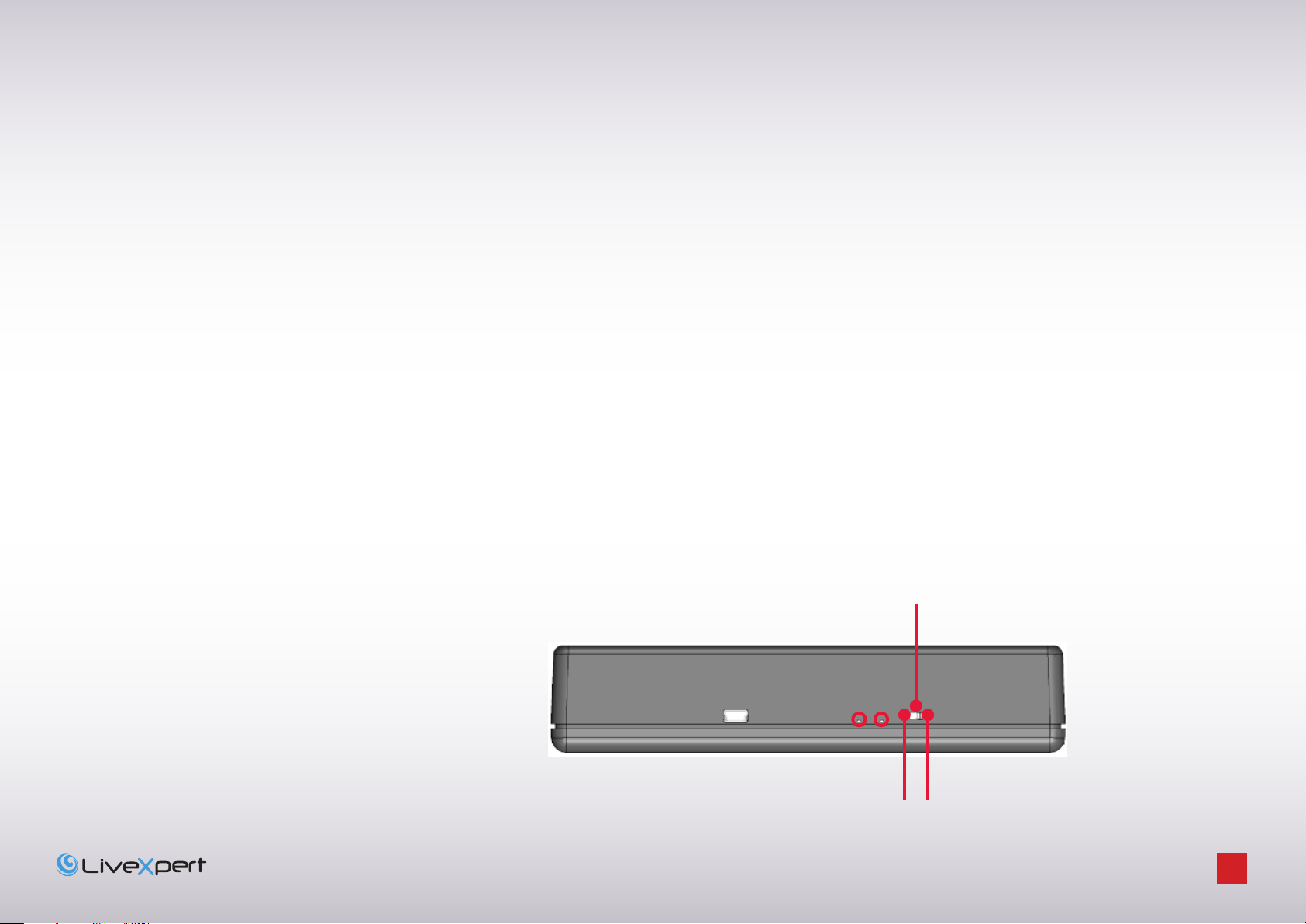

LiveTally Box ID switch
Front side of the LiveTally Box
Position 0 Position 1
Power LED
Activity LED
LIVETALLY BOX - USER’S MANUAL - PAGE
6
MEANING OF THE LIVETALLY BOX’S LEDs
The LiveTally BOX is powered by the USB port, and it has 2 LEDs:
Power LED – Red: Steady light when the box is powered on.
Activity LED – Green: Flashes each time the status of the Program or Preview bus changes.
WARRANTY
LiveTally Box products are covered by a 12-month warranty covering parts and labour, in the event of failure
during normal use of the product or a manufacturing defect.
To exercise the warranty, the product must be returned to 3D Storm. Shipping costs, if any, must be paid by
the owner of the product. The product will be returned once the repair is completed, with return shipping
costs covered by 3D Storm. Any repairs performed without the consent of 3D Storm will void the warranty.
If you have any questions, please contact us on +33 (0)5 57 262 262
LIVETALLY BOX - USER’S MANUAL - PAGE
7
TECHNICAL DATA
MECHANICAL DATA:
The dimensions of the LiveTally BOX are shown in the figure below. All measurements are expressed in [mm].
LIVETALLY BOX - USER’S MANUAL - PAGE
8
ELECTRICAL DATA:
The LiveTally BOX is powered by +5V directly via the USB connection. No additional power supply is required.
The LiveTally BOX delivers both Preview and Program information in the form of dry contacts on the
respective connectors marked Preview and Program. The simplified diagram is shown opposite.
From an electrical standpoint, the following values characterise the inputs of the Preview and Program
connectors:
Parameter Value
Max Voltage 60 [V]
Max Current 100 [mA]
Max Resistance (Active) 16 [Ω]
PIN CONNECTORS:
The LiveTally BOX has 3 main connectors:
USB connector
USB connector pin Signal Name
1 5V
2 D-
3 D+
4 ID
5 GND
LIVETALLY BOX - USER’S MANUAL - PAGE
9
SUB-D25 Connector – Program SUB-D25 Connector – Preview
Program d-SUB pin Signal Name
1 PROG_1
2 PROG_2
3 PROG_3
4 PROG_4
5 PROG_5
6 PROG_6
7 PROG_7
8 PROG_8
9 PROG_9
10 PROG_10
11 PROG_11
12 PROG_12
13 PROG_13
14 PROG_14
15 PROG_15
16 PROG_16
17 PROG_GND
18 PROG_GND
19 PROG_GND
20 PROG_GND
21 PROG_GND
22 PROG_GND
23 PROG_GND
24 PROG_GND
25 PROG_GND
Program d-SUB pin Signal Name
1 PREV_1
2 PREV_2
3 PREV_3
4 PREV_4
5 PREV_5
6 PREV_6
7 PREV_7
8 PREV_8
9 PREV_9
10 PREV_10
11 PREV_11
12 PREV_12
13 PREV_13
14 PREV_14
15 PREV_15
16 PREV_16
17 PREV_GND
18 PREV_GND
19 PREV_GND
20 PREV_GND
21 PREV_GND
22 PREV_GND
23 PREV_GND
24 PREV_GND
25 PREV_GND
3D Storm is the distributor of NewTek and LiveXpert products - 70, Avenue de Capeyron - 33160 Saint-Medard-en-Jalles, France
