Installation & Operation Manual
Outdoor Drinking Fountains
Pre-Installation Information
Before step 1 of the installation instructions, ensure that rough-ins are in the correct location.
The valve assembly, including the spray head, MUST NOT BE connected until after all lines have
been flushed to remove the small particles of debris that are inherent with new construction projects
and all chemicals that are used in flushing are purged from the system.
Chemicals used in flushing plumbing systems can attack the internal components of the valve and
spray head and severely damage them, so any flushing of the system must be followed by a full
flushing with pure water to clear any harsh chemicals remaining in the system. Debris in the system if
allowed to enter the valve assembly and spray head can cause poor performance or outright failure.
Again DO NOT attempt to connect the valve assembly and spray head until after all flushing is
complete and pure water is the only media that will be passing through the system. Damage to the
valve assembly or spray head caused by harsh chemicals or debris will not be covered by the
manufacturer's warranty.
Any fittings provided by the installer should be made of plastic to electrically isolate the unit from the
building or connected plumbing system.
The grounding of electric equipment such as telephones, computers, etc, to water lines is a common
procedure. This grounding can cause electrical feedback into a water fountain or similar fixture,
causing electrolysis, which results in a metallic taste or an increase in the metal content of the water.
This can easily be avoided by using the proper materials as indicated.
Installation notice!
Check Rough-In location PRIOR to installation
Flush lines thoroughly PRIOR to hook-up
Installation notice!
Check Rough-In location PRIOR to installation
Flush lines thoroughly PRIOR to hook-up

Installation & Operation Manual
Outdoor Drinking Fountains
3000-ADA
2000
Adult Adult - Child Adult - ADA
Adult - ADA - Child
Adult - Child - Dog
We offer several varieties and models of commercial outdoor drinking fountains - please tell us your
specifications and we can help supply you with the appropriate fountain per your projects request.

Installation & Operation Manual
Outdoor Drinking Fountains

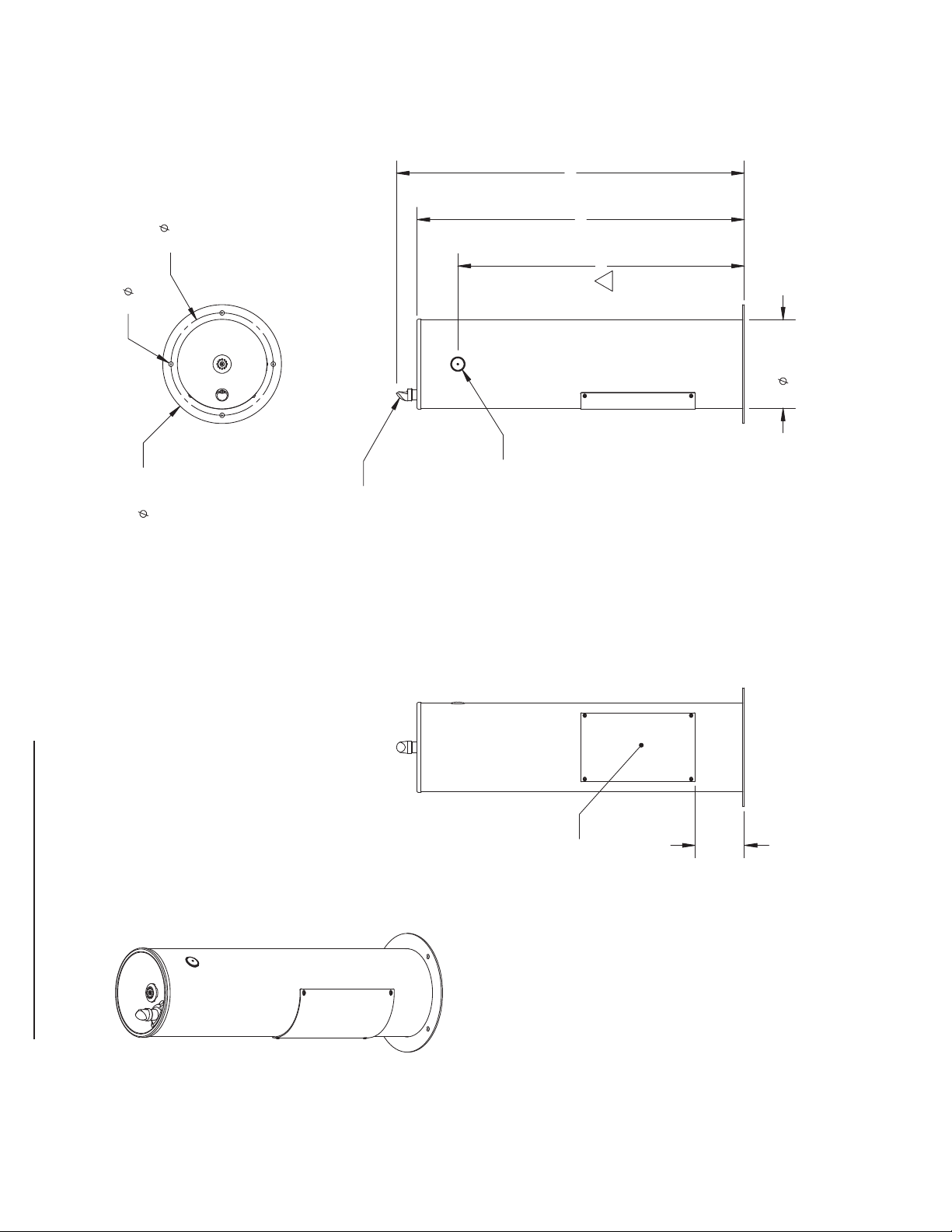

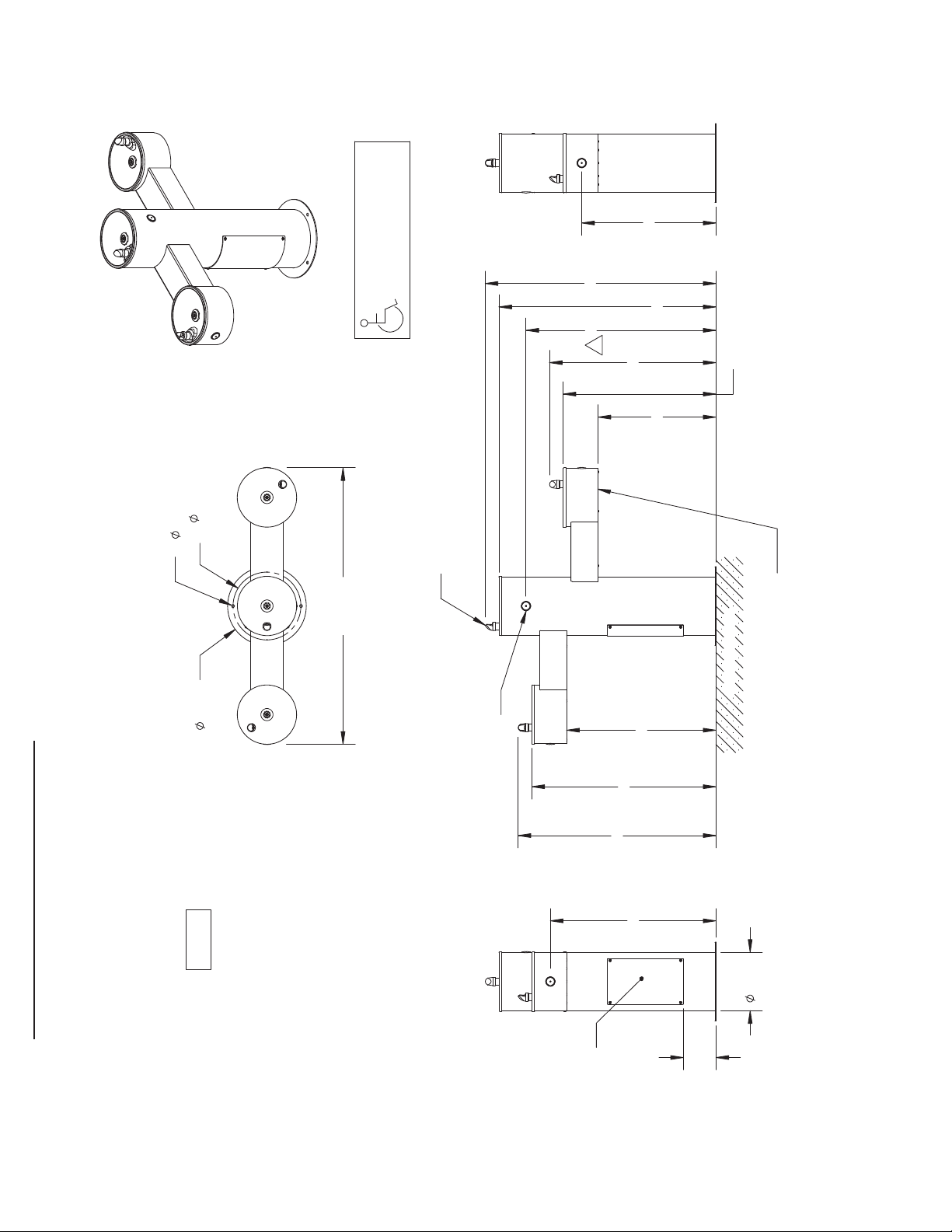

Physical Dimensions-
*
4X 9/16" THRU ALL
12-1/2"
BOLT CIRCLE
14-1/2"
8-1/2" X 14"
ACCESS COVER
W/ SECURITY SCREWS
6"
PUSHBUTTON
600315 RECESSED
600601HE BUBBLER
35"
40" 42-1/2"
10-3/4"
C
YELOW

Installation & Operation Manual
Outdoor Drinking Fountains

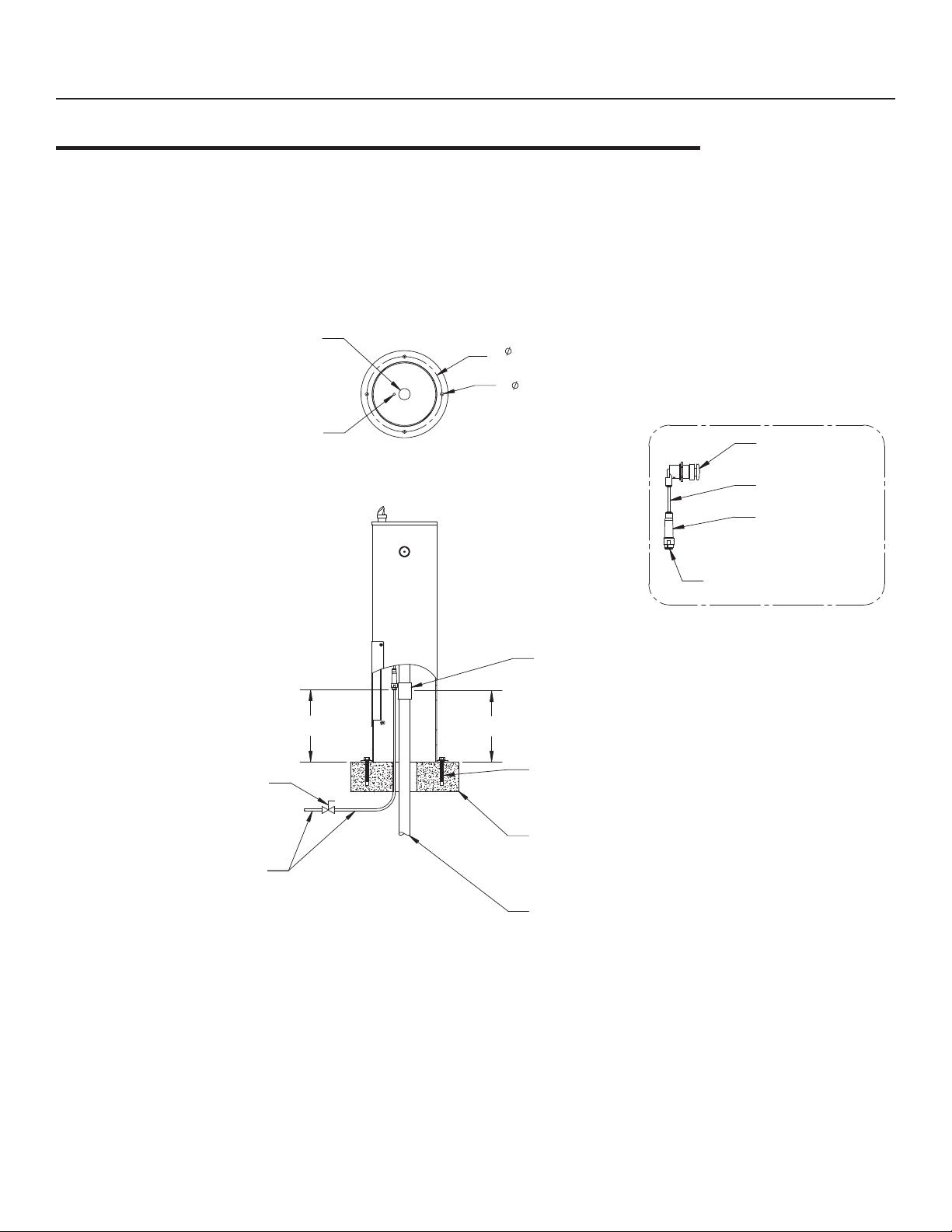

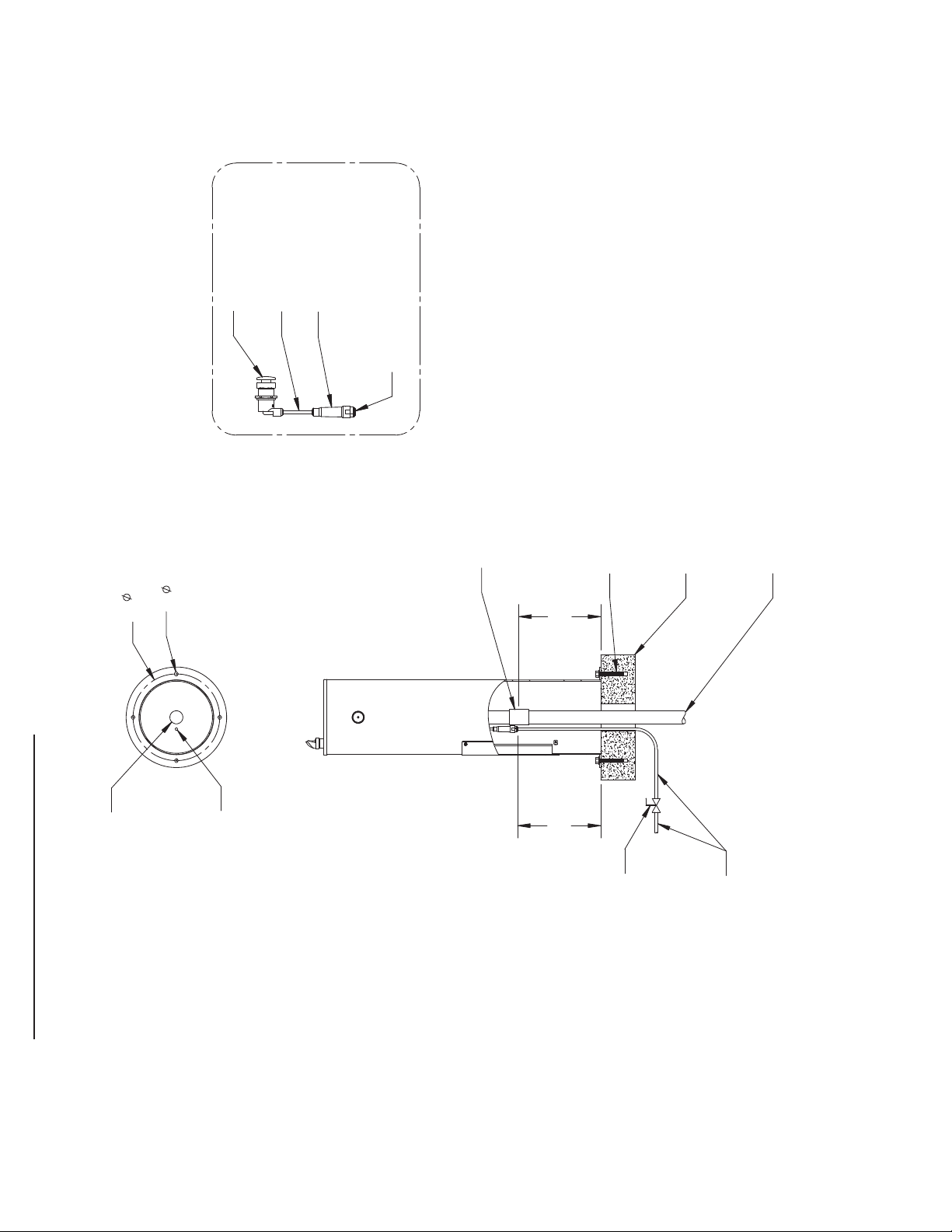

Rough-in Dimensions
*
3/8" O.D. SUPPLY CONNECTION
#600315
VALVE ASS'Y
1/4" TUBE
#980632
INLINE STRAINER
1/4" TO 3/8" PRESS LOCK
NOTE:
VALVE ASSEMBLY DETAIL
DRAIN CONNECTION
1-1/2" SCHED. 40 PVC
WATER SUPPLY CONNECTION
3/8" TUBING
(LOCATION IS FLEXIBLE)
4X 9/16" THRU ALL
12-1/2"
BOLT CIRCLE
NOTE:
UNIT MUST BE DISCONNECTED AND DRAINED DURING
WINTERIZATION, PER THE FOLLOWING RECOMMENDED
PRACTICES:
SHUT OFF WATER SUPPLY TO FIXTURE (SUPPLY•STOP AND WATER LINES BY OTHERS)
DISCONNECT AND REMOVE IN-LINE FILTER•PRESS AND HOLD PUSHBUTTON FOR 10 SECONDS•TO ALLOW WATER LINES TO DRAIN
MAIN SEWER LINE LOCATED BELOW
CONCRETE PAD
OTHERS) 4X 1/2"-13 UNC X 4"
(BY OTHERS)
WATER SUPPLY LINE
(BY OTHERS)
(BY OTHERS)
FROST LINE (BY OTHERS)
SERVICE SHUT-OFF VALVE (BY
MINIMUM TO A POROUS GRAVEL FILL OR
OPEN HUB DRAIN TO BE 1-1/2" IPS
CONCRETE ANCHORS
1-1/2" PVC COUPLING
(BY OTHERS)
12"
A.F.F. 11-13/16"
A.F.F.

Installation & Operation Manual
Outdoor Drinking Fountains
Stainless Series
Rough-in Dimensions- Pet Fountain
3/8" O.D. SUPPLY CONNECTION
#600315
VALVE ASS'Y
1/4" TUBE
#980632
INLINE STRAINER
1/4" TO 3/8" PRESS LOCK
NOTE:
VALVE ASSEMBLY DETAIL
NOTE:
UNIT MUST BE DISCONNECTED AND DRAINED DURING WINTERIZATION,
PER THE FOLLOWING RECOMMENDED PRACTICES:
SHUT OFF WATER SUPPLY TO FIXTURE (SUPPLY STOP AND WATER•LINES BY OTHERS)
DISCONNECT AND REMOVE IN-LINE FILTER•PRESS AND HOLD PUSHBUTTON FOR 10 SECONDS TO ALLOW•WATER LINES TO DRAIN
CONCRETE PAD
MINIMUM TO A POROUS GRAVEL FILL OR WATER SUPPLY LINE
(BY OTHERS)
OTHERS)
(BY OTHERS)
MAIN SEWER LINE LOCATED BELOW
FROST LINE (BY OTHERS)
SERVICE SHUT-OFF VALVE (BY
OPEN HUB DRAIN TO BE 1-1/4" IPS
CONCRETE ANCHORS
6X 1/2"-13 UNC X 4"
(BY OTHERS)
12"
A.F.F.
1-1/2" SCHED. 40 PVC
DRAIN CONNECTION
WATER SUPPLY CONNECTION
3/8" TUBING
(LOCATION IS FLEXIBLE)
14-3/4"
6X 9/16" THRU
BOLT CIRCLE
TYP.
12-1/2"
120.00°
TYP.

Installation & Operation Manual
Outdoor Drinking Fountains
Required Installation Supplies
• Proper mounting hardware
• Proper plastic fittings as indicated
• Hardware for waste oulet connections
• Gasket for waste outlet connection
• Shims (for installation if necessary)
• Supply piping
• Silicone caulk
• Plumbers putty

Installation & Operation Manual
Outdoor Drinking Fountains
Installation Instructions
Step 1: Fixture Installation
Note: the outdoor drinking fountain is to be mounted on a flat,levelsurface
(concrete or otherwise) with an adequate support structure.
Note: refer to Rough-In Dimensions for locating plumbing connections.
1.) Install service shut-off valve in water supply line (valve not furnished).
2.) Locate and install drinking fountain using 1/2"-13 x 4" concrete anchors (anchors not furnished).
3.) As noted previously, flush the water supply line with clean drinking water before making final
connections to the drinking fountain.
4.) Connect water supply line to inline strainer inside drinking fountain using 3/8" plastic tubing
(extra tubing not furnished). Push tube straight into fitting on filter about 3/4" until it reaches a
positive stop. Water supply connection must comply with local codes.
5.) Connect fountain drain line to drainage system. Drain is to be 1-1/2" IPS minimum to a porous
gravel flll or main sewer line located below frost line. Installer to provide waste trap downstream
of drain connection. Drain and waste trap must comply with local codes.
6.) Turn on water supply and check both the water supply lines and drain lines for leaks.

Installation & Operation Manual
Outdoor Drinking Fountains
Installation Instructions (cont.)
Step 2: Adjusting Drinking Fountain Flow
1.) Insert a standard flat-head screwdriver into
adjustment opening on face of pushbutton,
as shown.
2.) Rotate screwdriver to adjust until
desired flow is achieved:
Rotate clockwise to increase flow.
Rotate counterclockwise to decrease flow.

Installation & Operation Manual
Outdoor Drinking Fountains
Care and Maintenance
Stainless Steel Care
Stainless Steels are basically alloys of iron and chromium and are corrosion resistant. Stainless
steel has a bright surface that is easy to clean and is free from oxides. Therefore, cleaning of
stainless steel is relatively simple and easy if done on a regular basis.
)UHTXHQF\RIFOHDQLQJVKRXOGGHSHQGRQWKHUDWHDWZKLFKWKH¿[WXUHEHFRPHVGLUW\5HPHPEHU
that fresh (soft) deposits of all kinds are relatively easy to remove, while removing older (hard)
GHSRVLWVDUHPXFKPRUHGLI¿FXOW(VWDEOLVKDFOHDQLQJ6&+('8/(
5RXWLQH FOHDQLQJ VKRXOG LQYROYH RUGLQDU\ VRDS RU GHWHUJHQW DQG ZDWHU DSSOLHG ZLWK D VSRQJH
brush or cloth. Baking soda, borax or any of several non-abrasive commercial cleansing agents
FDQKHOSKDVWHQWKHFOHDQLQJDFWLRQ$IWHUVFUXEELQJULQVH7+2528*+/<DQGZLSHGU\
'2127XVHFRPPRQVWHHOZRROVFRXULQJSDGVVFUDSHUVZLUHEUXVKHV¿OHVRURWKHUVWHHOWRROVWR
clean stainless steel. Such items will scratch the surface or leave small particles of iron imbedded
in the surface, which will eventually rust and stain the surface - even appearing as if the stainless
itself was rusting.
&HUWDLQFKHPLFDOFRPSRXQGVLIXVHGRQVWDLQOHVVVWHHOFDQJLYHWKHDSSHDUDQFHRIUXVWDQGLI
allowed to stand for long periods of time, can pit the surface of even stainless. Products containing
hydrochloric acid, muriatic acid or potassium hydrochloride can ruin the surface.
Unit Care during Cold 'Freezing' Weather
These fountains are resistant to freezing if proper winterization procedures are followed. Outdoor Drinking Fountains
require Winterization maintenance protocol steps to be freeze resistant whcih consist of shutting off the water supply
and draining of the water line above freeze points, please see instructions. The unit should be disconnected or shut
off from the water supply and drained during the colder freezing months. We do offer FRV Freeze Resistant Valve
options at additional costs, please see the details listed on the back pages. For more information, refer to the rough-
in detail.
,QRUGHUWRHQVXUHDGHTXDWHÀRZDQGFOHDQOLQHVVRIZDWHUWKHLQOQHVWUDLQHULQWKHVXSSO\OLQH should be cleaned or replaced
regularly. New inline strainers can be ordered using Part No. 980632.

Installation & Operation Manual
Outdoor Drinking Fountains
Troubleshooting-
Drinking Fountain
INSUFFICIENT FLOW
A. Ensure the service shut-off valve is fully open (provided by installer).
B. Ensure water supply is within the normal operating range of 40-60 psi.
1. If pressure is too low, flow can be drastically reduced.
2. If pressure is too high, the strainer and/or valve may have been damaged.
3. The unit is rated for a maximum range of 30-105 psi.
C. Inspect the unit's valve for damage, and replace if necessary.
D. Inspect the inline strainer for damage and/or clogging, and clean or replace as necessary.
E. Check all fittings and tubing for damage and leaks. Replace components as necessary.
UNIT HAS PROBLEMS DRAINING
A. Remove any debris from the drain.
B. Remove any debris from the PVC pipe and fittings.
C. Check and clear the waste trap (provided by installer).

4X 9/16" THRU ALL
12-1/2"
BOLT CIRCLE
14-1/2"
8-1/2" X 14"
ACCESS COVER
W/ SECURITY SCREWS
6"
PUSHBUTTON
600315 RECESSED
600601HE BUBBLER
35"
40" 42-1/2"
10-3/4"
C
DRAWING: Physical Dimensions

42-1/2"
TYP.
12-1/2"
BOLT CIRCLE
14-3/4"
C
(1) 380056 BUBBLER
E
32"
7"
10-3/4"
39-15/16"
PUSHBUTTONS
W/ SECURITY SCREWS
8 1/2" X 14"
ACCESS COVER
(2) 600315 RECESSED
(1) 600601HE BUBBLERS
C35"
6"
DRAWING: Physical Dimensions

IN COMPLIANCE WITH A.D.A. 2010
RED
B
4X 9/16" THRU ALL
50-15/16"
14-1/2" 12-1/2"
BOLT CIRCLE
24-3/4"
8-1/4" X 14"
ACCESS COVER
w/ SECURITY
SCREWS
6"
30-1/2"
10-3/4"
CONCRETE PAD
(3) 600315 RECESSED
(3) 600601HE BUBBLER
PUSHBUTTONS
(2) VANDAL RESISTANT S/S ACCESS PANEL
42-1/2"
27-1/2"
33-15/16"
21-3/4"
36-7/16" 30-11/16"
40"
28-1/8"
35"
DRAWING: Physical Dimensions

DRAWING: Rough-in Dimensions
3/8" O.D. SUPPLY CONNECTION
#600315 VALVE ASS'Y
1/4" TUBE
#980632 INLINE STRAINER 1/4" TO 3/8" PRESS LOCK
NOTE:
VALVE ASSEMBLY DETAIL
DRAIN CONNECTION
1-1/2" SCHED. 40 PVC
WATER SUPPLY CONNECTION
3/8" TUBING
(LOCATION IS FLEXIBLE)
4X 9/16" THRU ALL
12-1/2"
BOLT CIRCLE
NOTE: UNIT MUST BE DISCONNECTED AND DRAINED DURING WINTERIZATION, PER THE FOLLOWING RECOMMENDED PRACTICES:
SHUT OFF WATER SUPPLY TO FIXTURE (SUPPLY•STOP AND WATER LINES BY OTHERS)
DISCONNECT AND REMOVE IN-LINE FILTER•PRESS AND HOLD PUSHBUTTON FOR 10 SECONDS•TO ALLOW WATER LINES TO DRAIN
MAIN SEWER LINE LOCATED BELOW CONCRETE PAD
OTHERS) 4X 1/2"-13 UNC X 4"
(BY OTHERS)
WATER SUPPLY LINE
(BY OTHERS)
(BY OTHERS) FROST LINE (BY OTHERS)
SERVICE SHUT-OFF VALVE (BY
MINIMUM TO A POROUS GRAVEL FILL OR
OPEN HUB DRAIN TO BE 1-1/2" IPS CONCRETE ANCHORS
1-1/2" PVC COUPLING (BY OTHERS)
12"
A.F.F. 11-13/16"
A.F.F.

3/8" O.D. SUPPLY CONNECTION
#600315 VALVE ASS'Y
1/4" TUBE
#980632 INLINE STRAINER 1/4" TO 3/8" PRESS LOCK
NOTE:
VALVE ASSEMBLY DETAIL
NOTE: UNIT MUST BE DISCONNECTED AND DRAINED DURING WINTERIZATION, PER THE FOLLOWING RECOMMENDED PRACTICES:
SHUT OFF WATER SUPPLY TO FIXTURE (SUPPLY STOP AND WATER•LINES BY OTHERS) DISCONNECT AND REMOVE IN-LINE FILTER•PRESS AND HOLD PUSHBUTTON FOR 10 SECONDS TO ALLOW•WATER LINES TO DRAIN
CONCRETE PAD
MINIMUM TO A POROUS GRAVEL FILL OR WATER SUPPLY LINE
(BY OTHERS) OTHERS)
(BY OTHERS)
MAIN SEWER LINE LOCATED BELOW
FROST LINE (BY OTHERS)
SERVICE SHUT-OFF VALVE (BY
OPEN HUB DRAIN TO BE 1-1/4" IPS
CONCRETE ANCHORS
6X 1/2"-13 UNC X 4"
(BY OTHERS)
12"
A.F.F.
1-1/2" SCHED. 40 PVC
DRAIN CONNECTION
WATER SUPPLY CONNECTION 3/8" TUBING (LOCATION IS FLEXIBLE)
14-3/4"
6X 9/16" THRU
BOLT CIRCLE
TYP.
12-1/2"
120.00°
TYP.
DRAWING: Rough-in Dimensions
