Portable barbecue smoker

Instruction manual
1
You have purchased a product LIVOO brand and we thank you. We take great care in design, ergonomics
and ease of use of our products. We hope that this product will give you complete satisfaction.
General Safety Instructions
PL AS R AD TH FOLLOWING INSTRUCTIONS CAR FULLY
B FOR USING TH APPLIANC AND K P TH M FOR
FUTUR US .
1. CAUTION: This barbecue will become very hot. Do
not move it uring use.
2. CAUTION: Do not leave the barbecue within the
reach of chil ren an pets.
3. WARNING! Do not use the barbecue in a confine
an /or habitable spaces such as houses, she s, caravan,

Instruction manual
2
tents, camper vans, garages, arbours, boat, etc. Risk of fire
an suffocation, eath by carbon monoxi e poisoning.
4. The barbecue must be installed on a flat, level, stable and
heat-resistant surface or floor before and during use.
5. Use the appliance only for its intended purpose.
6. Incorrect use or action and non-compliance with the safety
instructions in this manual can result in serious injury or
death.
7. Incorrect use or action and failure to observe the safety
instructions in this manual may result in fire or explosion,
causing serious material damage.
8. Never leave the appliance unattended during use.
9. Do not attempt to limit flare-ups or extinguish charcoal with
water.
10. Do not obstruct the ventilation openings of the barbecue
11. The appliance is intended for outdoor use only and in
accordance with local regulations
12. Do not use near flammable materials or substances. Do not
use within 1.5 metres of combustible material.
13. CAUTION: Do not use alcohol, gasoline or similar
liqui s to start or rekin le a fire. Only use fire starters if
they comply with EN 1860-3!
14. The barbecue must be heate up an the fuel kept glowing
for at least 30 minutes before the first cooking.
15. Before starting to cook, wait for a layer of ash to cover the
fuel.

Instruction manual
3
16. Only use charcoal or charcoal briquettes that comply with
the N1860-2 standard as fuel in the pan.
17. Do not place the charcoal directly on the bottom of the tank.
Use the charcoal holder provided (fire grate).
18. The amount of charcoal to be used should not exceed 50%
of the maximum capacity of the tank.
19. Do not wear loose clothing when lighting or using the
barbecue.
20. This appliance is for private use only. Do not use at events or
in public places.
21. Do not modify the appliance.
22. Do not cover the appliance during use.
23. Do not use the barbecue in strong winds.
24. Do not use the barbecue if all parts are not in place. Be sure
to follow the assembly instructions to properly assemble this
barbecue. Incorrect assembly can be dangerous.
25. Use appropriate heat-resistant barbecue utensils to handle
cooking food. Wear protective gloves when using the
barbecue to avoid burns. Some accessible parts can be very
hot.
26. Do not cover the cooking grate with foil, dish or container to
avoid heat build-up. Do not cook in foil.
27. Allow the barbecue, ashes and accessories or parts to cool
completely before cleaning and storing. It is recommended
to empty the ashes 24 hours after using the barbecue.
28. Always allow to cool before storing or cleaning.
29. Clean the appliance and its accessories after each use to
avoid the accumulation of grease (risk of fire).

Instruction manual
4
30. Please store the appliance in a dry and sheltered place.
31. The max. charcoal used shall be 0.8 kg.
Although this barbecue has been manufactured to avoid sharp edges, take care when handling all parts to
avoid the risk of injury.
Remove all protective packaging and keep it away from children. Read the safety instructions carefully
before you start using your barbecue.
Refer to the parts list and assembly diagrams to assemble your barbecue. Make sure that no parts or
pieces are missing or damaged/broken, which could impair the proper functioning of the appliance. The
guarantee for this appliance cannot be applied for abnormal conditions of use, incorrect storage
conditions, lack of maintenance, modification of the product, professional use".
This instruction manual is also available on our website www.livoo.fr
LIGHTING
Make sure the barbecue is positioned on a stable and level surface. Put a single layer of charcoal in the
bowl, making sure that the charcoal rack is positioned correctly. The appliance must not be filled with fuel
to more than 50% of its capacity.
An overfilled vessel will deteriorate very quickly and the temperature reached will be too high to cook your
food and potentially dangerous (burns or fire).
Position solid fire starters and light.
Do not use liquid firelighters or fire lighting gel. Use only solid cubes
Wear protective gloves and open the vents wide (if the model has them) so that air can flow in and
accelerate combustion.
The barbecue must be heate an the fuel kept glowing for at least 30 minutes before the first cooking.
Before starting to cook, wait for a layer of ash to cover the fuel.
For subsequent use, wait until there are sufficient embers and use a poker to spread the charcoal evenly
over the entire surface of the pan. Before starting to cook, wait for a layer of ash to cover the fuel.
CAUTION: This barbecue will become very hot. Do not move it uring use.
When reloading the barbecue, wear suitable protective gloves, remove all food from the cooking grate,
remove the cooking grate and reload the pan with the recommended fuels. Do not add firelighters. You
can then reposition the cooking grate.

Instruction manual
5
US
Never grill your food in the flames.
Make sure that the fire starters are completely burned out before you start cooking your food.
Before you start cooking, make sure a layer of ash covers the fuel.
SMOKING
For this method, use aromatic wood. Tree species such as apple or cherry are particularly suitable. You can
also use sawdust from certain shrubs like juniper.
1. Light the wood or charcoal placed on the grate. Add pieces of wood or charcoal little by little. During
this time, leave the vents open.
2. Place the food to be grilled immediately on the grill, and close the vents and the chimney damper to
reduce the air flow, thus maintaining a very low cooking temperature. Close the lid. Once smoking
has started, the temperature should be maintained at around 70°C. With the thermometer on the
lid, you can monitor the temperature closely. The more food you put in, the lower the temperature
will be. The cooking time will vary depending on how full the smoker is.
•Temperature too high: Put the lid on the appliance. Close the air supply holes in the lid and in the ash
container. If the temperature remains too high, put some soaked wood chips on the fire. This also
enhances the flavor of your food. You can also add hot water to the water container.
•Temperature too low: Fan the fire by opening the air supply holes in the lid and the ash container.
Useful tips an tricks:
1. You can add flavored wood chips (apple, Oak, hickory) to the fire to infuse your food with extra flavor.
To prevent burns, use a metal clip for this purpose.
2. To keep your food moist, put some liquid (water, broth, wine…) in the broth pan when you start
smoking. Check the pan regularly during smoking and add some extra liquid carefully.
3. Once you started smoking, avoid lifting the lid as much as possible. A considerable amount of heat
and smoke escapes each time you lift the lid, which extends the cooking time of your food and can
cause some injuries!
4. You can use the appliance as a regular grill. Proceed as follows:
•Light the appliance as described as above in section “LIGHTING TH APPLIANC ”
•Put the cooking grill on the support brackets of the bottom right of the body. Make sure the
rim of the grill rests firmly on the brackets.
•Put your food on the grill.
CL ANING AND STORAG
After each cooking, wait for the fuel to burn out and the barbecue to cool down completely.
mpty the pan and/or ash pan and clean your barbecue and utensils after each use to avoid a highly
flammable and toxic grease deposit.
Do not use sharp objects or abrasive cleaners for the cooking grate or the pan. It is preferable to use a
strong degreaser.
Do not leave standing water in the pan, as this can cause rust and rapid deterioration of the materials.

Instruction manual
6
Protect your appliance with a cover if you leave it outside in fine weather. Protect from rain and moisture
when not in use for long periods of time.
ASS MBLY
Part list:
Item Description Qty Item Description Qty
1 Smokestack 1PC 2 Thermometer 1PC
3 Air vent 3PCS 4 Metal handle 1PC
5 Body 1PC 6 Support bar 2PCS
7 Leg 2PCs 8 Spacing board 1PC
9 Lock catch 1PC 10 Small charcoal plate 1PC
11 Big charcoal plate 1PC 12 Cooking grid 1PC
A Screw sets M6X25MM 6S TS B Screws sets M6X15MM 8S TS
C Screw sets M6X10MM 4S TS D Screws sets M5X10MM 5S TS

Instruction manual
7

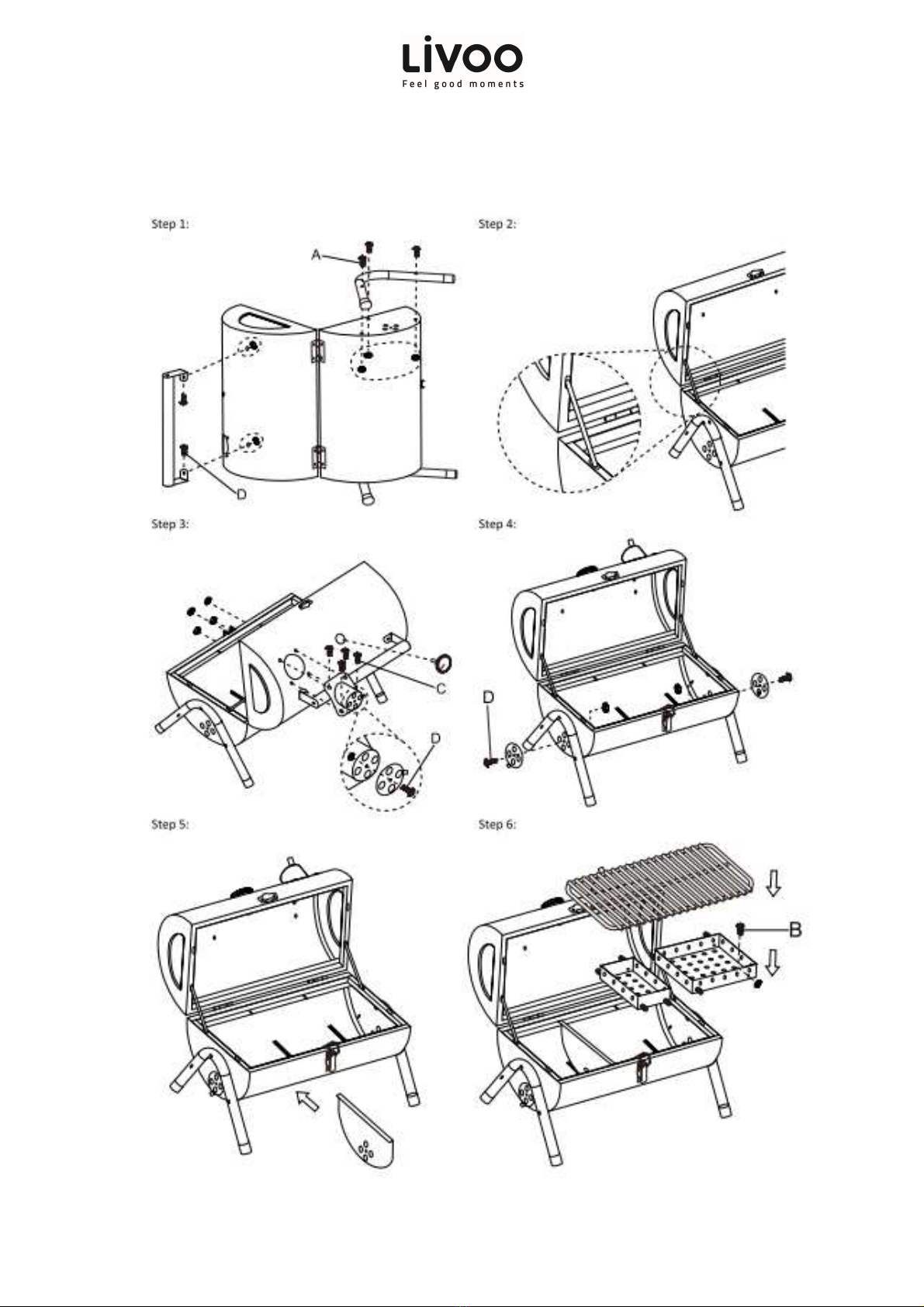

ASS MBLY ST PS

Instruction manual
8
•Photo no contractual
•Worried about the quality of his products the manufacturer reserves the right to make modifications without advance
notice
LIVOO
BP 61071
67452 Mundolsheim-FRANC
