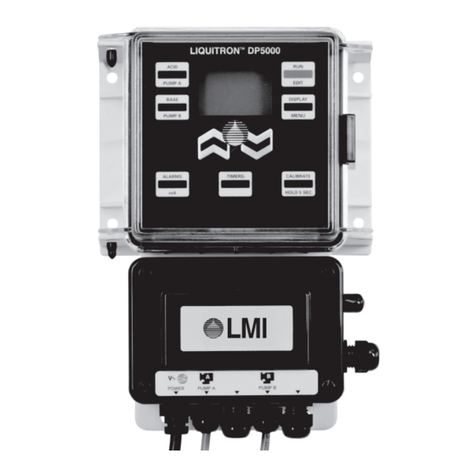

Liquitron™pH and ORP Wall Mount Controllers
Preamplifier and Cable Assembly
Installation • Instructions
for the DP5000 & DR5000
Fig. A
1. Remove the four screws retaining the
utility box cover.
2. Install the five wires (orange, blue, black,
red and green) from the Cable Assembly
through the PG-9 connector on the right
side of the controller. Attach the BNC
connector from the cable to the BNC
connector on the right side of the controller.
3. Connect wires from the Cable Assembly to
the controller terminal strip as follows:
Red to Temp : TB4-8
Black to Temp : TB4-7
Green to Terminal Block Ground:
TB1- 1 ,2 or 3
Orange to Pre-Amp Power +5: TB4-10
Blue to Pre-Amp Power -5: TB4-9
WARNING: Disconnect power to the controller
before opening the front panel!
Neutral
GND
GND
GND
+5V
-5V
NC
TX
RX
Output
PreAmp
Temp
4-20mA
Power
Input
1
2
3
4
5
6
7
8
9
10
11
Output
Pump B
Output
Pump A
Output
Fault
Flow
NO
NO
NO
NO
NC
NC
NO
Low Level
Output
AUX
Remote
on/off
Alarm 1
Alarm 2
Solenoid
Live 120V/230V
7
8
1
2
3
4
5
6
2
3
4
5
Pump B
Pump A
6
7
8
9
10
11
12
1
1
2
3
5
6
7
8
9
4
10 12
Temp
Temp
TB1 TB3 TB4 TB2
Detail A
ReplacessameofRev.C 10/97
1696.D 8/99
8 Post Office Square
Acton, MA 01820 USA
TEL: [phone]
FAX: [phone]
http:\\www.lmipumps.com

4. Route the preamplifier cable to the location of the
P/N 33217 preamplifier through conduit, if
necessary. Unscrew and remove the preamplifier
cover. Pass the cable through the PG-9 connector.
5. Using the chart below, connect the wires from the
preamplifier cable to the preamplifier.
Note: If the cable must be cut, tin the wires
before connecting.
Terminal Connection Color
Temp. Comp.+ Red
Temp. Comp. - Black
TC GND Green
Preamp Power + 5V Orange
Preamp Power - 5V Blue
Temp. Comp. - Black
Temp. Comp. + Red
VpH White
COM Brown
TC GND Green
© 1999 LMI Milton Roy - All Rights Reserved
Printed in USA
Specifications su ject to change without notice.
FromTemp CompCable
Cable
fromController
Fig. B
6. Connect the pH/ORP electrode BNC connector to
the mating BNC on the preamplifier .
If temperature compensation is to be used, remove
the white plastic dowel pin from the PG-7 connec
tor. Run the temperature compensation wires (red,
black and green) in through the connector and
connect to the three terminals of the electronic
module as in the chart above.
