Loadrite Force User manual

Weighing System
MANUAL
OPERATORS

Force Weighing System
Part No: ASS-LR913
Document No. MAN-80579-01
Software No. 60232 Version 2.0
Issue Date: September 2004
Distributed Worldwide by:
8 Walls Road, PO Box 12-607, Penrose, Auckland, New Zealand
[phone]
℡[phone]
[email protected]
www.loadritescales.com
Designed & Manufactured by:
www.actronic.com
This manual is copyrighted with all rights reserved. Under copyright laws, this manual may not be
copied in whole or in part or reproduced in any other media without the express written permission
of Actronic Ltd. Permitted copies must carry the same proprietary and copyright notices as were
affixed to the original. Under the law, copying includes translation into another language.
Please note that while every effort has been made to ensure that the data given in this document is
accurate, the information, figures, illustrations, tables, specifications, and schematics contained
herein are subject to change without notice.
Actronic Ltd assumes no liability in connection with the use of any Loadrite branded product.
© 2004 ACTRONIC LIMITED

i
Contents
1Loadrite Equipped Front-end Loader ................................................................................... 1
2Introduction............................................................................................................................ 2
Indicator Lights .............................................................................................................................................. 3
Keypad ............................................................................................................................................................ 3
3Quick Start Guide..................................................................................................................5
Switching On ................................................................................................................................................. 5
Standby............................................................................................................................................................ 5
The Warm Up Screen .................................................................................................................................. 5
The Ready Screen ......................................................................................................................................... 6
Weighing a Load ........................................................................................................................................... 6
Adding a Load ............................................................................................................................................... 7
Clearing the Short Total............................................................................................................................... 8
Zeroing............................................................................................................................................................ 8
4Weighing Overview .............................................................................................................10
Weighing Modes......................................................................................................................................... 10
Short and Long Totals ................................................................................................................................ 10
Accurate Weighing..................................................................................................................................... 10
General Method of Weighing.................................................................................................................. 11
5Weighing Procedures ..........................................................................................................12
Adding a Load ............................................................................................................................................. 12
Auto Add....................................................................................................................................................... 13
Subtracting a Load...................................................................................................................................... 13
Zeroing.......................................................................................................................................................... 14
Recalling Last Load ..................................................................................................................................... 17
Viewing Long Total..................................................................................................................................... 18
Clearing Totals ............................................................................................................................................. 18
6Target Mode .........................................................................................................................21
7Split Mode ............................................................................................................................24
8Tip Off .................................................................................................................................27
9Menu Options ......................................................................................................................31
Setup.............................................................................................................................................................. 31
Language Setting (Language).................................................................................................................. 32
Clock Setting (Clock) ................................................................................................................................ 32
Changing Scale Number (Scale#) .......................................................................................................... 32
Long Total (Long Tot)................................................................................................................................. 33
Auto Add On/Off Setting (Auto Add).................................................................................................... 33
Self Test (Selftest)....................................................................................................................................... 33
Uplink (Uplink) ............................................................................................................................................ 34
10 Print Functions .....................................................................................................................35
11 Obtaining the Best Accuracy ..............................................................................................36
Lifting Speed................................................................................................................................................. 36
Trigger Point................................................................................................................................................. 36
Bounce .......................................................................................................................................................... 36
Centre of Gravity ........................................................................................................................................ 36

ii
12 Error Messages .....................................................................................................................37
Check Zero...................................................................................................................................................37
Lift Under Range .........................................................................................................................................37
Power Error...................................................................................................................................................37
Printer Disabled ...........................................................................................................................................37
Printer Error ..................................................................................................................................................37
Return Under Range...................................................................................................................................37
Too Heavy, Zero Aborted.........................................................................................................................38
Warm Up Lift................................................................................................................................................38
13 Specifications........................................................................................................................39
14 Output / Input Connections ...............................................................................................41
Appendix i Time and Date ........................................................................................................42
Appendix ii Span Calibration Adjustment................................................................................44

LOADRITE FORCE OPERATING MANUAL
1

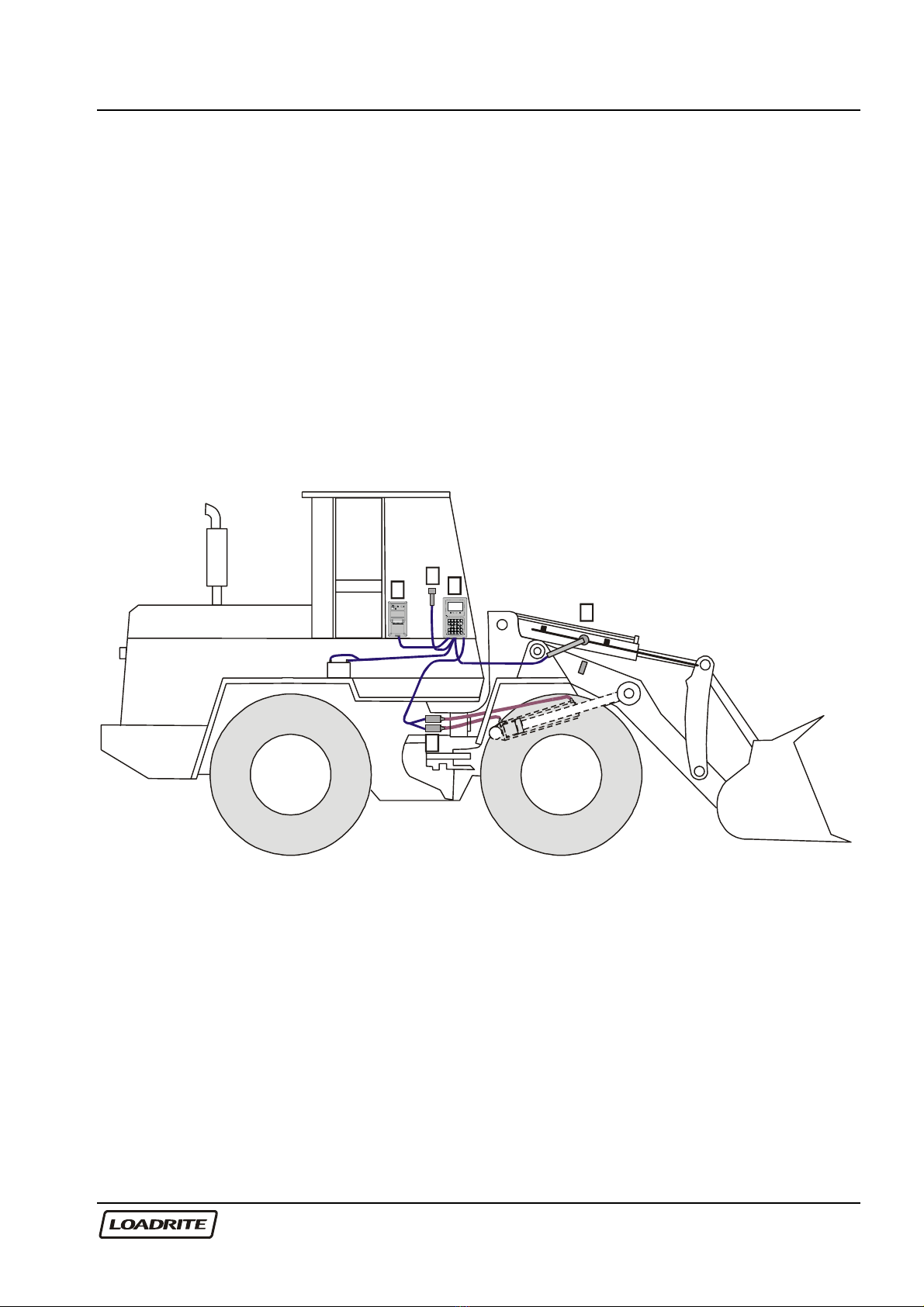

1 Loadrite Equipped Front-end Loader
1. Indicator
2. Weigh trigger
3. Pressure transducers
4. Remote Add button (optional)
5. Printer (optional)
+
-
4
51
2
3

LOADRITE FORCE OPERATING MANUAL
2
2 Introduction
The Loadrite Force Weighing System measures the weight of loads lifted by
front-end loaders, log loaders, forklift trucks and similar machines that use
hydraulic rams to lift the load. The Loadrite is installed in the cab of the
loading machine and is connected to sensors on the lifting arms.
As the machine raises the load, the Loadrite measures the hydraulic
pressure in the lift cylinders, converts pressure into a weight reading and
displays the result. An electronic trigger device mounted on the lift arms
ensures that the pressure readings are always taken at the same position
on every lift.
The weight of the bucket or forks and associated structures is zeroed out
when the system is calibrated so that only the weight of the payload is
displayed. While operating the loader, the driver can add each weight lifted
to a running total.

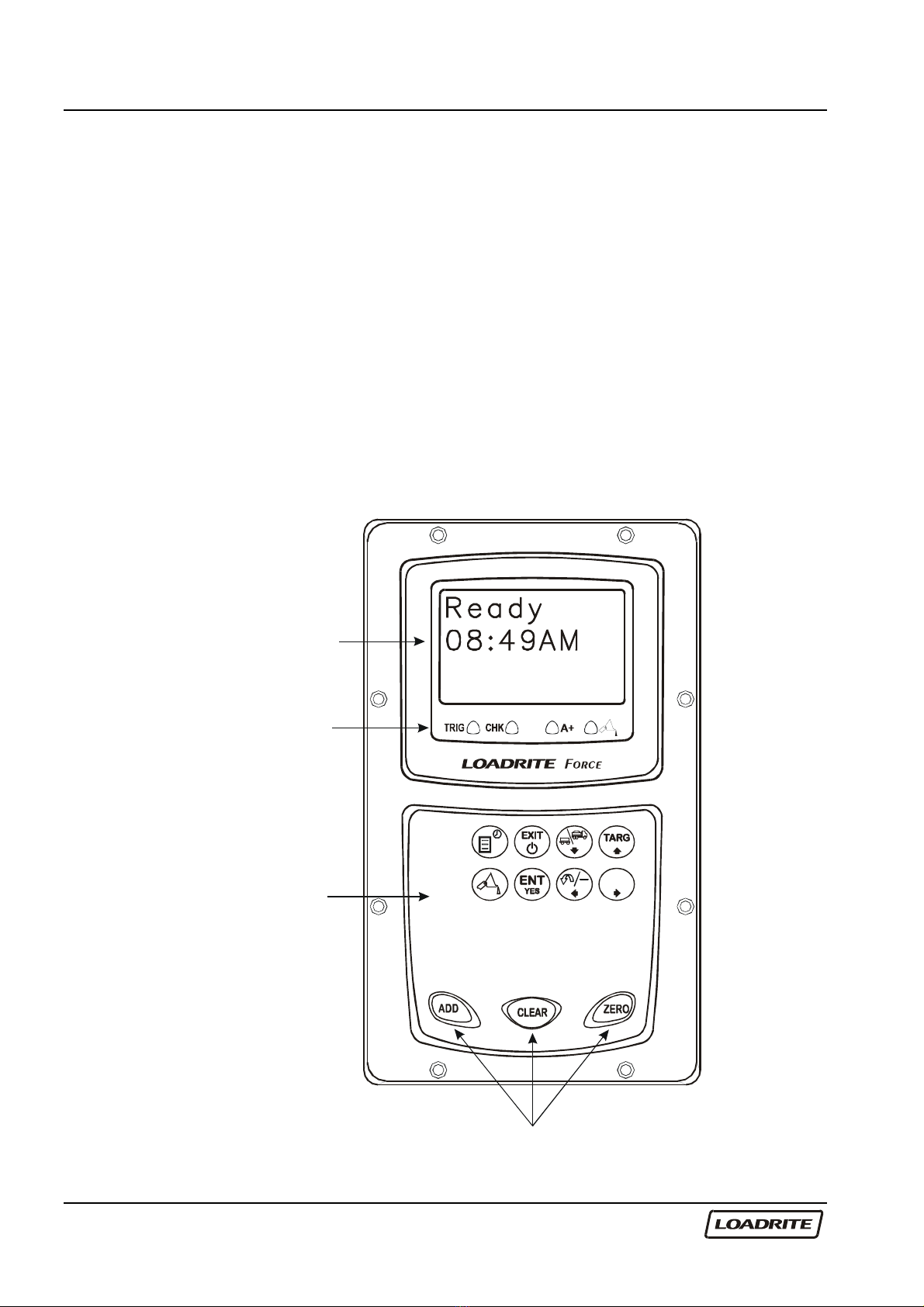

LCD display
Indicator lights
Keypad
Main Operating Keys
0.000

LOADRITE FORCE OPERATING MANUAL
3
The Loadrite has internal memory which stores settings and production data
even when switched off.
Indicator Lights
Four indicator lights are provided below the LCD screen.
Trigger Check Auto-Add Tip-Off
Trigger Illuminates when a load is lifted past the
trigger point. When this light is on, the lifted
weight may be added.
Pages 7
and 11
Check Reserved. -
Auto-Add Illuminates when the Loadrite is in Auto-Add
mode. In this mode, the Loadrite will
automatically add the lifted weight.
Page 13
Tip-Off Illuminates when the Tip-Off function is
operating.
Page 27
Keypad
The table below shows the special functions that the keys have in addition
to their numeric values used for entering data.
Displays time and date. Accesses the menu. Page 42
Page 31
Tip-off weighing. Page 27
Exits an operation without changing the data.
When pressed on the Ready screen, puts the
Loadrite into Standby mode. To return to the
Ready screen, press any key.
Page 5
Enter key for accepting data or changes. Page 31

LOADRITE FORCE OPERATING MANUAL
4

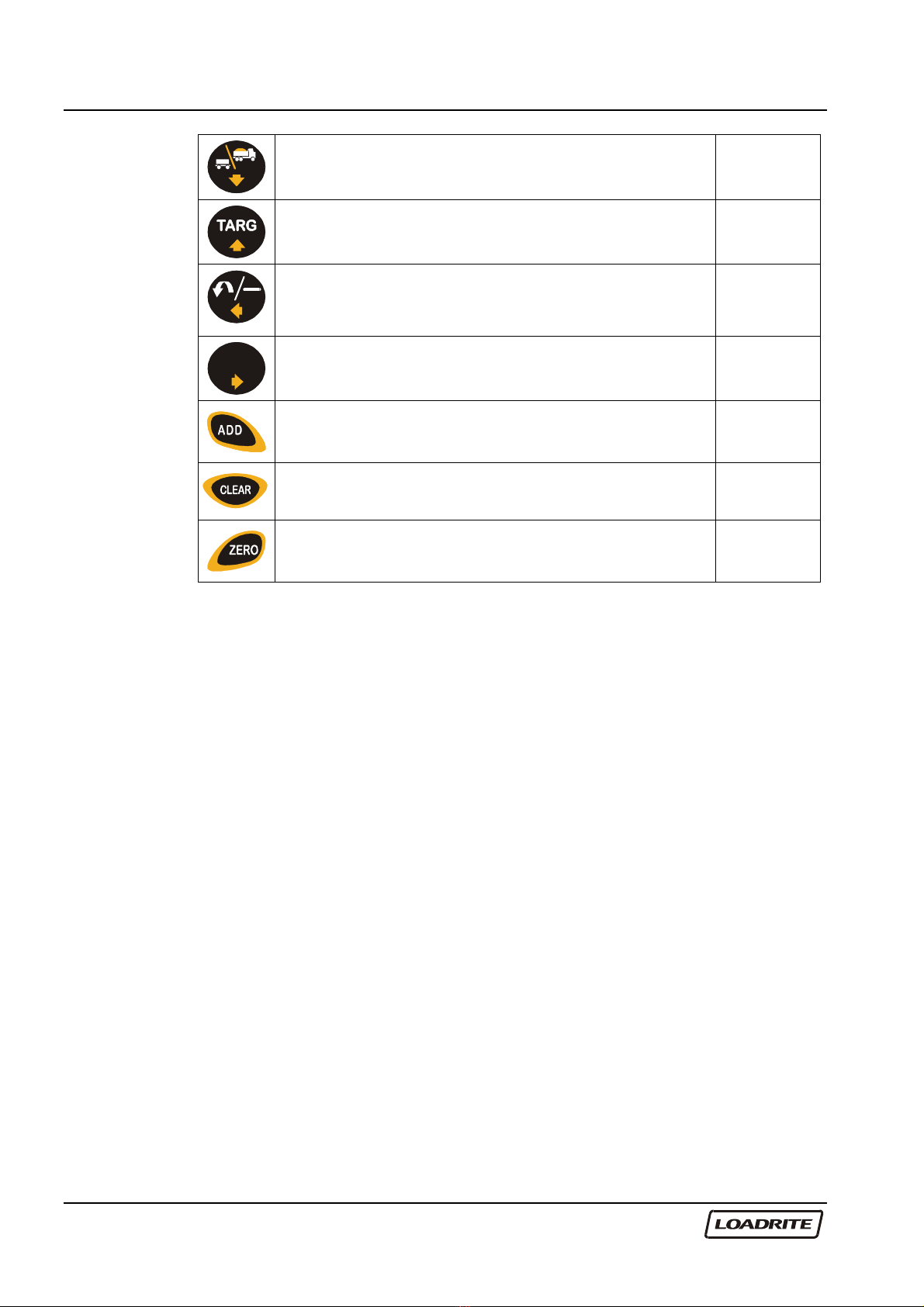

Scroll down. Also enter Split Weigh mode. Page 24
Scroll up. Also enter Target mode. Page 21
Scroll left. Recalls the previous load. Subtracts
the current load from the total.
Page 17
Page 13
Scroll right. -

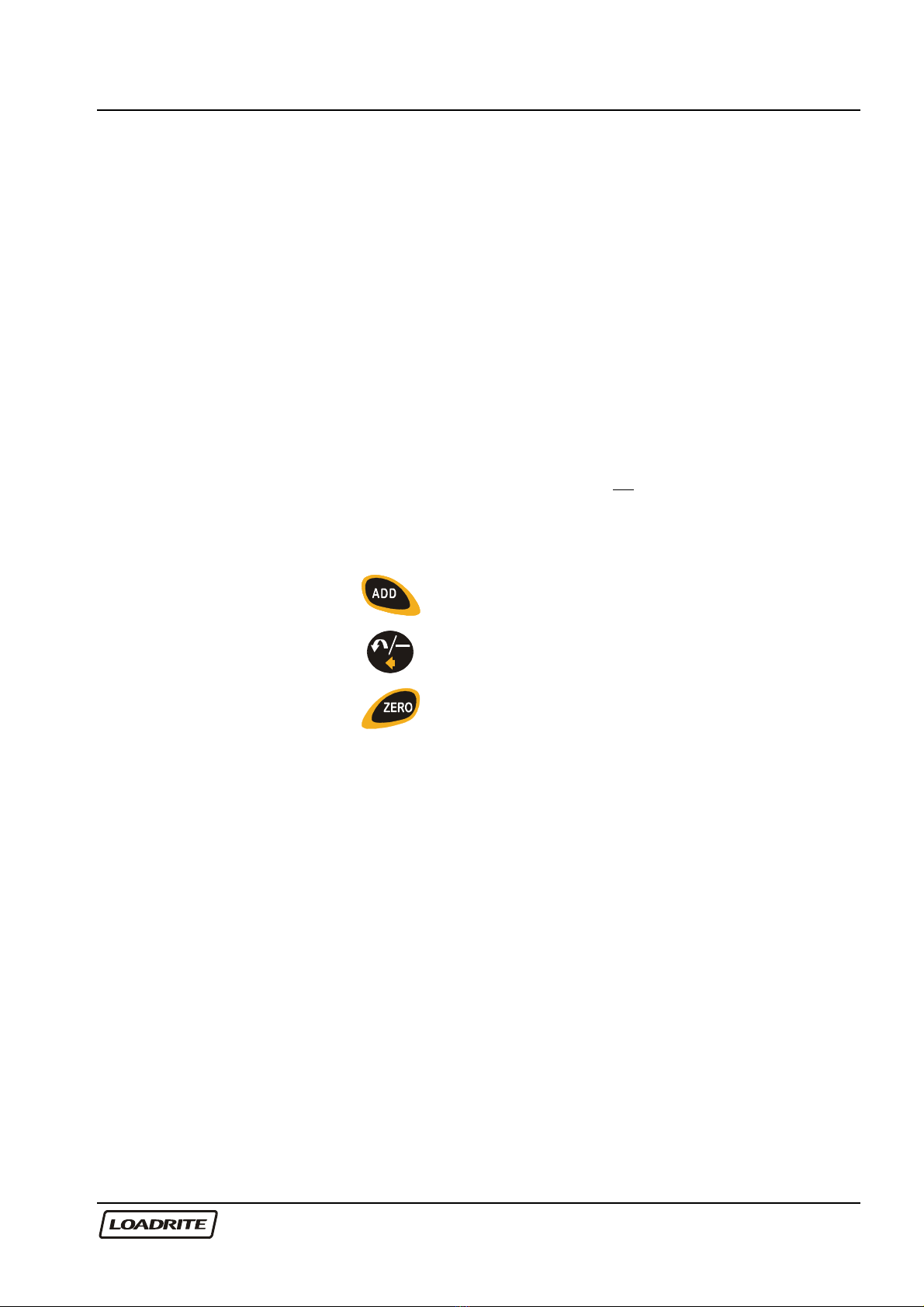

Adds the current load to the total. Page 12
Clears the short total for the current product. Page 18
Zeroes out the current load. Page 15

LOADRITE FORCE OPERATING MANUAL
5
3 Quick Start Guide
This section summarises the common Loadrite procedures. For full details
of weighing methods, see Weighing Overview on page 10 and Weighing
Procedures on page 12.
Switching On
The Loadrite powers up automatically when you switch on the ignition of the
loading machine.
If the Loadrite has been switched off for more than 1 hour, it displays the
Warm Up screen when powered up.
Standby
The Loadrite has a ‘standby’ mode which is similar to turning the Loadrite
off.
To put the Loadrite into standby press and
hold , the EXIT key, when in the
Ready mode.
To restart the Loadrite, press any key.
FORCE
Standby
02:40
The Warm Up Screen
For best weighing accuracy, the hydraulic fluid in the lift cylinders should be
at normal operating temperature. This is achieved by raising and lowering
the empty bucket or forks a few times.
The Warm up screen is displayed if the machine has been turned off for
over an hour.
Raise the empty bucket or forks past the
trigger point three times. Warm up
Lift 3

LOADRITE FORCE OPERATING MANUAL
6
The Loadrite beeps at each lift and
displays the count down from 3. After the
third lift, the Ready screen is displayed
and the screen may look like this.
If it is time to check zero, the Loadrite will
display the Check Zero message to
remind you.
More information about Ready screen and
Check Zero screen will be covered later
in this manual.
Ready
02:40PM
3400
Check
Zero
The Ready Screen
The Ready screen shows the product name and the short total for that
product. The short total is simply the sum of loads since you last cleared
the total.
When the Ready screen is displayed, the Loadrite is in Total mode and is
ready to weigh.
Ready
02:40PM
3400
The Loadrite is ready to weigh
Time
Current total loaded
Weighing a Load
(Weights shown are examples only)
Loadrite is ready to
weigh.
(Current total 3400)
Ready
02:40PM
3400

LOADRITE FORCE OPERATING MANUAL
7

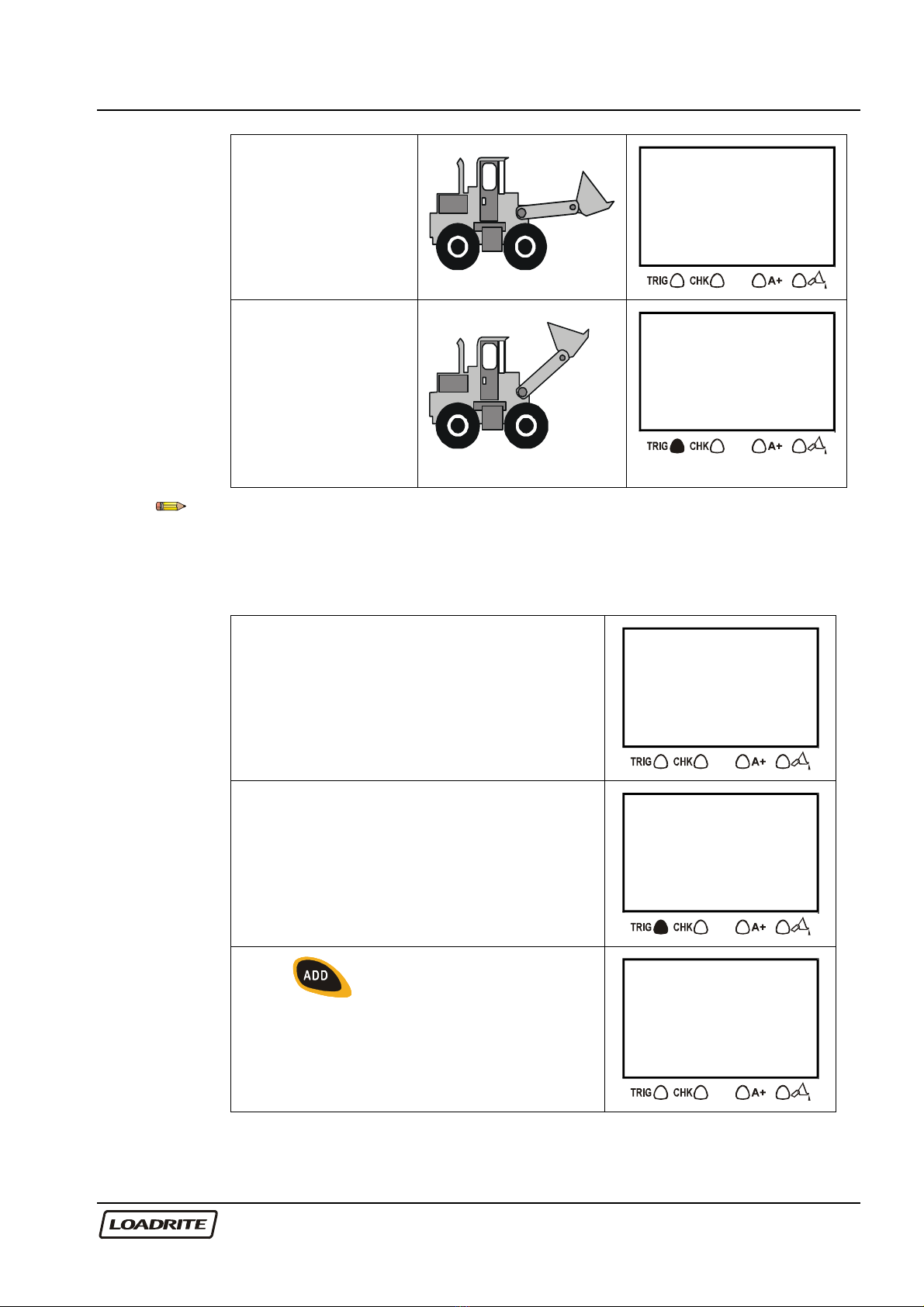

Raise the load
smoothly past the
trigger point using
normal engine revs.
The bucket must be
fully rolled back
during weighing.
Weighing
3400
A short time later,
the Loadrite beeps,
turns the TRIG
indicator light on
and displays the
load lifted (2200).
Total
2200
3400
The trigger point is where the magnet passes the body of the trigger.
Adding a Load
(Weights shown are examples only)
Before lifting:
(Current total 5600)
Ready
02:40PM
5600
Raise the load smoothly past the trigger
point using normal engine revs.
The Loadrite beeps and displays the load.
(Weight of load 2200)
Total
2200
5600
Press .
The Loadrite updates the total and returns
to the Ready state.
(New total 7800)
Ready
02:40PM
7800

LOADRITE FORCE OPERATING MANUAL
8
Clearing the Short Total
(Weights shown are examples only)
When you want to reset the short total to
zero (e.g. after loading a truck) ready for
another loading operation,
Press .
Ready
02:40PM
7800
The Loadrite briefly displays the short total
for the current product … Total
7800
…then displays Total Cleared for a few
seconds, and then … Total
Cleared
…returns to the Ready screen. Ready
02:40PM
0
Zeroing
It is required to zero the Loadrite from time to time. This is to avoid
inaccurate readings due to build up of material in the bucket.
(Weights shown are examples only)
Before lifting:
Make sure that the bucket is empty and
fully rolled back.
Ready
02:40PM
0

LOADRITE FORCE OPERATING MANUAL
9
Raise the bucket smoothly past the trigger
point.
The Loadrite beeps and displays the load.
Total
20
0
Press .
The Loadrite performs the zero adjustment
and returns to the Ready state.
Ready
02:40PM
0
More detailed information about Zeroing can be found on page 14.

LOADRITE FORCE OPERATING MANUAL
10
4 Weighing Overview
Weighing Modes
While individual bucket weight can be measured, the Loadrite also has an
ability to accumulate how much weight you have loaded on to a truck. The
main weighing modes are shown in the following table. The modes that are
available in a particular Loadrite depend on the installation.
Mode Description
Total As you add bucket loads, the weights are added to the totals.
The short total is displayed.
Target A target weight is entered into the Loadrite. As you add bucket
loads, the remaining value to reach the target is displayed.
The normal mode of operation is Total mode, which uses the Ready
screen. To return to Total mode from Target mode, press and hold
.
Short and Long Totals
The Loadrite keeps a total of the bucket weights that you add, of which two
independent totals are stored.
Short Total Typically used to display the total weight lifted
onto a truck.
As you add successive loads, the Loadrite
displays the updated Short Total (sum of the
loads so far) on the Ready screen.
Long Total Typically used to accumulate the weights lifted
over a longer period, for example a shift or a
day.
Long Total may be viewed via the menu.
(See page 18.)
Accurate Weighing
For accurate weighing, make sure that:
• The bucket or forks are fully rolled back for each lift.

LOADRITE FORCE OPERATING MANUAL
11
• The loader is stationary (for best accuracy).
• The lift arms start well below the trigger point (see note on page 7). This
ensures that all acceleration and load bounce has been eliminated well
before the weighing sequence begins.
• The Loadrite is correctly zeroed. (Zeroing is described on page 14).
General Method of Weighing
1. BUCKET BACK. After picking up material into the bucket, roll the
bucket back.
2. LIFT. Raise the load smoothly past the trigger point using normal
engine revs. (The trigger point is where the metal plate passes the
body of the trigger). For best results, operate the lift lever before
accelerating the engine so that the machine does not rock as it lifts.
The Loadrite beeps, turns the TRIG light on and displays the load.
(See also page 6).
3. ADD. The Loadrite waits for a few seconds for you to take one of the
following actions:
• Press to add the weight to the long and short totals, or
• Press to subtract the load from the totals, or
• Press to zero the measuring system.
If you don’t press a key, the Loadrite beeps and prompts you to take
action. The Loadrite then counts down and if you still don't press a
key, it discards the weight and goes back to the Ready state.

LOADRITE FORCE OPERATING MANUAL
12
5 Weighing Procedures
Adding a Load
This function adds the lifted weight to the short and long totals for the
current product.
To Add a load
(Weights shown are examples only)
Before the load is lifted:
(Current total 5600)
Ready
02:40PM
5600
Raise the load smoothly past the trigger
point.
The Loadrite beeps and displays the load.
(Weight of load 2200)
Total
2200
5600
Press .
The Loadrite updates the total and returns
to the Ready state.
(New total 7800)
Ready
02:40PM
7800
The Loadrite has an option to use a remote add button. If fitted, the remote
add button is normally mounted on the lift lever. The remote add button can
be used instead of / as well as the add button on the keyboard.
Lift lever
Remote Add button

LOADRITE FORCE OPERATING MANUAL
13
In Target mode, the display is different. For details, see Target Mode on
page 21.
Auto Add
Auto Add is an optional feature that is selected during installation. If Auto
Add is enabled, the Loadrite can automatically operate the ADD function
every time a load is lifted past the trigger point.
The Auto Add indicator light illuminates
when the Loadrite is in Auto-Add mode. Ready
02:40PM
5600
To turn on/off auto add function
1. Press twice to access user menu.
2. Use to scroll to Auto Add.
3. Press to select.
4. Use to adjust the setting.
5. Press to accept the setting.
If Auto Add is on:
• The procedure for zeroing is different. See page 16.
Subtracting a Load
This function can be useful when only part of a final bucket load of loose
material is required. You can add the full bucket load and then re-weigh
and subtract the amount remaining in the bucket.
Another example is when a log has been added and then removed from a
truck.

LOADRITE FORCE OPERATING MANUAL
14
To subtract a Load
(Weights shown are examples only)
Before the load Is lifted:
(Current total 5600)
Ready
02:40PM
5600
Raise the load smoothly past the trigger
point.
The Loadrite beeps and displays the load.
(Weight of load 2200)
Total
2200
5600
Press .
The Loadrite updates the total and returns
to the Ready state.
(New total 3400)
Ready
02:40PM
3400
In Target mode, the display is different. For details, see Target Mode on
page 21.
Zeroing
When you raise an empty bucket past the trigger point, the display should
read zero. However, due to build up of material in the bucket, a small zero
error may occur.
Zero error affects the accuracy of lifted weights.
