LoadSurfer WH20L-65 User manual

Operate manual & Parts manual
Hand Pallet Truck with BF Integrated Pump
WH20L-65 WH25L-65
PWH25-II PWH30-II PWH35-II
(85mm standard & 75mm profile)
Note: Owner and operator MUST read and understand this
operating instructions before use this pallet truck.

1
ATTENTION:
1. The waste packages should be sorted and put into solid dustbins according to the
materials and be collected disposal by local special environment protection bureau.
To avoid pollution, it’s forbidden to throw away the wastes randomly.
2. To avoid leaking during the use of the products, the user should prepare some
absorbable materials (scraps of wooden or dry duster cloth) to absorb the leaking
oil in time. To avoid second pollution to the environment, the used absorbable
materials should be handed in to special departments in terms of local authorities.
Thank you for choosing our pallet truck. For your safety and correct
operation, please carefully read the manual before use.
NOTE: All of the information reported herein is based on data available at the time of printing. The
factory reserves the right to modify its own products at any time without notice or incurring in any
sanction. Please verify with the factory for possible updates.
1. GENERAL SPECIFICATIONS
Model No.
WH20L-65
WH25L-65
PWH25-II
PWH30-II
PWH35-II
Type
Profile
Standard (85mm)
Min. Fork Height
mm
65
75
85
Max. Fork Height
mm
180
190
200
Load Capacity
kg
2000/2500
2500
3000
3500
Fork Length
mm
1150/1220
Width Overall Forks
mm
520/540/685
Individual Fork Width
mm
160
Double load wheel
mm
Ø60*70
Ø74x70
Ø80x70
Single load wheel
mm
Ø60*93
Ø74x93
Ø80x93
Type of load wheel
Nylon or PU(Polyurethane)
Steering Wheel size
mm
Ø160*50
Ø180*50
Ø200*50 or Ø180*50
Type of steering wheel
Nylon or PU(Polyurethane) or Rubber
Special fork length are available 800, 900, 950, 1000, 1500, 2000mm.
Materials and specification are subject to change without notice.
2. TO ATTACH HANDLE TO PUMP UNIT
If you have purchased a wooden box of pallet truck, some assembly is required. Certainly, you
need some tools, a hammer, a pliers, a spanner, etc; and some parts, one axle with hole, two
elastic pins (Note one is in the axle), these parts are putted in a plastic bag, which is putted into
the draw-bar.
NOTE: The number of draw-bar and pump should be the same.

2
. Draw-bar 2. Pin 3. Axle with hole 4. Elastic pin 5. Fork frame
(Fig. 1)
When attaching the handle, you had better squat just behind the pallet truck. Then you:
2.1. Insert the draw-bar onto the pump piston (A),then use a hammer to insert the axle with
hole(K) into the hydraulic pump and draw-bar from the right to left. (See fig. 2 ).
2.2. Let control handle to the ‘LOWER’ position, then pass
the adjusting nut (G), adjusting bolt (F) and chain (E)
through the hole of axle(K) with your hand (See fig. 3)
2.3. Press the draw-bar (D) down, take away the pin(#2) (See Fig. 1).
2.4. Let the control handle on ‘RAISE’ position, then raise the lever plate (J) with the pin ( #2)
and insert the adjusting bolt(F) into the front slot of lever plate, note to keep the adjusting
nut (G) on the under side of the lever plate(J).
2.5 Use a hammer to tap another elastic pin into the axle with hole (K). The Draw-bar is now
assembled to the pump.
Fig.2
Fig.3

3
3. TO ADJUST RELEASE DEVICE
On the draw-bar of this pallet truck, you can find the control handle which can be regulated in three
positions :
Raise - handle down
Drive position - handle in center position
Lower - handle up, the lever moves back the drive position when released.
If however they have been changed, you can adjust according to following step:
3.1 If the forks elevate while pumping in the DRIVE position, turn the adjusting nut on the adjusting
bolt or adjusting screw clockwise until pumping action does not raise the forks and the DRIVE
position functions properly.
3.2 If the forks descend while pumping in the DRIVE position, turn the nut or adjusting screw
counter-clockwise until the forks do not lower.
3.3 If the forks do not descent when the control handle is in the LOWER position, turn the nut or
adjusting screw clockwise until raising the control handle lowers the forks. Then check the DRIVE
position according to item 3.1 and 3.2 to be sure the nut or adjusting screw is in the proper position.
3.4 If the forks do not elevate while pumping in the RAISE position, turn the nut or adjusting screw
counter-clockwise until the forks elevate while pumping in the RAISE position. Then check the
LOWER and DRIVE position according to item 3.1, 3.2 and 3.3.
4.
5. MAINTENANCE
Your pallet truck is largely maintenance-free.
4.1 Hydraulic Oil
Please check the oil level every six months. The oil capacity is about 0.3lt. Use the hydraulic type
oil according to temperature scale below.
Temperature
Oil
-20℃~+40℃
L-HV46 Hydraulic oil
4.2 HOW TO EXPEL AIR FROM THE PUMP UNIT
The air may come into the hydraulic oil because of transportation or pump in upset position. It can
cause that the forks do not elevate while pumping in the RAISE position. The air can been banished
in the following way: let the control handle on the LOWER position, then move the handle up and
down for several times.
4.3 DAILY CHECK AND MAINTENANCE
Daily check of the pallet truck can limit wear as much as possible. Special attention should be paid
to the wheels, the axles, as thread, rags, etc. It may block the wheels. The forks should be
unloaded and lowered in the lowest position when the job is over.

4
4.4 LUBRICATION
Use motor oil or grease to lubricate all moveable parts.
6. GUIDE TO SAFETY OPERATION
For safe operation of the Hand Pallet Truck, please read all warning signs and instructions
here and on the pallet truck prior to use.
6.1 Do not operate the pallet truck unless you are familiar with it and have been trained or
authorized to do so.
6.2 Do not operate the truck unless you have been trained and authorized. Give special attention to
the wheels, the handle assembly, the forks, and the lower control.
5.3 Do not use the truck on sloping ground.
5.4 Never place any part of your body in the lifting mechanism or under the forks or load. Do not
carry passengers.
5.5 We advise that operators should wear gloves and safety shoes.
5.6 Do not handle unstable or loosely stacked loads.
5.7 Do not overload the truck.
5.8 Always place loads centrally across the forks and not at the end of the forks (See Fig. 2).
5.9 The capacity of the truck assumes an evenly distributed load with the centre of the load being
at the halfway point of the length of the forks.
5.10 Make sure that length of the forks matches the length of the pallet.
5.11 Lower the forks to lowest height when the truck is not being used.
5.12 In other specific conditions the operators should take extra care in operating the truck.
6. TROUBLES SHOOTING
No
Trouble
CAUSE
ACTION
1
The forks can
not be up the
max. height.
-The hydraulic oil is not enough.
- Pour in the oil.
2
The forks can
not be lifted up.
- Without hydraulic oil.
- The oil has impurities.
- The nut is too high or the screw is too
close, keep the pumping valve open.
- Air come into the hydraulic oil.
- Fill in the oil.
- Change the oil.
- Adjust the nut or the
screw .(see item 3.4)
- Banish the air.(see item 4.2)
3
The forks can
not be
descended.
- The piston rod or pump body is
deformed resulting from partial loading
slanting to one side or over-loading.
- The fork was kept in the high position
for long time with piston rod bared to
arise in rusting and jamming of the rod.
- The adjusting nut or the screw is not
in the correct position.
- Replace the piston rod or
pump body.
- Keeping the fork in the lowest
position if not using, and pay
more attention to lubricate the
rod.
- Adjust the nut or the screw.
(see item 3.3)
4
Leaks
- Sealing parts worn or damaged.
- Some part cracked or worn into small.
- Replace with the new one.
- Replace with the new one.

5
5
The fork
descends
without the
release valve
worked.
- The impurities in the oil cause the
release valve to be unable to close
tight.
- Some parts of hydraulic system is
cracked or bored.
- Air come into the oil.
- Sealing parts worn or damaged.
- The adjusting nut or the screw is not in
the correct position.
- Replace with new oil.
- Inspect and replace the waste
parts.
- Banish the air. (See item 4.2)
- Replace with the new one.
- Adjusting the nut or the screw .
(See item 3.2)
*NOTE: DO NOT ATTEMPT TO REPAIR THE PALLET TRUCK UNLESS YOU ARE TRAINED
AND AUTHORIZED TO DO SO.

6

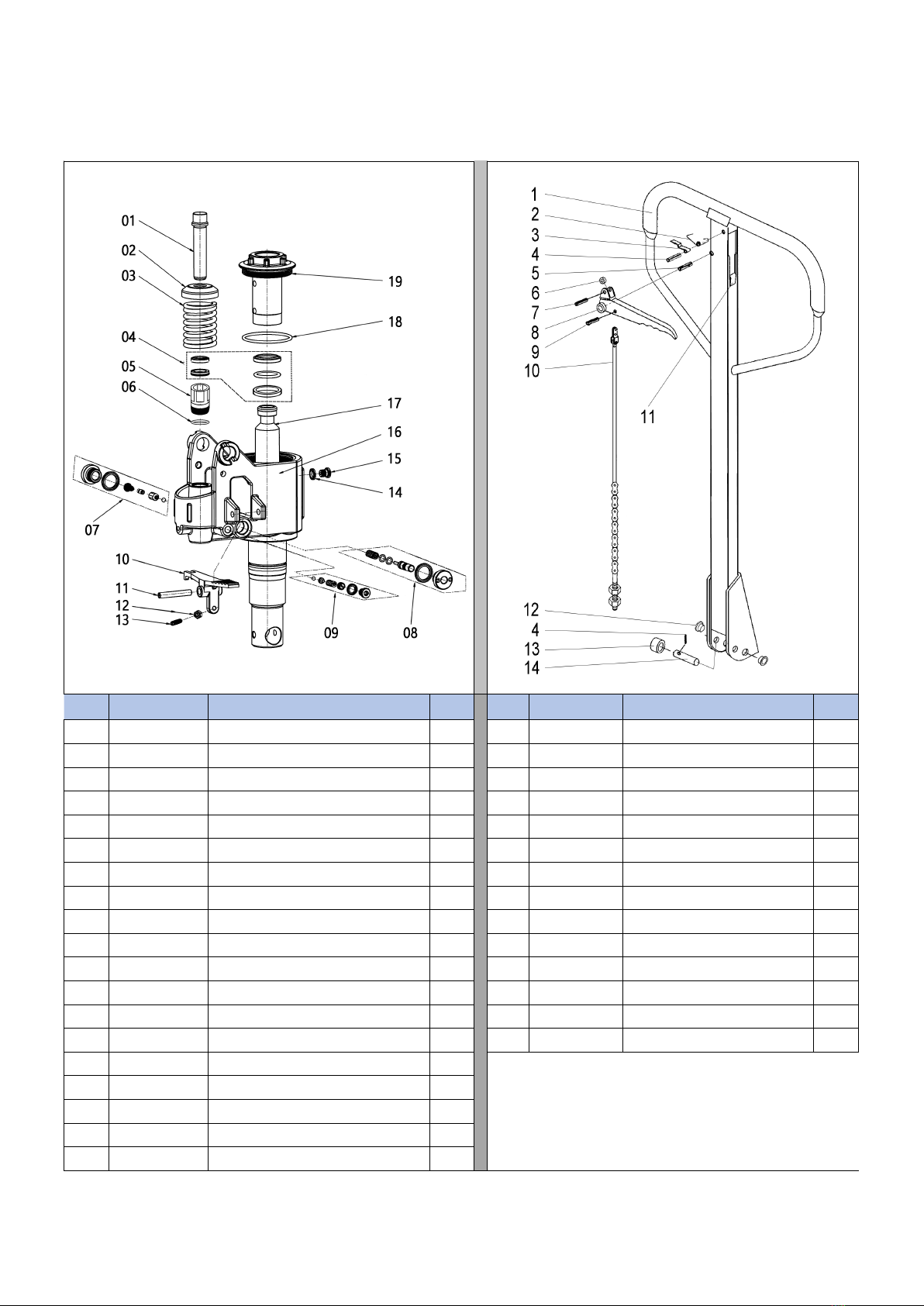

General parts for PWH25-II/PWH30-II/PWH35-II
No
Part No.
Description
Qty
No
Part No.
Description
Qty
1
17010101
Handle assembly
1
20
17010116
PU Steering wheel Ø180*50
2
2
17010102
Chasis (540*1150) (2.5T/3T)
1
17010117
Nylon Steering wheel Ø180*50
2
17010102-1
Chasis (685*1220) (2.5T/3T)
1
17010116-1
PU Steering wheel Ø200*50
2
17010102-2
Chasis (540*1150) (3.5T)
1
17010117-1
Nylon Steering wheel Ø200*50
2
17010102-3
Chasis (685*1220) (3.5T)
1
17010116-2
Rubber Steering wheel Ø180*50
2
3
17010103
Rocker arm 550 (2.5T/3T)
1
17010117-2
Rubber Steering wheel Ø200*50
2
17010104
Rocker arm 685 (2.5T/3T)
1
21
17010123
Hex bolt M6×50
2
17010103-1
Rocker arm 550 for (3.5T)
1
22
17010124
Axle 16×40
12
17010104-1
Rocker arm 685 for (3.5T)
1
23
17010143
Locknut M6
2
4
17010105
Steering wheel shaft 25*170
1
24
17010126
Rod end
2
5
17010106
Locknut M8(Matching with item 11)
1
25
17010127
Axle 16×49
2
6
17010107
BF pump assembly (2.5T/3T)
with Ø180 steering wheel
1
26
17010128
Snap ring 16
6
27
17010129
Push rod 1150 (2.5T/3T)
2
17010107-1
BF pump assembly (2.5T/3T)
with Ø200 steering wheel
1
17010129-1
Push rod 1220 (2.5T/3T)
2
17010129-2
Push rod 1150 (3.5T)
2
17010107-2
BF pump assembly (3.5T)
with Ø180 steering wheel
1
17010129-3
Push rod 1220 (3.5T)
2
28
17010130
Rocker shaft 550
1
17010107-3
BF pump assembly (3.5T)
with Ø200 steering wheel
1
17010130-1
Rocker shaft 685
1
29
17010131
Snap ring 25
2
7
17010108
Steel ball Φ19
1
30
17010132
PU single load wheel Ø80*93
2
8
17010109
Shaft for handle 20*103
1
17010133
Nylon single load wheel Ø80*93
2
9
17010110
Spring pin 5×35
1/9
31
17010134
Axle 20×94
4
10
17010111
Hex screw M6×12
1
32
17010135
PU double load wheel Ø80*70
4
11
17010112
Bolt M8×55(Matching with item 5)
1
17010136
Nylon Double load wheel Ø80*70
4
17010112-1
Spring pin 8*50 (New design)
1
33
17010137
Plate
4
12
17010113
Bearing 51111
1
34
17010138
Shaft 16×92
2
13
17010114
Supporting seat
1
35
17010139
Shaft 20×154
2
14
17010115
Snap ring 55
1
36
17010140
Shaft 20×122
2
15
17010120
Grease nipple
1
37
17010141
Wheel fork
2
16
17010118
Bearing 6204-2RS
8/12
38
17010144
Wheel 50×36
2
17
17010119
Gasket
2
39
17010125
Spring pin 5×30
2
18
17010121
Snap ring 20
2
40
17010145
Spring pin 5×32
2/4
19
17010122
Dust cap
2
41
17010142
Nut M20*9
2

7
General parts for WH20L-65/WH25L-65(with 65mm profile)
& PWH25-II-75(with 75mm profile)
No
New P/N
Description
QTY
No
New P/N
Description
QTY
1
17010101
Handle assembly
1
22
17010124
Axle 16×40
12
2
17010102
Chasis (540*1150) (75 low profile)
1
23
17010143
Locknut M6
2
17010102-1
Chasis (685*1220) (75 low profile)
1
24
17010126
Rod end
2
17010102-2
Chasis (540*1150) (65 low profile)
1
25
17010127
Axle 16×49
2
17010102-3
Chasis (685*1220) (65 low profile)
1
26
17010128
Snap ring 16
4
3
17010103
Rocker arm 550
1
27
17010129
Push rod 1150
2
17010104
Rocker arm 685
1
17010129-1
Push rod 1220
2
4
17010105
Steering wheel shaft 25*170
1
28
17010130
Rocker shaft 550
1
5
17010106
Locknut M8(Matching with item 11)
1
17010130-1
Rocker shaft 685
1
6
17010107-1
BFi pump assembly for (75 low profile)
1
29
17010131
Snap ring 25
2
17010107-4
BFi pump assembly for (65 low profile)
1
30
17010132-2
PU single load wheel Ø74*93 (75 low profile)
2
7
17010108
Steel ball Φ19
1
30
17010133-6
Nylon Single load wheel Ø74*93 (75 low profile)
2
8
17010109
Shaft for handle 20*103
1
30
17990008-4
PU single load wheel Ø60*93 (65 low profile)
2
9
17010110
Spring pin 5×35
12/16
30
17990008-5
Nylon Single load wheel Ø60*93 (65 low profile)
2
10
17010111
Hex screw M6×12
1
31
17010134
Axle 20×94 (75 low profile)
4
11
17010112
Bolt M8×55(Matching with item 5)
1
17010134-1
Axle 17×94 (65 low profile)
4
17010112-1
Spring pin 8*50 (New design)
1
32
17990008
PU Double load wheel Ø74*70 (75 low profile)
4
12
17010113
Bearing 51111
1
17990008-2
Nylon Double load wheel Ø74*70 (75 low profile)
4
13
17010114
Supporting seat
1
17990008-6
PU Double load wheel Ø60*70 (65 low profile)
4
14
17010115
Snap ring 55
1
17990008-7
Nylon Double load wheel Ø60*70 (65 low profile)
4
15
17010120
Grease nipple
1
33
17010137
Plate (75 low profile)
4
16
17010118
Bearing 6204-2RS (75 low profile)
8/12
17010137-1
Plate small (65 low profile)
4
17010118-1
Bearing 6203-2RS (65 low profile)
8/12
34
17010138
Shaft 16×92
2
17
17010119
Gasket
2
35
17010139-1
Shaft 16*152 (75 low profile)
2
18
17010116
PU Steering wheel Ø180 (75 low profile)
2
17010139-1
Shaft 16*154 (65 low profile)
2
17010117
Nylon Steering wheel Ø180 (75 low profile)
2
36
17010140
Shaft 20×122
2
17010116-2
Rubber Steering wheel Ø180 (75 low profile)
2
37
17010141
Wheel fork (75 low profile)
2
17020112
PU Steering wheel Ø160 (65 low profile)
2
17010141-1
Wheel fork (65 low profile)
2
17020113
Nylon Steering wheel Ø160 (65 low profile)
2
38
17010144
Wheel 50×36
2
17020113-2
Rubber Steering wheel Ø160 (65 low profile)
2
39
17010125
Spring pin 5×30
2
19
17010121
Snap ring 20
2
40
17010145
Spring pin 5×32
2/4
20
17010122
Dust cap
2
41
17010142
Nut M20*9
2
21
17010123
Hex bolt M6×50
2

8
Pump & handle parts details
PWH25-II PWH30-II
No.
Part No.
Description
Qty
Item
Parts No.
Parts details
Qty
01
17010201
Small pump core
1
1
17010316
Draw-bar
1
02
17010202
Cover of spring
1
2
17010327
Torsional Spring
1
03
17010205
Big spring
1
3
17010310
Blade Spring
1
04
17010332
Pump seals kit Ø31.5 for 2.5T/3T
1
4
17010311
Spring Pin 4x30
2
05
17010360
Small cylinder
1
5
17010314
Spring Pin 6x30
1
06
17010361
Copper gasket
1
6
17010312
Roller
1
07
17010328
Check valve
1
7
17010313
Spring Pin 4x17
1
08
17010330
Relief valve
1
8
17010315
Control Handle
1
09
17010329
Safety valve
1
9
17010333
Spring Pin 4x13
1
10
17010302
Lever plate
1
10
17010335
Release rod & chain assy.
1
11
17010303
Spring pin 8×50
1
11
17010331
Rubber pad
1
12
17010227
Nut
1
12
17010325
Bushing 20*15
2
13
17010301
Bolt
1
13
17010318
Pressure Roller 26*14*22
1
14
17010219
Seal washer
1
14
17010317
Roller Axle 12*60
1
15
17010220
Bolt
1
16
17010213
Pump body
1
17
17010309
Piston rod Ø31.5 for 2.5T/3T
1
18
17010305
O-ring 69×2.65
1
19
17010306
Slide bushing Ø31.5 for 2.5T/3T
1

9
Pump & handle parts details for PWH35-II
Item
Parts No.
Parts details
Qty.
Item
Parts No.
Parts details
Qty.
01
17010201
Small pump core
1
1
17010316
Draw-bar
1
02
17010202
Cover of spring
1
2
17010327
Torsional Spring
1
03
17010205
Big spring
1
3
17010310
Blade Spring
1
04
17010332-1
Pump seals kit Ø35 for 3.5T
1
4
17010311
Spring Pin 4x30
2
05
17010360
Small cylinder
1
5
17010314
Spring Pin 6x30
1
06
17010361
Copper gasket
1
6
17010312
Roller
1
07
17010328
Check valve
1
7
17010313
Spring Pin 4x17
1
08
17010330
Relief valve
1
8
17010315
Control Handle
1
09
17010329
Safety valve
1
9
17010333
Spring Pin 4x13
1
10
17010302
Lever plate
1
10
17010335
Release rod & chain assy.
1
11
17010303
Spring pin 8×50
1
11
17010331
Rubber pad
1
12
17010227
Nut
1
12
17010325
Bushing 20*15
2
13
17010301
Bolt
1
13
17010318
Pressure Roller 26*14*22
1
14
17010219
Seal washer
1
14
17010317
Roller Axle 12*60
1
15
17010220
Bolt
1
16
17010213
Pump body
1
17
17010309-2
Piston rod Ø35 for 3.5T
1
18
17010305
O-ring 69×2.65
1
19
17010306-2
Slide bushing Ø35 for 3.5T
1

10
Pump & handle parts details
WH20L-65/WH25L-65 & PWH25-II-75(with 75mm profile)
No.
New P/N
Description
QTY
Item
Parts No.
Parts details
Qty.
01
17010201
Small pump core
1
1
17010316
Draw-bar
1
02
17010202
Cover of spring
1
2
17010327
Torsional Spring
1
03
17010205
Big spring
1
3
17010310
Blade Spring
1
04
17010332
Pump seal kits
1
4
17010311
Spring Pin 4x30
2
05
17010360
Small cylinder
1
5
17010314
Spring Pin 6x30
1
06
17010361
Copper gasket
1
6
17010312
Roller
1
07
17010328
Check valve
1
7
17010313
Spring Pin 4x17
1
08
17010330
Relief valve
1
8
17010315
Control Handle
1
09
17010329
Safety valve
1
9
17010333
Spring Pin 4x13
1
10
17010302
Lever plate
1
10
17010335
Release rod & chain assy.
1
11
17010303
Spring pin 8×50
1
11
17010331
Rubber pad
1
12
17010227
Nut
1
12
17010325
Bushing 20*15
2
13
17010301
Bolt
1
13
17010318
Pressure Roller 26*14*22
1
14
17010219
Seal washer
1
14
17010317
Roller Axle 12*60
1
15
17010220
Bolt
1
16
17010213
Pump body
1
17
17010309
Piston rod standard for 75 low profile
1
17010309-1
Piston rod special for 65 low profile
1
18
17010305
O-ring 69×2.65
1
19
17010306
Slide bushing Ø31.5
1
