Locinox MAMMOTH User manual

MAMMOTH
Manual - English
1. Introduction
Thank you for choosing a Locinox gatecloser! Please read the following
instructions carefully before mounting the Mammoth & Rhino to your swing
gate. Enclosed you will nd all relevant user information concerning the
Mammoth.
2. Package Contents
Please check if your package contains the following items:
Please contact your supplier should any of the above items be damaged or
missing.
1Mammoth gatecloser
2Rhino hinge
3Allen keys 10 - 5 - 3
4Cover cap
5Hexplugs
6Drilling templates
*TEMP-000013*
Doc. Nr.:
TEMP-000013
MAMMOTH
Ø 15 mm
Ø 5/8”
Ø 15 mm Ø 5/8”
140 mm - 5 - 1/2”
UP
20 mm
25/32”
UP
*TEMP-000012*
Doc. Nr.:
TEMP-000012
MAMMOTH
140 mm - 5 - 1/2”
Ø 15 mm Ø 5/8”
Ø 15 mm Ø 5/8”
20 mm
25/32”
40 mm - 1-9/16”
*TEMP-000014*
Doc. Nr.:
TEMP-000014
RHINO
20 mm
25/32”
RHINO
20 mm
25/32”
Doc. Nr.:
TEMP-000015
1
2
3
4
5
6
www.GateHardwareKing.com | [phone]

2

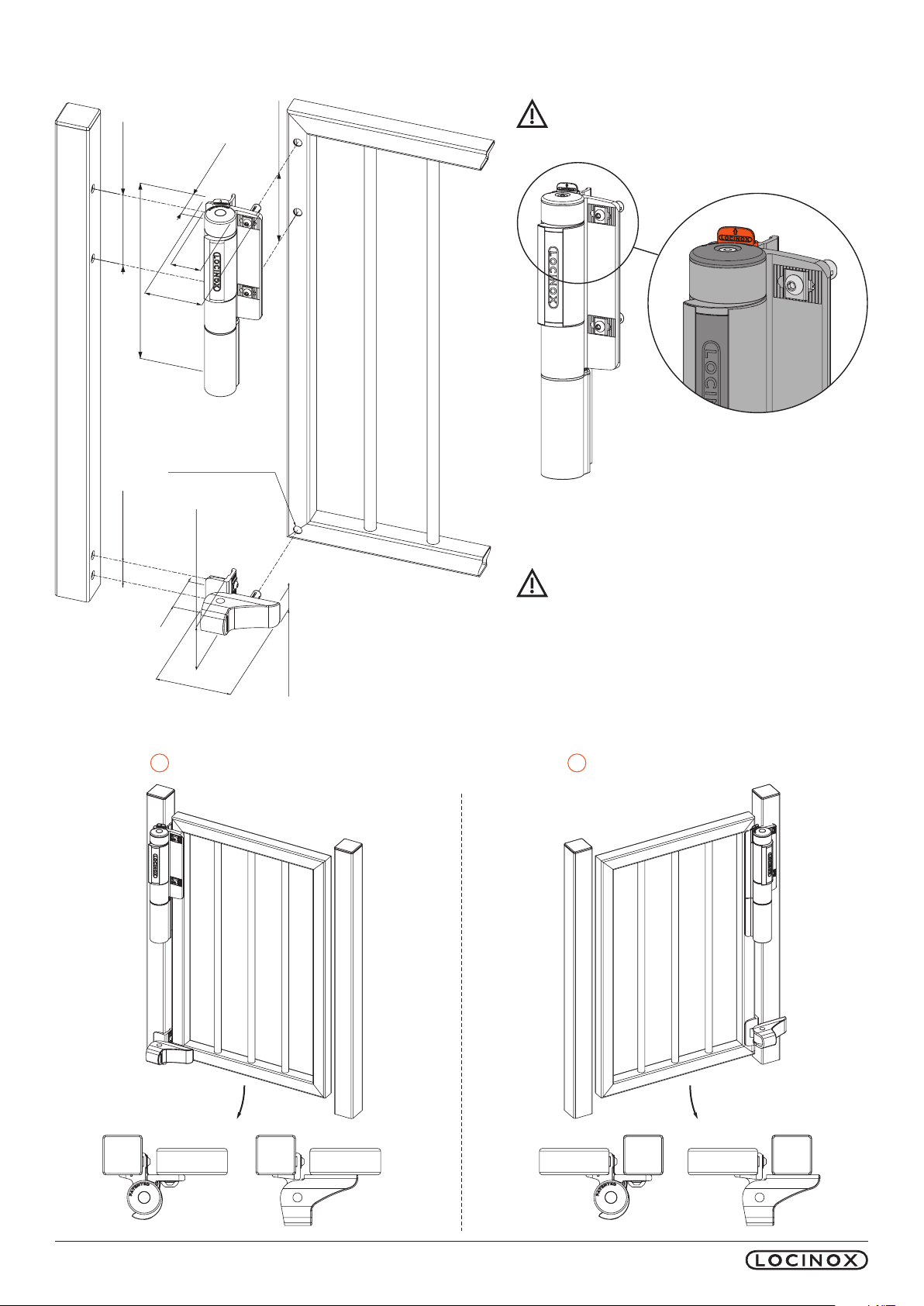

3. Dimensions
5. Choose the turning-direction of your gate
4. Do not remove te orange plug before mounting
5-9/16”
14”
4”
2”
2-1/4”
1-9/16”
3”
3-1/2”
5”
1-3/4
”
5-9/16”
Ø 5/8” (7x)
The orange plug garantees a perfect 90° angle between
the mounting wings of the gatecloser. Leave this plug in
place during installation.
Before preparing your proles, decide if you have a left- or
right hand door. The xing of Mammoth and Rhino are
different for each situation!
6. Prole preparation
ALeft hand door BRight hand door
www.GateHardwareKing.com | [phone]

3
ALeft hand door BRight hand door
Stick the templates to gate and post. Make sure that front and side are stuck correctly.
Align both templates using a spirit level
FRONT
SIDE
FRONT
SIDE
www.GateHardwareKing.com | [phone]

4
ALeft hand door BRight hand door
Center and drill the holes marked on the templates.
Tighten the Quick-Fix. Always start with the L-side of the Mammoth and Rhino.
Tighten the Quick-Fix. After xing the L-side you can tighten the other wing of the Mammoth and Rhino.
www.GateHardwareKing.com | [phone]

5
7. Speed and nal snap adjustment
8. Force adjustment
+
Out of the box the product is set to maximum closing-force. We advise not to adjust closing-force unless in specic situations where a lower opening force is
required.
Start with removing the covercap. Insert Allen key and push down rmly to disengage. Turn clockwise to decrease the spring-force. Spring can be clutched
every 90°. Don’t exercise excessive forces on the Allen key.
www.GateHardwareKing.com | [phone]

6
8. Finalysing the installation
Before nishing the product with covercaps & plugs, make sure you well tested the nal snap, speed and force adjustments.
