Locomarine PRO 5 Series User manual
Installation Manual
version 1.0
The easiest way to stay online.
YACHT ROUTER
SERIES 5
PRO
2
Read carefully.
For better understanding check video tutorials on our website.
Register your product for software update notications.
Thank you.
3
COPYRIGHT NOTICE
Locomarine Networks d.o.o. reserves the rights to alter the products described in this manual at any time without prior notice. This document contains proprietary information protected by
copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
Information provided in this manual is intended to be accurate and reliable. However, Locomarine Networks d.o.o. assumes no responsibility for use of this manual, nor for any infringements
upon the rights of third parties, which may result from such use.
RoHS COMPLIANT
All devices in the Yacht Router series comply with the Restriction of Hazardous Materials (RoHS) Directive. This means that all components used to build Yacht Router and add-on modules are
RoHS compliant. The RoHS Directive bans placing on the EU market new electrical and electronic equipment containing more than agreed levels of lead, cadmium, mercury, hexavalent chromium,
polybrominated biphenyl (PBB) and polybrominated diphenyl ether (PBDE) ame retardants.
INTRODUCING YACHT ROUTER SOLUTION
Yacht Router with add-on modules is a complete network infrastructure solution for yacht or boat of any size. Yacht Router devices with add-on modules will help you to easily install, setup and
control Internet connection on your yacht. The most important part of Yacht Router solution is the software which controls complete system. It is designed by professionals specialized in yacht
communication systems in collaboration with experienced yacht captains. The result is a system that is simple to operate, maintain and control. Underneath simple touch user interface, Yacht
Router with add-on modules is a solution with an industry level of reliability, performance and unprecedented level of security.
DISCLAIMER AND WARNING
The contents of this manual are well prepared by Locomarine Networks d.o.o.
While we try to improve our equipment at all times, Locomarine Networks d.o.o. shall incur no liability based on contents, updates or modication of the contents, or the lack of contents in this
manual.
Because of the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e, have errors) or be totally lost. Although
signicant delays or losses of data are rare when wireless devices such as the Yacht Router are used in a normal manner with a well-constructed network, the Yacht Router device and additional
modules should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury,
death, or loss of property. Locomarine Networks d.o.o. and its aliates accept no responsibility for damage of any kind resulting from delays or errors in data transmitted or received using the
Yacht Router device, or for failure of the Yacht Router device to transmit or receive such data.
The equipment said in this manual must only be used for what it was designed.
Improper operation or installation may cause damage to the equipment or personal injury. Locomarine Networks d.o.o. will not incur any liability of equipment damage or personal injury
due to improper use or installation of the equipment. It is strongly recommended to read this manual and the following safety instructions before proceeding to installation or operation.
PREFACE
4
SAFETY AND HAZARD
Do not operate your Yacht Router and/or add-on modules:
In areas where blasting is in progress.
Where explosive atmospheres may be present including refuelling points, fuel depots, and chemical plants.
Near medical equipment, life support equipment, or any equipment which may be susceptible to any form of radio interference.
In such areas, Yacht Router and add-on modules MUST BE POWERED OFF. Otherwise, they can transmit signals that could interfere with this equipment.
In an aircraft, the Yacht Router and add-on modules MUST BE POWERED OFF. Otherwise, the Yacht Router and addon modules can transmit signals that could interfere with various on-board
systems and may be dangerous to the operation of the aircraft or disrupt the cellular network. Use of cellular and WIFI equipment in an aircraft is illegal in some jurisdictions. Failure to
observe this instruction may lead to suspension or denial of cellular services to the offender, or legal action or both.
IMPORTANT: It is solely on end-user to set transmitting power value for WIFI Booster to comply with regulations of country where product will be used. Regulations and online WIFI power
calculators (EIRP - Equivalent Isotropically Radiated Power) are widely available on the Internet. Locomarine Networks d.o.o. cannot by responsible by any means for improper setup.
Transmittion power is set and regulated via Yacht Router Control software.
PREFACE
5
SAFETY INSTRUCTIONS
ELECTRICAL SHOCK HAZARD: Do not open enclosure of the equipment if you are not qualied to do it.
TURN OFF THE POWER IMMEDIATELY IF WATER LEAKS INTO THE EQUIPMENT OR AN OBJECT DROPS INTO THE EQUIPMENT:
Continue operating the equipment could cause electrical shock or re. Contact your nearest distributor or dealer for service.
DO NOT DISASSEMBLE THE EQUIPMENT OR MODIFY THE EQUIPMENT: Improper disassemble or modication could cause electrical shock, re, or personal injury.
AVOID OPERATING THE EQUIPMENT WITH WET HANDS: Electrical shocks could be resulted if operating with wet hands.
USE PROPER FUSE: Damage to the equipment or re could be resulted if using improper fuse.
TURN OFF THE POWER IMMEDIATELY IF THE EQUIPMENT IS EMITTING SMOKE OR FIRE: Continue operating the equipment could cause electrical shock or re. Contact your nearest distributor
or dealer for service.
DO NOT PLACE ANY LIQUID-FILLED CONTAINER ON TOP OF THE EQUIPMENT.
PREFACE
7
CHAPTER 1 - INTRODUCTION
1.1. ABOUT YACHT ROUTER PRO
Yacht Router Pro s5 (Yacht Router Pro in further text) is designed for installation on vessels with single or dual satellite Internet source (VSAT, Inmarsat, Iridium etc.). It will provide the ability to
establish nine vessel networks (e.g. Owner, Guests, Crew, Navigation etc) as WIFI and cable version. Each Vessel Network can be simultaneously connected to same or different Internet source.
For example: you can connect Owner network to the internet via VSAT (using additional satellite equipment), Guest network to the Internet over 4G mobile system (via additional Mobile Expander
module) while in the same time Crew network can access Internet over WIFI Hotspot in marina (via additional WIFI Booster module).
As Yacht Router Pro does not have WIFI module minimum one Networks Extenders should be isntalled. For larger installations multiple WIFI Extenders can be installed.
Schematic drawing of Yacht Router Pro capability and connectivity.
8
CHAPTER 1 - INTRODUCTION
1.2. FEATURES
• 2-5 SAT ports (for satellite Internet systems, ADSL, mobile routers)
• Optional High power 3G/4G module (30+ Nautical miles
1
)
• Optional high power WIFI Booster for long distance WIFI connectivity (10+ NM
2
)
• 9x Vessel WIFI network
• 5-8 Backbone LAN ports
• Hotel type hotspot on 8 Vessel Networks
• Mobile Expander Pro support
• Network Expander Pro support
• Multiple Network Extender support
• Online Remote support
• Free GPS tracking and anchor alarm (via NMEA to Ethernet Converter)
• Compatible with Furuno, Simrad, Lowrance, B&G, Garmin, Maretron, Sonos, Apple Airplay and other IP based systems
1 Achieved with 9dBi outdoor antenna. As actual range depends on many factors Locomarine Networks d.o.o. do not guarantee specied range of connectivity.
2 Achieved with 9dBi outdoor antenna and VIP mobile provider. As actual range depends on many factors Locomarine Networks d.o.o. do not guarantee specied range of connectivity.
9

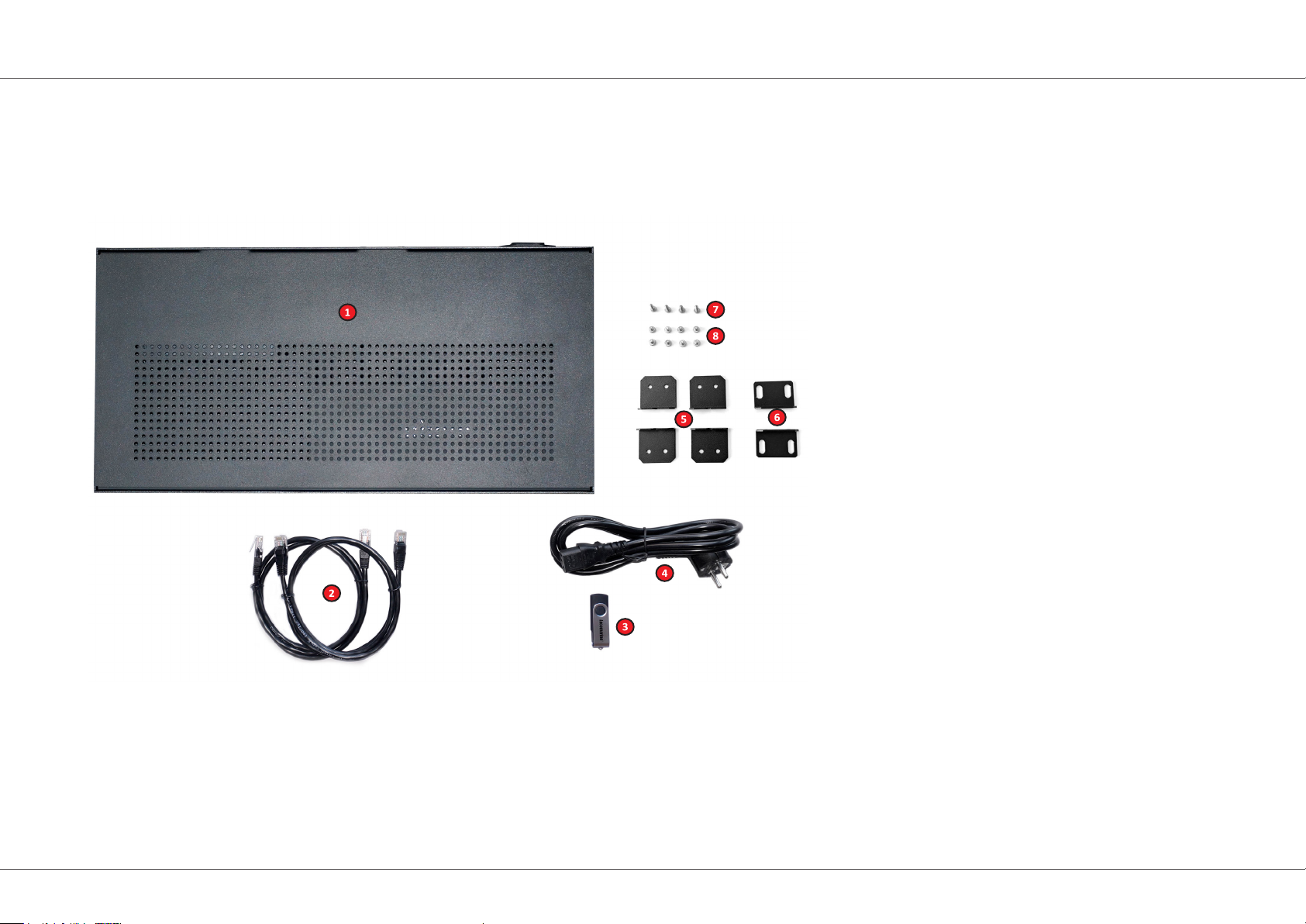

1.3. WHAT IS IN THE PACKAGE
When shipped, all devices are wrapped in plastic bags that protect them from humidity. Devices are then placed into a cardboard box. A bag containing accessory items is placed inside the box
too. List of all included components is enclosed in the package.
1- Yacht Router Pro, LYR-P05, 1 pcs
2- CAT5 cable (with connectors, 1m), CAT5-02, 2 pcs
3- Manuals & control software (on USB stick), QIG-00, 1 pcs
4- AC power cable 1.5 m, PWC-05
5- AC/DC power supply 24V/2.5A, PSU-06, 1 pcs
6- Deck mount (YR Pro s5), DMN-02, 4 pcs
7- Rack mount (YR Pro s5), RMN-02, 2 pcs
8- Fixing screw, FSC-01, 4 pcs
9- Fixing screw, FSC-02, 8 pcs
CHAPTER 1 - INTRODUCTION
10
1.4. PORTS AND CONNECTORS
Yacht Router Pro is equipped with following ports and connectors.
Reset
(not in use)
SAT 1
Backbone ports 1-8
SAT 2
Backbone SPF+
SAT 1 and SAT 2 ports
Satellite equipment input ports (VSAT, FBB, Iridium etc). It can also be used for any other Internet source equipment like ADSL or mobile router (2G/3G/4G). Yacht Router can be congured to
work with max. ve SAT ports. It you need this kind of conguration please contact our Support at suppor[email protected]
Backbone ports
Backbone ports are part of Backbone network. Backbone network is network dedicated for communication between various Yacht Router equipment like Mobile Expander Pro, Mobile Expander,
Network Expander Pro, WIFI Booster, Network Extender etc. Backbone network cannot provide Internet access.
Power supply connector
Yacht Router Pro can be powered from AC power 110-240 V. Connector is located on a back side of device.
CHAPTER 1 - INTRODUCTION
11

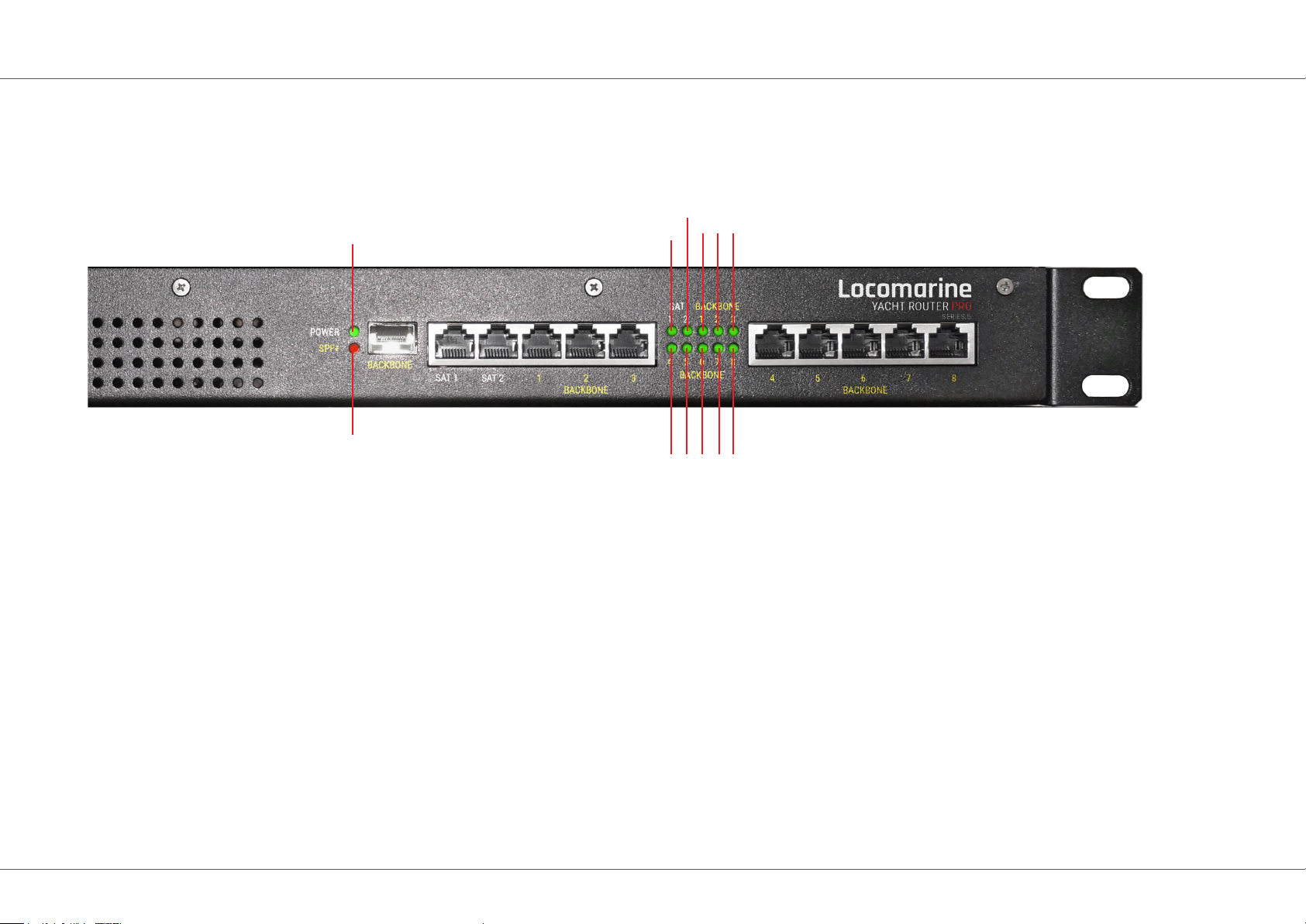

1.5. INDICATORS
Yacht Router Pro is equipped with multiple LED indicators.
Reset
(not in use)
SAT 1
SAT 2 Backbone ports 1-3
Backbone ports 4-8
PWR
SPF+
CHAPTER 1 - INTRODUCTION
12
2.1. CONNECTING ADDITIONAL MODULES AND DEVICES
Yacht Router Pro is intented to work in combination with various Add-on modules.
Mobile Expander Pro
It is device that will give you possibility to connect Yacht Router to 3G/4G mobile networks. It is equipped with four high power modems and with additional outdoor antennas it is possible to get
30+ NM offshore connection.
Mobile Expander
Instead of using Mobile Expander Pro you can install up to four Mobile Expanders. Basicaly, Mobile Expander Pro consist of four Mobile Expanders packed in single 19” rack enclosure. Another
situation when you might consider using multiple Mobile Expanders instead of Mobile Expander Pro is when you want to minimize coax cable signal loss. For example, you can install multiple
Mobile Expanders close to antennas to keep coax cable as short as possible and then connect them to Yacht Router Pro using network cable.
Network Expander Pro
Network Expander is a device that will expand Yacht Router pro with additional 24 Ethernet Gbps and 4 SFP+ 10 Gbps ports. Each port on Network Expander can be designated as Backbone or
any of nine Vessel Networks. Network Expander Pro is crutial device for building larger networks. All 24 Ethernet ports are PoE capable (Power-Over-Ethernet) so you can easily power Network
Extenders on a vessel or other devices.
Network Extender
Network Extender is a device that will help you to extend Vessel Networks WIFI coverage on larger boats or yachts. It is designed to work both on 2.4 and 5 GHz (b/g/n + a/n/ac) frequency
range. It is connected to Yacht Router via single PoE (Power over Ethernet) cable for simultaneous power and data transfer. Each Network Extender is equipped with four additional LAN ports so
you can easily connect more Network Extenders or other devices. Network Extender is essential component in installations on larger yachts and vessels. It signicantly simplies installations
resulting in huge saving of Ethernet cables and labour.
WIFI Booster
It is device for long-range WIFI connection to shore WIFI networks (e.g. marina Hotspot). WIFI Booster is waterproof Power-Over-Ethernet device that you can install directly on a mast or radar
arch. As you can attach WIFI antenna directly to the WIFI Booster there is no coax cable signal loss. With optional high gain outdoor antenna, you can expect up to 10 NM connection, even further
in ideal conditions.
NMEA0183 to LAN converter
It will convert any NMEA0183 data to TCP so you can receive it on your WIFI or LAN connected device. It is perfect solution in a combination with any Yacht Router as it will give you ability to
receive all NMEA data (depth, speed, wind etc.) inside your navigation software on your wireless or wired device. In a combination with Cloud Service, you will be able to receive NMEA data
remotely to check your boat position, wind speed, COG, SOG etc. NMEA0183 to LAN converter is compatible with every navigation software that can receive NMEA data over TCP protocol.
CHAPTER 2 - INSTALLATION
13
Touch Screen Controller
Touch Screen Controller is a dedicated device that will give you ability to setup Yacht router and easily control wireless networks and Internet connections on your vessel. It is embedded device
with the same level of functionality as control software that is used on a computer running Windows OS that control Yacht Routers with addition of several features regarding built-in upgrade and
software version control functionality.
Check each product manuals for more details or visit www.yachtrouter.com for more details.
CHAPTER 2 - INSTALLATION
14
Example of various modules and devices connected to the system.
Network Extender
Network Extender
Network Extender
Yacht Router Pro s5
Mobile Expander Pro s5
Network Expander Pro s5
WIBI Booster
IP camera IP camera IP camera
IP camera
IP camera
Navigation system
processor
Navigation system
processor
Satellite
system
controller
Satellite
system
controller
Satellite
system
antenna
Satellite
system
antenna
WAN
Locomarine
NETWORK EXTENDER
SERIES 5
Locomarine
NETWORK EXTENDER
SERIES 5
Locomarine
NETWORK EXTENDER
SERIES 5
CHAPTER 2 - INSTALLATION
15
2.2. SETUP
Once you nished hardware installation you need to install Yacht Router Control software to setup and control Yacht Router:
Once you install the software refer to USER MANUAL how to use it. It is available for download on our website www.yachtrouter.com
You can also check VIDEO TUTORIALS on our website www.yachtrouter.com
CHAPTER 2 - INSTALLATION
16
3.1. HARDWARE DETAILS
WAN, LAN, Backbone ports
Total number of Ethernet ports: 10
Ethernet Satellite WAN ports: 2-5
Ethernet Vessel Networks (LAN) ports: 0
Ethernet Backbone ports: 5-8
(depending on WAN ports number)
SFP+ Backbone ports: 1
Max. data rate on each Ethernet port: 1 Gbps
Max. data rate on SFP+ port: 10 Gbps
Add-on Modules support
WIFI Booster: 1
Mobile Expander Pro: 1
Mobile Expander: 4
Network Expander Pro: 5
Network Extender: 50
NMEA0183 to LAN converter: yes
Touch Screen Controller: yes
Vessel networks (WIFI/LAN)
Max. number of networks: 9
Yacht Router Pro does not have integrated WIFI.
For Ethernet (LAN) connectivity add Network Expander Pro.
For WIFI/LAN distribution add Network Extenders.
Mobile networks
Integrated modems: no
Yacht Router Pro does not have integrated modem.
For mobile connectivity add Mobile Expander Pro (4 modems)
or up to four Mobile Expanders if you want it on various
location on a vessel.
Power, environment and dimensions
AC power supply input range: 110-240 V
Max. power consumption: 35 W
Operating temperature range: -10 to +50 °C
Operating humidity range: 5-95 % non-condensing
IP Protection: IP30
Dimension (WxDxH, without antennas): 483 x 328 x 45 mm
CHAPTER 3 - TECHNICAL SPECIFICATIONS
17
3.2. NETWORK DETAILS
Yacht Router Standard has reserved IP ranges that cannot be used by other connected
equipment:
Support network
10.10.10.0/24
Reserved range
10.80.0.0/12
Yacht Router Pro IP reservation details:
Backbone Network
10.80.0.0/16
Vessel Network 1
Gateway: 10.81.0.1
Free static range: 10.81.0.20 - 10.81.0.99
DHCP: 10.81.0.100 - 10.81.255.254
DNS: 10.81.0.1
Vessel Network 2
Gateway: 10.82.0.1
Free static range: 10.82.0.20 - 10.82.0.99
DHCP: 10.82.0.100 - 10.82.255.254
DNS: 10.82.0.1
Vessel Network 3
Gateway: 10.83.0.1
Free static range: 10.83.0.20 - 10.83.0.99
DHCP: 10.83.0.100 - 10.83.255.254
DNS: 10.83.0.1
Vessel Network 4
Gateway: 10.84.0.1
Free static range: 10.84.0.20 - 10.84.0.99
DHCP: 10.84.0.100 - 10.84.255.254
DNS: 10.84.0.1
Vessel Network 5
Gateway: 10.85.0.1
Free static range: 10.85.0.20 - 10.85.0.99
DHCP: 10.85.0.100 - 10.85.255.254
DNS: 10.85.0.1
Vessel Network 6
Gateway: 10.86.0.1
Free static range: 10.86.0.20 - 10.86.0.99
DHCP: 10.86.0.100 - 10.86.255.254
DNS: 10.86.0.1
Vessel Network 7
Gateway: 10.87.0.1
Free static range: 10.87.0.20 - 10.87.0.99
DHCP: 10.87.0.100 - 10.87.255.254
DNS: 10.87.0.1
Vessel Network 8
Gateway: 10.88.0.1
Free static range: 10.88.0.20 - 10.88.0.99
DHCP: 10.88.0.100 - 10.88.255.254
DNS: 10.88.0.1
Vessel Network 9
Gateway: 10.89.0.1
Free static range: 10.89.0.20 - 10.89.0.99
DHCP: 10.89.0.100 - 10.89.255.254
DNS: 10.89.0.1
CHAPTER 3 - TECHNICAL SPECIFICATIONS
18
3.3. OUTLINE DRAWINGS
All dimensions in mm.
CHAPTER 3 - TECHNICAL SPECIFICATIONS
19
LOCOMARINE NETWORKS d.o.o. LIMITED FACTORY WARRANTY
Locomarine Networks d.o.o. manufactures marine electronic products which are marketed and supported worldwide via the Locomarine Networks d.o.o. distributor, dealer and partner network.
Each and every Locomarine Networks d.o.o. distributor, dealer and partner is committed to service and support the products in accordance with the market’s needs and requirements. In addition,
the Locomarine Networks d.o.o. distributor, dealer and partner networks are obliged to support the products irrespective of who sold and installed the product. Locomarine Networks d.o.o.
Limited Factory Warranty for Yacht Router products can be downloaded from www.yachtrouter.com under Support/Download section.
DECLARATION OF CONFORMITY
Hereby, Locomarine Networks d.o.o. declares that this Yacht Routers and add-on modules are is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/
EC. Declaration of Conformity is available for download on www.yachtrouter.com .
IMPORTANT: It is solely on end-user to set transmitting power value for all Yacht Router WIFI components to comply with regulations of country where product will be used. Regulations and
online WIFI power calculators (EIRP - Equivalent Isotopically Radiated Power) are widely available on the Internet. It is solely up to user to comply with country regulations and Locomarine
Networks d.o.o. cannot by responsible by any means for improper setup. Transmitting power is set and regulated via Yacht Router Control software.
FCC INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This device and its antennas must not be co-located or operated in conjunction with any other antenna or transmitter.
APPENDIX
20
INDUSTRY CANADA NOTICE TO USERS
Notice: To satisfy IC RF exposure requirements for mobile and base station transmission devices, a separation distance of 63 cm or more should be maintained between the antenna of this
device and persons during operation. To ensure compliance, operation at closer than this distance is not recommended. The antenna(s) used for this transmitter must not be co-located or
operated in conjunction with any other antenna or transmitter.
Avis: Pour répondre à la IC d’exposition pour les besoins de base et mobiles dispositifs de transmission de la station, sur une distance de séparation de 63 cm ou plus doit être maintenue entre
l’antenne de cet appareil et les personnes en cours de fonctionnement. Pour assurer le respect, l’exploitation de plus près à cette distance n’est pas recommandée. L’antenne (s) utilisé pour cet
émetteur ne doit pas être co-localisés ou fonctionner conjointement avec une autre antenne ou transmetteur.
INTRODUCTION
APPENDIX
Table of contents
Other Locomarine Network Router manuals
Locomarine
Locomarine Mini User manual
Locomarine
Locomarine Mini 4G User manual
Locomarine
Locomarine STANDARD 5 Series User manual
Locomarine
Locomarine YACHT ROUTER Standard 4G User manual
Locomarine
Locomarine Micro 4G Yacht router User manual
Locomarine
Locomarine mobile expander User manual
Locomarine
Locomarine MINI 6 Series User manual
Locomarine
Locomarine Yacht Router Mini 4G User manual
