Locomarine YACHT ROUTER Standard 4G User manual

User Manual
READ CAREFULLY and DO NOT PANIC.
version 1.1
www.yachtrouter.com

www.yachtrouter.com 2
1. CONTENTS
1. COPYRIGHT NOTICE ........ 3
2. RoHS COMPLIANT ........ 3
3. INTRODUCING YACHT ROUTER SOLUTION ........ 3
4. DISCLAIMER ........ 3
5. WARNING ........ 3
6. SAFETY INSTRUCTIONS ........ 3
7. ABOUT YACHT ROUTER STANDARD 4G ........ 4
8. FEATURES ........ 5
9. SPECIFICATIONS ........ 5
9.1. WAN, LAN, Backbone networks ........ 5
9.2. Expanders and Extenders support ........ 5
9.3. Vessel-to-Shore WIFI ........ 5
9.4. Client-to-Vessel WIFI ........ 5
9.5. Mobile network ........ 6
9.6. Power, environment and dimensions ........ 6
9.7. Sowarefeatures ........ 6
10. PACKAGING ........ 6
11. INSTALLATION INSTRUCTIONS ........ 7
11.1. ConnecngWIFIandmobilenetworkantennas ........ 7
11.2. ConnecngcomputerorotherLANequipment ........ 8
11.3. Connecngpowersupply ........ 9
11.4. InserngSIMcard ........ 9
11.5. LED indicator and Ports ........ 10
12. SETUP PROCEDURE ........ 11
12.1. InstallingYachtRouter4GControlSowareoncomputerwithWindowsoperangsystem ........ 11
12.2. InstallingYachtRouter4GControlSowareonyouriPhoneoriPad ........ 11
12.3. InstallingYachtRouter4GControlSowareonyourAndroidsmartphoneortablet ........ 11
12.4. ConnecngTouchScreenController4G ........ 11
12.5. Power on Yacht Router ........ 11
13. YachtRouter4GControlSoware ........ 12
13.1. Inialscreen ........ 12
13.2. Main screen ........ 12
13.3. SETUP screen ........ 14
13.4. Conguraonscreen ........ 15
13.5. Satellite WAN Network setup ........ 16
13.6. Mobile WAN Networks setup ........ 18
13.7. Shore WIFI WAN Networks setup ........ 20
13.8. Vessel Network setup ........ 23
13.9. Hotspot ........ 24
14. ONLINE REMOTE SUPPORT ........ 25
15. YACHT ROUTER NETWORK DETAILS ........ 25
16. YACHT ROUTER CONFIGURATION TOOL ........ 26
17. LOCOMARINE LIMITED FACTORY WARRANTY ........ 26
18. FCC INTERFERENCE STATEMENT ........ 26
19. DECLARATION OF CONFORMITY ........ 26
20. INDUSTRY CANADA NOTICE TO USERS ........ 26

www.yachtrouter.com 3
1. COPYRIGHT NOTICE
Locomarine d.o.o. reserves the rights to alter the products described in this manual at any me without prior noce. This document
contains proprietary informaon protected by copyright. All rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior wrien permission of the manufacturer. Informaon provided in
this manual is intended to be accurate and reliable. However, Locomarine d.o.o. assumes no responsibility for use of this manual,
nor for any infringements upon the rights of third pares, which may result from such use.
2. RoHS COMPLIANT
All models in the Yacht Router series comply with the Restricon of Hazardous Materials (RoHS) Direcve. This means that all
components used to build Yacht Router are RoHS compliant. The RoHS Direcve bans the placing on the EU market of new
electrical and electronic equipment containing more than agreed levels of lead, cadmium, mercury, hexavalent chromium,
polybrominated biphenyl (PBB) and polybrominated diphenyl ether (PBDE) ame retardants.
3. INTRODUCING YACHT ROUTER SOLUTION
Yacht Router is a complete network infrastructure soluon for yacht or boat of any size. Yacht Router devices will help you to
easily install, setup and control Internet connecon on your yacht. The most important part of Yacht Router soluon is soware
that control complete system. It is designed by professionals specialized in yacht communicaon systems in collaboraons with
experienced yacht captains. The result is a system that is simple to operate, maintain and control. Underneath simple touch
user interface, Yacht Router is a soluon with industry level of reliability, performance and unprecedented level of security.
4. DISCLAIMER
The contest of this manual are well prepared by Locomarine d.o.o.
While we try to improve our equipment at all me, Locomarine d.o.o. shall incur no liability based on contest, updates or
modicaon of the contest, or the lack of contents in this manual.
5. WARNING
The equipment said in this manual must only be used to which it was designed.
Improper operaon or installaon may cause damages to the equipment or personal injury. Locomarine d.o.o. will not incur
any liability of equipment damage or personal injury due to improper use or installaon of the equipment. It is strongly
recommended to read this manual and the following safety instrucons before proceeding to installaon or operaon.
6. SAFETY INSTRUCTIONS
ELECTRICAL SHOCK HAZARD: Do not open enclosure of the equipment if you are not qualied to do it.
TURN OFF THE POWER IMMEDIATELY IF WATER LEAKS INTO THE EQUIPMENT OR OBJECT DROPS INTO THE EQUIPMENT:
Connue operang the equipment could cause electrical shock or re. Contact your nearest distributor or dealer for service.
DO NOT DISASSEMBLE THE EQUIPMENT OR MODIFY THE EQUIPMENT: Improper disassemble or modicaon could cause
electrical shock, re, or personal injury.
AVOID OPERATING THE EQUIPMENT WITH WET HANDS: Electrical shocks could be resulted if operang with wet hands.
USE PROPER FUSE: Damage to the equipment or re could be resulted if using improper fuse.
TURN OFF THE POWER IMMEDIATELY IF THE EQUIPMENT IS EMITTING SMOKE OR FIRE: Connue operang the equipment
could cause electrical shock or re. Contact your nearest distributor or dealer for service.
DO NOT PLACE ANY LIQUID-FILLED CONTAINER ON TOP OF THE EQUIPMENT.

www.yachtrouter.com 4
7. ABOUT YACHT ROUTER STANDARD 4G
Yacht Router Standard 4G is intended for installaon on boats and yachts with single or dual satellite Internet source (VSAT,
Inmarsat, Iridium etc). It will give you ability to establish three vessel WIFI networks (Client-to-Vessel) that you will be able to
independently connect to other WIFI networks (e.g. marina WIFI Hotspots), mobile networks (4G/3G/EDGE/GSM) or your satellite
Internet equipment. For larger yacht where single WIFI Access Point is not enough to cover all areas addional WIFI Extenders
are available.

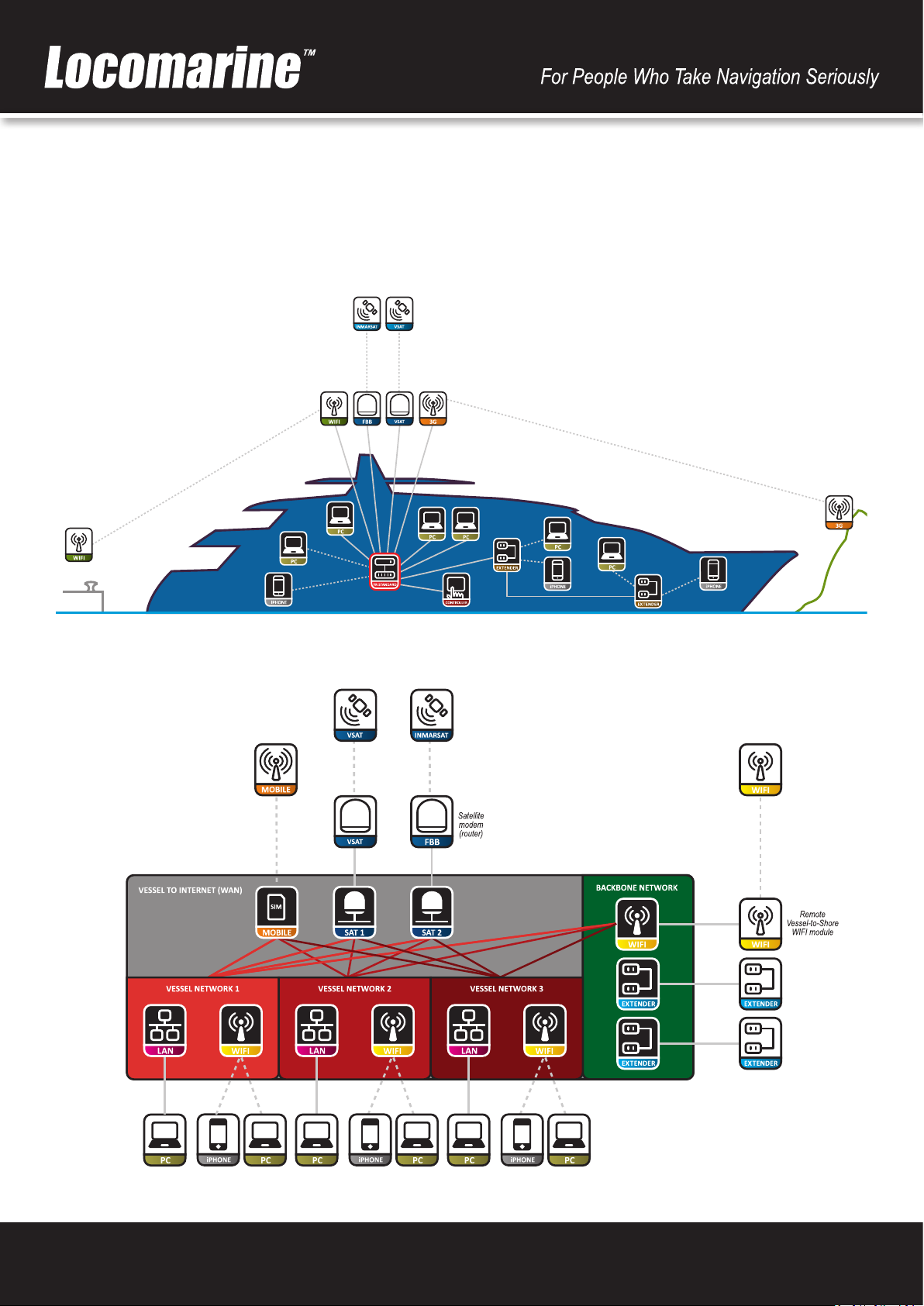

Schemac drawing of Yacht Router Standard 4G capability and connecvity.

www.yachtrouter.com 5
8. FEATURES
- high power remote Vessel-to-Shore WIFI module (PoE, 500mW, b/g/n, outdoor) for simplied installaon and zero coax cable
signal loss
- high power 4G/3G/2G module (250-2000mW)
- 3x Client-to-Vessel WIFI network (b/g)
- Hotspot on single Client-to-Vessel WIFI network (Guest)
- 3x LAN port (100 Mbps)
- 2x WAN port (for satellite Internet equipment)
- 3x Backbone LAN port
- 3x PoE injector power outputs
- unlimited number of WIFI/LAN Extenders support
- exible assigning of LAN ports to vessel WIFI networks
- Online Remote Support
- ultra wide range DC power input (6-34 V)
- wall mount aluminum enclosure
9. SPECIFICATIONS
9.1. WAN, LAN, Backbone networks
Ethernet WAN ports: 2
Ethernet LAN ports: 3
Backbone LAN ports: 3
Backbone PoE LAN ports: not available
Max. data rate on WAN/LAN/Backbone: 100 Mbps
9.2. Expanders and Extenders support
WIFI/LAN Extender support: yes
Max. number of supported WIFI Extenders: unlimited
Max. number of supported LAN Extenders: unlimited
PoE injector power outputs: 3
Mobile/LAN Expander support: no
Max. number of supported Mobile Expanders: not available
Max. number of supported LAN Extenders: not available
WIFI/LAN Expander DC power outputs: not available
9.3. Vessel-to-Shore WIFI
Internal WIFI module: no
Remote WIFI module (PoE, outdoor): yes
Supported standards: b/g/n
Max. data rates (Mbps): 100
Max. transmit power (dBm): 27
Max. transmit power (mW): 500
Sensivity of included antenna (dB): 7
Antenna connector type (on device):N-type female
9.4. Client-to-Vessel WIFI
Max. number of networks: 3
Supported standards: b/g
Max. data rates (Mbps): 54
Max. transmit power (dBm): 20
Max. transmit power (mW): 100
Sensivity of included antenna (dB): 5
Antenna connector type (on device):N-type female

www.yachtrouter.com 6
9.5. Mobile network
Integrated modems: 1
LTE frequency bands (MHz): 800/900/1800/2100/2600
WCDMA frequency bands (MHz): 900/2100
GSM/GPRS/EDGE frequency bands (MHz): 900/1800/1900
Max. download rates (Mbps): 100
Max. upload rates (Mbps): 50
Max. transmit power in LTE/4G (dBm): 24
Max. transmit power LTE/4G (mW): 250
Max. transmit power in WCDMA (dBm): 24
Max. transmit power WCDMA (mW): 250
Max. transmit power in GSM/GPRS/EDGE (dBm): 33
Max. transmit power GSM/GPRS/EDGE (mW): 2000
SIM card slots: 1
SIM card size: standard GSM (ID-000)
Sensivity of included antenna (dB): 5
Antenna connector type (on device): RP-SMA female
9.6. Power, environment and dimensions
DC power supply input range (V): 6-34
AC power supply input range (V): not available
Automac switching AC-DC power controller: no
Max. power consumpon (W, without WIFI/LAN Extenders): 15
Operang temperature range (°C): -10 to +60
Operang humidity range (%, non-condensing): 5-95
Enclosure material: aluStandardum
Enclosure mount type: wall
IP Protecon: IP50
Dimension (mm, WxDxH, without antennas): 212x292x80
9.7. Softwarefeatures
Hotspot: yes
Supported Hotspot Client-to-Vessel network: 1 (Guest Client-to-Vessel WIFI network only)
WAN bonding: no
Online Remote Support: yes
Selectable WAN source for each vessel network: yes
Detailed usage stascs: yes
Flexible assigning of LAN ports to vessel WIFI networks: yes
Customizable WIFI power output: yes
10. PACKAGING
When shipped, the Yacht Router is wrapped in a plasc bag that protects it from humidity. Device is then placed into a cardboard
box. A bag containing accessory items is placed inside the box too. List of included accessories is included in the package.

www.yachtrouter.com 7
11. INSTALLATION INSTRUCTIONS
Install Yacht Router in a dry indoor space that will meet Operang environment range specicaons (chapter 9.6). Follow the
installaon procedure as specied in this chapter.
11.1. ConnectingWIFIandmobilenetworkantennas
WARNING: NEVER POWER ON YACHT ROUTER IF WIFI AND MOBILE NETWORK ANTENNAS ARE NOT CONNECTED TO YACHT
ROUTER TO AVOID SEVERE DAMAGES ON WIFI AND MOBILE NETWORK MODULES THAT CAN VOID THE WARRANTY.
Connect WIFI antennas (Client-to-Vessel) and mobile antenna as showed on the following photo:
IMPORTANT:IfYachtRouterStandardisinstalledinaplacewhereWIFIsignaldegradaoncanoccurwesuggestyoutouse
WIFIExtensioncable(WLEC-01)toinstallClient-to-VesselWIFIantenna(WLAN-A-05)onabeerposion.
Yacht Router Standard 4G is equipped with Remote Vessel-to-Shore WIFI module. It is used for connecng Yacht Router Standard
4G to Hotspots in marinas or similar WIFI access points. Remote Vessel-to-Shore WIFI module is Power over Ethernet device that
use single LAN (e.g. CAT5, CAT6) cable for powering and data transfer.
Locomarine WIFI 5 antenna
(swivel, indoor) - WLAN-A-05
Locomarine MOB 5 antenna
(swivel, indoor) - 3G-A-01

www.yachtrouter.com 8
To connect Remote Vessel-to-Shore WIFI module to Yacht Router Standard 4G you will need LAN cable and Gigabit PoE injector
(CAT5P-03) that is supplied with a package. Connect Gigabit PoE injector as you can see on a photo below this text. You can use
any of three BACKBONE (1, 2, 3) and DC OUT (1, 2, 3) ports on Yacht Router Standard 4G. If you plan to install Remote Vessel-to-
Shore WIFI module on an outdoor locaon you will have to make custom-made LAN cable that will pass trough boom screw cap
of a module. You will not be able to use preassemble LAN cable with connectors on both side. If you do not know how to make
such cable we suggest you to contact any IT specialist.
IMPORTANT:IfVessel-to-ShoreWIFImoduleisnotproperlyconnectedtoYachtRouterStandardWILL NOT WORKcorrectly.
Locomarine WIFI 7 antenna xed directly to Remote
Vessel-to-Shore WIFI Module
Remote Vessel-to-Shore WIFI Module - RVW-01
Boom screw cap of Remote Vessel-to-Shore WIFI
module - install it to make module waterproof!
CAT5 LAN cable
Gigabit PoE injector (female) - CAT5P-03
11.2. ConnectingcomputerorotherLANequipment
Connect computer or other equipment to the VESSEL NETWORK 1, VESSEL NETWORK 2 or VESSEL NETWORK 3 port as showed
on the photo:

www.yachtrouter.com 9

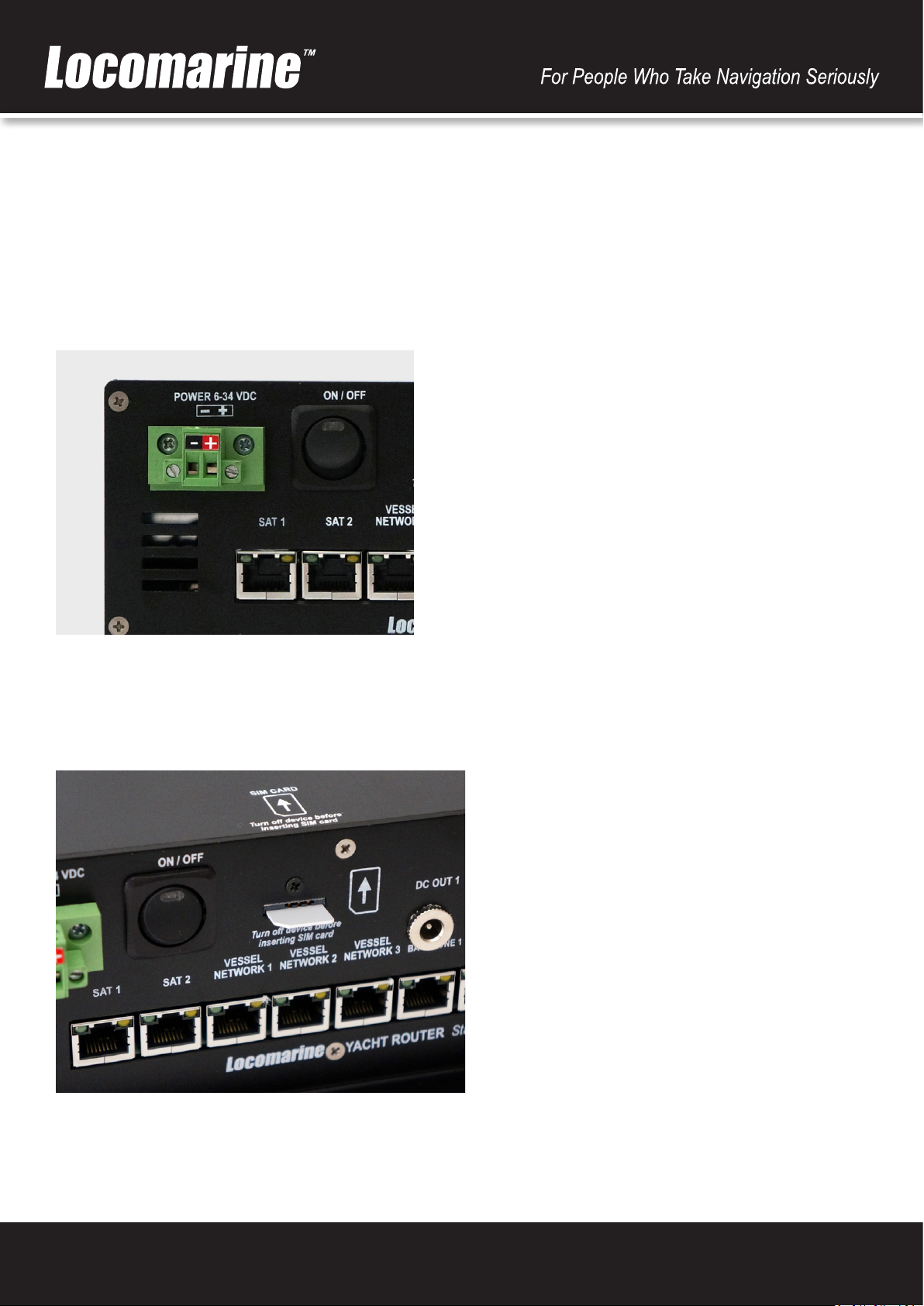

11.3. Connectingpowersupply
Yacht Router Standard 4G has wide range DC power supply (6-34 VDC). We strongly suggest you to install proper fuses (3A) on
power supply sources cable (not supplied with router). Connect power cable to green power connector as specied where RED
(+)isposive and BLACK(-)isnegave (ground). You can protect accidental disconnecon of power connector with two small
screws.
WARNING: WRONGLY CONNECTED POWER CABLE CAN DESTROY YACHT ROUTER THAT CAN VOID THE WARRANTY. PROVIDE
SUFFICIENT POWER SUPPLY. INSUFFICIENT POWER SUPPLY WILL REPEATEDLY RESET AND DAMAGE YACHT ROUTER THAT CAN
VOID THE WARRANTY.
11.4. InsertingSIMcard
Yacht Router Standard 4G will work with any Standard GSM (ID-000) SIM card. If you have Standard or nano SIM card you will have
to obtain proper adaptor. Insert SIM card as it is showed on the following photo:

www.yachtrouter.com 10
11.5. LED indicator and Ports
Yacht Router Standard 4G has mulple LED indicators. Red LED on a power buon indicate that device is powered on. Yacht
Router Standard 4G is equipped with eight Ethernet ports. Each port is equipped with green and yellow LED indicator for data
trac indicaon.
SAT 1 and SAT 2 are intended for connecng various WAN equipment like satellite modems or routers but it can also be used for
ADSL or similar equipment.
VESSEL NETWORK 1, VESSEL NETWORK 2 and VESSEL NETWORK 2 are dedicated for connecon of any LAN equipment like
computers, printers, IP cameras etc. For each VESSEL NETWORK (1, 2 or 3) you can independently select Internet source
(WAN). Each vessel networks can simultaneously be connected to the Internet. For example, computer connected to VESSEL
NETWORK 1 can go to the Internet via VSAT satellite connecon, computer connected to VESSEL NETWORK 2 can go via Inmarsat
FleetBroadband, while in the same me computer connected to VESSEL NETWORK 3 will reach the Internet via Hotspot in the
marina.
BACKBONE 1, BACKBONE 2 and BACKBONE 3 are used to connect Remote Vessel-to-Shore WIFI Module, Touch Screen Controller
4G and/or WIFI Extenders to expand vessel WIFI coverage. It is not important which port you will dedicate to menoned device.
To connect Remote Vessel-to-Shore WIFI Module or WIFI Extenders to Yacht Router Standard 4G you have to use Gigabit PoE
injector (female, CAT5P-03). It will inject 24 VDC power to LAN cable to power remote devices.
DC OUT FUSE - fuse for DC
OUT 1, 2 and 3 outputs
SAT port - for any WAN source (VSAT modem,
FleetBroadband router, etc)
VESSEL NETWORK 1 &2 port - for any Ether-
net equipment (computers, printers, etc)
SAT 1, SAT 2 - satellite WAN ports for satellite
routers or modems connecons. Ports can be used
for any other WAN equipment (e.g. ADSL routers)
DC OUT 1, 2, 3 - 24 VDC
power outputs for Giga-
bit PoE injectors (female,
CAT5P-03). Used for WIFI
Extenders connecons.
SIM card slot - DO NOT
PUSH the card all the way-
in! Properly inserted sard
will sck out about 1cm.

www.yachtrouter.com 11
12. SETUP PROCEDURE
Once you nished installaon you should proceed to setup procedure as specied in this chapter. You can control Yacht Router via
computer with Windows OS, iPhone, iPad or Android smart phone or tablet. You can simultaneously use mulple and dierent
plaorms (e.g. iPhone, Android and PC) to control Yacht Router. If your system is equipped with Touch Screen Controller 4G check
Chapter 12.4.
12.1. InstallingYachtRouter4GControlSoftwareoncomputerwithWindowsoperatingsystem
Every Yacht Router is supplied with USB memory sck. On a sck you can nd Yacht Router 4G Control Soware installaon
soware. Double click on YachtRouterSetup and computer will start with installaon. During installaon, computer will ask
you following queson: “Do you want to allow the following program from an unknown publisher to make changes to your
computer?”. Click on “Yes” and proceed with installaon.
YR Control Soware is developed for Microso Windows 7 and Windows 8 operang system but if will probably work on Vista and
XP. Locomarine does not oer support for any Yacht Router system that is not installed on Windows 7 or Windows 8 operang
system.
We strongly suggest you to download latest version of YachtRouter4GControlSoware from Yacht Router website and subscribe
to SowareUpdateNocaonNewsleer on our website www.yachtrouter.com.
IMPORTANT:YachtRouter4GControlSowarewillnotworkcorrectlyifStandardsoInternetExplorer10andStandardso
.NETFramework4isnotinstalledon yourcomputer. You candownload InternetExplorer10fromafollowinglink:hp://
windows.Standardso.com/en-us/internet-explorer/ie-10-worldwide-languages . You can download Standardso .NET
Framework4fromafollowinglink:hp://www.Standardso.com/en-us/download/details.aspx?id=17851 .Westronglysuggest
youtoperformlatestupdateofyourWindowsoperangsystem.
12.2. InstallingYachtRouter4GControlSoftwareonyouriPhoneoriPad
To install Yacht Router 4G Control Soware go to Apple AppStore. Use it the same way as it is described in this manual.
12.3. InstallingYachtRouter4GControlSoftwareonyourAndroidsmartphoneortablet
To install Yacht Router 4G Control Soware go to Google PlayStore. Use it the same way as it is described in this manual.
12.4. ConnectingTouchScreenController4G
Touch Screen Controller 4G is small size panel mount computer with embedded Yacht Router 4G Control Soware. It is equipped
with touch screen and is more robust than standard computers and tablets. To connect it to Yacht Router plug supplied (or similar)
Ethernet cable to LAN or BACKBONE port on Yacht Router. Connect power supply to Touch Screen Controller 4G and turn it ON.
Touch Screen Controller 4G will automacally connect to Yacht Router.
12.5. Power on Yacht Router
Once you installed Yacht Router 4G Control Soware or connected Touch Screen Controller 4G you can power on Yacht Router.
Aer you turn in on, power LED indicator will light up and you will hear few beeps from Yacht Router. Aer about half a minute
of boot period Yacht Router is ready for use. You will know it is ready once you can nd Vessel Network 1, Vessel Network 2 and
Vessel Network 3 wireless network aer network scan on your computer, iPhone, iPad or Android device. Connect your device to
Vessel Network 1, Vessel Network 2 or Vessel Network 3 wireless network.
Inial password for Vessel Network 1, Vessel Network 2 or Vessel Network 3 wireless network is: 12345678
IMPORTANT:BesureyourcomputerisconnectedonlytoVesselNetwork1,2or3network.Disconnectallotherconnecons
(e.g.LAN).CheckthatthecomputerissettoobtainIPaddressautomacally(DHCPenabled).Onthefollowinglinkyoucannd
instruconshowtodothat: hp://windows.Standardso.com/en-US/windows7/Change-TCP-IP-sengs .

www.yachtrouter.com 12
13. YachtRouter4GControlSoware
Yacht Router 4G Control Soware is simple and easy to use. All plaorm versions (Windows OS, iOS, Android) has same features
and soware will automacally adopt to dierent screen sizes.
On our website www.yachtrouter.com underSupportmenuyoucanndveryusefulVideoTutorials.
13.1. Initial screen
Once you start Yacht Router 4G Control Soware you will see Connected to Yacht Router and buon Enter in green colour. In
upper right corner you will see Contact Us buon that will give you Locomarine Support contacts. If your device is not able to con-
nect to Yacht Router you will see Connecng...message. Check if your device is properly connected to Vessel Network 1,Vessel
Network 2 or Vessel Network 3 wireless network.
Press green Enter buon to enter main screen.
IMPORTANT: Every me you see small clock indicator in upper red status bar you should wait for Yacht Router to nish
requestedprocess.
13.2. Main screen
On a Main screen you will see following informaons:
Vessel network name. Inial names are
Vessel Network 1 and Vessel Network
2 but you can change it.
Green buon shows where is Vessel
Network 1 currently connected. Inial
value is Shore WIFI. You will use this
buon to change Internet source (WAN)
for Vessel Network 1. The same proce-
dure you will use for Vessel Network 2
SETUP - enter setup screen.
LOCK - locking Yacht Router 4G Control
Soware
Yacht Router Standard 4G has three vessel network. Default names for this networks are Vessel Network 1 , Vessel Network 2
and Vessel Network 3.
You can change this name and we suggest you to change it (e.g. Sea Dragon Owner and Sea Dragon Guest, Sea Dragon Crew) to
avoid situaon when another vessel with Yacht Router is in a vicinity.
Shore WIFI, Inmarsat FleetBroadband and 4G Mobile buons can be represented in three dierent colours. Each colour has dif-
ferent meaning:
GREEN - Internet is available
YELLOW - Internet is not available
RED - WAN is disabled

www.yachtrouter.com 13
If you press green Shore WIFI buon under Vessel Network 1 drop-down menu will appear. In that manu you can change your
Internet source (WAN) for Vessel Network 1. You will do the same for Vessel Network 2 and Vessel Network 3. Each Vessel Net-
work can simultaneously be connected to dierent WAN source. It means that all devices (computers, smart phones, cameras etc)
connected to Vessel Network 1 can reach Internet, for example, via VSAT satellite connecon while in the same me all devices
connected to Vessel Network 2 can use WIFI connecon via Hotspot in marina to reach the Internet and all devices connected to
Vessel Network 3 can go to the Internet via 4G mobile network. On upper example (screenshot) Vessel Network 1 is connected
to the Internet via Shore WIFI, Vessel Network 2 via Inmarsat FleetBroadband and Vessel Network 3 via 4G Mobile.
But, before you start using Internet source selecon you must setup your connecons and other important values. To open Setup
screen press SETUP buon in upper right corner of Main screen.

www.yachtrouter.com 14
13.3. SETUP screen
Setup screen is divided in three secons. Each secon is dedicated to dierent setup and consist of:
Internet sources (WAN) secon
Satellite Wan Networks buon 1 and buon 2
Defaultvaluebuon1:Inmarsat (changeable)
Defaultvaluebuon2:VSAT (changeable)
Descripon:open Satellite Wan Network 1 or Satellite Wan Network 2 setup screen.
Mobile Wan Networks buon
Defaultvalue:4G Mobile (changeable)
Descripon:open Mobile Wan Network setup screen.
Shore WIFI Wan Networks buon
Defaultvalue: Shore WIFI (changeable)
Descripon:open Mobile Wan Network setup screen
Vessel Networks secon
Vessel Network 1 buon
Defaultvalue:Vessel Network 1 (changeable)
Descripon:open Mobile Wan Network setup screen.
Vessel Network 2 buon
Defaultvalue:Vessel Network 2 (changeable)
Descripon:open Mobile Wan Network setup screen.
Vessel Network 3 buon
Defaultvalue:Vessel Network 3 (changeable)
Descripon:open Mobile Wan Network setup screen.
General Setup secon
Conguraons buon
Descripon:open Conguraon setup screen.
Contact Us buon
Descripon:open Contact Us screen with Locomarine contact details.
Support Network buon
Descripon:open Support Network connecons menu. To use this feature Vessel Network 1 must be connected to
Internet. You will use this feature if you need support from our Technical support. Please read secon 14. REMOTE
SUPPORT for remote support request procedure.
Vessel Networks secon
Internet source (WAN) secon:
2x Satellite WAN Networks buon
Mobile WAN Networks buon
Shore WIFI Wan Networks buon
General Setup secon
BACK - back to Main menu

www.yachtrouter.com 15
First value you should setup is Yacht Router Lock Password.
VERYIMPORTANT:SetyourLockPassword!IfyoudonotsetitanyonewhoisconnectedtoanyVesselNetwork(WIFIorLAN)
withinstalledYachtRouter4GControlSowareonanyofsupporteddevicewillbeabletocontrolYachtRouter.Itcancause
manyunwantedandveryexpensiveconsequences(e.g.ifsomeoneswitchInternetsourceonyourVesselNetworkfromWIFI
HotspotinmarinatoyourInmarsatFleetBroadbandwhileyouarewatchingmovieonYouTube).
To setup Lock Password press Conguraonsbuon to open Conguraons screen.
13.4. Configurationscreen
Setup screen is divided in three secons:
GlobalSengs secon
ResettoFactoryDefault buon
Descripon: open menu to Conrm that you want to reset to factory defaults.
RevertToSavedConguraonbuon
Descripon: open menu to Conrm that you want to revert to saved conguraon.
SaveCurrentConguraon buon
Descripon:open menu to Conrm that you want to revert to save current conguraon.
WIFI Extenders secon
Yacht Router Standard support mulple WIFI Extender. WIFI Extender is a device that will help you to extend Client-to-Vessel.
WIFI coverage on larger boats or yachts. More about WIFI Extender you can nd on our website www.yachtrouter.com. Once WIFI
Extender is connected you will see its serial number under WIFI Extender secon. If you want to synchronize WIFI Extender press
on SYNCHRONIZE EXTENDERS buon.
OtherSengs secon is consist of:
Lock Password eld
Descripon: Yacht Router Lock Password that will prevent other people to setup. Press UPDATE buon to enter value.
Vessel to Shore WIFI Power eld
Defaultvalue:0 (changeable)
Descripon: enter transmit power of Vessel-to-Shore WIFI module to obey your country regulaons. Default value
is 0 and it will set transmit power to maximum available for your Yacht Router. Press UPDATE buon to enter value
UPDATE buon
Descripon:update value entered in Lock Pasword and WIFI Power elds.
WIFI Extenders secon - only one WIFI
Extender is supported.
Global Sengs secon
Other Sengs secon - Lock Password
and WIFI Power elds
BACK - back to Setup menu

www.yachtrouter.com 16
Enter password in Lock Password eld and press UPDATE buon. Your Yacht Router is now protected with a password. From now
on, every me you start Yacht Router 4G Control Soware on any supported device (computer, iPhone, iPad, Android) you will be
prompted to enter password on Inial screen. Once your enter correct password Enter buon will become green.
Your Yacht Router is now protected. You can proceed to further setup.
13.5. Satellite WAN Network setup
Once you press Satellite WAN Network setup buon on Setup screen you will enter setup that consist of:
Main secon
WAN Name eld
DefaultvalueonSatelliteWAN1: Inmarsat (changeable)
DefaultvalueonSatelliteWAN2: Inmarsat (changeable)
Descripon: enter name of your Satellite connecon (e.g. VSAT, Inmarsat, Iridium).
WAN Status buon
Descripon: turn connecon to satellite WAN source.
Internet buon
Descripon: show Internet connecvity status (Available or Unavailable). Click on buon to refresh status.
WAN Status - turn on/o connecon to
WAN source
Internet - show status of Internet avail-
ability. Click on it to refresh status.
WAN Name -enter name for your
Satellite (e.g. VSAT) network source
BACK - back to Setup menu
ADVANCED - open Advanced features

www.yachtrouter.com 17
If you press ADVANCED buon in upper right corner you will get access to advanced setup and info.
WANIPAddressconguraon secon
DHCP buons
Defaultvalue: On (changeable)
Descripon:enabling or disabling DHCP (Dynamic Host Conguraon Protocol), Renew buon will renew sengs
when DHCP is enabled, Refreshbuon refresh data in IP, SUBNET, GATEWAY, DNS 1, DNS2 elds.
IP eld
Defaultvalue: not dened (changeable)
Descripon:show IP (Internet Protocol) address.
SUBNET eld
Defaultvalue: not dened (changeable)
Descripon:show logically visible subdivision of an IP network.
GATEWAY eld
Defaultvalue: not dened (changeable)
Descripon:a node on a TCP/IP network that serves as an access point to another network.
DNS 1 & DNS 2 elds
Defaultvalue: not dened (changeable)
Descripon: server that hosts a network service for providing responses to queries against a directory service.
UPDATE STATIC CONFIG buon
Descripon: update manually entered data (IP, SUBNET, GATEWAY, DNS 1, DNS2) when DHCP is set to o.
TracInfo secon
Descripon:show informaon about data trac since Yacht Router is powered on for the last me.
DHCP setup - you can turn it on/o,
Renew IP and Refresh data
WAN IP Address conguraon secon
Trac Info secon - data trac info
ADVANCED -open WAN IP Address con-
guraon and Trac Info secon

www.yachtrouter.com 18
13.6. Mobile WAN Networks setup
Once you press Mobile WAN Networks buon on Setup screen you will open WAN Network setup screen that consist of:
Main secon
WAN Name eld
Defaultvalue: 4G Mobile (changeable)
Descripon: enter name of your Mobile connecon (e.g. Vodafone Greece).
WAN Status buon
Descripon: turn on or o modem. Once turned o it will take up to one minute to turn back on.
Internet buon
Descripon: show Internet connecvity status (Available or Unavailable). Click on buon to refresh status.
OK buon
Descripon:once you made changes in WAN Name eld click on OK buon to conrm changes.
Mobile Status secon
APN eld
Descripon: APN is data provided by your SIM card provider. It is necessary for Internet connecon.
PIN eld
Descripon:PIN data protect your SIM card and it is provided with your SIM card.
MoreOponsbuon
Descripon: open menu with addion setup buons and elds.
Auto LTE 3G GSM buons
Default: Auto (changeable)
Descripon: Mobile connecon technology. Auto = fastest available technology (LTE-3G-GSM).
Username eld
Descripon:some mobile network providers use username data. It should be provided with SIM card.
Password eld
Descripon:some mobile network providers use password data. It should be provided with SIM card.
Modem Init eld
Descripon:some mobile network providers use Init data. It should be provided with SIM card.
Roaming buon
Descripon:enable or disable roaming.
WAN Status - turn on/o modem for
Mobile network connecon
APN and PIN- Access Point Name and
PIN are provided with your SIM card
Username, Password and Modem Init -
used by some Mobile providers
More Opons - addional setup
Roaming - enable or disable roaming
WAN Name -enter name for your
Mobile network source
BACK - back to Setup menu
ADVANCED - open Advanced features
Connecon technology setup - you can setup Yacht
Router to use dierent mobile connecon technology

www.yachtrouter.com 19
If you press ADVANCED buon in upper right corner you will get access to advanced setup and info.
WANIPAddressconguraon secon
DHCP buons
Defaultvalue: On (changeable)
Descripon:enabling or disabling DHCP (Dynamic Host Conguraon Protocol), Renew buon will renew sengs
when DHCP is enabled, Refreshbuon refresh data in IP, SUBNET, GATEWAY, DNS 1, DNS2 elds.
IP eld
Defaultvalue: not dened (changeable)
Descripon:show IP (Internet Protocol) address.
SUBNET eld
Defaultvalue: not dened (changeable)
Descripon:show logically visible subdivision of an IP network.
GATEWAY eld
Defaultvalue: not dened (changeable)
Descripon:a node on a TCP/IP network that serves as an access point to another network.
DNS 1 & DNS 2 elds
Defaultvalue: not dened (changeable)
Descripon: server that hosts a network service for providing responses to queries against a directory service.
UPDATE STATIC CONFIG buon
Descripon: update manually entered data (IP, SUBNET, GATEWAY, DNS 1, DNS2) when DHCP is set to o.
TracInfo secon
Descripon:show informaon about data trac since Yacht Router is powered on for the last me.
DHCP setup - you can turn it on/o,
Renew IP and Refresh data
WAN IP Address conguraon secon
Trac Info secon - data trac info
ADVANCED -open WAN IP Address con-
guraon and Trac Info secon
To check Mobile Network status and connecvity details click on gray eld/buon as specied on the following picture. You will
get following statuses: PIN, Funconality, Current Operator, SignalStrength and AccessTechnology.
Click here to get precise data about
mobile network and connecvity
status.

www.yachtrouter.com 20
13.7.Shore WIFI WAN Networks setup
Once you press Shore WIFI WAN Networks buon on Setup screen you will open WAN Network setup screen that consist of:
Main secon
WAN Name eld
Defaultvalue: Shore WIFI (changeable)
Descripon: enter name of your Ship-to-Shore connecon (e.g. Marina Hotspot).
WAN Status buon
Descripon: turn on or o connecon to Shore WIFI.
Internet buon
Descripon: show Internet connecvity status (Available or Unavailable). Click on buon to refresh status.
OK buon
Descripon:once you made changes in WAN Name eld click on OK buon to conrm changes.
WIFI Status secon
WIFI Network eld
Defaultvalue: not dened (changeable)
Descripon:show name of currently connected WIFI network. You can enter it manually if you want. Once you enter
it enter password (for encrypted WIFI networks) and press Connect to WIFI buon to connect.
Password eld
Defaultvalue: not dened (changeable)
Descripon:enter password to connect to encrypted WIFI networks. Yacht Router can connect to WIFI networks with
following encrypon protocols: WPA/WPA2, EAS/TKIP, WEP (limited).
Use WEP buon
Defaultvalue: O (changeable)
Descripon:turn it on if you plan to connect to WIFI network with WEP encrypon.
Note: As WEP encrypon is not really secure, Yacht Router support only WEP with Stac Key Oponal 40 bit
StartScanning buon
Descripon:scan for available networks. List of available networks with appear with signal strength info (signal to
noise rao in dB) and three colour codes: green=OK, red=poor. To connect to WIFI network click on a buon with
network name. Chosen WIFI network name will appear in WIFI Network eld. Enter Password if network is encrypted
end press Connect to WIFI buon to connect.
Connect to WIFI buon
Descripon:click on buon to connect to WIFI network.
WAN Name -enter name for your
Shore WIFI network source
WAN Status - turn on/o connecon
to Shore WIFI network
WIFI Network - name of currently
connected Shore WIFI network
Use WEP - enable connecvity to WEP
protected WIFI networks
Start Scanning - scan for available
WIFI networks
List of available WIFI networks with
signal strength info
If you press ADVANCED buon in upper right corner you will get access to advanced setup and info.
