Locomarine STANDARD 5 Series User manual
Installaon Manual
version 1.0
The easiest way to stay online.
YACHT ROUTER
STANDARD
2
Read carefully.
For beer understanding check video tutorials on our website.
Register your product for soware update nocaons.
Thank you.
3
COPYRIGHT NOTICE
Locomarine Networks d.o.o. reserves the rights to alter the products described in this manual at any me without prior noce. This document contains proprietary informaon protected by
copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior wrien permission of the manufacturer.
Informaon provided in this manual is intended to be accurate and reliable. However, Locomarine Networks d.o.o. assumes no responsibility for use of this manual, nor for any infringements
upon the rights of third pares, which may result from such use.
RoHS COMPLIANT
All models in the Yacht Router series comply with the Restricon of Hazardous Materials (RoHS) Direcve. This means that all components used to build Yacht Router are RoHS compliant.
The RoHS Direcve bans placing on the EU market new electrical and electronic equipment containing more than agreed levels of lead, cadmium, mercury, hexavalent chromium, polybro-
minated biphenyl (PBB) and polybrominated diphenyl ether (PBDE) ame retardants.
INTRODUCING YACHT ROUTER SOLUTION
Yacht Router is a complete network infrastructure soluon for yacht or boat of any size. Yacht Router devices will help you to easily install, setup and control Internet connecon on your
yacht. The most important part of Yacht Router soluon is the soware which controls complete system. It is designed by professionals specialized in yacht communicaon systems in col-
laboraon with experienced yacht captains. The result is a system that is simple to operate, maintain and control. Underneath simple touch user interface, Yacht Router is a soluon with
an industry level of reliability, performance and unprecedented level of security.
DISCLAIMER AND WARNING
The contents of this manual are well prepared by Locomarine Networks d.o.o.
While we try to improve our equipment at all mes, Locomarine Networks d.o.o. shall incur no liability based on contents, updates or modicaon of the contents, or the lack of contents
in this manual.
Because of the nature of wireless communicaons, transmission and recepon of data can never be guaranteed. Data may be delayed, corrupted (i.e, have errors) or be totally lost. Although
signicant delays or losses of data are rare when wireless devices such as the Yacht Router are used in a normal manner with a well-constructed network, the Yacht Router device should
not be used in situaons where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or
loss of property. Locomarine Networks d.o.o. and its aliates accept no responsibility for damage of any kind resulng from delays or errors in data transmied or received using the Yacht
Router device, or for failure of the Yacht Router device to transmit or receive such data.
The equipment said in this manual must only be used for what it was designed.
Improper operaon or installaon may cause damage to the equipment or personal injury. Locomarine Networks d.o.o. will not incur any liability of equipment damage or personal injury
due to improper use or installaon of the equipment. It is strongly recommended to read this manual and the following safety instrucons before proceeding to installaon or operaon.
PREFACE
4
SAFETY AND HAZARD
Do not operate your Yacht Router:
• In areas where blasng is in progress.
• Where explosive atmospheres may be present including refuelling points, fuel depots, and chemical plants.
• Near medical equipment, life support equipment, or any equipment which may be suscepble to any form of radio interference.
In such areas, the Yacht Router MUST BE POWERED OFF. Otherwise, the Yacht Router can transmit signals that could interfere with this equipment.
In an aircra, the Yacht Router MUST BE POWERED OFF. Otherwise, the Yacht Router can transmit signals that could interfere with various on-board systems and may be dangerous to the
operaon of the aircra or disrupt the cellular network. Use of cellular and WIFI equipment in an aircra is illegal in some jurisdicons. Failure to observe this instrucon may lead to sus-
pension or denial of cellular services to the oender, or legal acon or both.
Some airlines may permit the use of cellular phones while the aircra is on the ground and the door is open. The Yacht Router may be used normally at this me.
IMPORTANT: It is solely on end-user to set transming power value for all Yacht Router WIFI components to comply with regulaons of country where product will be used. Regulaons
and online WIFI power calculators (EIRP - Equivalent Isotropically Radiated Power) are widely available on the Internet. Locomarine Networks d.o.o. cannot by responsible by any means for
improper setup. Transmion power is set and regulated via Yacht Router Control soware.
IMPORTANT: Exposure to Radio Frequency Radiaon.
63 cm minimum distance has to be maintained between the antenna and the occupaonal user and 142 cm to general public. Under such conguraon, the FCC radiaon exposure limits
set forth for an populaon/uncontrolled environment can be sased.
List of approved antennas:
Omni Direconal (pole), model Locomarine MOB 7
ANTENNA INSTALLATION: antennas from other products MUST NOT BE CO-LOCATED within 20 cm range to each other to sasfy FCC regulaons.
WARNING: It is installer’s responsibility to ensure that when using the authorized antennas in the United States (or where FCC rules apply); only those antennas cered with the product
are used. The use of any antenna other than those cered with the product is expressly forbidden in accordance to FCC rules CFR47 part 15.204. The installer should congure the output
power level of antennas, according to country regulaons and per antenna type. Professional installaon is required of equipment with connectors to ensure compliance with health and
safety issues.
PREFACE
5
SAFETY INSTRUCTIONS
ELECTRICAL SHOCK HAZARD: Do not open enclosure of the equipment if you are not qualied to do it.
TURN OFF THE POWER IMMEDIATELY IF WATER LEAKS INTO THE EQUIPMENT OR AN OBJECT DROPS INTO THE EQUIPMENT:
Connue operang the equipment could cause electrical shock or re. Contact your nearest distributor or dealer for service.
DO NOT DISASSEMBLE THE EQUIPMENT OR MODIFY THE EQUIPMENT: Improper disassemble or modicaon could cause electrical shock, re, or personal injury.
AVOID OPERATING THE EQUIPMENT WITH WET HANDS: Electrical shocks could be resulted if operang with wet hands.
USE PROPER FUSE: Damage to the equipment or re could be resulted if using improper fuse.
TURN OFF THE POWER IMMEDIATELY IF THE EQUIPMENT IS EMITTING SMOKE OR FIRE: Connue operang the equipment could cause electrical shock or re. Contact your nearest dis-
tributor or dealer for service.
DO NOT PLACE ANY LIQUID-FILLED CONTAINER ON TOP OF THE EQUIPMENT.
PREFACE
6
INTRODUCTION
ABOUT YACHT ROUTER STANDARD 7
MODEL VERSIONS 7
FEATURES 8
WHAT IS IN THE PACKAGE 9
PORTS AND CONNECTORS 10
INDICATORS 11
INSTALLATION
CONNECTING POWER SUPPLY 12
CONNECTING ADDITIONAL MODULES AND DEVICES 14
SETUP 16
TECHNICAL SPECIFICATIONS
HARDWARE DETAILS 17
NETWORK DETAILS 18
OUTLINE DRAWINGS 19
CONTENT
7
CHAPTER 1 - INTRODUCTION
1.1. ABOUT YACHT ROUTER STANDARD
Yacht Router Standard is designed for installaon on vessels with single or dual satellite Internet source (VSAT, Inmarsat, Iridium etc). It will provide the ability to establish three vessel
networks (e.g. Owner, Guests, Crew) as WIFI and cable version. Each Vessel Network can be simultaneously connected to same or dierent Internet source.
For example: you can connect Owner network to the internet via VSAT (using addional satellite equipment), Guest network to the Internet over 4G mobile system (via addional Mobile
Expander module) while in the same me Crew network can access Internet over WIFI Hotpost in marina (via addional WIFI Booster module).
For larger vessels where single WIFI access point is not enough to cover all vessel areas, mulple WIFI Extender modules can be installed.
Schemac drawing of Yacht Router Standard capability and connecvity.
1.2. MODEL VERSIONS
Yacht Router Standard is available in two versions:
LYR-S05: version for Europe/Africa/Asia/Oceania market
LYR-S05-US: version for Americas (USA, Canada) market
8
CHAPTER 1 - INTRODUCTION
1.3. FEATURES
• 2x SAT port (for satellite Internet systems, ADSL, mobile routers)
• Oponal High power 2G/3G/4G module (30+ Naucal miles
1
)
• Oponal high power WIFI Booster for long distance WIFI connecvity (10+ NM
2
)
• 3x Vessel WIFI network
• 3x Vessel Network LAN port
• 5x Backbone LAN port
• 2,4 + 5 GHz high power MIMO WIFI (b/g/n + a/n/ac)
• Hotel type hotspot on one Vessel Network.
• Mulple Mobile Expander support
• Mulple LAN Expander support
• Online Remote support
• Free GPS tracking and anchor alarm
• Wide range DC power input (10-30 V)
• Compable with Furuno, Simrad, Lowrance, B&G, Garmin, Maretron, Sonos, Apple Airplay and other IP based systems
1 Achieved with 9dBi outdoor antenna. As actual range depends on many factors Locomarine Networks d.o.o. do not guarantee specied range of connecvity.
2 Achieved with 9dBi outdoor antenna and VIP mobile provider. As actual range depends on many factors Locomarine Networks d.o.o. do not guarantee specied range of connecvity.
9
1.4. WHAT IS IN THE PACKAGE
When shipped, all devices are wrapped in plasc bags that protect them from humidity. Devices are then placed into a cardboard box. A bag containing accessory items is placed inside the
box too. List of all included components is enclosed in the package.
1 - Yacht Router Standard, LYR-S05 or LYR-S05-US, 1 pcs
2 - Deck mount (YR Standard s5), DMN-01, 2 pcs
3 - Fixing screw, FSC-01, 8 pcs
4 - AC/DC power supply 24V/2.5A, PSU-06, 1 pcs
5 - CAT5 cable (with connectors, 1m), CAT5-02, 2 pcs
6 - DC power cable with connector 2 m, PWC-01, 1 pcs
7 - DC power cable adaptor (male to wires), PWC-06
8 - AC power cable 1.5 m, PWC-05
9 - Manuals & control soware (on USB sck), QIG-00, 1 pcs
10 - Fuse 1.5 A, FUS-01, 2 pcs
CHAPTER 1 - INTRODUCTION
10
1.5. PORTS AND CONNECTORS
Yacht Router Standard is equipped with following ports and connectors.
Reset
(not in use)
DC in
10-30 V
SAT 1
Vessel
Network 2
Vessel
Network 3
Backbone ports 1-5
Vessel
Network 1
SAT 2
SPF+
DC out 1-3, 24 V DC out 4-6, 24 V
Fuse
DC out 1-3
Fuse
DC out 4-6
SAT 1 and SAT 2 ports
Satellite equipment input ports (VSAT, FBB, Iridium etc). It can also be used for any other Internet source equipment like ADSL or mobile router (2G/3G/4G).
Vessel Networks 1-3 ports
Ethernet LAN ports for various devices (e.g. computers, printers, IP cameras) that you want to integrate with dedicated Vessel Network. Each port dedicaon can be changed on demand
(e.g. Vessel Network 1 LAN port can be set to Backbone network).
Backbone ports
Backbone ports are part of Backbone network. Backbone network is network dedicated for communicaon between various Yacht Router equipment like Mobile Expander, WIFI Booster,
WIFI Extender, LAN Expander etc. Backbone network cannot provide Internet access. Each port dedicaon can be changed on demand (e.g. Backbone LAN port 3 can be set to Vessel
network 2).
CHAPTER 1 - INTRODUCTION
11
1.6. INDICATORS
Yacht Router Standard is equipped with mulple LED indicators.
Reset
(not in use)
SAT 1
SAT 2
Vessel Network 1
Vessel Network 2
Vessel Network 3
Backbone ports 1-5
PWR
SPF+
CHAPTER 1 - INTRODUCTION
12
2.1. CONNECTING POWER SUPPLY
There are two ways to power Yacht Router Standard:
• directly from boat battery (10-30 V DC)
• via supplied AC/DC power supply and DC power cable adaptor
Most common way is to connect Yacht Router Standard directly to vessel baery using 2 m supplied DC power cable. Power cable consist of RED and BLACK wire. Connect RED wire to
posive (+) and BLACK wire to negave (ground -) power source on your vessel power supply system (baery).
IMPORTANT Wrongly connected DC power cable can damage Yacht Router and void a warranty.
Voltage lower than 10 V and higher than 30 V can damage Yacht Router and void a warranty.
CHAPTER 2 - INSTALLATION
13

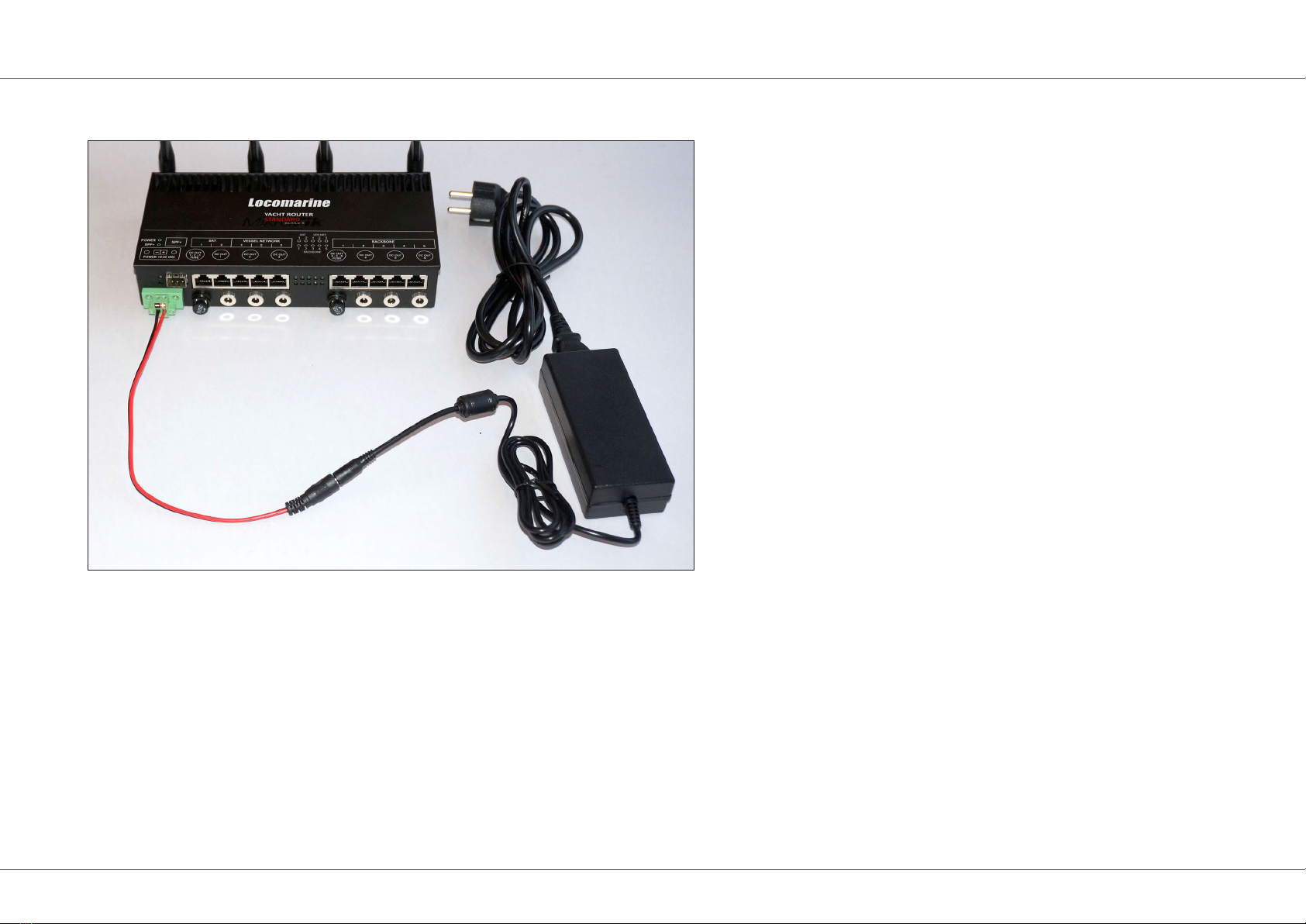

Connecon via supplied AC/DC power supply and DC power cable adaptor.
CHAPTER 2 - INSTALLATION
14
2.2. CONNECTING ADDITIONAL MODULES AND DEVICES
You can upgrade your Yacht Router with following equipment:
Mobile Expander
It is device that will give you posibility to connect Yacht Router to 2G/3G/4G mobile networks. It is equipped with high power modem and with addional outdoor antennas it is possible to
get 30+ NM oshore connecon. Mobile Expander is equipped with GPS receiver and miniature GPS antenna for Remote Tracking and Anchor alarm service.
WIFI Booster
It is device for long-range WIFI connecon to shore WIFI networks (e.g. marina hotspot). WIFI Booster is waterproof Power-Over-Ethernet device that you can install directly on a mast or
radar arch. As you can aach WIFI antenna directly to the WIFI Booster there is no coax cable signal loss. With oponal high gain outdoor antenna, you can expect up to 10 NM connecon,
even further in ideal condions.
LAN Expander
LAN Expander is a device that will expand Yacht Router with ve addional LAN ports. Each LAN port can be exibly assigned to Vessel Networks of your choice. As LAN Expander is
equipped with Power over Ethernet Backbone port separate power source is not necessary. LAN Expander is very useful device when you need mulple LAN ports on remote locaons as
you do not have to install mulple LAN cables.
WIFI Extender
WIFI Extender is a device that will help you to extend Vessel Networks WIFI coverage on larger boats or yachts. It is designed to work both on 2.4 and 5 GHz (b/g/n + a/n/ac) frequency
range. It is connected to Yacht Router via single PoE (Power over Ethernet) cable for simultaneous power and data transfer. Each WIFI Expander is equipped with four addional LAN ports
so you can easily connect more WIFI Extenders or other devices. WIFI Extender is essenal component in installaons on larger yachts and vessels. It signicantly simplies installaons
resulng in huge saving of ethernet cables and labour.
NMEA0183 to LAN converter
It will convert any NMEA0183 data to TCP so you can receive it on your WIFI or LAN connected device. It is perfect soluon in a combinaon with any Yacht Router as it will give you ability
to receive all NMEA data (depth, speed, wind etc.) inside your navigaon soware on your wireless or wired device. In a combinaon with Cloud Service, you will be able to receive NMEA
data remotely to check your boat posion, wind speed, COG, SOG etc. NMEA0183 to LAN converter is compable with every navigaon soware that can receive NMEA data over TCP
protocol.
Check each product manuals for more details or visit www.yachtrouter.com for more details.
CHAPTER 2 - INSTALLATION
15
Example of various modules and devices connected to the system.
CHAPTER 2 - INSTALLATION
16
2.3. SETUP
Once you nished hardware installaon you need to install Yacht Router Control soware to setup and control Yacht Router:
Once you install the soware refer to USER MANUAL how to use it. It is available for download on our website www.yachtrouter.com
You can also check VIDEO TUTORIALS on our website www.yachtrouter.com
CHAPTER 2 - INSTALLATION
17
3.1. HARDWARE DETAILS
WAN, LAN, Backbone networks
Ethernet WAN ports: 2
Ethernet LAN ports: 3
Ethernet Backbone ports: 5
Max. data rate on WAN/LAN/Backbone port: 1 Gbps
WIFI Booster, Extenders & Expanders support
WIFI Booster support: yes
WIFI Extender support: yes (mulple)
LAN Expander support: yes (mulple)
Mobile Expander support: yes (max. 2)
Vessel WIFI network
Max. number of networks: 3
Supported standard: 2.4 GHz (b/g/n), 5 GHz (a/n/ac)
Max. WIFI data rates on 2.4 GHz: 300 Mbps
Max. WIFI data rates on 5 GHz: 1733 Mbps
Max. WIFI transmit power on 2.4 GHz: 29/794 dBm/mW
Max. WIFI transmit power on 5 GHz: 33/1995 dBm/mW
Sensivity of integrated antenna (2.4/5 GHz): 3/3 dB
Power, environment and dimensions
DC power supply input range: 10-30 V
Max. power consumpon: 44 W
Operang temperature range for internal unit: -10 to +50 °C
Operang humidity range: 5-95 % non-condensing
IP Protecon: IP50
Dimension (WxDxH, without antennas): 255 x 135 x 48 mm
CHAPTER 3 - TECHNICAL SPECIFICATIONS
18
3.2. NETWORK DETAILS
Yacht Router Standard has reserved IP ranges that cannot be used by other connected equipment:
Support network
10.10.10.0/24
Reserved range
10.80.0.0/12
Yacht Router Standard IP reservaon details:
Backbone Network
10.80.0.0/16
Vessel Network 1
Gateway: 10.81.0.1
Free stac range: 10.81.0.20 - 10.81.0.99
DHCP: 10.81.0.100 - 10.81.255.254
DNS: 10.81.0.1
Vessel Network 2
Gateway: 10.82.0.1
Free stac range: 10.82.0.20 - 10.82.0.99
DHCP: 10.82.0.100 - 10.82.255.254
DNS: 10.82.0.1
Vessel Network 3
Gateway: 10.83.0.1
Free stac range: 10.83.0.20 - 10.83.0.99
DHCP: 10.83.0.100 - 10.83.255.254
DNS: 10.83.0.1
CHAPTER 3 - TECHNICAL SPECIFICATIONS
19
3.3. OUTLINE DRAWINGS
All dimensions in mm.
CHAPTER 3 - TECHNICAL SPECIFICATIONS
20
LOCOMARINE NETWORKS d.o.o. LIMITED FACTORY WARRANTY
Locomarine Networks d.o.o. manufactures marine electronic products which are marketed and supported worldwide via the Locomarine Networks d.o.o. distributor, dealer and partner
network. Each and every Locomarine Networks d.o.o. distributor, dealer and partner is commied to service and support the products in accordance with the market’s needs and
requirements. In addion, the Locomarine Networks d.o.o. distributor, dealer and partner networks are obliged to support the products irrespecve of who sold and installed the product.
Locomarine Networks d.o.o. Limited Factory Warranty for Yacht Router products can be downloaded from www.yachtrouter.com under Support/Download secon.
DECLARATION OF CONFORMITY
Hereby, Locomarine Networks d.o.o. declares that this Yacht Router product is in compliance with the essenal requirements and other relevant provisions of Direcve 2014/53/EC.
Declaraon of Conformity is available for download on www.yachtrouter.com .
IMPORTANT: It is solely on end-user to set transming power value for all Yacht Router WIFI components to comply with regulaons of country where product will be used. Regulaons and
online WIFI power calculators (EIRP - Equivalent Isotopically Radiated Power) are widely available on the Internet. It is solely up to user to comply with country regulaons and Locomarine
Networks d.o.o. cannot by responsible by any means for improper setup. Transming power is set and regulated via Yacht Router Control soware.
FCC INTERFERENCE STATEMENT
This FCC statement is related to Yacht Router Standard model LYR-S05-US for USA/Canada market.
This device contains FCC ID: TV74011GS-5HQ2HD, TV7R11E2HPND This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protecon against harmful interference in a residenal installaon.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instrucons, may cause harmful interference to radio
communicaons. However, there is no guarantee that interference will not occur in a parcular installaon. If this equipment does cause harmful interference to radio or television recepon,
which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separaon between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Cauon: Any changes or modicaons not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operaon is subject to the following two condions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operaon.
APPENDIX
This manual suits for next models
2
Table of contents
Other Locomarine Network Router manuals
Locomarine
Locomarine Yacht Router Mini 4G User manual
Locomarine
Locomarine YACHT ROUTER Standard 4G User manual
Locomarine
Locomarine Micro 4G Yacht router User manual
Locomarine
Locomarine mobile expander User manual
Locomarine
Locomarine MINI 6 Series User manual
Locomarine
Locomarine Mini 4G User manual
Locomarine
Locomarine PRO 5 Series User manual
Locomarine
Locomarine Mini User manual
