SPECIFCATIONS
1. Shipping weight: 290 Lbs.
2. Capacity: .5 Yard
Loegering
15514 37
th
Street SE
Casselton, ND 58012 USA
Ph: 800-373-5441
Fax: [phone]
54”
24”
34”

Owners Manual, Bucket, Mud (Lit-0009).doc 03/04/09
MUD BUCKET

MOUNTING INTRUCTIONS
1. Your Mud Bucket is designed to mount to your machine using existing
attachment mounting system. Please refer to the machine owner’s manual for
instructions on how to secure your Mud Bucket to your machine

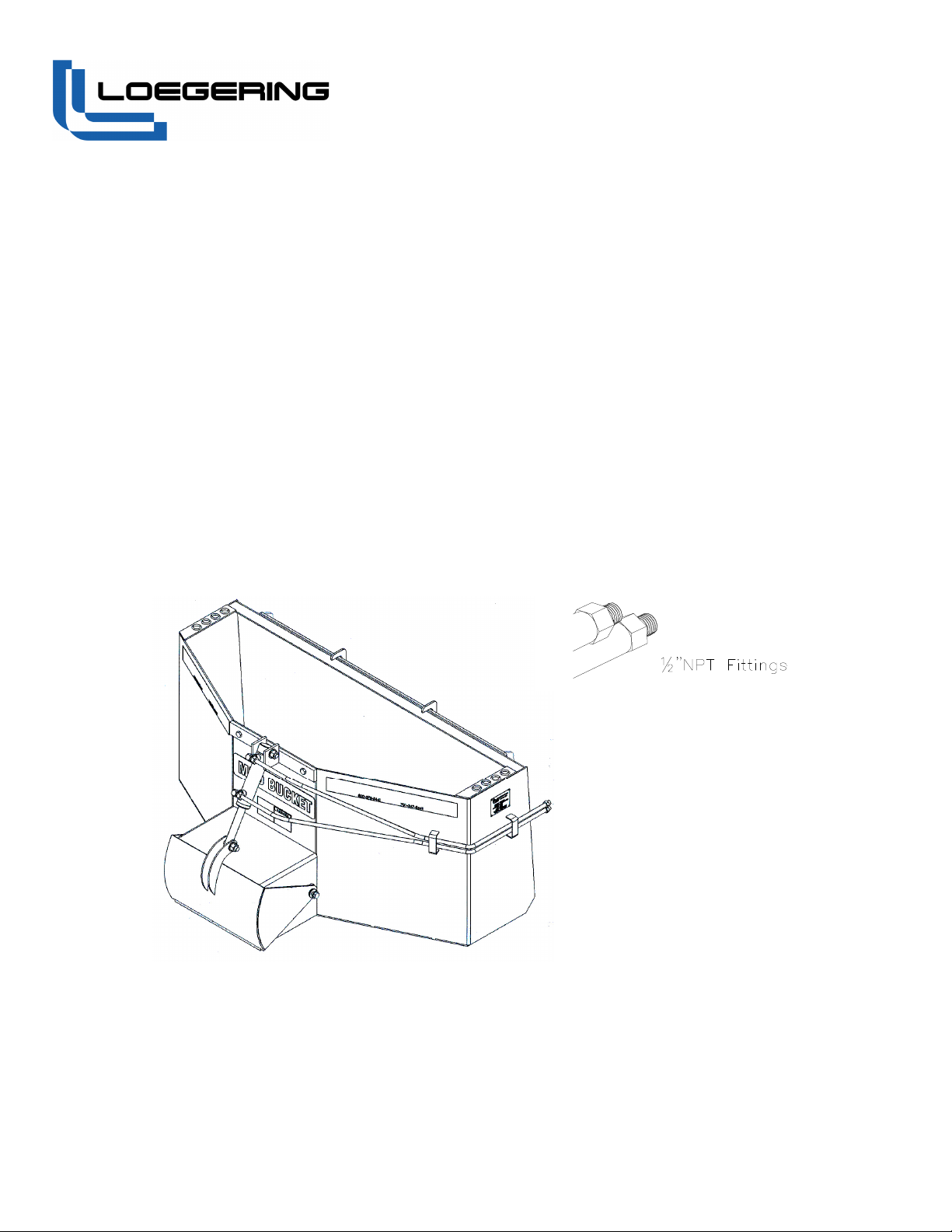

2. Hydraulic connections: Your Mud Bucket will come complete with hydraulic
cylinder and hoses as shown below. Hydraulic couplings vary between
manufacturers; therefore your Mud Bucket does not come with couplings. The
hose ends of your Mud Bucket are fitted with ½” male NPT fittings (see Fig. 1).
Correct male and female couplings can be purchased from your local
equipment dealer. Consult your machine owner’s manual for auxiliary
hydraulic operation
Figure 1
Loegering
15514 37
th
Street SE
Casselton, ND 58012 USA
Ph: 800-373-5441
Fax: [phone]

Owners Manual, Bucket, Mud (Lit-0009).doc 03/04/09

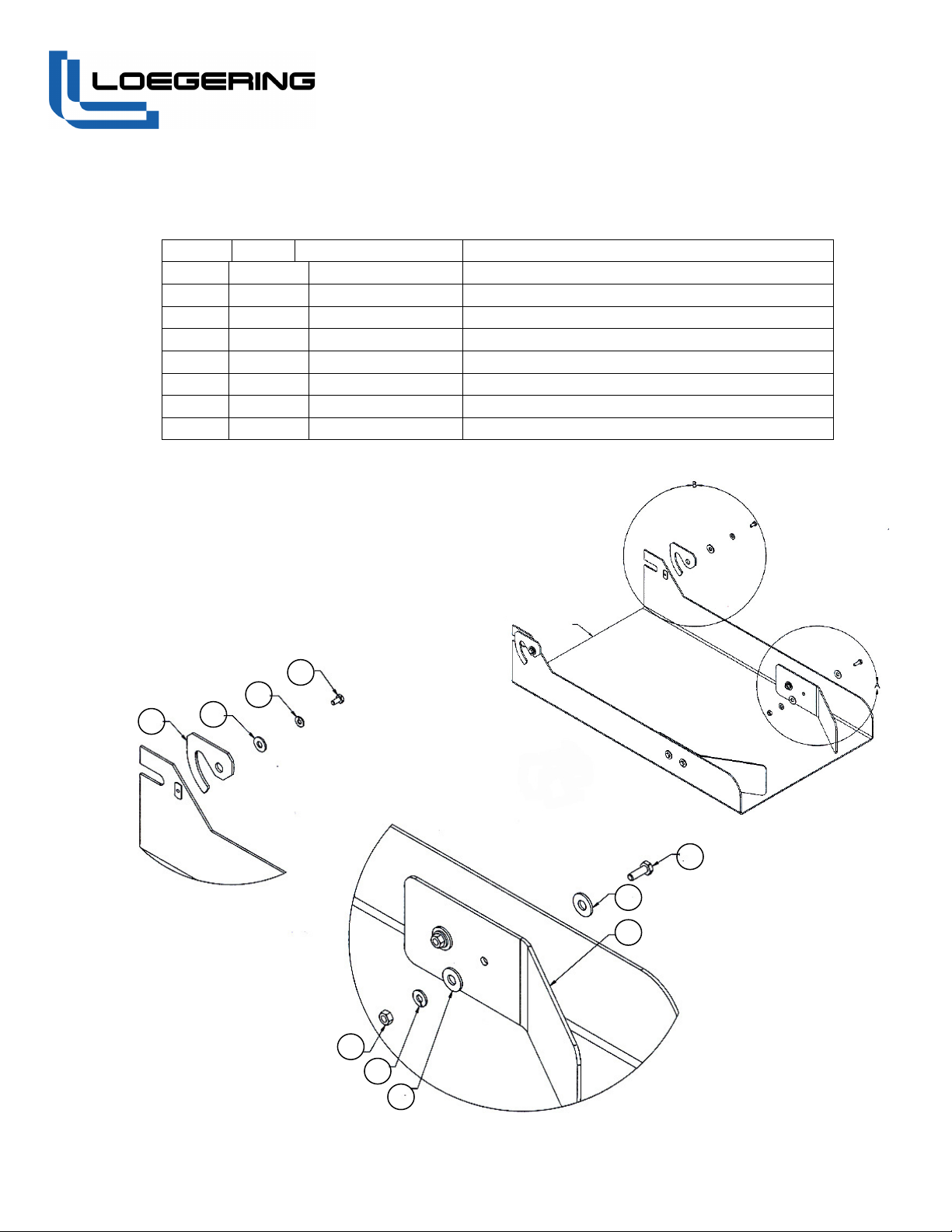

Extension Chute Assembly Instructions
ITEM QTY. PART NUMBER DESCRIPTION
1 1 68-P1-132 Chute Weldment
2 2 PD0130-.5BP Screw, .25-20UNC x .25 Gr. 5
3 4 PJ0130-3.2 Washer, Lock ¼”
4 6 PJ0140-1BP Washer, Flat 5/16”
5 2 68-P1-133 Locking Lever
6 2 PD0130-.75BP Screw, .25-20UNC x .75 Gr. 5
7 2 PH0130-1BP Nut, .25-20UNC Gr. 5
8 1 68-P1-138 Restrictor
1. Assemble components as shown below.
2. Locking lever (item 5) should move freely.
Loegering
15514 37
th
Street SE
Casselton, ND 58012 USA
Ph: 800-373-5441
Fax: [phone]
2
3
4
5
6
4
8
4
3
7
1

Owners Manual, Bucket, Mud (Lit-0009).doc 03/04/09
Extension Chute Installation
1. Assemble extension chute per instructions .
2. Mud Buckets with serial numbers prior to M0044 may need to have longer bolt, weld nut
and washers (included with kit) installed where door pivots (see fig A).
3. Slide extension chute on to door pivot and lock into place (see fig. B)
Loegering
15514 37
th
Street SE
Casselton, ND 58012 USA
Ph: 800-373-5441
Fax: [phone]
Figure B
Figure AA
½” Flat Washers
½” x 2 ½”
Bolt
½” Weld Nut
(Flare Inwards)

Owners Manual, Bucket, Mud (Lit-0009).doc 03/04/09
Item Fig. Part Number Description
1 A,B 65-P2-145 ½" Hyd. Hose, ½" MNPT ends 84"
2 A 68- P1-140A Door, Center Mount (Ser # M0044 and higher)
3 B 68-A1-101 Cylinder Support Bracket (Ser # M0004 - M0043)
4 A 68-A1-101A Cylinder Support Bracket (Ser # M0044 and higher)
5 B 68-A1-102 Tie Rod
6 C 68-P1-132 Extension Chute Weldment
7 C 68-P1-133 Lock
8 C 68-P1-138 Restrictor
9 B 68-P1-140 Door Assy side mount (Ser # M0004 - M0043)
11 B 85-P2-146 8 FNPT-8MORB (Ser. # M0004 - M0043)
12 B 85-P2-147 ½ NPT Swivel 1/16" Restrictor (Ser. # M0004 -M0043)
13 B 85-P2-148 3/8 MNPT-½ FNPT (Ser# M0004 - M0043)
14 B 85-P2-149 ½ NPT 1/16" Restrictor (Ser# M0004 - M0043)
15 B 85-P2-152 Pin, Cylinder 1" x 3.375"
16 B 85-P2-160 Cylinder, Hyd
17 A 85-P2-299 Fitting, #6 Male ORB 90°½FPT Swivel, 1/16” Restrictor
18 A 85-P2-300 Fitting, #6 Male ORB 90°½FPT Swivel,
19 A,B 85-P2-304 Shoulder, Weldnut, ½-13UNC
20 A LSB169 Cyl., 1.5" Dia. X 4" Stroke HCA
21 C PD0130-.5BP Screw, .25-20UNC-.25 HHCS Gr. 5
22 C PD0130-.75BP Screw, .25-20UNC-.75 HHCS Gr. 5
23 A,B PD0170-1.25CP Bolt, .5-13UNC-1.25" Gr.8
24 A,B PD0170-2.5CP Bolt, .5-13UNC-2.5" Gr.8
25 B PD0170-2BP Bolt, .5-13UNC-2" Gr.8
26 A PD0190-2.5CP Bolt, 5/8-11UNC-2.5" Gr.8
27 A PD0190-3.5CP Bolt, 5/8" -11UNC-3.5" Gr.8
28 C PH0130-1BP Nut, .25-20UNC Gr.5 Plated
29 A,B PH0170-4CP Nut lock .5-13UNC Gr. 8
30 B PH0171-5CP Nut, Jam, 1/2-20NF, Gr. 8 (for tie rod end)
31 A PH0190-1CP Nut , 5/8-11UNC Gr.8
32 C PJ0130-3.2 Washer, Lock .25"
33 C PJ0140-1BP Washer, Flat, 5/16"
34 A,B PJ0170-1B Washer, Flat .5"
35 A PJ0190-3.2BP Washer, Lock 5/8"
D 68-P1-140K Door Conversion Kit.(Includes Items: 2, 4, 17, 18, 20, 26, 27, 31, 35 )
C 68-A1-103 Extension Chute Kit
Loegering
15514 37
th
Street SE
Casselton, ND 58012 USA
Ph: 800-373-5441
Fax: [phone]

Owners Manual, Bucket, Mud (Lit-0009).doc 03/04/09
FIG. B
FIG. C
FIG. A
Loegering
15514 37
th
Street SE
Casselton, ND 58012 USA
Ph: 800-373-5441
Fax: [phone]
24 34
19
13
,
14
1
1
,
1
2

Owners Manual, Bucket, Mud (Lit-0009).doc 03/04/09

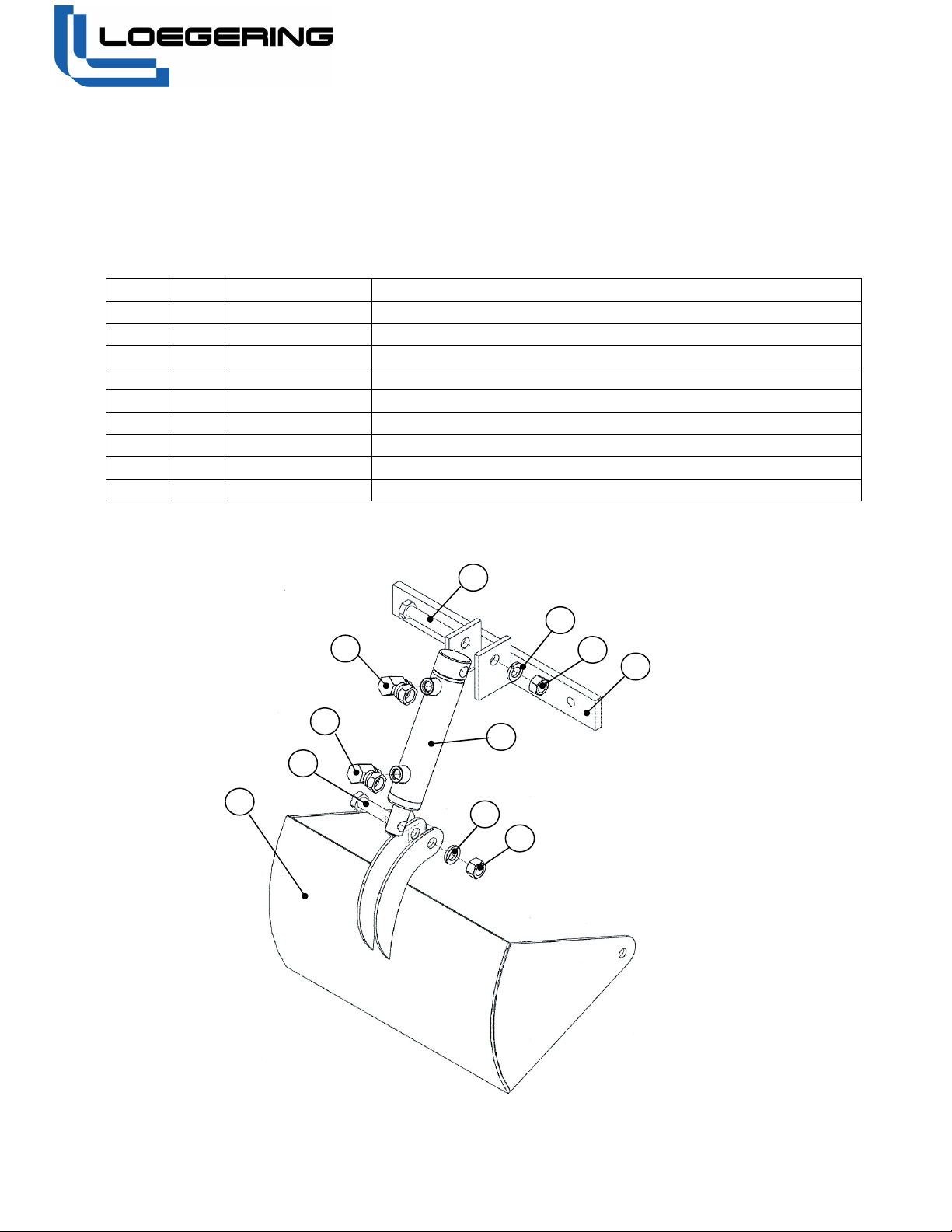

CENTER CYLINDER DOOR CONVERSION KIT
Part Number 68-P1-140K
Models with serial number M0004 to M0043
Converts side cylinder mount Mud Buckets to a center mount cylinder.
ITEM QTY PART # DESCRIPTION
2 1 68-P1-140A Door Assembly Center Mount
4 1 68-A1-101A Cylinder Support Bracket
17 1 85-P2-299 Fitting, #6 Male ORB 90°½FPT Swivel, 1/16” Restrictor
18 1 85-P2-300 Fitting, #6 Male ORB 90°½FPT Swivel
20 1 LSB169 Cyl., 1.5" Dia. X 4" Stroke HCA
26 1 PD0190-2.35CP Bolt, 5/8-11UNC-2.5" Gr.8
27 1 PD0190-3.5CP Bolt, 5/8" -11UNC-3.5" Gr.8
31 2 PH0190-1CP Nut , 5/8-11UNC Gr.8
35 2 PJ0190-3.2BP Washer, Lock 5/8"
Note: To upgrade from a manual door to a hydraulic, add (2 ea.) hydraulic hose 65-P2-145
Loegering
15514 37
th
Street SE
Casselton, ND 58012 USA
Ph: 800-373-5441
Fax: [phone]
35
27
35
31
18
17
20
4
2
26
31
