Logik LDW45S11 Service manual

Slimline Dishwasher
Installation / Instruction Manual
LDW45S11
LDW45S11_IB_110331.indd 1 3/31/11 5:04 PM

LDW45S11_IB_110331.indd 2 3/31/11 5:04 PM

3
Contents
Unpacking..................................................................................................................................... 5
Installation .................................................................................................................................... 6
Location .......................................................................................................................................................................6
Product Overview....................................................................................................................... 10
Front View ................................................................................................................................................................10
Rear View ..................................................................................................................................................................10
Upper Basket...........................................................................................................................................................11
Lower Basket ........................................................................................................................................................... 11
Internal View............................................................................................................................................................11
Control Panel........................................................................................................................................................... 12
Wash Cycle Table......................................................................................................................... 13
Before Operating........................................................................................................................ 14
To Open the Door..................................................................................................................................................14
To Close the Door ..................................................................................................................................................14
Items Not Suitable for Use in the Dishwasher.............................................................................................14
Adding Detergent or Detergent Tablet..................................................................................... 15
Adding Rinse Aid ........................................................................................................................ 16
Adjusting the Rinse Aid Reservoir ...................................................................................................................16
Adding Salt ..............................................................................................................................................................17
Adjusting Salt Consumption.............................................................................................................................18
Loading the Dishwasher ............................................................................................................ 19
Before Loading the Dishwasher.......................................................................................................................19
Upper Basket...........................................................................................................................................................20
- Adjusting the Upper Basket.................................................................................................................... 20
- Loading the Upper Basket for 12 Place Settings ............................................................................. 20
- Hinged Cup Rack ........................................................................................................................................ 21
Lower Basket ........................................................................................................................................................... 21
- Hinged Spikes..............................................................................................................................................21
- Loading the Lower Basket.......................................................................................................................22
Cutlery Basket.........................................................................................................................................................22
- Loading the Cutlery Basket.....................................................................................................................22
Starting a Wash Cycle ................................................................................................................. 23
Changing a Programme ............................................................................................................. 23
At the End of a Programme........................................................................................................ 23
Switching O the Unit................................................................................................................ 24
Unloading the Dishwasher ........................................................................................................ 24
Delay Start................................................................................................................................... 24
Half Load ..................................................................................................................................... 24
Cleaning After Use...................................................................................................................... 25
External Care ...........................................................................................................................................................25
- The Door and the Door Seal ...................................................................................................................25
- The Control Panel ....................................................................................................................................... 25
Internal Care............................................................................................................................................................25
- Filtering System...........................................................................................................................................25
- Spray Arms....................................................................................................................................................26
LDW45S11_IB_110331.indd 3 3/31/11 5:04 PM

4
Frost Precaution ......................................................................................................................... 26
Moving the Dishwasher ............................................................................................................. 26
Maintenance After a Prolonged Period of Non-Operation ..................................................... 26
Hints and Tips ............................................................................................................................. 27
Fault Code ................................................................................................................................................................27
Technical Problems...............................................................................................................................................27
Disposal of the Dishwasher ....................................................................................................... 29
Disposal of Packing Material ..................................................................................................... 29
Specications.............................................................................................................................. 30
Safety Warnings.......................................................................................................................... 31
LDW45S11_IB_110331.indd 4 3/31/11 5:04 PM

5

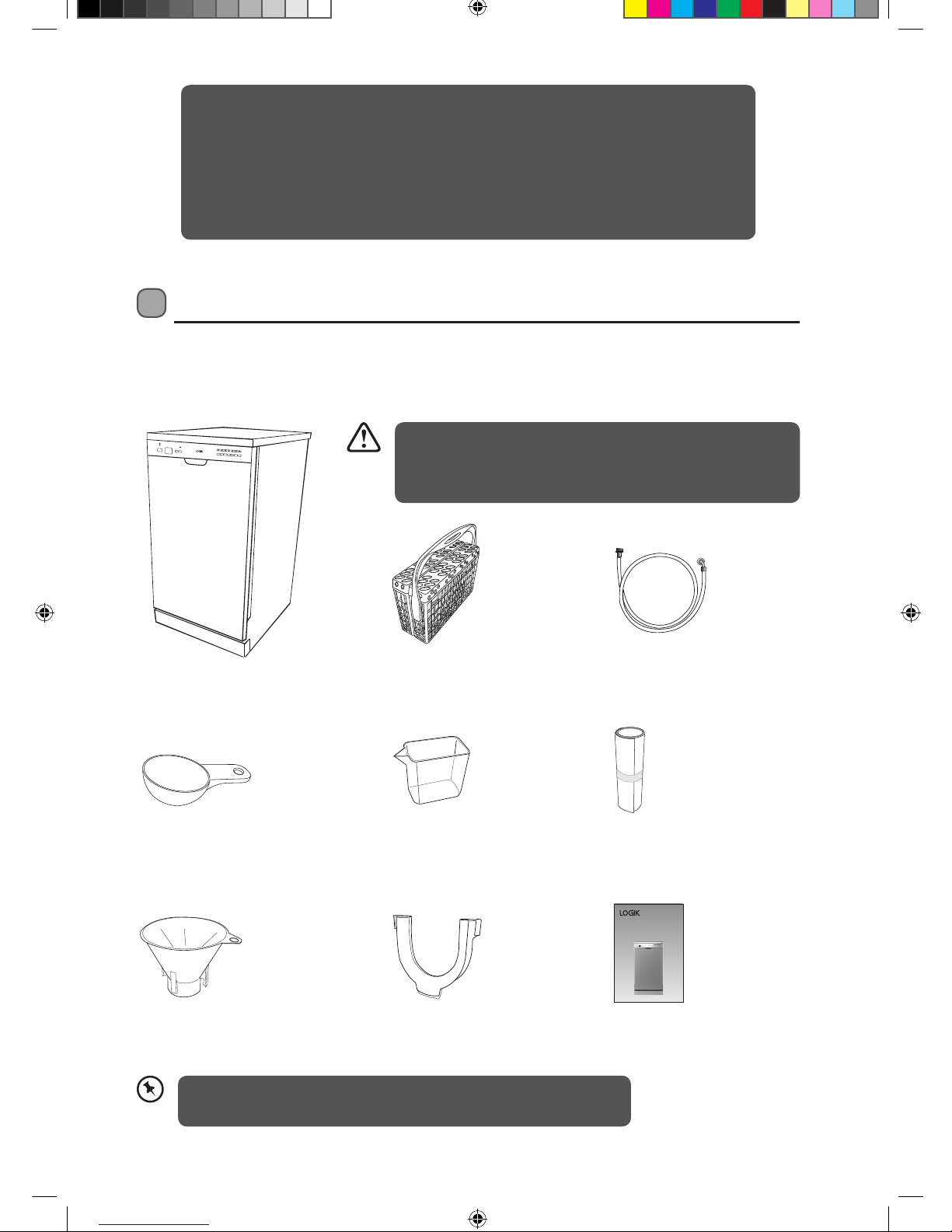

Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to
local regulations.
The following items are included:
The Main Unit
Detergent Measuring Spoon x 1
1 full spoon = 20g (approx.)
P.N.: 673002200079
Instruction Manual X 1
P.N.: LDW45S11-000
U-shape Hose Holder X 1
P.N.: 673006200003
Salt Funnel X 1
P.N.: 673002200043
Condensation Strip X 1
P.N.: 675001300715
Measuring Cup X 1
60ml (approx)
P.N.: 673006200004
Water Supply Hose X 1
P.N.: 673000900060
Cutlery Basket
P.N.: .673002200080
Power
Delay
Start 1/2Load 3in1 IntensiveNormal Eco Rinse Glass Rapid
Thank you for purchasing your new Logik Slimline Dishwasher.
These operating instructions will help you use it properly and safely.
We recommend that you spend some time reading this installation/instruction manual
in order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this installation/
instruction manual for future reference.
If items are missing, or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
This product has been wet tested to ensure correct operation.
As a result some water may remain inside the unit. This is
normal and safe. Remove any water droplets from the exterior
if necessary.
Slimline Dishwasher
Installation / Instruction Manual
LDW45S11
LDW45S11_IB_110331.indd 5 3/31/11 5:04 PM

6
INSTALLATION
450
580
unit in mm
850
30
850
450
620
min.100
80
450
580
850
30
850
450
620
min.100
80
level level
level
level
Power
Delay
Start 1/2Load 3in1 Intensive Normal Eco Rinse Glass Rapid
Power
Delay
Start 1/2Load 3in1 Intensive Normal Eco Rinse Glass Rapid

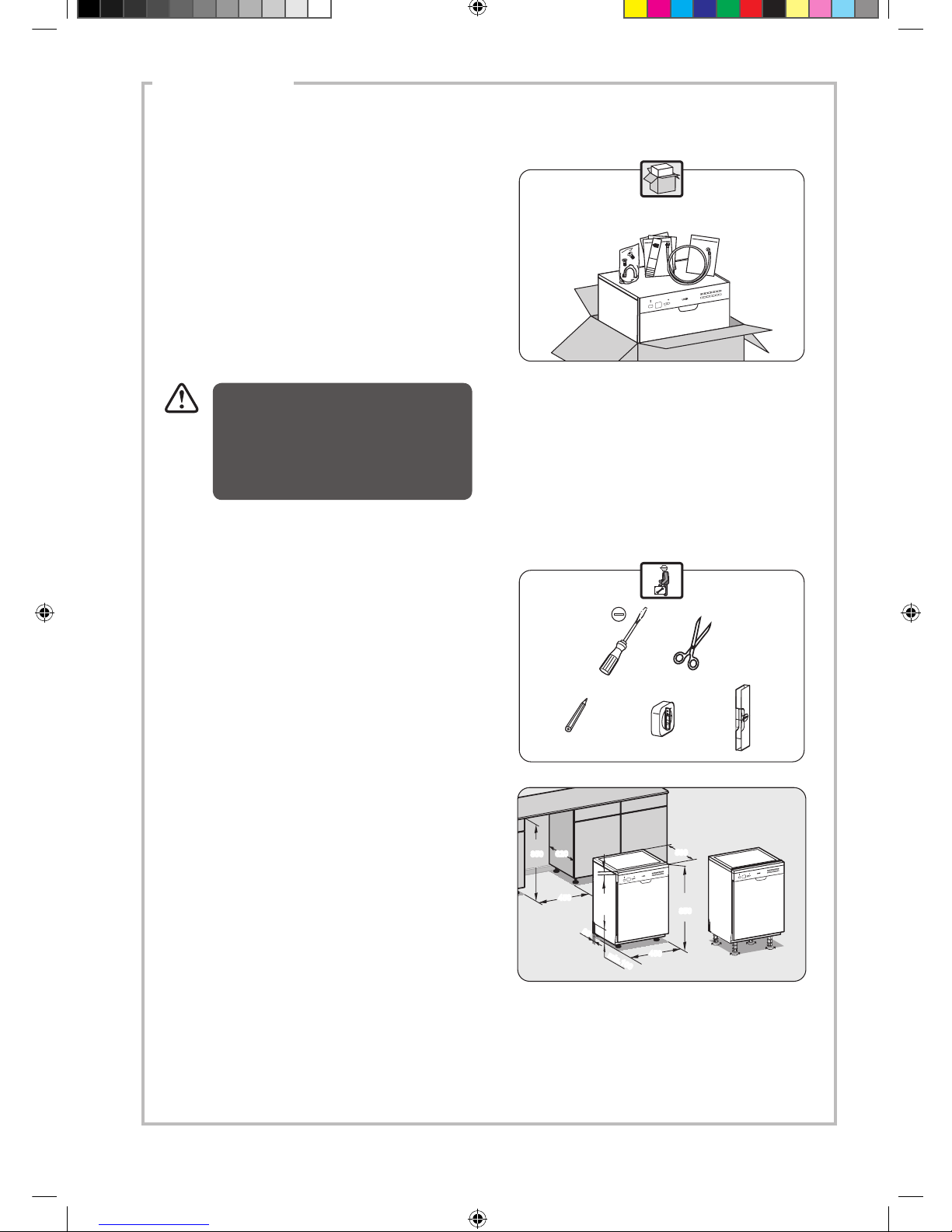

1. Please ensure the dishwasher is installed
by a qualified technician. Refer to the tools
required.
Power
Delay
Start 1/2Load 3in1 Intensive Normal Eco Rinse Glass Rapid
Location
When selecting a position for your slimline
dishwasher you should make sure the installation
surface is flat and firm, and the room is well
ventilated. Avoid locating your dishwasher near
a heat source, eg. cooker, boiler or radiator.
Extreme cold ambient temperatures may also
cause the appliance not to perform properly. This
dishwasher is not designed for use in a garage or
outdoor installation.
Do not drape the dishwasher with any covering.
When installing, ensure that free space is left at
the sides.
2. Ensure there is clearance each side of the
unit to allow slight sideways movement for
servicing when required. Good levelling is
essential for correct closure and sealing of the
door. When the unit is correctly levelled, the
door should not catch the inner liner on either
side of the cabinet. The adjustable feet may
be loosened or tightened in order to obtain
the optimum levelling of the unit.
Installation
All parts removed must be saved to
do the reinstallation in the future.
Ensure the dishwasher is unplugged
and empty. We recommend that 2
people handle the dishwasher during
installation.
LDW45S11_IB_110331.indd 6 3/31/11 5:04 PM

7
INSTALLATION

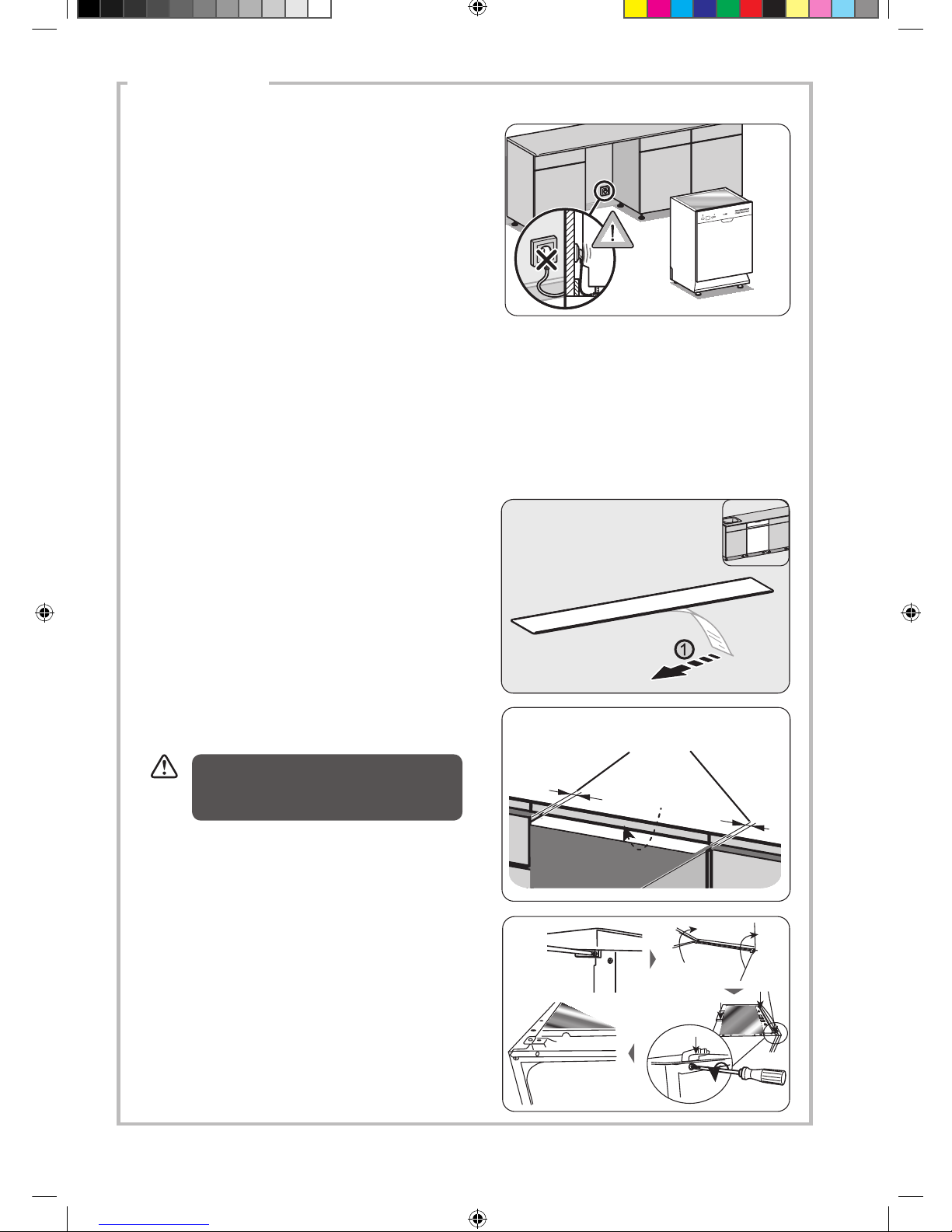

4. The condensation strip must be fitted to
the underside of the worktop above your
dishwasher to protect it against any moisture.
Its purpose is to protect your worktop’s
underside from steam rising from the
dishwasher.
• Ensure the surface is clean prior to sticking
the condensation strip to the underside of
the worktop.
• Remove the backing paper from the
condensation strip.
3. If required, the worktop of the dishwasher can
be removed. The height without the worktop
is 820 mm, the minimum dimensions required
to accommodate the dishwasher within fitted
kitchen furniture units.
Do not connect the unit to the mains socket
before installation. Ensure you are not
installing the unit right in front of the mains
socket. This is to avoid potential damage to
the back of the unit.
• Stick the condensation strip to the
underside of the worktop.
5. The worktop can be removed by removing
the fixing screws located at the rear of the
dishwasher. After removing the screws, lift
and push the worktop forward to release the
lugs from the front section of the dishwasher.
The polystyrene block and the lugs should be
saved for future use.
Power
Delay
Start 1/2Load 3in1 Intensive Normal Eco Rinse Glass Rapid
Stick the Condensation Strip
under the worktop, where you
want to install the dishwasher.
Leave some space
Remove
Remove
Remove
Unscrew
Failure to attach the condensation strip
could result in damage to the underside
of your worktop!
LDW45S11_IB_110331.indd 7 3/31/11 5:04 PM

8
INSTALLATION

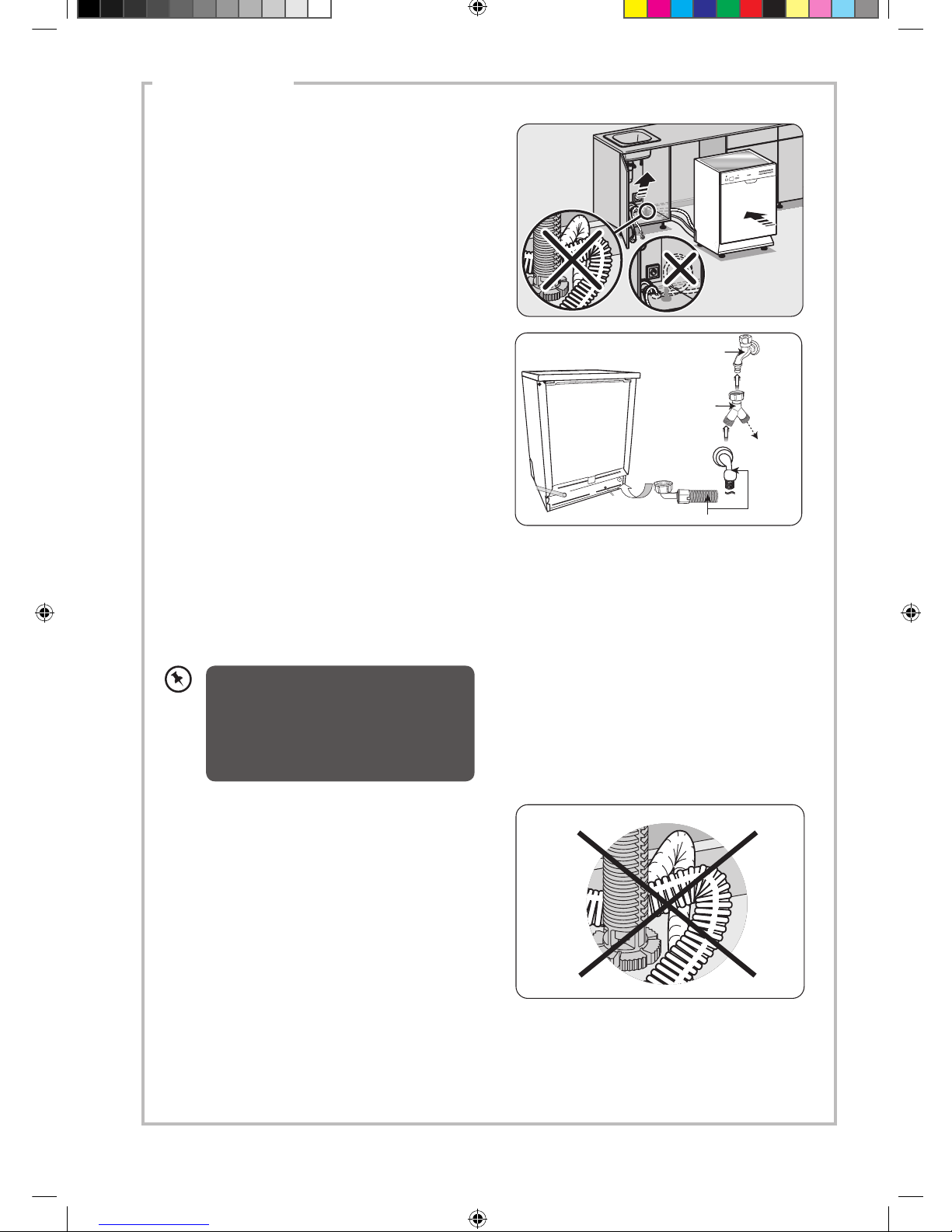

7. Make sure your plumbing is suitable for use
with the dishwasher. If in doubt contact
a qualified plumber. This unit MUST BE
connected to COLD WATER MAINS using the
new water inlet hose. OLD HOSE SETS MUST
NOT BE RE-USED. The water pressure from
the water mains needs to be at a minimum of
0.04 MPa and a maximum of 1.00MPa.
• Connect one end of the safety water
supply hose to your dishwasher, and then
connect the other end of the hose to
your water mains. Please ensure the black
rubber seal is in place.
• After connecting the hose, turn on your
water mains and check for leaks.
• Connect the dishwasher to the mains
socket.
• Do not bend your drain hose.
6. Position the dishwasher next to a water tap
and a drain. Ensure the water inlet and drain
hoses are not kinked or squashed. The unit
must not stand on the mains cable.
water mains
safety water supply hose
Y-Adaptor
(not included)
Connect to
another
appliance
if required.
Power
Delay
Start 1/2Load 3in1 IntensiveNormal Eco Rinse Glass Rapid
You may use a Y-adaptor (not included)
for an additional water feed for another
appliance, for example a washing
machine. This is only applicable for cold
water mains. A Y-adaptor is available
from most DIY stores.
LDW45S11_IB_110331.indd 8 3/31/11 5:04 PM

9
INSTALLATION
water drain hose
U-shaped drain hose
holder
• You may use the U-shaped drain hose
holder to secure your drain hose and to
avoid bending it.
• Secure the water drain hose to the waste
pipe to avoid it coming off during the
washing process.
The waste pipe must only be connected
to the foul drains and not the surface
water drainage system.
The water drain hose should be placed
between 40 cm and 100 cm from the floor
level and must not be extended, otherwise
the unit may not be able to expel the
waste water properly.
LDW45S11_IB_110331.indd 9 3/31/11 5:04 PM

10

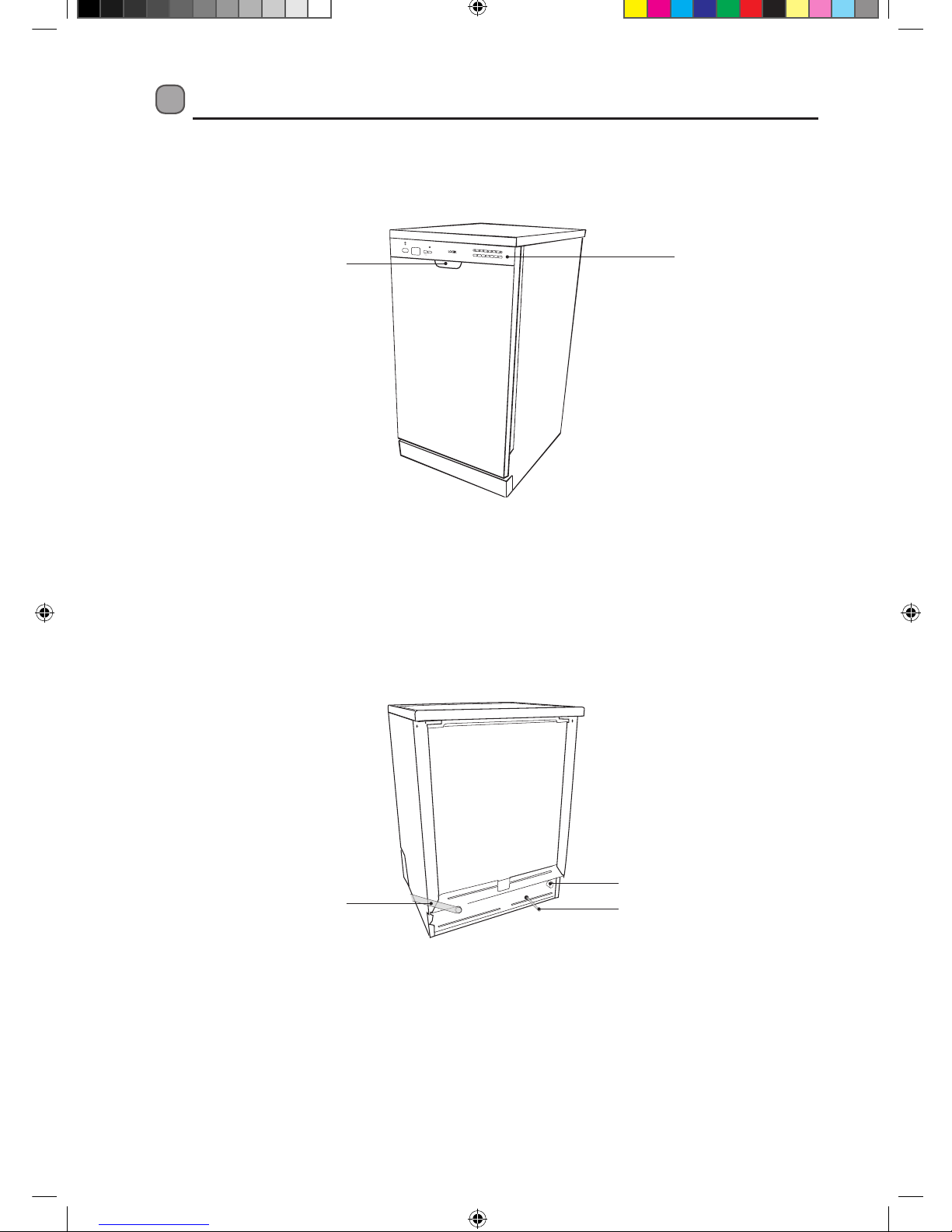

Product Overview
Front View
Rear View
1. Control Panel
2. Door Handle
Power
Delay
Start 1/2Load 3in1 Intensive Normal Eco Rinse Glass Rapid
2
3
1
5
4
3. Drain Hose
4. Water Inlet
(Connect To Supply Hose)
5. Mains Cable
(Connect To Electrical Mains Outlet)
LDW45S11_IB_110331.indd 10 3/31/11 5:04 PM
