Logik L18MOV13 User manual

Instruction Manual
Mini Oven
L18MOV13

Contents
Contents .........................................................................................................................................2
Safety Warnings.............................................................................................................................3
Unpacking......................................................................................................................................6
Product Overview..........................................................................................................................7
First Time Use.................................................................................................................................7
Control Panel .................................................................................................................................8
Thermostat Control................................................................................................................................................ 8
Function Selector Control.................................................................................................................................... 8
Indicator Light.......................................................................................................................................................... 8
Timer Control ........................................................................................................................................................... 8
Operation & Summary Table.........................................................................................................9
General Tips ...................................................................................................................................9
Toast ..........................................................................................................................................................................10
Tips for good toasting:........................................................................................................................................10
Specications...............................................................................................................................11

3
Safety Warnings
• Read all the instructions carefully before using the appliance and keep them for
future reference.
• Retain the manual. If you pass the appliance onto a third party make sure to
include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.
Damage
• Please inspect the appliance for damage after unpacking.
• Do not continue to operate the appliance if you are in any doubt about it
working normally, or if it is damaged in any way - switch o, unplug from the
mains socket and consult your dealer.
Location
• The appliance must be placed on a at stable surface and not subjected to
vibrations.
• Do not place the appliance on sloped or unstable surfaces as the appliance may
fall o or tip over.
• The mains socket must be located near the appliance and should be easily
accessible.
• This appliance is intended for indoor household use and similar applications
such as:
– farm houses and by clients in hotels, motels and other residential type
environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
Temperature
• Avoid extreme degrees of temperature, either hot or cold. Place the appliance
well away from heat sources such as radiators or gas / electric res.
• Avoid exposure to direct sunlight and other sources of heat.
• Do not touch hot surfaces. The temperature of accessible surfaces may be very
high when the appliance is in use. Use the detachable handle to remove the
grill rack / baking pan from the oven. Allow the oven to fully cool down before
moving or cleaning it.
Naked Flames
• Never place any type of candle or naked ame on the top of or near the
appliance.

4
Moisture
• To reduce the risk of re, electric shock or product damage, do not expose this
appliance to rain, moisture, dripping or splashing. No objects lled with liquids,
such as vases, should be placed on the appliance.
• If you spill any liquid into the appliance, it can cause serious damage. Switch
it o at the mains immediately. Withdraw the mains plug and consult your
dealer.
Ventilation
• To prevent the risk of electric shock or re hazard due to overheating, ensure
that curtains and other materials do not obstruct the ventilation vents.
• A minimum distance of 5cm around the appliance should be maintained to
allow for sucient ventilation.
• Do not install or place this appliance in a bookcase, built-in cabinet or in
another conned space. Ensure the appliance is well ventilated.
Safety
• The appliance is not intended to be operated by means of an external timer or
separate remote-control system.
• Always disconnect the appliance from the mains supply before moving the
appliance.
• In the interests of safety and to avoid unnecessary energy consumption, never
leave the appliance unattended for long periods of time, e.g. overnight, while
on holiday or while out of the house. Disconnect the mains plug from the
mains socket.
• Bread may burn. Your appliance must not be used near or below curtains or
other combustible materials. It must be watched when in use.
• Only place toast bread in your appliance. Do not attempt to toast any pastry or
bread product which is lled with a fruit or sugary lling (pop tarts etc). The
stungs may leak and cause damage to your appliance or cause a re risk.
• Oversized food, metal foil packages or utensils must not be inserted in the
appliance as they may cause re or electric shock.
• Don’t attempt to dislodge food while the appliance is in use.
• Take the bread out carefully after toasting to avoid injury.
• Do not use the appliance for uses other than its intended use.
• During use the appliance becomes hot. Care should be taken to avoid touching
the heating elements inside the oven.
• Accessible parts may become hot during use.Young children should be kept
away from the appliance.

5
Mains Cable
• Make sure the appliance is not resting on top of the mains cable, as the weight
of the appliance may damage the mains cable and create a safety hazard.
• Do not let the mains cable overhang the edge of the work surface or allow it to
touch hot surfaces or sources of heat or ame.
• If the mains cable is damaged it must be replaced by the manufacturer, its
service agent, or similarly qualied persons in order to avoid a hazard.
• Keep the appliance and its cord out of reach of children less than 8 years old.
Supervision
• This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the
appliance.
• Never let anyone especially children push anything into the holes, slots or any
other openings in the case - this could result in a fatal electric shock.
Service
• To reduce the risk of electric shock, do not remove screws. The appliance does
not contain any user-serviceable parts. Please leave all maintenance work to
qualied personnel.
• Do not open any xed covers as this may expose dangerous voltages.
Maintenance
• Ensure the appliance in fully unplugged and far away from the mains socket
before cleaning.
• Allow the appliance to cool completely before cleaning or storing.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may
damage the appliance’s surface.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass
door as they can scratch the surface which may result in the glass shattering.
• Do not use steam cleaning to clean the appliance.

6
Baking Tray
Main Unit
Crumb Tray
Baking Rack
Instruction Manual x 1
Thank youfor purchasing your new Logik Mini Oven.
We recommend that you spend some time reading this instruction
manual in order that you fully understand all the operational features it
oers. You will also nd some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this
instruction manual for future reference.
If items are missing, or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
Unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
FUNCTION
70
150
200
230
MIN
TEMP (˚C)
OFF
POWER
20
60
O
STAYON
TIME(min)
Instruction
Manual

7
FUNCTION
70
150
200
230
MIN
TEMP (˚C)
OFF
POWER
20
60
O
STAYON
TIME (min)

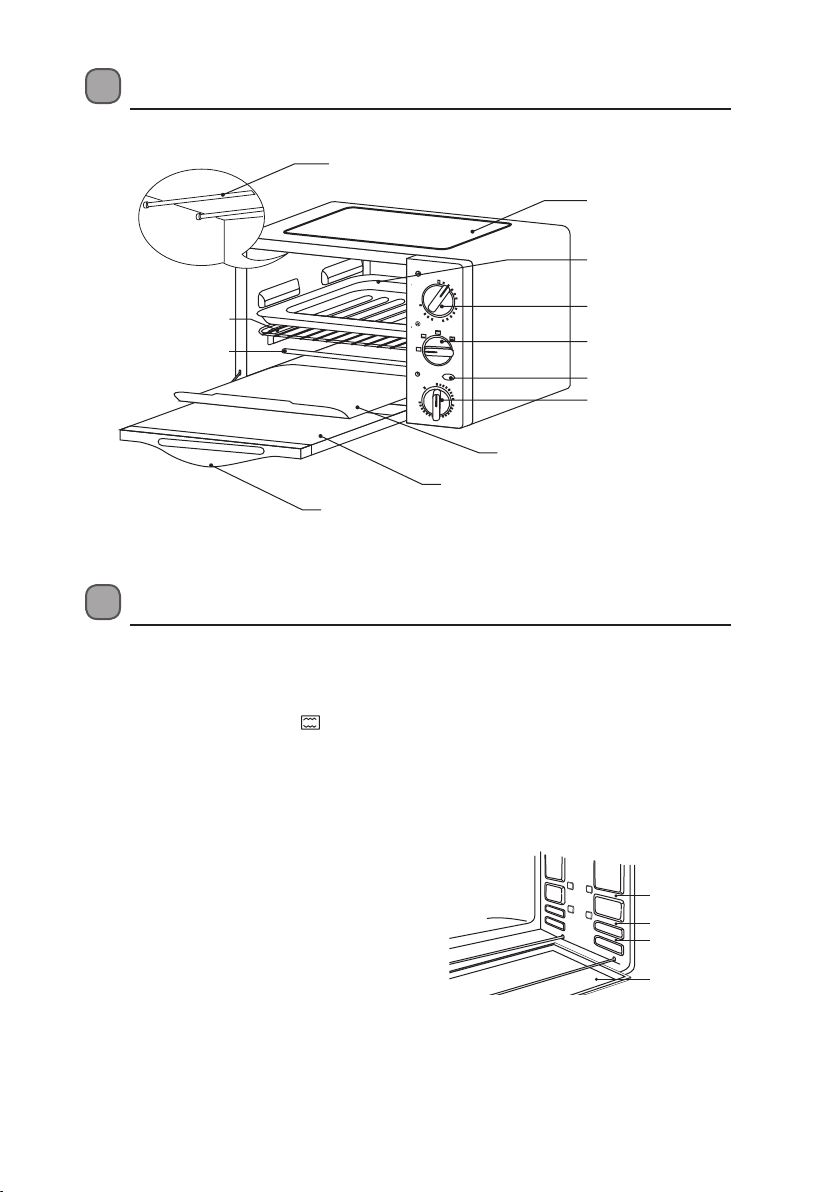

Product Overview
First Time Use
Unpack the oven and place it on a horizontal surface. Remove any packaging, cards or
plastic bags. Use a damp cloth to carefully wipe the inner cavity wall and housing. Clean all
the detachable parts in hot, soapy water before using.
1. Heat the oven at 230°C on for 15 minutes. There may be a little smoke and odour
upon initial start up (for about 15 mins). This is normal. This is due to the protective
substance on the heating elements which protects them from the eects of corrosion
during shipping from the factory.
2. For the best cooking results, the smallest distance allowed between the food and the
upper heating element is 30 mm.
3. On the wall of the inner cavity there are 3
dierent rack guide slots. You can place the
rack at dierent heights to achieve the best
cooking performance depending on the heat
of the heating elements and the size of the
food. If only the upper heating element is on,
we suggest that you place the rack on guide 1
(make sure that there is a minimum distance
of 30 mm between the food and the upper
heating element).
4. Always monitor the food during operation to
ensure that you are not overcooking it.
Top Heating Element
Housing
Baking Tray
Thermostat Control
Function Selector
Control
Timer Control
Bottom Heating
Element
Baking Rack
Crumb Tray
Glass Door
Door Handle
Power Light
Guide 1
Guide 2
Guide 3
Crumb tray

8

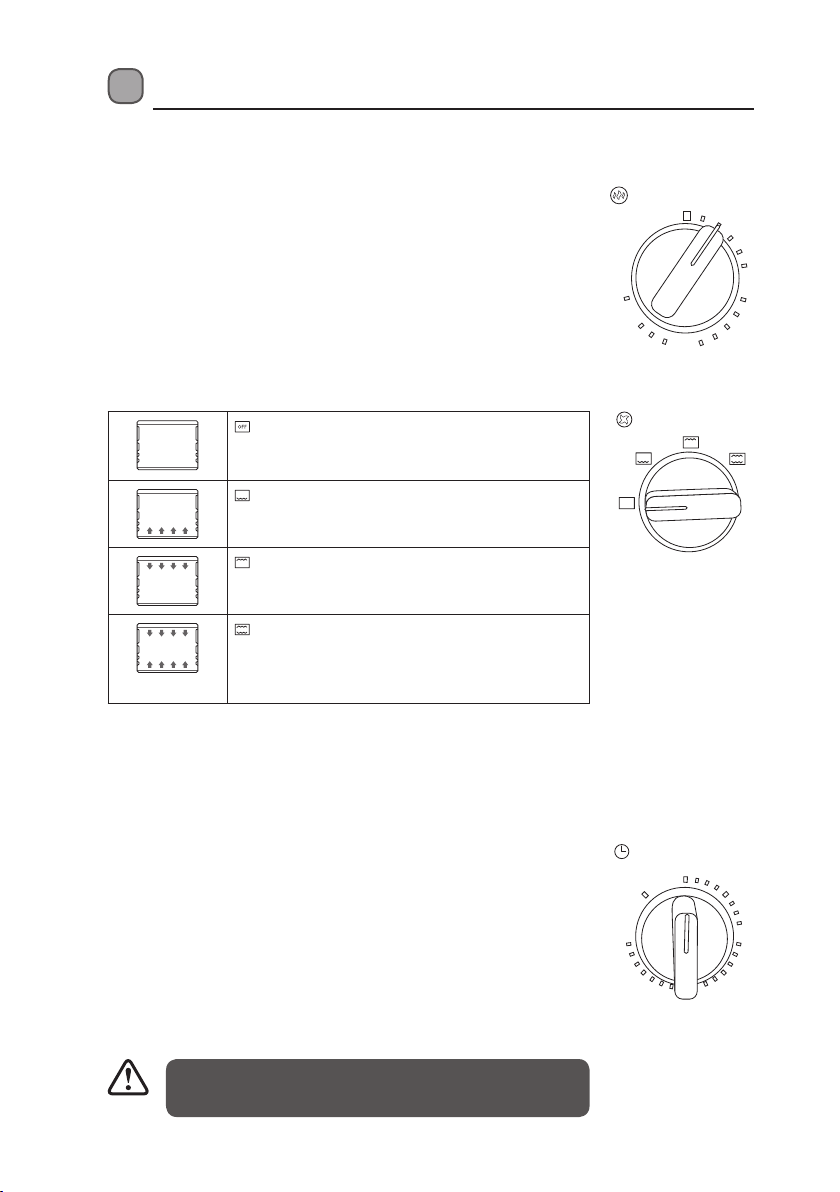

Control Panel
FUNCTION
OFF
70
150
200
230
MIN
TEMP (˚C)
20
60
O
STAY ON
TIME (min)
Thermostat Control
The temperature can be set from 70°C - 230°C. Turn the dial to select
the desired temperature.
Function Selector Control
This control is used to select the cooking functions available:
Off
(Both the top and bottom heating elements are
off)
BAKE
(Only the bottom heating element is on)
BROIL
(Only the top heating element is on)
TOAST
(Both the top and bottom heating elements are
on. This is perfect for baking pizza, bread and
cookies and roasting pork and steak)
Indicator Light
When the oven is in use, the power light will light up.
Timer Control
• The oven will not turn on without the timer being set.
• Turn the timer control to set the operation time (Max 60 mins,
or stay on).
• The power LED lights up when the timer is in any position
except “O”.
• To set the timer, turn the knob clockwise to the desired time.
• When the timer reaches the“O” position, the oven turns o
and dings. The power supply will be cut o automatically.
• The timer can be adjusted during the cooking cycle.
• Bread may catch re if the toasting time is too long.
• Close supervision is necessary during toasting.

9
The maximum weight of food on the grill rack/baking pan is max 2.0kg.
Operation & Summary Table
Function selector
control position
Baking rack and
baking tray position
Notes / Tips
Bake
Place the food on the baking tray
and use the baking rack insert into
guide 1. Ideal for grilling meat, fish
and vegetables.
Broil
or
Use the grill rack or baking tray
inserted in guide 2 or 3. Ideal for
cooking stuffed vegetables, fish,
plum cakes and small poultry.
Toast
Place the food on the grill rack
inserted in guide 2. Ideal for
toasting slices of bread. Toast for a
max. 7 mins.
* Always use oven mitts to remove cooked dishes from the oven. They will be hot.
General Tips
• Place the grill rack in the rack guide that will accommodate the height of the food to be
cooked.
• Set the food on the grill rack. Make sure that you always use an ovenproof container in
the oven, never use plastic or cardboard containers in the oven.
• Never use glass or ceramic pans or lids.
• Do not let juices run to the bottom of the oven. Use the baking pan and crumb tray
when cooking.
• Set the temperature as suggested by the recipe or as desired.
• Securely shut the door and set the cooking time to begin using the oven.
• When cooking with the convection oven, traditional oven and grilling, always preheat
the oven for 5 minutes to set the temperature.
• The cooking times depend on the quality of the food products, the temperature of the
food and on your own personal tastes. The times indicated in the table are subject to
variation, and do not include the time required to preheat the oven.
• To cook frozen foods refer to the recommended times on the food product packaging.
• Do not place food on only one side of the grill rack / baking pan. Make sure food is
distributed evenly on the grill rack / baking pan.
• The rear surface of appliance shall be placed against a wall.

10
Toast
Use the Toast function for foods such as corn, bread, cookies and heating food. The
following is a bread slices placement guide only.
• The dimensions of the grill rack allows for four slices of bread to be toasted at the same
time.
• To automatically toast frozen bread, sandwiches, muns and waes, always use the
grill rack.
• When toasting the bread, place the slices as shown below:
Toasting one slice Toasting two slices Toasting four slices
1. Place the grill rack in guide 2.
2. Place the bread to be toasted in the centre of the grill rack. Close the door.
3. Turn the function selector control to the .
4. Rotate the thermostat control clockwise to the desired temperature.
5. Toast for the desired length of time.
6. Check food temperatures before removing from the oven to ensure the food is
thoroughly cooked.
7. Always remove food with oven mitts. Food and oven are very hot.
Tips for good toasting:
• For consecutive uses, reduce the set toasting time.
• Larger pieces of bread and frozen bread take longer to toast. Just one slice of bread
requires a lower setting than four slices.
• If lighter toasting is preferred, simply stop the automatic cycle by turning the
Timer control to the “O”position to switch the oven o.
• For darker toasting re-start the cycle by turning the timer control clockwise
• until reaching the desired level. Then manually turn the thermostat control
and the toast timer control o, as described previously.
• The best positions for each type of bread can be identied when using the
oven regularly.

11
and bad odours during cooking. Do not let fat
accumulate inside the appliance.
Before any maintenance or cleaning, unplug the oven
and wait for it to fully cool down.
Clean the door, the inside walls and the enamel or
painted surfaces of the oven with soap and water
solution and then dry thoroughly.
When cleaning the surfaces on the inside of the oven,
never use products that corrode aluminium (e.g,
detergents in spray cans) and never scrape the walls
with sharp objects to avoid damage to the non-stick
coating.
Always use a damp sponge to clean the outside surface
of the oven. Avoid using abrasive products that may
damage the exterior surface.
Make sure water or liquid soap does not seep into the
vents on the top of the oven.
Never immerse the appliance in water and never wash
it under a jet of water.
All the accessories can be washed like normal dishes,
either by hand or in the dishwasher.
Slide the crumb tray out from under the bottom of
your oven. Wash by hand. Rinse the crumb tray with
hot soapy water and if necessary, scour it delicately,
without scratching it.
FUNCTION
70
150
200
230
MIN
TEMP(˚C)
OFF
POWER
20
60
O
STAYON
TIME(min)
FUNCTION
70
150
200
230
MIN
TEMP(˚C)
OFF
POWER
20
60
O
STAYON
TIME(min)
FUNCTION
70
150
200
230
MIN
TEMP(˚C)
OFF
POWER
20
60
O
STAYON
TIME(min)
Specications
Model L18MOV13
Power Consumption 220-240V ~50Hz
Output 1300W
Electric Oven Capacity 18 Litres
Features and specications are subject to change without prior notice.

DSG Retail Ltd. (co. no. 504877)
Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK
IB-L18MOV13-140505V2
This symbol on the product or in the instructions means that your electrical and
electronic equipment should be disposed at the end of its life separately from your
household waste. There are separate collection systems for recycling in the EU.
For more information, please contact the local authority or your retailer where you
purchased the product.
Visit Partmaster.co.uk today for the easiest way to buy electrical
spares and accessories. With over 1 million spares and accessories
available we can deliver direct to your door the very next day. Visit
www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.
For general information about this appliance
and handy hints and tips, please visit
www.knowhow.com/knowledgebank or call 0844 5611234.
