Logik L90CHDB10 User manual

90cm Black
Chimney Standard Hood
Instruction / Installation Manual
L90CHDB10

Contents
Before Use .................................................................................................................................................................3
Unpacking................................................................................................................................................................................................... 3
Product Overview .................................................................................................................................................................................... 4
Control Panel ............................................................................................................................................................................................. 5
Modes of Operation ................................................................................................................................................................................ 5
Operation ..................................................................................................................................................................6
Operation......................................................................................................................................................................................................... 6
Ū To select the fan motor speed ................................................................................................................................................... 6
Ū Hob lighting ..................................................................................................................................................................................... 6
Cleaning and Maintenance......................................................................................................................................7
Cleaning and Maintenance .................................................................................................................................................................. 7
Grease filters .............................................................................................................................................................................................. 7
Ū Cleaning the grease filters by hand......................................................................................................................................... 8
Ū Cleaning the grease filters in the dishwasher...................................................................................................................... 8
Carbon Filter Usage................................................................................................................................................................................. 9
Replacing Carbon Filter.......................................................................................................................................................................... 9
Changing the Lamps............................................................................................................................................................................... 9
Hints and Tips ..........................................................................................................................................................................................10
If cooker hood does not operate......................................................................................................................................................10
Specifications..........................................................................................................................................................11
Ū Technical Specifications.............................................................................................................................................................11
Installation ..............................................................................................................................................................12
Product Overview ..................................................................................................................................................................................12
Safety Distance between Hob and Cooker Hood.......................................................................................................................14
Connection for Air Extraction ............................................................................................................................................................15
Mounting the Cooker Hood...............................................................................................................................................................16
Safety Warnings......................................................................................................................................................18

GB-3
Before UseOperationSpecicationInstallationSafety Warnings Cleaning and Maintenance
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to
local regulations.
The following items are included:
3.5 x 9.5 mm Zinc screw × 2
(Used for mounting plastic
chimney adaptor)
(P.N. YT 310.1000.08)
M4 Washer × 2
(Used for mounting the
product on the wall)
(P.N. YT 360.1000.01)
10 mm plastic wall plug × 4
(Used for mounting the
product on the wall)
(P.N. YT 350.1000.02)
Main unit
6 mm plastic wall plug × 2
(Used for mounting
chimney connection plate)
(P.N. YT 350.1000.01)
5.5 x 60 mm YSB screw × 4
(Used for mounting the
product on the wall)
(P.N. YT 310.1000.20)
M5 x 35 mm YSB screw × 2
(Used for mounting hanging
bars to motor cabin)
(P.N. YT 320.1000.24)
3.9 x 22 mm YSB screw × 2
(Used for mounting
chimney connection plate)
(P.N. YT 310.1000.16)
3.5 x 9.5 mm RYSB
Nickel screw × 2
(Used for mounting
internal chimney)
(P.N. YT 310.1000.10)
Chimney connection plate × 1
(Used for xing internal
chimney on the wall)
(P.N. YM 121.3110.612)
Plastic chimney × 1
(Used for air outlet)
(P.N. YT202.1000.07)
Chimney adaptor × 1
(Used for air outlet)
(P.N. YT202.1000.05)
Instruction / Installation
manual
(P.N. YT 610.3170.14)
Hanging bar × 2
(Used for mounting the
product on the wall)
(P.N. YM 121.3110.611)
Congratulations on the purchase of your new Logik Cooker Hood.
We recommend that you spend some time to read this manual in order to fully understand
how to install and operate it correctly.
Read all the safety warnings carefully before use and keep this manual for future reference.
If items are missing or damaged, please contact Partmaster (UK only).
Tel: 0870 6001 338 for assistance.

GB-4
Before Use Operation Specication Installation Safety Warnings
Cleaning and Maintenance
Product Overview
1. Grill for air outlet
2. Internal Chimney
3. External Chimney
4. Control Panel
5. Aluminium Filter
6. Illumination

GB-5
Before UseOperationSpecicationInstallationSafety Warnings Cleaning and Maintenance
Control Panel
1. Lamp button
2. Motor speed buttons
3. OFF button
12 3
OFF
Modes of operation
The cooker hood works with
1. Air Extraction:
The air is drawn in and cleaned by the grease filters and directed outside.
The non-return flap supplied with the appliance must be fitted on the exhaust socket
of the motor unit.
Having a non-return flap fitted in the ducting ensures that air, once ducted to the
outside, cannot get back into the room again.
The flap is closed when the cooker hood is switched off.
When the cooker hood is switched on, the non-return flap opens for the cooking
vapours to be ducted away.
2. Air Recirculation:
The air is drawn in and cleaned first by the grease filters and then by a carbon filter.
The cleaned air is then recirculated back into the kitchen through the recirculation
vents in the top of the cooker hood chimney.
Before using the cooker hood in recirculation mode, ensure that the carbon lters are in place.
See “Cleaning and Maintenance”
There must be adequate ventilation of the room when the cooker hood is used
at the same time as appliances burning gas or other fuels.
Carbon lters are available as an optional extra, see rear page for ordering details.

GB-6
Before Use Operation Specication Installation Safety Warnings
Cleaning and Maintenance
Operation
To select the fan motor speed
The unit has 3 motor speeds “I” , “II” and “III”.
For short periods of cooking food with intensive vapours and a strong aroma, e.g. when searing meat, you
may wish to select the highest setting “III”.
To turn the motor fan off, press the OFF button.
Hob lighting
• The hob lighting can be switched on and off independently of the fan by pressing the LAMP button .

GB-7
Before UseOperationSpecicationInstallationSafety Warnings Cleaning and Maintenance
• All external surfaces and controls can be cleaned using a little washing-up liquid applied with a damp
soft sponge or cloth.
• Wipe dry using a soft cloth.
Cleaning and Maintenance
Before any cleaning or maintenance work is carried out, disconnect the cooker hood from the mains
power supply. Ensure that:
– it is switched o at the isolator, or
– it is switched o at the wall socket and the plug is withdrawn, or
– the fuse from the fused spur connection unit is withdrawn, or
– the mains fuse is disconnected.
The surfaces and controls are susceptible to scratches and abrasions. Please observe the following
cleaning instructions.
Only use a damp cloth as water could get into the unit and cause damage.
Do not use:
• cleaning agents containing soda, acids, chlorides or solvents,
• abrasive cleaning agents, e.g. powder cleaners or cream cleaners and abrasive sponges, as
well as pot scourers or sponges which have been used previously with abrasive cleaning
agents as these will damage the surface material.
Grease Filters
The re-usable metal grease filters in the appliance remove solid particles (grease, dust, etc.) from the
kitchen vapours, preventing soiling of the cooker hood.
The grease filters should be cleaned regularly (at least every 3-4 weeks) to avoid a build-up of grease.
An dirty lter is a re hazard.
To avoid damaging the lters or the hob
below, make sure you hold the lters
securely at all times when handling them.
1. To take out the grease filter, press the plastic catch.
2. Pull aluminium filter downwards.
1.
2.

GB-8
Before Use Operation Specication Installation Safety Warnings
Cleaning and Maintenance
Cleaning the grease filters by hand
• Clean the filters with a soft nylon brush in a mild solution of hot water and a little washing-up liquid.
Do not use “neat” washing up liquid.
Do not use:
• cleaning agents containing descaling agents,
• powder cleaners, cream cleaners or abrasive all-purpose cleaners.
• Oven cleaners.
Cleaning the grease filters in the dishwasher
• Place the filters as upright as possible in the lower basket, with the short sides upright, and wash in
a 65°C programme, ensuring the spray arm is not obstructed.
• Use a mild dishwasher detergent.
• After cleaning, leave the filters to dry on an absorbent surface before replacing them.
• When removing the filters for cleaning, also clean off any residues of oil or fat from the now accessible
housing to prevent the risk of these catching fire.
When putting the grease filters back in position, ensure that the locking clips are facing down towards
the hob.
Depending on the cleaning agent used, cleaning the lters in a dishwasher can cause permanent
discolouration to the surface. However, this will not aect the functioning of the lters in any way.
• If a grease filter is inadvertently replaced upside
down, insert a small screwdriver blade into the slit
to disengage the clip.

GB-9
Before UseOperationSpecicationInstallationSafety Warnings Cleaning and Maintenance
Carbon Filter Usage
Your product is compatible with one type of carbon filter.
• Before installing or replacing the carbon filters, you should switch off and disconnect the electricity
supply.
• The carbon filters should never be washed.
• The grease filter should be installed on the product even when carbon filters are not being used.
Do not use your product without the grease filter.
Replacing Carbon Filter
• It is necessary to install 2 carbon filters to your product.
• To attach the carbon filter, place your filter on the connection channels on the motor and turn the left
hand filter clockwise and the right hand filter anticlockwise.
• In order to remove filters, turn the left hand filter anticlockwise and the right hand filter clockwise.
• Replace the carbon lters when they no longer absorb kitchen odours eectively. They should,
however, be replaced at least every 6 months to prevent a risk of re.
• Used carbon lters can be disposed of with the normal household waste.
Changing the Lamps
1. Disconnect the electricity supply.
2. Remove the aluminium grease filter.
3. Replace with a 25W 240V SES (E14) candle lamp.

GB-10
Before Use Operation Specication Installation Safety Warnings
Cleaning and Maintenance
Hints and Tips
Problem Solution
Cooker hood does not operate
• CheckElectricconnection.
(The supply voltage should be 220-240 V. The cooker hood
must be connected to an earthed socket.)
• Checkmotorspeedselector.
(Motor speed selector should be in position I, II or III.)
Lamp does not light
• CheckElectricconnection.
(The supply voltage should be 220-240 V. The cooker hood
must be connected to an earthed socket.)
• Checklampswitch.
(Lamp switch should be in the on position.)
• Checklamps.
Air suction of cooker hood is weak
• Checkaluminiumfilter.
(Aluminium grease filter should be washed once a month
under normal conditions.)
• Checkairoutletchimney.
(Air outlet chimney should be open.)
• Checkcarbonfilter.
(If it operates with carbon filter, carbon filter should be
replaced quarterly.)
If cooker hood does not operate:
Before contacting service:
Be sure that the plug is connected to the socket and the fuse in the installation is in good condition,
check your cooker hood according to the above table. If the problem continues, contact your retailer or an
authorised service agent.

GB-11
Before UseOperationSpecicationInstallationSafety Warnings Cleaning and Maintenance
Technical Specification
Model no. L90CHDB10
Extraction Rate (m3/h) 400
Voltage (V) 220 – 240 ~
Frequency (Hz) 50
Total Power (W) 235
Lamp 2 × 25 W
Because we continually strive to improve our products we may change specifications and designs without
prior notice.

GB-12
Before Use Operation Specication Installation Safety Warnings
Cleaning and Maintenance
Installation
Product Overview
1. Chimney connection plate
2. Internal chimney
3. Plastic chimney
4. External chimney
5. Chimney adaptor
1
3
2
4

GB-13
Before UseOperationSpecicationInstallationSafety Warnings Cleaning and Maintenance
All dimensions shown are in mm.

GB-14
Before Use Operation Specication Installation Safety Warnings
Cleaning and Maintenance
Min.650 mm
Min.750 mm
Safety Distance between Hob and Cooker Hood
• When deciding on the safe distance between the hob and cooker hood, please note that a distance
greater than 650 mm above electric cookers/hobs may be preferable to give more working space
under the hood.
• Account should also be taken of the height of the person who will be using the hood most often. The
person should have sufficient space to work comfortably at the hob, and also be able to reach the
hood controls with ease.
• Please be aware that if positioned too high, extraction will be inefficient.
• If you want the top of the cooker hood telescopic extension piece to be mounted flush with the
ceiling, make sure there is adequate space below the appliance for working. See maximum/minimum
appliance height.
When planning the installation height of your cooker hood, the minimum safe distance between
the top of a cooker or hob and the bottom of the cooker hood are as follows, unless a greater
distance is specied by the manufacturer of your cooking appliance:
650 mm
—
above electric hobs and cookers
750 mm
—
above gas hobs and cookers

GB-15
Before UseOperationSpecicationInstallationSafety Warnings Cleaning and Maintenance
Connection for Air Extraction
To avoid the danger of toxic fumes, please observe the Safety Warnings.
This is especially crucial when using the cooker hood at the same time as another heating appliance
which relies on air from the same room.
The cooker hood should be installed according to local and national building regulations. Seek
approval from the building inspector where necessary.
If the exhaust ducting is to run through rooms, ceiling space etc. where there may be great varia-
tions in temperature between the different areas, the problem of condensation will need to be
addressed. The exhaust ducting will need to be suitably insulated.
Only use smooth pipes or exible hoses made from non-ammable materials for the extraction
ducting.
To achieve the greatest possible air extraction with the lowest noise level, please note the following:
• To ensure ecient air extraction, the diameter of the exhaust ducting should not be less than
125 mm.
• If at ducting is being used, the cross-sectional area must not be smaller than the
cross sectional area of the exhaust connection.
• All ducting, pipework and ttings must be of non-ammable materials.
• The exhaust ducting should be as short and straight as possible.
• Only use wide radius bends.
• The exhaust ducting should not be kinked or compressed.
• Ensure that all connections are strong and airtight.
• Where ducting is horizontal, it must be laid to slope away at at least 1 cm per metre. This is to
ensure that condensation cannot drain back into the cooker hood
• If the exhaust air is to be ducted into the open air, the installation of a telescopic wall vent or
roof vent is recommended.

GB-16
Before Use Operation Specication Installation Safety Warnings
Cleaning and Maintenance
Mounting the Cooker Hood
10
1. We recommend for air extraction installations, a professional tradesperson is consulted prior to any
work being undertaken. A 125mm hole will need to be provided for the aluminium flexible hose (not
supplied) to duct the extracted air to the outside. For recirculation operation, a competent person
can follow the instructions below. If you are in any doubt, we recommend you consult a professional
tradesperson.
2. Ensure there is an available switched electrical socket adjacent to the hood to power the appliance.
If this is not available, do not use extension leads. We recommend you consult a qualified electrician
prior to commencing any work.
• We recommend professional tradespersons are consulted prior to the tting of this appliance.
• Each installation is dierent and these instructions should be used as a guide only. If in doubt
consult professional tradespersons.
• Air must not be discharged into a ue that is used for exhausting fumes from appliances burning
gas or other fuels.
3. Using the 2 machine bolts (M5 × 35 mm YSB screw), secure the two
angled brackets (hanging bar) to the top of the hood as shown. Ensure
the keyhole cutout is facing the rear of the appliance.
4. Using 2 of the 3.5 × 9.5 mm screws fix the plastic chimney adaptor to the top of the cooker hood.
5. Drilling Hanger Holes
Before drilling any holes, ensure there is no pipe work or wires buried in the wall.
Paste the mounting template to the wall surface where the chimney hood will be mounted and drill
(A, B, C, D) holes on marked points by using a Ø 10 mm drill bit. Drill holes (E, F) with a Ø 6mm drill bit.
Ensure that the chimney connection plate is 15mm below the ceiling.

GB-17
Before UseOperationSpecicationInstallationSafety Warnings Cleaning and Maintenance
12. Ensure all protective coverings have been removed from the
metal surfaces prior to use.
13. Follow the operation instructions in this manual for safe
operation of this appliance.
11. Place the external chimney over the internal chimney and over
the hood motor enclosure.
10. Screw the internal chimney to the chimney connection plate
by using the two 3.5 × 9.5 mm screws through the mounting
holes at the top of the internal chimney.
E F
6. Wall Plug Fixings
Push the Ø 10mm wall plugs into the drilled holes (A, B, C, D). For the chimney connection plate, push
the 2 pcs of Ø 6mm wall plugs into the holes drilled with Ø 6mm drill bit.
7. Fixing the screws
Screw the 5.5 × 60mm YSB screws into the Ø 10mm wall plugs (A, B). There should be a 5mm gap
between the screw head and the wall.
8. Using the (3.9 × 22mm) supplied screws, screw the chimney
connection plate into the Ø 6mm wall plugs (E, F) fixed in the wall.
9. Mounting the Hood to Wall
Hang the hood on the two screw (A,B). Fit the two remaining
screws (C,D).
Ensure the hood is level and fully tighten all four screws.

GB-18
Before Use Operation Specication Installation Safety Warnings
Cleaning and Maintenance
Correct application
• This appliance is not designed for commercial
use. It is intended for use in domestic
households.
• It must only be used as a domestic appliance
to extract vapours and remove odours from
cooking.
• Any other usage is not supported by the
manufacturer and could be dangerous.
The manufacturer cannot be held liable for
damage resulting from incorrect or improper
use or operation of the appliance.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience or knowledge, unless
they have been given supervision or
instruction concerning its use by a person
responsible for their safety.
• Do not ambé under the cooker hood.
• Accessible parts may beome hot when used
with cooking appliances.
• If the supplied cable is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualied persons in order to avoid
a hazard.
Safety with children
• This appliance is only intended for use by
adults who have read these instructions.
• This appliance is not a toy! To avoid the risk of
injury, keep children well away and do not
allow them to play with it or to use the
controls. They will not understand the
potential dangers posed by it. They should be
supervised whenever you are working in the
kitchen.
• Older children may use the cooker hood only
when its operation has been clearly explained
to them and they are able to use it safely,
recognising the dangers of misuse.
This appliance complies with all relevant
local and national safety requirements.
Inappropriate use can, however, lead to
personal injury and damage to property.
To avoid the risk of accidents and
damage to the appliance, please read
these instructions carefully before
using it for the rst time. They contain
important information on the safety,
installation, use and maintenance of the
appliance.
Keep these instructions in a safe place
and ensure that all users are familiar with
the contents. Pass them on to any future
owner of the appliance.
Safety Warnings
Correct use
• Never use an open ame beneath the cooker
hood. To avoid the danger of re, do not
ambé or grill over an open ame under the
cooker hood.
When switched on, the cooker hood could
draw ames into the lter. Fat particles drawn
into the cooker hood present a re hazard.
• When using the cooker hood over a gas hob,
ensure that any burners in use are always
covered by a pan. Switch the cooking zone o
when a pan is removed, even for a short time
Regulate the ame so that it does not burn up
the sides of the pan.
Do not allow the pans to overheat excessively
(e.g. when using a wok).
The cooker hood can become damaged when
exposed to excessive heat.
• Always switch the cooker hood on when
a cooking zone is in use, otherwise
condensation may collect in the hood, which
could cause corrosion.
• When cooking with oil or fat, chip pans
and deep fat fryers etc, do not leave the
pans unattended. Never leave an open grill
unattended when grilling. Overheated oil and
fat can ignite and could set the cooker hood
on re.

GB-19
Before UseOperationSpecicationInstallationSafety Warnings Cleaning and Maintenance
Technical safety
• Before installation, check the cooker hood
for visible signs of damage. Under no
circumstances should you use a damaged
appliance. It could be dangerous.
• Before connecting the appliance to the
mains supply, make sure that the voltage and
frequency details given on the data plate
correspond with the on-site electricity supply,
otherwise the appliance could be damaged.
Consult a qualied electrician if in any doubt.
• The electrical safety of this appliance can only
be guaranteed when continuity is complete
between the appliance and an eective
earthing system which complies with current
local and national safety regulations. It is most
important that this basic safety requirement is
present and tested regularly, and where there
is any doubt, the household wiring system
should be inspected by a qualied electrician.
The manufacturer cannot be held liable for
the consequences of an inadequate earthing
system (e.g. electric shock).
• For safety reasons, this appliance may only be
used when it has been fully installed.
• Do not use the cooker hood without the lters
in place. This way you will avoid the risk of
grease and dirt getting into the appliance and
hindering its smooth operation.
• The lters should be regularly cleaned or
changed as appropriate.
Saturated lters are a re hazard. See "Cleaning
and Maintenance".
• The cooker hood can get very hot during
cooking due to heat rising from the hob.
Do not touch the housing or the grease lters
until the cooker hood has cooled down.
• Do not use a steam-cleaner to clean this
appliance. Steam could reach the electrical
components and cause a short circuit.
• Only open the housing as described in the
instructions. Under no circumstances should
any other parts of the housing be opened.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user, and can cause
operational faults.
• Installation, maintenance and repairs may
only be carried out by an authorised person
in accordance with current national and local
safety regulations. Repairs and other work
by unqualied persons could be dangerous.
The manufacturer cannot be held liable for
unauthorised work.
• Faulty components must only be replaced by
genuine original parts. The manufacturer can
only guarantee the safety of the appliance
when suitable replacement parts are used.
• During installation, maintenance and repair
work, the appliance must be disconnected
from the mains electricity supply. It is only
completely isolated from the electricity supply
when:
– it is switched o at the isolator, or
– the mains fuse is disconnected, or
– it is switched o at the wall socket and the
plug withdrawn, or
– the fuse to the fused spur connection unit is
withdrawn.
• Do not connect the appliance to the mains
electricity supply by a multi-socket unit or an
extension lead. These do not guarantee the
required safety of the appliance (e.g. danger
of overheating).
• This appliance may only be used in mobile
installations if a risk assessment of the
installation has been carried out by a suitably
qualied engineer.
• In areas which may be subject to infestation
by cockroaches or other vermin, pay particular
attention to keeping the appliance and its
surroundings in a clean condition at all times.
Any damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.

GB-20
Before Use Operation Specication Installation Safety Warnings
Cleaning and Maintenance
In order to ensure safe operation, and to prevent
gases given o by the heating appliances from
being drawn back into the room when the
cooker hood and the heater are in operation
simultaneously, an underpressure of 0.04 mbar
(4 pa) is the maximum permissible in the room.
Ventilation can be maintained by air inlets which
must not be blocked, in windows, doors
and outside wall vents, or by other technical
measures, such as ensuring that the cooker
hood can only be switched on when the heating
appliance is switched o or vice versa.
A ventilation brick alone is not generally
sucient to ensure safe ventilation.
Using at the same time as other heating
appliances that depend on the air from
the same room.
• Great care should be taken when using the
cooker hood at the same time and in the same
room or area of the house as another heating
appliance which depends on the air in the
room. Such appliances include gas, oil, wood
or coal-red boilers and heaters, continuous
ow or other water heaters, gas hobs, cookers
or ovens which draw air in from the room and
duct exhaust gases out through a chimney or
extraction ducting.
When used in extraction mode, the appliance
draws air in from the room in which it is
installed and from neighbouring rooms.
If there is insucient air, an underpressure will
occur. The heating appliance may be starved
of oxygen, impairing combustion.
Harmful gases could be drawn out of the
chimney or extraction ducting back into the
room, with potentially fatal consequences.
Warning
Danger of toxic fumes
The overall ventilation condition of the
dwelling must be taken into account. If
in any doubt, the advice of a competent
builder or, for gas, a qualied gas tter
(Gas Safe registered in the UK) must be
sought.
One of the following technical measures may be
necessary to ensure safe operation.
– If the only way of ensuring adequate
ventilation is via an open window, a window
contact switch should be tted to ensure
that the cooker hood can only operate when
the window is opened suciently. A window
contact switch kit is available from good
builders' merchants.
Take care when ventilating the room through
an open window that ventilation is not
impaired by a closed blind or curtain.
If the hood is being operated in recirculation
mode, the above restrictions do not apply.
If in any doubt , the advice of a qualied
builder, gas tter (Gas Safe registered in
the UK) or electrician must be sought.
Table of contents
Other Logik Ventilation Hood manuals

Logik
Logik L60CHDX12 User manual

Logik
Logik LCH655SSE User manual

Logik
Logik LCH665SSE User manual

Logik
Logik L90CHDG11 User manual

Logik
Logik L90CHDSS11 Parts list manual

Logik
Logik LTH645SWE User manual

Logik

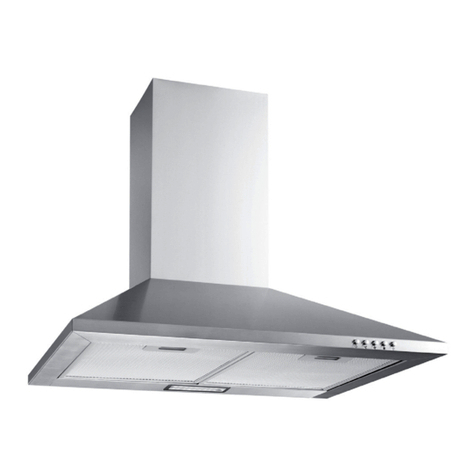

Logik L60CHDX17 Parts list manual

Logik
Logik L60CHDG10 Parts list manual

Logik

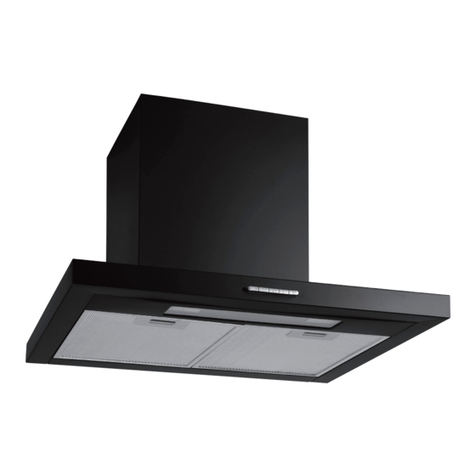

Logik L60CHDB12 Parts list manual

Logik
Logik L60CHDG14 Parts list manual
Popular Ventilation Hood manuals by other brands

ChiQ
ChiQ CQHDU30T1T1W instruction manual

Sirius Satellite Radio
Sirius Satellite Radio SL906 Series installation instructions

CDA
CDA CST6/1 Installation, use and maintenance

Futuro Futuro
Futuro Futuro WL36CAMINO-GM installation manual

Bosch
Bosch HDD80050UC use and care manual

KOBE
KOBE IS2136SQB Installation instructions and operation manual
