Logik L60CHDX17 Parts list manual

60cm/90cm Stainless Steel
Chimney Hood
L60CHDX17 / L90CHDX17
Instruction / Installation Manual
L60CHDX17
L90CHDX17
L60_90CHDX17_IB_RC_190411_grace.indd 1 11/4/2019 3:52 PM

L60_90CHDX17_IB_RC_190411_grace.indd 2 11/4/2019 3:52 PM

Contents
Safety Warnings............................................................................................................................ 4
Unpacking..................................................................................................................................... 9
Product Overview....................................................................................................................... 10
Control Panel...........................................................................................................................................................10
Modes of Operation ................................................................................................................... 11
Air Extraction........................................................................................................................................................... 11
Air Recirculation.....................................................................................................................................................11
Operation .................................................................................................................................... 11
To Select the Fan Motor Speed.........................................................................................................................11
Hob Lighting .......................................................................................................................................................11
Cleaning and Maintenance........................................................................................................ 12
Grease Filters........................................................................................................................................................... 12
Cleaning the Grease Filters by Hand ..............................................................................................................13
Cleaning the Grease Filters in the Dishwasher ...........................................................................................13
Carbon Filter Usage ..............................................................................................................................................14
Replacing Carbon Filters.....................................................................................................................................14
Changing the Lamps............................................................................................................................................ 14
Hints and Tips ............................................................................................................................. 15
If Cooker Hood Does Not Operate ..................................................................................................................15
Technical Specications............................................................................................................. 16
Product Fiche .............................................................................................................................. 16
Installation .................................................................................................................................. 18
Product Overview.................................................................................................................................................. 18
Safety Distance Between Hob and Cooker Hood ......................................................................................20
Connection for Air Extraction ...........................................................................................................................21
Mounting the Cooker Hood ..............................................................................................................................22
L60_90CHDX17_IB_RC_190411_grace.indd 3 11/4/2019 3:52 PM

4
Safety Warnings
• This appliance complies with all relevant local and national safety requirements. Inappropriate use
can, however, lead to personal injury and damage to property.
• To avoid the risk of accidents and damage to the appliance, please read these instructions carefully
before using it for the rst time. They contain important information on the safety, installation, use
and maintenance of the appliance.
• Keep these instructions in a safe place and ensure that all users are familiar with the contents. Pass
them on to any future owner of the appliance.
Correct Application
• This appliance is not designed for commercial use. It is intended for use in domestic households.
• It must only be used as a domestic appliance to extract vapours and remove odours from cooking.
• Any other usage is not supported by the manufacturer and could be dangerous.
The manufacturer cannot be held liable for damage resulting from incorrect or improper use or
operation of the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
• Accessible parts may become hot when used with cooking appliances.
• If the supplied mains cable is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualied persons in order to avoid a hazard.
• Do not ambé under the range hood.
Safety with children
• This appliance is only intended for use by adults who have read these instructions.
• This appliance is not a toy!To avoid the risk of injury, keep children well away and do not allow
them to play with it or to use the controls.They will not understand the potential dangers posed by
it.They should be supervised whenever you are working in the kitchen.
• Older children may use the cooker hood only when its operation has been clearly explained to them
and they are able to use it safely, recognising the dangers of misuse.
Correct Use
• Never use an open ame beneath the cooker hood.To avoid the danger of re, do not ambé or
grill over an open ame under the cooker hood.
When switched on, the cooker hood could draw ames into the lter. Fat particles drawn into the
cooker hood present a re hazard.
L60_90CHDX17_IB_RC_190411_grace.indd 4 11/4/2019 3:52 PM

5
• When using the cooker hood over a gas hob, ensure that any burners in use are always covered by a
pan. Switch the cooking zone o when a pan is removed, even for a short time.
• Regulate the ame so that it does not burn up the sides of the pan.
• Do not allow the pans to overheat excessively (e.g. when using a wok).
• The cooker hood can become damaged when exposed to excessive heat.
• Always switch the cooker hood on when a cooking zone is in use, otherwise condensation may
collect in the hood, which could cause corrosion.
• When cooking with oil or fat, chip pans and deep fat fryers etc, do not leave the pans unattended.
Never leave an open grill unattended when grilling. Overheated oil and fat can ignite and could set
the cooker hood on re.
• Do not use the cooker hood without the lters in place.This way you will avoid the risk of grease
and dirt getting into the appliance and hindering its smooth operation.
• The lters should be regularly cleaned or changed as appropriate. Saturated lters are a re hazard.
See "Cleaning and Maintenance".
• The cooker hood can get very hot during cooking due to heat rising from the hob.
Do not touch the housing or the grease lters until the cooker hood has cooled down.
• Do not use a steam-cleaner to clean this appliance. Steam could reach the electrical components
and cause a short circuit.
Technical safety
• Before installation, check the cooker hood for visible signs of damage. Under no circumstances
should you use a damaged appliance. It could be dangerous.
• Before connecting the appliance to the mains supply, make sure that the voltage and frequency
details given on the data plate correspond with the on-site electricity supply, otherwise the
appliance could be damaged. Consult a qualied electrician if in any doubt.
• The electrical safety of this appliance can only be guaranteed when continuity is complete between
the appliance and an eective earthing system complies with the current local and national safety
regulations. It is most important that this basic safety requirement is present and tested regularly,
and where there is any doubt, the household wiring system should be inspected by a qualied
electrician. The manufacturer cannot be held liable for the consequences of an inadequate earthing
system (e.g. electric shock).
• For safety reasons, this appliance may only be used when it has been fully installed.
• Only open the housing as described in the instructions. Under no circumstances should any
other parts of the housing be opened.Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user, and can cause operational faults.
• Installation, maintenance and repairs may only be carried out by an authorised person in
accordance with the current national and local safety regulations. Repairs and other work by
unqualied persons could be dangerous.The manufacturer cannot be held liable for unauthorised
work.
L60_90CHDX17_IB_RC_190411_grace.indd 5 11/4/2019 3:52 PM

6
• Faulty components must only be replaced by genuine original parts.
• During installation, maintenance and repair work, the appliance must be disconnected from the
mains electricity supply. It is only completely isolated from the electricity supply when:
a)it is switched o at the isolator, or
b)the mains fuse is disconnected, or
c)it is switched o at the wall socket and the plug withdrawn, or
d)the fuse of the fused spur connection unit is withdrawn.
• Do not connect the appliance to the mains electricity supply by a multi-socket unit or an extension
lead.These do not guarantee the required safety of the appliance (e.g. danger of overheating).This
appliance may only be used in mobile installations if a risk assessment of the installation has been
carried out by a suitably qualied engineer.
• In areas which may be subject to infestation by cockroaches or other vermin, pay particular
attention to keeping the appliance and its surroundings in a clean condition at all times.

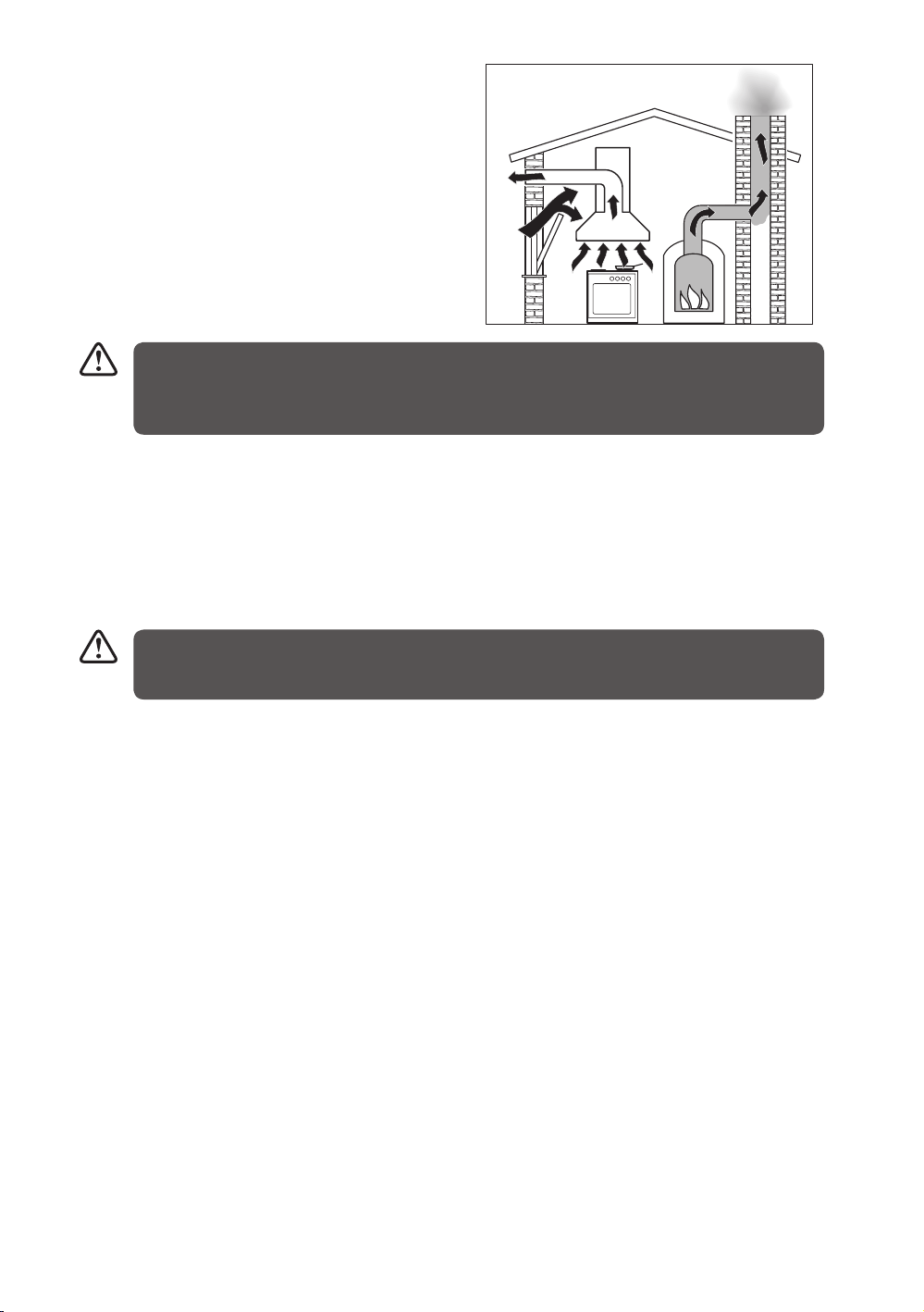

Using at the same time as other heating
appliances that depend on the air from
the same room.
WARNING:
Danger of toxic fumes.
• Great care should be taken when using the cooker hood at the same time and in the same room
or area of the house as another heating appliance which depends on the air in the room. Such
appliances include gas, oil, wood or coal-red boilers and heaters, continuous ow or other water
heaters, gas hobs, cookers or ovens which draw air in from the room and duct exhaust gases out
through a chimney or extraction ducting.
• When used in extraction mode, the appliance draws air in from the room in which it is installed
and from neighbouring rooms.
• If there is insucient air, an underpressure will occur. The heating appliance may be starved of
oxygen, impairing combustion.
• Harmful gases could be drawn out of the chimney or extraction ducting back into the room, with
potentially fatal consequences.
• In order to ensure safe operation, and to prevent gases given o by the heating appliances
from being drawn back into the room when the cooker hood and the heater are in operation
simultaneously, an underpressure of 0.04 mbar (4 pa) is the maximum permissible in the room.
L60_90CHDX17_IB_RC_190411_grace.indd 6 11/4/2019 3:52 PM

7
The overall ventilation condition of the dwelling must be taken into account. If in any
doubt, the advice of a competent builder or, for gas, a qualified gas fitter (Gas Safe
registered in the UK) must be sought.
• Ventilation can be maintained by air inlets
which must not be blocked, in windows,
doors and outside wall vents, or by other
technical measures, such as ensuring that
the cooker hood can only be switched on
when the heating appliance is switched o
or vice versa. A ventilation brick alone is not
generally sucient to ensure safe ventilation.
• If the only way of ensuring adequate ventilation is via an open window, a window contact switch
should be tted to ensure that the cooker hood can only operate when the window is opened
suciently. A window contact switch kit is available from good builders' merchants. Take care
when ventilating the room through an open window that ventilation is not impaired by a closed
blind or curtain. If the hood is being operated in recirculation mode, the above restrictions do not
apply.
If in any doubt , the advice of a qualified builder, gas fitter (Gas Safe registered in the UK)
or electrician must be sought.
L60_90CHDX17_IB_RC_190411_grace.indd 7 11/4/2019 3:52 PM

8
The manufacturer cannot be held liable for damage caused by non-compliance with these
Warning and Safety instructions.
Correct Installation
• Refer to the cooker or hob manufacturer's instructions as to whether a cooker hood may be
operated above the cooker/hob.
• The minimum safe distances between the top of the cooker or hob and the bottom of the cooker
hood given in the Installation section of this booklet must be maintained, unless the hob/cooker
manufacturer states that a greater safe distance is required.
• If more than one appliance is tted beneath the cooker hood, and they have dierent minimum
safe distances to the cooker hood, select the greater distance.
• Safety regulations prohibit the tting of a cooker hood over solid fuel stoves.
• All ducting, pipework and ttings must be of non-ammable material. These can be obtained from
builders' merchants.
• The appliance must not be connected to a chimney or vent ue which is in use. Neither should it be
connected to ducting which ventilates rooms with replaces.
• If exhaust air is to be extracted into a chimney or ventilation duct no longer used for other
purposes, seek professional advice.
Accessories
• Only use genuine original spare parts and accessories with this appliance.
L60_90CHDX17_IB_RC_190411_grace.indd 8 11/4/2019 3:52 PM

9
Unpacking
Remove all items from the packaging Retain the packaging. If you dispose of it, please do so according to local
regulations. The following items are included:
If items are missing, or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
Main Unit
4 x 8mm Screws X 6Ф8 x 40mm
Plastic Wall Plug X 9
Hanging Plate
(for mounting product on the wall)
External Chimney Connection Plate
(for xing external chimney on the wall)
Internal Chimney Connection Plate
(for xing internal chimney on the wall)
4 x 30mm Screws
X 2
4 x 40mm Screws
X 7
Adapter X 1
(for reducing outlet diameter from 150-120mm)
Drill Template Instruction Manual
Drill
Template
Internal Chimney
X 1
External Chimney
X 1
Instruction
Manual
Thank you for purchasing your new Logik Cooker Hood.
We recommend that you spend some time reading this instruction manual in order that
you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this instruction manual for
future reference.
L60_90CHDX17_IB_RC_190411_grace.indd 9 11/4/2019 3:52 PM

10
1. Internal Chimney
2. External Chimney
3. Control Panel
4. Aluminium Filter
5. Illumination
Control Panel
1. OFF button
2. Motor speed buttons
3. Lamp button
12 3
1
2
3
4
5
Product Overview
L60_90CHDX17_IB_RC_190411_grace.indd 10 11/4/2019 3:52 PM

11
Modes of Operation
The cooker hood works with
Air Extraction
The air is drawn in and cleaned by the grease filters and directed outside.
The flap is closed when the cooker hood is switched off.
When the cooker hood is switched on, the non-return flap opens for the cooking
vapours to be ducted away.
Ensure there is adequate ventilation in the room when the cooker hood is used at the same time as
other appliances burning gas or other fuels.
• Do not flambe under the cooker hood.
• Accessible parts may become hot when used with cooking appliances.
• Carbon filters are available as an optional extra, see rear page for ordering details.
• Before using the cooker hood in recirculation mode, ensure that the carbon filters are in place.
See “Cleaning and Maintenance”
Air Recirculation
The air is drawn in and cleaned first by the grease filters and then by a carbon filter. The
cleaned air is then recirculated back into the kitchen through the recirculation vents in
the top of the cooker hood chimney.
Operation
To Select the Fan Motor Speed
1. The unit has 3 motor speeds “ ” “ ” “ ”
2. For short periods of cooking food with intensive vapours and a strong aroma, e.g. when seraring meat; you
may wish to select the highest setting “ “
3. To turn the motor fan off; press the “0” button
Hob Lighting
The hob lighting can be switched on and off independently of the fan by pressing the LAMP button.
L60_90CHDX17_IB_RC_190411_grace.indd 11 11/4/2019 3:52 PM

12
• All external surfaces and controls can be cleaned using a little washing-up liquid applied with a damp soft
sponge or cloth.
Grease Filters
The re-usable metal grease filters in the appliance remove solid particles (grease, dust, etc.) from the kitchen
vapours, preventing soiling of the cooker hood.
The grease filters should be cleaned regularly (at least every 3-4 weeks) to avoid a build-up of grease.
1. To take out the grease filter, press the plastic catch.
2. Pull the aluminium filter downwards.

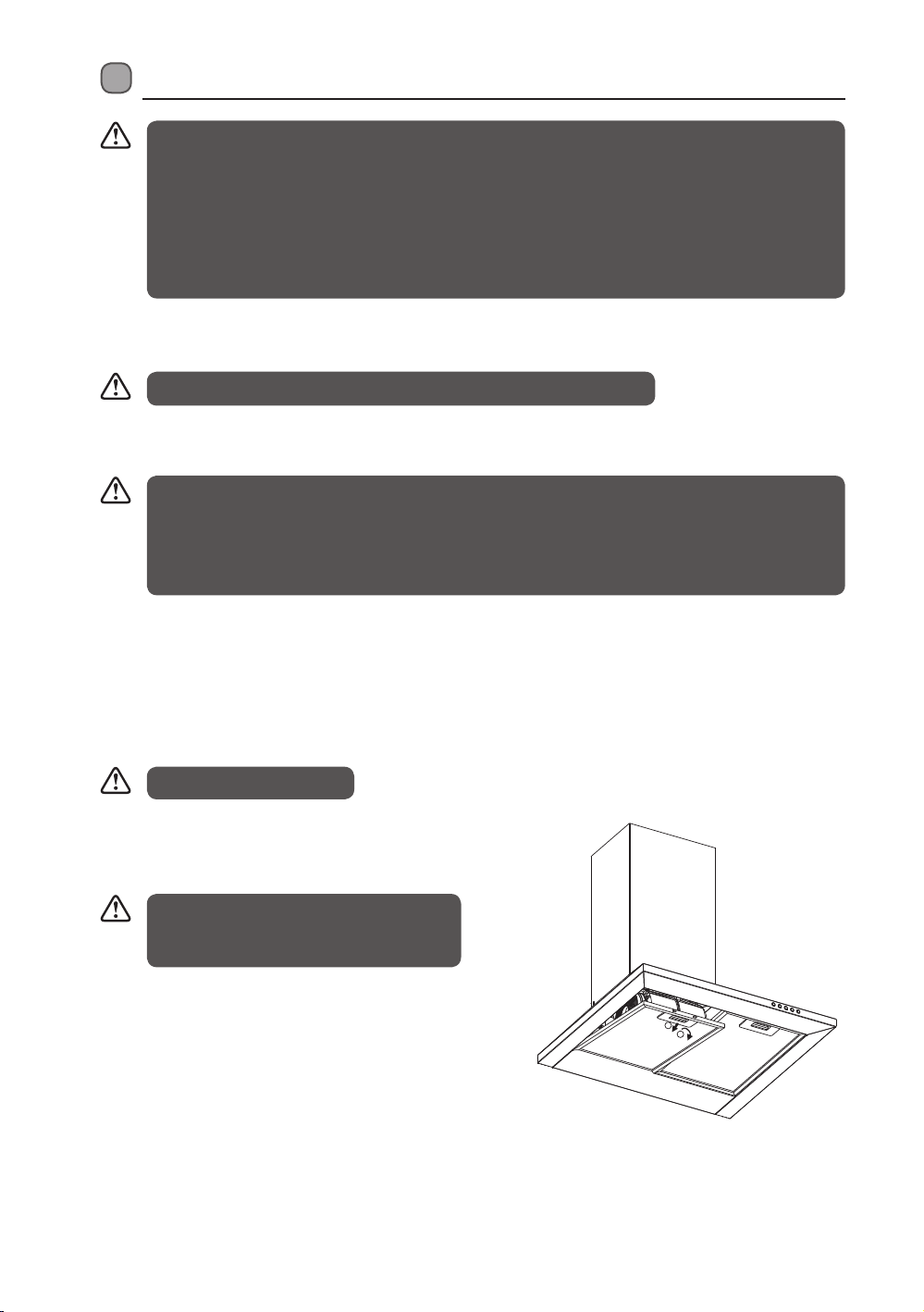

Cleaning and Maintenance
• Before any cleaning or maintenance work is carried out, disconnect the cooker hood from the mains
power supply. Ensure that:
– it is switched off at the isolator, or
– it is switched off at the wall socket and the plug is withdrawn, or
– the fuse from the fused spur connection unit is withdrawn, or
– the mains fuse is disconnected.
• The surfaces and controls are susceptible to scratches and abrasions. Please observe the following
cleaning instructions.
Do not use:
• Cleaning agents containing soda, acids, chlorides or solvents.
• Abrasive cleaning agents, e.g. powder cleaners or cream cleaners and abrasive sponges, as well as
pot scourers or sponges which have been used previously with abrasive cleaning agents as these
will damage the surface material.
Only use a damp cloth as water could get into the unit and cause damage.
To avoid damaging the filters or the hob
below, make sure you hold the filters
securely at all times when handling them.
• Wipe dry using a soft cloth.
Dirty filters are a fire hazard.
1
2
L60_90CHDX17_IB_RC_190411_grace.indd 12 11/4/2019 3:52 PM

13
Cleaning the Grease Filters by Hand
• Clean the filters with a soft nylon brush in a mild solution of hot water and a little washing-up liquid.
Cleaning the Grease Filters in the Dishwasher
• Place the filters as upright as possible in the lower basket, with the short sides upright. Wash using
a 65°C programme, ensuring the spray arm is not obstructed.
• Use a mild dishwasher detergent.
Do not use:
• Cleaning agents containing descaling agents.
• Powder cleaners, cream cleaners or abrasive all-purpose cleaners.
• Oven cleaners.
Depending on the cleaning agent used, cleaning the filters in a
dishwasher can cause permanent discolouration to the surface. However,
this will not affect the functioning of the filters in any way.
• After cleaning, leave the filters to dry on an absorbent surface before replacing them.
• When removing the filters for cleaning, also clean off any residues of oil or fat from the now accessible housing
to prevent the risk of these catching fire.
When putting the grease filters back in position, ensure that the locking clips are facing down towards
the hob.
L60_90CHDX17_IB_RC_190411_grace.indd 13 11/4/2019 3:52 PM

14

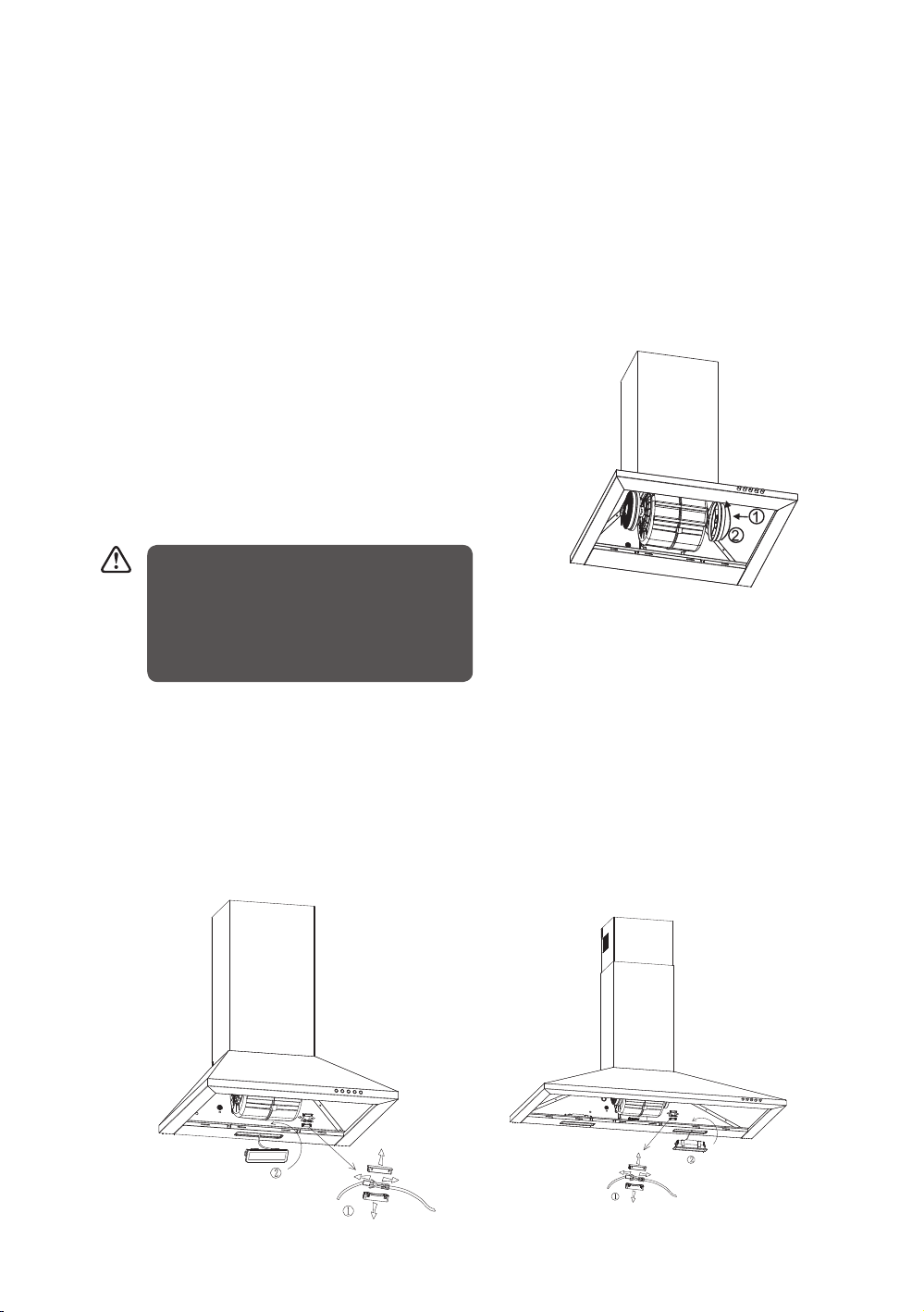

Changing the Lamps
1. Disconnect the electricity supply.
2. Remove the aluminium grease filter.
3. Then you will see a black terminal box and take it apart. Disconnect the wire terminals as shown in 1.
4. Push the LED light box outwardly until the box is loosen as shown in 2.
5. Replace the LED light box.
Carbon Filter Usage
Your product is compatible with one type of carbon filter (carbon filters are not provided).
• Before installing or replacing the carbon filters, you should switch off and disconnect the electricity supply.
• The carbon filters should never be washed.
• The grease filters should be installed on the product even when carbon filterss are not being used. Do not use
your product without the grease filters.
Replacing Carbon Filters
• It is necessary to install 2 carbon filters in your
product.
• Open all the grease filters, see page 7 for details.
• To attach the carbon filters, place them on the
connection channels on the motor and turn the
left hand filter anticlockwise and the right hand
filter clockwise.
• In order to remove the carbon filters, turn the
left hand filter clockwise and the right hand filter
anticlockwise.
• Replace all the grease filters to the main unit.
• Replace the carbon filters when they no
longer absorb kitchen odours effectively.
They should, however, be replaced at least
every 3 months to prevent a risk of fire.
• Used carbon filters can be disposed of with
the normal household waste.
L60CHDX17 L90CHDX17
L60_90CHDX17_IB_RC_190411_grace.indd 14 11/4/2019 3:52 PM

15
Hints and Tips
Problem Solution
Cooker hood does not operate
• Check Electric connection.
(The supply voltage should be 220-240 V. The cooker hood must
be connected to an earthed socket)
• Check motor speed selector.
(Motor speed selector should be in position 1, 2 or 3)
Lamp does not light
• Check Electric connection.
(The supply voltage should be 220-240 V. The cooker hood must
be connected to an earthed socket)
• Check lamp switch.
(Lamp switch should be in the on position)
• Check light bulbs.
Air suction of cooker hood is weak
• Check aluminium filters.
(Aluminium grease filters should be washed once a month under
normal conditions)
• Check air outlet chimney.
(Air outlet chimney should be open)
• Check carbon filters.
(If the unit operates with carbon filters, they should be replaced
quarterly)
If Cooker Hood Does Not Operate
Before Contacting Service:
Be sure that the mains plug is connected to the mains socket and the fuse in the installation is in good condition.
Check your cooker hood according to the above table. If the problem continues, contact your retailer or an
authorised service agent.
L60_90CHDX17_IB_RC_190411_grace.indd 15 11/4/2019 3:52 PM

16
Technical Specications
Model no. L60CHDX17/L90CHDX17
Extraction Rate (m3/h) 347.8 (60cm); 341.1 (90cm)
Voltage (V) 220 – 240 ~
Frequency (Hz) 50
Total Power (W) 67.5 W (60cm); 70 W (90cm)
Lamp 1 x 2.5W LED (60cm); 2 x 2.5W LED (90cm)
Features and specifications are subject to change without prior notice.
Product Fiche
Model no.: L60CHDX17
Symbol Value Unit
Annual Energy Consumption AEChood 27.2 kWh/a
Time increase factor f 1.4
Fluid Dynamic Efficiency FDEhood 15.3
Fluid Dynamic Efficiency class D
Energy Efficiency Index EEIhood 61.8
Energy Efficiency class B
Measured airflow rate at the best efficiency QBEP 202.9 m3/h
Measured air pressure at best efficiency point PBEP 135 Pa
Maximum airflow Qmax 347.8 m3/h
Air flow at working point (highest setting) 337.2 m3/h
Air flow at working point (lowest setting) 221.2 m3/h
Measured electric power input at best efficiency point WBEP 49.6 W
Nominal power of the lighting system WL2.5 W
Average illumination of the lighting system on the cooking surface Emiddle 78 lux
Lighting Efficiency LEhood 31.2 lux/w
Lighting efficiency class A
Grease Filtering Efficiency (%) GFEhood 70.8
Grease Filtering Efficiency (GFE hood ) class D
Measured power consumption on standby mode PS- W
Measured power consumption on off mode PO0 W
Sound power level LWA 64 dB
The above table indicate the information for the cooker hood. The test result is done as per the relevant
requirement of EU No 65/2014 and EU No 66 / 2014.
L60_90CHDX17_IB_RC_190411_grace.indd 16 11/4/2019 3:52 PM

17
Model no.: L90CHDX17
Symbol Value Unit
Annual Energy Consumption AEChood 29.3 kWh/a
Time increase factor f 1.5
Fluid Dynamic Efficiency FDEhood 12.8
Fluid Dynamic Efficiency class E
Energy Efficiency Index EEIhood 66.9
Energy Efficiency class B
Measured airflow rate at the best efficiency QBEP 162.7 m3/h
Measured air pressure at best efficiency point PBEP 133 Pa
Maximum airflow Qmax 341.1 m3/h
Air flow at working point (highest setting) 329.6 m3/h
Air flow at working point (lowest setting) 216.6 m3/h
Measured electric power input at best efficiency point WBEP 46.8 W
Nominal power of the lighting system WL5.0 W
Average illumination of the lighting system on the cooking surface Emiddle 117.0 lux
Lighting Efficiency LEhood 23.4 lux/w
Lighting efficiency class B
Grease Filtering Efficiency (%) GFEhood 66.2
Grease Filtering Efficiency (GFE hood ) class D
Measured power consumption on standby mode PS- W
Measured power consumption on off mode PO0 W
Sound power level LWA 64 dB
The above table indicate the information for the cooker hood. The test result is done as per the relevant
requirement of EU No 65/2014 and EU No 66 / 2014.
L60_90CHDX17_IB_RC_190411_grace.indd 17 11/4/2019 3:52 PM

18
1. Internal Chimney
2. External Chimney
3. Main Hood Unit
4. Internal Chimney Connection Plate
5. External Chimney Connection Plate
6. Hanging Plate
1
4
5
6
2
3
Installation
Product Overview
L60_90CHDX17_IB_RC_190411_grace.indd 18 11/4/2019 3:52 PM

19
All dimensions shown are in mm.
222
20
400400
395
20
475
600/900
180
575-955
173
40
55
L60_90CHDX17_IB_RC_190411_grace.indd 19 11/4/2019 3:52 PM

20
Safety Distance Between Hob and Cooker Hood
When planning the installation height of your cooker hood, the minimum safe distance between the
top of a cooker or hob and the bottom of the cooker hood should be at least 650mm, unless a greater
distance is specified by the manufacturer of your cooking appliance.
• When deciding on the safe distance between the hob and cooker hood, please note that a distance greater
than 650mm above electric cookers/hobs may be preferable to give more working space under the hood.
• Account should also be taken of the height of the person who will be using the hood most often. The person
should have sufficient space to work comfortably at the hob, and also be able to reach the hood controls with
ease.
• Please be aware that if positioned too high, extraction will be inefficient.
• If you want the top of the cooker hood telescopic extension piece to be mounted flush with the ceiling, make
sure there is adequate space below the appliance for safe operation.
L60_90CHDX17_IB_RC_190411_grace.indd 20 11/4/2019 3:52 PM
