USER MANUAL
Ref. no. 0458-395-0552
OPTIONAL ATTACHMENT
ELECTRIC FEED UNIT
EN

LOGOSOL continuously develops its products.
For this reason, we must reserve the right to modify
the conguration and design of our products.
Document: Electric Feed Unit
Ref. No. User Manual, English: 0458-395-0552
Text: Mattias Byström, Robert Berglund
Illustrations: Mattias Byström, Martin Söderberg, Robert Berglund
Last revised: Augusti 2018
© 2018 LOGOSOL, Härnösand Sweden
THANK YOU FOR CHOOSING A LOGOSOL PRODUCT!
Read through the user manual
carefully and make sure you
understand its contents before you
use the equipment.
This user manual contains important
safety instructions.
WARNING! Incorrect use can result
in serious or fatal injuries to the
operator or others.
Welcome! We are very pleased that you have demonstrated your condence in us by
purchasing a LOGOSOL product, and we will do our utmost to meet your expectations.
LOGOSOL has been manufacturing sawmills since 1989. In that time we have supplied
approximately 50,000 machines to satised customers the world over.
We care about your safety as well as we want you to achieve the best possible results with
your equipment. We therefore recommend that you take the time to carefully read this
user manual from cover to cover in peace and quiet before you begin using the equipment.
Remember that the equipment itself is just part of the value of the product. Much of the value
is also to be found in the expertise we pass on to you in the user manuals. It would be a pity if
that were not utilised.
We hope you get a lot of satisfaction from the use of your new LOGOSOL product.
Bengt-Olov Byström
Founder and chairman,
Logosol in Härnösand, Sweden
#1

Safety instructions 4
Description of the equipment 5
Components: on delivery 6
Components: electric feed unit 7
Components: support leg 8
Components: wire tensioner 9
Tools required 10
Assembly: support legs 12
Assembly: wire tensioner 14
Assembly: electric feed unit 16
Assembly: wire and wire attachment 18
Adjustment: support legs 22
Adjustment: wire tensioner 23
Adjustment: electric feed unit 24
Control panel 26
Control lever 27
Operation: forward feed 28
Operation: reverse feed 29
Maintenance 30
Troubleshooting 32
Wiring diagram 33
Exploded views 34
CE Declaration of conformity 39
TABLE OF CONTENTS

4
• Read carefully through the entire user manual
before starting to use the product. Failure to
observe these safety instructions may result in
fatal injuries.
• Make sure that everyone who uses the product
is well informed of the dangers and has read
the user manual. The user manual shall always
be available to the persons working with the
product. This also applies where the product is
sold or loaned out.
• Minors under 18 years of age are not allowed to
use the product.
• Make sure that children and animals are not in
the vicinity when the product is being used.
• Anyone working with the product must be
t for work, healthy and in good physical
condition. Make sure you take regular breaks
when working with the product. Never use the
product while under the inuence of alcohol,
narcotics or other drugs or medicines that can
cause drowsiness or inattention.
• The product is only to be used where visibility is
good. It is not to be used in the dark or where
visibility is poor.
• Make sure there are other persons within
earshot who you can summon if you need help.
• VOnly add extra equipment to the product
that is made by LOGOSOL or that is specically
approved by LOGOSOL for the purpose. Other
equipment can cause accidents and should not
be used. LOGOSOL will not accept liability for
personal injury or material damage that occurs
while using non-approved attachments on the
product.
• If the saw unit used weighs more than 15 kg,
support legs must be tted under the guide rail
ends. Risk of overturning.
• Always wear protective clothing and use
personal protective equipment: Close-tting
work overalls are appropriate. Never work with
the product wearing loose-tting clothes, overall
coats or similar.
• Use safety shoes with high-grip soles and steel
toecaps. Neckerchiefs, ties, jewellery or other
items that can get caught in the equipment are
not to be worn.
• Wear strong protective gloves.
SAFETY INSTRUCTIONS
Key to symbols
For your own safety, read through the
entire user manual carefully and do not use
the product before you have understood
everything.
Use approved ear protectors and protective
eyewear. Hearing can be damaged even
after short periods of exposure.
Sharp rotating tools. Make sure that your
ngers never come near the cutting tools.
This symbol means ’WARNING’. Pay
particular attention where this symbol
appears in the manual text.
This symbol is followed by instructions that
must be observed. Pay particular attention
where this symbol appears in the manual
text.

5
OPTIONAL ATTACHMENT ELECTRIC FEED UNIT
DESCRIPTION OF THE EQUIPMENT
The product has several integrated functions.
- Forward and reverse feed with stepless, variable
pressure.
- Control panel for electric saw unit or log moulder
- Loading ramp that makes it easy to push the saw
unit onto the guide rail.
En stor fördel med friktionskopplingen är att du
indirekt reglerar hastigheten på aggregatet genom
att ställa drivningstrycket. Detta gör att farten delvis
blir självjusterade. A great advantage of the friction
clutch is that you indirectly regulate the speed of
the saw unit by adjusting the feeding pressure.
This makes the speed partly selfadjusting. The saw
unit will accelerate or decelerate depending on the
dimension and quality of the log. This makes the
feed unit very easy to operate. Also, there will be
less stress on the cutting equipment, since the speed
is immediately adjusted when sawing through a
knot or swelling in the log.
This can be compared to feeding machines that have
adjustable speed, where the cutting equipment is
exposed to very high stress when the cutting unit
meets with temporary resistance that the operator
does not manage to compensate for.
With the LOGOSOL Electric Feed Unit the guide
bar and the chains will last longer, and it is easy to
maintain optimum sawing speed.

6

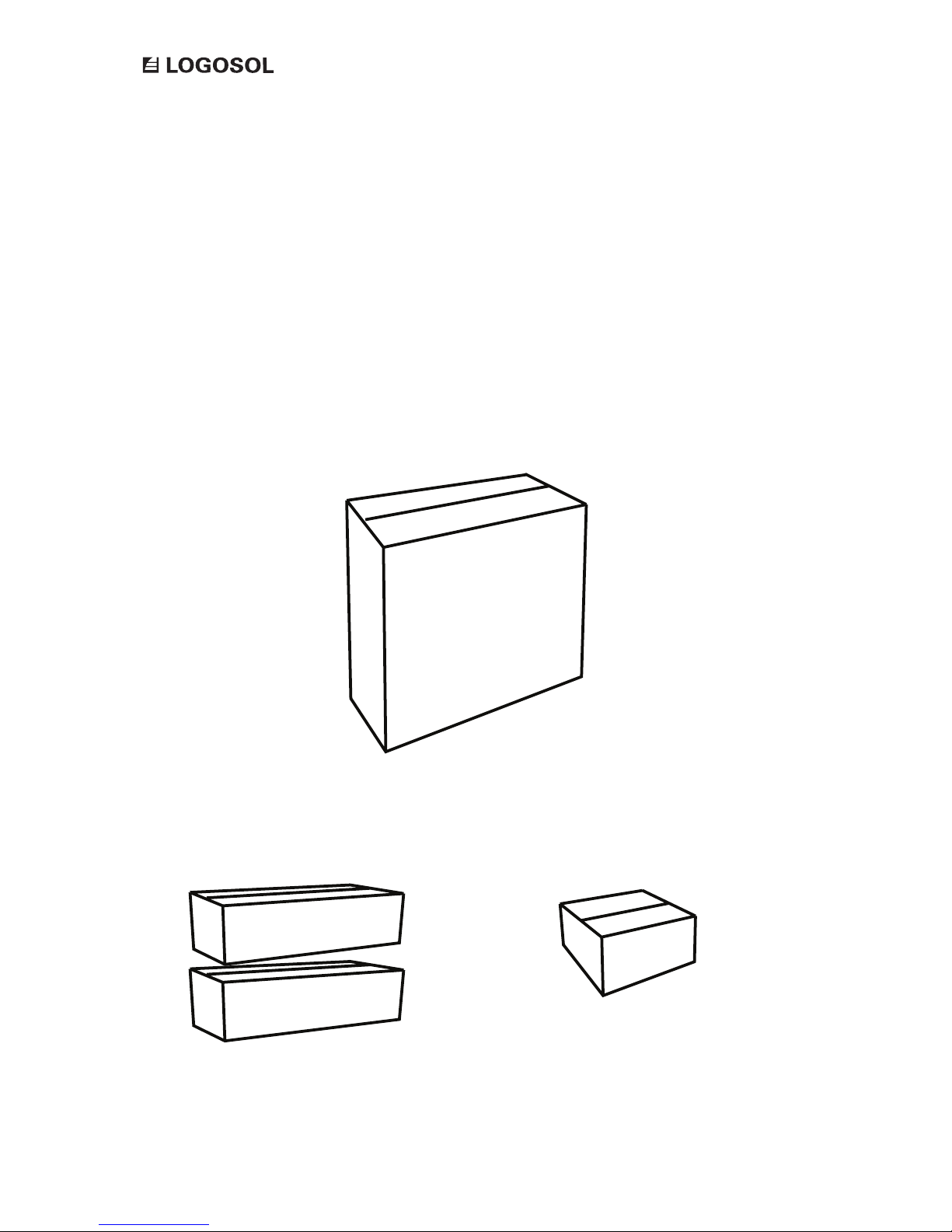

The product comes in 4 boxes consisting of 1 wire tensioner, 2 support legs, and 1 electric feed unit. Check
that all of these boxes are included in the shipment when receiving it.
Support legs
6600-000-3005
Electric feed unit
6600-000-3035 (400V)
6600-000-3040 (230V)
Wire tensioner
01-00339
COMPONENTS: ON DELILVERY

7
OPTIONAL ATTACHMENT ELECTRIC FEED UNIT
Bolt bag
Electric feed unit
Electric feed unit
6600-000-3035 (400V)
6600-000-3040 (230V)
Contents of the box.
COMPONENTS: ELECTRIC FEED UNIT
User manual

8
Bolt bag
Contents of the box.
Support leg
6600-000-3005
Assembly instructions
on page 12
Support leg, top
Support leg, bottom
COMPONENTS: SUPPORT LEG

9
OPTIONAL ATTACHMENT ELECTRIC FEED UNIT

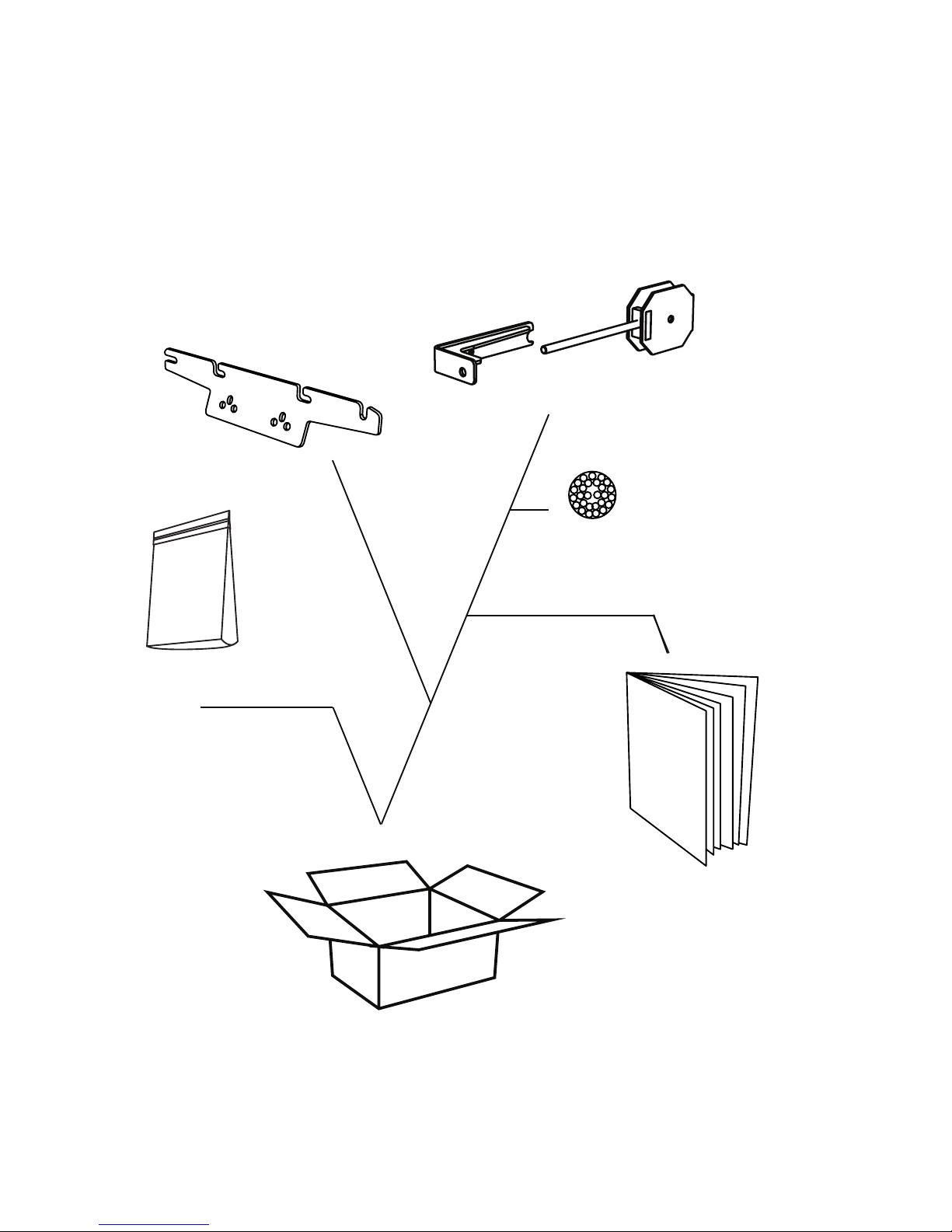

Contents of the box.
Wire tensioner
01-00339
COMPONENTS: WIRE TENSIONER
Bolt bag
Bracket and wheel housing
Assembly instructions
on page 14
Wire attachment
Wire

10

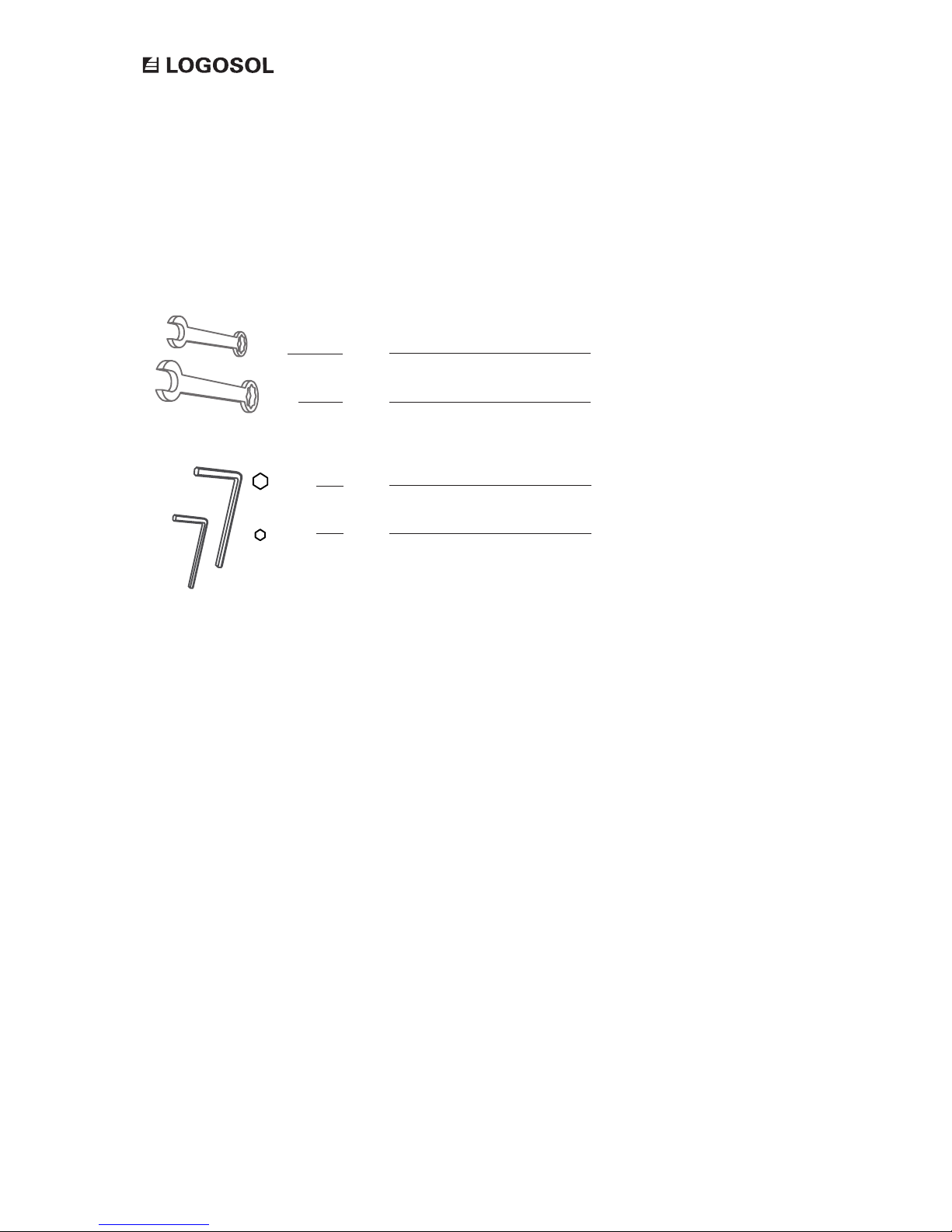

These tools are not included in the shipment.
1 x
1 x
Fixed spanner 10 mm
Fixed spanner 13 mm
TOOLS REQUIRED
1 x
1 x
Allen key 6 mm
Allen key 5 mm

11
OPTIONAL ATTACHMENT ELECTRIC FEED UNIT
We recommend that you start with assembling the support legs. These are identical, and
all components needed are found in the leg support boxes.
We recommend that you place all fastening elements on a tray or the like
to facilitate nding the bolts, nuts, etc.
Open one of the leg support boxes and start assembling.
Support leg
6600-000-3005
Here we go!

12
Allen bolt M8x20
Flange lock nut M8
Washer M8
2 x
2 x
2 x
1
ASSEMBLY: SUPPORT LEG

13
OPTIONAL ATTACHMENT ELECTRIC FEED UNIT

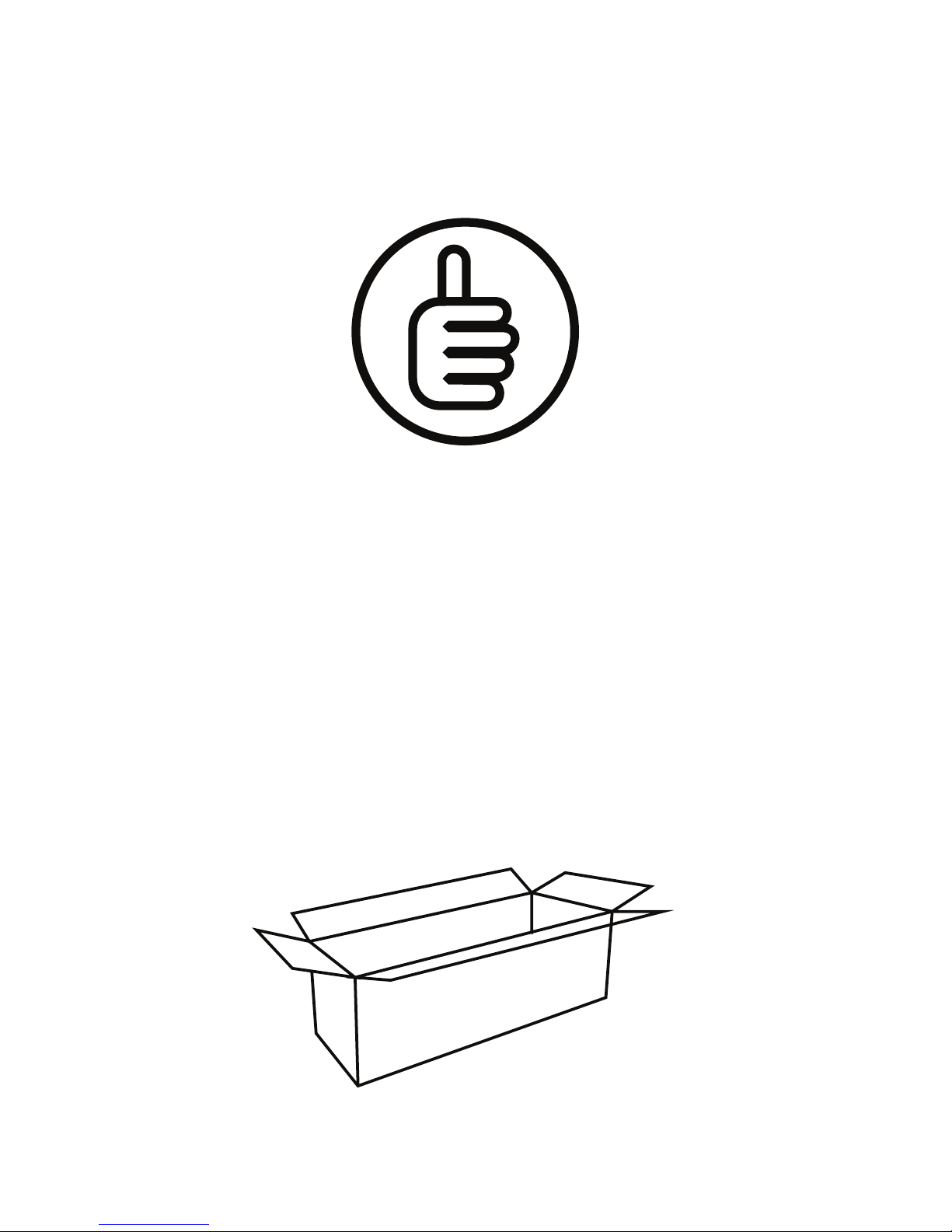

To continue with the next step you need the
components from the wire tensioner box.
Open the wire tensioner box.
Wire tensioner
01-00339
Good job!

14
1
2

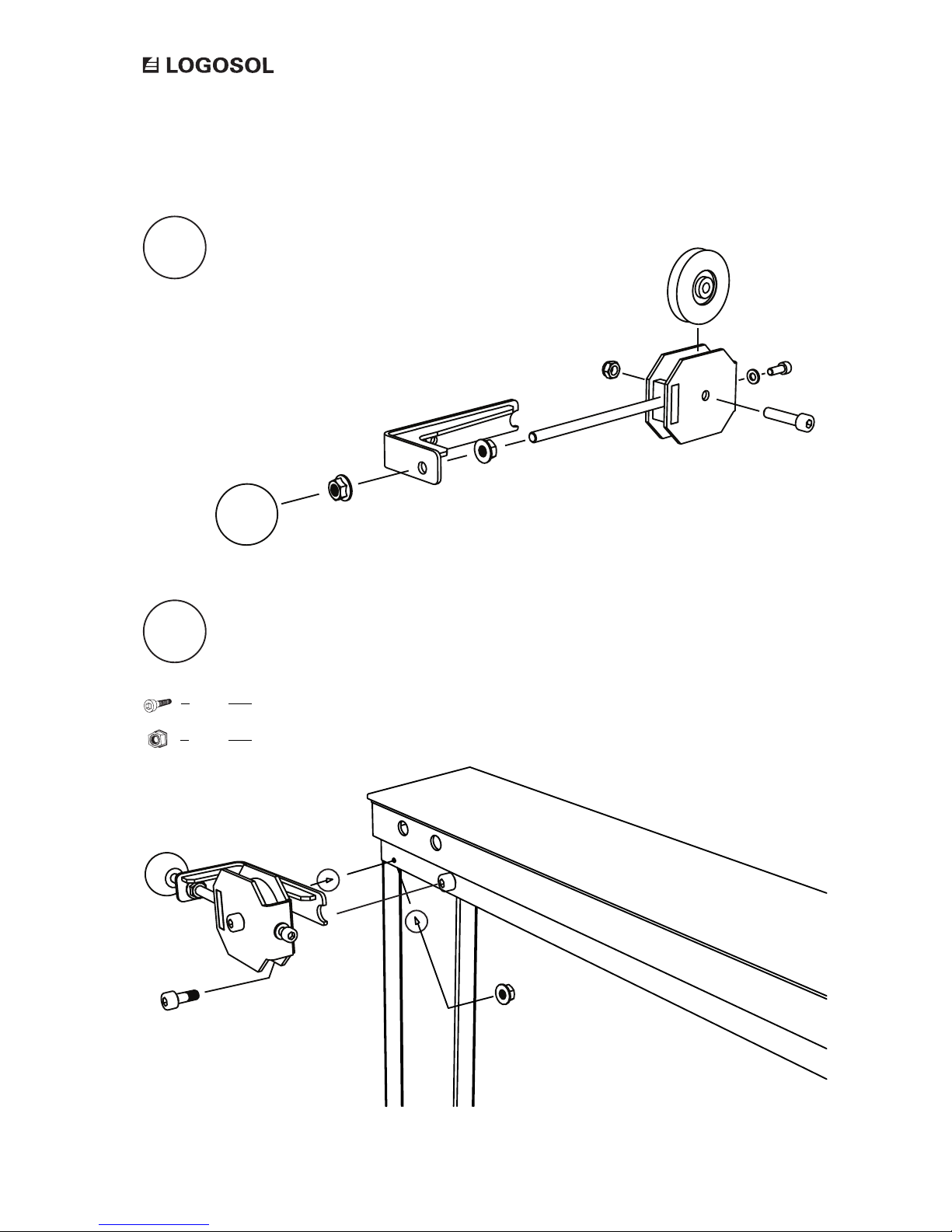

ASSEMBLY: WIRE TENSIONER
Assemble the wire tensioner.
Fit the wire tensioner and the support leg to the guide rail.
Allen bolt M6x20
Flange lock nut M6
1 x
1 x

15
OPTIONAL ATTACHMENT ELECTRIC FEED UNIT

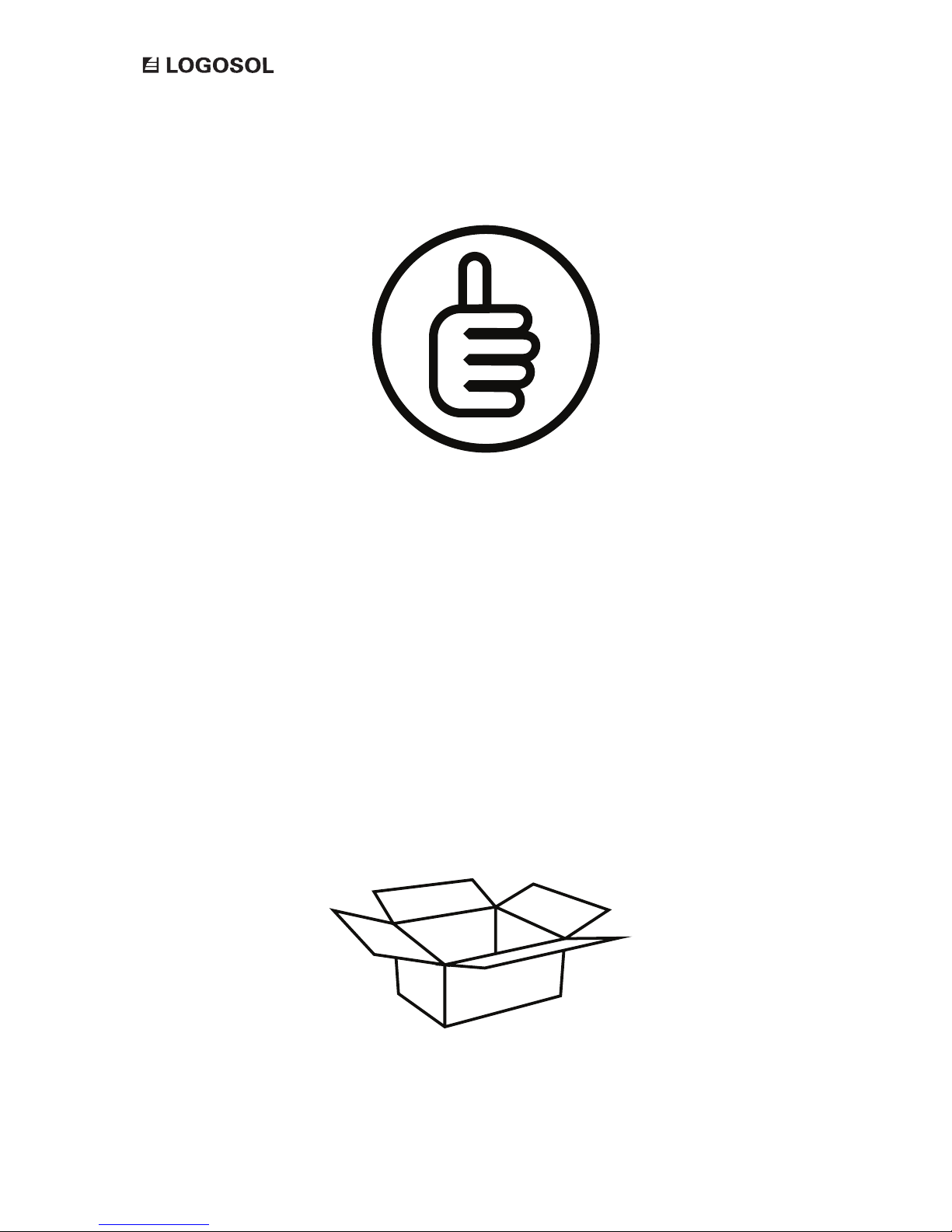

To continue with the next step you need the
components from the electric feed unit box.
Open the electric feed unit boxt.
Electric feed unit
6600-000-3035 (400V)
6600-000-3040 (230V)
Good job!

16
Slide the feed unit forks into the guide rail end.
Secure the feed unit with bolts in the guide rail.
1
2
Allen bolt M6x20
Washer 20 mm
1 x
1 x
ASSEMBLY: ELECTRIC FEED UNIT

17
OPTIONAL ATTACHMENT ELECTRIC FEED UNIT

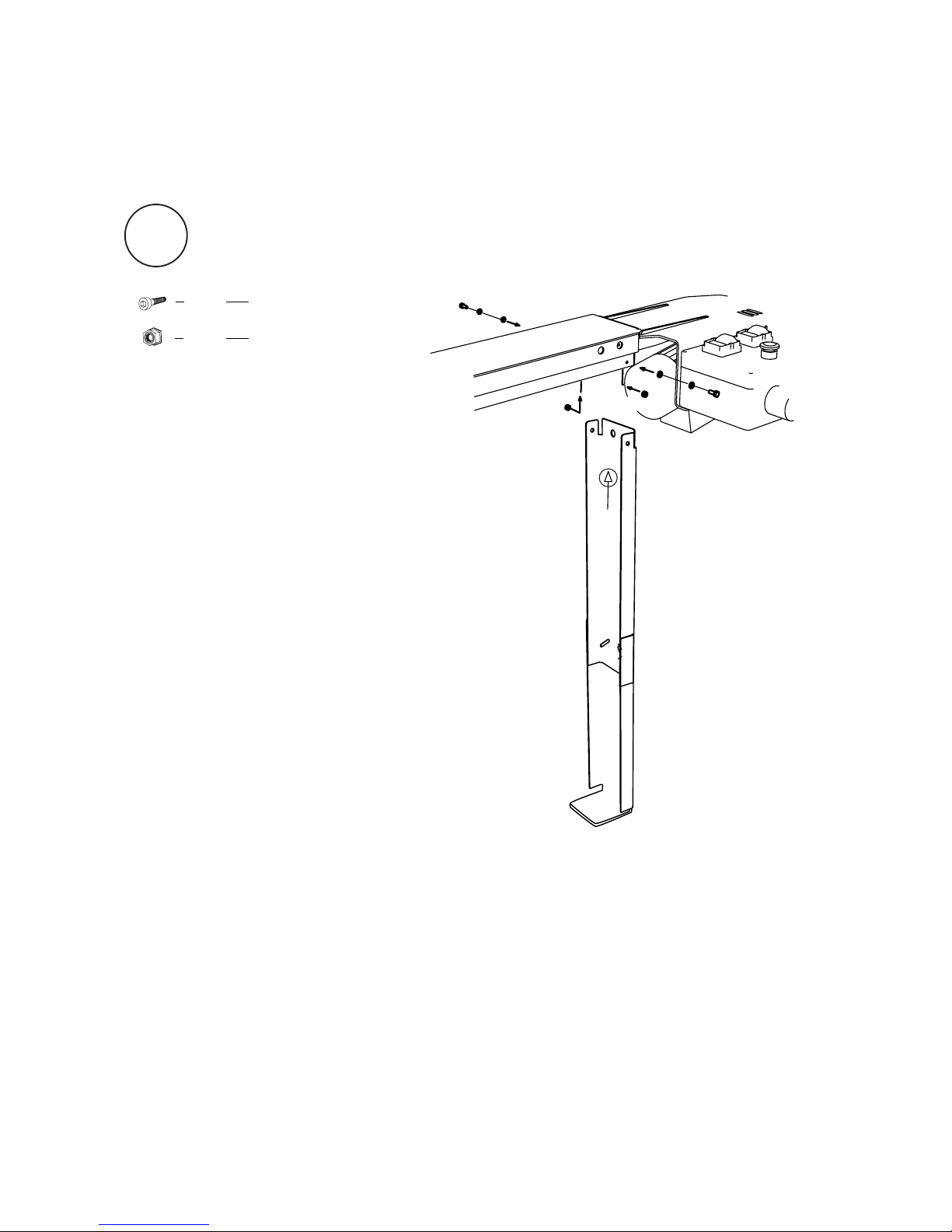

Fit the support leg to the guide rail.
Allen bolt M6x20
Flange lock nut M6
2 x
2 x
3
ASSEMBLY: ELECTRIC FEED UNIT

18
Now it is time to assemble the wire and the wire attachment.
The components needed are in the wire tensioner box.
Wire tensioner
01-000339
Good job!

19
OPTIONAL ATTACHMENT ELECTRIC FEED UNIT
ASSEMBLY: WIRE AND WIRE ATTACHMENT
1Fasten one of the wire ends to the wire attachment.
2Pass the wire around the pulley.
Open the hatch for better access.
1
2
3
Important: Make sure that
the wire is led below the guide
bolt, which is located after the
pulley.

20
3
ASSEMBLY: WIRE AND WIRE ATTACHMENT
Pass the wire through the wire tensioner
and around the pulley.
4Fasten the wire end to the wire
attachment.
1
2
3
Tip: Tighten the wire as much as
posible by hand before fastening
it to the wire attachment.
