LogRite Junior Arch User manual

Junior Arch
Packing List
a. Junior arch frame (1 ea)
b. Reach with tongs (1 ea)
c. 4.80/4.0 - 8 tires (2 ea)
d. axles (2 ea)*
e. 3/4” wave washers (2 ea)*
f. 1/4” - 20 x 1 1/2 bolts (2 ea)*
g. 1/4” - 20 lock nuts (2 ea)*
h. 3/8” - 16 x 2 1/4” bolts (4 ea)*
i. 3/8” - 16 lock nuts (4 ea)*
j. 1 oz Bluecreeper (1 ea)
Owner’s Manual
Serial # _____________________
Packed by ___________________
*may be preassembled
60 Industrial Park Road
Vernon, CT 06066
www.logrite.com
800-631-4791
40040-000
a
b
c
Junior Arch Options
Extension Handle
36” plated extension handle (1 ea)
5/16” retaining pin (1 ea)

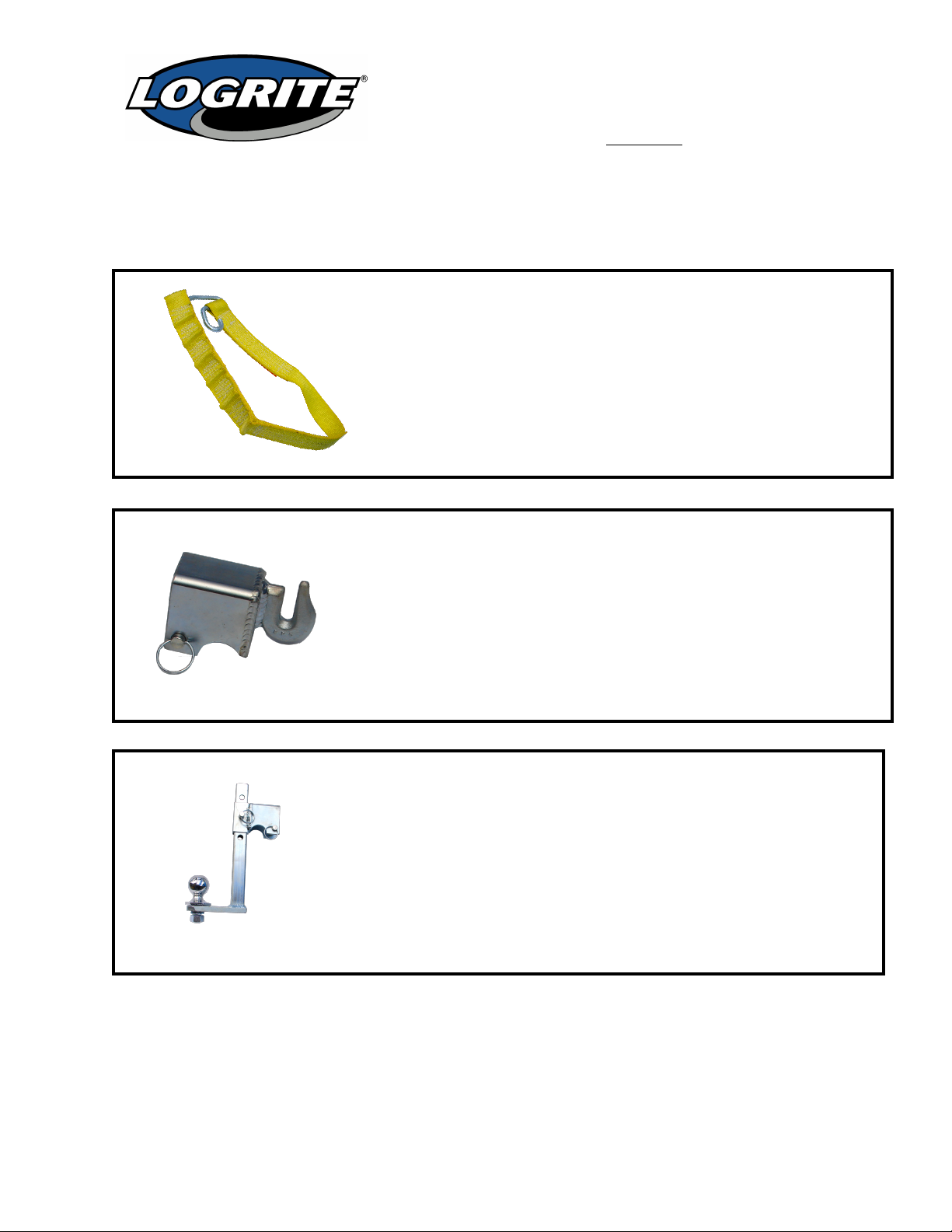

Junior Arch Accessories Packing List
☐1 - 2” x 45” poly strap with 7 loops
☐1 - heat treated, plated fastener
☐1 - cap with hook
☐1 - 1/2” x 2” self-locking pin
☐1 - leg
☐1 - cap with receiver
☐1 - 2” ball with washer and nut
☐2 - 1/2” x 2” self-locking pins
60 Industrial Park Rd
Vernon, CT 06066
800-631-4791
logrite.com
40043-000

!
60 Industrial Park Road
Vernon, CT 06066
www.logrite.com
800-631-4791
Junior Arch Owner’s Manual
The Junior Arch is a great tool for moving logs, bucking firewood and felling “hung-up” trees. With
its small, light frame, it is designed for hand use. Junior is a great little helper as it will allow you to
safely move a log that would normally take two men to move. It works on logs from 4” to 16” in
diameter weighing up to 1000 pounds. We offer several accessories, to make Junior the handiest of
tools to have.
Read all instructions before using.
Remain constantly aware that safe operating is your responsibility.
The tongs on the Junior arch are designed to move logs, poles, and beams only.
Do NOT use the arch to move logs on any public road.
Do NOT lift the arch when loaded.
Maintain control over the load at all times to prevent the arch and its load from springing up
abruptly.

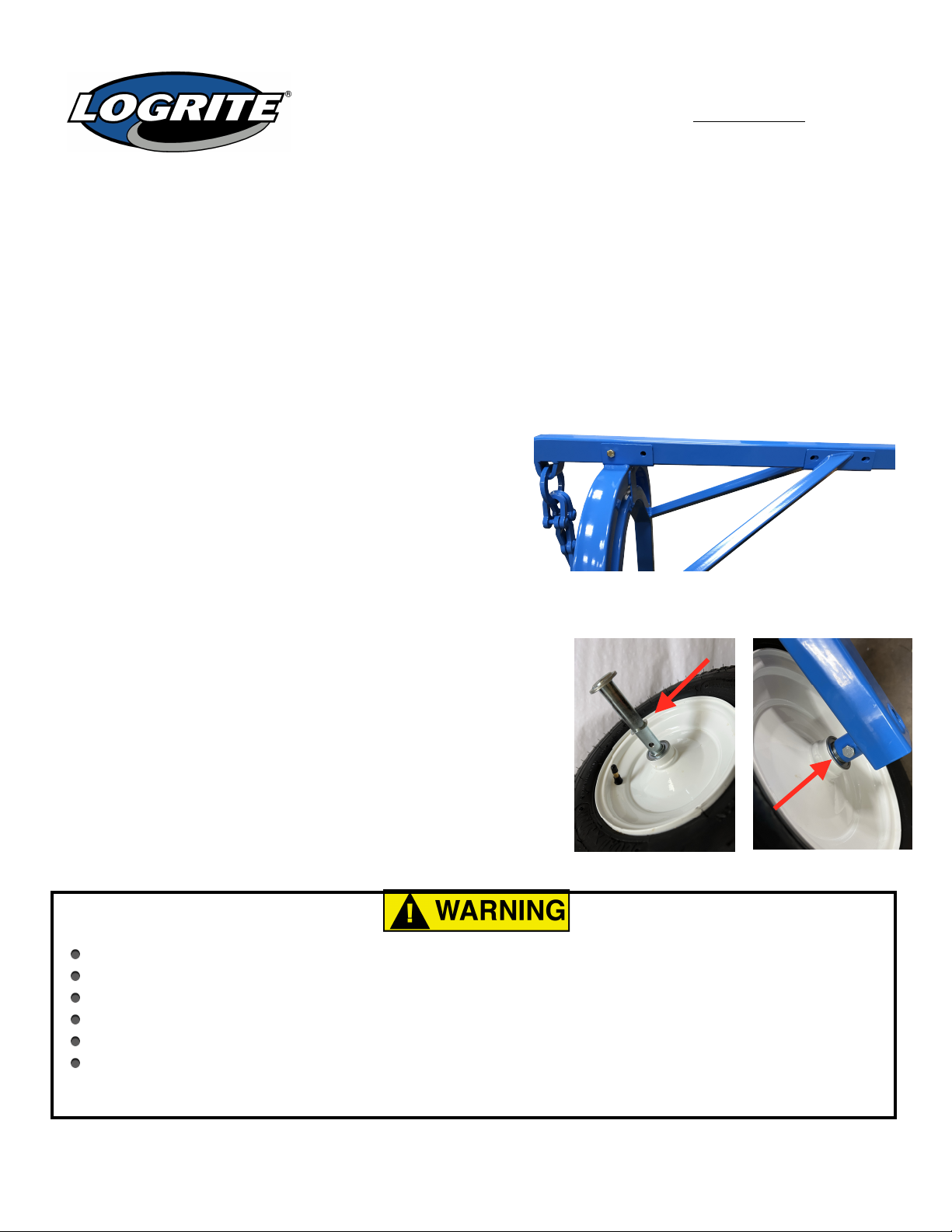

Assembly
•Place reach (b) in brackets of arch frame (a) so
that the tongs hang on the unobstructed side of
frame.
•Line up the round holes of the bracket on the arch
with the holes in the reach. Attaching this bracket
first will ease assembly. (pic A)
•Use the 3/8” - 16 bolts (h) and 3/8” - 16 lock nuts
(i) to attach. Tighten with two 9/16” wrenches.
•Use the remaining nuts and bolts to attach the
front of the arch frame to the reach.
•Place wave washer (e) on axle (d) (may be
preassembled).
•With valve stem facing you, insert axle (d) through the
wheels (c) (pic B).
•Insert 1/4-20 x 1 1/2” bolt (f) through the frame and
axle. Attach 1/4”-20 lock nut (g) and tighten with two
7/16” wrenches (pic C).
•Open and close tongs by hand to loosen the powder
coating.
bracket with
round holes
bracket with
oblong holes
pic A
pic B
pic C
page 1 of 4
40041-000

!
Maintenance
•Keep tires inflated to recommended pressures.
•Lubricate wheel bearings with Bluecreeper.
•Check bolts for tightness.
•Check tong tips for sharpness. File as needed. Do NOT use a grinder.
Usage

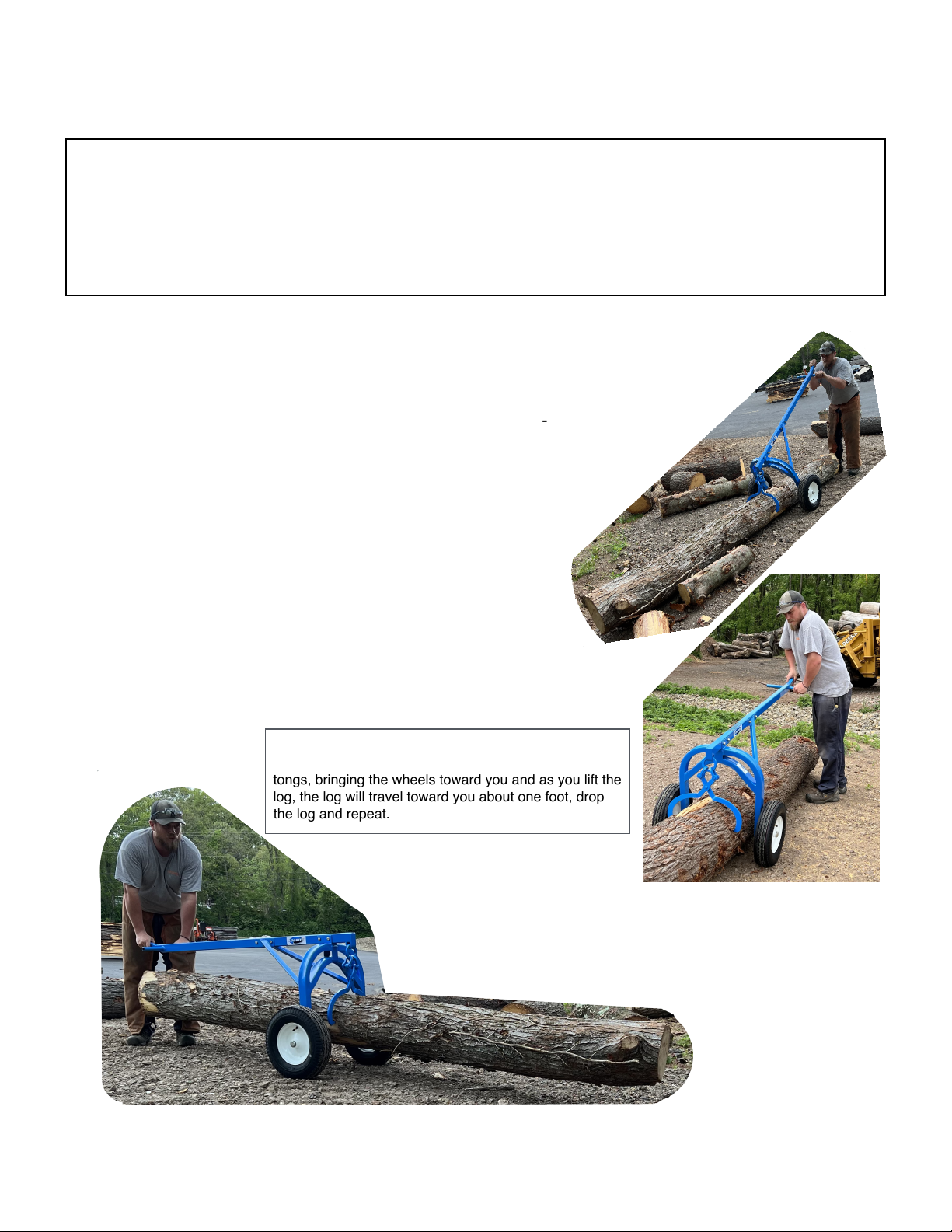

Moving Logs
•Position the arch so it straddles the log at the balance or mid-
point of the log.
•Lift the reach upright, to lower the tongs around the log.
•Set the tongs by pulling down on the reach (pic D).
pic D
•Place one hand on the end of the reach and one on the round
handle. With one swift motion, pull the handle down to your
waist (pic E)
•With the log fully suspended, you can push or pull the log. You
can also pivot the log with your free hand to steer the log around
obstacles.
•Keeping control of the reach, lower the log to the ground. A
quick release of the tongs takes practice; lower the log, pull the
arch back, then strike down the tongs with the nose of the arch.
pic E
Pro Tip: When using the arch in a brushy area where
the wheels won’t roll; pump the log out, by setting the
tongs, bringing the wheels toward you and as you lift the
log, the log will travel toward you about one foot, drop
the log and repeat.
Log is fully suspended and ready to
move in any direction.
40041-000
page 2 of 4

!
Bucking Firewood
•Set tongs by straddling the arch
over the log and pull down on
the reach (pic F).
•Push the reach down and set it
down on the ground near the
log.
Felling Hung-Up Trees
For this technique, you need a low stump and the tree must be totally cut through.
•Always set tongs perpendicular to the trunk of the hung-up tree (pic G).
•Pull down on the reach, the arch will pick the tree up off the stump.
•With the tree off the ground, pull the tree back away from the stump until it falls.
This technique can be seen in the Junior Arch product video found on our website or on our YouTube
Channel.
Reposition Junior along the log
as needed.
pic F
40041-000
page 3 of 4
WARNING: The log will want to
push you. Be aware of your path
and be prepared to drop the log.
Lower the log to use it as a brake.
pic G

Junior Extension Handle
Extends the reach of the Junior by 36”. The
extension handle is designed to give the operator a
longer reach. This option allows the operator to walk
in front of a 16’ log.
pine log
length: 13’ 8”
diameter: 15” to 18”
Options
Wide Tires
The Wide Tire Option offers better flotation
when operating on soft ground. Additionally,
it gives Junior a wider stance which can be
beneficial when working on slopes or using
Junior as a tag axle. This option changes the
width of the unit to 34.75” and weight to 70
pounds.
standard tire
4.84/4 - 8
wide tire
16/6.5 - 8
40041-000
page 4 of 4

Increase the Functionality of Your Junior with these Attachments
Use the Junior Chain Adapter with a 1/4” or 5/16” choker chain to haul
small branches, pipes, or beams. Can also be used to pull out fence
posts, small stumps, storm sewer grates or other things that can be
lifted with a chain.
To Use: wrap the choker chain around the midpoint of the items to be lifted or carried. Place chain
through the c-hook/choker hook and pull it snug around object. With Junior straddling the load at the
load’s midpoint, lift Junior’s handle to lower the Chain Adapter over the load. Hook the chain into the grab
hook of the adapter by sliding one entire link into the hook. Hook the chain leaving a few links between
the c-hook and the grab hook. Fewer links will give you more lift or clearance. Push down on Junior’s
handle to lift the load. Maintain pressure on handle until the load is lowered to the ground.
To Install: open junior’s tongs and place them back on
Junior’s frame. Slide the Chain Adapter over the end of
Junior above the tong ring. Secure with 1/2” hitch pin.
MAINTAIN CONTROL OVER THE LOAD AT ALL TIMES TO PREVENT THE ARCH
AND ITS LOAD FROM SPRINGING UP ABRUPTLY.
Chain Adapter
Proper Chain Placement
40044-000 page 1 of 2

To Install: Nothing to install
just open Junior’s tongs and
place them back on Junior’s
frame.

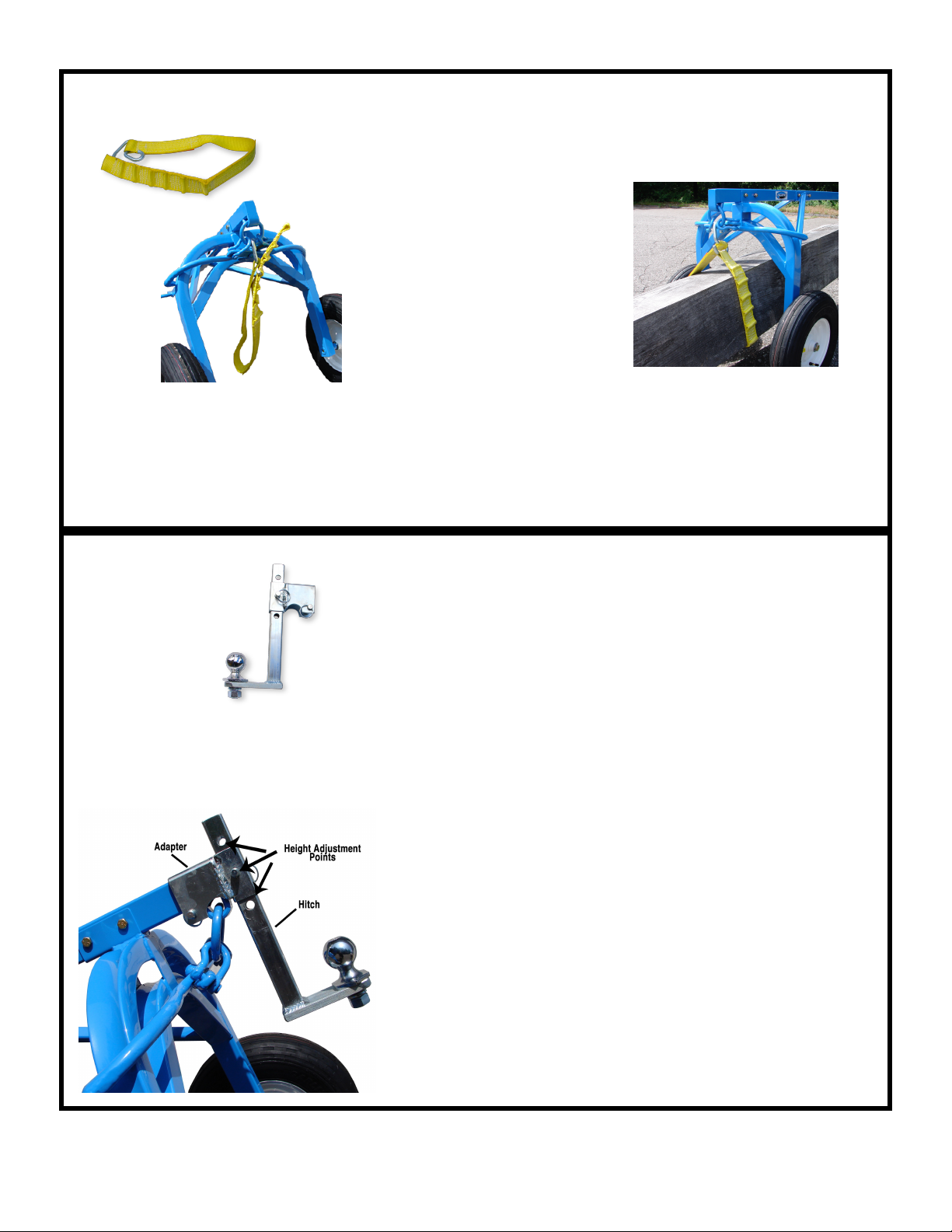

Now you can use your Junior Arch as a trailer dolly! Great for
positioning sawmills, trailers, splitters or anything on wheels with a 2”
ball. Equipped with three height adjustments so you can reach any
coupler. Note: 2” ball can be replaced with any ball with a 3/4” shank.
To Use: Slide strap under the load so that the loops are facing away from the load. Wrap the strap
around the load and slide the straight portion of the hook into the loop that provides a snug fit around
the load. With Junior straddling the load at the load’s midpoint lift Junior’s handle and hook the strap
into Junior’s ring. Push down on Junior’s handle to lift the load. Maintain pressure on handle until the
load is lowered to the ground.
With the Junior Sling, you can move beams, pipes, steel tube and all
kinds of long, heavy objects that you can’t or don’t want to use the
Junior’s sharp tongs on. The Junior Sling has 7 adjustment points so
that you can pick up square or round objects from 4” to 12” wide.
To Use: To determine the height of the ball, hold Junior’s
handle level, the ball should be a minimum of 2” above the
coupler. Once the Trailer Dolly Adapter has been installed
and adjusted, lift Junior’s handle to lower and place the ball
under the coupler. Push down on Junior’s handle to hook
the ball into the coupler. Keep constant downward
pressure on Junior’s handle as you use Junior to position
your trailer. Raise Junior’s handle to lower the trailer and
disengage the ball.
Sling
Trailer Dolly
Attachment
To Install: Open Junior’s tongs and hook them back on Junior’s frame. Place adapter over the Junior
above the tongs and secure with 1/2” hitch pin. Remove pin and slide the hitch out of the adapter.
(You may have to turn the hitch around so it is 180º from the position it was shipped.) Slide the hitch up
or down to line up the hole for your desired height.
40044-000 page 2 of 2

60 Industrial Park Rd
Vernon, CT 06066
800-631-4791
Logrite.com
[e-mail]
Warranty Statement for Log Arches
LogRite Tools believes that log arches of our manufacture are of quality
construction and superior design. We urge our customer to closely inspect
their purchases immediately upon receipt. If anything is not satisfactory,
it will be immediately repaired or replaced at our cost and decision.
If during the course of use, any of our products fail structurally or fails
to perform the tasks it is designed for and represented as, LogRite Tools
will do everything to make the product perform as intended.
If during the course of use, the product is not performing as represented,
LogRite Tools invites the owner to call our toll free line for a
discussion of uses and techniques, including how to use the products in
order to achieve satisfactory results.
This warranty is intended for the original owner and for the period of 2
years. With correct use and maintenance LogRite products will provide
a lifetime of use.
This warranty does not imply any liability to the uses of the products,
which are at the discretion of the owner.
If there are any questions as to the extent or applicability of this warranty,
please call immediately to resolve these questions.

ATTENTION
Bluecreeper is an extraordinary penetrating lubricant. We have
included a bottle with your arch manual for you to use to maintain
wheel bearings on the Junior Arch.
We encourage you to use it in your garage or shop or around the
house. Use it to loosen stuck parts or tools in the garage or
workshop. Works great around the house to stop squeaks,
lubricate hinges, doorknobs and locks.
With its needle applicator a small drop goes exactly where needed
eliminating waste and mess.
Available at www.bluecreeper.com or follow the link from the
Logrite website.
Shipping is expensive so if you like it, please ask your local retailers
to carry it.
