Introduction
The LogTag® UTRED30-16 temperature logger features a data logging memory storing up to 16129
temperature readings and a separate statistical memory, storing maximum and minimum reading as well
as alarm duration for each of the last 30 days.
During recording the display shows…
… the current temperature (of the most recent reading)
… the alarm status (within or outside the acceptance range)
… an alarm trigger summary of up to the last 30 days (today and 29 days previous)
… the current time and battery status.
Alarm events can be triggered when a number of readings are outside pre-set temperature thresholds, and
a “day alarm indicator” appears on the display.
Logged temperature data can be viewed on any PC by plugging the unit into a computer’s USB port via a
micro-USB cable. A PDF file is generated, which can be accessed using PDF software such as Acrobat
Reader. The UTRED30-16 can also be downloaded to the free companion software LogTag® Analyzer,
where you can display data in chart, list or summary formats. The software also allows electronic archiving
and exporting or transmitting data in support of sophisticated data management systems.
Features
The UTRED30-16 temperature logger features a large display and USB connectivity with a familiar LogTag®
feel.

Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com [phone]

Features UTRED30-16User Guide 6
Case
lMounting lug for secure fastening of logger to fixtures
lMicro-USB socket with attached protective cap
lGold-plated, high-quality temperature sensor socket
lRobust polycarbonate case, IP51
l2 user replaceable AAA batteries, accessible via a compartment at the rear of the product
Buttons
lSTART/CLEAR/STOP button( ); can be used to start and stop the unit. An active alarm is cleared using
this button. It is also used to exit the statistics review.
l REVIEW/MARK button ( ); can be used to enter the statistics review and to scroll through the
statistical data directly on the display. It is also used to place an inspection mark in the data listing
and to reset the min/max display.
lFN button ( ); the UTRED30-16 currently does not use this button.
Display and LED
The extra large display shows current, minimum and maximum temperatures and if alarm events have
occurred for the current day and up to 29 days in the past. Details of any alarm event can be checked by
inspecting the statistics history on the logger's display or in more detail via LogTag® Analyzer. In addition, a
red Alarm LED shows if an alarm event has occurred.
Sensors
The UTRED30-16 will accept any sensor from the ST100 product range, up to 3m length.
Power Supply
The same USB socket that is used for communication is also used for providing power to the UTRED30-16,
using an external 5V USB power supply. The AAA batteries maintain all functionality when USB power is not
connected. A long-life CR2032 lithium backup battery maintains essential functions if the AAA batteries are
empty and external power is not supplied.
PDF
The UTRED30-16 will generate a detailed PDFreport when plugged into a USB port of a PC. The PDF report
shows a summary of the trip, presents the data in chart and list format and also includes a day summary
page, showing an overview of the statistics collected. A CSV file of the data list is also available.
Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com [phone]

What You Need UTRED30-16User Guide 7
What You Need
Required Items
In addition to your LogTag® UTRED30-16 temperature logger you will need the following:
la Micro-USB to USB-A cable to connect the UTRED30-16 to your PC
lan external probe.You can use any probe of the ST100 series
lfor configuration - a PC running Windows 7 or later and LogTag® Analyzer version 3 installed
l2 x AAA batteries
For optimum performance we recommend Lithium Iron Disulphide batteries, such as
Energizer® Ultimate Lithium™ Batteries, or similar batteries from other reputable
manufacturers.
lA small Phillips screwdriver to open the battery compartment
Optional Items
In addition to the above, following items are useful accessories:
la 5V/5W USB power supply, if you wish to power the unit permanently via the USB socket.
la wallmount bracket, which can be used, for example, to attach the UTRED30-16 to the side of a
fridge
la Glycol buffer, which simulates environmental behaviour of a vaccine vial
Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com [phone]

Preparing a UTRED30-16 for first use UTRED30-16User Guide 8
Preparing a UTRED30-16 for first use
Before your UTRED30-16 can record temperature data you need to perform a few setup steps.
In the office
These steps are completed in your office, using a PC connected to the internet.
linstall the batteries into the unit
ldownload and install the latest version of LogTag® Analyzer 3. You can do this from the LogTag
Recorders Software Download page
lconfigure the unit using LogTag® Analyzer
On-site
Once you have completed this process you can take the logger to the location where it will be installed and
lconnect a sensor and place the unit, preferably using a wall mount bracket
lstart the logger
Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com [phone]

Preparing a UTRED30-16 for first use UTRED30-16User Guide 9
Inserting the Batteries
The UTRED30-16 operates with two AAA batteries.
1. Remove the screw from the rear compartment lid.
2. Remove the lid, exposing the battery compartment.
3. Insert the AAA batteries in the correct orientation, as shown. The polarity is marked inside the battery
compartment.
4. Replace the rear cover and the screw.
5. Press any button to turn on the display.
Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com [phone]

Preparing a UTRED30-16 for first use UTRED30-16User Guide 10
Configuring the UTRED30-16 for logging
Before a UTRED30-16 logger can be used, it must be configured with the parameters required for
lstarting and recording temperature values
ltriggering alarms
This is done using LogTag® Analyzer software, which can also be used for downloading and analyzing data.
lStart the LogTag® Analyzer software.
lRemove the protective cap from the logger's USB socket and plug the Micro USB end of the cable
into the socket. Plug the other end of the cable into a USB socket on your computer and wait for the
drivers to be installed1.
lFrom the menu click LogTag - Configure; LogTag® Analyzer will display the configuration options for
connected loggers.
Standard Configuration Settings
The standard configuration is similar to those of other LogTag® logger products and includes settings such
as User ID, start method, pre-start recording, logging interval and duration, start delay, and password.
Adjust the settings as required. For detailed information about each parameter please read the section
about Configuring a LogTag® for logging in LogTag® Analyzer’s User Guide or press F1 for help.
UTRED30-16 Start Options
During configuration with LogTag® Analyzer you can decide when the UTRED30-16 starts taking
temperature readings:
Push button start
Date/Time start
The logger will start taking temperature readings at the date and time you specify (local time).

When you choose the push button start option, you can select to record Pre-start readings or Begin
recording after a delay:
lIf you select pre-start readings, the UTRED30-16 starts recording as soon as it is and will continue to
do so until you start the unit. No alarms are processed while pre-start readings are being taken, pre-
start readings will not appear in the PDF file, and no PDF file will be generated. Using pre-start
readings is a good way to avoid data loss if you forget to start the unit, as you can still access the
1 You can configure more than one UTRED30-16 at the same time, however it is practical to limit the number of units to about 6, using a powered USB
hub.
Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com [phone]

Preparing a UTRED30-16 for first use UTRED30-16User Guide 11
data using LogTag® Analyzer.
lIf you configure the UTRED30-16 to start after a delay period, the logger will not immediately record
temperature readings after you have pressed START/CLEAR/STOP, but start a countdown timer
instead, and record readings only after the timer has ended. It will, however, continue to take pre-start
readings, if enabled.
You cannot combine a date/time start with pre-start readings or the start delay function.
Alarm Configuration Options
The UTRED30-16 can display an alarm if either of the configured alarm trigger conditions have been met.
This is indicated on the display by showing the Alarm Indicator ( ) and the Day Alarm Marker for
today ( ). Additionally, the red LED will blink every 4 seconds.
Each alarm trigger condition consists of a threshold temperature value, an activation type (which can be
instant, consecutive or accumulative2) and a delay time, if it is not an instant alarm.
If an alarm trigger condition requires readings to exceed an upper threshold temperature it is called an
upper alarm. If an alarm trigger condition requires readings to go below a lower threshold it is called a lower
alarm.
All alarm trigger conditions are configured in the Alarm Settings tab during configuration of the logger with
LogTag® Analyzer.
The screen shows an example where:
lthe upper alarm is triggered when the temperature is 10.0°C or above for an accumulative time of 10
hours.
lthe lower alarm is triggered when the temperature is -0.5°C or below continuously for 1 hour.
Once an alarm has triggered, the alarm indicator ( ) remains shown until the alarm is cleared (see Clearing
an Alarm on page24) or the unit is reconfigured. The day alarm marker remains shown until midnight,
2
lInstant = one temperature reading is above (below) the threshold
lConsecutive = temperature readings are above (below) the threshold for the time defined in the activation delay without interruption
lAccumulative = temperature readings are above (below) the threshold for the total time defined in the activation delay time, but may not
necessarily be sequential
Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com [phone]

Preparing a UTRED30-16 for first use UTRED30-16User Guide 12
then it turns off and the marker for the previous day is shown ( ) to indicate the alarm was registered
against what is now the previous day. When midnight passes next, this marker will move to and so on.
Alarm Re-triggering
A note on alarm re-triggering: As soon as an alarm is triggered, the corresponding delay time (but
not any others) resets to zero and alarm processing starts again. The alarm processing for all
other alarm delays is not affected. Therefore, accumulative or consecutive alarms will re-trigger, if
the alarm conditions are met again, and the Alarm Indicator ( ) and the Day Alarm Marker ( )
will be shown, even if any previous alarm was cleared. Clearing an Alarm does not reset any of the
delay values.

Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com [phone]

Preparing a UTRED30-16 for first use UTRED30-16User Guide 13
File Settings
Select the File Settings tab for the settings that decide which files are generated when the UTRED30-16 is
plugged into a computer's USB port, and what information these files contain.
Select as many file formats as you wish to generate.
Parameters that influence the appearance of all files are:
lsetting of the temperature units used in the files
The temperature unit for the PDF file is also used for the units shown on the display.
ldate and time format
ltime zone and MKT values
Parameters specifically influencing the appearance of the PDF file are:
lscaling parameters for the chart
lshowing or hiding gridlines
lshowing or hiding alarm threshold lines
lcreation of the data list
For detailed information about each parameter please read the section about Configuring a LogTag® for
logging in LogTag® Analyzer’s User Guide or press F1 for help.
Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com [phone]

Preparing a UTRED30-16 for first use UTRED30-16User Guide 14
Advanced Settings

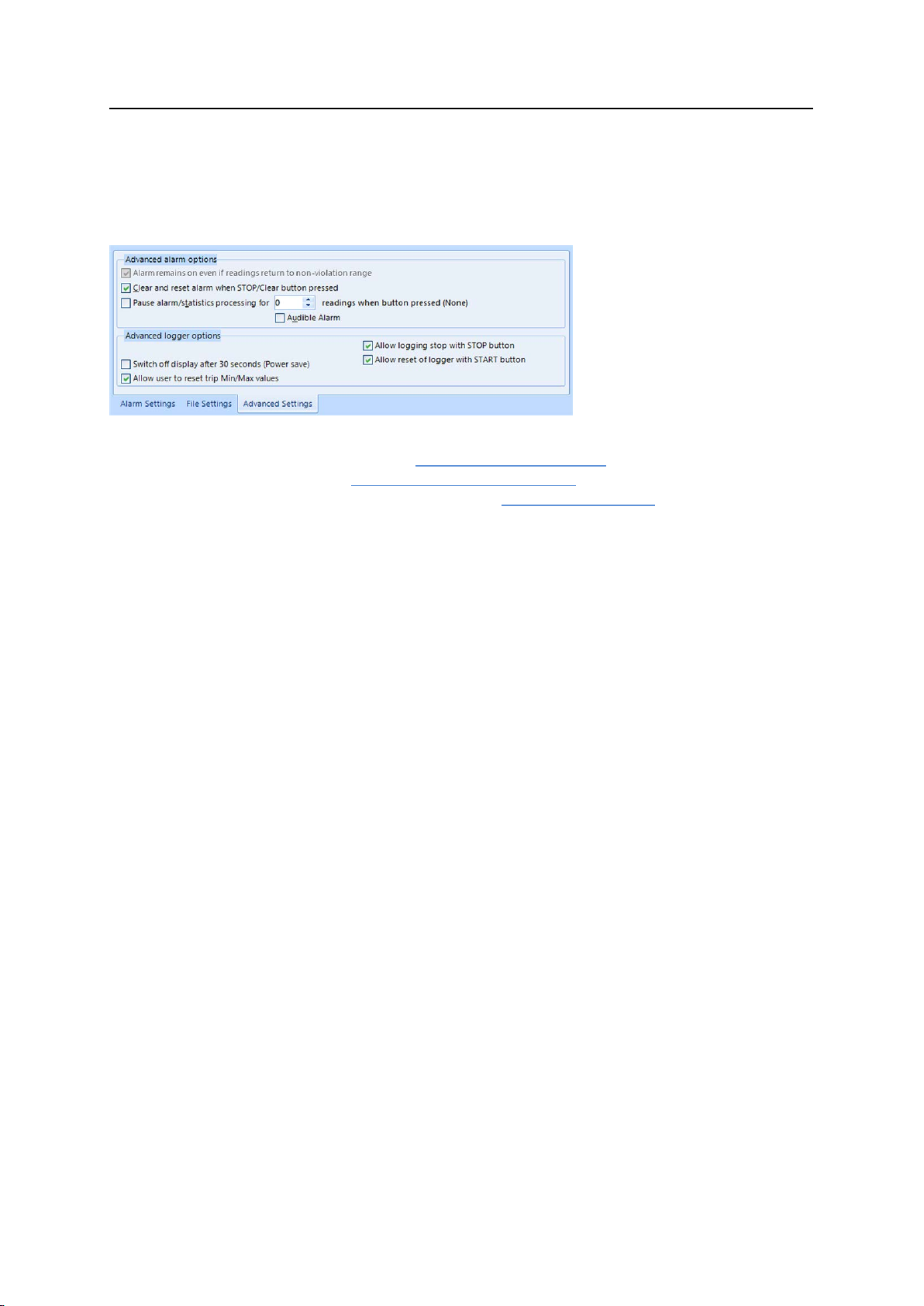

Select the Advanced Settings tab for additional configuration settings. These settings decide how some of
the elements are displayed on the unit's own display and also set other options specific to the UTRED30-
16.
Parameters that influence the appearance of the display are
lPause alarm/statistics processing (see Paused Readings on page25)
lTemperature display unit (see Display Overview on the next page)
lSwitch off display after 30 seconds (Power save, see Power Save on page26)
lAllowing a user to reset the trip's minimum and maximum values on the display during recording
Parameters influencing specific behaviour of the UTRED30-16 are
lclear and reset alarm when the START/CLEAR/STOP button is pressed
lleaving the alarm turned on, even if readings return to the normal temperature range again
lallowing the user to stop the logger with the START/CLEAR/STOP button
lallowing the user to reset the logger with the START/CLEAR/STOP button
lEnabling the buzzer for the audible alarm
For detailed information about each parameter please read the section about Configuring a LogTag® for
logging in LogTag® Analyzer’s User Guide or press F1 for help.
Finalizing the configuration
lClick Configure to upload the configuration data to the UTRED30-16.
lWhen the configuration is complete, unplug the UTRED30-16 from the USB socket and replace the
protective cap.
If you wish to configure more UTRED30-16 units with the same configuration, insert the next recorder into
the USB socket, wait until it is ready for configuration and click Repeat Configure. Alternatively you can use
the Profile function to configure multiple units with the same settings.
Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com [phone]

Display Overview UTRED30-16User Guide 15
Display Overview
Following picture shows the display with all segments turned on.
Day Alarm Markers
One rows of 7 markers, named Today ( ) to Day -6 ( ). A marker is on, if an alarm event occurred on that day.
Week Alarm Markers
One row of 4 markers, named last week ( ) to 4 weeks ago ( ). A marker is on, if alarm event occurred during
that week.
MIN/MAX Temperature Data
These two temperatures represent the minimum and maximum since the recording started, or since the values
were last manually cleared.
Main Temperature Data
This shows the last recorded temperature while the UTRED30-16 is recording . Once the logger has stopped,
nothing will be displayed.
Backup Battery Low
A battery test is performed every 24 hours. The battery low symbol will appear if the UTRED30-16's backup
battery is low and requires changing. Please discuss this with your distributor, as the battery needs to be changed
by a qualified technician.
Main Battery Condition
A battery test is performed hourly. Depending on the condition of the battery, all, some or none of the 4 bars
will show. See Powering the UTRED30-16 on page17 for details.
ALARM/OK Indicator
is shown as soon as the UTRED30-16 has registered an alarm event. If no alarms have been registered, or if an
existing alarm has been cleared, is shown.
Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com [phone]

Display Overview UTRED30-16User Guide 16
Recording State Indicators
The recording state indicators show if the UTRED30-16 is currently recording data:
lIf the READY symbol is shown, the UTRED30-16 is ready to be started. Depending on the
configuration it may already record pre-start readings.
lIf the STARTING symbol is shown, the logger has been configured with a start delay. The word
DELAY is also shown, together with the time in hours and minutes until the start.
lIf the symbol is shown, the UTRED30-16 is recording temperatures at the sample interval
defined during configuration with LogTag® Analyzer.
lIf is shown together with the word PAUSED, the product is recording, but the recorded values
are not taken into account when calculating alarm events and durations.
lIf the word STOPPED is shown, the UTRED30-16 has finished recording temperature data.
Time Value and Time Indicators
The time value display is used to show one of the following:
la clock with the current time
ltime remaining to start of logging with a delayed start
lduration, for example of an alarm
The time indicators identify, which of those is displayed:
lIf the word TIME is shown, the time value represents the current time in hours and minutes (24-hour
format).
lIf the word DELAY is shown, the time value represents a start delay in hours and minutes.
lIf the word DURATION is shown, the time value represents the length of time in hours and minutes
an alarm threshold was exceeded, for example the time above the upper alarm threshold.
The word dtstappears in place of a time value if the logger is configured for a date/time start, and the start time
has not yet passed.
Reading Type
The word CURRENT is shown when the temperature on the display represents the last recorded temperature.
The word MAX is shown in Review mode, when the temperature on the display represents the maximum recorded
temperature for the day displayed.
The word MIN is shown in Review mode, when the temperature on the display represents the minimum recorded
temperature for the day displayed.
MIN and MAX are also shown next to the minimum and maximum values during recording, if these are enabled.
Alarm Threshold Markers
The up-arrow is shown when the temperature displayed (i.e. last recorded) is above the specified upper
temperature threshold. The down-arrow is shown when the temperature displayed is below the specified lower
temperature threshold.
Temperature Units
Depending on the selected display temperature units during configuration, this shows either°F or°C.
Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com [phone]

Powering the UTRED30-16 UTRED30-16User Guide 17
Powering the UTRED30-16
The UTRED30-16 can be supplied from one of two power sources:
lvia two AAA batteries
The batteries have a life span of approx. 6 to 12 months, depending on the quality of the battery, log
interval, frequency of reviewing data on the display and how often an alarm sounds.
The batteries inside the unit will not be charged when external power is supplied.
A 4-bar battery indicator shows an approximate remaining battery capacity. If the batteries are full,
this symbol will be shown:
When the batteries are empty, this symbol will be shown, and the batteries require replacement.
Please always replace both batteries with fresh ones at the same time. Replacing only one
of the batteries with a partially charged battery will drain the internal backup battery.
It is possible to use rechargeable AAA cells, however, please note that due to the different
voltage the battery indicator will not show the correct remaining percentage, and the internal
backup battery may drain faster. Rechargeable cells will deplete faster than Alkaline or
Lithium batteries.
lvia a commercially available 5V USB power supply (5W).
When supplied externally, the power symbol shows on the display.
Supplying the unit with external power allows you to use the internal AAA batteries as a backup
should external power be unavailable.
When you remove the external USB power the display briefly turns off.
Some low-quality USB power supplies are unable to deliver sufficiently stable power to the
UTRED30-16. Please use a power supply from a reputable source that carries a UL or CE
marking.
If the logger detects an unstable power source, the power symbol will flash and the
buzzer will sound.
In this case, the logger will not be powered by the external supply, but remain powered by
the AAA batteries instead. Please remove the supply and replace it with one of better
quality.

Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com [phone]

Powering the UTRED30-16 UTRED30-16User Guide 18
Low power operation
The UTRED30-16 enters low power operation when no external power is supplied, and the AAA batteries are
empty.
In low power mode…
… the audible alarm will sound only once, then be silent
… the display turns off after 30 seconds of inactivity, regardless of the setting made in LogTag®
Analyzer.
… reviewing the data is not possible (however a mark will still be placed if the review button is pressed)
… the unit cannot be started via push button start, however, a recording in progress can be stopped, and
a scheduled date/time start will proceed.
… Min/Max values cannot be cleared
On pressing any button, following is shown on the display:
oThe Recording state indicators show if the unit is
recording, stopped, ready or configured for a delayed
start
oThe Main Battery Empty symbol is shown
The internal secondary backup battery will power the logger's essential functions:
lthe internal clock still runs
ltemperature values are being recorded at the configured intervals
lthe red alert indicator will blink if an alarm is triggered
la scheduled recording will still start.
At this time the batteries must be replaced, or external power provided, to activate the suspended
functions.
After battery replacement the display may be blank. To activate it, simply press one of the buttons.
The internal secondary backup battery (CR2032 LiMnO2 coin cell) should be
replaced immediately when its low battery symbol appears. This can be done by
a qualified technician.
Failing to replace the battery can result in loss of configuration information and loss of recorded
data.
Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com [phone]

Audible Alarm UTRED30-16User Guide 19
Audible Alarm
The UTRED30-16 is fitted with a buzzer. You can choose to activate the buzzer when an alarm event has
been registered to provide extra feedback. This is enabled or disabled in the Advanced Settings when
configuring the logger with LogTag® Analyzer.
Please note, that continual activation of the audible alarm will reduce the working life of the
battery. When an alarm event is triggered, the alarm should be cleared as soon as possible.
The alarm will sound once every four seconds for the first 24 hours. To preserve battery life, the interval at
which the alarm sounds will increase to 8 seconds when the clock passes midnight after the initial 24 hour
period (i.e. the alarm will sound every 4 seconds between 24 and 48 hours, depending on when during the
day the alarm was first triggered). When the clock passes midnight again, the interval changes to 12
seconds. It will remain at 12 seconds until the alarm is cleared, the unit stops or is re-configured.
Note: The interval will increase, even if the alarm is re-triggered!
Please see more information about re-triggering alarms in Alarm Re-triggering on page12
The buzzer will temporarily turn off when you are reviewing data.

Real Time Clock
The time shown on the recording display is linked to the logger’s internal real time clock.
A day change occurs when the display time rolls through midnight (i.e. 00:00), which triggers the statistical
data to be finalized for the day, and a new day to be started when the next reading is taken.
Each time the logger is configured with LogTag® Analyzer the display clock value is set to the PC's current
local time (or timezone).
Note that the logger’s internal real time clock value is only updated when the recorder is
configured with LogTag® Analyzer. This prevents the data logging becoming discontinuous, which
would be the case if the real time clock were to be changed together with the display clock.
LogTag® Analyzer can display the logged readings in a number of different time zones, regardless of where
it was configured. Please note, however, that the PDF's time zone has to be set at configuration and cannot
be changed after the logger has been downloaded.
Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com [phone]

Starting the Logger UTRED30-16User Guide 20
Starting the Logger
Push button start
After configuration for a push button start the current time and
READY are shown, together with the Operating Battery Status
symbol.
The power symbol is shown when the unit is connected to a
USB power supply.
Press the START/CLEAR/STOP button. STARTING is briefly
shown in addition to READY.
Then READY disappears.
Once READY disappears, release the button within two
seconds. STARTING will now disappear, and the
symbol will be shown. The UTRED30-16 now records
temperature data.

The logger will not start if you…
… release the button before READY disappears
… keep holding the button for more than 2 seconds after
READY disappears.
… The backup battery is critically low and the logger is not
connected to power.
Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com [phone]
