Longse LIRDNAD200V User manual

Specification
Model LIRDNAD200V
Pick up Element 1/2.7" OV 2.1MP CMOS Sensor
Effective Picture
Elements (H×V) 1920 X1080
Resolution 1080P
Minimum Illumination
0.001 Lux/F1.2
S/N Ratio More than 50dB
Synchronous System Internal, Negative sync.
IR Distance 20 Meters (with Ф5X24 PCS Infrared LED)
IR Power On Photodiode AUTO Control
Video Output AHD,CVBS
Power/Current DC12V(+/-10%)/500mA
Lens Board Lens 3.6mm
Dimension (mm) Φ94 x 69(H)
Weight (g) 450
Operating Tempera-
ture -10~+50℃RH95% MAX
Functions OSD menu, DWDR, 3DNR,Sense-up
IP Rating /
LIRDNAD200VCCTVCamera
Thank you for using our product.
Before providing power for the camera, please read
this manual carefully before use. 
Accessorieslist
We adopt the latest technical of sensor and driver.
It owns the characters of high definition and stability,
strong anti-jamming, rich and real color. Fixing and
using this model are convenient too. It is very good
for you to apply to your CCTV system.


Notes:
Do not attempt to disassemble the camera. If the camera
can not work, please contact local franchiser or our company. 
NameNumber
Camera 1
User Guide1
Vandalproof IR Dome Camera

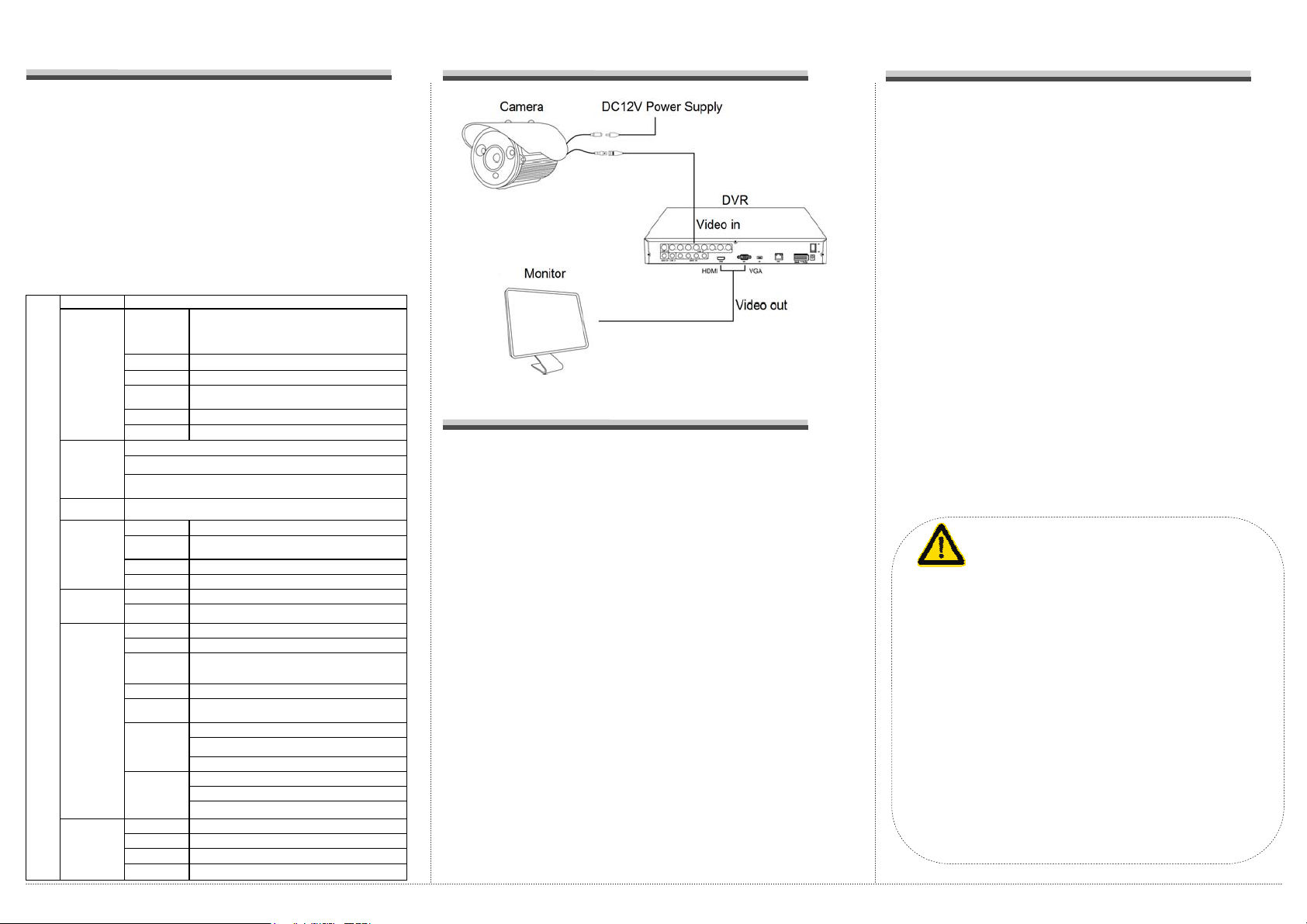

MainFeatures DeviceconnectionCommonProblemsandTroubleshooting
1.Before using the camera ,please read this manual carefully and
keep it safely for later use.
2.Installation should be proceed by professional service and follow
manufacturer’s instructions, do not dismantle without authoriza
tion.
3.In order to prevent sensor ,do not expose lens to intense light
source in long time.
4.Do not touch sensor directly. Please covers the dustproof cover
when the camera is not being used.
5.Please use a dry soft cloth to clean the camera. If dirt difficult to
clean, use detergent with water and wipe dry the camera.
6.Do not install camera under air conditioning’s air gate ,or else
lens blur with condensation of moisture.
7.Please ensure that all electric power sources are turned off
when not open , installation ,clean, etc operation.
8.Please transporting , using and storing the camera in allowable
temperature and humidity.
9.If the camera was broken, for example power cord or plug dam-
aged,Splash liquid or foreign matter fall into camera, raining,
wetting, etc can’t work situation, please contact manufacturer
or maintenance center (modify and maintenance without perm
ission, you must be responsible for the problems).
Safetyinstruction
> Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit. The color camera
can get high definition picture in low Lux condition.
> Auto Electronic Shutter (AES)
Built-in auto electronic shutter function. The color
camera’s AES speed can reach 1/100,000s.
> OSD button shortcut functions
CVBS MODE: hold left key 5s.
AHD MODE : hold right key 5s.
System switching : hold down key 5s.
> OSD MENU
MAIN
MENU
LENS MANUAL/DC
EXPOSURE
SHUTTER
AUTO,1/30,1/60,FLK,1/240,1/480,1/1000,
1/2000,1/5000,1/10000,1/50000,X2,X4,X6,X8
,X10,X15,X20,X25,X30
AGC 0－15
SENS-UP AUTO(X2-X30)/OFF
BRIGHT-
NESS 0-100
D-WDR OFF/ON
DEFOG OFF/AUTO
BACK LIGHT
OFF
BLC:LEVEL/AREA /DEFAULT
HSBLC:SELECT AREA/DISPLAY/BLACK MASK/LEVEL/
MODE/DEFAULT
WHITE BAL. ATW/AWC→SET/INDOOR/OUTDOOR/MANUAL/AWB
DAY &
NIGHT
EXT D→N(DELAY)/N→D(DELAY)
AUTO D→N(AGC)/D→N(DELAY)
/N→D(AGC)/N→D(DELAY)
COLOR
B/W BURST/IR SMART/IR PWM
NR 2DNR OFF/LOW/MIDDLE/HIGH
3DNR OFF/LOW/MIDDLE/HIGH
SPECIAL
CAM TITLE OFF/ON
D-EFFECT FREEZE/MIRROR/NEG.IMAGE
MOTION SELECT AREA1-4/DISPALY/SENSITIVITY
/COLOR/TRANS/ALARM/DEFAULT
PRIVACY OFF/ON
LANGUAGE ENG/CHN1/CHN2/GER/FRA/ITA
/SPA/POL/RUS/POR/NED/TUR
DEFECT
LIVE DPC
WHITE DPC
BLACK DPC
RS485
CAM ID:0-255
ID DISPLAY
BAUDRATE:2400/4800/9600/19200/38400
ADJUST
SHARPNESS AUTO/OFF
MONITOR LCD/CRT
LSC OFF/ON
VIDEO.OUT PAL/NTSC
> No Picture after providing power
May be the power supply voltage abnormity, please check
he power supply voltage and pole whether exactitude.
Please check all the connecting cable and monitors whether
be connected correctly or not.
> The picture level direction have flowing interference
ripples
May be caused by the power supply AC ripples, it need filter
the wave of the power supply.
Check the monitor and peripheral equipments used.
> The picture background color changes continuously
The fluorescent lamp’s electromagnetic field cause color roll.
This is proper phenomenon of the cameras.
Reduce the fluorescent lamp numbers or increase the
distance between the camera and the fluorescent lamps can
improve it.
Use power supply external sync. camera can solve it.
> The picture smear too mass
The power supply’s voltage unstable.
Connecting cables not connect correctly or have high
impedance.
Note:
• Power supply must pass safety certification ,Its output
voltage, current, voltage polarity and operating temper-
ature must match requirement of this equipment.
• Please install lightning protection devices or cut off the
power in thunder and lightning conditions.
• To capture high-quality video and pictures, please make
sure the network connection is stable and smooth.
• Please note the camera’s operating temperature and its
using environment requirement. Avoid using the camera
at too high or too low temperatures. The operating tem-
perature is -30~+60℃. (Recommendatory operating tem-
perature is -10~+50℃.)
• Do not mount the camera near by the radiator or heater.
