Longse LIRDNAD130 User manual

LIRDNAD130 Color Camera
Vandalproof IR Dome Color Camera
Specification
Packing List
No Name Model Number
2. User Guide LIRDNAD130 1
1. Vandalproof IR Dome Color Camera
LIRDNAD130 1
Franchiser：
Notes:Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
Model LIRDNAD130
Pick up Element 1/3" SONY 1.4Megapixel CMOS Sensor
Effective Picture Elements
(H×V) 1305(H) X1049(V)
Horizontal Resolution 720P
Minimum lllumination 0.001Lux/F1.2
S/N Ratio More than 50dB
Scanning System Progressive
Synchronous System Internal, Negative sync.
IR Distance 20 Meters (with ￠5X24 Unit Infrared LED)
IR Status Under 10 Lux by PD
IR Power On PD AUTO Control
Video Output AHD,CVBS
Auto Gain Control Auto
Power/Current DC12V(+/-10%)/ 350mA
Lens Board Lens 3.6mm/F2.0
Dimension (mm) ￠94 x 69(H)
Weight (g) 400
Storage Temperature -30~ +60℃ RH95% MAX
Operating Temperature -10~ +50℃ RH95% MAX

INTRODUCTION
Congratulations on your purchase of this product.
This User Guide suits LIRDNAD130 product. We adopt
the latest CMOS technical of sensor and driver. The most
attractive characteristics are small and easy hidden, suits
the elevator and corridor. In addition, it owns the charac-
ters of high definition and stability, strong anti-jamming,
rich and real color. Fixing and using this model are con-
venient too. It is very good for you to apply to yours CCTV
system.
Please read this instruction manual carefully to en-
sure proper use of the product.

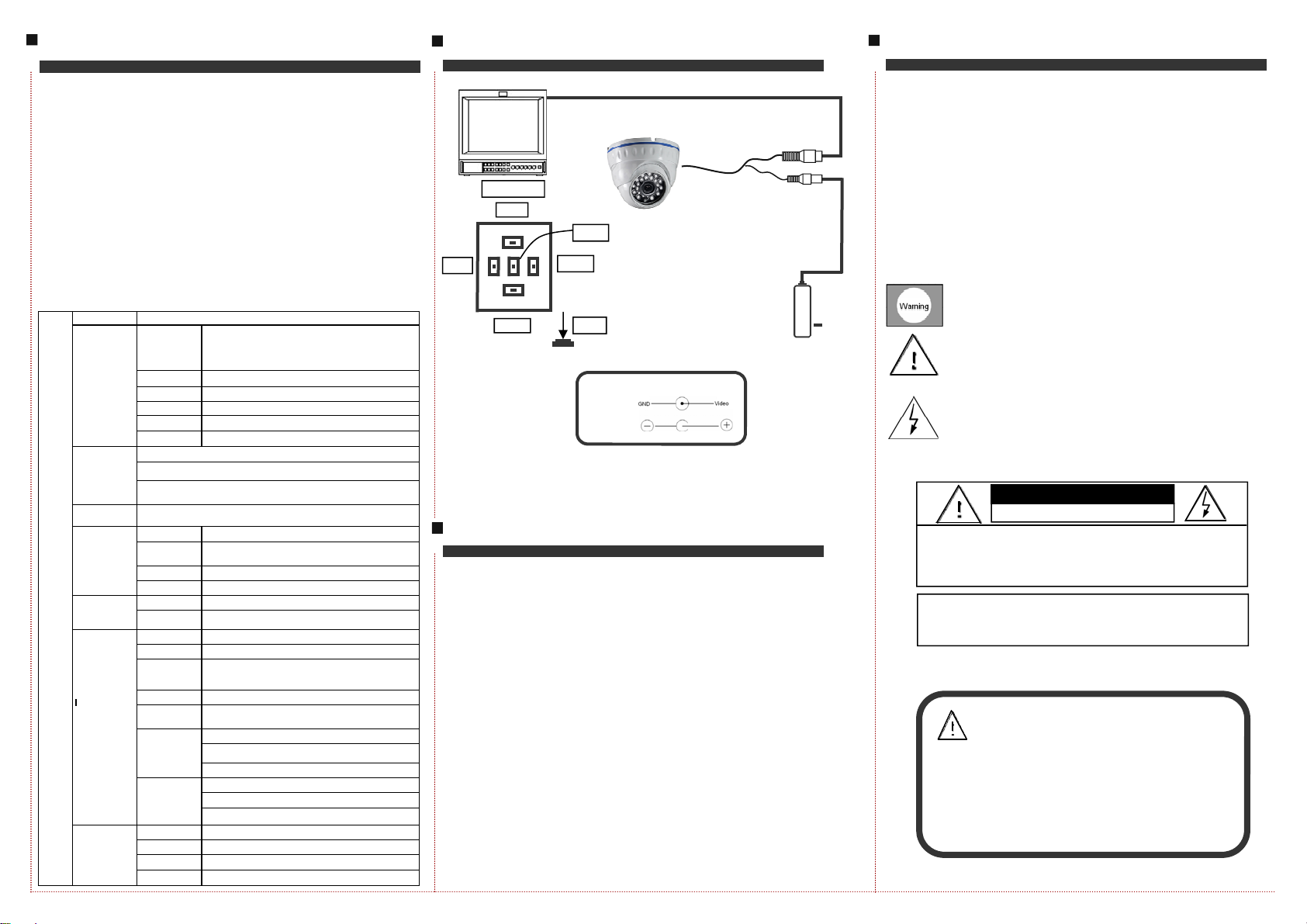

CONNECTING
BRIEF OF PRODUCT
DC12V Power Supply
Monitor
LIRDNAD130
TROUBLE AND SOLUTION
Link wire rule：
Power
Video
Note:
● Please note the camera’s operating temperature and its using
environment requirement. Avoid using the camera at too high or
too low temperatures. The operating temperature is -30~ +60℃.
(Recommendatory operating temperature is –10~ +50℃.)
● Never make the camera face the sun or bright object. Other-
wise, it will damage the CMOS.
● Do not mount the camera near by the radiator or heater.
1. No Picture after providing power
. May be the power supply voltage abnormity, please check the power
supply voltage and pole whether exactitude.
. Please check all the connecting cable and monitors whether be connected
correctly or not.
2. The picture level direction have flowing interference ripples
. May be caused by the power supply AC ripples, it need filter the wave of the
power supply.
. Check the monitor and peripheral equipments used.
3. The picture background color changes continuously
. The fluorescent lamp’s electromagnetic field cause color roll. This is proper
phenomenon of the cameras.
. Reduce the fluorescent lamp numbers or increase the distance between the
camera and the fluorescent lamps can improve it.
. Use power supply external sync. camera can solve it.
4. The picture smear too mass
. The power supply’s voltage unstable.
. Connecting cables not connect correctly or have high impedance.
To prevent fire or shock hazarded. Do not expose the unit
The symbol is intended to alert the user to the presence of
The symbol is intended to alert the user to the presence of
to rain or moisture.
important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.
uninsulated ‘dangerous voltage’ within the product’s
enclosure that may be of sufficient Magnitude to constitute
a risk of electric shock to persons.
Video
12V DC
CAUTION:
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK
DO NOT REMOVE COVER OR BANCK NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
RISK OF ELECTRIC. DO NOT OPEN
CAUTION: TO PREVENT ELECTRIC SHOCKS AND RISK OF
FIRE HAZARDS,DO NOT USE OTHER THAN
SPECIFIED POWER SOURCE.
MENU
UP
DOWN
RIGHT
LEFT
PRESS
KEY BOARD
* Sensor (CMOS)
Adopt SONY 1/3"CMOS Sensor.
* Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit. The color camera
can get high definition picture in low Lux condition.
* Scanning Mode
NTSC or PAL mode.
* OSD SETTING
CVBS MODE: hold left key 5s. AHD MODE : hold right key 5s.
System switching : hold down key 5s.
MAIN
MENU
LENS MANUAL/DC
EXPOSURE
SHUTTER
AUTO,1/30,1/60,FLK,1/240,1/480,1/1000,
1/2000,1/5000,1/10000,1/50000,X2,X4,X6,X8
,X10,X15,X20,X25,X30
AGC 0－15
SENS-UP AUTO(X2-X30)/OFF
BRIGHTNESS 0-100
D-WDR OFF/ON
DEFOG OFF/AUTO
BACK LIGHT
OFF
BLC:LEVEL/AREA /DEFAULT
HSBLC:SELECT AREA/DISPLAY/BLACK MASK/LEVEL/
MODE/DEFAULT
WHITE BAL. ATW/AWC→SET/INDOOR/OUTDOOR/MANUAL/AWB
DAY &
NIGHT
EXT D→N(DELAY)/N→D(DELAY)
AUTO D→N(AGC)/D→N(DELAY)
/N→D(AGC)/N→D(DELAY)
COLOR
B/W BURST/IR SMART/IR PWM
NR
2DNR OFF/LOW/MIDDLE/HIGH
3DNR OFF/LOW/MIDDLE/HIGH
SPECIAL
CAM TITLE OFF/ON
D-EFFECT FREEZE/MIRROR/NEG.IMAGE
MOTION
SELECT AREA1-4/DISPALY/SENSITIVITY
/COLOR/TRANS/ALARM/DEFAULT
PRIVACY OFF/ON
LANGUAGE ENG/CHN1/CHN2/GER/FRA/ITA
/SPA/POL/RUS/POR/NED/TUR
DEFECT
LIVE DPC
WHITE DPC
BLACK DPC
RS485
CAM ID:0-255
ID DISPLAY
BAUDRATE:2400/4800/9600/19200/38400
ADJUST
SHARPNESS AUTO/OFF
MONITOR LCD/CRT
LSC OFF/ON
VIDEO.OUT PAL/NTSC
