Loop Telecom Loop-V 4200 User manual

Loop-V 4200 9-Port
MuxMaster/ Wideband IAD –
CSU/DSU, E1/T1 Converter, & DACS
User’s Manual
LOOP TELECOMMUNICATION INTERNATIONAL, INC.
8F, NO. 8, HSIN RD.
SCIENCE-BASED INDUSTRIAL PARK
HSINCHU, TAIWAN
Tel: [phone]
Fax: [phone]



2004 Loop Telecommunication International, Inc. All rights reserved.
Loop-V is a trade mark of Loop Telecommunication International, Inc.
P/N: 51.LV4200.100
01/2004 Version 7.2

- i -
TABLE OF CONTENTS
1. PRODUCT DESCRIPTION ..........................................................................................................1-1
1.1 Overview............................................................................................................................... 1-1
1.2 Physical Description ............................................................................................................. 1-1
1.3 Applications .......................................................................................................................... 1-2
1.3.1 As an ICSU .................................................................................................................. 1-2
1.3.2 As a one-to-one E1 to T1 Converter ............................................................................ 1-3
1.3.3 As a One-to-Two E1 to T1 Converter........................................................................... 1-4
1.3.4 As a Four-to-Five E1 to T1 Converter.......................................................................... 1-5
1.3.5 As an E1 or T1 DACS .................................................................................................. 1-6
1.3.6 As a Network Access Device for Data ......................................................................... 1-7
1.3.7 As an ATM Frame Relay Transport Device ................................................................. 1-8
1.3.8 As a Router Transport Device...................................................................................... 1-9
1.3.9 As a Drop-and-Insert Unit for Voice and Data ........................................................... 1-10
1.3.10 As a Wireless Base Station Signal Multiplexer .......................................................... 1-11
1.3.11 As a Full Channel Bank ............................................................................................. 1-12
1.3.12 As a Combined Network Access and Management Channel Access Device .......... 1-12
1.4 Specifications...................................................................................................................... 1-13
2. INSTALLATION............................................................................................................................. 2-1
2.1 Site Selection........................................................................................................................ 2-1
2.2 Mechanical and Electrical Installation................................................................................... 2-2
2.2.1 Mechanical Installation................................................................................................. 2-2
2.2.2 Electrical Installation ....................................................................................................2-3
2.3 Terminal Connection............................................................................................................. 2-4
2.4 Configuration Setting ............................................................................................................ 2-5
2.4.1 Hardware Configuration Setting................................................................................... 2-5
2.4.2 Software Configuration Setting .................................................................................... 2-5
2.4.3 Replacement of Plug-in Card....................................................................................... 2-5
3. OPERATION ................................................................................................................................. 3-1
3.1 Quick Start for Loop-V 4200 E1/T1 Converter/TSI............................................................... 3-1
3.2 Power On.............................................................................................................................. 3-1
3.3 Self-Test ............................................................................................................................... 3-1
3.4 Using Front Panel................................................................................................................. 3-1
3.5 Review of Default Settings ...................................................................................................3-1
3.6 Line Interface Selection ........................................................................................................ 3-1
3.7 Line ....................................................................................................................................... 3-1
3.8 Map Setup ............................................................................................................................ 3-2
3.9 Using Terminal...................................................................................................................... 3-2
3.10 System Operation ................................................................................................................. 3-2
3.10.1 Date.............................................................................................................................. 3-2
3.10.2 Master Clock ................................................................................................................ 3-2
3.10.3 Console Port ................................................................................................................ 3-3
3.10.4 Menu Lock ................................................................................................................... 3-3
3.10.5 Logon, Logoff, and Password ...................................................................................... 3-3
3.11 Configuration ........................................................................................................................ 3-3
3.12 Time Slot Interchange (Digital Access Cross-Connect) ....................................................... 3-3
3.13 Alarms and Reports .............................................................................................................. 3-5
3.13.1 Alarms.......................................................................................................................... 3-5
3.13.2 Report .......................................................................................................................... 3-6
3.14 Requesting Report................................................................................................................ 3-8
3.15 LED Operation ...................................................................................................................... 3-8
3.16 Bantam Jack ......................................................................................................................... 3-9
3.17 Error Messages .................................................................................................................. 3-10
3.18 Embedded SNMP Agent .................................................................................................... 3-11
3.19 Inband Management...........................................................................................................3-11

Loop-V 4200 MuxMaster User's Manual
ii
3.20 Port Backup ........................................................................................................................ 3-12
3.21 Verifying Loop-V 4200 Operations ..................................................................................... 3-12
3.21.1 Quick Test.................................................................................................................. 3-13
3.21.2 Substitution ................................................................................................................ 3-13
3.21.3 Using Loopback Plugs ............................................................................................... 3-13
4. FRONT PANEL OPERATION....................................................................................................... 4-1
4.1 Port Menu ............................................................................................................................ 4-2
4.1.1 DTE PORT ...................................................................................................................4-2
4.1.2 E1 PORT...................................................................................................................... 4-2
4.1.3 T1 PORT ...................................................................................................................... 4-2
4.1.4 MDSL PORT ................................................................................................................ 4-2
4.1.5 QFXS PORT ................................................................................................................ 4-3
4.1.6 QFXO PORT................................................................................................................ 4-3
4.1.7 ROUTER PORT ........................................................................................................... 4-3
4.1.8 T1 ATM/ FR PORT ...................................................................................................... 4-3
4.1.9 E1 ATM/ FR PORT ...................................................................................................... 4-3
4.2 CONTROLLER Menu ........................................................................................................... 4-4
4.2.1 IP.................................................................................................................................. 4-4
4.2.2 DATE............................................................................................................................ 4-5
4.2.3 INFO............................................................................................................................. 4-5
4.2.4 TSI-MAP....................................................................................................................... 4-6
4.2.4.1 DTE PORT .......................................................................................................... 4-6
4.2.4.2 E1 PORT ............................................................................................................. 4-6
4.2.4.3 T1 PORT ............................................................................................................. 4-6
4.2.4.4 MDSL PORT ....................................................................................................... 4-7
4.2.4.5 QFXS PORT........................................................................................................ 4-7
4.2.4.6 QFXO PORT ....................................................................................................... 4-7
4.2.4.7 ATM/T1 PORT .................................................................................................... 4-8
4.2.4.8 ATM/E1 PORT .................................................................................................... 4-8
4.2.4.9 Inband Management ......................................................................................... 4-8
4.2.4.10 TSI-MAP SETUP................................................................................................. 4-9
4.2.5 MCLK ......................................................................................................................... 4-10
4.2.5.1 MASTER CLOCK ............................................................................................. 4-10
4.2.5.2 SECOND CLOCK ............................................................................................. 4-10
4.2.5.3 CURRENT ACTIVE CLOCK............................................................................. 4-10
4.2.5.4 RECOVER......................................................................................................... 4-10
4.2.5.5 STATUS ............................................................................................................ 4-11
4.3 ALARM ............................................................................................................................... 4-11
4.3.1 QUEUE ......................................................................................................................4-11
4.3.2 SETUP ....................................................................................................................... 4-11
4.3.3 CLEAR ....................................................................................................................... 4-12
4.4 STATUS.............................................................................................................................. 4-12
4.5 Miscellaneous ..................................................................................................................... 4-12
4.5.1 Lock............................................................................................................................ 4-12
4.5.2 MSG Code ................................................................................................................. 4-13
4.5.3 RESET ....................................................................................................................... 4-13
4.5.4 Console Port .............................................................................................................. 4-13
4.5.4.1 BAUD Rate ....................................................................................................... 4-13
4.5.4.2 Data................................................................................................................... 4-13
4.5.4.3 STOP................................................................................................................. 4-13
4.5.4.4 PARITY ............................................................................................................. 4-14
4.5.4.5 XONOFF ........................................................................................................... 4-14
4.5.5 Store........................................................................................................................... 4-14
4.5.5.1 Store ................................................................................................................. 4-14
4.5.5.2 Retrieve ............................................................................................................ 4-14
5. TERMINAL OPERATIONS............................................................................................................ 5-1
5.1 System Configuration ........................................................................................................... 5-1
5.2 Information Summary ........................................................................................................... 5-2

Loop-V 4200 MuxMaster User's Manual
iii
5.3 System Setup ....................................................................................................................... 5-2
5.4 Password Setup.................................................................................................................... 5-6
5.5 System Alarm Setup............................................................................................................. 5-7
5.6 Firmware Download.............................................................................................................. 5-7
5.7 Firmware Upload .................................................................................................................. 5-8
5.8 Firmware Download/ Upload Procedure............................................................................... 5-9
5.9 Configuration Download/ Upload........................................................................................ 5-11
5.9.1 Download Configuration............................................................................................. 5-11
5.9.2 Upload Configuration ................................................................................................. 5-12
5.10 Store/ Retrieve Configuration ............................................................................................. 5-13
5.10.1 Retrieve Configuration ............................................................................................... 5-13
5.10.2 Store Configuration .................................................................................................... 5-13
5.11 Configuration Download/ Upload Procedure ...................................................................... 5-14
6. Appendix A: Multicast/ Broadcast and Backup ............................................................................. 6-1
7. Appendix B: Channel Bank with digital Monitoring Function......................................................... 7-1
8. Appendix C: 1 : 1 Line Protection.................................................................................................. 8-1
9. Appendix D: Firmware Download Procedure ................................................................................ 9-1
9.1 Normal Download Procedure ............................................................................................... 9-1
9.2 Procedure for reverting to the previous version of firmware............................................... 9-15

Loop-V 4200 MuxMaster User's Manual
iv
LIST OF TABLES
Table 2- 1 Power Connector ................................................................................................................. 2-3
Table 2- 2 Console Port ........................................................................................................................ 2-4
Table 2- 3 Ethernet Port........................................................................................................................ 2-4
Table 2- 4 Alarm Relay Connector........................................................................................................ 2-4
Table 2- 5 Default Software Configuration............................................................................................ 2-6
Table 3- 1 Console Port Setting............................................................................................................ 3-3
Table 3- 2 Alarm Type Table ................................................................................................................ 3-6
Table 3- 3 Performance Parameter List - T1 ........................................................................................ 3-6
Table 3- 4 Performance Parameter List - E1 ........................................................................................ 3-7
Table 3- 5 Performance Report Options ............................................................................................... 3-7
Table 3- 6 Front and Back Panel LED Table ........................................................................................ 3-8
Table 3- 7 Error Message ................................................................................................................... 3-10
LIST OF FIGURES
Figure 1- 1 Pictorial of Loop-V 4200 MuxMaster Series Products........................................................ 1-1
Figure 1- 2 As an ICSU......................................................................................................................... 1-2
Figure 1- 3 As a one-to-one E1/T1 Converter ...................................................................................... 1-3
Figure 1- 4 As a One-to-One E1/T1 Converter plus Data .................................................................... 1-3
Figure 1- 5 As a One-to-Two E1/T1 Converter..................................................................................... 1-4
Figure 1- 6 As a Four-to-Five E1/T1 Converter .................................................................................... 1-5
Figure 1- 7 As a 8-Line E1 or T1 DACS ............................................................................................... 1-6
Figure 1- 8 As a Data Access Device for Digital Networks................................................................... 1-7
Figure 1- 9 As an ATM Frame Relay Transport Device........................................................................ 1-8
Figure 1- 10 As a Router Transport Device .......................................................................................... 1-9
Figure 1- 11 As a Drop-and-Insert with Voice and Data Access ........................................................ 1-10
Figure 1- 12 Wireless Base Station Application.................................................................................. 1-11
Figure 1- 13 As a Full Channel Bank.................................................................................................. 1-12
Figure 1- 14 SNMP Connection .......................................................................................................... 1-12
Figure 2- 1 Loop-V 4200 Front Panel ................................................................................................... 2-2
Figure 2- 2 Loop-V 4200 Rear Panel.................................................................................................... 2-2
Figure 3- 1 Bantam Jack Block Diagram .............................................................................................. 3-9
Figure 3- 2 SNMP Connection............................................................................................................ 3-11
Figure 4- 1 Loop-V 4200 series Front Panel......................................................................................... 4-1
Figure 4- 2 Menu Tree .......................................................................................................................... 4-1
Figure 5- 1 Software Download Operation Setup - separate PC........................................................... 5-9
Figure 5- 2 Software Download Operation Setup - single PC ............................................................. 5-10

Loop-V 4200 MuxMaster User's Manual
v
EMC/EMI:
Compliance with : EN 55022 Class A, CISPR22 Class A
Compliance with : EN 50082, 50081
Compliance with : FCC 15
Safety Requirements
Compliance with : EN 60950, UL1950, CAN/CSA 22.2 NO. 950
Telecom
Compliance with : FCC68, CS-03, CE168X, BABT

Loop-V 4200 MuxMaster User's Manual
vi
_________________________
FCC Requirements, Part 68
_________________________
This equipment complies with Part 68 of the FCC rules. On the bottom cover of this
equipment is a label that contains, among other information, the FCC registration
number and ringer equivalence number (REN) for this equipment. If requested, this
information must be provided to the telephone company.
Loop-V MuxMaster registration number and REN is as follows:
FCC 68 Registration Number: IZITAI-27599-DE-N
REN: 0.0B
FACILITY INTERFACE CODE FOR DIGITAL SERVICES
CODE DESCRIPTION
04DU9-BN 1.544 Mbps Superframe Format (SF) without line power.
04DU9-DN 1.544 Mbps SF and B8ZS without line power.
04DU9-1KN 1.544 Mbps ANSI ESF without line power.
04DU9-1SN 1.544 Mbps ANSI ESF and B8ZS without line power.
SERVICE ORDER CODES FOR DIGITAL SERVICES
CODE DESCRIPTION
6.0N Does not provide billing and encoded analog protection. Uses either
an integrated or external CSU. Affidavit to telco is required.
Loop-V MuxMaster connects to the network using a RJ48C connector.
If this equipment cause harm to telephone network, the telephone company will
notify you in advance that temporary discontinuance of service may be required. If
advance notice isn't practical, the telephone company will notify the customer as
soon as possible. Also, you will be advised of your right to file a compliant with the
FCC if you believe it is necessary.
The telephone company may make changes in it's facilities, equipment, operations,
or procedures that could affect the operation of the equipment. If this happens, the
telephone company will provide advance notice in order for you to make the
necessary modifications in order to maintain uninterrupted service.

Loop-V 4200 MuxMaster User's Manual
vii
Normally, this equipment will be used in conjunction with FCC registered equipment
that limits the Encoded Analog Content and provides the required Billing Protection.
If the connected equipment is not of this type, an affidavit must be supplied to the
telephone company where the network connection is to be made. The affidavit is to
be notarized, and is to be filed at least ten days before the initial connection.
If trouble is experienced with this equipment, please contact Loop
Telecommunication America Service Facility for repair and warranty information. If
the trouble is causing harm to the telephone network, the telephone company may
request you remove the equipment from the network until the problem is resolved.
All repairs should be handled by authorized Loop Telecommunication Service
Personnel. Service can be facilitated through our office at:
Loop Telecommunication International
8 Carrick Road
Palm Beach Gardens, FL 33418
U.S.A.
(Tel ) 561-627-7947
(Fax) 561-627-6615
(e-mail) <JIMBER/[e-mail]>
This equipment cannot be used on telephone company-provided coin service.
Connection to Party Line Service is subject to state tariffs.
_________________________
FCC Requirements, Part 15
_________________________
This equipment has been tested and found to comply with the limits for a Class A
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy, and if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the interference at
the user's own expense.

Loop-V 4200 MuxMaster User's Manual
viii
_________________________
Safety Requirements
_________________________
IMPORTANT SAFETY INSTRUCTIONS
When using your equipment, basic safety precautions should always be followed to
reduce the risk of fire, electric shock and injury to persons, including the following:
1. Use caution when installing or modifying telephone lines.
2. Never install telephone jacks in wet locations unless the jack is specifically
designed for wet locations.
3. This equipment must be connected to an earth socket-outlet, which has a
permanent connection to earth.
Save these instructions

Loop-V 4200 MuxMaster User's Manual
ix
_______________________________________
National Electrical Code Requirements
_______________________________________
The Loop-V MuxMaster – CSU/DSU, E1/T1 Converter & DACS is ITS Testing
Laboratories certified to be in compliance with the Underwriters Laboratories (UL)
1950 Telephone Equipment Standard. The ETL control number is 75425.
_________________________
DOC CS-03 Requirements
_________________________
NOTICE: The Canadian Industry Canada label identifies certified equipment. This
certification means that the equipment meets certain telecommunications network
protective, operational and safety requirements. The Department does not
guarantee the equipment will operate to the user's satisfaction.
Before installing this equipment, user should ensure that it is permissible to be
connected to the facilities of the local telecommunications company. The equipment
must also be installed using an acceptable method of connection. In some cases,
the company's inside wiring associated with a single line individual service may be
extended by means of a certified connector assembly (telephone extension cord).
The customer should be aware that compliance with the above conditions may not
prevent degradation of service in some situations.
Repairs to certified equipment should be made by an authorized Canadian
maintenance facility designated by the supplier. Any repairs or alternations made by
the user to this equipment, or equipment malfunctions, may give the
telecommunications company cause to request the user to disconnect the
equipment.
User should ensure for their own protection that the electrical ground connections
of the power utility, telephone lines and internal metallic water pipe system, if
present, are connected together. This precaution may be particularly important in
rural areas.
Caution: User should not attempt to make such connections themselves, but
should contact the appropriate electric inspection authority, or electrician, as
appropriate.
The Load Number (LN) assigned to each terminal device denotes the percentage of
the total load to be connected to a telephone loop which is used by the device, to
prevent overloading. The termination on a loop may consist of any combination of
devices subject only to the requirement that the total of the Load Number of all the
devices does not exceed 100.

Chapter 1 Product Description
1-1
1. PRODUCT DESCRIPTION
1.1 Overview
The Loop-V 4200-9 is a versatile 9-port device. Depending on the plug-in cards selected, this unit can be
configured (a) as a CSU/DSU with drop and insert and voice capabilities, (b) as a 4 E1 to 5 T1 converter or
fractions of them, (c) as a digital cross-connect system (DACS), (d) as sets of ICSU combined in one box,
and (e) as a channel bank. As a CSU/DSU, data from the V.35 or X.21 port can occupy any fraction of an
E1 or T1 port. As an E1 to T1 converter, A to µlaw and signaling conversions are correctly handled. For
both E1 and T1 ports, continuous error checking, performance polling, and in-service diagnostics are
provided. In any of the above combinations, full time slot interchange (TSI) among the ports are possible,
making the Loop-V 4200-9 a small DACS (digital access cross-connect system). The ports can further be
used in pairs as ICSUs (intelligent CSU) at lower cost and smaller space than individual ICSUs. Lastly, the
Loop-V 4200 can be configured as a channel bank.
The Loop-V 4200-9 supports local control and diagnostics by using a 2-line by 40-character LCD display and
keypads on the front panel, or by using a VT-100 terminal connected to the console port. The Loop-V 4200-9
also supports Ethernet, Telnet, and SNMP, so it can be controlled and diagnosed from remote locations. The
Loop-V 4200-9 also supports inband Management, where management data is carried the same way as user
data, traversing national networks.
In addition to the LCD display, 12 multicolor LEDs provide status indication for power, test condition, alarm,
and each of the 9 ports. Internal firmware is stored in flash memory so that future software upgrades can be
downloaded.
1.2 Physical Description
Loop-V 4200 MuxMaster is a compact box that can be either rack mounted taking up 1U of rack height or
placed on desktop. Depending on the power plug-in card used, power can be either AC, DC, or dual DC
module with dual DC feed.
Figure 1- 1 Pictorial of Loop-V 4200 MuxMaster Series Products

Chapter 1 Product Description
1-2
1.3 Applications
Because of the variety of plug-in cards available, the applications for Loop-V 4200 MuxMaster are numerous.
Only a few representative ones will be illustrated here. To the extent ports are available, combinations of
illustrated applications are possible.
Important Note on Clock Source: Since the entire system operates on a single clock source, one of the input
signal can serve as the master clock source. Each of the remaining input is presumed to synchronize to this
master clock source. To the extent that the clock of any incoming line can drift with respect to the system
clock, slips, or controlled slips, may occur.
1.3.1 As an ICSU
Figure 1- 2 As an ICSU
In this application, two slots are used in combination to provide the intelligent channel service unit (ICSU)
function. This is used to terminate E1 or T1 lines at the customer site. Performance monitoring and
maintenance functions, such as local and remote loop backs, are available. By using 4 slot-pairs, 4
independent ICSUs can be realized (see note on Clock Source above).
Network
Management
Loop-V 4200
E1 E1
To Cust E1 DTE To E1 Network
Network
Management
Loop-V 4200
T1 T1
To Cust T1 DTE To T1 Network

Chapter 1 Product Description
1-3
1.3.2 As a one-to-one E1 to T1 Converter

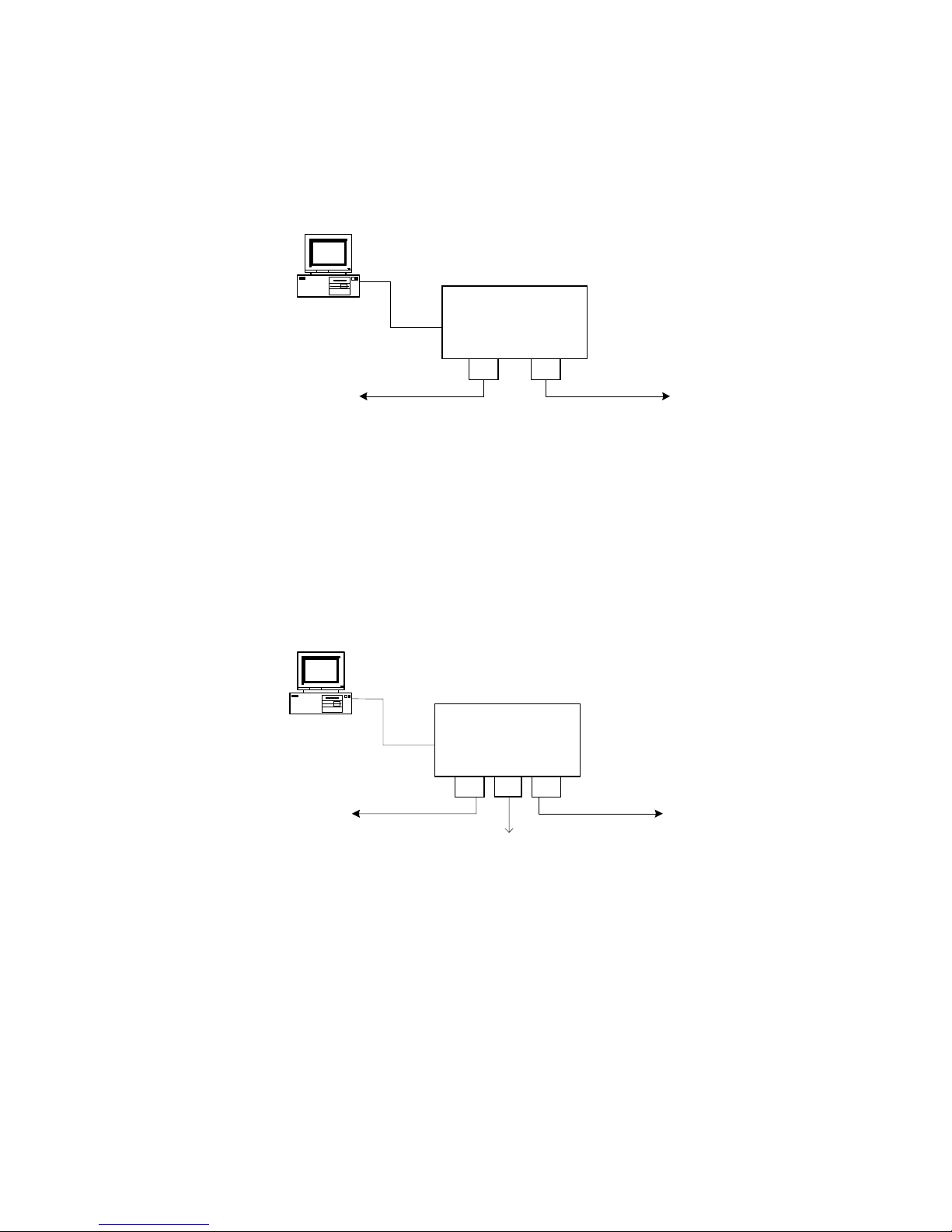

Figure 1- 3 As a one-to-one E1/T1 Converter
In this application, two slots are used in combination to provide one-to-one E1 to T1 conversion function.
Because of the lower bit rate of the T1 line, only 24 time slots of the E1 line can be utilized in this
interconnection. User can assign any 24 of E1 time slots to any of the 24 T1 time-slots. For digitized voice,
A-law to µ-law conversion will be performed. For CAS (channel associated signaling), the signaling bits will
be placed in their proper places in the respective E1 and T1 formats. Performance monitoring and
maintenance functions, such as local and remote loop backs, are available. By using 4 slot-pairs, 4
independent one-to-one E1 to T1 converters can be realized (see note on Clock Source above).
In a related application, time slots left over on the E1 side can be filled with data from a DTE plug-in card.
Figure 1- 4 As a One-to-One E1/T1 Converter plus Data
Network
Management
Loop-V 4200
E1 T1
E1 Line T1 Line
Network
Management
Loop-V 4200
E1 T1
E1 Line T1 Line
DTE
V.35

Chapter 1 Product Description
1-4
1.3.3 As a One-to-Two E1 to T1 Converter
Figure 1- 5 As a One-to-Two E1/T1 Converter
In this application, three slots are used in combination to provide one-to-two E1 to T1 conversion function.
Because of the combined bit rate of two T1 lines is higher than one E1, all 31 time slots of the E1 line can be
assigned. User can assign each of 31 E1 time slots to any of the 48 time-slots available in 2 T1s, with time
slots left over in the T1s. For digitized voice, A-law to µ-law conversion will be performed. For CAS (channel
associated signaling), only 30 time slots can be assigned with the signaling bits placed in their proper places
in the respective E1 and T1 formats. Performance monitoring and maintenance functions, such as local and
remote loop backs, are available. By using all eight available slots, 2 independent one-to-two E1 to T1
converters can be realized along with a one-to-one converter (see Clock Source note above).
In a related application, similar to Figure 1-4, time slots left over in one or both T1s can be filled with data
from a DTE plug-in card.
2 T1 Lines
T1
Network
Management
Loop-V 4200
E1
E1 Line
T1

Chapter 1 Product Description
1-5
1.3.4 As a Four-to-Five E1 to T1 Converter
Figure 1- 6 As a Four-to-Five E1/T1 Converter
In this application, an optional 9-slot version of the Loop-V 4200 MuxMaster is used to provide four-to-five E1
to T1 conversion function. Each E1 is assumed to use only 30 time slots with time slot 16 reserved for
signaling. Because the total time slots for four E1 lines and for five T1 lines are both 120, both bundles can
be fully occupied for traffic. User can assign any of 30 time slots from any of four E1 lines to any of the 24
time-slots of any of five T1s. For digitized voice, A-law to µ-law conversion will be performed. For CAS
(channel associated signaling), the signaling bits will be transferred to their proper places in the respective
E1 and T1 formats. Performance monitoring and maintenance functions, such as local and remote loop
backs, are available. This application provides users with utilization of both E1 and T1 lines.
E1
E1
E1
E1 T1
T1
T1
T1
5 T1 Lines
Network
Management
Loop-V 4200
4 E1 Line
T1E1

Chapter 1 Product Description
1-6
1.3.5 As an E1 or T1 DACS
Figure 1- 7 As a 8-Line E1 or T1 DACS
In this application, the Loop-V 4200 MuxMaster is used as a digital access cross-connect system (DACS).
Up to 9 slots can be equipped with either E1 or T1 plug-in cards, or even mixed, wherein any time slot of any
port can be cross-connected to any time slot of any port, including itself. Performance monitoring and
maintenance functions, such as local and remote loop backs, are available.
E1
E1
E1
E1
E1
E1
E1
E1
Network
Management
Loop-V 4200
9 E1 Line
E1
E1
E1
E1
E1
E1
E1
E1
E1
Network
Management
Loop-V 4200
9 T1 Line
T1

Chapter 1 Product Description
1-7
1.3.6 As a Network Access Device for Data
Figure 1- 8 As a Data Access Device for Digital Networks
In this application example, the Loop-V 4200 MuxMaster is used as an access device to the digital network.
The various data applications can be LAN or WAN, data servers and hosts, and CAD/CAM. This allows
users to integrate different applications into a single communication link and utilizing only a part of the
available bandwidth. Furthermore, expansion of the bandwidth utilization is readily accomplished. As usual,
performance monitoring and maintenance functions, such as local and remote loop backs, are available.
E1 Line
Network
Management
Loop-V 4200
E1V.35
Server

CAD/CAM
Bridge Router
HDSL/
MDSL
H3900
Stand Alone
272 Kbps - 2320 Kbps

Chapter 1 Product Description
1-8
1.3.7 As an ATM Frame Relay Transport Device
Figure 1- 9 As an ATM Frame Relay Transport Device
Loop-V 4200
V.35
ATM
Network
T1/ E1
ATM/ FR
FRAD

Chapter 1 Product Description
1-9
1.3.8 As a Router Transport Device
Figure 1- 10 As a Router Transport Device
Network
Management
Loop-V 4200
Server

CAD/CAM
Router
HUB
PCPC
