Lorentz PowerPack 4000S Specification sheet

The Solar Water Pumping Company

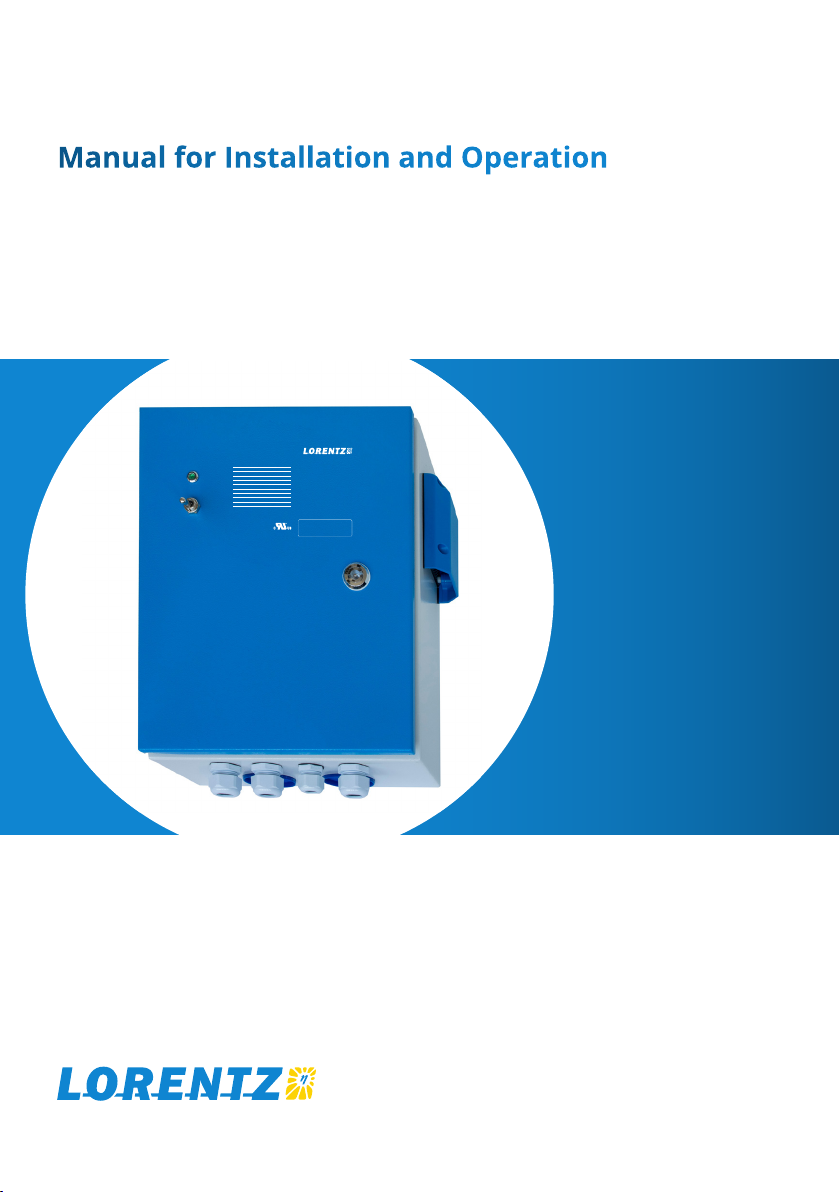

PowerPack 4000S
Manual for Installation and Operation
DC POW
ER
ON
ON
PP4000S
AC PowerPack
OF
F
* specifiedcertifications apply to the inbuilt power s upply
!IEC/EN62368-1*
EN61000-6-2
EN61204-3
IP33
INPUT AC
Voltage range 200-240 V ±10%
Max. current 16 A
Frequency 47-63Hz
OUTPUT DC
Rated voltage 210-250V
Rated current 12-14 A
OPERATING CONDITIONS
Operating temperature (ambient) –20 to +45 °C
SN
*
UL62368-1
lWARNING!
Electric shock hazard, dangerous
voltages and currents.
lSolar array must be disconnected
before turning onthis device.
aNo user-serviceable partsinside.
OBefore opening the cover, read
instructionmanual for proper
installation and operation.
www.lorentz.de
v210521
photo may dier from actual product

2 Introduction
1 Introduction
Thank you for purchasing a LORENTZ product.
Before you begin – Please check the product label to
verify that this is the item you ordered. To ensure the
product is appropriate for your application please
check the product specications.
In addition to this manual, manuals for the pump
end, controller and all other components used in
your system should also be read.
2 Safety Instructions
Safe operation of this product depends on its correct
transportation, operation and maintenance. Failure
to follow these instructions can be dangerous to life
or health and/or void the warranty.
PLEASE READ AND FOLLOW
ALL INSTRUCTIONS!
Explanation of warning symbols
l WARNING – Disregard can lead to
injury, death or damage the system.
a CAUTION – Recommended to avoid
damage, premature aging of the pump or
similar negative consequences.
When installing and using the electrical equipment,
basic safety precautions should always be followed,
including the following:
l WARNING – To reduce the risk of
injury, do not permit children to use this
product.
WARNING – The equipment is not to
be used by persons (including children)
with reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless otherwise instructed
and closely supervised.
WARNING – It must be ensured
that all grounding connections are
properly made and that the resistance
towards ground meets local codes and
requirements.
WARNING – To reduce the risk of
electric shock, replace any damaged cords
and cabling immediately.
This manual contains basic instructions which must
be observed during installation, operation and
maintenance. The manual should be carefully read
before installation and use of the product by the
person in charge of the installation. The manual
should also be read by all other technical personnel/
operators and should be available at the installation
site at all times.

2 Introduction Introduction 3
Personnel qualication and training - All
personnel responsible for the operation,
maintenance, inspection and installation must
be fully qualied and trained. Responsibility,
competence and the supervision of such personnel
must be strictly regulated by the user. Should
the available personnel be lacking the necessary
qualication, they must be trained and instructed
accordingly. If necessary, the operator may require
the manufacturer/supplier to provide such training.
Furthermore, the operator/user must ensure that
the personnel fully understand the content of the
manual.
Safe operation – The safety directions in this
manual, existing national regulations for the
prevention of accidents as well as internal guidelines
and safety regulations for the operator and user
must be followed at all times.
General safety directions for the operator/user
– Protective covers for moving parts (e.g. couplings)
must not be removed when the equipment is
running. Leaks (e.g. at the shaft seal) of hazardous
pumping media (e.g. explosive, toxic, hot liquids)
must be disposed of in such a way that any danger
to personnel and the environment is avoided. All
government and local regulations must always be
followed. Any danger to persons from electrical
energy must be eliminated by using proper
installation practices which must be in accordance to
local regulations (e.g. VDE in Germany).
Safety directions for maintenance, inspection
and assembly work – It is the user’s responsibility
to ensure that all maintenance, inspection and
assembly work is performed exclusively by
authorized and qualied experts who are suciently
informed through reviewing the operating
instructions.
Local accident prevention regulations must be
observed. All work on the equipment should be done
when it is not being operated and ideally electrically
isolated. The sequence for shutting the equipment
down is described in the manual and must be strictly
observed. Immediately upon completion of the
work, all safety and protective equipment must be
restored and activated.
Unauthorized changes and manufacturing
of spare parts – Any conversion or changes of
the equipment may only be undertaken after
consulting the manufacturer. Original spare parts
and accessories authorized by the manufacturer
guarantee operational safety.
Using unauthorized parts may void any liability
on the part of the manufacturer. Conguring the
schemes in this way ensures exibility in the future if
local management changes.
Unauthorized operation – The operational safety
of the equipment delivered is only guaranteed
if the equipment is used in accordance with the
directions outlined in this manual. Limits stated
in the datasheets may not be exceeded under any
circumstances.
Cited standards and other documentations – DIN
4844 Part 1 Safety marking; Safety symbols W 8,
Supplement 13; DIN 4844 Part 1 Safety marking;
Safety symbols W 9, Supplement 14
RETAIN THESE INSTRUCTIONS FOR
FUTURE USE!

4 Specications
3 Specications
Table 1: Specications
Product Name PowerPack PP4000S
Item No. 19-000185
Pump system PS2-4000
AC Input Voltage Single phase 200-240 V AC (±10%)
AC Current 20 A / 180 V AC 16 A / 230 V AC*
Frequency 47-63 Hz
DC Out 210-250 V DC / 12-14 A
Working Ambient Temp. -20~ + 45°C (-4°F to 113°F)
IP Class IP33
Remote Control On-O control function
Protections Short circuit, overload, over voltage, over temperature and fan failure
*An AC breaker on the PP input must be installed. The AC breaker must meet local regulations.
Additional certication concerning the inbuilt power supply:

4 Specications Application 5
4 Application
The LORENTZ PowerPack PP4000S allows PS2-4000
systems to be powered by an AC power supply
from the grid or a generator*. Typical uses are for
powering the system overnight or for meeting higher
water demands in low solar power situations. If PV is
disconnected, a separate timer switch can be used
to control the AC power supply to the PowerPack
in cases where scheduled use of the PowerPack is
necessary (e.g. to extend pumping time).

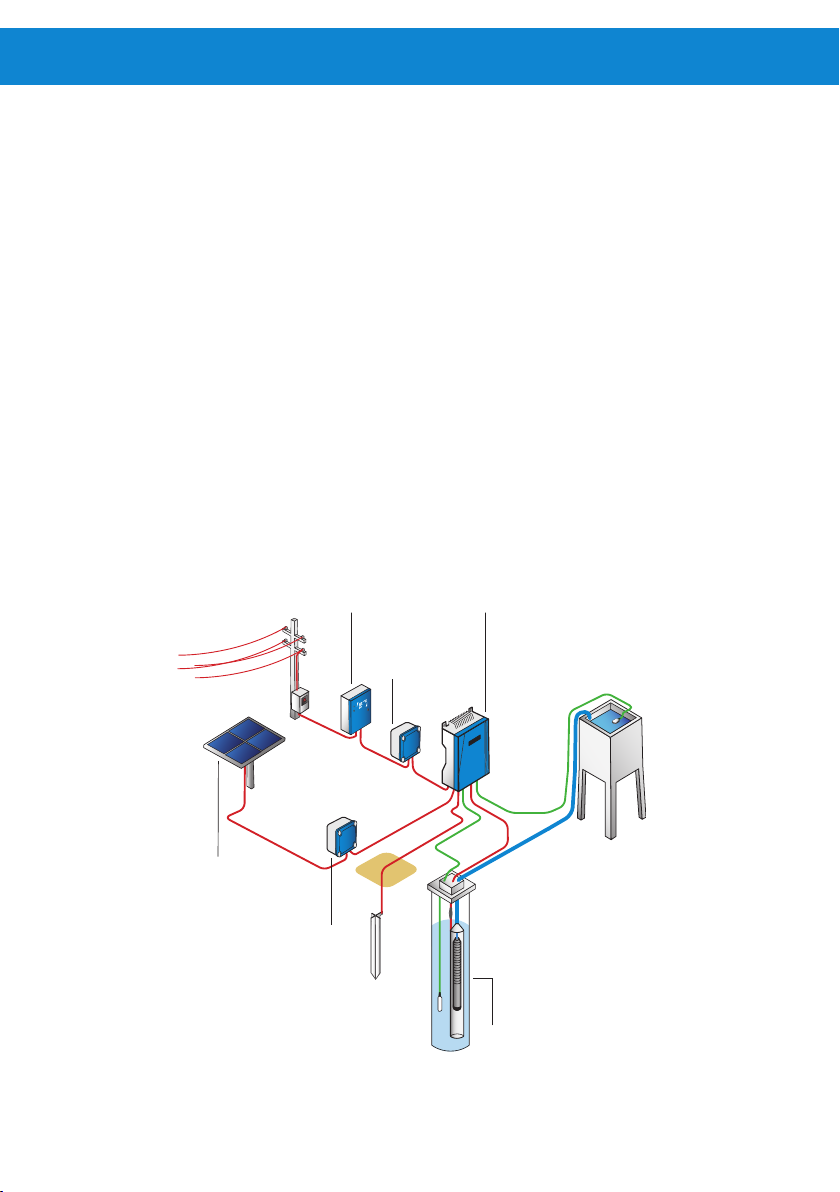

Figure 1: System layout
The PowerPack can be remotely activated through
its remote-control terminals by means of a separate
switch or a contact signal. Further details can be
found in section 4.2.
*Running the pump with a PowerPack can reduce the
maximum speed of the pump in some applications.
PV disconnect
PS2-4000 controller
PowerPack 4000S
PV generator
submersible pump
AC mains supply
(grid or generator)
PV disconnect

6 Application
4.1 Voltage selection
l WARNING – Before changing power
sources, the PowerPack and controller
must be switched o and the AC and DC
power sources must be disconnected.
WARNING – The following feature
should only be operated by qualied
personnel.
Table 2: Optional voltage selection
Voltage
selection
DC voltage
value
Description
Pos 1. 210 V Default position that secures operation for all PS2-4000 pump systems
Pos 2. 223 V Applicable for most C-SJ pumps and lifts
Pos 3. 233 V Applicable for most C-SJ pumps and lifts
Pos 4. 250 V Recommended only for HR pumps
The PowerPack comes pre-congured to a voltage of
210 V DC in position 1 which is safe to work with all
PS2-4000 systems under all conditions. However, in
many applications this voltage can be set to a higher
value as written in table 2.

6 Application Installation 7
Figure 2: Voltage switch selector
Increasing the voltage above the pre-congured level
may result in interactions between the controller and
the PowerPack that cause stops and restarts. In this
case, reduce the voltage setting.
This setting should only be modied by professional
personnel and is the user’s own responsibility.
LORENTZ recommends keeping the default value and
provides further technical suggestions in table 2.
COMPASS can be used to check the expected
performance of your system based on the selected
voltage setting.
4.2 Remote On/O function
This PowerPack includes a normally open (NO)
terminal for remote control. Closing the contact
between the remote on/o terminals will switch o
the DC output of the PowerPack.
Note: This feature does not oer a dedicated
automatic control function in combination with the
PS2-4000.
5 Installation
l WARNING – This device is to be
installed, connected and serviced by
qualied personnel only. Ensure all power
sources are disconnected when making
connections to this unit. Follow all
appropriate electrical codes.
WARNING - For best performance
and to avoid over temperature shut o,
install the PowerPack in a location that
is shaded from direct sun. Allow free
air circulation around the ventilation
openings on the side and bottom of
enclosure.

8 Installation
5.1 Mounting
The PowerPack should be mounted on a wall or
panel close to the pump controller in a vertical
position. The unit must be protected from direct
rainfall and direct sunlight.
Fixing pattern for holes: 310 x 292 mm / 12.2 x 11.5 in

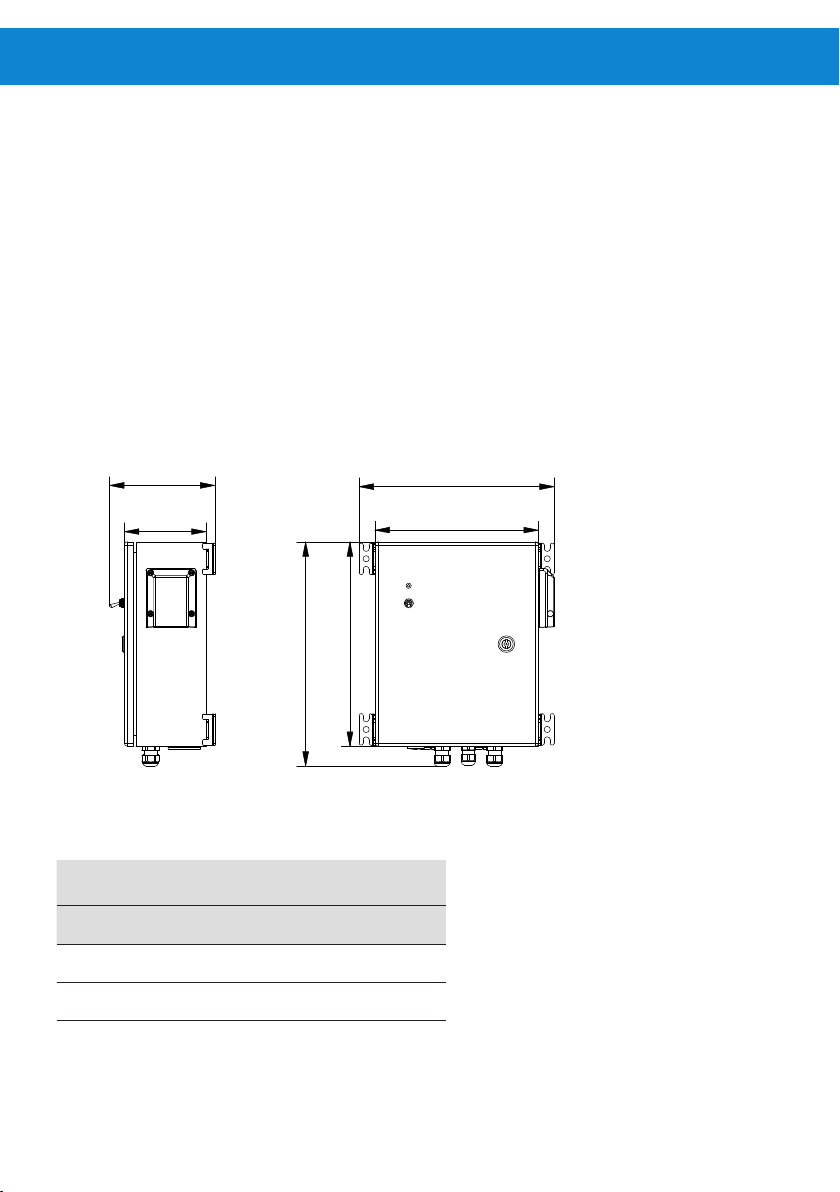

Figure 3: Product dimensions
A
D
B
E
C
F
A= 280mm
B= 350mm
C= 140mm
D= 334mm
E= 384mm
F= 180mm
Product Dimensions for Installation Manual
Dimensions
AB C D E F
mm 280 350 140 334 384 180
in 11 13.8 5.5 13.1 15.1 7.1

8 Installation Installation 9
5.2 Connection and wiring
l WARNING - Only one of the power
sources must be connected at a time.
WARNING – Beware of high voltage!
Hazardous electricity may be present
and can shock, burn or cause death!
Only authorized and qualied personnel
should operate the system.
a CAUTION – The PowerPack should
only be connected to power after correct
wiring or the controller might get
damaged.
CAUTION - Do not connect the PV
modules to the DC output as it may
damage the PV modules.
AC Input - Connect AC power to the terminals (L) line
and (N) neutral. Before connecting to grid, check that
the grid connection is properly protected with a fuse
and if required with an ELCB (Earth leakage circuit
breaker). All electrical connections must meet local
and national electrical standards.
Grounding – Ensure the PowerPack is correctly
grounded to meet local and national ectrical
guidelines. The dedicated GND terminal on the AC
input is the grounding connection.
DC power out - Connect the “DC OUT” of the
PowerPack and the output of the PV generator to the
controller; each via its own PV disconnect. Pay close
attention to the polarity. Install a properly rated DC
disconnect switch between the solar generator and
the pump controller as well.

10 Operation
6 Operation
Ensure that only one power source at a time is
connected. Connect the AC power source and
switch on the PowerPack AFTER it has been
connected to the pump controller and DC power
has been disconnected. When the controller and the
PowerPack are switched on, the system light should
ash on the controller and the pump should start.
When the PowerPack is switched o (or its AC source
is disconnected), the solar array can be reconnected.
7 Maintenance
This is a maintenance free device with no user-
serviceable parts inside. Contact qualied service
personnel for assistance.

10 Operation Troubleshooting 11
8 Troubleshooting
Before contacting service personnel with
troubleshoorting questions, please follow the steps
outlined in table 3.
Table 3: Troubleshooting guide
No output or LED on Check that the input terminals have been connected to a stable AC
supply
Check that the bottom switch is in “on” position
Check proper connections in terminals
Pump is not running with
PP4000S
Check for possible errors using PumpScanner
Check AC supply
Check DC polarity on the controller side
Check the wiring and ensure that the PV array is disconnected
Check that both the PowerPack and controller are switched on
Pump is stopping frequently
during PowerPack operation
Check AC supply
Ensure that the PV array is disconnected
Check the output voltage setting; choose lower voltage setting (see
section 4.1)
Pump is running at very low
power during PowerPack
operation
Ensure that PV array is disconnected
Check ambient temperature and ensure that the PowerPack has
proper ventilation
Check the output voltage setting; choose a higher voltage setting (see
section 4.1)
Test the controller using PV power. If there are still problems follow the PS2 troubleshooting guide.

V210702
www.lorentz.de
Sun.Water. Life.
