LOTOS MIG140 User manual

LOTOS MIG140
MIG Welder

INSTRUCTION MANUAL·MIG 140
1
CONTENT
1. Safety………………………………………..…………….……………….…..….............
2
2. General Description…….....……...……………………..………….…….…...………....
4
3. Circuit Diagram…...…...........…….....……………….………….……………….…..…..
5
4. Main Parameter...…….……….…..........………….…………………………..…..……..
6
5. Panel Structure.…………….……………….……..……….……………………………..
7
6. Installation & Operation…….……………….……..……….………………………..…...
8
7. Caution....………………..…... .......….....................……………………….……….. …
12
8. Maintenance...................…………………………….…..…………………...…………..
13
9. Troubleshooting….……………………….….………………………………….….……..
14
Hereby we state that we provide one year of guarantee for this welding machine since
the date of purchase.
Please read and understand this instruction manual carefully before the installation and
operation of this machine.
The contents of this manual may be revised without prior notice.
Please visit us http://www.uwelding.com.au/ for more information.

INSTRUCTION MANUAL·MIG 140
2
1. SAFETY
Welding is dangerous, and may cause damage to you and others, so take good
protection when welding. For details, please refer to the operator safety guidelines in
conformity with the accident prevention requirements of the manufacturer.
Professional training is needed before operating
the machine.
·Use labor protection welding supplies authorized by
national security supervision department.
·The operator must be special personnel with a valid
"metal welding (OFC) operations" operation certificate.
·Cut off power before maintenance or repair.
Electric shock—may lead to serious injury or even
death.
·Install earthing device according to the application
criteria.
·Never touch the live parts when skin bared or wearing
wet gloves/clothes.
·Make sure that you are insulated from the ground and
workpiece.
·Make sure that your working position is safe.
Smoke& gas—may be harmful to health.
·Keep the head away smoke and gas to avoid inhalation
of exhaust gas from welding.
·Keep the working environment in good ventilation with
exhaust or ventilation equipment when welding.
Arc radiation—may damage eyes or burn skin.
·Wear Suitable welding masks and protective clothing to
protect your eyes and body.
·Use suitable masks or screens to protect spectators
from harm.
Improper operation may cause fire or explosion.
·Welding sparks may result in a fire, so please make
sure no combustible materials nearby and pay
attention to fire safety.
·Have a fire extinguisher nearby, and have a trained
person to use it.
·Airtight container welding is forbidden
·Pipe thaw with this machine is forbidden.
Hot workpiece may cause severe scalding.
·Don’t contact hot workpiece with bare hands.
·Cooling is needed during continuous use of the welding
torch.

INSTRUCTION MANUAL·MIG 140
3
Magnetic fields affect cardiac pacemaker.
·Pacemaker users should be away from the welding spot
before medical consultation.
Moving parts may lead to personal injury.
·Keep yourself away from moving parts such as fan.
·All doors, panels, covers and other protective devices
should be closed and in place.
Machine fault —seek professional help when
encountering any difficulties.
·Consult the relevant contents of this manual If you
encounter any difficulties in installation and operation.
·Contact the service center of your supplier or our
company to seek professional help If you still can not
fully understand after reading the manual or still can
not solve the problem according to the manual.

INSTRUCTION MANUAL·MIG 140
4
2. GENERAL DESCRIPTION
●Gas shielded arc welding, MMA welding and Self Shielded arc welding are available.
●IGBT technology and unique control enhance the reliability of the welding machine.
●High duty cycle, long time welding is available.
●Closed loop feedback control, constant voltage output, workable under network voltage
fluctuation within ±15%.
●Adjustable welding voltage and circuit, excellent welding characteristics.
●Unique dynamic characteristic control circuit is used in gas shielded arc welding, stable
arc, little splash, good shaping, efficient welding.
●Melting ball removing, high no-load and slow wire feeding function increase the success
rate of arc starting.
●Stable current and excellent arc starting in MMA welding, and various welding rods can be
used.
●Inverter frequency is 35 KHz, greatly reducing the volume and weight of the welder.
●Great reduction in metal loss obviously enhances the welding efficiency and energy saving
effect.
●Switching frequency is beyond audio range, which almost eliminates noise pollution.

INSTRUCTION MANUAL·MIG 140
5

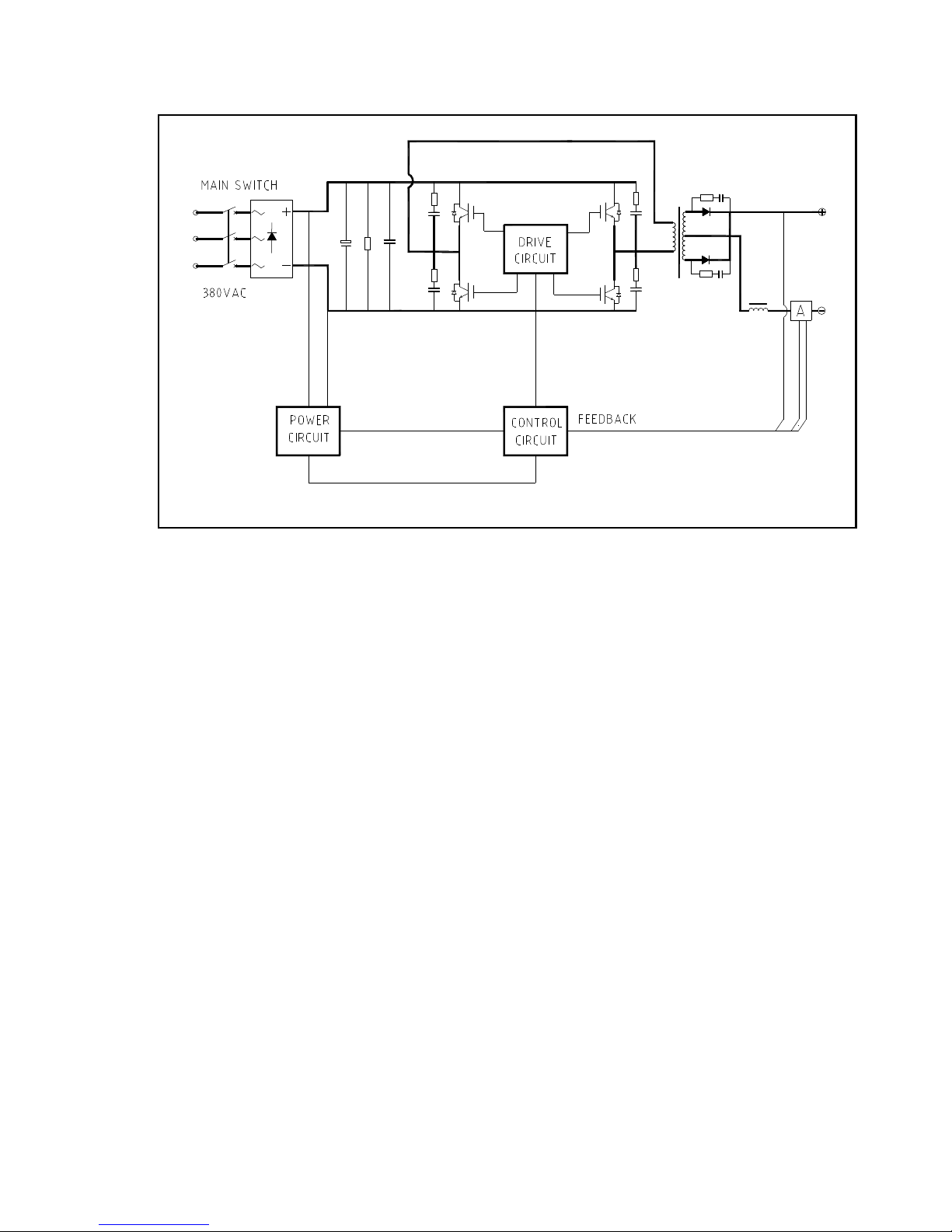

3. CIRCUIT DIAGRAM

INSTRUCTION MANUAL·MIG 140
6
4. MAIN PARAMETER
TYPE
MIG140
Input power voltage (V)
Single-phase AC240V±15%，50/60Hz
Rated input current (A)
22
Rated power capacity (KVA)
5.1
Recommended fuse capacity (A)
40
Current adjustment range (A)
(MMA welding)
10～140
Current adjustment range (A)
(Gas shielded arc welding)
25～140
Voltage adjustment range (V)
(Gas shielded arc welding)
11～25
No-load voltage (V)
60
Feeding speed adjustment range (m/min)
1.5～16
Welding wire diameter (mm)
0.6/0.8/0.9
Rated duty cycle
Efficiency (%)
85
Power factor
0.7
Protection class
Insulation class
Size (mm)
410×230×330
Weight (Kg)
8.9

INSTRUCTION MANUAL·MIG 140
7
5. Panel Structure

INSTRUCTION MANUAL·MIG 140
8
6. INSTLLATION & OPERATION
Note: ·Please install the machine strictly according to the following steps.
·Electric connection operation should be after turning off the power supply
switch of the switch box.
·The protection class of this machine is IP21S, so avoid using it in rain.
6.1 Connection of input cable
(1) A primary power supply cable is available for this welding machine. Connect the power
supply cable with required voltage. (Note: Earth the machine reliably during connection.)
(2) The primary wire should be connected to the corresponding socket to avoid oxidization.
(3) Use multi-meter to see whether the voltage value varies within the given range.
6.2.1 Installation of MMA welding
(1) Two air sockets are available for this welding equipment. Connect the plug to the socket
on the panel board. It is possibly damaging to both the plug and socket, if the plug and
the socket are incorrectly connected.
(2) The electrode holder cable should be connected to the negative terminal, while the work
piece should be connected to the positive terminal.
(3) Serious attention should be paid to the electrode of the wire. Generally, two modes of
connection of DC welding equipment are available:
●Positive connection：electrode holder to “-”,while work piece to “+”；
●Negative connection：work piece to “-”, while electrode holder to “+”.
Opt the mode according to practical requirements, and incorrect connection may cause
unstable arc, splash and conglutination of rod and work piece etc.
(4) In case that minimum distance between work piece and this welding equipment is over
50m, as a consequence it spells the over-length of the secondary cable including
electrode holder cable and earth cable. Therefore it is necessary to increase the
diameter of cable in order to maintain and improve the performance of voltage output.
6.2.2 Installation sketch map

INSTRUCTION MANUAL·MIG 140
9
6.2.3 Operation
(1) Turn the power switch on the back panel to “ON” position after the installation according to
the above steps, the machine is started, the power LED turns on, and the fan works.
(2) Turn the conversion switch on the front panel to “MMA” position, and adjust the welding
current adjustment knob according to the workpiece thickness to get the desired welding
performance.
(3) Generally, the required welding current is listed as follows:
Ф2.5: 70-100A; Ф3.2: 110-160A; Ф4.0: 170-220A; Ф5.0: 230-280A
6.3.1 Installation of gas shielded arc welding
(1) Plug the welding torch into the output socket “ ” on the front panel, and tighten it. Thread
the wire into the torch manually.
(2) Insert the earth cable plug into the negative socket “1” on the front panel, and tighten it
clockwise.
(3) Insert the fast plug on the wire feeder into the output socket“GAS”on the clapboard, and
tighten it clockwise.
(4) Fix the welding wire coil to the rack axis on the wire feeder; make sure the hole of the wire
feeding wheel matches well with the bolt on the rack axis and the welding wire diameter.
Unfasten the screw on the wire-pressing wheel, and make the wire into the glove of the
wire feed wheel, press the wire tightly, but not too tight, and then thread the wire into the
torch. Press the” wire feeding” button to feed the wire out of the welding gun.
(5) Tightly connect the gas hose, which come from the back of the machine to the copper
nozzle of gas bottle.

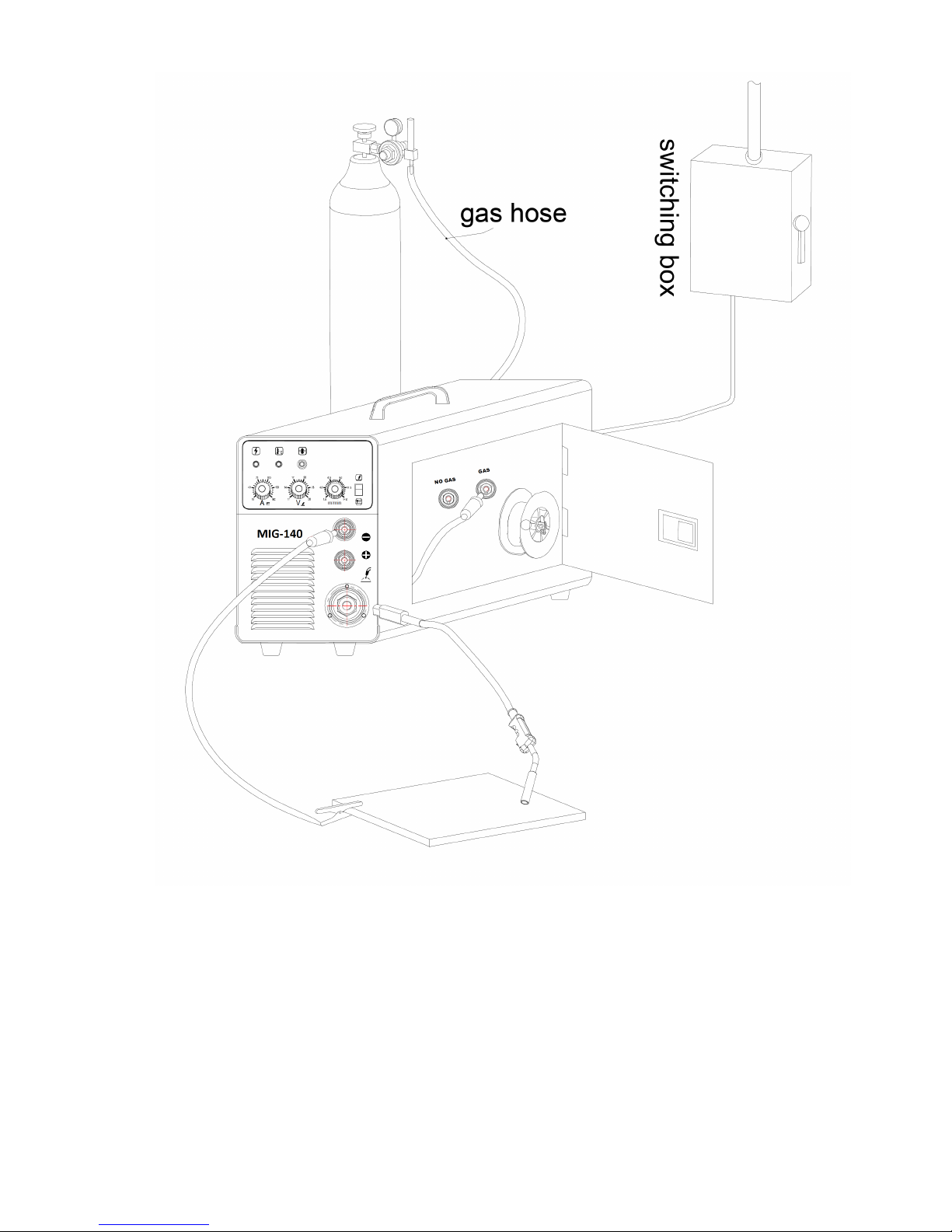

6.3.2 Installation sketch map

INSTRUCTION MANUAL·MIG 140
10
6.3.3 Operation
(1) After installation according to the above steps, turn the power switch on the back panel to
“ON” position, then the power LED turns on, and the fan works. Open the gas cylinder
valve, and adjust the flow meter to the desired position.
(2) Turn the conversion switch on the front panel to “Gas shielded arc welding” position, and
adjust the welding voltage adjustment knob and wire feeding speed adjustment knob
according to practical needs to get the desired welding voltage and welding current.
(3) Press the welding torch switch, and welding can be carried out.
(4) Adjust the burnback time potentiometer on the clapboard to get the desired length of
welding wire stretching into the contact tip after welding.
(5) Cut off the gas 1s after the arc is stopped.

INSTRUCTION MANUAL·MIG 140
11
6.4.1 Installation of self shielded arc welding
(1) Plug the welding torch into the output socket “ ” on the front panel, and tighten it. Thread
the wire into the torch manually.
(2) Insert the earth cable plug into the positive socket “1” on the front panel, and tighten it
clockwise.
(3) Insert the fast plug on the wire feeder into the output socket “NO GAS”on the clapboard,
and tighten it clockwise.
(4) Fix the welding wire coil to the rack axis on the wire feeder; make sure the hole of the wire
feeding wheel matches well with the bolt on the rack axis and the welding wire diameter.
Unfasten the screw on the wire-pressing wheel, and make the wire into the glove of the
wire feed wheel, press the wire tightly, but not too tight, and then thread the wire into the
torch. Press the” wire feeding” button to feed the wire out of the welding gun.
6.4.2 Installation sketch map
6.4.3 Operation
(1) After installation according to the above steps, turn the power switch on the back panel to
“ON” position, then the power LED turns on, and the fan works.
(2) Turn the conversion switch on the front panel to “Gas shielded arc welding” position, and
adjust the welding voltage adjustment knob and wire feeding speed adjustment knob
according to practical needs to get the desired welding voltage and welding current.
(3) Adjust the burnback time potentiometer on the clapboard to get the desired length of
welding wire stretching into the contact tip after welding.
(4) Press the welding torch switch, and welding can be carried out.

INSTRUCTION MANUAL·MIG 140
12
7. CAUTION
7.1 Working Environment
错误! 未找到引用源。 Welding should be carried out in a relatively dry environment with its
humidity of 90% or less.
错误! 未找到引用源。 The temperature of the working environment should be within -10°C
to 40°C.
错误! 未找到引用源。 Avoid welding in the open air unless sheltered from sunlight and rain,
and never let rain or water infilter the machine.
错误! 未找到引用源。 Avoid welding in dusty area or environment with corrosive chemical
gas.
错误! 未找到引用源。 Avoid gas shielded arc welding in environment with strong airflow.
7.2 Good Ventilation
This welding machine has so big welding current when working that nature ventilation
can not meet the cooling demand, while the inner fan enables the machine to work steadily by
its effective cooling. Operator should make sure the louvers are uncovered and unblocked.
The minimum distance between the machine and nearby objects should be 30cm. Good
ventilation is of critical importance to the normal performance and service life of the machine.
7.3 No Overvoltage
If the voltage exceeds the permitted limit, the machine will be damaged, so pay attention
to the changes in voltage. Once overvoltage occurs, stop welding and switch off the power.
7.4 No Overload
Remember to observe the max load current at any moment (refer to the optioned duty
cycle). Make sure that the welding current should not exceed the max load current. Over-load
current could obviously shorten the welding equipment’s life, or even burn the equipment.
7.5 Overheating Protection
Overheating protection appears while the machine is of overload status because of
continuous welding for a long time, and a sudden halt of welding occurs. In this case, it is
unnecessary to restart the machine, but just wait for the overheating LED to go out, and
welding can be recovered.

INSTRUCTION MANUAL·MIG 140
13
8. MAINTENANCE
WARNING: The following operation requires sufficient professional
knowledge on electric aspect and comprehensive security
knowledge. Operators should be holders of valid
qualification certificates which can prove their skills and
knowledge. Make sure the input cable of the machine is
cut off from the electricity before uncovering the welding
machine.
1. Check periodically whether inner circuit connection is ok (esp. plugs). Tighten the loose
connection. If there is oxidization, remove it with sandpaper and then reconnect.
2. Keep hands, hair and tools away from the moving parts such as the fan to avoid personal
injury or machine damage.
3. Clean the dust periodically with dry and clean compressed air. If welding in environment
with heavy smoke and pollution, the machine should be cleaned daily. The pressure of
compressed air should be at a proper lever lest the small parts inside the machine be
damaged.
4. Avoid rain, water and vapor infilter the machine. If there is, dry it and check the insulation
with a megger (including that between the connections and that between the connection
and the case). Only when there is no abnormal phenomena can welding be continued.
5. Check periodically whether the insulation skin of all cables are perfect. If there is any
dilapidation, wrap it or replace it.
6. Check periodically whether the gas hose has any cracks. If any, get them replaced.
7. Put the machine into the original packing in dry location if it is not to be used for a long time.

INSTRUCTION MANUAL·MIG 140
14
9. TROUBLESHOOTING
WARNING: The following operation requires sufficient professional
knowledge on electric aspect and comprehensive security
knowledge. Operators should be holders of valid
qualification certificates which can prove their skills and
knowledge. Make sure the input cable of the machine is cut
off from the electricity before uncovering the welding
machine.
Common Malfunction Analysis and Solution
Phenomena
Solution
1. The overheating
LED flashes.
1. Check the working current and the working time, and use the
machine according to the parameters in this manual.
2. Check the running situation of the fan. If the fan doesn’t work,
check if there is power supply 230V: If the power supply is ok,
check the fan; if the power supply is abnormal, check the power
cable.
3. Replace the thermal switch if it is damaged.
2. The power LED is
off, and there is no
current output.
1. Check if the fan works. If not, the power cable is not in good
connection.
2. If the fan works, the control PCB PK-64-A1 inside the machine
fails.
3. No response when
pressing welding
torch switch; the
protection LED is
off.
1. Check if the welding torch switch is in good connection.
2. Check the connection condition of the welding torch and the Euro
socket and check the control jack of the Euro socket.
3. The control PCB PK-64-A1 inside the machine fails.
4. Press the welding
torch switch to
input gas, but no
current output,
and the protection
LED is off.
1. Check if the power cable connecting the workpiece is in good
connection.
2. Check if the position where the fast socket inserting the fast plug
is correct.
3. Check if the wire feeder is in good connection.
4. Check if the welding torch is damaged.
5. The control PCB PK-63-A2 inside the machine fails.
5. Press the welding
torch switch to
input gas, there is
current output, but
the wire feeder
doesn’t work.
1. Check if the wire feeder is blocked or damaged.
2. Check if the contact tip of the welding torch is damaged or
blocked.
3. The control PCB PK-64-A1 fails.

INSTRUCTION MANUAL·MIG 140
15
6. Press the welding
torch switch,
welding can be
carried out, but the
voltage can not be
adjusted.
1. Check if the voltage feedback cable inside the machine is ok.
2. The control PCB PK-63-A2 inside the machine fails.
7. Welding current is
unstable.
1. Check the pressure of the wire feeder pole is appropriate.
2. Check if the wire feed wheel matches the welding wire.
3. Check if the contact tip is badly abraded. If it is, replace it and
tighten it.
4. Check the quality of the welding wire.
5. Check if the welding torch cable is too winding.
6. Check if the metal connection part of the fast plug is loose.
8. The weld bead is
not well protected.
1. Do not remove the welding torch as soon as the welding stops.
Thus the shielded gas can protect the hot weld bead.
2. Prolong the post-flow time, or contact our company.
This machine is in continuous improvement, so other parts may be different
except the function and operation. Your understanding would be greatly appreciated.
