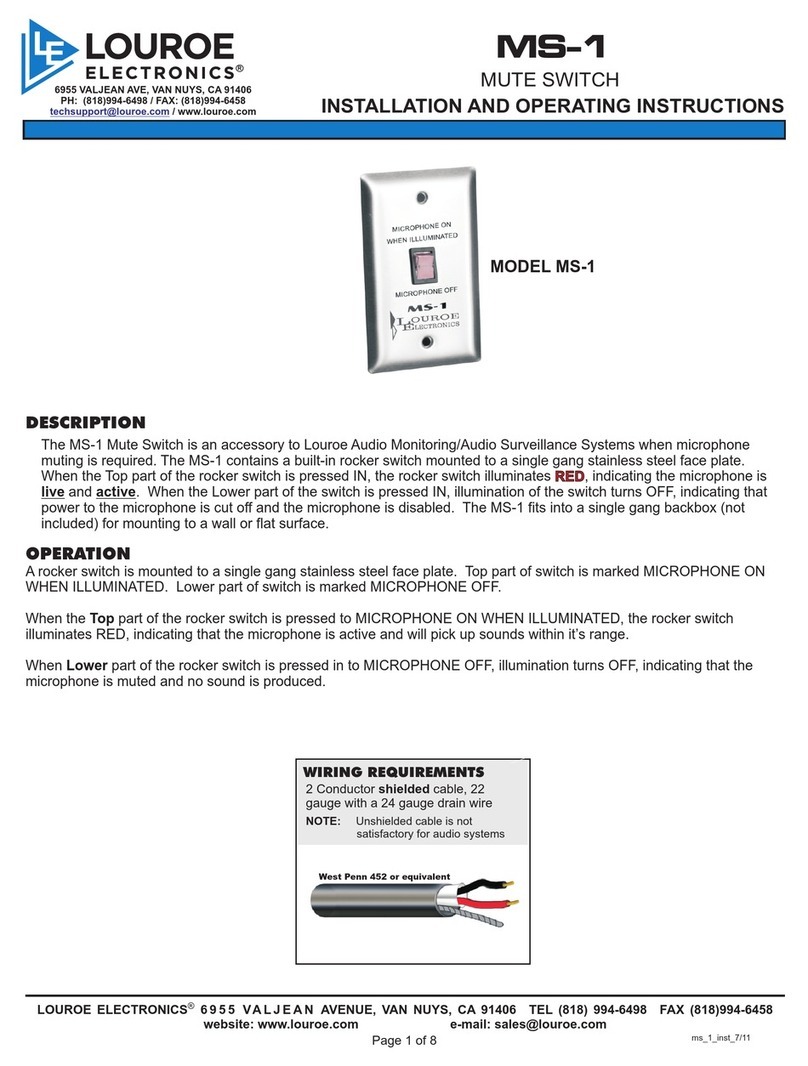

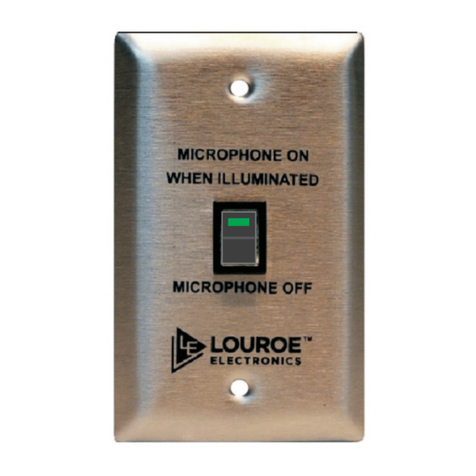

Louroe Electronics MS-1 User manual

DESCRIPTION
The MS-1 Mute Switch is an accessory to Louroe Audio Monitoring/Audio Surveillance Systems when microphone muting is
required. The MS-1 contains a built-in rocker switch mounted to a single gang stainless steel face plate.
When the Top part of the rocker switch is pressed IN, the rocker switch illuminates , indicating the
microphone is live and active. When the Lower part of the switch is pressed IN, illumination of the
switch turns OFF, indicating that power to the microphone is cut off and the microphone is disabled.
The MS-1 fits into a single gang backbox (not included) for mounting to a wall or flat surface.
RED
HOW IT WORKS
A rocker switch is mounted to a single gang stainless steel face plate. Top part of switch is marked MICROPHONE ON
WHEN ILLUMINATED. Lower part of switch is marked MICROPHONE OFF.
When the Top part of the rocker switch is pressed to MICROPHONE ON WHEN ILLUMINATED, the rocker switch
illuminates RED, indicating that the microphone is active and will pick up sounds within it’s range.
When Lower part of the rocker switch is pressed in to MICROPHONE OFF, illumination turns OFF, indicating that the
microphone is muted and no sound is produced.
ms-1 in 4/08
MODEL MS-1
page 1 of 7
E
LOUROE
LECTRONICS
6955 VALJEAN AVE, VAN NUYS, CA 91406
PH: [phone] / FAX: [phone]
[email protected] / www.louroe.com
MS-1
MUTE SWITCH
INSTALLATION AND OPERATING INSTRUCTIONS
2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire
NOTE: Unshielded cable is not
satisfactory for audio systems
WIRING REQUIREMENTS
West Penn 452 or equivalent

WIRING CONNECTION TO LOUROE BASE STATION
CONNECTION BETWEEN LOUROE BASE STATION
AND LOUROE MICROPHONE
WIRING CONNECTION TO LOUROE MODEL MS-1 MUTE SWITCH
WIRING CONNECTION FROM MS-1 TO MICROPHONE
AND BASE STATION
page 2 of 7
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
Website: www.louroe.com Email: [email protected]
(818)
On the back panel of Louroe Base Station is a 3-pin terminal block marked A, B, C.
A = 12Vdc
B = Audio Output
C = Ground
If using recommended or similar cable connect as follows:
1 Red wire connects to terminal A
2 Black wire connects to terminal B
3 Bare wire connects to terminal C
Using another set of recommended cable (West Penn 452 or equivalent) connect as follows:
The MS-1 Mute Switch contains a 3-pin terminal block marked C, A1, A
C = Ground
A1 = Switched Audio to Microphone
A = 12Vdc power
If using recommended or similar cable connect as follows:
1 Red wire connects to terminal A
2 Black wire connects to terminal A1
3 Bare wire connects to terminal C
In order for the MS-1 to function as a muting device, it must be connected to both the
Louroe microphone and the base station. Complete the last phase of the wiring as follows:
1 Connect bare wire on terminal C of MS-1 to terminal C of microphone
2 Connect black wire on terminal A1 of MS-1 to terminal A of microphone
3 Connect red wire on terminal A of MS-1 to the unattached red wire (part of the wire
run between the Louroe base station and remote microphone). Splice the two red
wires together using a wire nut (included) for a firm connection.
All Louroe Microphones have a 3-pin terminal block marked A, B, C.
1 Black wire connects to terminal B of microphone
2 Bare wire connects to terminal C of microphone
3 Do NOT connect red wire to terminal A. Leave it unattached. Further disposition
of this wire will be explained in part IV, step 3 of this instruction.
I
II
III
IV
2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire
NOTE: Unshielded cable is not
satisfactory for audio systems
WIRING REQUIREMENTS
West Penn 452 or equivalent
INSTALLATION AND OPERATING INSTRUCTIONS
ms-1 in 4/08

page 3 of 7
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
Website: www.louroe.com Email: [email protected]
(818)
ABC
A B C
VERIFACT A
MICROPHONE
L
N
CA1 A
A B C
To terminal A1
of Mute Switch
To terminal C
of
Base Station
or Interface Adapter
To terminal B
of
Base Station
or Interface Adapter
TERMINAL
BLOCK OF
VERIFACT A
MICROPHONE
To terminal C
of Mute Switch
Backside of
MS-1
Mute Switch
BARE (C)
BARE (C)
BARE (C)
BLACK (B)
BLACK (A)
BLACK (A1)
RED (A)
Gain adjust switch
(factory set)
Terminal Block of
Louroe Base Station
or
Audio Interface Adapter
RED
2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire
NOTE: Unshielded cable is not
satisfactory for audio systems
WIRING REQUIREMENTS
West Penn 452 or equivalent
wire
nut
All Louroe microphones
are compatible with the MS-1.
Model Verifact A is shown
as an example
INTERCONNECTION DIAGRAM
FOR
MS-1 MUTE SWITCH,
LOUROE MICROPHONE
AND
LOUROE AUDIO BASE STATION OR
AUDIO INTERFACE ADAPTER
audio path
DC path
Terminal Block Identifier
of MS-1 Mute Switch
C = Ground
A1 = Switched power
to microphone
A = 12Vdc Power
ms-1 in 4/08

APPLYING POWER TO THE SYSTEM
After all wiring between the base station, microphone and MS-1 Mute Switch is complete,
apply power with the power supply, (included) with the APR-1 Base Station.
1 First connect small end of 12Vdc Power Supply to the 12Vdc Power Jack[10], then
plug power block into a standard 120Vac wall outlet or power strip.
2 Turn “ON” power to APR-1 by rotating the Power-Volume Knob[1] clockwise.
Adjust volume of audio by rotating the knob either clockwise to increase or
counterclockwise to decrease.
3 The APR-1 will power up both the remote microphone and the MS-1 Mute Switch
When TOP part of switch is
pressed IN, switch will
illuminate indicating
the microphone is live and
active.
RED
When LOWER part of
switch is pressed IN, light
turns off indicating power to
the microphone is OFF and
microphone is disabled
Rocker Switch Positioning
INSTALLATION AND OPERATING INSTRUCTIONS
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
Website: www.louroe.com Email: [email protected]
(818)
page 4 of 7
V
ms-1 in 4/08

TESTING AND OPERATION OF SYSTEM
Make sure the Microphone is active. Top part of MS-1 switch must be pressed IN and the Red
Rocker Switch illuminated.
1. Create some sound (radio, someone speaking, etc) near the microphone. The sounds
will transmit to the APR-1’s built-in speaker[9] (see page 6). Adjust the volume of audio
by rotating the volume knob clockwise to increase, or counterclockwise to decrease.
2. To mute the system, press the lower part of the rocker switch IN. The lighted switch will
go dark, indicating power if OFF and the microphone is DISABLED.
3. Again create some sound. There should be no transmission of audio through the base
station (APR-1, etc).
RECORDING AUDIO AND AUDIO PLAYBACK
If live audio is to be recorded, connect an RCA patch cable to “Audio Out” of Louroe Base
Station[12] (see page 7) to “Audio In” of the recording device (DVR, VCR, etc.)
AUDIO PLAYBACK
For receiving audio playback through the APR-1 Base Station, connect an RCA cable from “Audio
Out” of the DVR, VCR, etc. to “Audio In” [11] (see page 7) of the APR-1. Press the “Audio
Playback” Switch of the recording device, then press “Push for Playback” Switch [7] of the
APR-1 Base Station. Audio playback will be channeled through the APR-1 Speaker [9]
SPECIFICATIONS OF MS-1 MUTE SWITCH
Supply Voltage
Dimensions
Faceplate
12Vdc
Weight, net 3 oz (85g)
2 ¾ W x" 4 ½" H
303 Stainless Steel
Backbox Single gang electrical
box (not included)
INSTALLATION AND OPERATING INSTRUCTIONS
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
Website: www.louroe.com Email: [email protected]
(818)
page 5 of 7
VI
VII
VIII
ms-1 in 4/08

[1] Power-Volume Turns “ON” power to the unit and controls the audio volume
through the Speaker[9].
[2] Filter OUT Indicator Lights (green) when the audio filter is not in use and the Filter Switch[6]
is in the “OUT” Position. Also indicates power to the unit.
[3] Filter IN Indicator Used to enhance audio playback from 24 hour time lapse recorders. Lights
(orange) when filter button is pushed in.
[4] Playback IN Indicator Lights (yellow) when Push for Playback[7] is pushed in to “ON” position.
[5] Overload Indicator Flashes (red) when there is a short in the power supply.
[6] Filter Switch Normally used for audio playback from a time-lapse
recorder. When pressed, audio coming from the Audio IN Jack[11]
is passed through an audio filter before going out to the
speaker. This enhances the intelligibility of audio playback
from 24 hour time lapse recorders. Not used with DVR’s.
[7] Push for playback Used for DVR/VCR playback. May also be used to listen to audio from an
external source. Press switch to listen to playback. Switch must be “OUT”
or “OFF” when monitoring and recording, otherwise live audio is muted.
[8] Headphone Jack Used for private listening. Any 3.5mm stereo headphone with 8Ωto
600Ωimpedance can be used.
[9] Speaker (3”) Provides live audio. Muted when a headphone is connected to
Headphone Jack [8].
APR-1
FIL
TER
PUSHFOR
PLA
YBACK
2-8 HRS
1
2-24HRS
PLA
YBACK
OVERLOAD
SINGLE ZONEAUDIOBASE STATION
OFFMAX
POWER-VOLUME
E
LOUROE
LECTRONICS
[3]
[4]
[5]
[1]
[2]
[6] [7] [8]
[9]
FRONT PANEL LAYOUT OF APR-1
INSTALLATION AND OPERATING INSTRUCTIONS
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
Website: www.louroe.com Email: [email protected]
(818)
page 6 of 7
ms-1 in 4/08

N
I
E
D
U
S
A
A
M
+12 Vdc INPUT OUTPUT
AUDIO
BA C
MIC INPUT
VAN NUYS, CA
[10] [11] [12] [13]
INSTALLATION AND OPERATING INSTRUCTIONS
[10] Power Jack Accepts 12Vdc power from Model AD-1 Power Supply
(included with APR-1 Audio Base Station). AD-1 has a 90° 2.1mm female plug.
[11] AUDIO IN Jack (RCA) Accepts audio playback from an external source (DVR/VCR).
Audio playback is produced through the speaker. The Push for Playback[7]
must be “IN” during audio playback and “OUT” when
not used for playback.
[12] AUDIO OUT Jack (RCA) Provides audio output and connection to a DVR, VCR, etc.
[13] Audio Terminal Block A 3-pin terminal block marked A, B, C.
Accepts wiring from the remote Louroe Microphone.
A is 12Vdc Power
B is Audio
C is Ground
REAR PANEL LAYOUT OF APR-1
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
Website: www.louroe.com Email: [email protected]
(818)
page 7 of 7
ms-1 in 4/08

E
LOUROE
LECTRONICS
MANUFACTURED
IN THE
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
Website: www.louroe.com Email: [email protected]
(818)
ms-1 in 4/08
WARRANTY
LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to
be free of defects in material and workmanship. Should a defect appear within one year (12 months) from date of
shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment. This
equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS.
This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation,
misuse, accident, or in violation of installation instructions provided by LOUROE ELECTRONICS.
Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense. LOUROE ELECTRONICS will return
the equipment prepaid via best way.
IMPORTANT NOTICE
When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of AUDIO
MONITORING ON THE PREMISES. To protect the installing dealer and his customers, when this equipment is used as part of
an audio monitoring system, a decal stating AUDIO MONITORING ON THESE PREMISES (provided by Louroe Electronics)
must be installed in a visible location at the entrances and exits of both private and public buildings and vehicles.
This is to comply with United States Code, Title 18, Section 2510(2) regarding rights of privacy, it states:
“Oral communication means any “oral communication” uttered by a person exhibiting an expectation that
such communication is not subject to interception under circumstances justifying such expectation.”
By definition of the code section, a person cannot have an expectation of privacy, nor can he or she expect that
communication will not be intercepted. THIS IS THE CASE ONLY IF THERE ARE PUBLIC SIGNS POSTED,
INDICATING THAT THE COMMUNICATION IS BEING MONITORED.
These laws vary from state to state. If you are not informed on these matters, consult a qualified attorney or contact the
appropriate state agency.
AUDIO
MONITORING
E
LOUR OE
LECT RONI CS
On
These Premises
A decal notice is included with each microphone shipped
from Louroe Electronics.
EXTRA DECALS ARE AVAILABLE FOR FREE
Call [phone]
or
email [email protected]
