Lovencare Revolution User manual

Instruction Manual
“Revolution” High Chair
Item BP 900
IMPORTANT:
PLEASE KEEP THESE
INSTRUCTIONS FOR FUTURE REFERENCE.

2
IMPORTANT: KEEP FOR FUTURE REFERENCE
Read all instructions before assembly and use of product. Make sure high chair is
fully assembled and secure before use. Failure to follow these warnings, cautions
and the assembly instructions could result in serious injury or death.
WARNING:
PREVENT SERIOUS INJURY OR
DEATH FROM FALLS OR SLIDING OUT.
• Always secure child in the restraint. Always keep child in view while in high chair.
Never leave child unattended.
• The child should be secured in the high chair at all times by the restraining system.
The tray is not designed to hold the child in the chair. It is recommended that the
high chair be used only by children capable of sitting upright unassisted.
• Never recline seat while child is seated in chair.
• Never use as a car seat, booster or carrier.
• Do not use without main tray securely attached to high chair.
• Only use recline position with infants up to 20 lbs (9 kilos).
Only use upright position with children up to 50 lbs (23 kilos) who can sit
unassisted.
•
• Do not lift or move with child in high chair.
•
• Do not use the high chair until the child can sit up unaided
• Do not use the high chair if any part is broken, torn or missing.
•Ensure that the highchair is used on a level stable surface.
•
•Do not use the high chair without seat pad.
CAUTION:
• Adult assembly required.
• Tool required for assembly: Phillips screwdriver (not included).
• This product contains small parts. Keepsmall parts out of children’s reach during
assembly.
• Assembly components may have sharp points and edges. Exercise care when
unpacking and assembling product.
• After assembly is complete, properly discard all packaging materials, including
notice on tray liner and label near button on base.
WARNING

3
Parts list /
Tool Needed:
1. Phillips Screwdriver (not included)
Seat Back x1
Seat Base x1
Main Tray x1
Dishwasher saft Tray x1
Vertical Leg x1
Base x1
Harness x1
Hinge Rod x1
Bolt M6 x5
Seat Cover x1 Seat Cover x1 Seat Cover x1
I I I I I I

STEP 1
4
ATTACH VERTICAL LEG TO BASE
Push vertical leg into the hole of base.
Ensure the slot and buckle are aligned
before inserting.
You will hear a “click” when they
are secured into place.
Slot
Buckle

STEP 2
5
ATTACHING THE SEAT
Raise tube to highest position
by stepping the air control
button.
Place the seat onto the vertical
leg as shown.
Ensure the chair is aligned as in
the illustration for correct asse-
mbly.
Secure the seat with 5 x M6
bolts with a screw driver.
WARNING:
Do not use the highchair unless
all components are correctly
tted.

STEP 3
6
A
B
C
ATTACHING SEAT BACK
1. Insert the seat back into the seat
base. Ensure the recline bar is
properly inserted in the hole, see
diagram A.
2. Ensure the hooks securely locks to
the seat base, see diagram B.
3. Insert the hinge rod into the seat
back securely through the side of
seat base, see diagram C.

STEP 4
7
TO RECLINE THE SEAT
To operate, squeeze the recline
handle and move the seat until
it locks into one of the three
positions.
WARNING: Before placing the
child into the seat, make sure it
is properly secured.
WARNING: Make sure the metal
clip is locked into position as
shown before use.
WARNING: Never recline seat
whilst the child is seated in high
chair. Only use recline position
with infants up to 9Kg (20 lbs).
.

STEP 5
8
DELUXE SEAT PAD
MODELS ONLY
ATTACHING AND USING
THE HARNESS
1. Place the seat cover onto the seat
unit, see diagram.
2.
lower harness buckles ( A. B)
through the seat cover. Then, feed
the buckles through the slot at the
front of the seat, see diagram.
Rotate so the buckles cannot come
back through the slots.
3. Repeat for the top two buckles
( C . D ).
4. Repeat for the bottom buckles ( E ).
NOTE: There are two height options,
use the height that best suits your
child.
WARNING: Once the harness is in
place, ensure the buckles are rotated
so they cannot be pulled back
through the slots. Check the correct
tug, it should remain in place.
A harness must be worn at all times
whilst your child is in the highchair.
E
B
A
D
C
2
B
A
4
E
E
B
A
D
C
3
C
D
1
I II

9

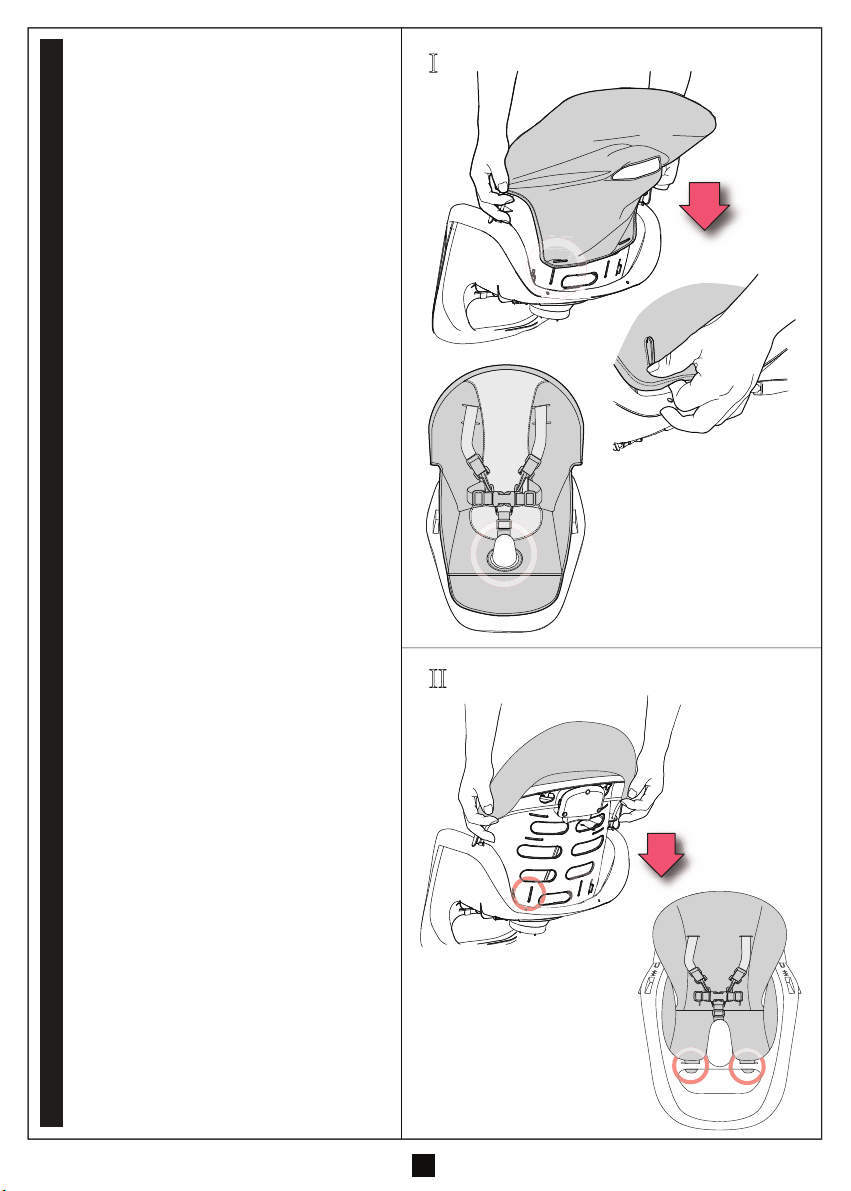

STEP 6-A
ATTACHING THE SEAT COVER
Place seat cover over the seat
and pull down into position.
place seat cover over the crotch
post as shown.
I
II

10
STEP 6- B
E
B
A
D
C
SIMPLE SEAT PAD
MODELS ONLY
ATTACHING AND USING
THE HARNESS
1.
harness buckles ( A. B)through the
seat cover. Then, feed the buckles
through the slot at the front of the
seat, see diagram. Rotate so the buckles
cannot come back through the slots.
2. Repeat for the top two buckles ( C . D ).
3. Repeat for the bottom buckles ( E ).
4. Position the seat pads’ ears into the
holes of the seat unit, see diagram.
5. Hook the ears on the plastic tabs on
the back of seat unit.
NOTE: There are two height options, use
the height that best suits your child.
WARNING: Once the harness is in place,
ensure the buckles are rotated so they
cannot be pulled back through the slots.
harness a sharp tug, it should remain in
place. A harness must be worn at all
times whilst your child is in the highchair.
I I I
1-3
4-5

11
STEP 7STEP 8
A
B
D
C
E
ATTACHING AND USING
THE HARNESS
The buckle clips together
as shown and are released
by pressing ( A & B ) simul-
taneously.
The harness can be adjusted
by buckles ( C , D & E ) to
suit your child.
ATTACHING THE DISHWASHER
SAFE TRAY
The dishwasher safe tray can be
insert or removed by the clip at
the rear of the tray .

12

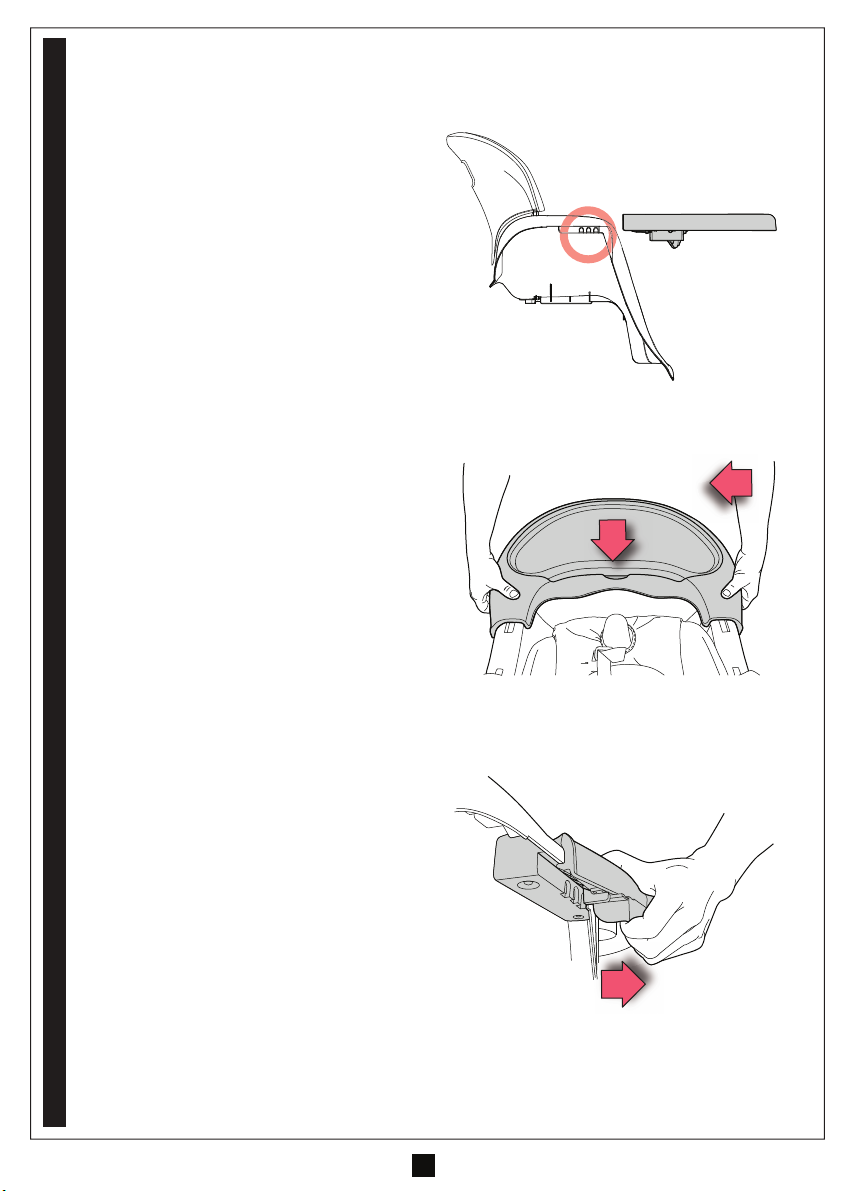

STEP 9
123
ATTACHING THE TRAY
Attach the tray by sliding it down
the tracks on the arm of the chair,
pull out the handles simultaneously
and lock it into one of the three
positions ( 1, 2 & 3 ) to best suit your
child.
CAUTION: When the tray is in the
required position pull it forward to
ensure that it is secured.
WARNING: The tray is not designed
to hold the child into the chair.
The child should be secured in the
highchair at all times by the harness.

13
STEP 10
B
ADJUSTING THE SEAT HEIGHT
1. To raise the seat height:
step on the air control button.
The chair will raise to its
maximum position.
2. To lower the seat height:
While pushing the air control
button, push down on the
seat unit.
CAUTION:
Only press down in the middle of
the seat to avoid the highchair
from tipping.
WARNING:
Never adjust the seat height
when child is in the highchair.

14
STEP 11
SEAT ORIENTATION
The seat unit can rotate 6
positions.
Twist the seat unit to the
required position until it
clicks into place.
• DO NOT use spray lubricants, simply wipe clean after use.
