LOXONE Touch Pure Tree User manual

Technical Specifications
Ambient Temperature -20...70°C / -4...158°F
Dimensions 90x90x16mm /
3.54x3.54x0.63” (LxWxH)
Maintenance & Cleaning This device is free of main-
tenance and may only be
cleaned with a dry cloth.
Connection
Wire Conductor cross-section
0.25...0.8mm° / AWG18...AWG23
Exposed Wire Length 5mm / 0.2”
Push-In-Technology
To make connection, insert the
wire; to remove the wire twist
and pull at the same time.
Power Supply 6...30VDC PELV
Power Consumption typ. 49mW, max. 95mW
Total Power Loss max. 95mW
Safety Protection IP30
Humidity 95% r.H. (non condensing)
Loxone Electronics GmbH
Smart Home 1
4154 Kollerschlag
Austria
loxone.com
Need Help?
loxone.com/support
Part No: 100396 (White)
Part No: 100398 (Anthracite)
Touch
Pure
Tree
V251119
About the product
The Loxone Touch Pure has five touch zones, which can be
configured according to your needs. The large central touch
zone is ideal for controlling lighting, whilst the corner zones are
handy for controlling music and blinds, for example.
Features
• 5 touch buttons
• Temperature & Humidity sensor
• Optional click feedback
• Orientation LED light
Installation
Install the mounting frame on the desired installation place.
Power up the device and pair it with your Miniserver in Loxone
Config. To finish the installation attach the Loxone Touch on
the mounting frame.
For additional information, declaration of confirmity,
visit www.loxone.com/help/touch-pure-tree
warm white
LED Light
Touch
Buttons
1
2
5
4
3
This folder is a part of the product!

This manual suits for next models

2

Other LOXONE Switch manuals

LOXONE TOUCH SURFACE AIR User manual

LOXONE

LOXONE TOUCH SURFACE AIR User manual

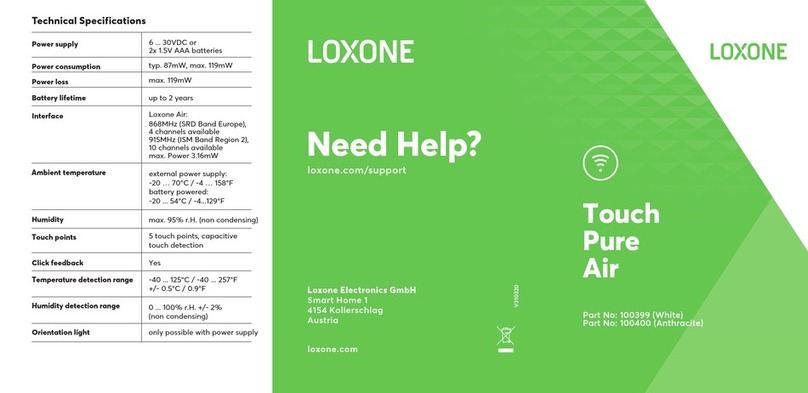

LOXONE Touch Pure Air 100399 User manual
