LS ELECTRIC SV-iS7 Series User manual

LS ELECTRIC strives to maximize your profits in gratitude for choosing us as your partner.
iS7 RAPIEnet User Manual
SV-iS7 series

iS7RAPIEnet Option Manual
1
Safety Precaution
First thank you for using our iS7 RAPIEnet Option Board!
Please follow the following safety attentions since they are intended to prevent
any possible accident and danger so that you can use this product safely and
correctly.
Safety attentions may classify into ‘Warning’ and ‘Caution’ and their meaning is
as following:
Symbol
Meaning
WARNING
This symbol indicates the possibility of death or
serious injury.
CAUTION
This symbol indicates the possibility of injury or
damage to property.
1. The meaning of each symbol in this manual and on your equipment is as
follows.
Symbol
Meaning
This is the safety alert symbol.
Read and follow instructions carefully to avoid
dangerous situation.
This symbol alerts the user to the presence of
“dangerous voltage” inside the product that might
cause harm or electric shock.
After reading this manual, keep it in the place that the user always can contact.
This manual should be given to the person who actually uses the products and is
responsible for their maintenance.
WARNING
Do not remove the cover while power is applied or the unit is in
operation.
Otherwise, electric shock could occur.
Do not run the inverter with the front cover removed.
Otherwise, you may get an electric shock due to high voltage terminals or
charged capacitor exposure.
Do not remove the cover except for periodic inspections or wiring, even
if the input power is not applied.
Otherwise, you may access the charged circuits and get an electric shock.

iS7RAPIEnet Option Manual
2
WARNING
Wiring and periodic inspections should be performed at least 10 minutes
after disconnecting the input power and after checking the DC link
voltage is discharged with a meter (below DC 30V).
Otherwise, you may get an electric shock.
Operate the switches with dry hands.
Otherwise, you may get an electric shock.
Do not use the cable when its insulating tube is damaged.
Otherwise, you may get an electric
shock.
Do not subject the cables to scratches, excessive stress, heavy loads or
pinching.
Otherwise, you may get an electric shock.
CAUTION
Be cautious when handling CMOS elements on the option board.
It may cause a failure due to static electricity.
When changing and connecting communication signal lines, proceed
the work while the inverter is turned off.
It may cause a communication error or failure.
Make sure to connect the inverter body to the option board connector
accurately coincided each other.
It may cause a communication error or failure.
Make sure to check the parameter unit when setting parameters.
It may cause a communication error.

iS7RAPIEnet Option Manual
3
Table of Contents
1. Introduction................................................................................................................................................................................... 4
2. RAPIEnet Technical Specifications....................................................................................................................................... 4
3. Included Items ............................................................................................................................................................................. 4
4. Designation ................................................................................................................................................................................... 4
5. Part Names and Installation .................................................................................................................................................. 5
6. Network Connections ............................................................................................................................................................... 8
7. Network Cable Specification.................................................................................................................................................. 9
8. RAPIEnet Communication Related Keypad Parameters ..........................................................................................10
9. RAPIEnet Communication Options and Related Keypad Parameters...............................................................12
10. Inverter Communication Address ..................................................................................................................................16
11. High-speed Link.....................................................................................................................................................................18
12. P2P Communication.............................................................................................................................................................19

iS7RAPIEnet Option Manual
4
1. Introduction
The RAPIEnet (Real-time Automation Protocols for Industrial Ethernet) communication module provides
RAPIEnet network communication for the SV-iS7 inverter. RAPIEnet is a communication protocol compliant
with IEC 61158 Type 21 and IEC 62439 RRP (Ring-based Redundancy Protocol). The RAPIEnet
communication module provides full-duplex data transfer which enables real-time communication without
transmission collisions.
Using a RAPIEnet connection, the iS7 inverter can be controlled and monitored via a PLC sequence
program or any master PLC module. In addition, RAPIEnet is easy to connect, enabling faster installation
and easier maintenance.
2. RAPIEnet Technical Specifications
Item
Description
Communication protocol
RAPIEnet
Communication speed
100Mbps
Communication type
Full Duplex
Distance
100m (Twisted pair)
Service
High-speed link
Using maximum 8 WORD
P2P
Using maximum 2 WORD
Max. number of stations
64
Topology
Line/Ring topology
Cable type
UTP, FTP, STP
3. Included Items
The following items are provided with the product: RAPIEnet communication card x 1, mounting screws x
2, and User Manual x 1.
4. Designation
Designation of RAPIEnet : CI-S7M1

iS7RAPIEnet Option Manual
5
5. Part Names and Installation
(1) Exterior
(2) iS7 RAPIEnet Communication Module Installation
①Remove the front cover.
②Connect the RAPIEnet communication module by inserting it into the connector on the inverter body. Secure it
with the two mounting screws.
Do not install or remove the RAPIEnet communication module while the power to the iS7 inverter is turned
on.
Install or remove the RAPIEnet communication module only after the inverter’s capacitor is fully discharged.
When installing the RAPIEnet communication module, ensure that the connectors on the inverter body and
the communication module are correctly aligned.
Installation location
Mounting
bracket
Mounting hole
RAPIEnet connection link 1
Status indicator (LED)
RAPIEnet connection link 2

iS7RAPIEnet Option Manual
6
(3) RAPIEnet Communication Module Front Panel
No.
Link
Color
Description
Status
Remarks
LED3
LINK1
Green
Normal network operation
ON
LINK1 is connected to a network and
is operating normally.
Orange
Network communication fault
ON
A communication fault is detected. *1
-
LINK1 not connected
OFF
RAPIEnet is running but LINK1 is not
connected to a network.
LED2
LINK2
Green
Normal network operation
ON
LINK2 is connected to a network and
is operating normally.
Orange
Network communication fault
ON
A communication fault is detected. *1
-
LINK2 not connected
OFF
RAPIEnet is running but LINK2 is not
connected to a network.
*1If a communication fault is displayed, check that the parameter settings for [COM-7], [COM-10], and [COM-50] match at the inverter
keypad and at the PLC.

iS7RAPIEnet Option Manual
7
No.
Message
Color
Description
Status
Remarks
LED1
ERROR
Red
Normal
OFF
Communication between the
communication module and
the inverter is normal.
Communication Fault
Flashing
(LED0 and LED1 flash
asynchronously, in 1 second
intervals.)
RAPIEnet communication fault
(includes station collision).
Flashing
(LED0 and LED1 flash
synchronously, in 1 second
intervals.)
A communication fault is
detected between the
communication module and
the inverter.
Flashing
(2 second intervals)
Communication parameters at
the keypad do not match the
communication module
parameters.
ON
EEPROM fault
LED0
CPU
Green
Normal
Flashing
(1 second intervals)
The communication module is
installed correctly in the
inverter.
*2To set equal the parameters of keypad and the communication module, after checking the settings of COM Group, "1-yes" set to "[COM-94] Comm
Update"

iS7RAPIEnet Option Manual
8
6. Network Connections
(1) Communication Cable Contacts
(2) Communication Cable Connector
** Wires connected to pin #1 and pin # 2 must be twisted.
** Wires connected to pin #3 and pin # 6 must be twisted.
Pin
No.
Signal
Description
Wire Color
1
TX+
Data transmission +
White/Yellow
2
TX-
Data transmission -
Yellow
3
RX+
Data reception +
White/Green
4
NONE
Not used
Blue
5
NONE
Not used
White/Blue
6
RX-
Data reception -
Green
7
NONE
Not used
White/Brown
8
NONE
Not used
Brown
1
8
1
2
3
4
5
6
7
8

iS7RAPIEnet Option Manual
9
7. Network Cable Specification
(1) Bandwidth
RAPIEnet communication requires CAT 5 network cables.
CAT 5 cables used with RAPIEnet support 100MHz bandwidth (60MHz station speed), and a maximum
transmission speed of 100Mbps.
(2) Twisted-pair Cable Types
Type
Description
Application
UTP
(U.UTP)
Unshielded high-speed signal cable
200MHzmax.
Voice, data, and low quality video signals.
FTP
(S.UTP)
Single shielded cable
(shielded core only)
*Shield material: Al/plastic complex foil or copper
braid
100MHzmax.
Electrically stable and protected against
EMI.
Voice, data, and low quality video signals.
STP
(S.STP)
Double shielded cable
(shielded pairs and shielded core)
*Shield material (pair): Al/plastic complex foil
*Shield material (core): Al/plastic complex foil or
copper braid
500MHz max.
Voice, data, and video signals.
Replaces 75Ω coaxial cable.

iS7RAPIEnet Option Manual
10
8. RAPIEnet Communication Related Keypad Parameters
To operate the iS7 inverter using the RAPIEnet communication module, set DRV-06 Cmd Source to [4
Fieldbus].
Set DRV-07 Freq Ref Src to [8 Fieldbus] to provide a frequency reference to the inverter using the RAPIEnet
communication module.
Code
Parameter Name
Default
Description
CNF
30 Option-1 Type
-
When the iS7 RAPIEnet card is installed, the
communication module type “RAPIEnet” is
automatically detected and displayed. (The keypads
used with some software versions may display “Comm
Option” instead of “RAPIEnet”).
DRV
06 Cmd Source
1 Fx/Rx-1
0
Keypad
1
Fx/Rx-1
2
Fx/Rx-2
3
Int 485
4
Fieldbus
07 Freq Ref Src
0 Keypad-1
0
Keypad-1
1
Keypad-2
2
V1
3
I1
4
V2
5
I2
6
Int 485
7
Encoder
8
FieldBus
9
PLC

iS7RAPIEnet Option Manual
11
.
Code
Parameter Name
Default
Description
COM
06 FBus S/W Ver
-
-
07 FBus ID
1
0 - 63
09 FBus Led
-
-
10 opt para-1
0
0 - 63
11 opt para-2
0 msec
5 - 1000 msec
12 opt para-3
0
0-8
13 opt para-4
0000 Hex
14 opt para-5
0
0-8
15 opt para-6
0000 Hex
30 ParaStatus Num
-
0 - 8
31 Para Status-1
0-0xFFFF
32 Para Status-2
0-0xFFFF
33 Para Status-3
0-0xFFFF
34 Para Status-4
0-0xFFFF
35 Para Status-5
0-0xFFFF
36 Para Status-6
0-0xFFFF
37 Para Status-7
0-0xFFFF
38 Para Status-8
0-0xFFFF
50 Para Ctrl Num
51 Para Control-1
0-0xFFFF
52 Para Control-2
0-0xFFFF
53 Para Control-3
0-0xFFFF
54 Para Control-4
0-0xFFFF
55 Para Control-5
0-0xFFFF
56 Para Control-6
0-0xFFFF
57 Para Control-7
0-0xFFFF
58 Para Control-8
0-0xFFFF
94 Comm Update
0 No
0 -------- No -------
1 ------- Yes -------

iS7RAPIEnet Option Manual
12
9. RAPIEnet Communication Options and Related Keypad Parameters
(1) CNF Group
① [CNF-30] Option-1 Type: the type of device installed in the module slot 1
Automatically detects and displays the type of communication module installed. “RAPIEnet” is
displayed when a RAPIEnet communication module card is installed in the iS7 inverter.
**The keypads used with some software versions may display “Comm Option” instead of “RAPIEnet”
(2) DRV Group
① [DRV-06] Cmd Source: Command Source Selection
Selects the command source for the iS7 inverter. Set the parameter to [4 FieldBus] to set RAPIEnet
communication as the command source.
② [DRV-07] Freq Ref Src: Frequency Reference Source Selection
Selects the frequency reference source for the iS7 inverter. Set the parameter to [8 Field Bus] to set
RAPIEnet communication as the frequency reference source.
(3) COM Group
① [COM-06] FBus S/W Ver: Communication Module Software Version
Automatically detects and displays the software version of the currently installed communication
module.
② [COM-07] FBus ID: Communication Module ID
Sets the station IDs for the iS7 RAPIEnet communication module. The RAPIEnet communication
module has 64 station IDs (0-63).
When setting the communication station ID, avoid assigning station IDs that are already used by the
PLC or other devices. After making changes, run the communication update using [COM-94] (Comm
Update) to apply the changes.
③ [COM-09] FBus LED: Communication Module Status Indicator (LED) Information
Displays the communication module’s status indicator (LED) information on the inverter keypad. For
more information, refer to Chap.5-0
Code
Parameter Name
Default
Description
PRT
12 Lost Cmd Mode
0 None
0
None
1
Free-Run
2
Dec
3
Hold Input
4
Hold Output
5
Lost Preset
13 Lost Cmd Time
1.0
0.1 -120 sec
14 Lost Preset F
0.00
0.50 - 60.00 Hz

iS7RAPIEnet Option Manual
13

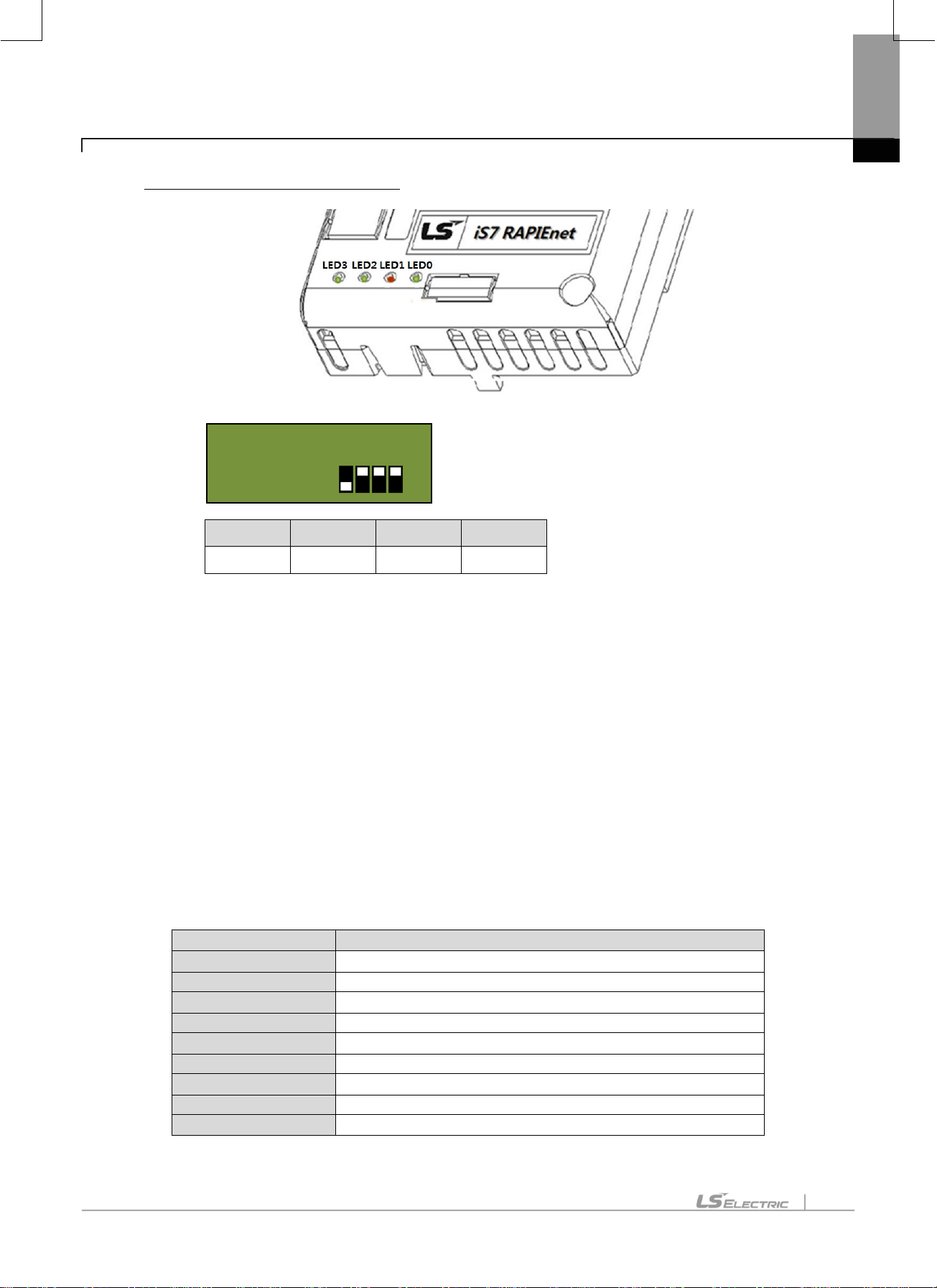

RAPIEnet Communication Module Front Panel.
An example of “[COM-09] FBus” LED status displayed on the keypad
09 FBus LED
④ [COM-10] opt para-1: Target Channel ID
Sets the station ID for the other device the RAPIEnet communication module connects to via high-
speed/P2P communication. After making changes, run the communication update using [COM-94]
(Comm Update) to apply the changes.
⑤ [COM-11] opt para-2: Communication Cycle
Sets the data transfer cycle time for high-speed communication using the iS7 RAPIEnet
communication module. Communication cycle time range is between 5msec–1000msec (1 second).
Overall communication efficiency may be improved by using appropriate communication cycle
settings. After making changes, run the communication update using [COM-94] (Comm Update) to
apply the changes.
⑥ [COM-12] opt para-3: High-speed Link Transmission Data Index
Selects the high-speed link transmission data to monitor, by selecting one of the data addresses
assigned to [COM31]–[COM38] (Para status0–8). The setting value for “opt para-3 (high-speed link
transmission data index)” is between 0–8 and the function for each setting is listed in the following
table.
opt para-3 settings
Description
0
No monitoring
1
Monitor data at [COM-31] Para Status-1
2
Monitor data at [COM-32] Para Status-2
3
Monitor data at [COM-33] Para Status-3
4
Monitor data at [COM-34] Para Status-4
5
Monitor data at [COM-35] Para Status-5
6
Monitor data at [COM-36] Para Status-6
7
Monitor data at [COM-37] Para Status-7
8
Monitor data at [COM-38] Para Status-8
The parameter, opt para-3, is write-protected during inverter operation. Stop inverter operation before
LED3
LED2
LED1
LED0
OFF
ON
ON
ON

iS7RAPIEnet Option Manual
14
making changes.
⑦ [COM-13] opt para-4: Hi-speed Link Data Transmission Monitoring
Monitors the data selected by “[COM-12] opt para-3 (high-speed link transmission data index).” The
data is monitored and displayed-only on the keypad display.
⑧[COM-14] opt para-5: Hi-speed Link Data Reception Index
Selects the high-speed link reception data to monitor, by selecting one of the data addresses assigned
to [COM51]–[COM58] (Para status0–8). The setting value for “opt para-5 (high-speed link data
reception index)” is between 0–8 and the function for each setting is listed in the following table.
opt para-5 settings
Description
0
No monitoring
1
Monitor data at [COM-51]Para Status-1
2
Monitor data at [COM-52] Para Status-2
3
Monitor data at [COM-53] Para Status-3
4
Monitor data at [COM-54] Para Status-4
5
Monitor data at [COM-55] Para Status-5
6
Monitor data at [COM-56] Para Status-6
7
Monitor data at [COM-57] Para Status-7
8
Monitor data at [COM-58] Para Status-8
The parameter, opt para-5, is write-protected during inverter operation. Stop inverter operation before
making changes.
⑨ [COM-15] opt para-6: Hi-speed Link Data Reception Monitoring
Monitors the data selected by “[COM-14] opt para-5 (high-speed link data reception index).” The data
is monitored and displayed-only on the keypad display.
⑩ [COM-30] ParaStatus Num: Number of Data Transmission
The RAPIEnet communication module allows up to 8 data transmissions using the high-speed link.
Parameters for [COM 30] ParaStatus Num are set between 0–8. Transmission data addresses are
assigned from between [COM-31]–[COM-38]. After making changes, run the communication update
using [COM-94] (Comm Update) to apply the changes.
⑪ [COM-31] Para Status1–[COM38] Para Status8: Data Transmission Address
After setting the number of data transmission at [COM-30] ParaStatus Num, assign the inverter data
addresses to [COM-31]–[COM-38]. The number of data addresses must match the number of data
transmission (set at [COM-30]). Run the communication update using [COM-94] (Comm Update) for
the changes to be applied. The inverter data will be transferred to the client (originator).
⑫ [COM-50] Para Ctrl Num: Number of Data Reception
The RAPIEnet communication module allows up to 8 data receptions using the high-speed link.
Parameters for [COM-50] are set between 0–8. Reception data addresses are assigned from between
[COM-51]–[COM-58]. After making changes, run the communication update using [COM-94] (Comm
Update) to apply the changes.
⑬ [COM-51] Para Control1–[COM52] Para Control8: Data Reception Address
After setting the number of reception data at [COM-50] Para Ctrl Num, assign the inverter data
addresses to [COM-51]–[COM-58]. The number of data addresses must match the number of data
reception (set at [COM-50]). Run the communication update using [COM-94] (Comm Update) to apply
the changes. Data (command) from the client (originator) will then be received by the inverter.

iS7RAPIEnet Option Manual
15
⑭ [COM-94] Comm Update: Updating Communication Settings
The option parameters in COM group display the inverter settings. When changes are made to the
communication settings using the keypad, they are not applied instantly to the RAPIEnet
communication module. After making changes to the communication settings, set [COM-94] Comm
Update to Yes to apply the changes.
(4) PRT Group
① [PRT-12] Lost Cmd Mode: Lost Command Mode Options
Selects the inverter’s operation mode when a communication error occurs, or when a connection
problem occurs between the keypad and the iS7 inverter.
② [PRT-13] Lost Cmd Time: Lost Command Decision Time
Sets the time taken for the inverter to decide that a command has been lost. The setting range is from
0.1–120 seconds. If the lost command condition remains after the set time, the inverter executes the
protective options set at [PRT-12].
③ [PRT-14] Lost Preset F: Frequency Reference for Lost Command
Sets a protective function that allows the inverter to run at a frequency reference that is pre-set at
[PRT-14], when command via the communication module is lost. The setting range is between the
start frequency and the maximum frequency [Hz].
For more information on PRT Group, refer to pages 10 and 11 of the SV-iS7 User Manual.
**The SV-iS7 User Manual can be downloaded from http: www.lselectric.co.kr/support/download-center/.
(5) Keypad Parameters and Descriptions
Code
Parameter Name
Description
CNF
30 Option-1 Type
Type of device installed at option slot 1
DRV
06 Cmd Source
Command source selection
07 Freq Ref Src
Frequency reference source selection
COM
06 FBus S/W Ver
Communication option software version
07 FBus ID
Communication option ID
09 FBus Led
Communication option LED indicator information
10 opt para-1
Target station ID
11 opt para-2
Communication cycle
12 opt para-3
Hi-speed link data transmission index
13 opt para-4
Hi-speed link data transmission monitoring
(Monitoring parameter - display-only at the keypad.)
14 opt para-5
Hi-speed link data reception index

iS7RAPIEnet Option Manual
16
Code
Parameter Name
Description
COM
15 opt para-6
Hi-speed link data reception monitoring
(Monitoring parameter - display-only at the keypad.)
30 ParaStatus Num
Number of data transmission
31 Para Status-1
Data transmission address1
32 Para Status-2
Data transmission address2
33 Para Status-3
Data transmission address3
34 Para Status-4
Data transmission address4
35 Para Status-5
Data transmission address5
36 Para Status-6
Data transmission address6
37 Para Status-7
Data transmission address7
38 Para Status-8
Data transmission address8
50 Para Ctrl Num
Number of data reception
51 Para Control-1
Data reception address1
52 Para Control-2
Data reception address2
53 Para Control-3
Data reception address3
54 Para Control-4
Data reception address4
55 Para Control-5
Data reception address5
56 Para Control-6
Data reception address6
57 Para Control-7
Data reception address7
58 Para Control-8
Data reception address8
94 Comm Update
Communication parameter setting update
PRT
12 Lost Cmd Mode
Lost command mode options
13 Lost Cmd Time
Lost command decision time
14 Lost Pre-set F
Frequency reference for lost command
10.Inverter Communication Address
For more information about the PRT Group, refer to 11. Communication Functions in the SV-iS7 User
Manual.
**The SV-iS7 User Manual can be downloaded from: www.lselectric.co.kr/support/download-center/.

iS7RAPIEnet Option Manual
17

iS7RAPIEnet Option Manual
18
11.High-speed Link
The high-speed link is a communication mode between the communication modules. The High speed-link
is activated when the high-speed link parameters are set. In this mode, data can be transferred by setting
[COM-30] (number of data transmission), [COM-50] (number of data reception), [COM-11] (transmission
cycle), [COM-31]–[COM-38] (data transmission addresses), and [COM-51]–[COM-58] (data reception
addresses). Because the high-speed link uses the Subnet Broad service, it may affect other communication
modules on the same network.
(1) Setting the High-speed link in the XG5000 Program (PLC Software)
For an iS7 RAPIEnet communication module to communicate with a PLC system, the XGL-EIMT
(RAPIEnet I/F module) is required. To understand the module’s operation, read the user manual supplied
with the XGL-EIMT module before reading these instructions. To configure the PLC’s communication
settings, the XG5000 program (XG5000_V3.68_20131008) must be installed. The program can be
downloaded from the LS ELECTRIC website (www.lselectric.co.kr/support/download-center/).
Run the XG5000 program and click [Tools] ▶ [Network Manager]. When the XG-PD program is activated,
click one of the high-speed link entries (ex. [High-speed link 01], [High-speed link 02], etc.) under [Project
window] on the left side of the screen. Locate the device that is connected to the PLC in the [Project
window] and then click on the [Block] entry under it. The window below will open on the screen.
①High-speed Link Data Transmission Settings
Mode: Send (Transmission)
Block number: In send (transmission) mode, the PLC does not allow activation of the data input
window for the RAPIEnet module station ID [COM-07] (target station ID). Therefore, the *target
station ID must be configured through a block number.
Read area: Enter the address where the transmitted data will be saved.
Read area Word size: Set the number of data transmission. The setting must match the number
of data reception (set at [COM-50]).
After the changes are made, click [Online] > [Write Parameter] in the XG-PD program. Then, select

iS7RAPIEnet Option Manual
19
the module to apply the settings to and run it. After parameter writing is completed, run [Enable Link].
②High-speed link Data Reception Settings
Mode: Receive
Station number: Enter the target station ID.
Block number: If the iS7 RAPIEnet communication module is in use, enter a block number that is
identical to the communication module station ID.
Save area: Enter the address where the received data will be written to.
Save area Word size: Set the number of data reception. The setting must match the number of
data transmission (set at [COM-30]).
After the changes are made, click [Online] > [Write Parameter] in the XG-PD program. Then, select
the module to apply the settings to and run it. After parameter writing is completed, run [Enable Link].
12. P2P Communication
P2P (peer-to-peer) is another communication mode available for communication modules that sends and
receives data based on P2P parameters. Using station IDs, this mode enables data to be saved to or read
from a particular area of the target device when specific events occur.
(1) Setting P2P Communication in the XG5000 Program (PLC Software)
For an iS7 RAPIEnet communication module to communicate with a PLC system, the XGL-EIMT
(RAPIEnet I/F module) is required. To understand the module’s operation, read the user manual supplied
with the XGL-EIMT module before reading these instructions. To configure the PLC’s communication
settings, the XG5000 program (XG5000_V3.68_20131008) must be installed. The program can be
downloaded from the LS ELECTRIC website (www.lselectric.co.kr/support/download-center/).
Run the XG5000 program and click [Tools] ▶ [Network Manager]. When the XG-PD program is activated,
click one of the P2P entries (ex. [P2P 01], [P2P 02], etc.) under [Project window] on the left side of the
screen. Locate the device that is connected to the PLC in the [Project window] and then click on the
[P2P Block] entry under it. The window below will open on the screen.
