Luca Rossini LUSSO LR/W061 User manual

operation manual (ENGLISH)
LUSSO
LR/W061 - LR/W062 - LR/W063
LR/W071 - LR/W072 - LR/W073
EN (Translation from the original instructions)
ucaRossini
L

2
IndEX
chapter 1: PRESENTATION............................................................................... 3
chapter 2: EQUIPMENT FEATURES................................................................ 4
chapter 3: DECLARATION OF CONFORMITY.............................................. 5
chapteR 4: USE.................................................................................................. 6
4.1 Expected use.................................................................................. 6
4.2 Servicing of double-insulated products............................................ 6
4.3 Lifting and transport instructions..................................................... 6
4.4 Technical Information........................................................................ 6
4.5 Safety.............................................................................................. 6
4.6 Environmental characteristics required............................................ 7
chapter 5: EQUIPMENT DESCRIPTION......................................................... 7
5.1 General equipment description........................................................ 7
5.2 Power supply.................................................................................. 8
5.3 Electrical Components.................................................................... 8
5.4 Hydraulic circuit.............................................................................. 9
chapter 6: USER MANUAL............................................................................ 10
6.1 Safety............................................................................................. 10
6.2 Working position............................................................................12
6.3 Operation.......................................................................................13
6.4 Unauthorised uses.........................................................................15
6.5 Maintenance..................................................................................15
6.6 Disposal.........................................................................................15
chapter 7: tecnical MANUAL...................................................................16
7.1 Installation......................................................................................16
7.2 Maintenance..................................................................................19
Index
EN

3
Presentation
Thank you for choosing this Luca Rossini
shampoo unit - an excellent choice!
Warning
The manufacturer does not accept responsability in case
of misusage or improper installation, use of non original
accessories, of tampering by non authorised personnel and
access to areas of the machines to which the operator is
not allowed. The manufacturer reserves the right to make
changes to the product at any time without giving prior notice.
This publication has been updated in October 2019 and may
contain technical inaccuracies or typing errors for which we
apologise. If you have any questions, please contact us.
PRESENTATION
Indulge in luxury with the brand-new Luca Rossini
washunit. Equipped with electric legrest and massage
system, as well as seat and back specifically designed for
well-being, Lusso offers extraordinary comfort. In addition,
thanks to the expansive area at the back of the unit, with
enough room to even work while seated, together with
extreme functionality, Lusso makes the hairdresser’s life
easier! What's more, Lusso is modular and is also available
in 2 or 3 seater, with some smart optional accessories:
the practical laundry bag and the useful product tray.
This all combined with an elegant, modern and minimal
design, making the Lusso the complete solution every
professional was waiting for!
EN (Translation from the original instructions)
Lusso
LR/W061 - LR/W062 - LR/W063
LR/W071 - LR/W072 - LR/W073
EN

4Equipment features
IT
ucaRossini
L
EQUIPMENT FEATURES
Salon Habitat (Italia) s.r.l.
via Enzo Lazzaretti, 12 - 42122 Reggio Emilia
[email protected]
www.luca-rossini.com
Lusso
LR/W061 - LR/W062 - LR/W063
LR/W071 - LR/W072 - LR/W073
Wash unit for hairdressing salons,
equipped with massage and electric
legrest
II
2019
100/220-240 V ~ 50-60 Hz
120W
130 Kg
Manufacturer
Model
Function
IEC Protection Class
Year of Manufacture
Power Supply
Nominal Power
Maximum allowable load for the chair
EN
Manufacturer
Salon Habitat (Italia) s.r.l. via Enzo Lazzaretti, 12
42122 Reggio Emilia - Italy
[email protected]
www.luca-rossini.com
Model
Lusso
LR/W061 - LR/W062 - LR/W063
LR/W071 - LR/W072 - LR/W073
Function
Wash unit for hairdressing salons, equipped
with massage and electric legrest
IEC Protection Class - II
Year of Manufacture - 2019
Power Supply
100/220-240 V ~ 50-60 Hz
Nominal Power
120W
Maximum allowable load for the chair - 130 Kg

5
DECLARATION OF CONFORMITY
Declatation of conformity
DECLARATION OF CONFORMITY
The Manufacturer: Salon Habitat (Italia) s.r.l.
via Enzo Lazzaretti 12, 42122 Reggio Emilia
has appointed its technical department, c/o the address of the manufacturer, as the
organizaton in charge of drawing up the Technical File.
Declares that the product
Lusso
LR/W061 - LR/W062 - LR/W063
LR/W071 - LR/W072 - LR/W073
Wash unit bound to be used in hairdressing salons, fulfils the requirements of the
following EEC Directives, including their latest amendments, and the relevant transposed
national legislation:
• Directive 2006/42/CE _
On the approximation of the laws of the Member States relating
to machinery.
• Directive 2006/95/CE _ On the approximation of the laws of the Member States relating
to electrical equipment designed for use within certain voltage
limits.
• Directive 2004/108/CE _ On the approximation of the laws of the Member States
relating to electromagnetic compatibility and repealing
Directive 89/366/EEC
Reggio Emilia, 01/10/2019 CEO
Kerry Dade
Translation from the original instructions
EN

6Use
USE
EN
4.1 EXPECTED USE
The Lusso shampoo unit was conceived, designed and manufactured as a product for
hairdressing salons. This product can be used by ordinary people, as well as children over 8
years old, people with reduced physical, sensory or mental capabilities and those with a lack of
experience and knowledge, provided they are supervised.
The maximum capacity is 130kg, and can only accommodate one person at a time.
ANY OTHER USE IS TO BE CONSIDERED IMPROPER, INCORRECT AND SOURCE OF
POTENTIAL DANGERS, INCLUDING THE PRODUCT’S USE IN WAITING AREAS OR
HOMES. THE MANUFACTURER DOES NOT ACCEPT RESPONSIBILITY IN CASE OF A
USE OF THE EQUIPMENT DIFFERENT FROM THE ONE IT WAS DESIGNED FOR.
4.2 SERVICING OF DOUBLE-INSULATED PRODUCTS
In a double-insulated product, two systems of insulation are provided instead of earthing. No
earthing means is provided on a double-insulated product, nor is a means for earthing to be
added to the product.
Servicing a double-insulated product requires extreme care and knowledge of the system, and is
to be done only by qualified service personnel.
Replacement parts for a double-insulated product must be identical to the parts they replace.
A double-insulated product is usually marked with the words “DOUBLE INSULATION” or
“DOUBLE INSULATED”, or will be marked with the symbol (square within a square) .
4.3 Lifting and transport instructions
Move the packed article with forklift or pallet truck. Remove the top and extract from cardboard
box. Perform the operation with 2 people.
Standard characteristics U.D.M. Value
Maximum capacity Kg 130
Supply voltage V ~ 100/220-240
Frequency Hz 50-60
Power consumption W 110
Dimensions Length mm 1700
Depth mm 710
Height mm 1020
Mass Kg 100
Sound pressure level in the workplace Less than 70 dB(A)
4.5 SAFETY
Plug the machine into an easily accessible socket, checking that the net voltage ( V ) corresponds
to the machine’s data plate.
• Avoid the use of extension cords. Plug directly into the electric socket
whenever possible.
• Keep the power cable away from places where people walk to avoid it being
crushed and so that it does not form an obstacle or hindrance.
• To avoid electric shocks, use an electric socket equipped with
a properly connected socket-contact.
4.4 Technical Information

7
USE
Equipment description
5.1 General description of the equipment
The Lusso wash unit model differs from the chairs normally used in hairdressing salons
thanks to the massage and electric legrest mechanism the Figure 1 shows the main
components of the Lusso shampoo unit:
equipment DESCRIPTION
EN
The Lusso shampoo unit must be stored with its original casing in an indoor area, away
from sources of heat, at a temperature between 10° and 40°C, with a moisture content
that does not exceed 70%. Once the casing is removed, the shampoo unit must respect
the same environmental characteristics, and must be located in areas with illumination
that respects the EN 12464-1 values.
We ask that you request support from your trusted installation company.
4.6 environmental characteristics required
for storage and use
fig.1 main components of the Lusso shampoo unit
1_Ceramic basin, where hair is washed. It includes an anatomical ceramic
headrest, taps to mix warm and cold water and drainpipe to remove water.
2_Seat, backrest and armrests.
3_Button panel, for OPEN and CLOSE legrest mechanism.
4_Button panel, for START and STOP massage mechanism.
3
4
Start Stop
Open Close
1
32
4

5.2 power supply
The power supply of the Lusso shampoo unit has been created for an electric cable
directly connected to the control unit, equipped with a plug for the socket. Cable and plug
are supplied with the shampoo unit. The power supply must be sized for the following
characteristics – 100/220-240 V ~ 50-60 Hz, monophased. Furthermore, the electrical
system must comply with the laws and regulations in force at the place of use, and must
be equipped with a differential switch that ensures people’s protection against indirect
electrical contact. The power supply line of the Lusso shampoo unit must be protected
against overload and short circuit. Plug the machine into an easily accessible socket,
checking that the voltage (V) of the network corresponds to the plate on the machine.
• Avoid use of extension cords, adapters and multiple sockets; when possible insert the
plug directly in the socket.
• Keep the power cord away from areas of passage in order to avoid crushing,
interference or obstacles to movement.
• Keep the power cord away from heat sources or hot surfaces. To avoid dangerous
electrical shocks, use a correctly installed socket.
We ask that you request support from your trusted installation company.
5.3 electricAL components
8Equipment description
equipment DESCRIPTION
EN
1.
Power supply
7333
2.
Control-box
3885
3.
Massage system
3888

equipment DESCRIPTION
EN
9
Equipment description
5.4 hydraulic circuit
The Lusso shampoo unit has hydraulic fittings to connect to the salon’s hot and cold
water system. It is also equipped with a drainage pipe that allows connection to the
drainage system of the salon where the shampoo unit is placed.
Technical plumbing characteristics:
• Pressure testing = 15 bar
• Cold water supply = blue pointer to the right
• Hot water supply = red pointer to the right
Operating limits by UNI 10234 (EN 817):
• Pressure = Min. 0.5 bar Max. 10 bar
• Temperature = Max. 90°C
Operating limits recommended by UNI 10234 (EN 817) for the correct functioning of the
tap:
• Pressure = Min. 1 bar Max. 5 bar
• Temperature = Max 65°C
Warnings:
• It is necessary to thoroughly wash and rinse all piping systems to avoid damage to the
taps caused by residue present in the tubes
• For pressure over 5 bar, it is recommended to install a pressure reducer
• It is recommended that you install a centralised filter for dirty water or impurities
For further details, see section 7 regarding installation of the shampoo unit.

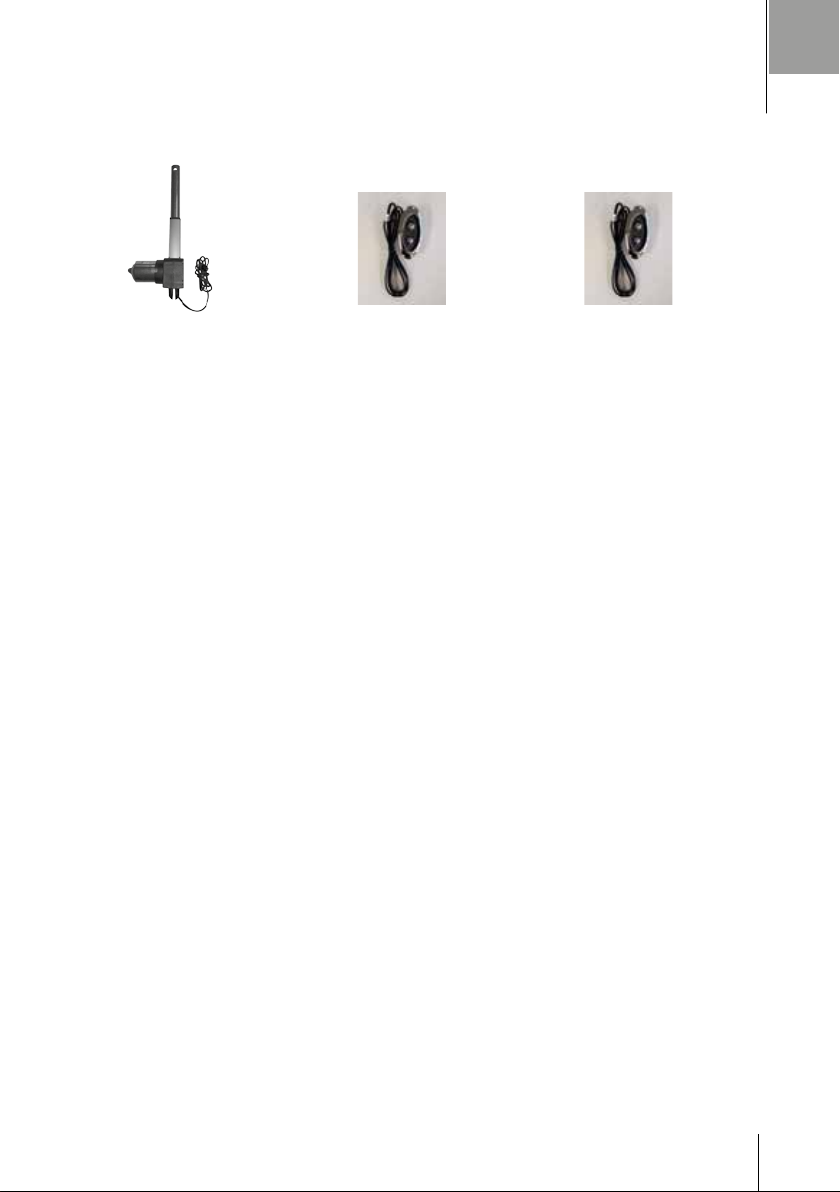

4.
Legrest actuator
3954
5.
Massage panel control
3953
6.
Legrest panel control
3886

6.1 SAFETY
SAFETY DURING INSTALLATION
• THE LUSSO SHAMPOO UNIT MUST BE POSITIONED ON A FLAT SURFACE, LEVELLED AND
ABLE TO BEAR THE WEIGHT WHEN THE WASH UNIT IS LOADED, REFERRING TO THE
MAXIMUM ALLOWABLE LOAD
• FIXING TO THE FLOOR IS MANDATORY, AND MUST BE COMPLETED USING PLUGS WITH A
MINIMUM DIAMETER OF 8MM, USING THE CORRECT, PLANNED HOLES
• FOR ELECTRICAL INSTALLATION, PAY CLOSE ATTENTION TO THE INDICATIONS SHOWN IN
SECTIONS 4.3 AND 5.2
SAFETY DURING USE
• THIS UNIT MAY ONLY BE USED BY PERSONNEL THAT COMPLETE THE TREATMENT
(HAIRDRESSER, SHAMPOOIST, BARBER, ETC.) FROM HEREON ‘OPERATOR
• IT IS COMPULSORY TO RAISE AND LOWER THE PERSON ONLY WHEN THE MASSAGE AND
LEGREST MECHANISMS ARE STOPPED
• DO NOT EXCEED THE MAXIMUM LOAD ALLOWED, EQUAL TO 130 KG
• CHILDREN SHOULD NOT BE LEFT UNATTENDED IN PROXIMITY TO THE EQUIPMENT
• DO NOT, FOR ANY REASON, PLACE FEET, HANDS OR OTHER BODY PARTS UNDER THE
MOVING PART OF THE FRAME EVEN WHEN MOTIONLESS (THE SHAMPOO UNIT IS DESIGNED
SO THAT THE OPERATOR’S FEET ARE AT A SAFE DISTANCE FROM THE MOVING PART OF THE
FRAME DURING WORK)
• AFTER USE, ISOLATE THE UNIT FROM ELECTRICITY AND WATER (HOT AND COLD)
• TO DISCONNECT THE EQUIPMENT, FIRSTLY THE MASSAGE AND LEGREST MECHANISMS
MUST BE STOPPED. ONLY THEN CAN THE PLUG BE REMOVED FROM THE ELECTRICAL
SOCKET
10 User manual
USER MANUAL
EN

11
User manual
USER MANUAL
EN
SAFETY DURING MAINTENANCE
• BEFORE ANY MAINTENANCE OR CLEANING OPERATION, UNPLUG THE UNIT
• CLEANING AND MAINTENANCE MUST BE PERFORMED ONLY BY THOSE QUALIFIED FOR
SUCH A JOB, AND SHOULD NOT BE PERFORMED BY CHILDREN WITHOUT SUPERVISION
• IF THE MOVING PARTS OF THE MASSAGE OR LEGREST MECHANISM OF THE SHAMPOO
UNIT JAM, DO NOT, FOR ANY REASON, TRY TO CLEAR THEM, BUT RATHER CONTACT SALON
HABITAT ITALIA SRL CUSTOMER SUPPORT
• PAY THE UTMOST ATTENTION WHEN THE SHAMPOO UNIT IS USED FOR CHILDREN, SENIOR
OR DISABLED PEOPLE
PROHIBITED USE
NEVER USE THE LUSSO SHAMPOO UNIT:
• IF THE POWER SUPPLY CABLE AND / OR THE PLUG ARE DAMAGED.
• IF THE CASE IS VISIBILY DAMAGED
• AFTER THE UNIT HAS BEEN OVERTURNED OR FALLEN ON THE GROUND
• AFTER FALLING INTO WATER, OR IF THE WASH UNIT IS WET IN PARTS OTHER THAN
THE BASIN
IN ALL THESE CASE, IMMEDIATELY CONTACT SALON HABITAT ITALIA SRL CUSTOMER
SUPPORT FOR THE NECESSARY REPAIRS
• DO NOT LET OBJECTS OR WATER FALL INTO THE OPENINGS AND/OR THE CRACKS
• ALWAYS KEEP THE POWER SUPPLY CABLE AWAY FROM HEAT SOURCES OR WARM
SURFACES
• DO NOT USE THE WASH UNIT OUTDOORS
• DO NOT USE THE WASH UNIT NEAR ENVIRONMENTS WHERE SPRAY (AEROSOL) IS USED
• DO NOT USE THE WASH UNIT NEAR ENVIRONMENTS WHERE OXYGEN IS STORED AND USED
• TO UNPLUG, STOP ALL MOVEMENTS AND THEN REMOVE THE PLUG FROM THE SOCKET

- SEAT PEOPLE ON THE CHAIR WHEN THE MASSAGE AND LEGREST MECHANISM
ARE STOPPED.
- DO NOT EXCEED THE MAXIMUM ALLOWABLE LOAD.
- PLUG THE WASH UNIT INTO AN EASILY ACCESSIBLE SOCKET, CHECKING
THAT THE NETWORK POWER SUPPLY ( V ) COMPLIES WITH THE WASH UNIT
REQUIREMENTS.
- AVOID THE USE OF EXTENSION CABLES; WHEN POSSIBLE, PUT THE PLUG
DIRECTLY INTO THE SOCKET.
- KEEP THE POWER SUPPLY CABLE AWAY FROM PASSAGEWAYS SO TO
AVOID CRUSHING AND NOT TO HINDER PASSAGE.
- TO AVOID DANGEROUS ELECTRICAL SHOCKS, USE A SOCKET PROPERLY
CONNECTED TO THE POWER SUPPLY NETWORK. WE ADVISE YOU ASK FOR
YOUR INSTALLER’S SUPPORT.
- WHEN THE WASH UNIT IS NOT IN USE, REMOVE THE PLUG FROM THE SOCKET.
- AT THE END OF THE WASH UNIT LIFE CYCLE, CUT ITS POWER SUPPLY CABLE
WITH A PAIR OF SCISSORS AFTER REMOVING THE PLUG FROM THE
SOCKET, AND FOLLOW THE INSTRUCTIONS FOR A PROPER DISPOSAL.
6.2 working position
Operators are instructed to stand behind the wash unit as shown in Figure 2, so that
their hands can move freely above the basin, where the client’s head is resting for
washing.
Warning
fig. 2 working position
USER MANUAL
EN
12 User manual

13
USER MANUAL
User manual
6.3 instructions for a correct OPERATION
The correct sequence the operator must execute is as follows.
1_ Check that the shampoo unit is correctly positioned on a flat lavelled surface
and that it is not wet or has signs of damage.
2_ Check that the working environment is suitable with correct lighting
and correct ventilation.
3_ Check that the shampoo unit is correctly connected to the hydraulic circuit
so that warm and cold water are available and it is possible to mix
them to obtain the right temperature.
4_ Check that the water used to wash hair is correctly drained (check that the
drainpipe is not clogged).
5_ Check that the power supply cable and the plug are not damaged.
6_ Check that the socket’s power supply is 100/220-240 V ~ 50-60 Hz.
In case of anomalies during these checks, the operator should inform
the person in charge.
7_ Put the plug in the socket.
8_ Seat the client on the chair.
9 _ If requested, use the appropriate push-button panel to start and stop the massage
movement, as shown in figure 3.
NB. Each button has to be held down to for 1 second IN ORDER TO AVOID
UNWANTED ACTIONS.
The massage cycle lasts 3 minutes. To stop the massage use the stop-button, as
shown in figure 4. AFTER 3 MINUTES IT WILL STOP INDEPENDENTLY.
EN

14
USER MANUAL
10_ Wash hair, paying attention to not excessively wet the wash unit, limiting sprays and
water leaks from the basin.
11_ Remove the plug from the socket when the wash unit is not used.
If
- Strange noises such as buzzing or creaking come from the wash unit
- Strange smells such as burning come from the wash unit
or
- Parts of the wash unit get too warm
during the normal functioning of equipment, immediately stop any activity, remove the
plug from the socket and inform Salon Habitat Italia Srl Customer Service.
User manual
EN
fig.3 legrest control
Start Stop
Open Close
fig.4 massage control

15
USER MANUAL
User manual
6.4 UNAUTHORISED USES
- Do not sit on the armrests or the legrest mechanism.
- Disconnect general power before starting maintenance on elecrtical/mechanical parts
inside the shampoo unit.
6.5 INSTRUCTIONS FOR CORRECT MAINTENANCE
It is essential that after each hair washing operation, the operator dries any part of
the wash unit that has become wet.
During regular cleaning operations, remember:
- Do not clean metal parts with acidic products.
- Do not clean painted parts with diluents or aggressive products.
- Clean the parts in Sky Colours only with water and neutral soap.
Check every 2 months that there are no water leaks under the sink that could damage
the base and equipment of the shampoo unit. To complete this operation, remove the
column cover in order to access the area under the basin.
Furthermore, every 6 months:
- GREASE THE ROLLERS OF THE MASSAGE SYSTEM ON THE BACK
- check the drainpipe to avoid clogging.
NB: These operations must be compulsorily performed by specialised personnel, after
having previously isolated the power supply.
6.6 DISPOSAL
Packaging Disposal
• The outer cardboard packaging material is 100% recyclable and is marked with the
recycling symbol.
• Therefore, the various parts of the packaging must not be dispersed in the
environment, but rather disposed of conforming to the rules established by
local authorities.
Wash Unit Disposal
Do not dispose of the wash unit along with normal waste!
In compliance with the European Directive 2002/96/CE on electrical waste and
electronic equipment, and its relevant applications within the national legislation,
electrical equipment at the end of its life cycle must be collected separately and taken
to ecocompatible recycling facilities.
Making sure that this product is disposed of properly, the user contributes to prevent
potential negative consequences for the environment and health.
For further information about the treatment, recovery and recycling of this product,
contact local authorities, the waste collection service collection service, or the shop
where the product was purchased.
EN

16
TECNICAL MANUAL
Installation
7.1 installation
Pavement
Fixing
Wall
Fixing
1 seater LR/W061 - LR/W071
36 cm for ‘Service Centre’ cabinet
48 cm for ‘Wall System’ cabinet
B
Variable measurement - No less than 50 cmC
Work space
A
Hot and cold water inlet tubeD
Water outlet dischargeE
Measurement from wallF
Water Inlet 3/8” - Outlet ø40G
Electric point - 100/220-240 VH
36 50
39
30
36 65
129
170
53
37 72
36 50 70
36 50 80
22 72
20
7
A
A
B
B
C
C
E
D
F
G
G
H
H
H
87
71
431 4
EN

TECNICAL MANUAL
EN
17
Installation
Pavement
Fixing
Wall
Fixing
36 cm for ‘Service Centre’ cabinet
48 cm for ‘Wall System’ cabinet
B
Variable measurement - No less than 50 cmC
Work space
A
Hot and cold water inlet tubeD
Water outlet dischargeE
Measurement from wallF
Water Inlet 3/8” - Outlet ø40G
Electric point - 100/220-240 VH
2 seater LR/W062 - LR/W072
36 50
39
30
36 65
129
170
53
36 50 70
36 50 80
37 65
22 65
20
7
A
A
B
B
C
C
F
G
G
H
H
E
D
H

TECNICAL MANUAL
EN
18 Installation
Pavement
Fixing
Wall
Fixing
36 cm for ‘Service Centre’ cabinet
48 cm for ‘Wall System’ cabinet
B
Variable measurement - No less than 50 cmC
Work space
A
Hot and cold water inlet tubeD
Water outlet dischargeE
Measurement from wallF
Water Inlet 3/8” - Outlet ø40G
Electric point - 100/220-240 VH
3 seater LR/W063 - LR/W073
36 50
39
30
36 65
129
170
53
36 50 70
36 50 80
37 65
22 65
65
65
20
7
A
A
B
B
C
C
E
D
H
F
G
G
G
H
H
H
EN

19
TECNICAL MANUAL
7.2 maintenance
1. Remove the plug from the electrical socket
2. With your hands remove the backrest
3. Remove the plug from the power supply
4. Unscrew the 4 casing knobs
5. Remove the casing and lubricate the PVC
back cloth of the massage
EVERY SIX MONTHS INSPECT THE FITTINGS OF THE WATER SYSTEM AND THE PVC CLOTH WHERE THE MASSAGE WHEELS
FLOW AND, DEPENDING ON THE FREQUENCY OF USE, LUBRICATE IT WITH SYNTHETIC GREASE SUCH AS TOPAS NB 52.
Maintenance
EN

Salon Habitat (Italia) srl
Via Lazzaretti 42122 - Reggio Emilia - Italia
Sales Italia
[phone]
[phone]
International Sales
[phone]
Fax
[phone]
E-mail
[email protected]
Web
www.luca-rossini.com
lucarossinifurniture
ucaRossini
L
