Lucas Led 5 Eye LED Beam Light User manual

5 Eye LED Beam Light
(5*40w RGBW 4in1 led)
User Manual
Please read this user manual before using this product

I. Open Checking
No.
Description
Quantity
Unit
1
5 Eye LED Beam Light
1
piece
2
0.75 square 1.5 metre Power Cord with
blue head
1
piece
3
User Manual
1
piece
4
Hook（Different model can be chose)
choose）
Need to purchase
5
Safety Cable
6
DMX Signal Cable
★For the sake of safety and under the terms, it does not allow unauthorized
restructuring or modification of this product. Please note that improper use and
human damage caused by this product, it can not be covered by our warranty.
Also, unprofessional operations will cause short circuits, burns or shocks, and
more either.
★The machine has been rigorously tested before shipment. Please comply with
the instructions of the operation requirements, to ensure the product can be
running safely under normal circumstances.
★Any damage caused by improper operation will result in the termination of the
warranty claim. We are not accept any property lost and responsibility of human
being improper use and unprofessional operation.
★Please place user manual in a safe place for reference.
After selling,renting or carrying, you can give it to new owner.
★Attention:Base on our products keep improving by our company,our user
manual data is subject to change without notice. We will remain rights of changing
product specification.

CH13
000
-
255
Blue linear dimmer,0-100%
CH14
000
-
255
White linear dimmer,0-100%
CH15
000
-
255
Red linear dimmer,0-100%
LED4
CH16
000
-
255
Green linear dimmer,0-100%
CH17
000
-
255
Blue linear dimmer,0-100%
CH18
000
-
255
White linear dimmer,0-100%
CH19
000
-
255
Red linear dimmer,0-100%
LED5
CH20
000
-
255
Green linear dimmer,0-100%
CH21
000
-
255
Blue linear dimmer,0-100%
CH22
000
-
255
White linear dimmer,0-100%
VIII.Product maintenance and cleaning
Please note the following points when testing this product:
★All the screws and parts for installing must be tightly connected and cannot be
rusted;
★Housings, lenses, fixtures and mounting locations (e.g ceilings, hangers,
trusses, etc.) must not be deformed;
★The power cable must not be damaged.The installation and use must be
operated by trained professional technicians and it must ensure that safety
hazards are eliminated.
Note: Please unplug the power cable before doing product maintenance!
It is very important to keep machine clean and dry.Before unlock the machine or
start maintenance,you should keep the machine power off and unplug. Keep
cleaning regularly can make the light have max brightness and also can extend its
use time. We suggest to use good glass cleaner and clean it with a soft cloth. Can
not use alcohol or chemical solvents under any circumstances. The interior of the
machine and the fan should be cleaned at least once every season by using a
vacuum cleaner.
II.Safety Instruction
1. When opening the packing, take all accessories out, and remove the light to a
horizontal table for good operation. First check whether the accessories are
complete, then check carefully whether the whole light has no damage. If there is
any damage, please contact us as soon as possible.
2. AC Power: Check whether the local power supply is accordance with the
requirements of the product rated voltage.
3. The product is only suitable for indoor working environment. The light should
keep dry, keep away from wet, overheat or dusty environment. Don't come into
contact with water and other liquids to prevent or reduce the risk of electric shock
or fire.
4. Please do not install the light directly on the surface of the combustible
substance.
5. The people who install, operate and maintain of light professional certificate
required.
6. When there are faults of the light, please stop using the light immediately. Don't
try to repair, please contact the nearest authorized technical assistance center, if
the parts damage, always use the same type of parts replaced.
7. Don't touch any electrical wiring in the process of operation to prevent the risk
of electric shock.
8. To make sure the light working environment temperature, the highest do not
exceed 40 ℃,the lowest do not exceed - 20 ℃.
9. Under the stable cooling working situation, the highest temperature of the
housing of the light can reach 80 ℃, please do not touch.
10. The light is design according to the type of electric shock protection. The light
should be use in good connection grounding power system and the ground wire
must connect with the ground wire of the power supply system. The earth sign
port of the light should be connected to the installing fixtures.
11. Do not use the damage of the insulating layer wire and also do not use the
power cord overlap on the other wire. When not in use or clean the light, please
disconnect the power, don't pull the plug in hard or just drag the wires.

12. There are no components inside for maintenance. Before start operation the
light, please check whether all of the shell is installed. In the case of the shell
open used the light is prohibited.
Note: Under any installation, maintenance and clean the light, please confirm that
has cut off the power cord!
III. Product specification
1.Built-in Master/Slave, DMX, Sound Active, powerful effects mode.
2.LCD 2.4 inch TFT LCD screen, easy to operate.
3.Suitable for discotheques, clubs, bars, parties, mobile DJs, concerts and so on.
4.DMX Channel: 4CH, 16CH and 22CH.
5.Four Operational Modes: Sound (Audio) Active, Effect Mode, DMX,
Master/Slave.
6.Voltage: AC100-240V 50-60Hz.
7.Fuse: F5AL250V.
8.Power Consumption: P = 220W
9. Light source: 5x40w RGBW 4in1 LED
10. Net weight: 4.9kg
11. Size:57.35*27.82*17.15cm
12. Lumen
Color
@1M
Unit
Angle
R
10900
Lux
8°
G
17360
B
22400
W
20800
IV.Display
057
-
079
fast on slow off
080
-
102
Random strobe
103
-
127
Thunder strobe
128
-
250
Fixed strobe
251
-
255
Led on
CH12
000
-
255
Red linear dimmer,0-100%
Background
Color
CH13
000
-
255
Green linear dimmer,0-100%
CH14
000
-
255
Blue linear dimmer,0-100%
CH15
000
-
255
White linear dimmer,0-100%
CH16
000
-
005
No function
Fixed color/color
jump/gradual
change
006
-
127
Fixed Color
128
-
191
Color jump,slow to fast
192
-
255
Color gradual change,slow to fast
［Sheet 3］DMX channel (22CH) - (DMX address 001)
CH
Value
Function
CH1
000
-
255
Dimmer 0-100%
Dimmer 1
CH2
000
-
005
Led on
Led
On/Strobe
006
-
010
Led off
011
-
033
Slow on slow off
034
-
056
Fast off slow on
057
-
079
Fast on slow off
080
-
102
Random strobe
103
-
127
Thunder strobe
128
-
250
Fixed strobe
251
-
255
Led on
CH3
000
-
255
Red linear dimmer,0-100%
LED1
CH4
000
-
255
Green linear dimmer,0-100%
CH5
000
-
255
Blue linear dimmer,0-100%
CH6
000
-
255
White linear dimmer,0-100%
CH7
000
-
255
Red linear dimmer,0-100%
LED2
CH8
000
-
255
Green linear dimmer,0-100%
CH9
000
-
255
Blue linear dimmer,0-100%
CH10
000
-
255
White linear dimmer,0-100%
CH11
000
-
255
Red linear dimmer,0-100%
LED3
CH12
000
-
255
Green linear dimmer,0-100%

［Sheet 2］DMX channel (16CH) - (DMX address 001)
CH
Value
Function
CH1
000
-
255
Dimmer 0-100%
Dimmer 1
CH2
000
-
005
Led on
Led On/Strobe
006
-
010
Led off
011
-
033
Slow on slow off
034
-
056
Fast off slow on
057
-
079
Fast on slow off
080
-
102
Random Strobe
103
-
127
Thunder strobe
128
-
250
Fixed strobe
251
-
255
Led on
CH3
000
-
255
Red linear dimmer,0-100%
Color
CH4
000
-
255
Green linear dimmer,0-100%
CH5
000
-
255
Blue linear dimmer,0-100%
CH6
000
-
255
White linear dimmer,0-100%
CH7
000
-
005
No function
Fixed color/color
jump/gradual
change
006
-
127
Fixed Color
128
-
191
Color jump,slow to fast
192
-
255
Color gradual change,slow to fast
CH8
000
-
005
No function
Effect Mode
006
-
035
Effect 1
036
-
065
Effect 2
066
-
095
Effect 3
096
-
125
Effect 4
126
-
155
Effect 5
156
-
185
Effect 6
186
-
215
Effect 7
216
-
245
Effect 8
246
-
255
Random Effect
CH9
000
-
249
Effect slow to fast
Speed/Sound
Control
250
-
255
Sound Control
CH10
000
-
255
Background color dimmer
Dimmer 2
CH11
000
-
005
Led on
Led On/Strobe
006
-
010
Led off
011
-
033
Slow on slow off
034
-
056
Fast off slow on

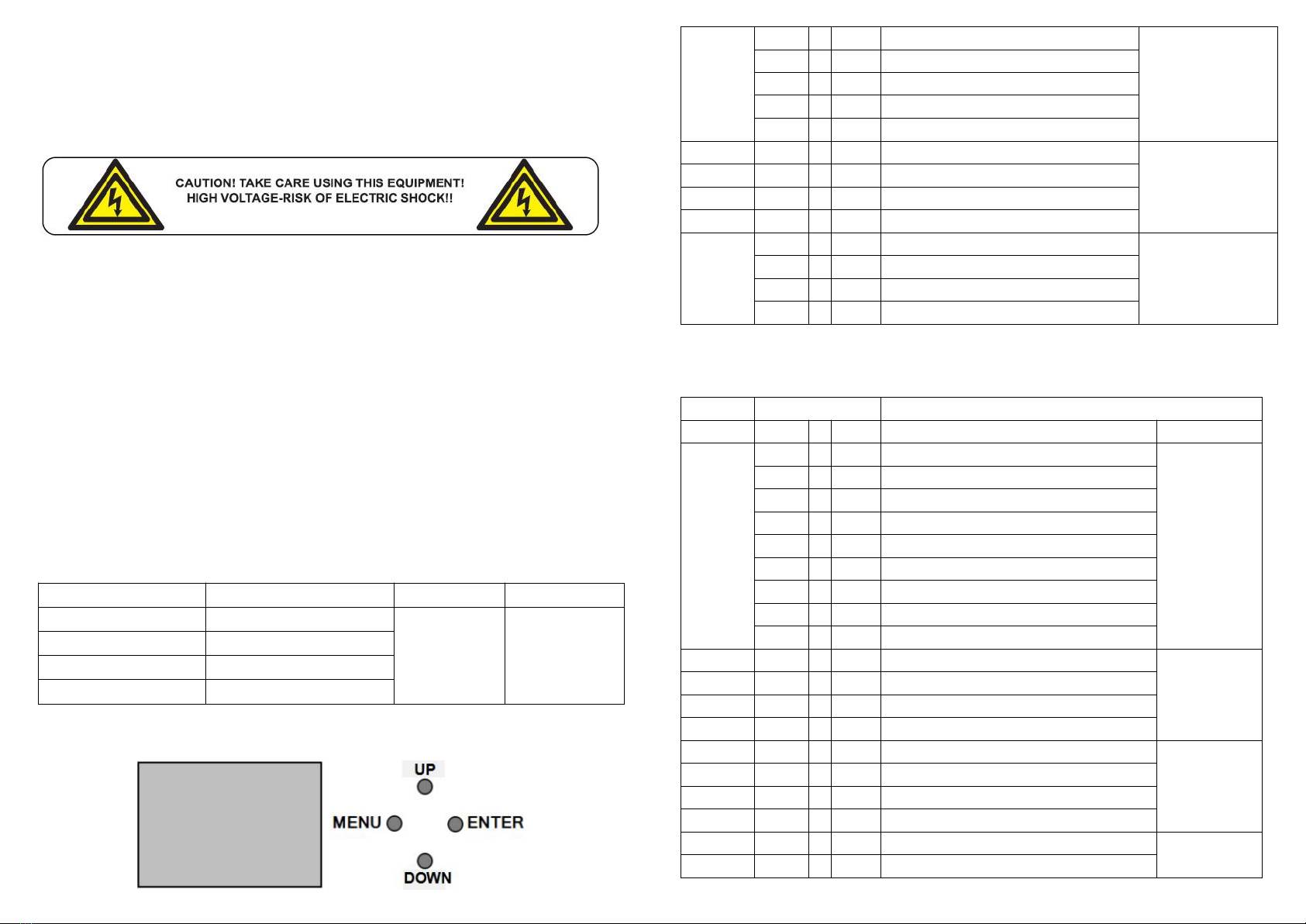

Item
No.
Display
Function
Button:
①
MENU
Enter/check menu
②
UP
Check the last menu
③
DOWN
Check the next menu
④
ENTER
Enter the menu or confirm
V.Display Function:
System Settings
Menu 1
Menu 2
Menu 3
Function
Address settings
DMX
001-512
DMX Address Code
Wireless
001-512
Wireless Signal
Art-Net
DMX Address
DMX Address Code
IP Address
IP Address
Subnet
Subnet mask
PortAddress
PortAddress
Channel Mode
4CH
Channel 4 Mode
16CH
Channel 16 Mode
22CH
Channel 22 Mode
Auto Mode
Show Mode
Auto0
Random Show
Auto1-8
Show mode 1-8
Show Speed
01-99
Speed Slow to Fast
MASL Mode
Auto0
Random Show
Auto1-12
Show mode 1-12
MASL Speed
01-99
Slow to Fast
Sound Mode
Off
Sound close
On
Sound open
Sound Sense
00-99
Sound sensitivity
Slave Mode
Master
Master
Slave
Slave
Slave 1
Slave 1
Slave 2
Slave 2
Slave 3
Slave 3
Slave 4
Slave 4

LED Settings
（WhiteBalance）
Red
000-255
Red
Green
000-255
Green
Blue
000-255
Blue
Advanced Settings
Display
Off/On
LCD backlight switch, Off/On
Display Inverse
No/Yes
Display positive / negative
Language
English
English Version
Chinese
Chinese Version
DMX Fail
Auto
DMX Autorun
Black
DMX off/ black
Hold
DMX hold
Software
V1.0
Software Version 1.0
VI. How to operate
Here are two ways to operate:
1. Master/slave build-in program to control
2. DMX controller
1. Master/slave built in Function:
1) Automatically identify Master/slave light
2) Automatically set up master/slave light
All lights are initially installed as main machine.Connect the lights in series,they
are automatically acquiescence one as the main and the others as the slave
mode. You can also specify one for the main and the rest for slave.
2. DMX controller
If control by DMX controller, then you need to set the address code to control
the light, the address code value is 1-512, the light could receive the signal
accordingly.
Press MENU button,select menu, press ENTER button,address will
strobe.Use UP /DOWN to select DMX512 address,we have fixed it as “Address
001” when the light is ready in stock. After address fixed,press ENTER button.
Connect DMX512 controller output to the DMX input of the first slave
machine,then first machine output connect to the second machine DMX input and
so on, until you connect all slave machine.
DMX-512 Connection required terminal device (Loop connection)
In the installation process, if the distance of the signal line between each other is
far, or in the noisy environment, such as KTV or Dancing Hall, the DMX terminal
(loop connection) is recommended.This can avoid the turbidity of digital control
signals caused by electrical noise.The DMX terminal is made up of a simple XLR
connection head (2-pin and 3-pin) connecting to a 120Ωresistor. Please insert
the terminal into the XLR output port of the last device. Please refer to the
following picture:
VII.Channel (choose default address code)
［Sheet 1］DMX channel (4CH) - (DMX address 001)
CH
Value
Function
CH1
000
-
255
Red linear dimmer,0-100%
LED
CH2
000
-
255
Green linear dimmer,0-100%
CH3
000
-
255
Blue linear dimmer,0-100%
CH4
000
-
255
Red linear dimmer,0-100%
