Lucas Led L-215 User manual

Attention: Suggest every 30pcs set a main power input,
number of connections should use a signal amplification in
the middle,it surface is toughened glass, please do not use
sharp objects knock it.
Packing Accessories List:
Spare parts
Quantity
Power cable
1pc
User manual
1pc
Connection
1pc
Warranty card
3D LED Dance Floor
User Manual
Please read this user manual before using this product

﹥Technical parameters:
Voltage: AC100V-240V 50/60Hz
Power Consumption：30W
LED: SMD5050 LED 216pcs (R72pcs,G72pcs,B72pcs)
Control Mode: Auto, sound active, dmx512 and master/slave
Channel: a000-a255( 6CH)
Size: 500mm×500mm×70mm
Packing size: 570mm×220mm×580mm (2pcs)
Net weight: 12kg

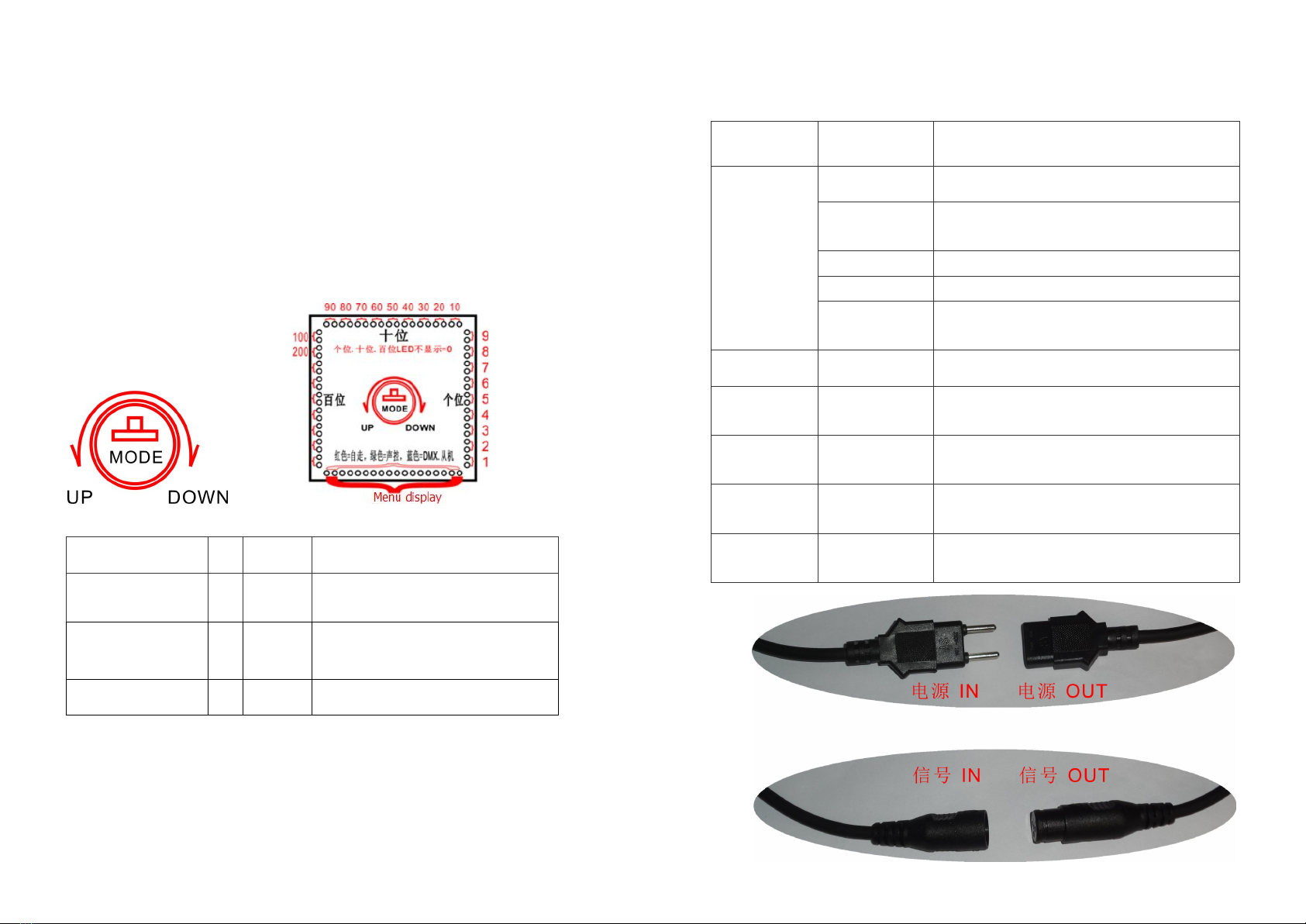

Digital display and key function:
MODE/(ENTER)
UP
DOWN
Function
Red
+
-
Auto mode（Speed adjustable 0
fast---255 slow）
Green
+
-
Sound active
(0---255 sensitivity adjustable）
Blue
+
-
DMX512 master/slave
﹥Master/slave no limited in channel choose
﹥DMX channel: (When in master/slave mode, the master
can auto running and controlled by music)
Channel
Value
Function
CH1
0
LED Off
1-----80
Auto running（CH2 speed adjustable
0-255）
81--160
Sound active
161--240
Brightness adjustable（CH2 0-255）
241--255
CH3.4.5.6 color choose（CH2 no
function）
CH2
0-----255
Channel adjustable
CH3
0-----255
A color choose（ 00-34LED Off, 35-255
can choose seven colors）
CH4
0-----255
B color choose（00-34LED Off, 35-255
can choose seven colors）
CH5
0-----255
C color choose（00-34LED Off, 35-255
can choose seven colors）
CH6
0-----255
D color choose（00-34LED Off, 35-255
can choose seven colors）
