luceco Ceres Standard LHBC11S Series Manual

Page 4

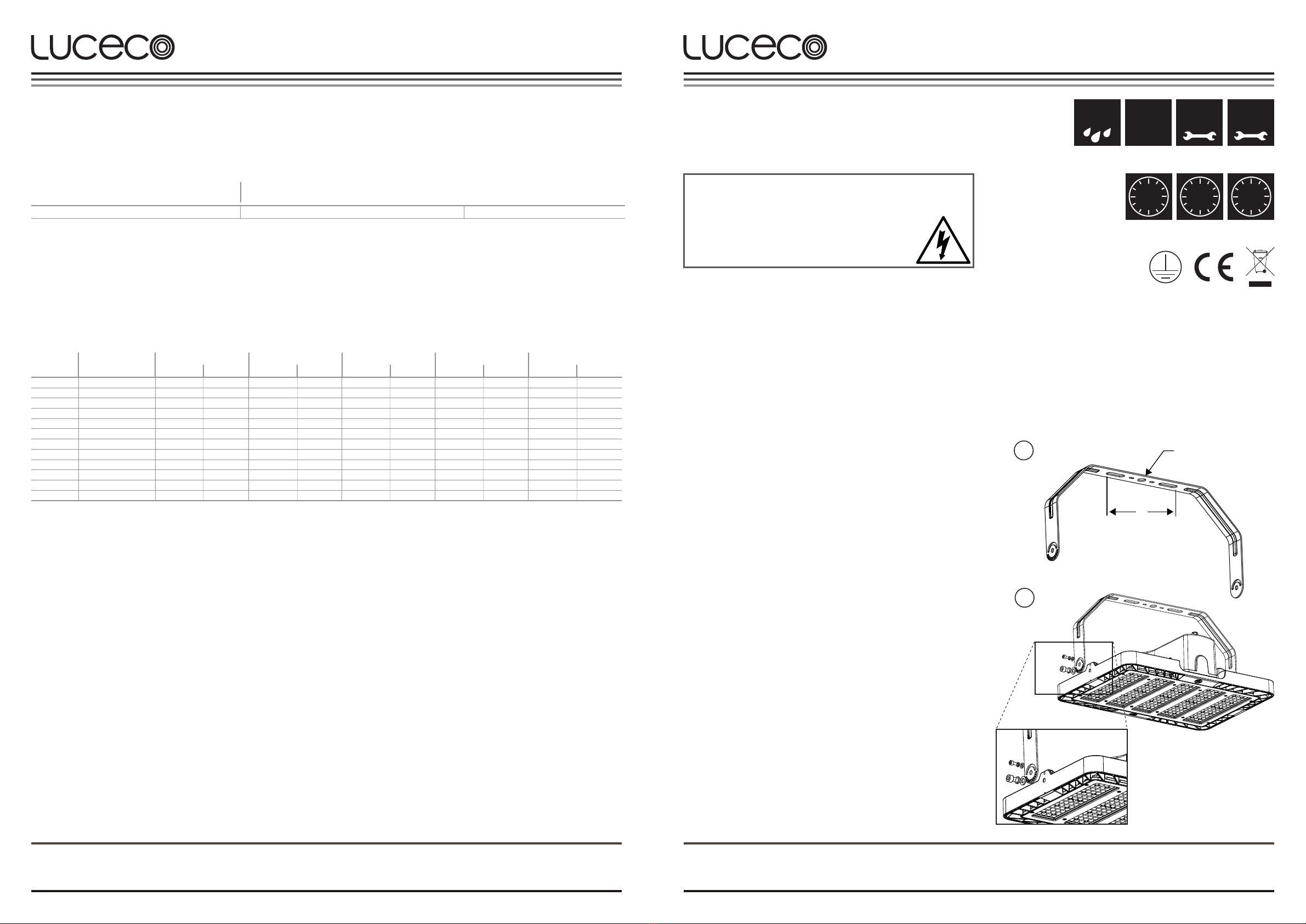

EMERGENCY LIGHTING TESTING
Months 1 to 11 inclusive – Function Test, interrupt the permanent/UnSwitched supply and check the luminaire operates in Emergency
mode at reduced output
Month 12 (Annual) – As months 1 to 11 but for a full 3hr duration
Luminaire Ref / Location: ........................................ In Case of difficulty, contact the Installation Engineers:- Tel: .........................................................
LHBCx11Exx/LHBCx22EXX Duration 3hr Lamp Type - LED
INITIAL USE AND ROUTINE TESTING
From initial install the downlight will require up to 24hr for the batteries to be fully charged and provide the rated 3hr duration
in Emergency mode. Then following subsequent Emergency use, from full discharge will take approx. 14hr to fully recharge batteries.
It is important that the luminaire is routinely tested to ensure the batteries are conditioned and also to fully comply with BS5266.
A function test should be conducted every month with an annual test of the full 3hr duration. Records can be kept on the adjacent table.
It is recommended that batteries are replaced every 4 years to ensure the optimum charging cycle is maintained.
Month Test
1 Function
2 Function
3 Function
4 Function
5 Function
6 Function
7 Function
8 Function
9 Function
10 Function
11 Function
Annual Full Test
Signed Date
Fifth Year
Signed Date
Fourth Year
Signed Date
Third Year
Signed Date
Second Year
Signed Date
First Year
Page 1
Tech Help Line
UK - 0330 0249 279
Non UK - [phone]
Supplied by LUCECO
Stafford Park 1, Telford,
Shropshire, England, TF3 3BD
Visit our website at
www.luceco.com
LHB.JH.04.2017
Tech Help Line
UK - 0330 0249 279
Non UK - [phone]
Supplied by LUCECO
Stafford Park 1, Telford,
Shropshire, England, TF3 3BD
Visit our website at
www.luceco.com
LHB.JH.04.2017

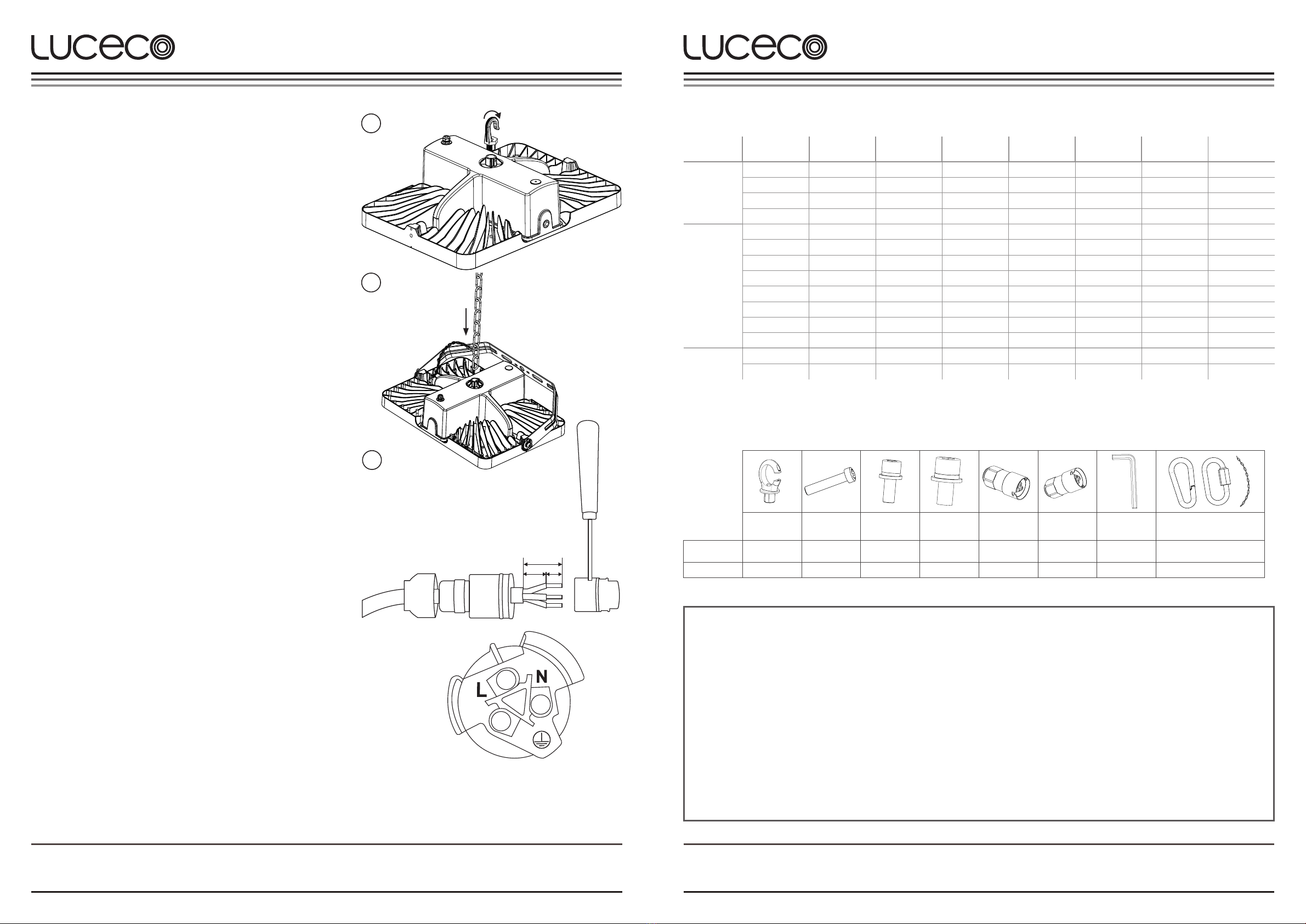

SUGGESTED METHOD OF INSTALLATION
1. Identify a suitable location for installation.
2. Trunking:– This can be mounted using the central 20mm hole
(a)
For surface installation:– Use suitable fixing through fixing
points (b)
3. The main housing is assembled to the bracket as shown.
Larger bolt and washers are used for main fixings.
Smaller bolt and washers are used for tilt adjustment slot
Installation & Operating Instructions
LED INDUSTRIAL
CERES HIGHBAY
IP65
RATED 1
WARRANTY
year
on site 5
WARRANTY
year
extended
NOTE – To comply with regulations, installation must be carried out by suitably
qualified competent person and in accordance with the current IEE Wiring
Regulations (BS7671) and Building Regulations. A copy of the instructions must
be left for the user/maintenance engineer for future reference.
For non-UK, please refer/consult local requirements
ENSURE ELECTRICAL SUPPLY IS DISCONNECTED/
ISOLATED BEFORE COMMENCING INSTALLATION
CRI
80
>
ASSEMBLY AND INSTALLATION
• Suitable for use with mains voltage 110-240V AC
• This product is pre-wired, with no user serviceable components.
Opening the luminaire may void the IP65 rating and warranty
Installation & Operating Instructions
UK ONLY
70,000
HOURS
100,000
HOURS
50,000
HOURS
STANDARD EXTRA ULTRA
a
b
2
3

Page 2 Page 3
Tech Help Line
UK - 0330 0249 279
Non UK - [phone]
Supplied by LUCECO
Stafford Park 1, Telford,
Shropshire, England, TF3 3BD
Visit our website at
www.luceco.com
LHB.JH.04.2017
Environmental Protection W.E.E.E (Wheelie Bin Symbol for EU ONLY)
This symbol is known as the “crossed-out” wheelie Bin Symbol”. When this symbol is marked on a product or battery, It means that it should not be disposed of
with your general household waste. Some chemicals contained within electrical/electronic products or batteries can be harmful to health and the environment.
Only dispose of electrical/electronic/battery items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your
co-operation is vital to ensure the success of these schemes and for the protection of the environment.
United Kingdom Warranty
For other territories and for further information, please see www.luceco.com for details
Products are protected by guarantee for a period of 5 year warranty, from date of purchase against defects in material and workmanship (unless otherwise stated). Should
a product fail to perform as described within the warranty period it will be repaired or replaced with the same or equivalent product by Luceco, free of charge provided
that you: (1) return the product to us with shipping charge prepaid, (2) provide us with proof of the original date of purchase and (3) quote our return authorization number.
Repaired or replaced products will be returned to you with shipping charges prepaid. Replacement products may be refurbished or contain refurbished materials. If in our
sole discretion, we are unable to repair or replace a defective product, we will refund the purchase price of the product.
This warranty will not apply if in our judgment, the product fails due to damage in shipment, handling, storage, accident, abuse or misuse, or if it has been used in a
manner not conforming to our product instructions, has been modified in any way, or has any serial number removed or defaced. Repair or attempted repair will void this
warranty. Our maximum liability under the terms of this warranty is limited to the purchase price of the product covered by the warranty.
The warranty is given under English Law. If any part of this warranty is deemed unenforceable (including any provision in which we exclude our liability to you) the
enforceability of any other parts of the warranty will not be affected. These terms do not reduce your statutory rights.
For Non-UK please contact Local Luceco Office for details. THESE TERMS AND CONDITIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
Eventually, you may want to replace this fitting;
Tech Help Line
UK - 0330 0249 279
Non UK - [phone]
Supplied by LUCECO
Stafford Park 1, Telford,
Shropshire, England, TF3 3BD
Visit our website at
www.luceco.com
LHB.JH.04.2017
Range Code L70 Life Rated Voltage Power PF Weight Emergency
Duration
Luminaire
Lumens
Ceres
Standard
LHBC11Sxx 50,000hrs 110-240V AC 100W >0.9 9.8kg N/A 11,000
LHBC11Exx 50,000hrs 220-240V AC 100W >0.9 10.4kg 3HR 11,000
LHBC22Sxx 50,000hrs 110-240V AC 190W >0.9 9.8kg N/A 22,000
LHBC22Exx 50,000hrs 220-240V AC 190W >0.9 10.4kg 3HR 22,000
Ceres Extra
LHBCX9Sxx 70,000hrs 220-240V AC 64W >0.9 9.2kg N/A 8,800
LHBCX9Dxx 70,000hrs 220-240V AC 64W >0.9 9.8kg N/A 8,800
LHBCX11Dxx 70,000hrs 220-240V AC 80W >0.9 9.8kg N/A 11,000
LHBCX11Exx 70,000hrs 220-240V AC 80W >0.9 10.4kg 3HR 11,000
LHBCX16Dxx 70,000hrs 220-240V AC 115W >0.9 9.8kg N/A 16,000
LHBCX22Dxx 70,000hrs 220-240V AC 160W >0.9 13.2kg N/A 22,000
LHBCX22Exx 70,000hrs 220-240V AC 160W >0.9 13.2kg 3HR 22,000
LHBCX27Dxx 70,000hrs 220-240V AC 195W >0.9 13.2kg N/A 27,000
Ceres Ultra LHBCU11Sxx 100,000hrs 220-240V AC 80W >0.9 9.8kg N/A 11,000
LHBCU16Sxx 100,000hrs 220-240V AC 115W >0.9 12.5kg N/A 16,000
TECHNICAL INFORMATION
Installation & Operating Instructions Installation & Operating Instructions
4. For chain suspension:–Install the central suspension hook
by rotating clockwise into central hole on rear of product
5. Mount the hook onto chain or wire as required. Use the locking
screw to secure the chain/wire in the hook
6. Ensure all fixings are secure
7. An optional safety chain is also provided, should the primary fixing
method fail. This chain is to be fixed to the luminaire at the point
shown,with the other end of the chain free for fixing at a suitable
point, determined by the installer
ELECTRICAL CONNECTION
8. Fixed output versions:–
• Connect pre-wired cable to power supply,
observing correct polarity
Live – Brown
Neutral – Blue
Earth – Green/Yellow
For Dimmable versions:–
• This product is supplied with 2 pre-wired cables with
IP65 connectors, suitable for HO5RN-F cable, 1–2.5mm2,
connect supplied connectors as marked
• Input power – 3 core connection for Live, Neutral and Earth
• Dimming control – 2 core connection for DALI L – L, DALI N – N
• Connect power as shown, ensuring terminals are secure
and seals are correct
9. Turn on power and operate as required
For Sensor version:–
• For commissioning and installation, refer to sensor
instructions supplied
4
8
30mm
22mm 8mm
7
ACCESSORIES
Hook
x1
Locking screw -
M4 x1
Hex bolt - M16
x2
Hex bolt - M10
x2
Power Connector
x1
DALI Connector
x1
Allen Key
x1 Safety chain
Ceres Standard/
