DMM-402/UPC-231
T-DMB/DAB Modulator
PCI Adaptors
Manual Ver 1.0
Reference and Installation Guide
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

DMM-402/UPC-231
T-DMB/DAB Modulator
PCI Adaptors
Manual Ver 1.0
Reference and Installation Guide
“is manual is Installation Guide for LUMANTEK PCI Adaptor Users”
All specifications and features are subject to change without notice.
For the Device Driver, you may download on the web.
Others:
Written on: Jul, 2005
Revised on: Jun 2007 (1’st)
LUMANTEK Co., Ltd Lab
Tel: 82-2-2027-2400, Fax: 82-2-2027-2409
ese Installation Guide includes as bellows PCI Adaptors.
1. DMM-402 (DMB Modulation PCI ADAPTER)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Trademarks and copyright
COPYRIGHT © 2006, LUMANTEK Unit 1208, Woolim Lion’s Valley II, 680 Gasan-Dong, Gumcheon-Gu, Seoul
Korea (153-830), Tel: [phone], Fax: [phone] All rights reserved.
This document contains information that is proprietary to LUMANTEK. No part of this publication may be
reproduced, stored in a retrieval system, or transmitted, in any form, or by any means, electronically, mechanically,
by photocopying, or otherwise, without the prior written permission of LUMANTEK. Nationally and internationally
recognized trademarks and trade names are the property of their respective holders and are hereby acknowledged.
Portions of this software are © 1996-2006 LUMANTEK Ltd. All intellectual property rights in such portions of the
Software and documentation are owned by LUMANTEK and are protected by United States copyright laws, other
applicable copyright laws and international treaty provisions. LUMANTEK and its suppliers retain all rights not
expressly granted.
Disclaimer
The information in this document is furnished for informational purposes only, is subject to change without prior notice,
and should not be construed as a commitment by LUMANTEK.
The information in this document is believed to be accurate and reliable; however LUMANTEK assumes no
responsibility or liability for any errors or inaccuracies that may appear in this document, nor for any infringements of
patents or other rights of third parties resulting from its use. No license is granted under any patents or patent rights of
LUMANTEK.
This document was written by the Technical Support Department of LUMANTEK, Korea. We are committed to
maintaining a high level of quality in all our documentation. Towards this effort, we welcome your comments and
suggestions regarding the content and structure of this document. Please fax or mail your comments and suggestions to
the attention of:
LUMANTEK Attn: Product Support Department Unit 1208, Woolim Lion’s Valley II, 680 Gasan-Dong, Gumcheon Gu,
Seoul Korea (153-830), [phone], Fax: [phone]
Environmental Issues
Thank you for buying a product which contributes to a reduction in pollution and thereby helps save the environment.
Our products reduce the need for travel and transport and thereby reduce pollution. Our products have either no or few
consumable parts (chemicals, toner, gas, paper). Our products are low energy consuming products.
Waste handling:
There is need to send material back to LUMANTEK. Please contact your local dealer for information on recycling the
product by sending the main parts of the product for disassembly at local electronic waste stations.
Production of products:
Our factories employ the most efcient environmental methods for reducing waste and pollution by ensuring that the
products are recyclable.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Operator Safety Summary
For your protection, please read these safety instructions completely before operating the equipment and keep this
manual for future reference. The information in this summary is intended for operators. Carefully observe all warnings,
precautions and instructions both on the apparatus and in the operating instructions.

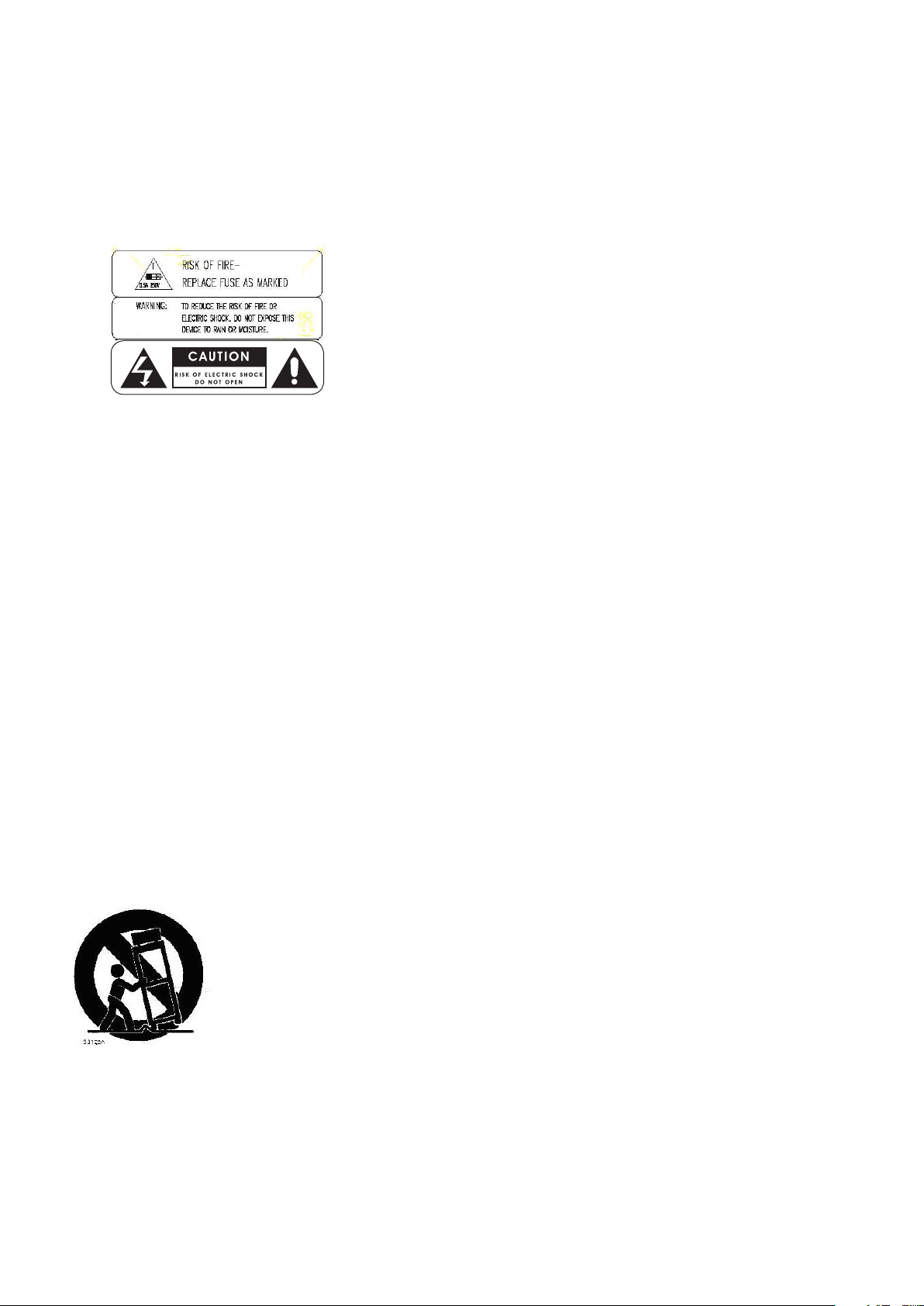

Equipment Markings
The lighting ash symbol within an equilateral triangle is intended to alert the user
to the presence of uninsulated “dangerous voltages” within the product’s enclosure
that may be of sufcient magnitude to constitue a risk of electrical shock.
The exclamation mark within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
within literature accompanying the equipment.
Warnings
Water and Moisture - Do not operate the equipment under or near water - for example near a bathtub, kitchen sink, or
laundry tub, in a wet basement, near a swimming poor or in areas with high humidity.
Cleaning - Unplug the apparatus from the wall outlet before cleaning or polishing. Do not use liquid cleaners or aerosol
cleaners. Use a lint-free cloth lightly moistened with water for cleaning the exterior of the apparatus.
Ventilation - Do not block any of the ventilation openings of the apparatus. Install in accordance with the installation
instructions. Never cover the slots and openings with a cloth or other material. Never install the apparatus near heat
sources such as radiator, heat registers, stoves, or other apparatus (including ampliers) that produce heat.
Grounding or Polarization - Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plus has two blades and a third grounding prong.
The wide blade or third prong is provided for your safety. If the provided plug does not t into your outlet, consult an
electrician.
Power-Cord Protection - Route the power cord so as to avoid it being walked on or pinched by items placed upon or
against it, paying particular attention to the plugs, receptacles, at the point where the cord exits form the apparatus.
Attachments - Only use attachments as recommended by the manufacture.
Accessories - Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Lighting - Unplug this apparatus during lightning storms or when unused for long periods of time.
ISDN cables - CAUTION - to reduce the risk of re, use only No. 26 AWG or larger
telecommunication line cord.
Servicing - Do not attempt to service the apparatus yourself as opening or removing covers may
expose you to dangerous voltages or other hazards, and will void the warranty. Refer all servicing to
qualied service personnel.
Damaged Equipment - Unplug the apparatus from the outlet and refer servicing to qualied personnel
under the follwing conditions:
When the power cord or plug is damaged or frayed
If liquid has been spilled or objects have fallen into the apparatus
If the apparatus has been exposed to rain or moisture
If the apparatus has been subjected to excessive shock by being dropped, or the
cabinet has been damaged
If the apparatus fails to operate in accordance with the operating instruction
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

CONTENTS
2-1. Hardware Installation----------------------------------------------------------8
2-2. Driver Installation---------------------------------------------------------------9
2-3. Verication of Device Driver -------------------------------------------------12
1-1. Overview --------------------------------------------------------------------------6
1-2. DMM-402--------------------------------------------------------------------------6
1-3. UPC-231 ---------------------------------------------------------------------------7
3-1. 1 Channel ETI Streaming Case (1*DMM-402 and 1*UPC-231) ------13
3-2. 2 Channel ETI Streaming case (1*DMM-402 and 2*UPC-231) ------13
2
1
PCI Adaptor Installation
T-DMB/DAB Modulator / Upconvertor PCI BUS
3
Cable Connecting for DMM-402 and UPC-231
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Reference and Installation GuideLumantek Co., Ltd. 6
1. T-DMB/DAB Modulator / Upconvertor PCI BUS
1-1. Overview
DMB Modulator PCI Adaptor is designed for OEM developer of T-DMB transmitter and provided
with Driver and API reference for customer’s own design application software.
DMM-402 is PCI DMB modulator and UPC-231 is PCI DMB RF Upconvertor and DMM-402 is
designed to be interfaced with max 2 UPC-231. At final, DMM-402 have ability to ETI streaming
( Upto 2 channel ) by 2 UPC-231 at the same time with different setting of value.
1-2. DMM-402
Key Features*
DAB/T-DMB Modulator PCI BUS•
Compliant with EN 300 401 andETS 300 799•
Support to all DAB Mode I, II, III, IV modes•
Easy ETI stream play out•
High Performance modulation (MER, IF Stability, and other)•
Support device driver and API for Window 2000/XP•
Offer double I/Q SMA port•
Output Frequency : Band II, III and L-Band•
Specication*
2 x IQ Output Support•
Output Voltage : 1 Vp-p•
Output Impedance : 50Ω•
Connector : SMA-Connector•
Physical Side View*
Side View
3D View
Top View
Front View
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

1. T-DMB/DAB Modulator / Upconvertor PCI BusLumantek Co., Ltd. 7
1-3. UPC-231
RF OUT*
Frequency•
Range : Band II : 87.5 MHz ~ 108 MHz
Band III : 174 MHz ~ 250 MHz
L Band : 1.452 GHz ~ 1.492 GHz
Resolution : Band II / III : 1 KHz
L Band : 100 KHz
Accuracy : ±1 ppm
Level•
Range : 0 dBm ~ -120 dBm
Resolution : 0.5 dB
Accuracy : ±1 dB
Connector : SMA - Connector
I/Q Input*
Input Voltage : 1 Vp-p•
Input Impedance : 50Ω•
Connector : SMA-Connector•
Simultaneous Band II / III, L-Band transmission and configuration I• 2C Interface -
Support daisy chain configuration
Power Requirements*
DC 12V (640mA), DC 5V (910 mA)•

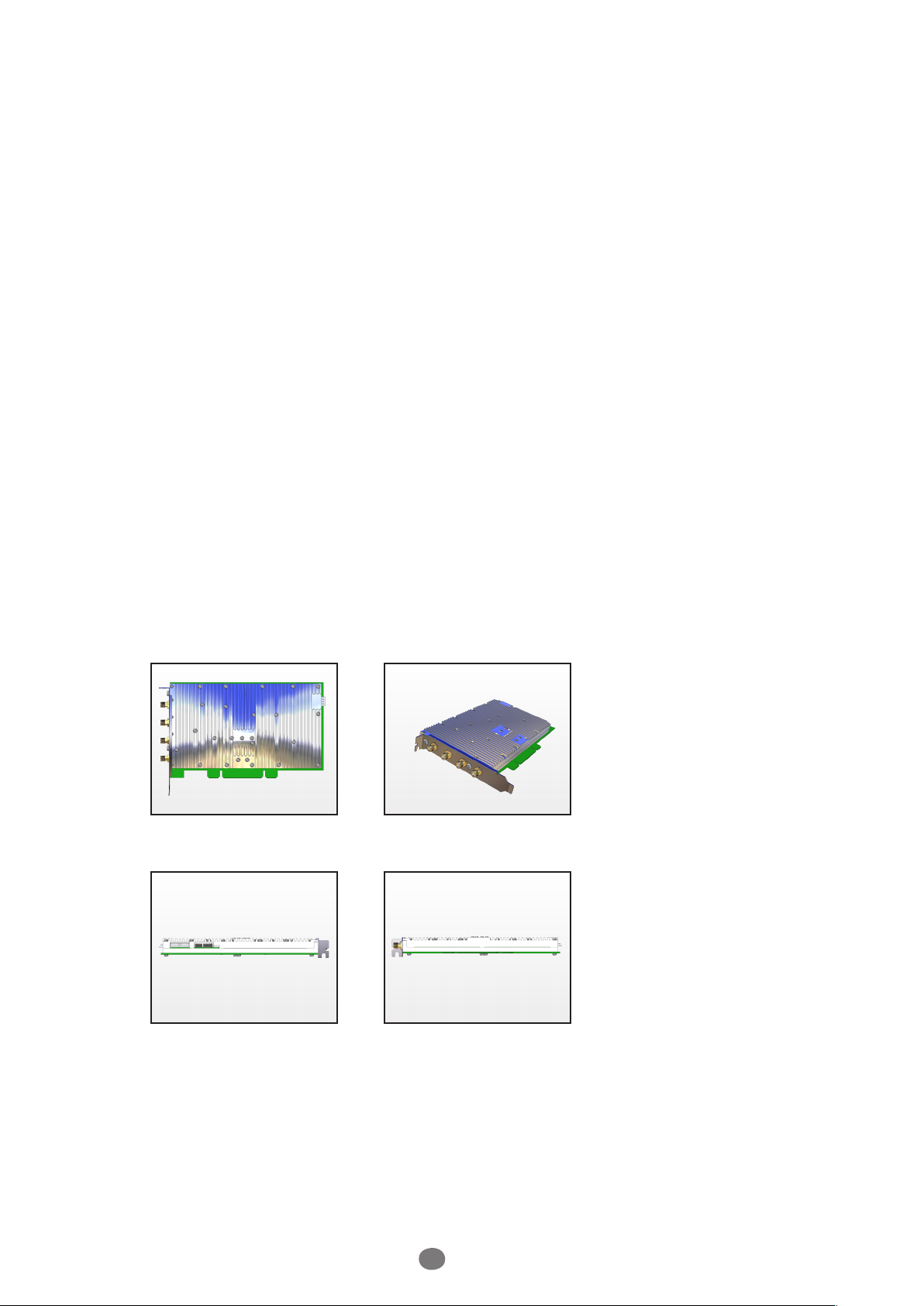

Physical Side View*
Right Side View
3D ViewTop View
Left Side View
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Reference and Installation GuideLumantek Co., Ltd. 8
2. PCI Adaptor Installation
Mount PCI Adaptor (DMM-402 & UPC-231) on computer and install Device Driver provided
with PCI Adaptor to operate. Just insert CD (provided with PCI Adaptor) into CD-ROM driver
and then you may install device driver easily to follow the request of computer dialogue box.
2-1. Hardware Installation
Computer power off and open the computer cover.1.
Plug in the Adaptor on PCI slot.2.
Fasten the adaptor into the bracket tightly.3.
Cover the computer cover.4.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2. PCI Adaptor Installation
Lumantek Co., Ltd. 9
2-2. Driver Installation

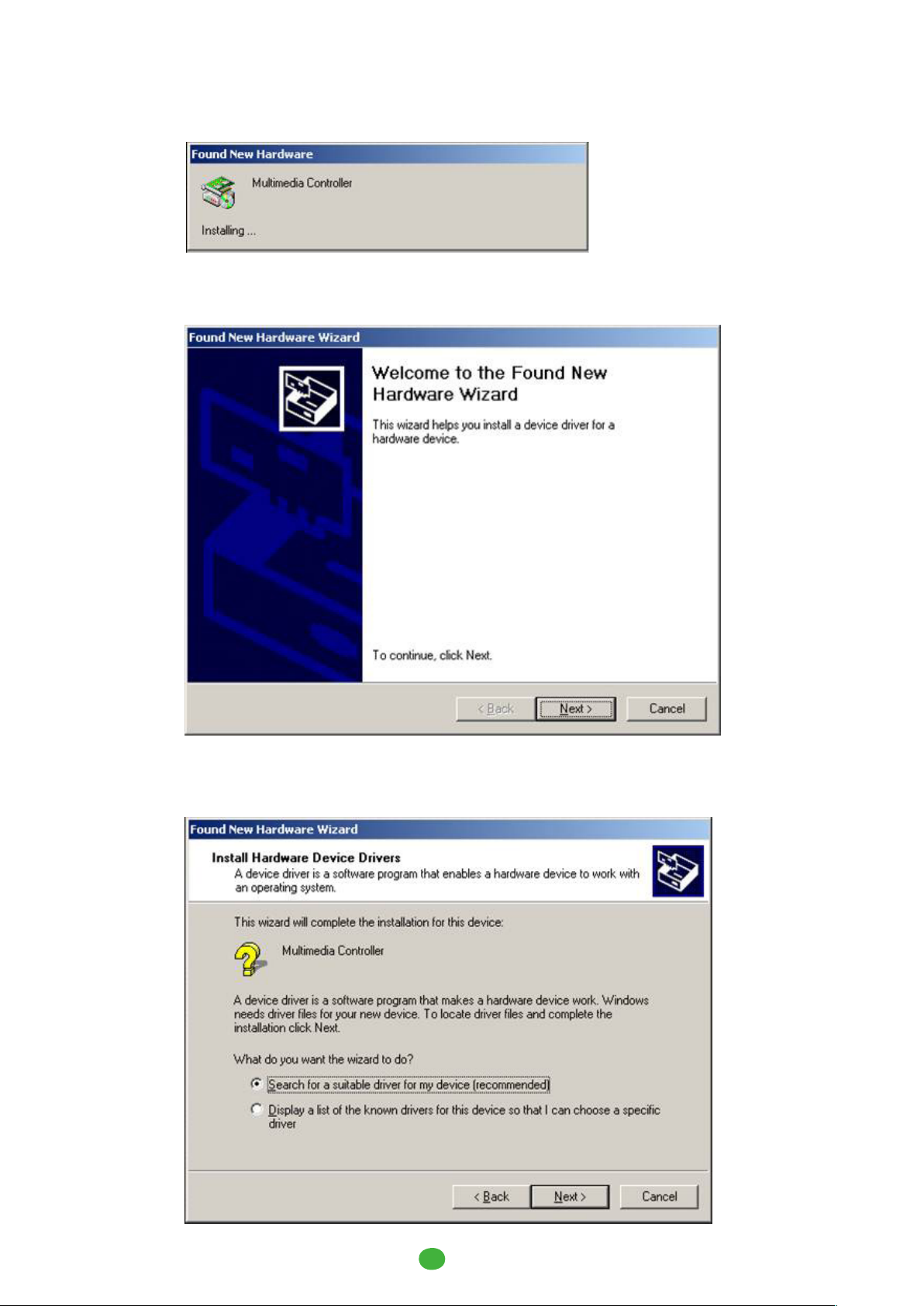

Computer recognizes new device driver as Window starts after PCI Adaptor plug in.1.
Hardware Wizard will operate after the Adaptor is recognized on computer. To install,2.
click “Next” menu box.
To install the driver provided with the Adaptor, select ‘Search for a suitable driver for my3.
device (recommended)’ menu, then click ‘Next’ button.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Reference and Installation GuideLumantek Co., Ltd. 10

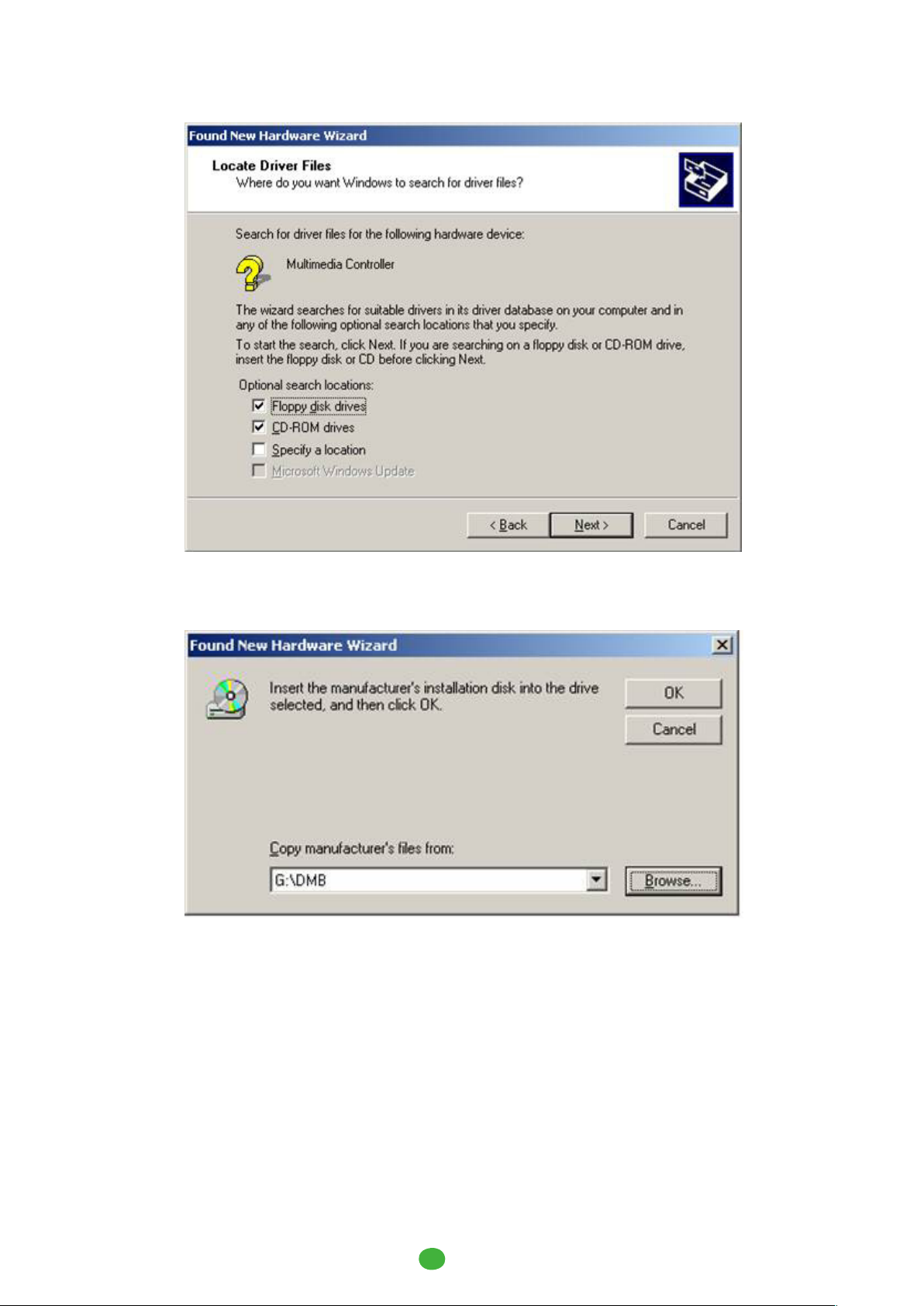

Device Driver is in CD-ROM provided with Adaptor, so, select ‘CD-ROM drivers’4.
and click ‘Next’ button
Select the driver location in CD-ROM using ’Browse…’ button. (Egg: if the CD-ROM driver5.
is assigned on ‘G’ Driver, then you may make “G:\DMB directory” and click ‘OK’ button.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2. PCI Adaptor Installation
Lumantek Co., Ltd. 11

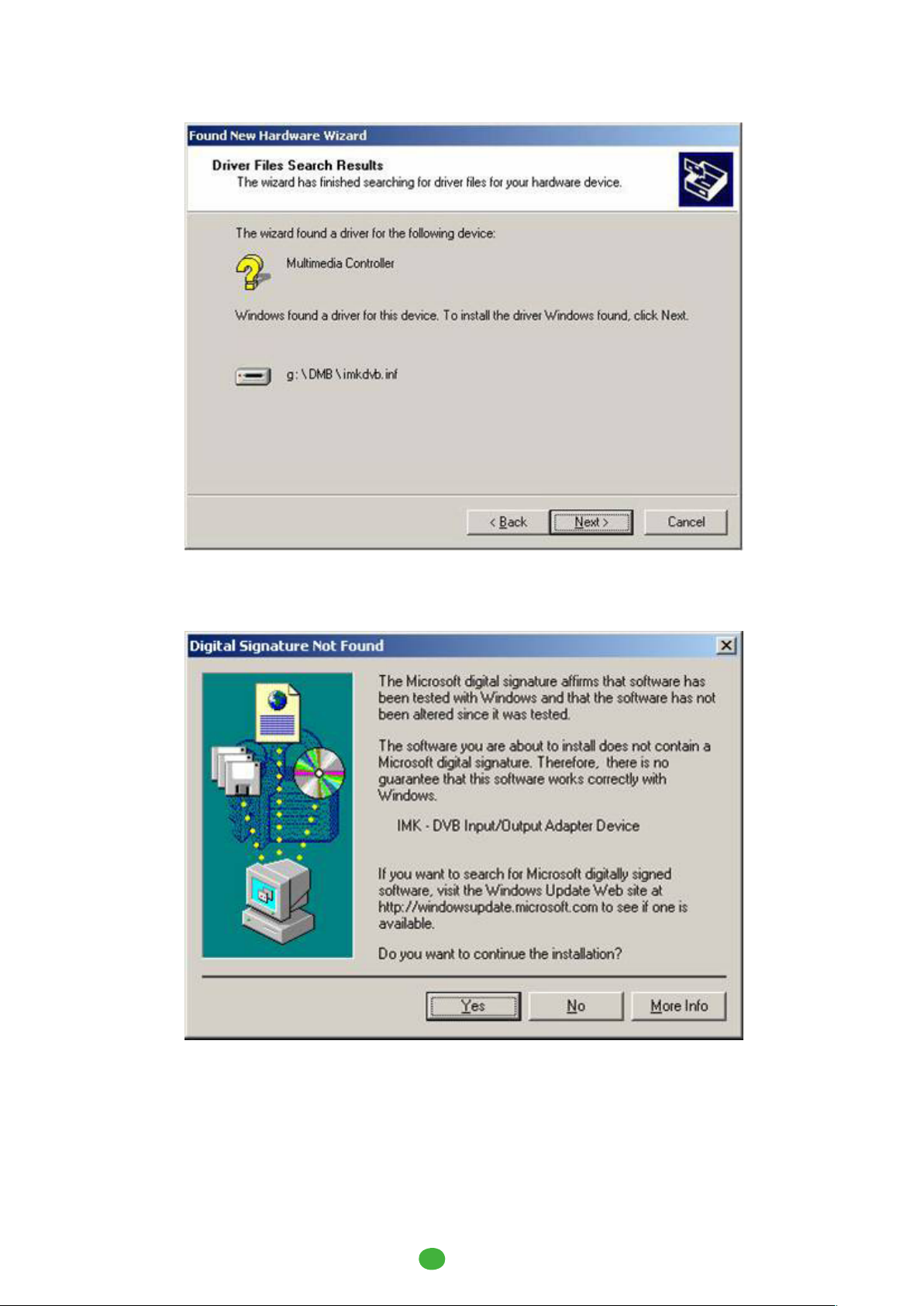

You already found out the driver on above paragraph #5 action, click ‘Next’ button6.
on ‘Driver Files Search Results’ window.
Device Driver will be installed as you click ‘Yes’ button on7.
’Digital Signature Not Found’ window.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Reference and Installation GuideLumantek Co., Ltd. 12

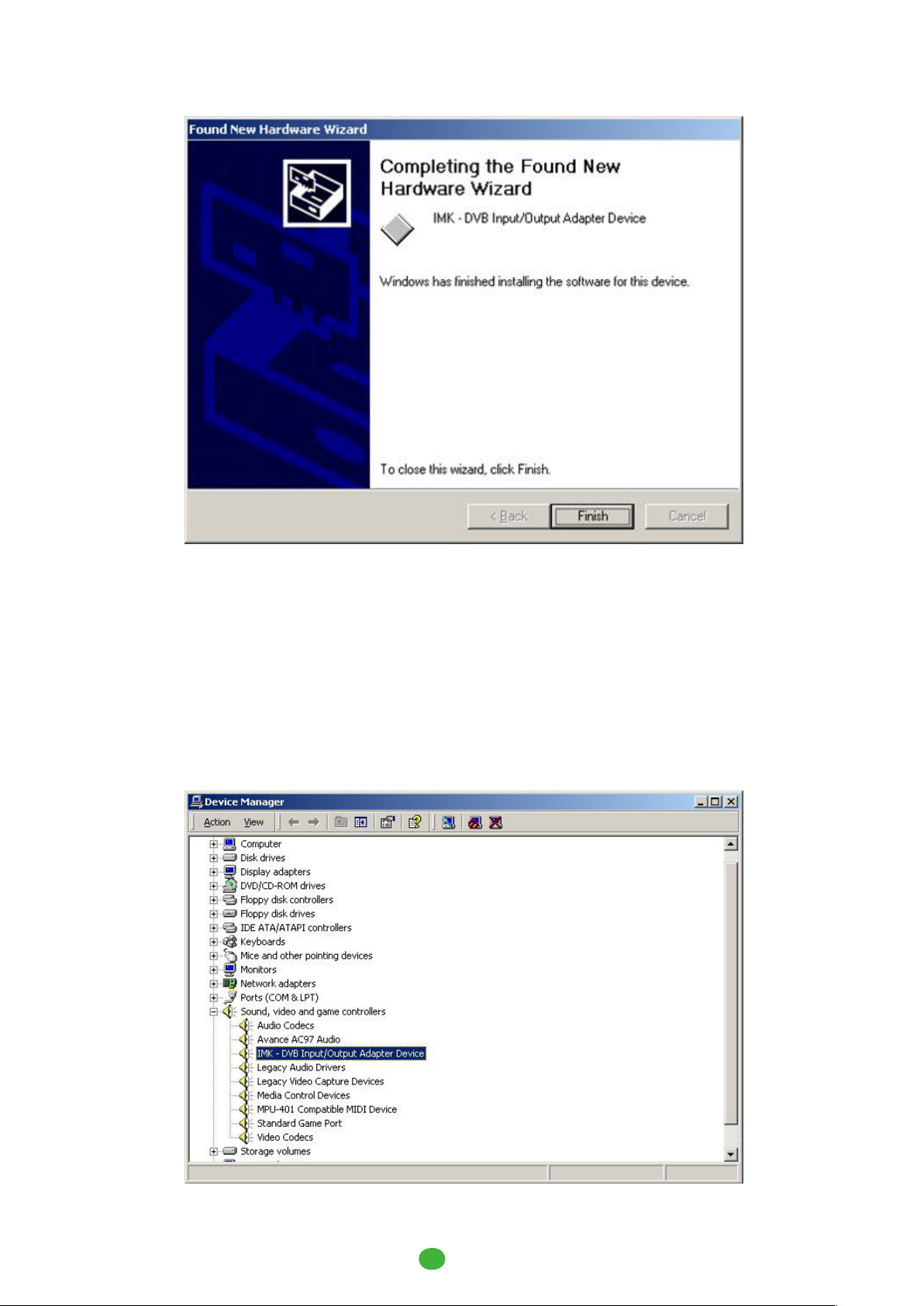

is means ‘IMK-DVB Input/Output Adapter Device’ was installed.8.
Click ‘Finish’ button to complete installation.
2-3. Verication of Device Driver
If Device Driver is installed successfully doing above action, you can see on ‘Device Manager
window’ that ‘IMK-DVB Input/Output Adaptor Device’ is installed. (You may select ‘Device
manager’ through ‘Start’ → ’Settings’ →’Control Panel’ →’System’ →’Hardware’ →’Device
Manager.’)
If “Device Manager is not assigned or collision and protection, etc.” are appeared on monitor, then it
means ASI Card Device Driver was not installed correctly.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

3. Cable Connecting for DMM402 and UPC 231Lumantek Co., Ltd. 13
3. Cable Connecting for DMM-402 and UPC-231
3-1. 1 Channel ETI Streaming Case (1*DMM-402 and 1*UPC-231)
Connect I1. 2C cable from card j(DMM-402) to card k(UPC-231).
You could connect to whether right or left I2C socket of UPC-231
e left side ADDRESS jumper must leave as factory default.2.
Also, do not touch jumper #1 and #2 which are blocked by tube. You could use jumper #3 or #4.
When one UPC-231 is mounted, you have to plug in jumper at ADDRESS #3.
(Jumper #4 is open)
en, connect to 4-pin power cable which we supplied.3.
3-2. 2 Channel ETI Streaming case (1*DMM-402 and 2*UPC-231)
When you install 2 UPC-231 PCI cards with 1 DMM-402 PCI, do not set same ADDRESS1.
on both UPC-231 PCI cards. For example, plug in one jumper at ADDRESS#3 of upper
UPC-231 and plug in another jumper at ADDRESS #4 of down UPC-231.
For the ADDRESS #1 and #2 , do not use them.
I2. 2C cable from card k(DMM-402) may be interfaced with I2C socket of any UPC-231
(card jor card l). en connect any right or left connector. For example, if I2C cable is
interfaced between card k(DMM-402) and card l(UPC-231) then another I2C cable should
be interfaced between card l(UPC-231) and card j(UPC-231) as above picture.
I2C I2C
#4
#2
#3
#1
Power
j
DMM-402
k
UPC-231
ADDRESS
ADDRESS
(Blocked)
Factory Default
(DO NOT USE)
I2C I2C
k
DMM-402
l
UPC-231
j
UPC-231
I2C
#4
#2
#3
#1
ADDRESS
ADDRESS
(Blocked)
Factory Default
(DO NOT USE)
Factory Default
(DO NOT USE)
Power
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Reference and Installation GuideLumantek Co., Ltd. 14
en, connect to 4-pin power cable which we supplied.3.
You can connect I/Q like above, in other way you can connect I-1 / Q-1 in left side,4.
or connect I-2 / Q-2 in right side.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

IMPORTANT NOTICE
LUMANTEK Incorporated and its subsidiaries (LMT) reserve the right to make corrections, modica-
tions, enhancements, improvements, and other changes to its products and services at any time and to
discontinue any product or service without notice. Customers should obtain the latest relevant information
before placing orders and should verify that such information is current and complete. All products are
sold subject to LMT’s terms and conditions of sale supplied at the time of order acknowledgment.
LMT warrants performance of its hardware products to the specications applicable at the time of sale in
accordance with LMT’s standard warranty. Testing and other quality control techniques are used to the
extent LMT deems necessary to support this warranty. Except where mandated by government require-
ments, testing of all parameters of each product is not necessarily performed.
LMT assumes no liability for applications assistance or customer product design. Customers are respon-
sible for their products and applications using LMT components. To minimize the risks associated with
customer products and applications, customers should provide adequate design and operating safeguards.
LMT does not warrant or represent that any license, either express or implied, is granted under any LMT
patent right, copyright, mask work right, or other LMT intellectual property right relating to any combina-
tion, machine, or process in which LMT products or services are used. Information published by LMT
regarding third–party products or services does not constitute a license from LMT to use such products or
services or a warranty or endorsement thereof. Use of such information may require a license from a third
party under the patents or other intellectual property of the third party, or a license from LMT under the
patents or other intellectual property of LMT.
Reproduction of information in LMT data books or data sheets is permissible only if reproduction is
without alteration and is accompanied by all associated warranties, conditions, limitations, and notices.
Reproduction of this information with alteration is an unfair and deceptive business practice. LMT is not
responsible or liable for such altered documentation.
Resale of LMT products or services with statements different from or beyond the parameters stated by
LMT for that product or service voids all express and any implied warranties for the associated LMT
product or service and is an unfair and deceptive business practice. LMT is not responsible or liable for
any such statements.
Mailing Address:
LUMANTEK Unit 1208, Woolim Lion’s Valley II, 680 Gasan-Dong, Gumcheon Gu, Seoul Korea
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Unit 1208, Woolim Lion’s Valley II,
680 Gasan-Dong, Gumcheon Gu, Seoul Korea
T. [phone] / F. [phone]
www.lumantek.com
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Artisan Technology Group is your source for quality
new and certied-used/pre-owned equipment
• FAST SHIPPING AND
DELIVERY
• TENS OF THOUSANDS OF
IN-STOCK ITEMS
• EQUIPMENT DEMOS
• HUNDREDS OF
MANUFACTURERS
SUPPORTED
• LEASING/MONTHLY
RENTALS
• ITAR CERTIFIED
SECURE ASSET SOLUTIONS
SERVICE CENTER REPAIRS
Experienced engineers and technicians on staff
at our full-service, in-house repair center
WE BUY USED EQUIPMENT
Sell your excess, underutilized, and idle used equipment
We also offer credit for buy-backs and trade-ins
www.artisantg.com/WeBuyEquipment
REMOTE INSPECTION
Remotely inspect equipment before purchasing with
our interactive website at www.instraview.com
LOOKING FOR MORE INFORMATION?
Visit us on the web at www.artisantg.com for more
information on price quotations, drivers, technical
specications, manuals, and documentation
Contact us: (888) 88-SOURCE | [e-mail] | www.artisantg.com
SM
View
Instra
