Lumascape LS602 User manual

FIGURE C
FIGURE A FIGURE B
Þ
Þ
18MM (0.71IN)
1INSTALLATION
C794US - 2006_11_REV-002
A
START
HERE
Warning: The Luminaire should only be used complete with its protective shield (cover)
IMPORTANT INSTRUCTIONS
t90 C
t90 C
1m
F
A.C.N. 010 572 773
For Installation: LS602 Narrow Pole Extension
UL available L
U
R
Further
information
over page
MODELS LS602 Narrow Pole Extension
LS192-1A LS192-2A LS782A LS112A LS132A
1. Align the end of the cable protruding from the main
pole with an end from the extra length of cable
supplied.
2. Split both ends down the centre to a length of
approximately 40mm (1.57in) so that there are now
4 cables. Strip the ends of all four cables back
approx. 20mm (0.79in).
3. Note the cable is indexed.(ie. one side is marked,
the other is not) Take the two indexed cables and
very lightly twist the strands together. Fit the
supplied yellow Scotch lock whilst applying
pressure. Keep twisting until very tight. Repeat this
process for the remaining two wires.
4. Take the now extended length of cable and insert
into the reduced end of the extra extension pole
supplied.
5. Place the end of the main pole over the reduced
section of the extension piece (Fig. C and D).
6. Using a 3.3mm (0.13in) drill bit, drill a hole 18mm
(0.71in) up from the end of the main pole through
both pole walls. Ensure the drill bit is protruding only
a small distance from the drill chuck. This is to
prevent the internal cable from being damaged by
the drill bit (Fig. E).
7. Using the supplied stainless steel self tapping screw,
insert into drilled hole and firmly tighten being careful
not to strip the thread.
www.lumascape.com
INC.
Lumascape USA Inc. 2006©
LUMASCAPE
HEAD OFFICE
T 07 3286 2299 F 07 3286 6599
LUMASCAPE
SYDNEY - NSW
T 02 9519 6860 F 02 9519 8834
LUMASCAPE
MELBOURNE - VIC
T 03 9686 1900 F 03 9686 1700
ECC LIGHTING
LUMASCAPE AGENT - NZ
T 09 379 9680 F 09 308 9328
H.I. LIGHTING
LUMASCAPE AGENT - WA
T 08 9321 5422 F 08 9321 5881
NQ LIGHTING
LUMASCAPE AGENT - NTH QLD
T 07 4031 4490 F 07 4031 5933
T 1-(650)-595-LUMA(5862) 1-(650)-595-5820
LUMASCAPE USA INC
Free Call 1-866-695-LUMA(5862)
LIGHTING PARTNERS AUSTRALIA
LUMASCAPE AGENT - SA
T 08 8232 0074 F 08 8232 0076
Lumascape USA Inc.
1300 Industrial Rd., Unit #19
San Carlos, CA 94070, USA
T 1-(650)-595-LUMA(5862)
F 1-(650)-595-5820
E [email protected]
W www.lumascape.com
Free Call US & Canada1-866-695-LUMA(5862)

IMPORTANT INFORMATION
WARNING - To reduce the risk of FIRE or INJURY:
Luminaires and transformers to be installed by qualified installers only.
Luminaires to be used for intended purpose only. e.g Wall Mount fittings must be wall mounted.
Luminaires can become very hot. Use discretion in placement.
Do not touch hot lens, guard, or enclosure.
CAUTION - HOT SURFACE. Keep away from curtains and other combustible material.
Turn Off/Unplug and allow to cool before replacing lamp.
Keep lamp away from materials that may burn.
Never touch lamp with bare fingers. Oil from skin may damage lamp. Hold lamp with soft cloth when installing or replacing.
Do not operate the luminaires with a missing or damaged parts.
Replace any cracked protective shield
Use only lamp type, voltage and wattage as specified by Lumascape on the product label.
Use only genuine Lumascape parts to replace damaged or missing components.
Luminaires supplied with Loctite Silver Grade Anti Seize lubricant on threads. Reapply if needed.
Refer to instructions for installation and operating requirements.
Ensure installation complies with local regulations
SAVE THESE INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
IMPORTANT SAFETY INSTRUCTIONS
INC.
.lumascape.com
Lumascape USA Inc. 2006©
LUMASCAPE
HEAD OFFICE
T 07 3286 2299 F 07 3286 6599
LUMASCAPE
SYDNEY - NSW
T 02 9519 6860 F 02 9519 8834
LUMASCAPE
MELBOURNE - VIC
T 03 9686 1900 F 03 9686 1700
ECC LIGHTING
LUMASCAPE AGENT - NZ
T 09 379 9680 F 09 308 9328
H.I. LIGHTING
LUMASCAPE AGENT - WA
T 08 9321 5422 F 08 9321 5881
NQ LIGHTING
LUMASCAPE AGENT - NTH QLD
T 07 4031 4490 F 07 4031 5933
T 1-(650)-595-LUMA(5862) 1-(650)-595-5820
LUMASCAPE USA INC
LIGHTING PARTNERS AUSTRALIA
LUMASCAPE AGENT - SA
T 08 8232 0074 F 08 8232 0076
www
Free Call 1-866-695-LUMA(5862)

INC.
.lumascape.com
Lumascape USA Inc. 2006©
LUMASCAPE
HEAD OFFICE
T 07 3286 2299 F 07 3286 6599
LUMASCAPE
SYDNEY - NSW
T 02 9519 6860 F 02 9519 8834
LUMASCAPE
MELBOURNE - VIC
T 03 9686 1900 F 03 9686 1700
ECC LIGHTING
LUMASCAPE AGENT - NZ
T 09 379 9680 F 09 308 9328
H.I. LIGHTING
LUMASCAPE AGENT - WA
T 08 9321 5422 F 08 9321 5881
NQ LIGHTING
LUMASCAPE AGENT - NTH QLD
T 07 4031 4490 F 07 4031 5933
T 1-(650)-595-LUMA(5862) 1-(650)-595-5820
LUMASCAPE USA INC
LIGHTING PARTNERS AUSTRALIA
LUMASCAPE AGENT - SA
T 08 8232 0074 F 08 8232 0076
www
Free Call 1-866-695-LUMA(5862)
VOLTAGEDROP
LOAD
WATTAGE
DROP CABLE TRUNK CABLE
3.3mm2LS604 6mm2LS604-6 10mm2LS604-10
SINGLE DOUBLE SINGLE DOUBLE SINGLE DOUBLE
20 70m 140m 105m 210m 140m 280m
40 30m 60m 55m 110m 84m 168m
50 25m 50m 44m 88m 62m 124m
60 20m 40m 36m 72m 54m 108m
70 15m 30m 30m 60m 50m 100m
80 14m 28m 27m 54m 46m 92m
90 13m 26m 24m 48m 42m 84m
100 12m 24m 21m 41m 36m 72m
120 10m 20m 18m 36m 30m 60m
150 7m 14m 15m 30m 26m 52m
200 5m 10m 11m 22m 20m 40m
250 4m 8m 9m 18m 17m 34m
CAUTION The distances and wattages shown are maximum and should not be exceeded.
TRANSFORMER
20W
20m Circuit 1
60m Circuit 2
20W 20W 20W 20W

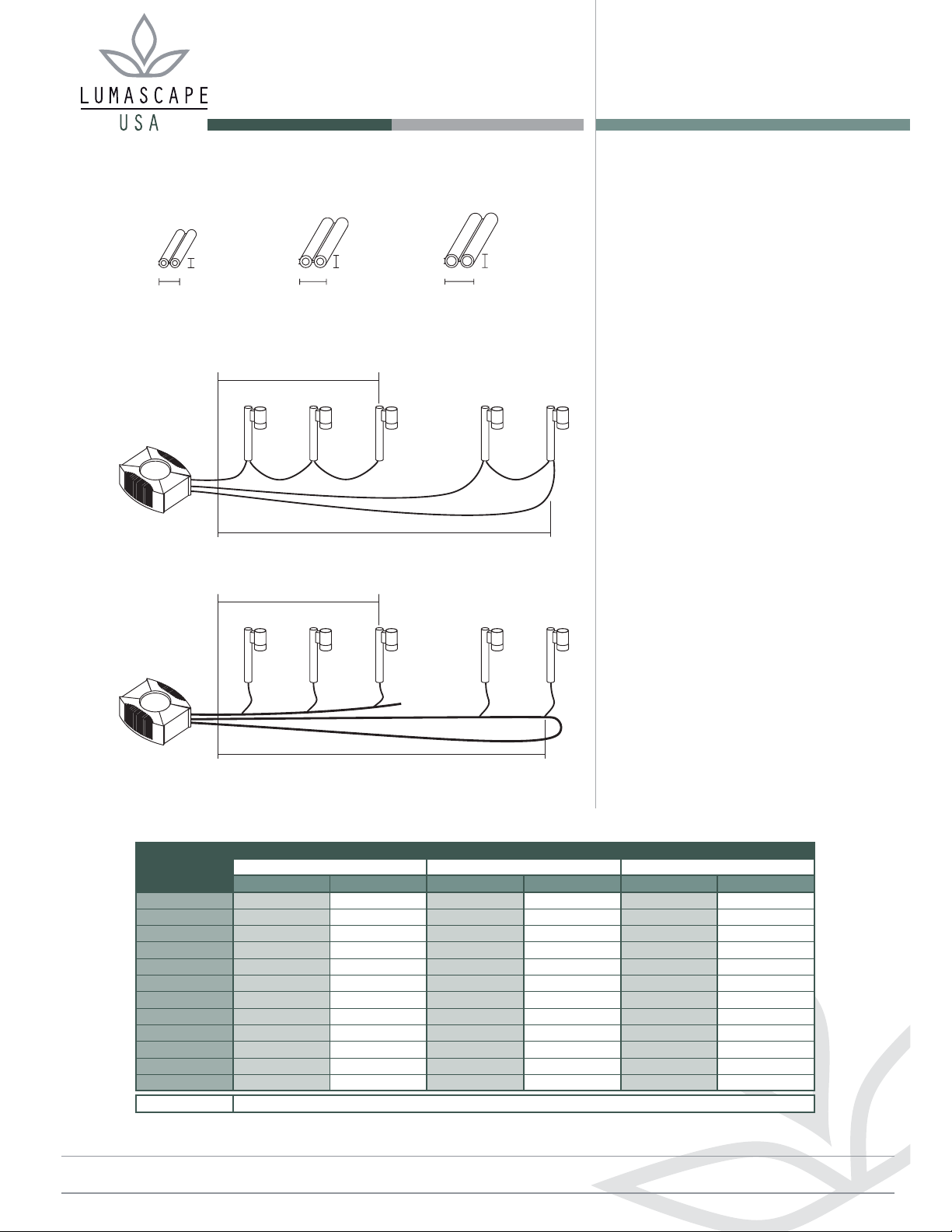

CABLE VOLTAGE DROP
Excessive voltage drop causes lamps to
have a low light output. The following
charts and illustrations apply only to
Lumascape supplied cable. The distance
and wattage shown are maximum and
should not be exceeded.
6mm2Figure 8 PVC Cable
LS604-6
9.5mm
4.2mm
3.3mm2Figure 8 PVC Cable
LS604
10mm2 Figure 8 PVC Cable
LS604-10
13.8mm
6.3mm
TABLE: VOLTAGE DROP
EXAMPLE 1
CABLES
EXAMPLE 2
20W
50m Circuit 3
168m Circuit 4
LS604-10 TRUNK CABLE
LS604 DROP CABLE
6m max
20W 20W 20W 20W
TRANSFORMER
12.5mm
5.4mm
EXAMPLE 2
Using trunk and drop cable only
This example shows the correct way to install
Lumascape luminaires using LS604-10
(10mm2) trunk cable. The total load on
Circuit 3 is 60W over 50 metres which is
shorter than the 54 metres allowed in the
Voltage Drop table. The load on Circuit 4 is
40W and using a doubled cable allows the
circuit to be up to 168 metres long.
EXAMPLE 1
Using drop cable only
This example shows the correct way to install
Lumascape light luminaires using LS604
(3.3mm2) drop cable. The total load on
Circuit 1 is 60W over 20 metres as allowed
in the Voltage Drop table. The load on Circuit
2 is 40W and by using a doubled cable this
circuit can be 60 metres.
