Lumberjack YTL-590-111 User manual


9 TON LOG SPLITTER




























INSTRUCTION MANUAL
ASSEMBLY AND OPERATING INSTRUCTIONS
This safety alert symbol identifies important safety messages in
this manual. Failure to understand and follow safety, assembly
and operating instructions could result in serious injury or death.
REV100821 LS0900


‐2‐

Table of Contents
Important Safety Information..................................................................................................... 3-5
Intended Use................................................................................................................3
Personal Protective Equipment........................................................................................ 3
General Safety.................................................................................................................. 4
Work Area.......................................................................................................................... 4
Preparing Logs for the Splitter............................................................................................ 4
Operation of the Log Splitter............................................................................................... 4
General Repair............................................................................................... 4
Maintenance Safety......................................................................................... 5
Fire Prevention.................................................................................................................... 5
Safe Transport..................................................................................................................... 5
Package Contents................................................................................................................. 6
Assembly Instructions................................................................................................................. 7-12
Controls and Features Identification…………………………………………………………………….13
Operating Instructions............................................................................................................. 14-16
Maintenance and Storage............................................................................................................. 17
Troubleshooting…………...........................................................................................................18-20
Specifications................................................................................................................................ 21
Drawing and Parts List.............................................................................................................. 22-24
Limited Warranty………….............................................................................................................. 25



























‐3‐

WARNING: Read and understand all instructions and safety information in this manual and on
safety decals before assembling and/or operating the log splitter. Failure to understand and follow
all instructions and safety information may result in serious injury or death. Persons who have not
read the manual should never operate the log splitter. A log splitter can be dangerous when
assembled and/or used improperly. Do not operate the log splitter if you have any questions
concerning safe operation. Please call the customer support department at 1-888-723-6534 for
answers to any questions regarding safe operation of the log splitter.
WARNING: This product can expose you to chemicals including lead and lead compounds which are
known to the State of California to cause cancer and birth defects or other reproductive harm. For
more information, go to www.P65Warnings.ca.gov
INTENDED USE
NEVER use the log splitter for any purpose besides splitting wood. The log splitter is designed only for splitting wood.
Using the log splitter for any other purpose can result in serious injury or death and may void the warranty.
PERSONAL PROTECTIVE EQUIPMENT
BEFORE operating the log splitter always be sure to put on appropriate safety gear, including eye protection
(goggles), steel-toed shoes and tight-fitting gloves (avoid loose cuffs and draw strings). Also, the use of proper hearing
protection (headphones) is required when operating the log splitter.
SAFETY DECALS
ALWAYS check that all safety warning decals are in good condition and readable. Immediately replace any missing or
damaged decals. Please call the customer support department at 1-888-723-6534 to obtain replacement decals.
DANGER
WARNING
CAUTION
IMPORTANT SAFETY INFORMATION
DANGER indicates a hazardous situation which, if
not avoided, will result in serious injury or death.
WARNING indicates a hazardous situation which, if
not avoided, could result in serious injury or death.
CAUTION indicates a hazardous situation which, if
not avoided, could result in minor or moderate injury.
NOTICE is used to address important information not
related to personal injury.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
NOTICE


‐4‐

GENERAL SAFETY
• ALWAYS keep the operator’s manual in the canister for reference. Review the manual periodically and whenever
questions arise.
• ALWAYS keep all bystanders and pets a minimum of 10 feet away from your work area when operating the log
splitter. Only the operator should be near the log splitter during use.
• NEVER activate the control valve until all people are clear of the work area.
• NEVER wear loose clothing or jewelry when operating the log splitter. Keep clothing and hair away from all moving
parts when operating the log splitter.
• NEVER allow adults without proper instruction and operational knowledge to use the log splitter.
• NEVER operate the log splitter when under the influence of drugs, alcohol or medication or when otherwise not
alert enough to operate the log splitter.
• DO NOT allow children to play on, stand upon, climb on or operate the log splitter at any time.
WORK AREA
• NEVER operate the log splitter on wet, icy, slippery or unstable ground.
• NEVER operate the log splitter in an enclosed area. Exhaust fumes
contain the deadly poison carbon monoxide.
• ONLY operate the log splitter with adequate lighting in the work area.
• ONLY operate the log splitter on level ground. Operating on a slope may
cause the log splitter to move and/or logs to
fall off the log splitter.
• ALWAYS keep the work area free of debris. Remove any split wood
around the log splitter immediately to avoid tripping.
PREPARING LOGS FOR THE SPLITTER
Before placing logs on the log splitter, log ends should be cut as squarely as possible. The square shape of the log
helps prevent the logs from moving during splitter operation. The maximum log length is 20 inches.
OPERATION OF THE LOG SPLITTER
• ONLY operate the log splitter from the operator zone as shown in the diagram. Operating the log splitter outside the
operator zone can result in serious injury or death.
• ALWAYS chock the wheels to prevent the log splitter from moving while operating the log splitter.
• ALWAYS know how to stop the log splitter and disengage the controls before operating the log splitter.
• NEVER attempt to split a log against the grain.
• NEVER attempt to split two logs at the same time.
• NEVER step over the log splitter during operation.
• NEVER reach or bend over the log splitter to pick up a log while splitter is in use.
• NEVER attempt to load the log splitter when the wedge is in motion.
• NEVER place hands or feet between the log and splitting wedge during forward or reverse stroke, as this could result
in serious injury or death.
• NEVER use your foot, a rope or any extension device to operate the control lever on the valve. Only use hands to
operate the control levers.
• NEVER touch the muffler and other hot areas of the engine. Allow time for the engine to cool down before touching.
• NEVER move the log splitter while the engine is running.
• NEVER leave the log splitter running unattended, even for a short period of time. Before leaving the log splitter
always turn off the engine.
GENERAL REPAIR
• NEVER operate the log splitter if it is in poor mechanical condition or needs repairs.
• NEVER alter/modify the log splitter as any alterations/modifications may make the log splitter unsafe and void the
warranty.
• NEVER perform any service or repair on the log splitter without first removing the spark plug wire.
• NEVER tamper with the engine settings. The maximum engine speed is preset by the manufacturer and conforms
with safety limits. Refer to the engine owner’s manual for the particular log splitter.
• ALWAYS perform all recommended maintenance procedures before using the log splitter.
• ALWAYS check the level of hydraulic oil and engine oil before operating the log splitter.
• NEVER attempt to remove stuck logs while the log splitter is running.
• ALWAYS replace all damaged or worn parts immediately with parts approved by the manufacturer.
• ALWAYS check regularly that all nuts, bolts, screws, hydraulic fittings and hose clamps are tight.
• ALWAYS be sure any and all replacement parts meet the manufacturer’s specifications.
IMPORTANT SAFETY INFORMATION


‐5‐

MAINTENANCE AND SAFETY
• The mechanical and hydraulic systems of the log splitter require careful inspection. Be sure to replace any damaged
hydraulic hoses or components immediately to ensure safe operation of the log splitter.
• NEVER check for leaking hydraulic fluid by using your hands. Leaking hydraulic fluid under pressure can potentially
penetrate the skin causing SERIOUS INJURY or even DEATH. Leaks can be safely detected by holding a piece of
cardboard over the suspected leak and looking for discoloration.
• NEVER remove the cap from the hydraulic tank while the log splitter is running. The tank contains hot oil under
pressure which could cause serious injury if released from the tank.
• NEVER adjust the relief valve setting on the log splitter. The pressure relief valve on the log splitter is preset by the
manufacturer. Only a qualified service technician should perform any adjustments.
• ALWAYS immediately seek medical attention if injured by escaping hydraulic fluid. Serious infections or reactions
can develop if proper medical treatment is not quickly administered.
• ALWAYS check the system is not under any pressure by shutting off the engine and moving the valve control handle
back and forth. Check for pressure before loosening or removing any hydraulic fitting.
• ALWAYS keep the beam and wedge free of debris buildup.
FIRE PREVENTION
• ONLY refuel the log splitter in clear areas with no gas fumes and no spilled gas.
• NEVER operate the log splitter near flames, sparks or smoke. Hydraulic oil and gasoline are flammable and
potentially explosive.
• NEVER add fuel to the log splitter while the engine is hot or running. Allow the engine to cool completely before
refueling.
• If gasoline spills, move the log splitter away from the area of the spill and avoid creating any source of ignition.
• ALWAYS securely replace the gas cap.
• ALWAYS clean wood debris from the muffler area of the engine.
• ALWAYS store gasoline in an appropriate, tightly sealed container. Store the gas container in a cool, dry place and
away from any heat sources.
IMPORTANT NOTE: SPARK ARRESTOR-REGULATION:
As a precautionary measure against possible flying sparks, always have a Class B fire extinguisher on hand when
operating the log splitter in dry areas. The log splitter is equipped with an internal combustion engine that generates
heat and potential flying sparks. Only use the log splitter on or near any unimproved, forest-covered, brush-covered or
grass-covered land if the engine’s exhaust system is equipped with a spark arrester in compliance with any applicable
local or state laws. Spark arresters should be effectively maintained and serviced. In the state of California, a spark
arrester is required by law and other states have similar laws. Federal laws will apply when operating the log splitter
on federal land. Always research and comply with applicable state, local and federal laws and regulations. A spark
arrester muffler is optional and available as an accessory at your nearest engine dealer.
SAFE TRANSPORT
• NEVER tow the log splitter behind a vehicle as the wheels and log splitter orientation are incompatible with towing.
Attempting to tow the log splitter may damage or destroy the wheels or other parts of the log splitter.
• To safely transport the log splitter secure it on top of a trailer or other transporting vehicle.
• NEVER move the log splitter over hilly or uneven terrain without the proper vehicle and adequate help for safe
movement.
• NEVER exceed the weight capacity of hitch or load limits of the transporting vehicle.
• ALWAYS use caution when transporting the log splitter and check carefully that the log splitter is securely attached
to the transporting vehicle.
• ALWAYS confirm hitch accessory tightness before and after transporting the log splitter.
• ALWAYS disconnect the log splitter from the carrying vehicle before operating.
• ALWAYS check for and replace a damaged hitch.
• ALWAYS turn the fuel shut off valve on the engine to the “OFF” position before transporting the log splitter. Failure
to turn off the engine before transport can flood the engine and damage the engine.
IMPORTANT SAFETY INFORMATION


‐6‐

PACKAGE CONTENTS


‐7‐

TOOLS REQUIRED
 Screw Driver
 Hammer
 Band Cutter
 13mm, 17mm and 24mm Wrenches
 Large Adjustable Wrench
STEP 1: Attach the Wheel Stand Assembly to the Beam Assembly
1.1 Remove the valve handle fix pin from the valve, then reinstall the pin with the handle in a vertical
position.
1.2 Attach the wheel stand assembly (#21) to the beam assembly using the hex bolts M10x65 (#46), large
flat washers Ø10 (#47), flat washers Ø10 (#26) and the lock nut M10 (#29).
STEP 2: Attach the Wheels
2.1 First remove the O lock ring (#45) and the flat washer Ø16 (#20), then attach the wheel (#1) to the
wheel stand (#21) using the flat washer Ø16 (#20) and the O lock ring (#45). Repeat the same
process on other side to attach the second wheel.
Note: The protruding part is on the inside of the wheel.
A
SSEMBLY INSTRUCTIONS


‐8‐


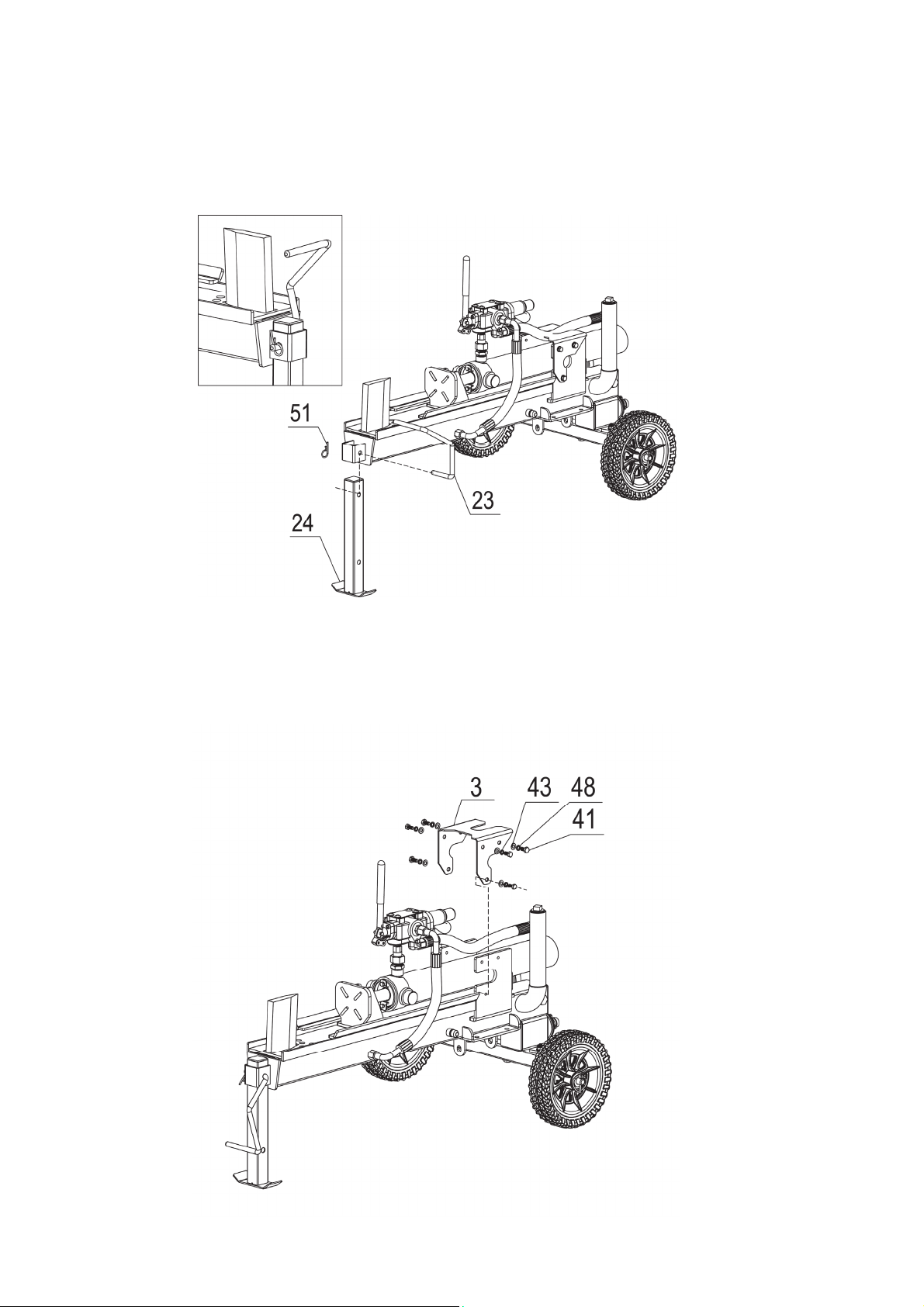

STEP 3: Attach the Support Leg
3.1 Attach the support leg (#24) to the square tube on the beam assembly, then insert the handle (#23)
into the hole in the direction shown in the figure. Finally, insert the R pin (#51) from the bottom up into
the hole to secure the leg.
STEP 4: Remove the Cylinder Cover
4.1 Remove the cylinder cover (#3) from the beam assembly. Do NOT discard the hex bolt M8x16 (#41),
the lock washer Ø8 (#48) or the flat washer Ø8 (#43).


‐9‐


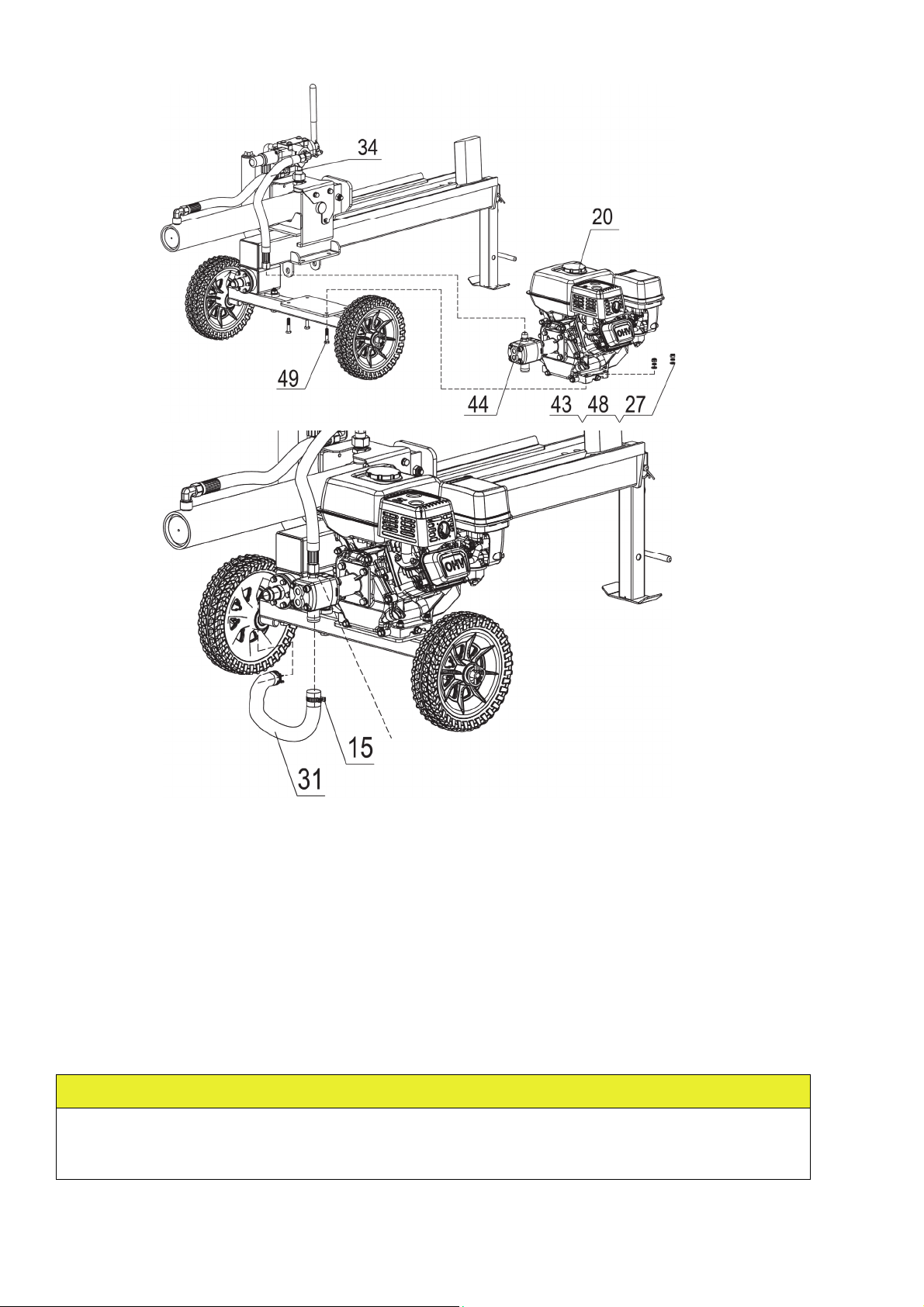

STEP 5: Attach the Cylinder Cover and the Hydraulic Hose
5.1 Pull the cylinder assembly back until the two mounting ears on the cylinder snap into the groove, then
re-install the cylinder cover (#3) into its’ original position and tighten it with the hex bolt M8x16 (#41),
the lock washer Ø8 (#48) and the flat washer Ø8 (#43).
5.2 Remove the plug from the hydraulic hose, then install the hydraulic hose (#32) onto the beam. To
properly attach the hose, screw in a few teeth by hand into the correct location then tighten it with a
wrench.
A small amount of oil may leak from the hoses when the plugs are removed. To prevent oil
from dripping on the ground, use a small pail to catch any oil and put down cardboard.
STEP 6: Attach the Engine to the Mounting Plate
6.1 Attach the engine (#20) to the mounting plate using the hex bolt M8x40 (#49), the flat washer Ø8
(#43), the lock washer Ø8 (#48) and the lock nut M8 (#27).
6.2 Remove the plugs from the hydraulic hose and the gear pump connector. Attach the hydraulic hose
(#34) to the connector of the gear pump (#44). When attaching the hose hand screw in a few teeth
then tighten it with a wrench.
6.3 Remove the plug from the gear pump connector, then attach one side of the clear oil pipe (#31) to the
connector of the gear pump (#44). Remove the film bag from the opening of the oil filter mounting
plate, then attach the other side of the clear oil pipe to the opening of the oil filter mounting plate.
Secure the clear oil pipe with the clamp (#15).


‐10‐

STEP 7: Add Engine Oil
7.1 Make sure the log splitter is on a flat, level surface.
7.2 Remove the oil fill cap/dipstick before adding the engine oil.
7.3 Refer to the separate owner’s engine manual to determine the amount of SAE10W-30 engine oil
needed; add the correct amount of engine oil and replace the oil fill cap/dipstick.
7.4 Check the engine oil level daily and add more engine oil to maintain proper levels as needed.
NOTE: During the break-in period, engine may use oil quickly so check the engine oil level often.
CAUTION
DO NOT attempt to crank or start the engine before properly filling with the recommended type
and amount of engine oil. Failure to follow instructions regarding engine oil may damage or
destroy the log splitter and will void the log splitter’s warranty.


‐11‐

STEP 8: Add Gasoline to the Engine
8.1 Use only clean, fresh, regular unleaded gasoline with a minimum 87 octane rating.
8.2 DO NOT mix oil with gasoline.
8.3 Remove the fuel cap and slowly add gasoline to the tank. DO NOT overfill the tank and always allow
approximately ¼ inch of space for fuel expansion.
8.4 Screw on the fuel cap and wipe away any spilled gasoline.
DANGER
Log splitter engine exhaust contains carbon monoxide, a colorless, odorless, poison gas.
Breathing carbon monoxide will cause nausea, dizziness, fainting or death. If you start to feel
dizzy or weak, get to fresh air immediately.
Only operate the log splitter outdoors and in a well-ventilated area.
DO NOT operate the log splitter inside any building, enclosure or compartment.
DO NOT allow exhaust fumes to enter a confined area through windows, doors, vents or other
openings.
DANGER CARBON MONOXIDE, using a log splitter indoors CAN KILL YOU IN MINUTES.
CAUTION
Fuel and fuel vapors are highly flammable and extremely explosive.
Gasoline fires and explosions may cause severe burns, bodily injury or death.
Unintentional startup may result in entanglement, traumatic amputation or laceration.
Only use regular unleaded gasoline with a minimum 87 octane rating.
DO NOT mix oil and gasoline together.
Fill tank approximately ¼” below the top of the tank to allow for fuel expansion.
DO NOT fill fuel tank indoors or when the engine is running or hot.
DO NOT light cigarettes or smoke when filling the fuel tank or operating the log splitter.
STEP 9: Add the Hydraulic Oil
9.1 The log splitter needs to be on a flat, level surface before adding the hydraulic oil.
9.2 Remove the oil bolt (#20) from the oil filler.
9.3 Add 5L of hydraulic oil. AW32, AW46 and universal hydraulic oil are all acceptable types of
hydraulic oil for the log splitter. Automatic transmission fluid should be used when
operating in temperatures below 32 degrees (all units are tested and have excess oil in
the ram).
9.4 Check the hydraulic oil level.
9.5 After adding the hydraulic oil, there will be some gas in the clear oil pipe that cannot be discharged. It
is necessary to tilt the beam to exhaust the gas in the clear oil pipe. Tilt the beam several times, then
the gas in the clear oil pipe should be exhausted.
9.6 Start the engine and use the control lever to extend and retract the wedge several times to remove air
from the lines.
9.7 With the wedge retracted, check the hydraulic oil level again and add additional hydraulic oil if
necessary.


‐12‐

WARNING
DO NOT remove the hydraulic oil fill cap when the engine is running or hot. Hot oil can escape
and cause severe burns. Always allow the log splitter to cool completely before removing the
hydraulic oil cap.
High fluid pressure and very hot temperatures are created in the hydraulic log splitters. Hydraulic
fluid can escape through a pin-size hole opening, producing enough force to puncture skin and
cause severe blood poisoning.
Inspect the hydraulic system regularly for possible leaks. Never check for leaks with your
hand while the system is pressurized. Seek medical attention immediately if injured by
escaping hydraulic fluid.
Make sure all fittings are tight and secure before applying pressure. Release all system pressure
before servicing the log splitter.
Make sure the hydraulic hoses do not touch any hot surfaces or cutting areas.
Hoses need to be positioned where they are clear from the engine and the cutting wedge. To
avoid serious bodily injury always inspect the hoses before operating the log splitter.
STEP 10: Attach the Hitch Accessory
10.1 Attach the hitch accessory (#1) to the log
splitter using the hex bolt M10x25 (#2), lock
washer Ø10 (#7) and flat washer Ø10 (#6).
Repeat the process for each of the four
holes on the plate to attach the hitch
accessory. Secure the bolts, but do not
firmly tighten them.
10.2 Put a thick washer Ø12 (#4) on the hex bolt
M12x140 (#3), then put the bolt through the
beam mounting ears and the hitch
accessory. Next, put another thick washer
Ø12 (#4) on the inserted hex bolt M12x140
(#3) and secure it with a hex lock nut M12
(#5).


‐13‐

The diagram below identifies the major components and features of the log splitter described in this
manual.



















1. Control Valve Handle
2. Engine
3. Cylinder Component
4. Gear Pump
5. Clear Oil Pipe
6. Oil Window
7. Wheel
8. Oil Filler
9. Hitch Accessory
10. Support Leg
11. Handle
12. Wedge
13. Push Plate Component
14. Oil Return Hydraulic Hose
15. Oil Inlet Hydraulic Hose
CONTROLS AND FEATURES IDENTIFICATION


‐14‐

WARNING
Read and understand all instructions and safety information in this manual and on safety
decals before assembling or operating the log splitter. Failure to understand instructions
and safety information could result in serious injury or death. Do not allow anyone to
operate the log splitter who has not read this manual. A log splitter can be dangerous if
assembled or used improperly. Do not operate this log splitter if you have any questions
concerning safe operation. Call our customer support department at 1-888-723-6534 for
answers to any questions.
WARNING
ALWAYS use the log splitter for its intended use.
ONLY use the log splitter to split wood logs, length wise with the grain.
NEVER modify, alter or change the log splitter in any way. (Modifications will void the warranty.)
NEVER attach a rope, cable or any other device to the control lever on the log splitter.
ONLY operate the log splitter in daylight/adequate lighting.
NEVER leave the log splitter unattended while the engine is running.
NEVER change the splitting position when the engine is running.
NEVER touch the muffler during or immediately after using the log splitter. The muffler becomes
very hot and can cause serious burns.
ALWAYS make sure the beam is in the locked position.
DO NOT let the beam drop as it may crush fingers or other body parts and/or cause damage to the
log splitter.
NEVER operate or allow anyone else to operate the log splitter while under the influence of
alcohol, drugs, or medication.
USING THE LOG SPLITTER
1. NEVER use the log splitter to carry passengers; never sit upon or stand on the log splitter.
2. Before using the log splitter, check the hydraulic oil level and visually inspect all the hoses and
attachments for potential problems.
3. Inspect the engine and check that the engine oil level is correct.
4. Before transporting the log splitter, the hitch accessory must be firmly secured.
TIRE WARNING
DO NOT use the log splitter if the tires are severely worn and need to be replaced.
Tires are NOT compatible with towing.
5. Refer to the vehicle owner’s manual for proper safety and transport instructions.
TRANSPORT WARNING
Serious injury or death can occur if transportation safety rules are not followed.
Always secure and lock the log splitter to the transporting vehicle before moving.
Drive safely when transporting the log splitter. Be aware of the added length of the log splitter.
Never exceed the maximum travel speed of 10 mph.
Never ride upon or transport any cargo on the log splitter.
Turn off the transporting vehicle before leaving the log splitter unattended.
Block the log splitter wheels to prevent unintended movement during transport.
OPERATING INSTRUCTIONS


‐15‐

6. The log splitter must have at least seven feet of clearance from combustible material. For safe
operation the log splitter must be on a dry and level surface with stable footing. Do not use the log
splitter on mud, ice, brush or snow. Always maintain a clear, dry work zone when using the log splitter
as failure to do so at all times may result in serious bodily injury or death.
NOTE: Serious accidents can happen when other people are allowed inside the work zone. Only the
operator should be inside the work zone while operating the control lever.
7. Always wear proper safety gear, including eye protection, gloves and work boots when operating
the log splitter
8. Start the engine and make sure the log splitter is on level ground before operating.
NOTE: The hydraulic oil needs to be above 10°F (-12C°) before starting the engine. Cold hydraulic
oil can damage the hydraulic pump. If the outdoor air temperature is below 32°F (0C°), before
splitting wood allow the log splitter to warm up by extending and returning the wedge several times.
9. To prevent the log splitter from moving during operation, put the support leg in the down position
and block both tires.
10. Set the log splitter in the horizontal position.
NOTE: HORIZONTAL position is used for lighter logs that can easily be loaded onto the beam.
Back injury can result from lifting logs onto the log splitter if proper lifting techniques are not used.
11. Load a log onto the beam and up against the endplate (Max Log Length-20”)


‐16‐

12. Keep hands clear from the wedge and crush hazard areas.
CRUSH WARNING
The wedge can cut through skin, break bones and cause serious bodily injury. Keep both hands
away from the wedge and beam slide.
Serious accidents can happen when other people are allowed inside the work zone. Keep
everyone besides the operator out of the work zone while operating the control lever.
DO NOT wear loose clothing that can get tangled in the moving parts of the log splitter.
Only use the log splitter in daylight/with adequate lighting so you can see and safely operate the
log splitter.
13. Push the control lever FORWARD with one hand to split the log.
14. Pull the control lever BACKWARD with one hand to return the wedge to its’ original position.
CAUTION
If a log gets stuck or will not split completely, push the control lever in the reverse direction and
allow the splitter to strip the log from the wedge.
If a log remains stuck after trying the method above, turn the log splitter completely off and
carefully use a sledge hammer and crow bar to remove the log.
ALWAYS keep hands clear of the log and wedge when the log splitter is retracting.
15. Always keep the work zone clean and free of split wood and debris.


‐17‐

CAUTION
Improper maintenance and storage of the log splitter may void your warranty.
MAINTENANCE
1. Before performing maintenance, the log splitter must be placed in maintenance mode. Turn off the engine
and move the control lever forward and backwards to release any hydraulic pressure.
2. After performing any maintenance, make sure all guards, shields and safety features are put back in
place before operating the log splitter.
3. Regularly (and as needed) grease the axle and wheel bearing area.
4. After greasing the wheel bearings, make sure the axle nuts and pins are in place and secure.
5. Periodically check all fasteners and hoses for tightness and leaks.
6. Annually (and as needed) clean and lightly lubricate all moving parts of the log splitter.
7. Use a glossy enamel spray paint to touch up any scratched/worn painted metal surfaces.
8. Never exceed the load capacity rating of 9 tons as doing so will damage the log splitter.
What When How
Hoses Each Use Inspect hoses for exposed wire mesh and leaks.
Replace all worn or damaged hoses before starting
the engine.
Hydraulic Fittings Each Use Inspect fittings for cracks and leaks. Replace all
damaged fittings before starting the engine.
Nuts and Bolts Each Use Check for any loose nuts and bolts; tighten before
operating the log splitte
r
.
Beam Each Use
A
pply grease to the beam surface.
Moving Parts Each Use Clear and debris from all moving parts before using
the log splitter.
Refer to the Engine Owner’s Manual for engine maintenance.
IMPORTANT:
If a part needs replacement, only use parts that meet the manufacturer’s specifications. Using replacement
parts that do not meet manufacturer’s specifications can create safety hazards, poor machine operation
and damage to the log splitter.
STORAGE
1. Before storing the log splitter make sure the machine is clean and dry.
2. Lightly lubricate all the log splitter’s surfaces and moving parts to prevent rust.
3. Always store the log splitter indoors or in a protected area, especially during severe weather and cold
winter months.
Maintenance and Storage


‐18‐

WARNING: Before attempting troubleshooting or to service the log splitter, read and follow all safety
instructions to avoid serious injury to the operator or bystanders from moving parts that can crush, cut, burn
or release high pressure hydraulic fluid.
Problem Cause Remedy
Slow cylinder shaft
speed while
extending
and retracting
1. Gear sections damaged.
2. Excessive pump inlet
vacuum.
3. Slow engine speed.
4. Damaged relief valve.
5. Incorrect oil level.
6. Contaminated oil.
7. Directional valve leaking
internally.
8. Internally damaged cylinder.
1. See an authorized service
dealer.
2. Check that pump inlet hoses
are clear and unblocked. Use
only short, large diameter inlet
hoses.
3. See an authorized service
dealer.
4. See an authorized service
dealer.
5. Check the oil level and fill to
correct level.
6. Drain oil, clean the reservoir,
and refill with clean oil.
7. See an authorized service
dealer.
8. See an authorized service
dealer.
Leaking Cylinder 1. Broken seals.
2. Scored cylinder.
1. See an authorized service
dealer.
2. See an authorized service
dealer.
Engine runs, but
wood
will not split or
wood
splits too slowly
1. Small gear section
damaged.
2. Pump check valve leaking.
3. Excessive pump inlet
vacuum.
4. Incorrect oil level.
5. Contaminated oil.
6. Directional valve leaking
internally.
7. Overloaded cylinder.
8. Internally damaged cylinder.
1. See an authorized service
dealer.
2. See an authorized service
dealer.
3. Check that pump inlet hoses
are clear and unblocked.
4. Check the oil level and fill to
correct level.
5. Drain oil, clean the reservoir,
and refill with clean oil.
6. See an authorized service
dealer.
7. Do not attempt to split wood
against the grain.
8. See an authorized service
dealer.
TROUBLESHOOTING


‐19‐

Problem Cause Remedy
Engine stalls during
splitting
1. Low horsepower/weak
engine.
2. Overloaded cylinder.
1. See an authorized service
dealer.
2. Do not attempt to split wood
against the grain; see
authorized service dealer.
Engine will not turn
or stalls under low
load
conditions
1. Engine/pump misalignment.
2. Frozen or seized pump.
3. Low horsepower/weak
engine.
4. Hydraulic lines blocked.
5. Blocked directional valve.
1. Correct alignment as
necessary.
2. See an authorized service
dealer.
3. See an authorized service
dealer.
4. Flush and clean the hydraulic
system.
5. Flush and clean the hydraulic
system.
Leaking pump shaft
seal
1. Broken drive shaft.
2. Engine/pump misalignment.
3. Gear sections damaged.
4. Poorly positioned shaft seal.
5. Plugged oil breather.
1. See an authorized service
dealer.
2. Correct alignment of the
engine and/or pump.
3. See an authorized service
dealer.
4. See an authorized service
dealer.
5. Check that reservoir is
properly vented.
Engine fails to start 1. Spark plug wire is
disconnected.
2. Fuel tank is empty or fuel is
stake.
3. Choke, if equipped, not in
CHOKE position.
4. Faulty spark plug.
5. Blocked fuel line.
6. If engine is equipped with a
primer, engine is not primed
properly.
7. Throttle control lever is not in
the correct starting position.
1. Connect wire to the spark
plug.
2. Fill the tank with clean, fresh
gasoline.
3. Move the choke to CHOKE
position.
4. Clean, adjust the gap, or
replace the spark plug.
5. Clean the fuel line.
6. Properly prime the engine.
7. Move the throttle lever to the
FAST position.
TROUBLESHOOTING


‐20‐

Problem Cause Remedy
Engine runs
erratically
1. Unit running with CHOKE
applied.
2. Spark plug wire is loose.
3. Blocked fuel line or stale
fuel.
4. Water or dirt in the fuel
system.
5. Dirty air cleaner.
6. Carburetor not adjusted
properly.
1. Move the choke lever to OFF
position.
2. Connect and tighten the spark
plug wire.
3. Clean the fuel line; fill tank
with clean, fresh (less than 30
days old) gasoline.
4. Drain the fuel tank. Refill the
tank with clean, fresh fuel.
5. Clean or replace the air
cleaner.
6. See an authorized service
dealer.
Engine Overheats 1. Engine oil level low.
2. Dirty air cleaner.
3. Carburetor not adjusted
properly.
1. Fill crankcase with proper
amount of oil.
2. Clean or replace the air
cleaner.
3. See an authorized service
dealer.
Cylinder rod
stuck/will not
move
1. Broken drive shaft.
2. Screws in coupling not
adjusted properly.
3. Loose shaft coupling.
4. Gear sections are damaged.
5. Damaged relief valve.
6. Hydraulic lines are blocked.
7. Incorrect oil level.
8. Damaged directional valve.
9. Blocked directional valve.
1. See an authorized service
dealer.
2. See the operator’s manual for
correct adjustment
instructions.
3. Correct the engine and pump
alignment as necessary.
4. See an authorized service
dealer.
5. See an authorized service
dealer.
6. Flush and clean the hydraulic
system.
7. Check oil level and fill to
correct level.
8. See an authorized service
dealer.
9. Flush and clean the hydraulic
s
y
stem.
For further technical support please contact:
YTL International Inc.
17517 Fabrica Way Suite H
Cerritos, CA 90703
Phone: [phone]
Phone: [phone]
Fax: [phone]
Email: [email protected]
Website: www.ytlinternational.com
Log Splitter Parts and Service:
Toll Free [phone]
TROUBLESHOOTING
